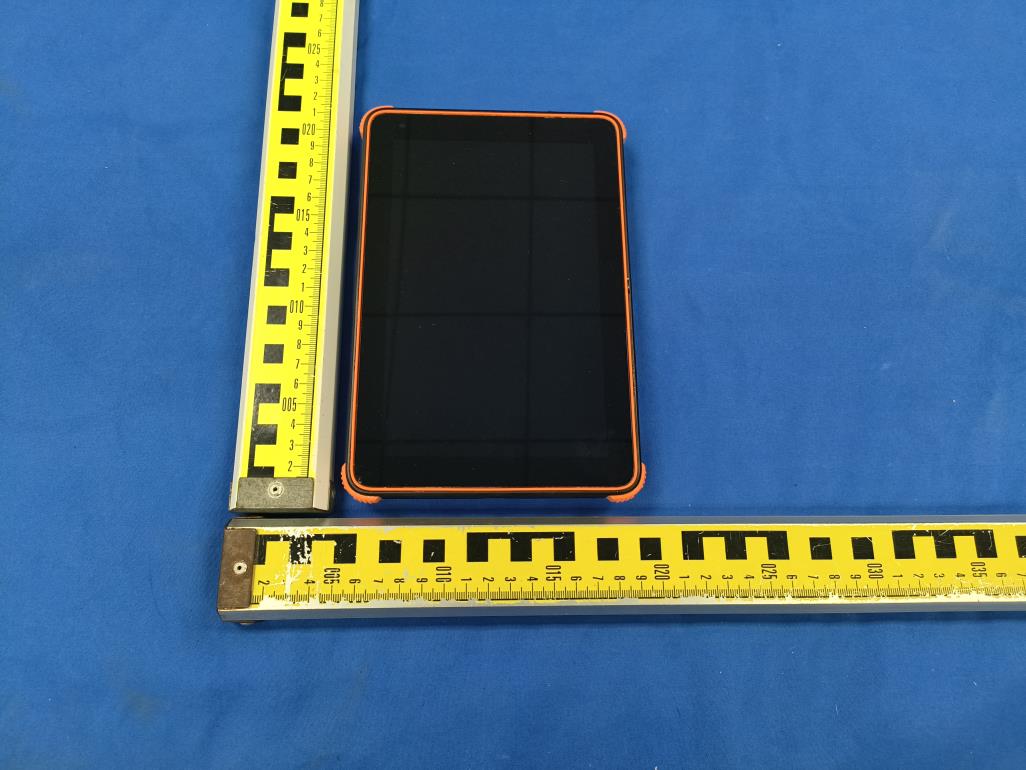

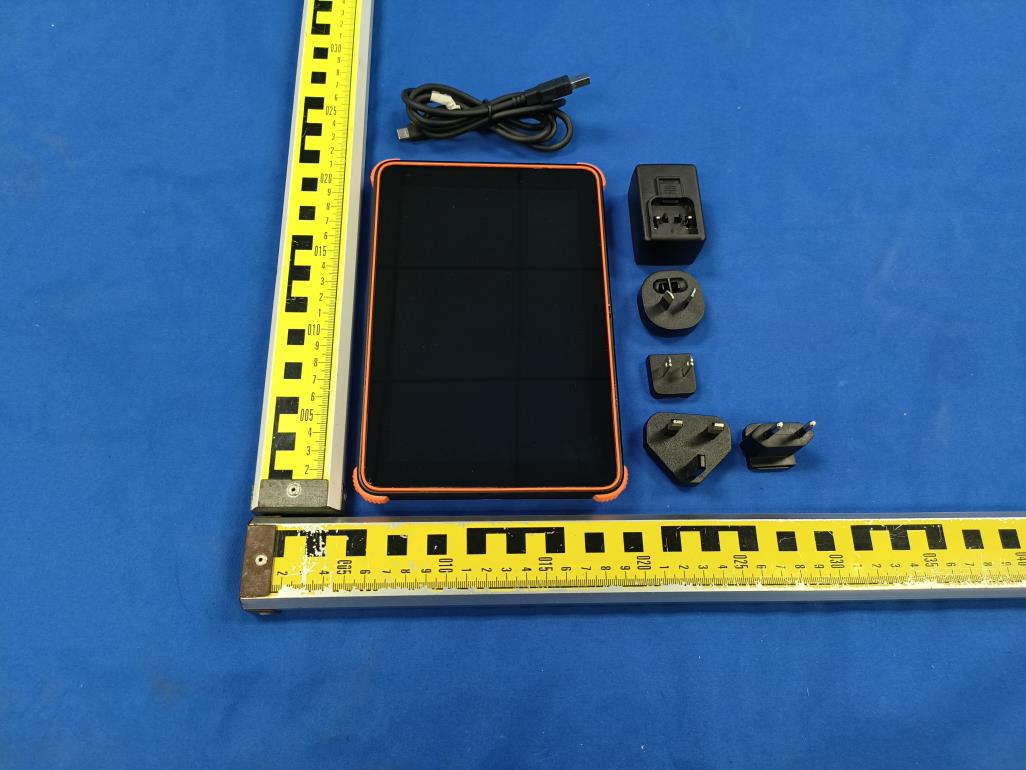

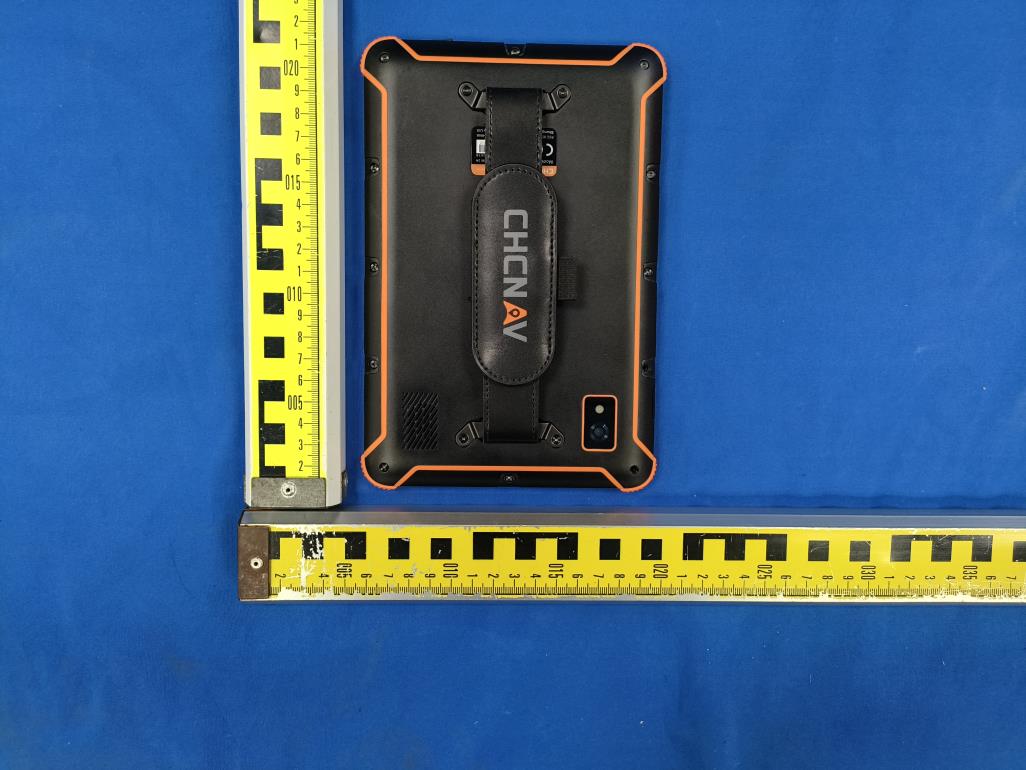

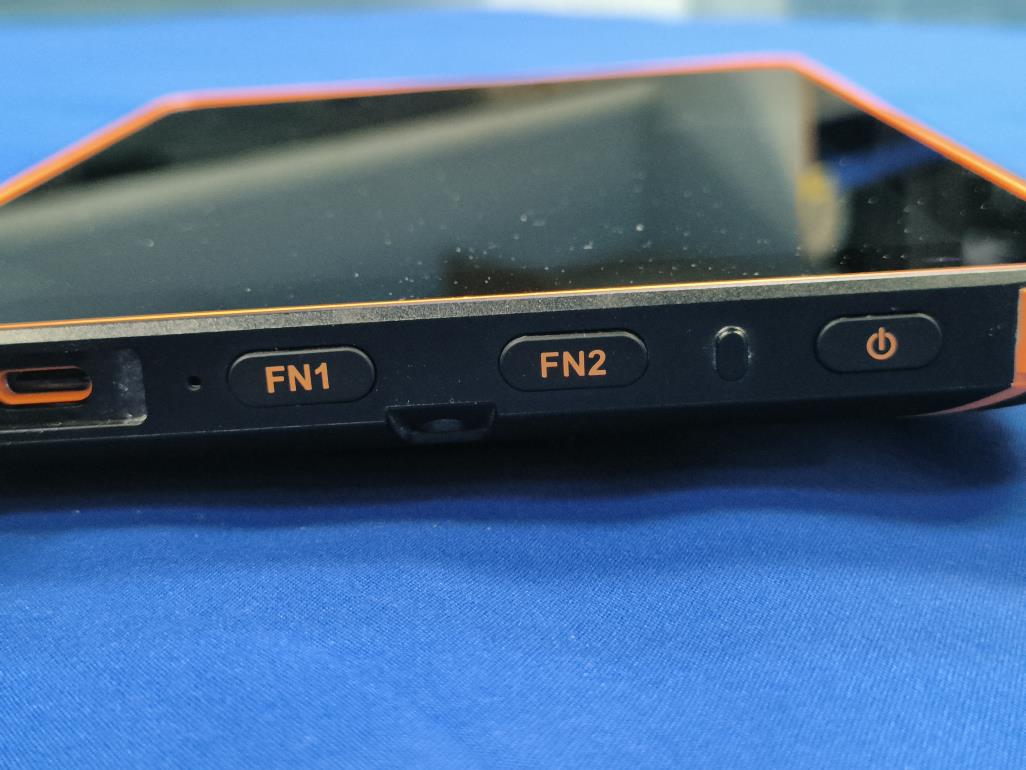

SY4-B01022GNSS Data Collector

CHCNAV TC100 USER MANUAL Survey & Engineering|Sep 2025 CONTENTS 1 Introduction................................................................................................................. 1 1.1 Technical Assistance ......................................................................................... 1 1.2 Your Comments ................................................................................................ 1 1.3 Safety Information............................................................................................ 1 1.4 Warning and Cautions ...................................................................................... 1 1.5 Use and Care .................................................................................................... 2 1.6 FCC Interference Statement ............................................................................. 2 1.7 CE Interference Statement ............................................................................... 2 2 Overview ..................................................................................................................... 3 2.1 Features ............................................................................................................ 3 2.2 Specifications .................................................................................................... 3 2.3 Front View ........................................................................................................ 6 2.4 Back View ......................................................................................................... 7 2.5 Side ................................................................................................................... 7 2.6 Installation ........................................................................................................ 8 3 Basic Operation ........................................................................................................... 9 3.1 Insert SIM Card and power on .......................................................................... 9 3.2 Language & input ........................................................................................... 10 3.3 Set Date & Time.............................................................................................. 11 3.4 Display ............................................................................................................ 12 3.5 WIFI ................................................................................................................ 13 3.6 Bluetooth ........................................................................................................ 15 3.7 USB Connection .............................................................................................. 16 3.8 Use Camera .................................................................................................... 16 3.9 Login 4G .......................................................................................................... 18 3.10 Location ........................................................................................................ 19 3.11 Check the IMEI Number of the Device ......................................................... 19 3.12 Restore Factory Setting ................................................................................ 20 4 The Operation System ............................................................................................... 21 CHCNAV TC100 USER GUIDE |2025-09 P a g e | 1 1 Introduction Thank you for choosing CHCNAV TC100 GNSS Data Controller. This Getting Started Guide will provide useful information about your controller. It will also guide you through your first steps of using TC100 in the field. 1.1 Technical Assistance If you have a problem and cannot find the information you need in the product documentation, contact your local dealer from which you purchased the TC100. Alternatively, please request technical support using the Website (www.chcnav.com) or technical support email ([email protected]). 1.2 Your Comments Your feedback about this Getting Started Guide will help us to improve it in a future revision. Please e-mail your comments to [email protected]. 1.3 Safety Information This manual describes CHC TC100 GNSS Data Controller. Before using the TC100, please make sure that you have read and understood this Getting Started Guide, as well as the safety requirements. 1.4 Warning and Cautions A Warning or Caution information is intended to minimize the risk of personal injury and/or damage to the equipment. WARNING - A Warning alerts you to a potential misused or wrong setting of the equipment. CAUTION - A Caution alerts you to a possible risk of serious injury to your person and/or damage to the equipment. CHCNAV TC100 USER GUIDE |2025-09 P a g e | 2 1.5 Use and Care CHCNAV TC100 is a high-performance smart handheld terminal developed by CHC Navigation. Therefore, the TC100 should be treated with reasonable care. 1.6 FCC Interference Statement This equipment has been designed to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules in the Portable Mode. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. An absence of specific alerts does not mean that there are no safety risks involved. 1.7 CE Interference Statement Declaration of Conformity: Hereby, CHC Navigation declares that this TC100 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the Declaration of conformity can be found at CHC Navigation. CHCNAV TC100 USER GUIDE |2025-09 P a g e | 3 2 Overview…

Text truncated - open the document above for the full version.

FCCID: SY4-B01022 Radiated Emission FCCID: SY4-B01022 Conducted emission RF conduction FCCID: SY4-B01022 DFS Test

SAR Setup photos for FCC ID: SY4-B01022 Body Back side(separation distance is 0mm) Body Top side(separation distance is 0mm) Body Right side(separation distance is 0mm) Body Left side(separation distance is 0mm) Body Bottom side(separation distance is 0mm)

I. Overview of the Entire Machine II. Passive Debugging Data and Waveforms FreqEffiEffiGainFreqEffiEffiGainFreqEffiEffiGain (MHz)(%)(dB)(dBi)(MHz)(%)(dB)(dBi)(MHz)(%)(dB)(dBi) 156064.3-1.92.9240038.9-4.10.5515040.7-3.91.0 156561.3-2.12.8241037.4-4.30.0525041.6-3.81.6 157058.8-2.32.5242042.0-3.80.5535042.6-3.71.7 157556.5-2.52.4243043.5-3.60.5545042.6-3.71.0 158054.8-2.62.1244043.6-3.60.5555040.4-3.91.4 158553.3-2.72.0245041.7-3.80.3565038.3-4.21.0 159051.6-2.91.8246042.6-3.70.4575042.7-3.72.8 159549.3-3.11.5247042.6-3.70.4585046.2-3.40.8 160049.5-3.11.6248042.0-3.80.6 249040.0-4.00.9 250040.8-3.90.8 1575MHZ5500MHZ 2450MHZ Passive Test For Three-in-One Antenna GPS WiFi Antenna: V04 1、Antenna manufacturer: SHEN ZHEN Be Comfortable C0., LTD. Address: No. 1603, Comprehensive Building, Building C6, Hengfeng Industrial City, No. 739 Zhoushi Road, Hezhou Community, Hangcheng Street, Bao'an District, Shenzhen City 2、Antenna Type: FPC antenna 3、Antenna version: Main antenna: V04 Diversity antenna: V04 3D radiation pattern

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 400-8300-895 Website: http://www.a-lab.cn FCC TEST REPORT FCC ID: SY4-B01022 On Behalf of Shanghai Huace Navigation Technology Ltd. GNSS Data Collector Model No.: TC100 Prepared for : Shanghai Huace Navigation Technology Ltd. Address : 577 Songying Road, Qingpu District, 201706 Shanghai, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2510115-C09-R05 Date of Receipt : November 7, 2025 Date of Test : November 7, 2025 – January 7, 2026 Date of Report : January 9, 2026 Version Number : V0 Result Pass Page 2 of 27 Report No.: A2510115-C09-R05 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ----------------------------------------------------------------------------5 1.1. Description of Device (EUT) ----------------------------------------------------------------------5 1.2. Accessories of Device (EUT) ---------------------------------------------------------------------6 1.3. Tested Supporting System Details --------------------------------------------------------------6 1.4.Block Diagram of connection between EUT and simulators ------------------------------6 2. SUMMARY OF MEASUREMENT --------------------------------------------------------------------7 3.1. Summary of test result -----------------------------------------------------------------------------7 3.2. Equipment Type -------------------------------------------------------------------------------------8 3.3. Channel list -------------------------------------------------------------------------------------------8 3.4. Test Conditions and channel ------------------------------------------------------------------- 10 3.5. Measurement Uncertainty (95% confidence levels, k=2) ------------------------------- 10 3. EMC EQUIPMENT LIST ------------------------------------------------------------------------------ 11 4. DFS PARAMETERS ----------------------------------------------------------------------------------- 13 4.1. DFS Parameters ----------------------------------------------------------------------------------- 13 4.2. DFS –Test Results -------------------------------------------------------------------------------- 19 5. Setup Photo --------------------------------------------------------------------------------------------- 27 Page 3 of 27 Report No.: A2510115-C09-R05 TEST REPORT DECLARATION Applicant : Shanghai Huace Navigation Technology Ltd. Address : 577 Songying Road, Qingpu District, 201706 Shanghai, China Manufacturer : Shanghai Huace Navigation Technology Ltd. Address : 577 Songying Road, Qingpu District, 201706 Shanghai, China EUT Description : GNSS Data Collector (A) Model No. : TC100 (B) Trademark : Measurement Standard Used: FCC Part 15 Subpart E, FCC KDB 905462 D02 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC limits. The test results are contained in this test report and Shenzhen Alpha Product Testing Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. After the test, our opinion is that EUT compliance with the requirement of the above standards. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen Alpha Product Testing Co., Ltd. Tested by (name + signature).............: Yannis Wen Project Engineer Approved by (name + signature).......: Jack Xu Project Manager Date of issue.............................: January 9, 2026 Page 4 of 27 Report No.: A2510115-C09-R05 Revision History Revision Issue Date Revisions Revised By V0 January 9, 2026 Initial released Issue Yannis Wen Page 5 of 27 Report No.: A2510115-C09-R05 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT Name : GNSS Data Collector Model No. : TC100 DIFF. : N/A Power supply : DC 5V from adapter and DC 3.8V from battery Radio Technology : 5G WIFI Operation Frequency : 802.11a/n(HT20)/ac(VHT20): 5180~5240MHz; 5260-5320MHz; 5500-5700MHz; 5745~5825MHz 802.11n(HT40)/ac(VHT40): 5190~5230MHz; 5270-5310MHz; 5510-5670MHz; 5755~5795MHz 802.11ac(VHT80): 5210MHz, 5290MHz, 5530MHz, 5775MHz Channel separation : 20MHz for 802.11a/ 802.11ac(VHT20)/ 802.11n(HT20) 40MHz for 802.11ac(VHT40)/ 802.11n(HT40) 80MHz for 802.11ac(VHT80) Modulation technology: : IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ac: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type : FPC antenna, max gain 2.8dBi (Antenna information is provided by applicant.) Software version : V1.0 Hardware version : V1.0 Intend use environment : Residential, commercial and light industrial environment Page 6 of 27 Report No.: A2510115-C09-R05 1.2. Accessories of Device (EUT) Accessories : AC Adapter Manufacturer : Yisheng Electronics Co., LTD Model : EA1012AVRU-050 Ratings : AC Input: 100-240Vac, 1.0A, 50~60Hz DC Output: 5.0V⎓2.4A 12.0W 1.3. Tested Supporting System Details No. Description Manufacturer Model Serial Number Certification Or SDOC 1 Router(master) HUAWEI Echolife HG8245Q 48575443B12E6D9D FCC ID: QISHG8245Q 2. Notebook PC Lenovo T430 N/A N/A Note: 1. master ping IP 192.168.100.5 for salve. 2. It takes 150 seconds for the master and slave devices to fully start up. 1.4.Block Diagram of connection between EUT and simulators EUT Host AC Mains Page 7 of 27 Report No.: A2510115-C09-R05 2. SUMMARY OF MEASUREMENT 3.1. Summary of test result UNII Bandwidth and Channel Description Measured Limit Result U-NII-2A 5250-5350MHz 80MHz (CH58) 5290MHz Channel Move Time 1.4 sec 10 sec Pass Channel Closing Tran…

Text truncated - open the document above for the full version.

Page 281 of 285 Report No.: A2510115-C09-R04 Tx. Spurious NVNT ac20 5825MHz Ant1 Emission Tx. Spurious NVNT ac40 5755MHz Ant1 Emission Page 282 of 285 Report No.: A2510115-C09-R04 Tx. Spurious NVNT ac40 5795MHz Ant1 Emission Tx. Spurious NVNT ac80 5775MHz Ant1 Emission Page 283 of 285 Report No.: A2510115-C09-R04 Tx. Spurious NVNT n20 5745MHz Ant1 Emission Tx. Spurious NVNT n20 5785MHz Ant1 Emission Page 284 of 285 Report No.: A2510115-C09-R04 Tx. Spurious NVNT n20 5825MHz Ant1 Emission Tx. Spurious NVNT n40 5755MHz Ant1 Emission Page 285 of 285 Report No.: A2510115-C09-R04 Tx. Spurious NVNT n40 5795MHz Ant1 Emission Note: offset=cable factor --------END OF REPORT-------

Page 224 of 285 Report No.: A2510115-C09-R04 Band Edge NVNT ac20 5700MHz High Ant1 Band Edge NVNT ac40 5510MHz Low Ant1 Page 225 of 285 Report No.: A2510115-C09-R04 Band Edge NVNT ac40 5670MHz High Ant1 Band Edge NVNT ac80 5490MHz Low Ant1 Page 226 of 285 Report No.: A2510115-C09-R04 Band Edge NVNT ac80 5570MHz High Ant1 Band Edge NVNT n20 5500MHz Low Ant1 Page 227 of 285 Report No.: A2510115-C09-R04 Band Edge NVNT n20 5700MHz High Ant1 Band Edge NVNT n40 5510MHz Low Ant1 Page 228 of 285 Report No.: A2510115-C09-R04 Band Edge NVNT n40 5670MHz High Ant1 Note: offset=cable factor Page 229 of 285 Report No.: A2510115-C09-R04 Band4 Condition Mode Frequency (MHz) Antenna Max Value (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 -35.39 -27 Pass NVNT a 5825 Ant1 -30.51 -27 Pass NVNT ac20 5745 Ant1 -31.33 -27 Pass NVNT ac20 5825 Ant1 -30.17 -27 Pass NVNT ac40 5755 Ant1 -30.96 -27 Pass NVNT ac40 5795 Ant1 -30.28 -27 Pass NVNT ac80 5745 Ant1 -30.66 -26.4 Pass NVNT ac80 5825 Ant1 -29.86 -27 Pass NVNT n20 5745 Ant1 -30.13 -27 Pass NVNT n20 5825 Ant1 -30.3 -27 Pass NVNT n40 5755 Ant1 -31.19 -27 Pass NVNT n40 5795 Ant1 -30.14 -27 Pass Note: The margin is at least greater than the antenna gain plus the cable loss. Band Edge NVNT a 5745MHz Low Ant1 Page 230 of 285 Report No.: A2510115-C09-R04 Band Edge NVNT a 5825MHz High Ant1 Band Edge NVNT ac20 5745MHz Low Ant1 Page 231 of 285 Report No.: A2510115-C09-R04 Band Edge NVNT ac20 5825MHz High Ant1 Band Edge NVNT ac40 5755MHz Low Ant1 Page 232 of 285 Report No.: A2510115-C09-R04 Band Edge NVNT ac40 5795MHz High Ant1 Band Edge NVNT ac80 5745MHz Low Ant1 Page 233 of 285 Report No.: A2510115-C09-R04 Band Edge NVNT ac80 5825MHz High Ant1 Band Edge NVNT n20 5745MHz Low Ant1 Page 234 of 285 Report No.: A2510115-C09-R04 Band Edge NVNT n20 5825MHz High Ant1 Band Edge NVNT n40 5755MHz Low Ant1 Page 235 of 285 Report No.: A2510115-C09-R04 Band Edge NVNT n40 5795MHz High Ant1 Note: offset=cable factor Page 236 of 285 Report No.: A2510115-C09-R04 4.9 Radiated Emission Test Requirement: FCC Part15 C Section 15.209 and 15.205, RSS-Gen Issue 5 Test Method: ANSI C63.10-2020 + Cor. 1-2023 + C63.10a-2024 + Errata to C63.10a- 2024 Test Frequency Range: 30MHz to 40GHz Test site: Measurement Distance: 3m (Semi-Anechoic Chamber) Receiver setup: Frequency Detector RBW VBW Value 30MHz- 1GHz Quasi-peak 100KHz 300KHz Quasi-peak Value Above 1GHz Peak 1MHz 3MHz Peak Value AV 1MHz 3MHz Average Value Limit: Frequency Limit (dBuV/m @3m) Remark 30MHz-88MHz 40.0 Quasi-peak Value 88MHz-216MHz 43.5 Quasi-peak Value 216MHz-960MHz 46.0 Quasi-peak Value 960MHz-1GHz 54.0 Quasi-peak Value Above 1GHz 74.0 Peak Value 54.0 Average Value Test Procedure: Substitution method was performed to determine the actual ERP emission levels of the EUT. The following test procedure as below: 1>.Below 1GHz test procedure: 1. The EUT was placed on the top of a rotating table (0.8m for below 1GHz and 1.5 meters for above 1GHz) above the ground at a 3 meter camber. The table was rotated 360 degrees to determine the position of the highest radiation. 2. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. 3. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. 4. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotable table was turned from 0 degrees to 360 degrees to find the maximum reading. 5. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. 6. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would be re-tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. 2>.Above 1GHz test procedure: 1. On the test site as test setup graph above, the EUT shall be placed at the 1.5m support on the turntable and in the position closest to normal use as declared by the provider. 2. The test antenna shall be oriented initially for vertical polarization and shall be chosen to correspond to the frequency of the transmitter.The output of the test antenna shall be connected to the measuring receiver. 3. The transmitter shall be switched on, if possible, without modulation and the measuring receiver shall be tuned to the frequency of the transmitter under test. Page 237 of 285 Report No.: A2510115-C09-R04 4. The test antenna shall be raised and lowered from 1m to 4m until a maximum signal level is detected by the measuring receiver. Then the turntable should be rotated through 360° in the horizontal plane, until the maximum signal level is detected by the measuring receiver. 5. Repeat step 4 for test frequency with the test antenna polarized horizontally. 6. Remove the transmitter and replace it with a substitution antenna 7. Feed the substitution antenna at the transmitter end with a signal generator connected to the antenna by means of a nonradiating cable. With the antennas at both ends vertically polarized, and with the signal generator tuned to a particular test frequency, raise and lower the test antenna to obtain a maximum reading at the spectrum analyzer. Adjust the level of the signal generator output until the previously recorded maximum reading for this set of conditions is obtained. This should be done carefully repeating the adjustment of the test antenna and generator output. 8. Repeat step 7 with both antennas horizontally polarized for each test frequency. 9. Calculate power in dBm into a reference ideal half-wave dipole antenna by reducing the readings obtained in steps 7 and 8 by the power loss in the cable be…

Text truncated - open the document above for the full version.

Page 149 of 285 Report No.: A2510115-C09-R04 Measurement Data Band 1 (5150-5250 MHz) Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) FCC Limit (dBm) Verdict NVNT a 5180 Ant1 3.887 0.12 4.007 11 Pass NVNT a 5200 Ant1 3.915 0.12 4.035 11 Pass NVNT a 5240 Ant1 3.521 0.12 3.641 11 Pass NVNT ac20 5180 Ant1 3.515 0.13 3.645 11 Pass NVNT ac20 5200 Ant1 3.684 0.1 3.784 11 Pass NVNT ac20 5240 Ant1 3.211 0.13 3.341 11 Pass NVNT ac40 5190 Ant1 -0.284 0.19 -0.094 11 Pass NVNT ac40 5230 Ant1 -0.416 0.2 -0.216 11 Pass NVNT ac80 5210 Ant1 -5.015 0.51 -4.505 11 Pass NVNT n20 5180 Ant1 4.043 0.13 4.173 11 Pass NVNT n20 5200 Ant1 3.592 0.1 3.692 11 Pass NVNT n20 5240 Ant1 3.216 0.13 3.346 11 Pass NVNT n40 5190 Ant1 -0.907 0.26 -0.647 11 Pass NVNT n40 5230 Ant1 -0.112 0.2 0.088 11 Pass PSD NVNT a 5180MHz Ant1 PSD NVNT a 5200MHz Ant1 Page 150 of 285 Report No.: A2510115-C09-R04 PSD NVNT a 5240MHz Ant1 PSD NVNT ac20 5180MHz Ant1 Page 151 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac20 5200MHz Ant1 PSD NVNT ac20 5240MHz Ant1 Page 152 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac40 5190MHz Ant1 PSD NVNT ac40 5230MHz Ant1 Page 153 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac80 5210MHz Ant1 PSD NVNT n20 5180MHz Ant1 Page 154 of 285 Report No.: A2510115-C09-R04 PSD NVNT n20 5200MHz Ant1 PSD NVNT n20 5240MHz Ant1 Page 155 of 285 Report No.: A2510115-C09-R04 PSD NVNT n40 5190MHz Ant1 PSD NVNT n40 5230MHz Ant1 Page 156 of 285 Report No.: A2510115-C09-R04 Note: offset=cable factor Page 157 of 285 Report No.: A2510115-C09-R04 Band 2 (5250 -5350 MHz) Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5260 Ant1 2.997 0.12 3.117 11 Pass NVNT a 5280 Ant1 3.06 0.12 3.18 11 Pass NVNT a 5320 Ant1 2.803 0.09 2.893 11 Pass NVNT ac20 5260 Ant1 3.212 0.1 3.312 11 Pass NVNT ac20 5280 Ant1 3.168 0.1 3.268 11 Pass NVNT ac20 5320 Ant1 2.173 0.13 2.303 11 Pass NVNT ac40 5270 Ant1 0.015 0.26 0.275 11 Pass NVNT ac40 5310 Ant1 -2.279 0.26 -2.019 11 Pass NVNT ac80 5290 Ant1 -5.484 0.51 -4.974 11 Pass NVNT n20 5260 Ant1 2.977 0.13 3.107 11 Pass NVNT n20 5280 Ant1 2.668 0.13 2.798 11 Pass NVNT n20 5320 Ant1 2.693 0.13 2.823 11 Pass NVNT n40 5270 Ant1 0.303 0.26 0.563 11 Pass NVNT n40 5310 Ant1 -2.223 0.2 -2.023 11 Pass PSD NVNT a 5260MHz Ant1 PSD NVNT a 5280MHz Ant1 Page 158 of 285 Report No.: A2510115-C09-R04 PSD NVNT a 5320MHz Ant1 PSD NVNT ac20 5260MHz Ant1 Page 159 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac20 5280MHz Ant1 PSD NVNT ac20 5320MHz Ant1 Page 160 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac40 5270MHz Ant1 PSD NVNT ac40 5310MHz Ant1 Page 161 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac80 5290MHz Ant1 PSD NVNT n20 5260MHz Ant1 Page 162 of 285 Report No.: A2510115-C09-R04 PSD NVNT n20 5280MHz Ant1 PSD NVNT n20 5320MHz Ant1 Page 163 of 285 Report No.: A2510115-C09-R04 PSD NVNT n40 5270MHz Ant1 PSD NVNT n40 5310MHz Ant1 Page 164 of 285 Report No.: A2510115-C09-R04 Note: offset=cable factor Page 165 of 285 Report No.: A2510115-C09-R04 Band 3 (5470 -5725 MHz) Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5500 Ant1 2.498 0.09 2.588 11 Pass NVNT a 5580 Ant1 2.7 0.12 2.82 11 Pass NVNT a 5700 Ant1 2.332 0.12 2.452 11 Pass NVNT ac20 5500 Ant1 2.471 0.1 2.571 11 Pass NVNT ac20 5580 Ant1 2.185 0.13 2.315 11 Pass NVNT ac20 5700 Ant1 0.52 0.1 0.62 11 Pass NVNT ac40 5510 Ant1 -2.668 0.26 -2.408 11 Pass NVNT ac40 5670 Ant1 -2.221 0.2 -2.021 11 Pass NVNT ac80 5530 Ant1 -7.475 0.51 -6.965 11 Pass NVNT n20 5500 Ant1 2.365 0.1 2.465 11 Pass NVNT n20 5580 Ant1 2.251 0.1 2.351 11 Pass NVNT n20 5700 Ant1 1.058 0.13 1.188 11 Pass NVNT n40 5510 Ant1 -2.423 0.2 -2.223 11 Pass NVNT n40 5670 Ant1 -2.853 0.26 -2.593 11 Pass PSD NVNT a 5500MHz Ant1 PSD NVNT a 5580MHz Ant1 Page 166 of 285 Report No.: A2510115-C09-R04 PSD NVNT a 5700MHz Ant1 PSD NVNT ac20 5500MHz Ant1 Page 167 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac20 5580MHz Ant1 PSD NVNT ac20 5700MHz Ant1 Page 168 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac40 5510MHz Ant1 PSD NVNT ac40 5670MHz Ant1 Page 169 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac80 5530MHz Ant1 PSD NVNT n20 5500MHz Ant1 Page 170 of 285 Report No.: A2510115-C09-R04 PSD NVNT n20 5580MHz Ant1 PSD NVNT n20 5700MHz Ant1 Page 171 of 285 Report No.: A2510115-C09-R04 PSD NVNT n40 5510MHz Ant1 PSD NVNT n40 5670MHz Ant1 Page 172 of 285 Report No.: A2510115-C09-R04 Note: offset=cable factor Page 173 of 285 Report No.: A2510115-C09-R04 Band 4 (5725 – 5850 MHz) Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 -0.22 0.09 -0.13 30 Pass NVNT a 5785 Ant1 -0.03 0.12 0.09 30 Pass NVNT a 5825 Ant1 0.295 0.09 0.385 30 Pass NVNT ac20 5745 Ant1 -0.576 0.13 -0.446 30 Pass NVNT ac20 5785 Ant1 -0.052 0.13 0.078 30 Pass NVNT ac20 5825 Ant1 0.369 0.13 0.499 30 Pass NVNT ac40 5755 Ant1 -2.601 0.2 -2.401 30 Pass NVNT ac40 5795 Ant1 -2.334 0.26 -2.074 30 Pass NVNT ac80 5775 Ant1 -6.329 0.51 -5.819 30 Pass NVNT n20 5745 Ant1 -0.432 0.1 -0.332 30 Pass NVNT n20 5785 Ant1 -0.102 0.13 0.028 30 Pass NVNT n20 5825 Ant1 -0.261 0.13 -0.131 30 Pass NVNT n40 5755 Ant1 -3.327 0.2 -3.127 30 Pass NVNT n40 5795 Ant1 -3.325 0.2 -3.125 30 Pass PSD NVNT a 5745MHz Ant1 PSD NVNT a 5785MHz Ant1 Page 174 of 285 Report No.: A2510115-C09-R04 PSD NVNT a 5825MHz Ant1 PSD NVNT ac20 5745MHz Ant1 Page 175 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac20 5785MHz Ant1 PSD NVNT ac20 5825MHz Ant1 Page 176 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac40 5755MHz Ant1 PSD NVNT ac40 5795MHz Ant1 Page 177 of 285 Report No.: A2510115-C09-R04 PSD NVNT ac80 5775MHz Ant1 PSD NVNT n20 5745MHz Ant1 Page 178 of 285 Report No.: A2510115-C09-R04 PSD NVNT n20 5785MHz Ant1 PSD NVNT n20 5825MHz Ant1 Page 179 of 285 Report No.: A2510115-C09-R04 PSD NVNT n40 5755MHz Ant1 PSD NVNT n40 5795MHz Ant1 Page 180 of 285 Report N…

Text truncated - open the document above for the full version.

Page 96 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT n20 5260MHz Ant1 Duty Cycle NVNT n20 5280MHz Ant1 Page 97 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT n20 5320MHz Ant1 Duty Cycle NVNT n40 5270MHz Ant1 Page 98 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT n40 5310MHz Ant1 Note: offset=cable factor Page 99 of 285 Report No.: A2510115-C09-R04 UNII-2C Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5500 Ant1 97.89 0.09 NVNT a 5580 Ant1 97.2 0.12 NVNT a 5700 Ant1 97.2 0.12 NVNT ac20 5500 Ant1 97.78 0.1 NVNT ac20 5580 Ant1 97.04 0.13 NVNT ac20 5700 Ant1 97.78 0.1 NVNT ac40 5510 Ant1 94.2 0.26 NVNT ac40 5670 Ant1 95.59 0.2 NVNT ac80 5530 Ant1 88.89 0.51 NVNT n20 5500 Ant1 97.74 0.1 NVNT n20 5580 Ant1 97.74 0.1 NVNT n20 5700 Ant1 97.01 0.13 NVNT n40 5510 Ant1 95.59 0.2 NVNT n40 5670 Ant1 94.2 0.26 Duty Cycle NVNT a 5500MHz Ant1 Page 100 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT a 5580MHz Ant1 Duty Cycle NVNT a 5700MHz Ant1 Page 101 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT ac20 5500MHz Ant1 Duty Cycle NVNT ac20 5580MHz Ant1 Page 102 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT ac20 5700MHz Ant1 Duty Cycle NVNT ac40 5510MHz Ant1 Page 103 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT ac40 5670MHz Ant1 Duty Cycle NVNT ac80 5530MHz Ant1 Page 104 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT n20 5500MHz Ant1 Duty Cycle NVNT n20 5580MHz Ant1 Page 105 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT n20 5700MHz Ant1 Duty Cycle NVNT n40 5510MHz Ant1 Page 106 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT n40 5670MHz Ant1 Note: offset=cable factor Page 107 of 285 Report No.: A2510115-C09-R04 U-Nll 3 Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5745 Ant1 97.9 0.09 NVNT a 5785 Ant1 97.2 0.12 NVNT a 5825 Ant1 97.89 0.09 NVNT ac20 5745 Ant1 97.04 0.13 NVNT ac20 5785 Ant1 97.04 0.13 NVNT ac20 5825 Ant1 97.04 0.13 NVNT ac40 5755 Ant1 95.59 0.2 NVNT ac40 5795 Ant1 94.2 0.26 NVNT ac80 5775 Ant1 88.89 0.51 NVNT n20 5745 Ant1 97.74 0.1 NVNT n20 5785 Ant1 97.01 0.13 NVNT n20 5825 Ant1 97.01 0.13 NVNT n40 5755 Ant1 95.59 0.2 NVNT n40 5795 Ant1 95.59 0.2 Duty Cycle NVNT a 5745MHz Ant1 Page 108 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT a 5785MHz Ant1 Duty Cycle NVNT a 5825MHz Ant1 Page 109 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT ac20 5745MHz Ant1 Duty Cycle NVNT ac20 5785MHz Ant1 Page 110 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT ac20 5825MHz Ant1 Duty Cycle NVNT ac40 5755MHz Ant1 Page 111 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT ac40 5795MHz Ant1 Duty Cycle NVNT ac80 5775MHz Ant1 Page 112 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT n20 5745MHz Ant1 Duty Cycle NVNT n20 5785MHz Ant1 Page 113 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT n20 5825MHz Ant1 Duty Cycle NVNT n40 5755MHz Ant1 Page 114 of 285 Report No.: A2510115-C09-R04 Duty Cycle NVNT n40 5795MHz Ant1 Note: offset=cable factor Page 115 of 285 Report No.: A2510115-C09-R04 4.5 Average Transmit Power Test Requirement: FCC Part15 E Section 15.407, RSS-247 Issue 3 Test Method: ANSI C63.10-2020 + Cor. 1-2023 + C63.10a-2024 + Errata to C63.10a- 2024 Limit: FCC: For the band 5.15-5.25GHz, 5.25-5.35GHz, 5.47-5.725GHz, The maximum conducted output power over the frequency bands of operation shall not exceed 250mW. For the band 5.725-5.85GHz, the maximum conducted output power over the frequency bands of operation shall not exceed 1W. IC: Test setup: Test procedure: Measurement using an RF average power meter (i) Measurements may be performed using a wideband RF power meter with a thermocouple detector or equivalent if all of the conditions listed below are satisfied a) The EUT is configured to transmit continuously or to transmit with a constant duty cycle. b) At all times when the EUT is transmitting, it must be transmitting at its…

Text truncated - open the document above for the full version.
