SY4-A02039Handheld GNSS Data Collector

Make your work more efficient Revision 1.0 June 01, 2018 CHCNAV i93 GNSS User Guide Table of Content CHCNAV i93 GNSS USER GUIDE | 2023-02 P a g e | 2 Table of Content Table of Content ................................................................................................................ 2 Preface .............................................................................................................................. 5 Copyright ................................................................................................................................. 5 Safety Warnings ....................................................................................................................... 5 FCC Interference Statement .................................................................................................... 5 CE Interference Statement ...................................................................................................... 6 1 Introduction ................................................................................................................ 7 1.1 Safety Information ............................................................................................... 7 1.1.1 Warnings and Cautions ........................................................................................ 7 1.2 Regulations and Safety ........................................................................................ 7 1.2.1 Use and Care ........................................................................................................ 8 1.3 Technical Support ................................................................................................. 8 1.4 Disclaimer ............................................................................................................ 8 1.5 Your Comments ................................................................................................... 8 2 Getting Started with i93 .............................................................................................. 9 2.1 About the Receiver .............................................................................................. 9 2.2 Parts of the Receiver ........................................................................................... 9 2.2.1 Front Panel .......................................................................................................... 9 2.2.2 Lower Housing ................................................................................................... 11 2.2.3 Receiver Ports .................................................................................................... 11 2.3 Batteries and Power .......................................................................................... 13 2.3.1 Batteries ............................................................................................................ 13 2.3.2 The Internal Battery........................................................................................... 13 2.3.3 Battery Safe ....................................................................................................... 14 2.3.4 External Power Supply ....................................................................................... 15 2.4 Inserting SIM Card ............................................................................................. 16 2.5 Product Basic Supply Accessories ...................................................................... 17 2.5.1 Base Kit Basic Supply ......................................................................................... 17 2.5.2 Rover Kit Basic Supply ....................................................................................... 18 2.6 Connecting to an Office Computer .................................................................... 19 2.7 Connecting to a Controller ................................................................................ 20 2.7.1 Connecting via Wi-Fi with LandStar 7 Software ................................................ 20 2.7.2 Connecting via Bluetooth with LandStar 7 Software ......................................... 22 2.8 Downloading Logged Data ................................................................................. 24 2.8.1 FTP Download .................................................................................................... 24 2.8.2 Web Server Download ....................................................................................... 25 Table of Content CHCNAV i93 GNSS USER GUIDE | 2023-02 P a g e | 3 2.8.3 USB Download ................................................................................................... 26 3 Front Panel Operation ............................................................................................... 28 3.1 Main Operation Menus ..................................................................................... 28 3.2 Configure the Working Mode ............................................................................ 31 4 Equipment Setup and Operation ................................................................................ 36 4.1 Post-processing Base Station Setup .................................................................. 36 4.2 Real-Time Base Station Setup ............................................................................ 38 4.2.1 Internal Cellular or UHF ..................................................................................... 38 4.2.2 External UHF ...................................................................................................... 39 4.3 Real-Time Rover Station Setup .......................................................................... 42 4.4 Working with the Tilt Compensation ................................................................ 44 4.4.1 Operation Steps ............................................................................…

Text truncated - open the document above for the full version.

Shanghai Huace Navigation Technology Ltd. Covered Equipment Certification Attestation Letter 4/27/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: SY4-A02039 Shanghai Huace Navigation Technology Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shanghai Huace Navigation Technology Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Glenn Chu Title: Certification Manager Company Name: Shanghai Huace Navigation Technology Ltd. Date: 4/27/2023

iGage Mapping Corporation * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 4/27/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: SY4-A02039 Per section 2.911(d)(7) of the FCC rules, Shanghai Huace Navigation Technology Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: iGage Mapping Corporation FRN: 0013933296 Physical U.S. Company Address: 1545 South 1100 East #1, Salt Lake City, UT 84105, United States Agent name: Mark E Silver Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Printed name: Glenn Chu Title: Certification Manager Company Name: Shanghai Huace Navigation Technology Ltd. Date: 4/27/2023 Signed: Printed name: Mark E Silver Title: President Company Name: iGage Mapping Corporation Date: 4/27/2023

Shanghai Huace Navigation Technology Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 4/27/2023 Subject; Request for Long Term Confidentiality FCC ID: SY4-A02039 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Tune up It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: 4/27/2023 Name Glenn Chu Position CERTIFICATION MANAGER Company Name Shanghai Huace Navigation Technology Ltd. Address 577 Songying Road, Qingpu District, 201706 Shanghai, China Tel +86-21-51508100 Fax +86-21-64851208 Email [email protected]

Shanghai Huace Navigation Technology Ltd. April 27, 2023 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Alpha Product Testing Co., Ltd. Address: Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Person: Mark Zhu (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shanghai Huace Navigation Technology Ltd.. Address: 577 Songying Road, Qingpu District, 201706 Shanghai, China ( applicant name and address). Signature: April 27, 2023 Name Glenn Chu Position CERTIFICATION MANAGER Company Name Shanghai Huace Navigation Technology Ltd. Address 577 Songying Road, Qingpu District, 201706 Shanghai, China Tel +86-21-51508100 Fax +86-21-64851208 Email [email protected]

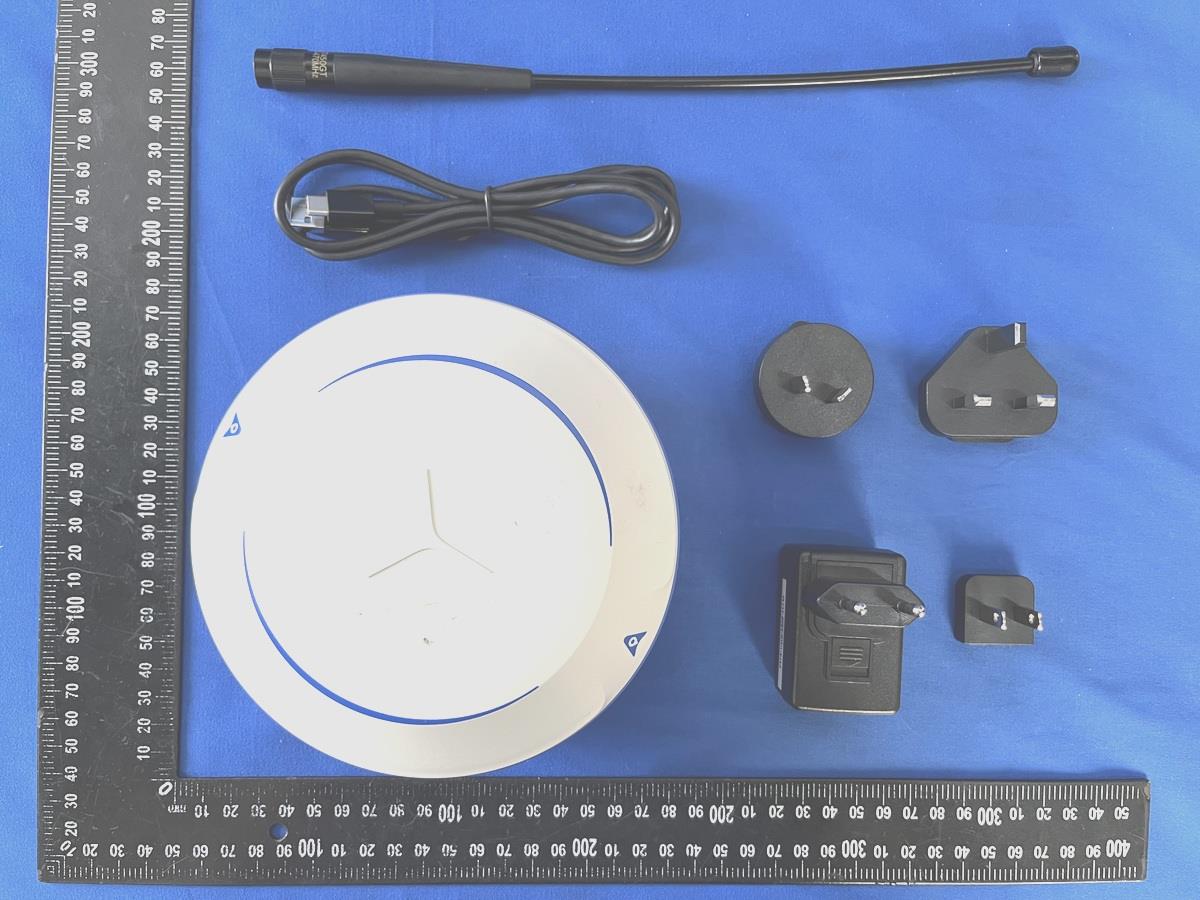

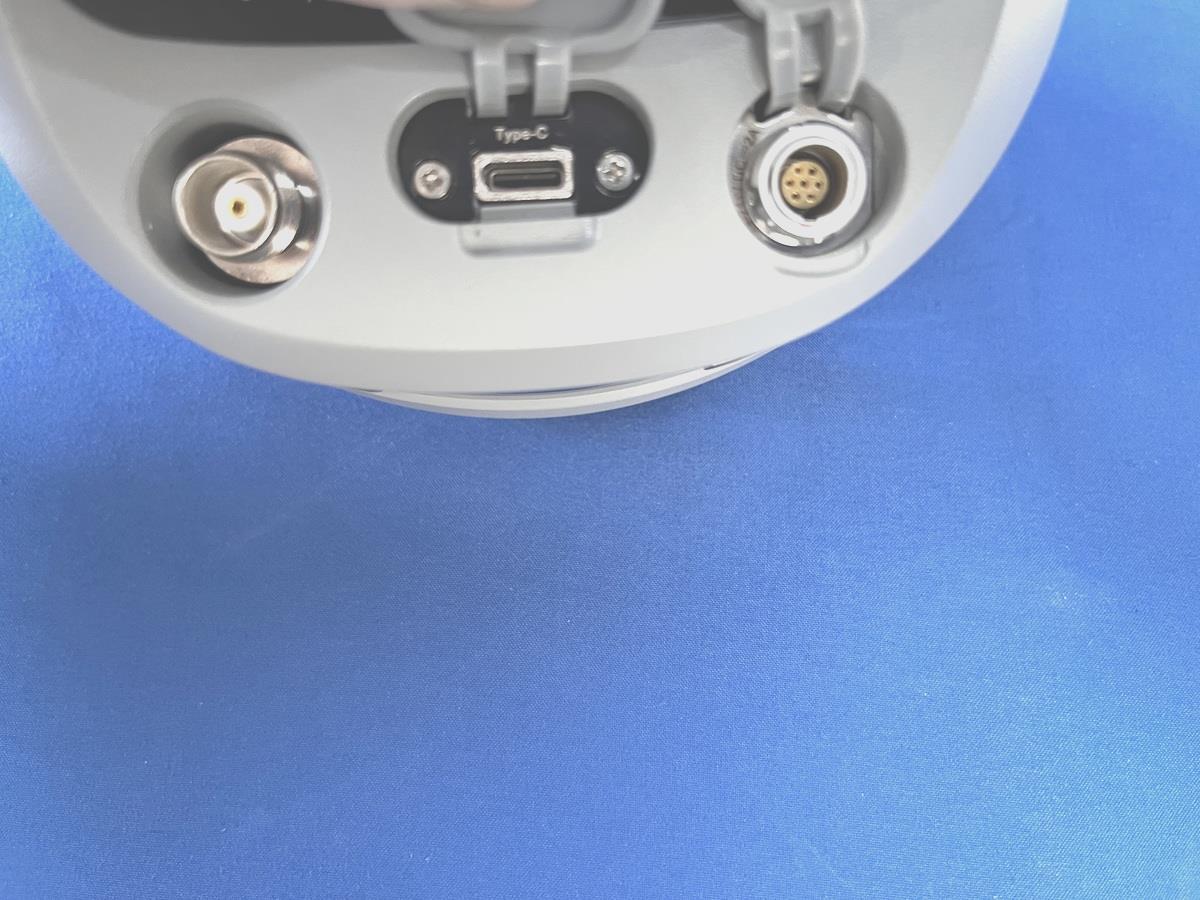

FCC ID: SY4-A02039 UHF ANT

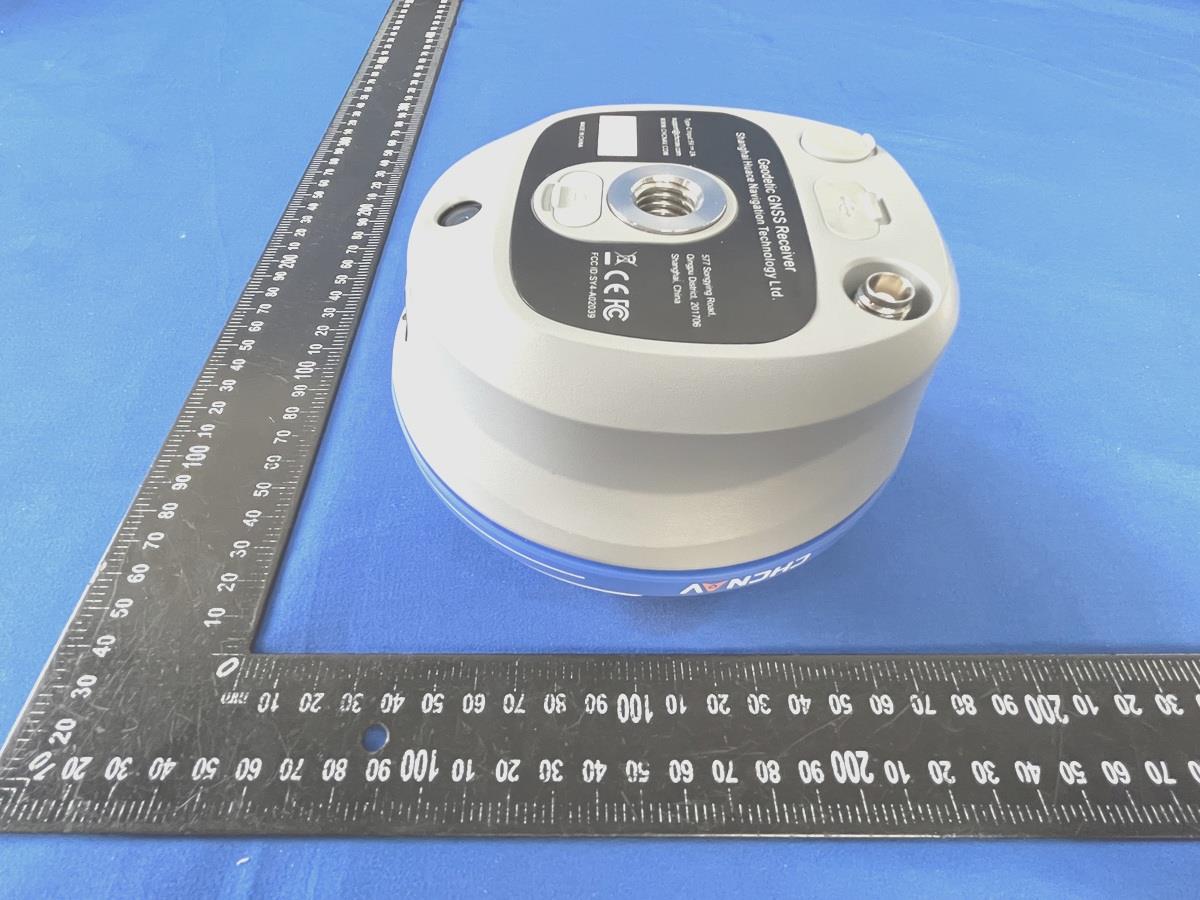

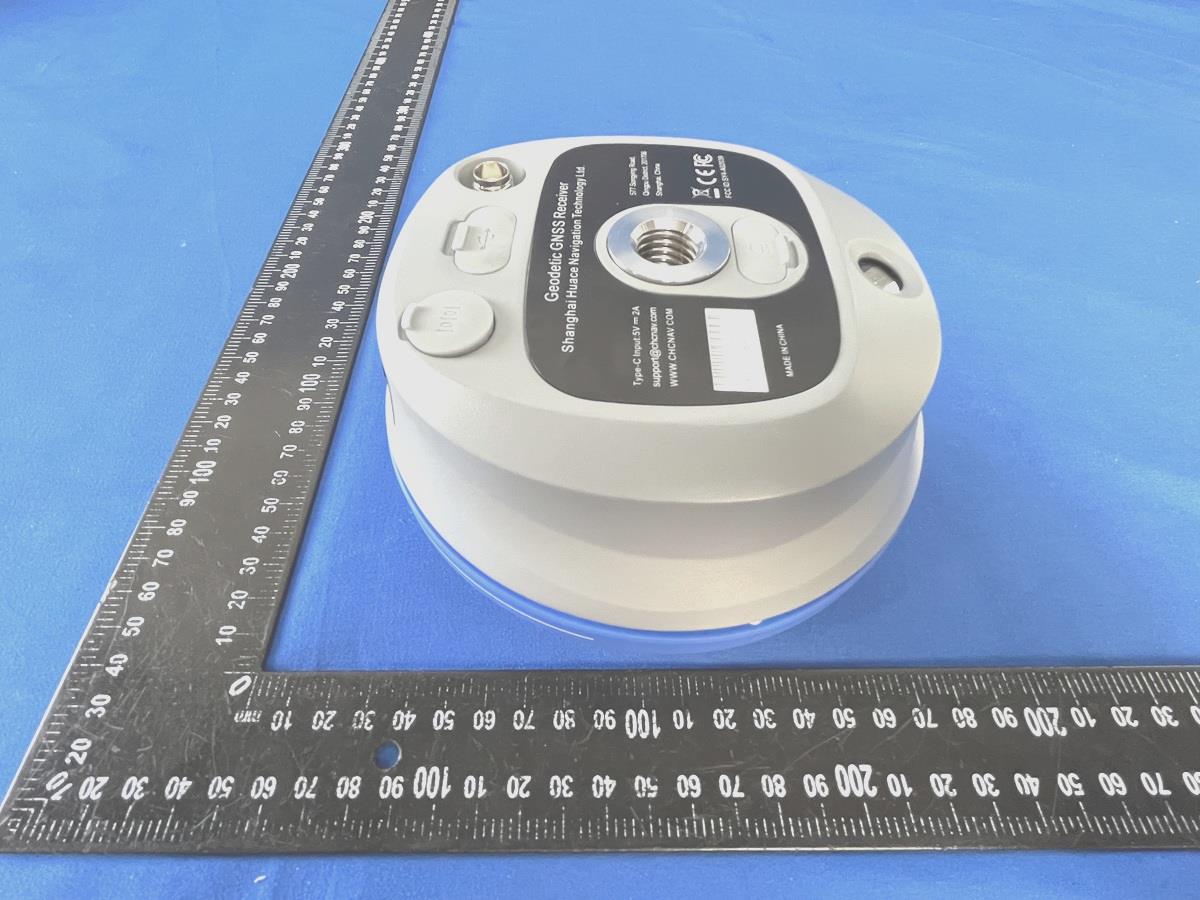

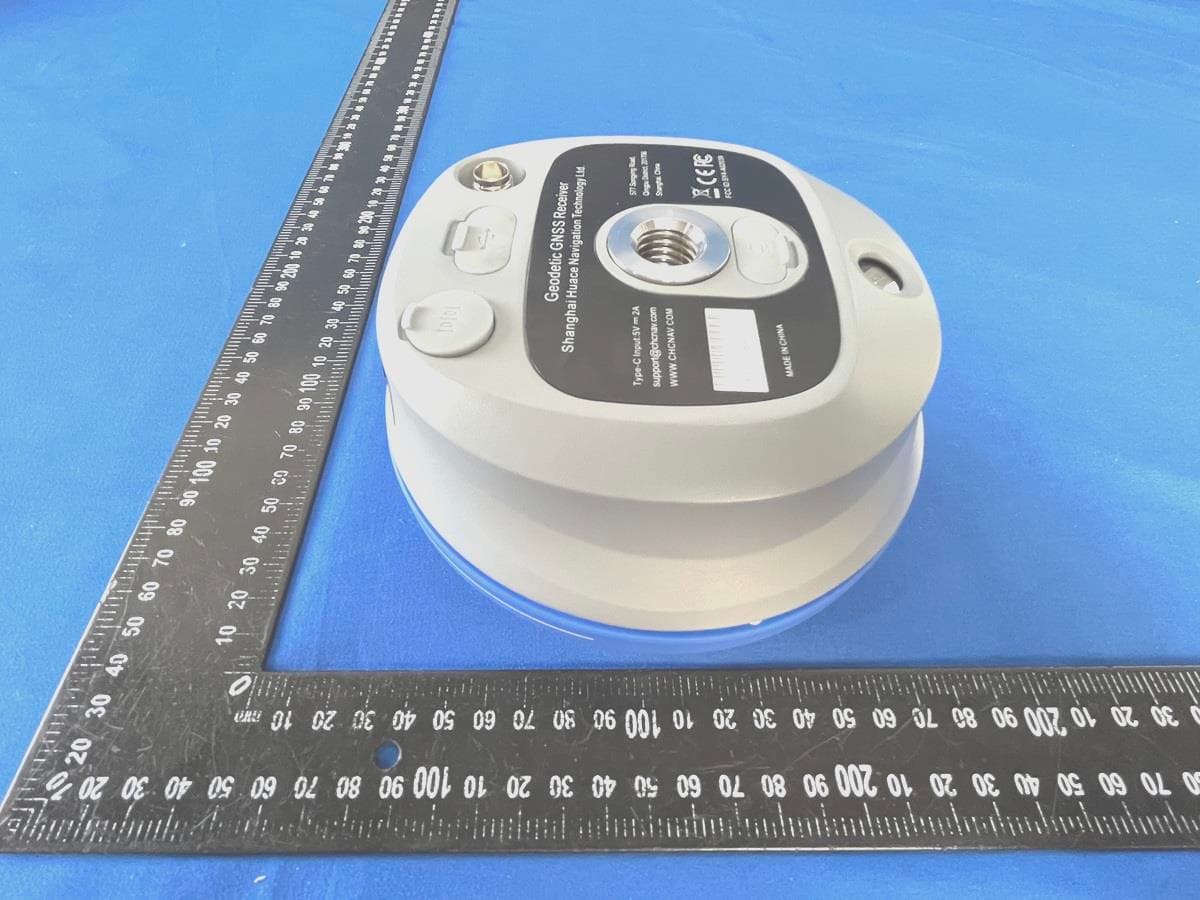

Size: 4.0cm *1.5cm Label Location FCC ID: SY4-A02039 Contains FCC ID: XMR201903EG25G Geodetic GNSS Receiver Model No.: i93

FCC ID: SY4-A02039 NFC ANT(RX) BT/WIFI ANT GPS ANT(RX) 2/3/4G ANT

FCC ID: SY4-A02039 Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: SY4-A02039 RF output power MAX.tune-uppower 3. Result Worse case is as below: Mode Frequency (MHz) Prediction distance (cm) RF output power MAX tune-uppower MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm dBm mW BT 2441 50 5.798 6 3.9811 0.0002 1 Yes 2.4G WiFi 2452 50 24.511 25 316.2278 0.0143 1 Yes 5G WIFI 5190 50 21.41 22 158.4893 0.0080 1 Yes UHF 440 50 32.921 33 1995.2623 0.1595 0.304 Yes Maximum Simultaneous transmission MPE Ratios for BT+WIFI + +UHF: Max MPE ratio BT /Limit Max MPE ratio WIFI /Limit Max MPE ratio UHF /Limit ∑MPE ratios Limit Result 0.0002 0.0143 0.1595 0.174 1 PASS BT&WIFI Antenna Gain: 1.51dBi, 1.42(numeric) 5G WIFI Antenna Gain: 2dBi, 1.58(numeric) UHF Antenna Gain: 4dBi, 2.51(numeric) Then SAR evaluation is not required.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 4008300895 Website: http://www.a-lab.cn/certificate FCC TEST REPORT FCC ID: SY4-A02039 On Behalf of Shanghai Huace Navigation Technology Ltd. Geodetic GNSS Receiver Model No.: i93 Prepared for : Shanghai Huace Navigation Technology Ltd. Address : 577 Songying Road, Qingpu District, 201706 Shanghai, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2303056-C01-R02 Date of Receipt : March 14, 2023 Date of Test : March 14, 2023-April 8, 2023 Date of Report : April 18, 2023 Version Number : V0 Page 2 of 74 Report No.: A2303056-C01-R02 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ............................................................................................ 6 1.1. Description of Standards and Results ..................................................................................... 6 2. General Information........................................................................................................................ 7 2.1. Description of Device (EUT) .................................................................................................... 7 2.2. Accessories of Device (EUT) .................................................................................................. 8 2.3. Tested Supporting System Details .......................................................................................... 8 2.4. Block Diagram of connection between EUT and simulators ................................................... 8 2.5. Test Mode Description ............................................................................................................. 8 2.6. Test Conditions ........................................................................................................................ 9 2.7. Test Facility .............................................................................................................................. 9 2.8. Measurement Uncertainty ....................................................................................................... 9 2.9. Test Equipment List ............................................................................................................... 10 3. Maximum Peak Output power ..................................................................................................... 12 3.1. Limit ....................................................................................................................................... 12 3.2. Test Procedure ...................................................................................................................... 12 3.3. Test Setup .............................................................................................................................. 12 3.4. Test Result ............................................................................................................................. 12 4. Bandwidth ..................................................................................................................................... 13 4.1. Limit ....................................................................................................................................... 13 4.2. Test Procedure ...................................................................................................................... 13 4.3. Test Result ............................................................................................................................. 13 5. Carrier Frequency Separation ..................................................................................................... 24 5.1. Limit ....................................................................................................................................... 24 5.2. Test Procedure ...................................................................................................................... 24 5.3. Test Result ............................................................................................................................. 24 6. Number Of Hopping Channel ...................................................................................................... 26 6.1. Limit ....................................................................................................................................... 26 6.2. Test Procedure ...................................................................................................................... 26 6.3. Test Result ............................................................................................................................. 26 7. Dwell Time ..................................................................................................................................... 28 7.1. Test limit ................................................................................................................................. 28 7.2. Test Procedure ...................................................................................................................... 28 7.3. Test Result ............................................................................................................................. 28 8. Radiated emissions ...................................................................................................................... 44 8.1. Limit ....................................................................................................................................... 44 8.2. Block Diagram of Test setup ...................................................…

Text truncated - open the document above for the full version.

AT227 Antenna specification Applicant Shanghai Huace Navigation Technology Ltd. Address 577 Songying Road, Qingpu District, 201706 Shanghai, China Product Name GNSS\WIFI\BT Antenna Model AT227 1. VIEW: Top bottom 2. SIZE(mm): 3. LAYOUT BOTTOM TOP 4. Main Antenna Return Loss and VSWR 5. GAIN test  3DRadiation pattern 2402MHz 2441MHz 2480MHz 5G wifi antenna specification Antenna Max. Gain：2dBi

FCC ID: SY4-A02039 1.1. Photo of Radiated Emission test 1.2. Photo of Conducted Emission test
