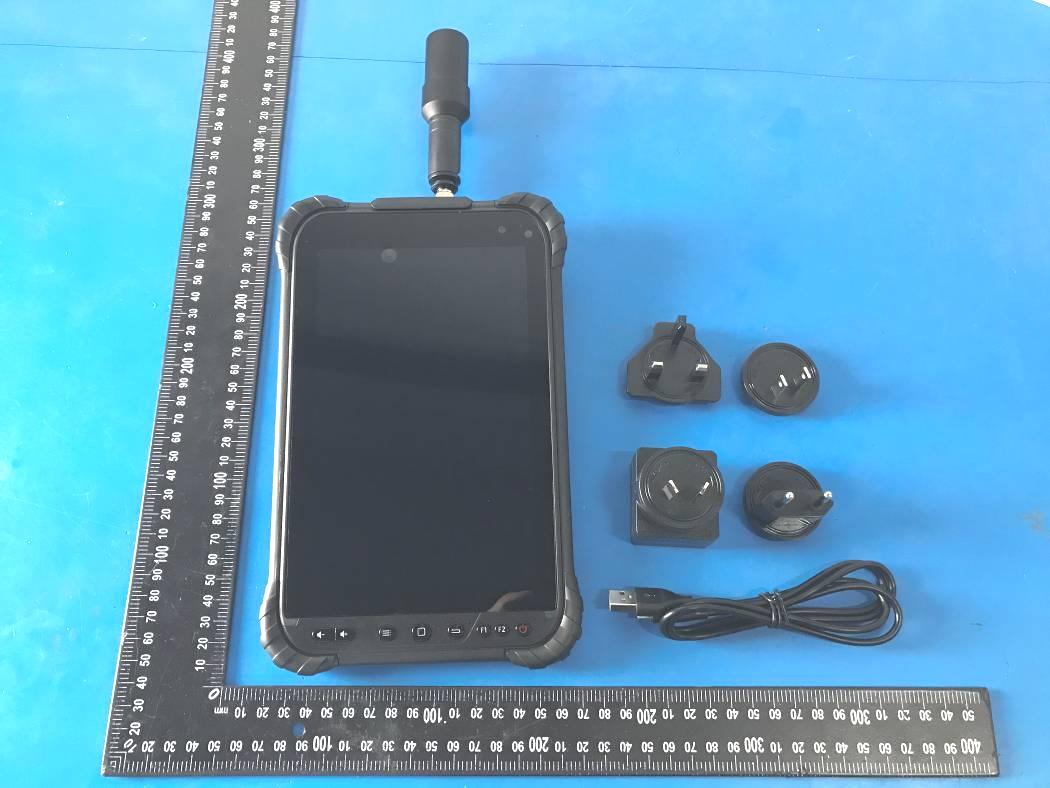

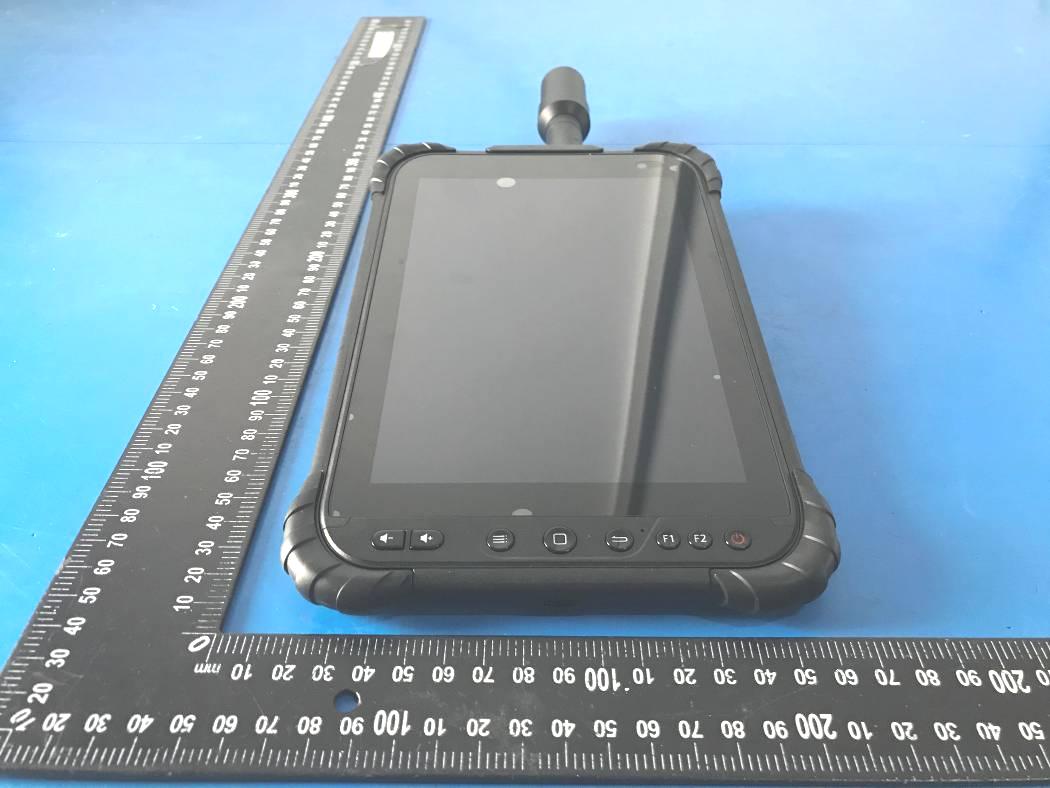

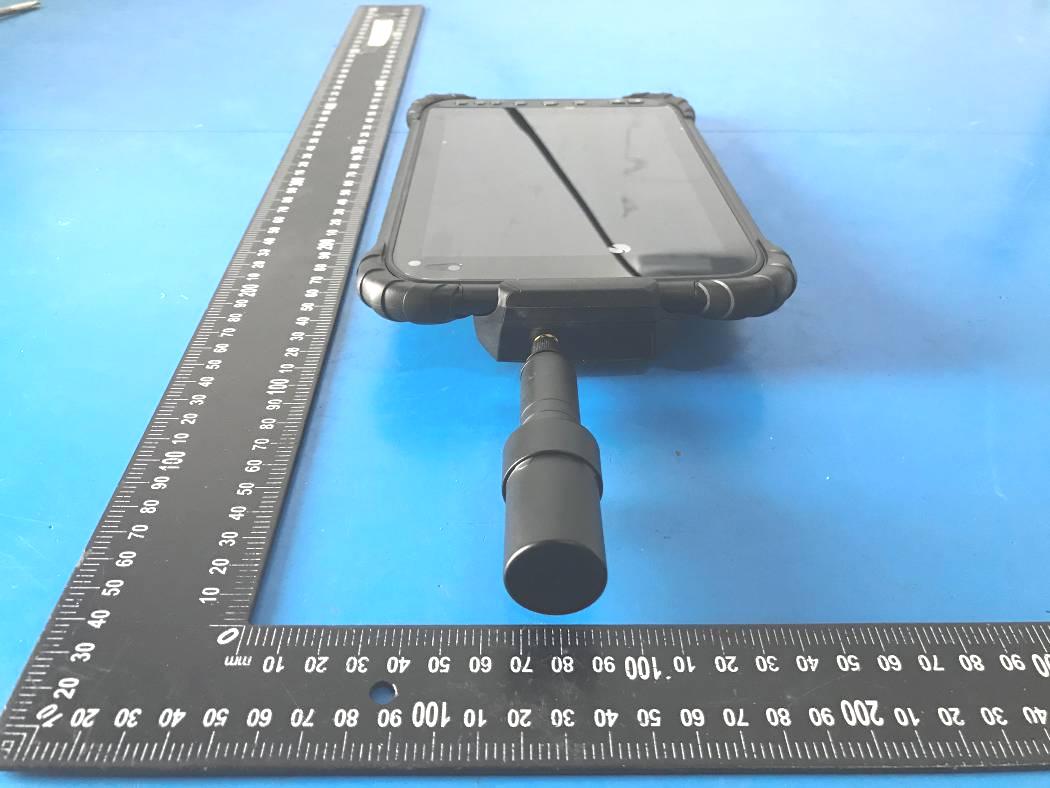

SY4-B01014Handheld GNSS Data Collector

Make your work more efficient LT700H RTK ANDROID TABLET User Guide Mapping & Geospatial | October 2019 Table of Content CHCNAV LT700H GNSS USER GUIDE | 2019-10 Pa ge | 2 Table of Content Table of Content ............................................................................................................... 2 Preface ............................................................................................................................ 4 Copyright ........................................................................................................................... 4 Safety Warnings ................................................................................................................. 4 FCC Interference Statement .............................................................................................. 4 CE Interference Statement ................................................................................................ 5 1 Introduction .............................................................................................................. 6 1.1 Technical Assistance .................................................................................................... 6 1.2 Your Comments ........................................................................................................... 6 1.3 Safety Information ....................................................................................................... 6 1.4 Warning and Cautions ................................................................................................. 6 1.5 Use and Care ................................................................................................................ 7 2 Overview .................................................................................................................. 8 2.1 Features ....................................................................................................................... 8 2.2 Specifications ............................................................................................................... 9 2.3 Front View ................................................................................................................. 10 2.4 Back View ................................................................................................................... 12 2.5 Top ............................................................................................................................. 12 2.6 Bottom ....................................................................................................................... 13 2.7 Installation ................................................................................................................. 14 3 Basic Operation ....................................................................................................... 14 3.1 Insert SIM Card and Power On .................................................................................. 14 3.2 Language & Input ...................................................................................................... 16 3.3 Set Date & Time ......................................................................................................... 16 3.4 Display ....................................................................................................................... 17 3.5 Wi-Fi ........................................................................................................................... 19 3.6 Bluetooth ................................................................................................................... 20 3.7 USB Connection ......................................................................................................... 21 3.8 Use Camera ................................................................................................................ 22 3.9 Log in 4G .................................................................................................................... 23 3.10 Location ................................................................................................................... 24 3.10.1 Turn on The Location Service........................................................................ 24 3.10.2 Select the Constellation Combination .......................................................... 24 3.11 Checking the IMEI Number of The Device ............................................................... 25 3.12 Edit F1/F2 Function Key ........................................................................................... 26 Table of Content CHCNAV LT700H GNSS USER GUIDE | 2019-10 Pa ge | 3 4 Getting Start with LandStar 7 ................................................................................... 27 4.1 LandStar7 Installation ................................................................................................ 27 4.2 Connect the LT700H to internet ................................................................................ 28 4.3 Create a project ......................................................................................................... 28 4.4 Connect to the LT700H GNSS Module ....................................................................... 34 4.5 CORS / RTK Network Correction Login ...................................................................... 35 4.6 Survey ........................................................................................................................ 38 4.7 Sky Plot ...................................................................................................................... 40 Preface CHCNAV LT700H GNSS USER GUIDE | 2019-10 Pa ge | 4 Preface Copyright Copyright 2019 CHCNAV | Shanghai Huace Navigation Technology Ltd. All rights reserved. The CHCNAV and CHC Navigation are trademark of Shanghai Huace Navigation Technology Limit…

Text truncated - open the document above for the full version.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 21.06.07 Datum: 00.00.00 Seite 1 von 1 Shanghai Huace Navigation Technology LTD. Date: 2021-04-19 Subject: Ad Hoc Mode Function Declaration FCC ID: SY4-B01014 To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2402 – 2480 MHz & 2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Yours sincerely, Signatory Name Chu Sheng Position CERTIFICATION MANAGER Company Name Shanghai Huace Navigation Technology LTD. Address 599 Gaojing Road, Building D, Shanghai 201702, China Tel +86-21-51508100 Fax +86-21-64851208 Email [email protected]

Shanghai Huace Navigation Technology LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-04-19 Subject; Request for Long Term Confidentiality FCC ID: SY4-B01014 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram BOM Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Chu Sheng Title: CERTIFICATION MANAGER

Shanghai Huace Navigation Technology LTD. Letter of Authorization Company: Shanghai Huace Navigation Technology LTD. Address: 599 Gaojing Road, Building D, Shanghai 201702, China Product Name: Handheld GNSS Data Collector Model Number(s): LT700H We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-04-19 Name: Chu Sheng Title: CERTIFICATION MANAGER Company: Shanghai Huace Navigation Technology LTD.

Shanghai Huace Navigation Technology LTD. E:\2021-重要客户案件 T\A2102055-C01-M01_FCC-ID_Handheld GNSS Data Collector_LT700H_华测导航_甘梅丽\8.机构文件\MICOM FCC\POA_Letter_140225.docx Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2021-04-19 SUBJECT: FCC Application for SY4-B01014 To Whom It May Concern: We, the undersigned, hereby authorize Mark Zhu at Shenzhen Alpha Product Testing Co., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Alpha Product Testing Co., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature: Date: 2021-04-19 Name: Chu Sheng Title: CERTIFICATION MANAGER Company: Shanghai Huace Navigation Technology LTD.

FCC ID: SY4-B01014

Size: 3.0cm *2cm Label Location FCC ID: SY4-B01014 Handheld GNSS Data Collector Model No. : LT700H

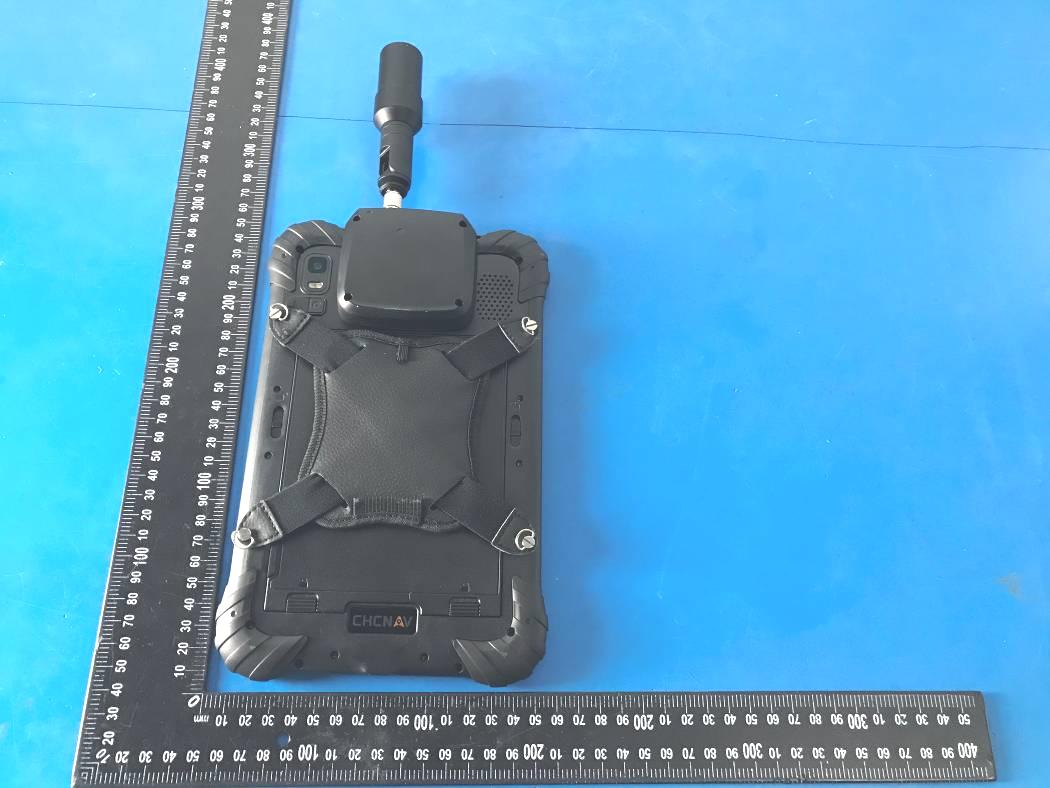

FCC ID: SY4-B01014 GPS ANT NFC ANT BT/WIFI ANT 2G/3G/LTE ANT GPS ANT

FCC TEST REPORT FCC ID: SY4-B01014 On Behalf of Shanghai Huace Navigation Technology LTD. Handheld GNSS Data Collector Model No.: LT700H Prepared for : Shanghai Huace Navigation Technology LTD. Address : 599 Gaojing Road, Building D, Shanghai 201702, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2102055-C01-R02 Date of Receipt : February 27, 2021 Date of Test : February 27-March 25, 2021 Date of Report : April 6, 2021 Version Number : V0 Page 2 of 62 Report No.: A2102055-C01-R02 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results .................................................................................................... 6 1.1. Description of Standards and Results .......................................................................... 6 2. General Information .............................................................................................................................. 7 2.1. Description of Device (EUT) ....................................................................................... 7 2.2. Accessories of Device (EUT) ...................................................................................... 8 2.3. Tested Supporting System Details ............................................................................... 8 2.4. Block Diagram of connection between EUT and simulators ...................................... 8 2.5. Test Mode Description ................................................................................................. 8 2.6. Test Conditions ............................................................................................................ 9 2.7. Test Facility ................................................................................................................. 9 2.8. Measurement Uncertainty ............................................................................................ 9 2.9. Test Equipment List ................................................................................................... 10 3. Maximum Peak Output power ........................................................................................................... 12 3.1. Limit .......................................................................................................................... 12 3.2. Test Procedure ........................................................................................................... 12 3.3. Test Setup ................................................................................................................... 12 3.4. Test Result ................................................................................................................. 12 4. Bandwidth ............................................................................................................................................. 13 4.1. Limit .......................................................................................................................... 13 4.2. Test Procedure ........................................................................................................... 13 4.3. Test Result ................................................................................................................. 13 5. Number Of Hopping Channel ............................................................................................................. 23 5.1. Limit .......................................................................................................................... 23 5.2. Test Procedure ........................................................................................................... 23 5.3. Test Result ................................................................................................................. 23 6. Dwell Time ............................................................................................................................................ 25 6.1. Test limit .................................................................................................................... 25 6.2. Test Procedure ........................................................................................................... 25 6.3. Test Result ................................................................................................................. 25 7. Radiated emissions ............................................................................................................................... 29 7.1. Limit .......................................................................................................................... 29 7.2. Block Diagram of Test setup ..................................................................................... 30 7.3. Test Procedure ........................................................................................................... 31 7.4. Test Result ................................................................................................................. 31 8. Band Edge Compliance ....................................................................................................................... 47 8.1. Block Diagram of Test Setup ..................................................................................... 47 8.2. Limit .......................................................................................................................... 47 8.3. Test Procedure ........................................................................................................... 47 8.4. Test Result ................................................................................................................. 47 Page 3 of 62 Report No.: A2102055-C01-R02 9. Power Line Conducted Emissions ........................................................…

Text truncated - open the document above for the full version.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SAR TEST REPORT FCC ID: SY4-B01014 Product: Handheld GNSS Data Collector Model No.: LT700H Additional Model No.: N/A Trade Mark: Report No.: TCT210302E011 Issued Date: Apr. 14, 2021 Issued for: Shanghai Huace Navigation Technology LTD. 599 Gaojing Road, Building D, Shanghai 201702, China Issued By: Shenzhen Tongce Testing Lab TCT Testing Industrial Park, Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab.. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT210302E011 Page 2 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ................................................................................................................................. 3 2. Facilities and Accreditations ............................................................................................................. 4 2.1. Facilities ....................................................................................................................................... 4 2.2. Location ....................................................................................................................................... 4 2.3. Environment Condition: ............................................................................................................. 4 3. Test Result Summary ......................................................................................................................... 5 4. EUT Description .................................................................................................................................. 6 5. RF Exposure Limit .............................................................................................................................. 8 6. SAR Measurement System Configuration ....................................................................................... 9 6.1. SAR Measurement Set-up .......................................................................................................... 9 6.2. E-field Probe .............................................................................................................................. 10 6.3. Phantom ..................................................................................................................................... 10 6.4. Device Holder ............................................................................................................................ 11 6.5. Data Storage and Evaluation ................................................................................................... 12 6.6. Position of the wireless device in relation to the phantom ................................................. 13 6.7. Tissue Dielectric Parameters .................................................................................................. 16 6.8. Tissue-equivalent Liquid Properties ...................................................................................... 17 6.9. System Check ........................................................................................................................... 18 7. Measurement Procedure .................................................................................................................. 19 8. Conducted Output Power ................................................................................................................. 22 9. Exposure Position Consideration ................................................................................................... 34 9.1. EUT Antenna Location ............................................................................................................. 34 9.2. Test Position Consideration .................................................................................................... 34 10. SAR Test Results Summary............................................................................................................. 35 10.1. Body-Worn 1g SAR Data .......................................................................................................... 35 10.2. Simultaneous Transmission Conclusion ............................................................................... 38 10.3. SAR Simultaneous Transmission Analysis ........................................................................... 40 10.4. Measurement Uncertainty (450MHz-3GHz) ............................................................................ 43 10.5. Test Equipment List ................................................................................................................. 45 11. System Check Results ..................................................................................................................... 46 12. SAR Test Data ................................................................................................................................... 64 Appendix A: EUT Photos .......................................................................................................................... 94 Appendix B: Test Setup Photos .............................................................................................................. 96 Appendix C: Probe Calibration Certificate ............................................................................................. 97 Appendix D: Dipole Calibration Report ...................................................................................…

Text truncated - open the document above for the full version.

Report No.: TCT210302E011 Page 49 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 3.7545 2.4524 1.3520 0.8214 0.5525 Hot spot position Report No.: TCT210302E011 Page 50 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Date of measurement: 09/25/2020 Test mode: 1900MHz (Body) Product Description: Validation Dipole Model: SID1900 E-Field Probe: SSE2 (SN 36/20 EPGO346) Phantom Validation plane Input Power 100mW Crest Factor 8.0 Probe Conversion factor 2.32 Frequency (MHz) 1900.000000 Relative permittivity (real part) 53.309999 Relative permittivity (imaginary part) 14.329440 Conductivity (S/m) 1.510354 Variation (%) 1.250000 SAR 10g (W/Kg) 1.994255 SAR 1g (W/Kg) 3.766112 SURFACE SAR VOLUME SAR Report No.: TCT210302E011 Page 51 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 3.7752 2.7154 1.9525 1.5694 0.9014 Hot spot position Report No.: TCT210302E011 Page 52 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Date of measurement: 10/10/2020 Test mode: 2450MHz (Body) Product Description: Validation Dipole Model: SID2450 E-Field Probe: SSE2 (SN 36/20 EPGO346) Phantom Validation plane Input Power 100mW Crest Factor 1.0 Probe Conversion factor 2.37 Frequency (MHz) 2450.000000 Relative permittivity (real part) 54.616199 Relative permittivity (imaginary part) 14.930150 Conductivity (S/m) 2.012159 Variation (%) -0.230000 SAR 10g (W/Kg) 2.416669 SAR 1g (W/Kg) 5.066368 SURFACE SAR VOLUME SAR Report No.: TCT210302E011 Page 53 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 5.0622 2.7984 1.5251 0.8352 0.4200 Hot spot position Report No.: TCT210302E011 Page 54 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Date of measurement: 10/12/2020 Test mode: 2600MHz (Body) Product Description: Validation Dipole Model: SID2600 E-Field Probe: SSE2 (SN 36/20 EPGO346) Phantom Validation plane Input Power 100mW Crest Factor 1.0 Probe Conversion factor 2.23 Frequency (MHz) 2535.000000 Relative permittivity (real part) 52.013887 Relative permittivity (imaginary part) 14.935214 Conductivity (S/m) 2.114821 Variation (%) -1.800000 SAR 10g (W/Kg) 2.382177 SAR 1g (W/Kg) 5.365098 SURFACE SAR VOLUME SAR Report No.: TCT210302E011 Page 55 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 5.7721 3.2210 0.1937 0.0321 0.0203 Hot spot position Report No.: TCT210302E011 Page 56 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Date of measurement: 02/24/2021 Test mode: 5200 (Body) Product Description: Validation Dipole Model: SID5000 E-Field Probe: SSE2 (SN 36/20 EPGO346) Phantom Validation plane Input Power 100mW Crest Factor 1.0 Probe Conversion factor 2.08 Frequency (MHz) 5200.000000 Relative permittivity (real part) 49.012077 Relative permittivity (imaginary part) 21.378187 Conductivity (S/m) 5.458883 Variation (%) -3.140000 SAR 10g (W/Kg) 5.633123 SAR 1g (W/Kg) 2.949446 SURFACE SAR VOLUME SAR Report No.: TCT210302E011 Page 57 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 5.9525 0.6022 0.3594 0.2202 0.0725 Hot spot position Report No.: TCT210302E011 Page 58 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Date of measurement: 02/24/2021 Test mode: 5300MHz (Body) Product Description: Validation Dipole Model: SID5000 E-Field Probe: SSE2 (SN 36/20 EPGO346) Phantom Validation plane Input Power 100mW Crest Factor 1.0 Probe Conversion factor 1.99 Frequency (MHz) 5300.000000 Relative permittivity (real part) 48.882699 Relative permittivity (imaginary part) 15.200000 Conductivity (S/m) 5.530000 Variation (%) 0.450000 SAR 10g (W/Kg) 5.053687 SAR 1g (W/Kg) 3.782547 SURFACE SAR VOLUME SAR Report No.: TCT210302E011 Page 59 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 5.7545 2.4524 1.3520 0.8214 0.5525 Hot spot position Report No.: TCT210302E011 Page 60 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Date of measurement: 02/24/2021 Test mode: 5600MHz (Body) Product Description: Validation Dipole Model: SID5000 E-Field Probe: SSE2 (SN 36/20 EPGO346) Phantom Validation plane Input Power 100mW Crest Factor 1.0 Probe Conversion factor 2.12 Frequency (MHz) 5600.000000 Relative permittivity (real part) 49.759999 Relative permittivity (imaginary part) 14.329440 Conductivity (S/m) 5.970354 Variation (%) 1.410000 SAR 10g (W/Kg) 5.994255 SAR 1g (W/Kg) 3.766112 SURFACE SAR VOLUME SAR Report No.: TCT210302E011 Page 61 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 5.4532 2.7154 1.9525 1.5694 0.9014 Hot spot position Report No.: TCT210302E011 Page 62 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Date of measurement: 02/24/2021 Test mode: 5800MHz (Body) Product Description: Validation Dipole Model: SID5000 E-Field Probe: SSE2 (SN 36/20 EPGO346) Phantom Validation plane Input Power 100mW Crest Factor 1.0 Probe Conversion factor 2.13 Frequency (MHz) 5800.000000 Relative permittivity (real part) 47.393887 Relative permittivity (imaginary part) 14.935214 Conductivity (S/m) 6.274821 Variation (%) -1.420000 SAR 10g (W/Kg) 5.382177 SAR 1g (W/Kg) 2.365098 SURFACE SAR VOLUME SAR Report No.: TCT210302E011 Page 63 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.…

Text truncated - open the document above for the full version.

Report No.: TCT210302E011 Page 109 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 110 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 111 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 112 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 113 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 114 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix D: Dipole Calibration Report SID 835 Report No.: TCT210302E011 Page 115 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 116 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 117 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 118 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 119 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 120 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 121 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 122 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210302E011 Page 123 of 184 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-276…
