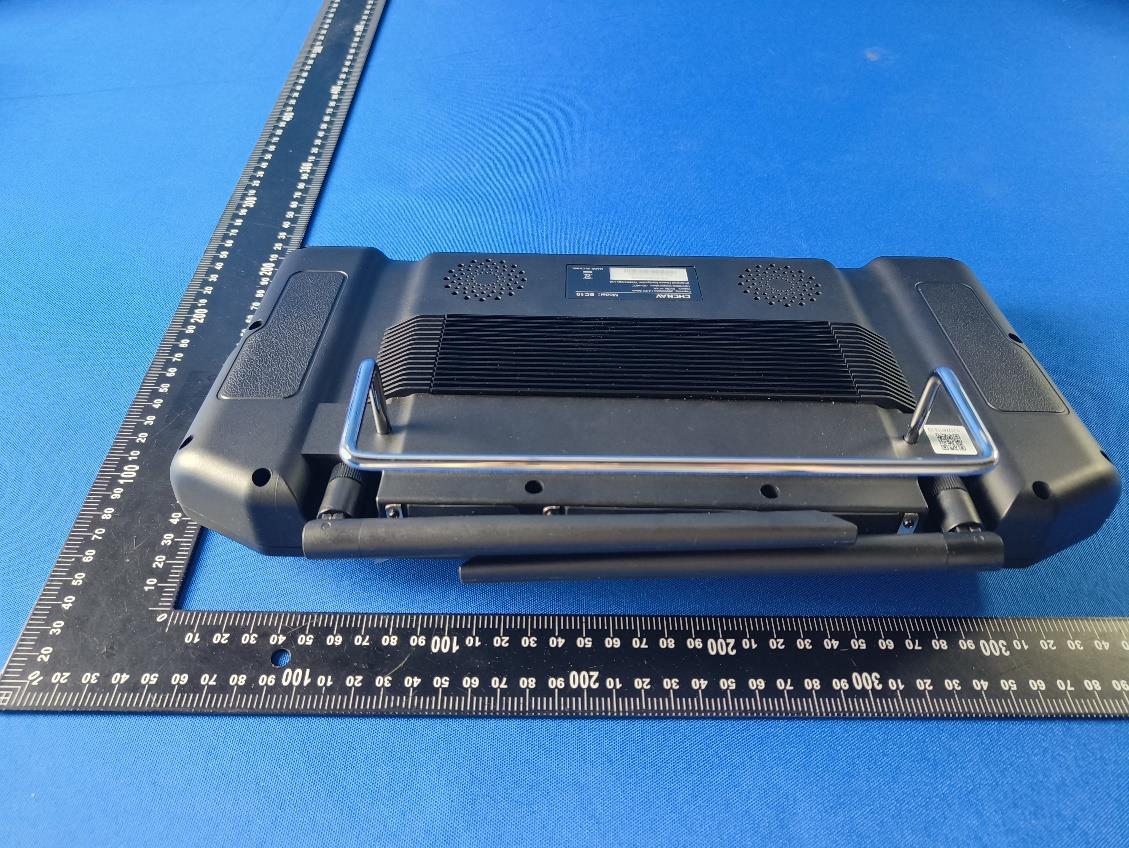

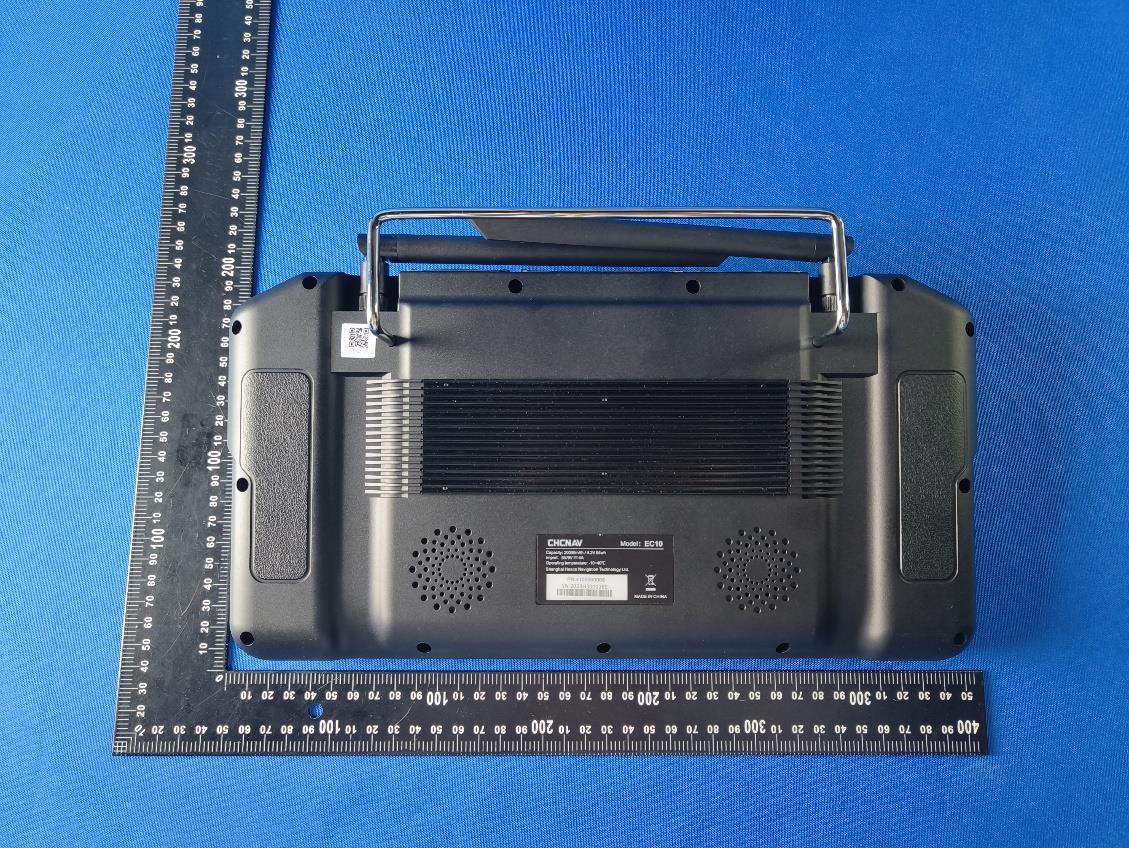

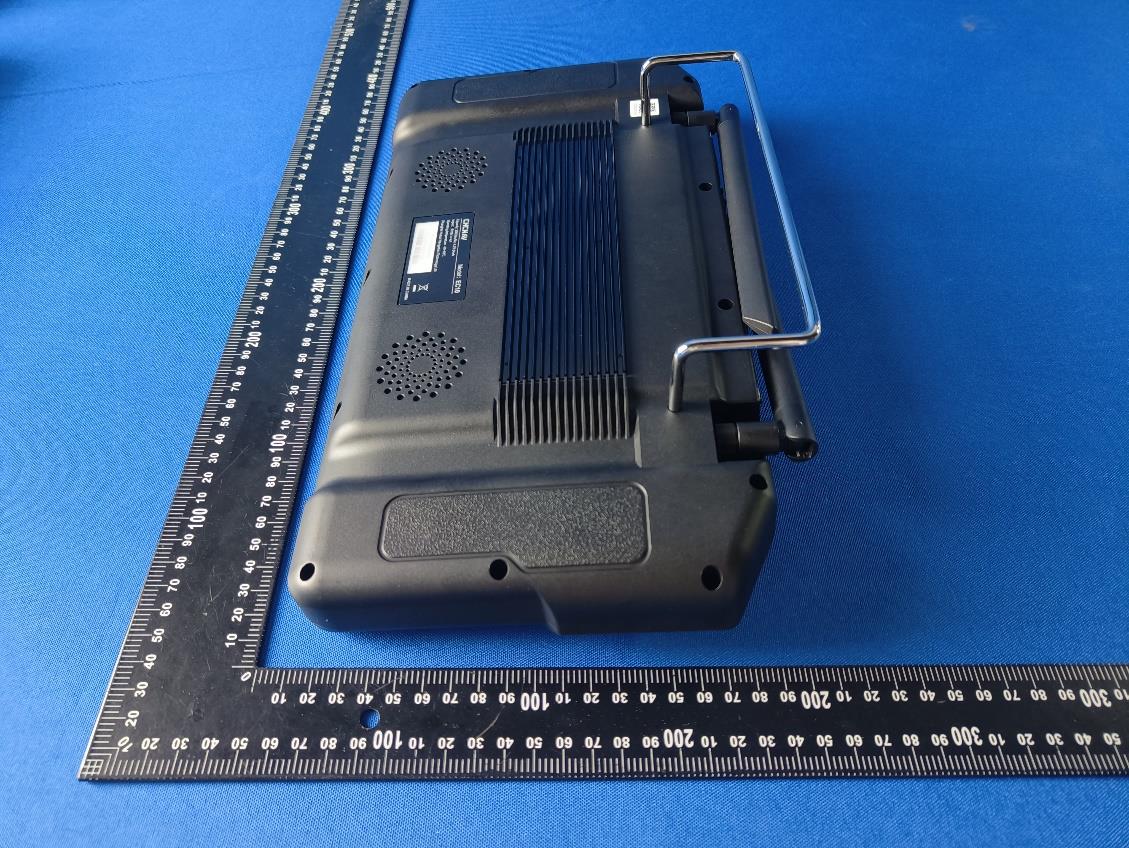

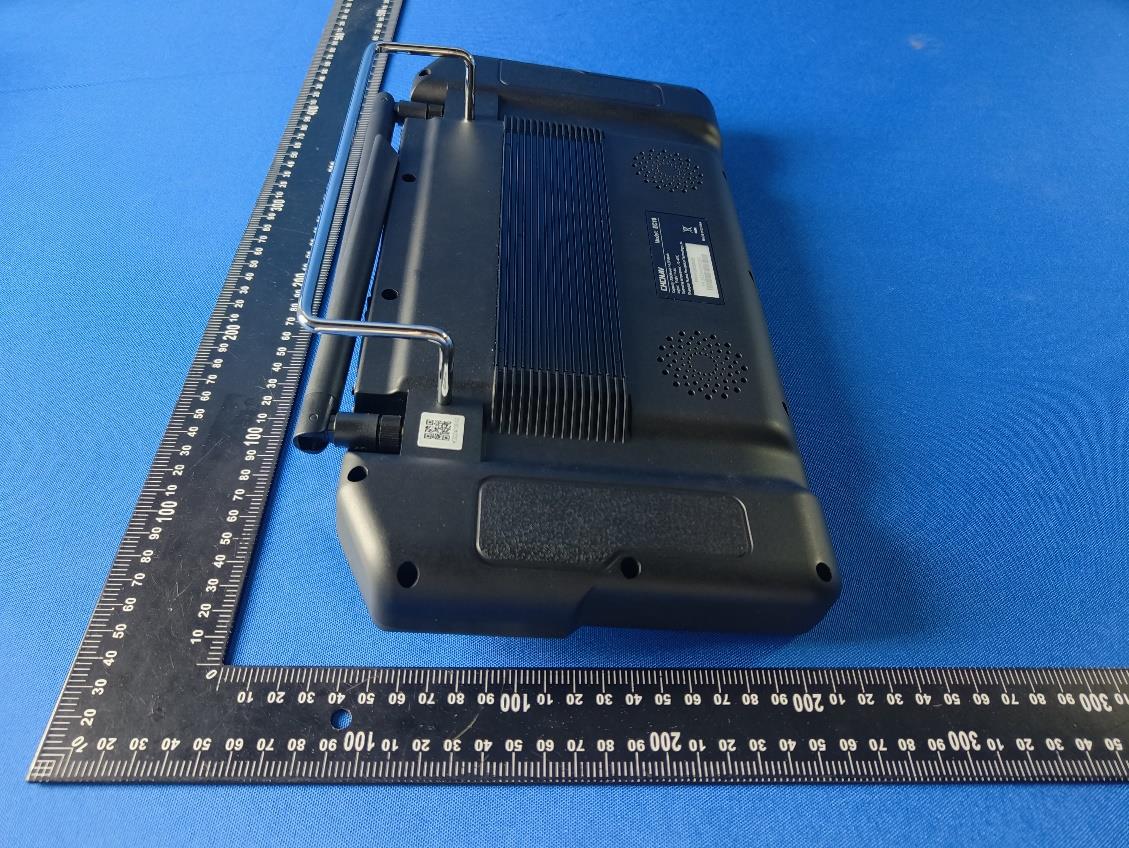

SY4-B01019Remote Controller

Remote Control User Manual v1.0 MAKES YOUR WORK MORE EFFICIENT 2 Pre-reading tip Symbol specification △ ! Matters needing attention ○ / warn Software download Log in the official website or through this URL https://www.huace.cn EasySail software can be downloaded from 【 Service & Support 】- 【 Download Center 】 MAKES YOUR WORK MORE EFFICIENT 3 Remote control parts introduction ① On-off key: remote control switch on/off key, long press on/off. ② Forward/backward: Control the unmanned ship forward and backward. Only the front and back directions are valid, not the left and right directions. ③ Turn left/right: Control the turning of the unmanned boat. Only the left and right directions are valid, not the front and back directions. ④ Automatic/Manual switch key: switch the mode of the unmanned ship. ⑤ Manual and automatic modes are supported. ⑥ Hover button: Controls hover. ⑦ Remote control antenna: Used for remote control of unmanned ships. Note that unmanned ships need to install two corresponding RC MAKES YOUR WORK MORE EFFICIENT 4 antennas. △ !M,atters needing attention： 1. The physical button is subject to the actual delivery, and subsequent changes will be made without prior notice; 2. The rocker of the remote control is a sensitive device, and it is forbidden to bounce the rod and press by gravity. Remote charging EC10 remote control built-in rechargeable lithium battery, compatible with market standard TYPE-C interface (such as mobile phones, cameras and other digital products USB charger) for charging. Using the official standard Type-C charger, it takes 4 hours to fully charge under normal shutdown state. △ !Matters needing attention： 1. Use the official standard charger to charge the remote control. If you do not use the original charger, it is recommended to use the PSE standard, 9V / 4A USB charger; 2. In order to keep the remote control battery in the best condition, please ensure that the remote control is fully charged once every 3 months; 批注 [1]: 这里删除 MAKES YOUR WORK MORE EFFICIENT 5 3. If you encounter smoke, odor, or night leakage when charging at the ground end, do not continue to charge the ground end, please transfer it to the company for maintenance; 4. Do not charge the product in the baby touch area to avoid the risk of electric shock. Do not charge this product in an environment exceeding 60°C. Environmental conditions of use A) Ambient temperature :-10°C ~ +45°C. B) Storage temperature: -20°C ~ +50°C. C) Relative humidity: Not exceed 85%. D) Atmospheric pressure :86kPao~106kPao E) Media with explosion risk are not allowed in the use place, and the surrounding media should not contain gases and conductive mediums that corrode metal and destroy insulation, and should not be full of water vapor and serious mold. F) The place of use shall have facilities to protect against rain, snow, wind, sand and ash. Remote maintenance, repair Keep the remote control in a dry and ventilated place to reduce direct sunlight to prevent the battery from overheating. If it needs to be stored for more than one month, the remote control battery must be regularly charged to 70-80% storage, so as to avoid battery exhaustion and loss of power. The recommended storage temperature range is +22°C to +28°C Do not store the battery in a place below minus 20 degrees Celsius or above 45 degrees Celsius. MAKES YOUR WORK MORE EFFICIENT 6 Remote control transportation and storage ○ /warn： To avoid possible injury and loss, be sure to comply with the following: Keep children away from the parts of the remote control because wires and small parts can be dangerous to children. △ !Matters needing attention： 1. Do not let the remote control immersed in water, if in water, please wipe with a soft dry cloth in time, and immediately turn off the power, return to the company after sale; 2. Do not mechanically impact, roll, Pierce the battery, do not drop the battery. MAKES YOUR WORK MORE EFFICIENT 7 EC10 Remote control parameters Display: 10.1 Industrial Touch Screen Resolution: 1920*1200 Memory: 4GB Storage capacity: 64GB Android: Android 9.1 Waterproof and DustproofRating:IP67 Communication frequency:800MHz/1.4GHz/2.4GHz Battery capacity: 200000mAh Working life :5h Charging interface :Type-C Channels：16 channels Total Weight:2kg Total Dismensions:361mm(L)*393.2mm(W)*102.4mm(H) 批注 [2]: 19000mAh FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Shanghai Huace Navigation Technology Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shanghai Huace Navigation Technology Ltd. Address: 577 Songying Road, Qingpu District, 201706 Shanghai, China Product Name: Remote Controller FCC ID: SY4-B01019 Model(s): EC10 2.911(d)(5)(i) Equipment Type We, [Shanghai Huace Navigation Technology Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Glenn Chu Date: March 7, 2024 Title and Company name: Certificate Manager Shanghai Huace Navigation Technology Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shanghai Huace Navigation Technology Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shanghai Huace Navigation Technology Ltd. Address: 577 Songying Road, Qingpu District, 201706 Shanghai, China Product Name: Remote Controller FCC ID: SY4-B01019 Model(s): EC10 2.911(d)(5)(ii) Applicant filing We, [Shanghai Huace Navigation Technology Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Glenn Chu Date: March 7, 2024 Title and Company name: Certificate Manager Shanghai Huace Navigation Technology Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

COMPANY LETTERHEAD * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter DATE ATTN.: Reviewing Engineer FCC ID: SY4-B01019 FRN: 0022641393 Per section 2.911(d)(7) of the FCC rules, Shanghai Huace Navigation Technology Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: iGage Mapping Corporation FRN: 0013933296 Physical U.S. Company Address: 1545 South 1100 East #1, Salt Lake City, UT 84105, United States Agent name: Mark E Silver Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Printed name: Glenn Chu Title: Certification Manager Company Name: Shanghai Huace Navigation Technology Ltd. Date: 3/11/2024 Signed: Printed name: Mark E Silver Title: President Company Name: iGage Mapping Corporation Date: 3/11/2024

Shanghai Huace Navigation Technology Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024-03-07 Subject; Request for Long Term Confidentiality FCC ID: SY4-B01019 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description software security requirement It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Glenn Chu Title: Certificate Manager

Shanghai Huace Navigation Technology Ltd. Letter of Authorization Company: Shanghai Huace Navigation Technology Ltd. Address: 577 Songying Road, Qingpu District, 201706 Shanghai, China Product Name: Remote Controller Model Number(s): EC10 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024-03-07 Name: Glenn Chu Title: Certificate Manager Company: Shanghai Huace Navigation Technology Ltd.

FCC ID: SY4-B01019 FCC ID: SY4-B01019 FCC ID: SY4-B01019 2.4G ANT FCC ID: SY4-B01019 FCC ID: SY4-B01019 FCC ID: SY4-B01019

4.5cm 2.5cm Label Location FCC ID: SY4-B01019 Shanghai Huace Navigation Technology Ltd. Product name: Remote Controller This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: SY4-B01019 2/3/4G ANT BT/WIFI ANT FCC ID: SY4-B01019 FCC ID: SY4-B01019 FCC ID: SY4-B01019 FCC ID: SY4-B01019 FCC ID: SY4-B01019 FCC ID: SY4-B01019 FCC ID: SY4-B01019 FCC ID: SY4-B01019 FCC ID: SY4-B01019 FCC ID: SY4-B01019 FCC ID: SY4-B01019

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SAR TEST REPORT FCC ID. ............................ : SY4-B01019 Test Report No. ............... : TCT240222E003 Date of issue ................... : Mar. 06, 2024 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Shanghai Huace Navigation Technology Ltd. Address ........................... : 577 Songying Road, Qingpu District, 201706 Shanghai, China Manufacturer's name ... : Shanghai Huace Navigation Technology Ltd. Address ........................... : 577 Songying Road, Qingpu District, 201706 Shanghai, China Product Name ................. : Remote Controller Trade Mark ...................... : Model/Type reference..... : EC10 SAR Max. Values..............: 0.72 W/Kg (1g) for Body-worn; 0.74 W/Kg (1g) for Hotspot Simultaneous Reported SAR..................................: 1.25 W/Kg (1g) for Body-worn; 1.22 W/Kg (1g) for Hotspot Date of receipt of test item ......................................... : Feb. 22, 2024 Date (s) of performance of test ................................... : Feb. 22, 2024 - Mar. 06, 2024 Tested by (+signature) ... : Karl WANG Check by (+signature) .... : Beryl Zhao Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT240222E003 Page 2 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. General Product Information .................................................................. 4 1.1. EUT description ..................................................................................................... 4 1.2. Model(s) list ............................................................................................................ 5 2. Test standard ........................................................................................... 6 3. Facilities and Accreditations .................................................................. 6 3.1. Facilities ................................................................................................................. 6 3.2. Location ................................................................................................................. 6 3.3. Environment Condition: ........................................................................................ 6 4. Test Result Summary .............................................................................. 7 5. RF Exposure Limit ................................................................................... 8 6. SAR Measurement System Configuration ............................................. 9 6.1. SAR Measurement Set-up ..................................................................................... 9 6.2. E-field Probe ........................................................................................................ 10 6.3. Phantom ............................................................................................................... 10 6.4. Device Holder ....................................................................................................... 11 6.5. Data Storage and Evaluation .............................................................................. 12 6.6. Position of the wireless device in relation to the phantom.............................. 13 6.7. Tissue Dielectric Parameters.............................................................................. 16 6.8. Tissue-equivalent Liquid Properties .................................................................. 17 6.9. System Check ...................................................................................................... 18 7. Measurement Procedure ....................................................................... 19 8. Conducted Output Power ...................................................................... 22 9. Exposure Position Consideration ........................................................ 33 9.1. EUT Antenna Location ........................................................................................ 33 9.2. Test Position Consideration ............................................................................... 33 10. SAR Test Results Summary .................................................................. 34 10.1.Body-Worn 1g SAR Data .................................................................................... 34 10.2.Hotspot 1g SAR Data .......................................................................................... 37 10.3.Simultaneous Transmission Conclusion.......................................................... 39 10.4.SAR Simultaneous Transmission Analysis ...................................................... 40 10.5.Measurement Uncertainty (450MHz-3GHz) ....................................................... 44 10.6.Test Equipment List ........................................................................................... 46 11. System Check Results .......................................................................... 47 Report No.: TCT240222E003 Page 3 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 12. SAR Test Data ........................................................................................ 61 Appendix A: EUT Photos .......................................................................... 107 Appendix B: Test Setup Pho…

Text truncated - open the document above for the full version.

Report No.: TCT240222E003 Page 81 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com WLAN 2.4G MEASUREMENT 1 Middle Band SAR (Channel 1): Date: 02/27/2024 Frequency (MHz) 2437.000000 Relative permittivity (real part) 39.226002 Relative permittivity (imaginary part) 13.207000 Conductivity (S/m) 1.788081 Variation (%) -1.600000 Crest Factor 1.0 Probe Conversion factor 2.31 E-Field Probe: SSE2 (SN 25/22 EPGO375) Area Scan dx=12mm dy=12mm, h= 5.00 mm ZoomScan 5x5x7,dx=5mm dy=5mm dz=5mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body back(0mm) Band IEEE 802.11n ISM SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=23.00 SAR Peak: 0.45 W/kg SAR 10g (W/Kg) 0.125823 SAR 1g (W/Kg) 0.243301 Report No.: TCT240222E003 Page 82 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.4497 0.1577 0.0368 0.0175 0.0072 Hot spot position Report No.: TCT240222E003 Page 83 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com MEASUREMENT 2 Low Band SAR (Channel 1): Date: 10/19/2023 Frequency (MHz) 2412.000000 Relative permittivity (real part) 39.226002 Relative permittivity (imaginary part) 13.207000 Conductivity (S/m) 1.788081 Variation (%) -1.380000 Crest Factor 1.0 Probe Conversion factor 2.31 E-Field Probe: SSE2 (SN 25/22 EPGO375) Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body back(0mm) Band IEEE 802.11b ISM(hotspot) SURFACE SAR VOLUME SAR Maximum location: X=-15.00, Y=58.00 SAR Peak: 0.57 W/kg SAR 10g (W/Kg) 0.187182 SAR 1g (W/Kg) 0.283788 Report No.: TCT240222E003 Page 84 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.3732 0.2107 0.0935 0.0368 0.0124 Hot spot position Report No.: TCT240222E003 Page 85 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2.4G MEASUREMENT 1 Low Band SAR (Channel 1): Date: 02/27/2024 Frequency (MHz) 2406.500000 Relative permittivity (real part) 39.226002 Relative permittivity (imaginary part) 13.207000 Conductivity (S/m) 1.788081 Variation (%) -1.200000 Crest Factor 1.0 Probe Conversion factor 2.31 E-Field Probe: SSE2 (SN 25/22 EPGO375) Area Scan dx=12mm dy=12mm, h= 5.00 mm ZoomScan 5x5x7,dx=5mm dy=5mm dz=5mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body Top-level Band 2.4G SURFACE SAR VOLUME SAR Maximum location: X=-10.00, Y=-48.00SAR Peak: 0.75 W/kg SAR 10g (W/Kg) 0.263670 SAR 1g (W/Kg) 0.312403 Report No.: TCT240222E003 Page 86 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7748 0.5207 0.3551 0.2467 0.1641 Hot spot position Report No.: TCT240222E003 Page 87 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com MEASUREMENT 2 Low Band SAR (Channel 1): Date: 02/27/2024 Frequency (MHz) 2406.500000 Relative permittivity (real part) 39.226002 Relative permittivity (imaginary part) 13.207000 Conductivity (S/m) 1.788081 Variation (%) 2.770000 Crest Factor 1.0 Probe Conversion factor 2.31 E-Field Probe: SSE2 (SN 25/22 EPGO375) Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body Top-vertical Band 2.4G SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=64.00 SAR Peak: 0.59 W/kg SAR 10g (W/Kg) 0.216021 SAR 1g (W/Kg) 0.282715 Report No.: TCT240222E003 Page 88 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.5864 0.4231 0.2620 0.1716 0.1193 Hot spot position Report No.: TCT240222E003 Page 89 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com WLAN 5.2G MEASUREMENT 1 SAR (Channel 38): Date: 03/01/2024 Frequency (MHz) 5190.000000 Relative permittivity (real part) 35.068832 Relative permittivity (imaginary part) 13.679428 Conductivity (S/m) 5.220788 Variation (%) -1.010000 Crest Factor 1.0 Probe Conversion factor 2.01 E-Field Probe: SSE2 (SN 25/22 EPGO375) Area Scan dx=10mm dy=10mm, h= 5.00 mm ZoomScan 5x5x7,dx=4mm dy=4mm dz=2mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body Back(0mm) Band IEEE 802.11n ISM SURFACE SAR VOLUME SAR Maximum location: X=5.00, Y=20.00 SAR Peak: 0.76 W/kg SAR 10g (W/Kg) 0.268750 SAR 1g (W/Kg) 0.418045 Report No.: TCT240222E003 Page 90 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 2.00 7.00 12.00 17.00 SAR (W/Kg) 0.7535 0.4116 0.1821 0.0839 0.0481 Hot spot position Report No.: TCT240222E003 Page 91 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com MEASUREMENT 2 SAR (Channel 38): Date: 03/01/2024 Frequency (MHz) 5190.000000 Relative permittivity (real part) 35.068832 Relative permittivity (imaginary part) 13.679428 Conductivity (S/m) 5.220788 Variation (%) 1.230000 Crest Factor 1.0 Probe Conversion factor 2.01 E-Field Probe: SSE2 (SN 25/22 EPGO375) Area Scan dx=10mm dy=10mm, h= 5.00 mm ZoomScan 5x5x7,dx=4mm dy=4mm dz=2mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body back(0mm) Band IEEE 802.11n ISM SURFACE SAR VOLUME SAR Maximum location: X=-8.00, Y=-2.00 SAR Peak: 0.71 W/kg SAR 10g (W/Kg) 0.224653 SAR 1g (W/Kg) 0.337245 Report No.: TCT240222E003 Page 92 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 2.00 7.00 12.00 17.00 SAR (W/Kg) 0.7061 0.4029 0.1908 0.0932 0.0532 Hot spot position Report No.: TCT240222E003 Page 93 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www…

Text truncated - open the document above for the full version.

Report No.: TCT240222E003 Page 151 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 152 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SID2600 Report No.: TCT240222E003 Page 153 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 154 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 155 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 156 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 157 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 158 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 159 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 160 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 161 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 162 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 163 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SID5G Report No.: TCT240222E003 Page 164 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 165 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 166 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 167 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 168 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 169 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 170 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 171 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 172 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 173 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 174 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 175 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT240222E003 Page 176 of 178 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix E: SAR SYSTEM VALIDATION Per FCC KDB 865664 D02v01, SAR system validation status should be documented to confirm measurement accuracy. The SAR systems (including SAR probes, system components and software versions) used for this device were validated against its performance specifications prior to the SAR measurements. Reference dipoles were used with the required tissue- equivalent media for system validation, according to the procedures outlined in FCC KDB 865664 D01 v01 and IEEE 1528-2013. Since SAR probe calibrations are frequency dependent, each probe calibration point was validated at a frequency within the valid frequency range of the probe calibration point, using the system that normally operates with the probe for routine SAR measurements and according to the required tissue-equivalent media. A tabulated summary of the system validation status including the validation date(s), measurement frequencies, SAR probes and tissue dielectric parameters has been included. SAR System Validation Summary Date Freq. [MHz] Probe S/N Tissu e type COND. PERM. COND. PERM. CW Validation Mod. Validation (σ) (εr) sensitivity Probe linearity Probe isotropy Mod. type Duty factor Peak to average power ratio 02/01/2024 835 SN 25/22 EPGO 375 Head 42.3 0.89 PASS PASS PASS GMSK PASS N/A 02/01/2024 2450 SN 25/22 EPGO 375 Head 38.99 1.88 PASS PASS PASS OFDM PASS N/A 02/01/2024 2600 SN 25/22 EPGO 375 Head 39.00 1.96 PASS PASS PASS OFDM PASS N/A 02/01/2024 5G SN 25/22 EPGO 375 Head 36.68 4.45 ~ 5.08 PASS PASS PASS OFDM PASS N/A NOTE: While the probes have been calibrated for both a CW and modulated signals, all…
