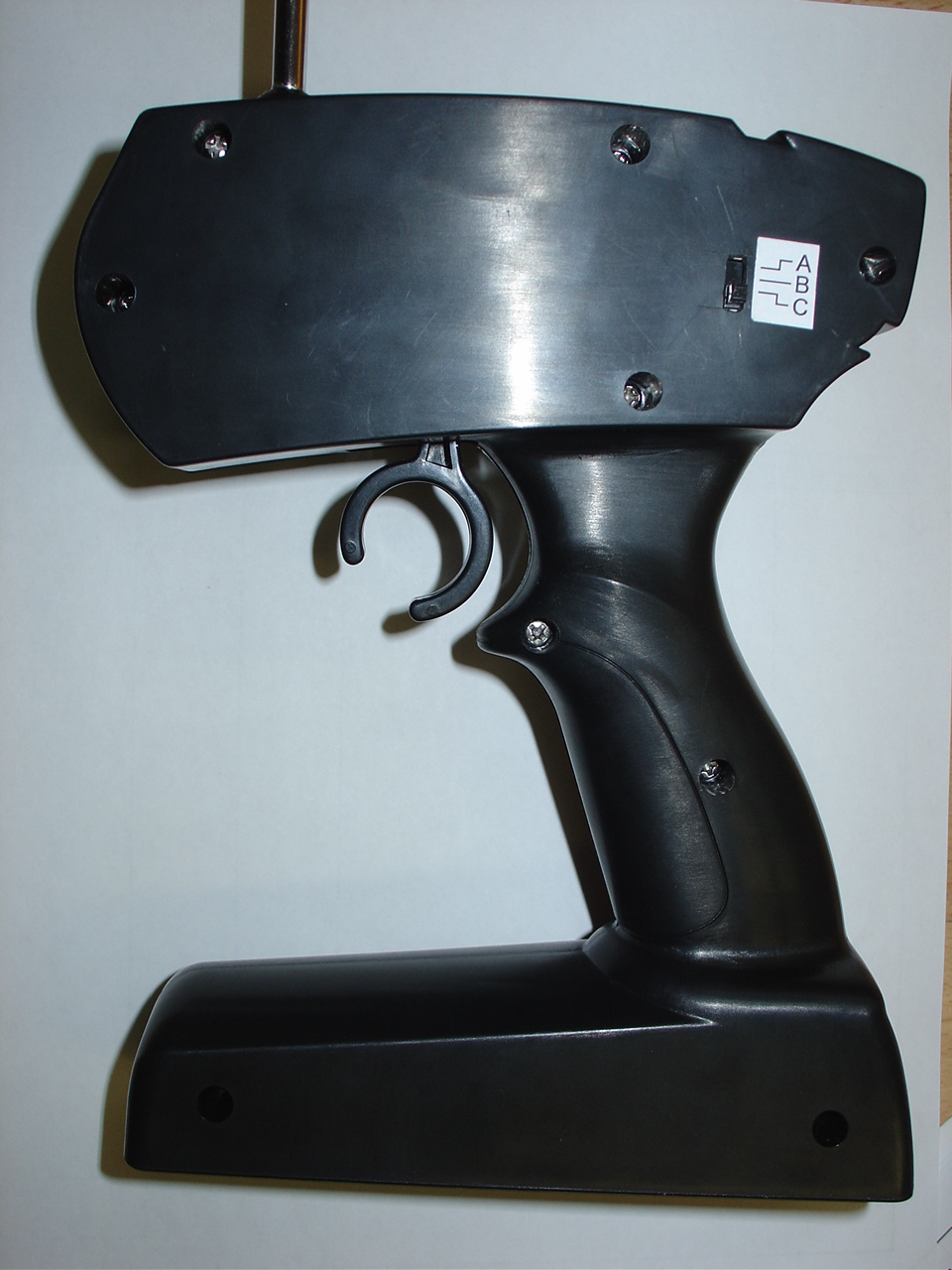

SZ23150T27TOY REMOTE CONTROL TRANSMITTER

TRANSMITTER FOR ALL 3150 SERIES Sufer Board RC (27.255MHZ) Control keys S1,S2,S3,S4 Encoder IC IC1 Oscillator 27.255MHZ Q3,X2 Modulator Q4

FCC ID Label Sample for FCCID: SZ23150T27_ FCC ID: SZ23150T27 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

General Circuit Description 1.0 Product Description (Receiver) The Equipment Under Test (EUT) is a Super-regenerative Receiver for a remote controlled Toy operating at 49.860 MHz. The EUT is powered by 12V Ni-Cd rechargeable batteries. The EUT can be controlled in for moving directions (forward/backward and left/right turn). The brief circuit description is listed as follows: -Q3 and associated circuit act as a RF amplifier. -Q8,9,10,11,12,13and associated circuit act as a steering motor driver. -K1,2 and associated circuit act as a racing motor driver. -IC1 and associated circuit act as decode IC. -D5, Q6 and associated circuit act as power Reguiator circuit to supply the 2.7V power for pre-amp circuit and decode IC. 1.0 Product Description (Transmitter) The Equipment Under Test (EUT) is a transmitter for a remote controlled Toy operating at 27.255 MHZ which is controlled by a crystal. The EUT is powered by 9V batteries. There are four switches: Forward and Backward, turn left and right. The brief circuit description is listed as follows: -Q3, X2 and associated circuit act as oscillator. -Q4 and associated circuit act as modulator. -IC1 and associated circuit act as encoder IC.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA TAT KEI ELECTRONIC IND. CO., LTD. DWG. No. Rev. Date : Size Model No.: Model Name: Drawn: Checked: Approved: Title: A/0 A FM-RD-20A PAGE :DOC. No: OF R2 33 Ohm SW1 1P2T BT1 9V " R1 10 Ohm D2 LED Surfer Board RC EB-PT0006-01 2006-09-30 0E11757A DWG-EB-PT0006-01 Q5 C9014 PC R5 47K Ohm TXD E1 ANTENNA 1 2 X1 2 7 . 2 5 5 MHZ L3 2.2uH R6 22K Ohm C10 100PF Q4 C9014 C8 20PF C9 20PF L2 2.2uH R14 330 Ohm C6 33PF R7 1M Ohm Q3 C9014 L11uH C4 47PF C5 47PF D4 BB910 R15 4.7K Ohm C11 0.01UF R13 10K Ohm Q2 C9014 V1 V1 R3 560 Ohm C3 0.1uF C2 10uF D1 3.3V Q1 8050D VDD VDD R4 100 Ohm ON OFF C71000PF 12 43 SW2 SW DIP-2 SO 1 L/R 2 K3 3 NC 4 K2 5 K1 6 K0 7 F/B 8 PC 9 NC 10 VSS 11 VDD 12 ID1 13 ID0 14 IC1 AFRC020T S4 L S3R R12 120K Ohm VDD D3 IN4148 S2 B S1 F K3 K0K1K2K3 TXD PC VDD R11 47K Ohm R10 47K Ohm C13 0.1UF C12 5000PF R8 47K Ohm R9 47K Ohm C1 0.1uF

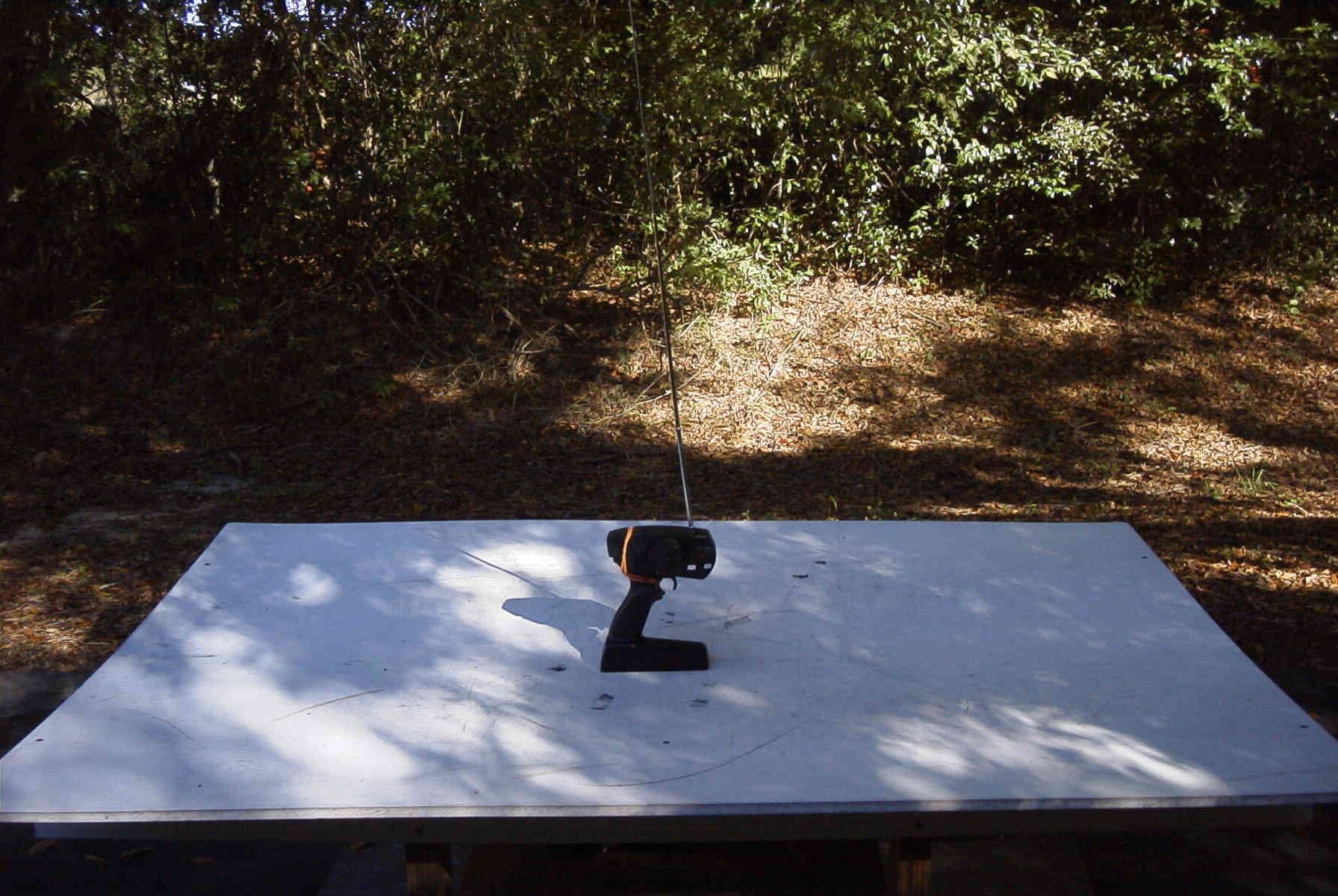

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23150T27 REPORT #: P\PLANET_SZ2\2938UT6\2938UT6TestReport.doc COVER SHEET Test Report Product Name: REMOTE CONTROL TRANSMITTER FCC ID: SZ23150T27 Applicant: PLANET TOYS (HK) LTD. 1107 CHINACHEM GOLDEN PLAZA 77 MODY ROAD, TSIMSHATSUI EAST KOWLOON HONG KONG Date Receipt: 10/23/2006 Date Tested: 11/1/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23150T27 REPORT #: P\PLANET_SZ2\2938UT6\2938UT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23150T27 TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURE PAGE 3...............RADIATION INTERFERENCE TEST DATA PAGE 4-5.............OCCUPIED BANDWIDTH PAGE 6...............OCCUPIED BANDWIDTH PLOT EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23150T27 REPORT #: P\PLANET_SZ2\2938UT6\2938UT6TestReport.doc Page 1 of 6 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro-Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro-Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 CAL 4/27/06 4/27/08 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23150T27 REPORT #: P\PLANET_SZ2\2938UT6\2938UT6TestReport.doc Page 2 of 6 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI standard C63.4- 2003 using a spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23150T27 REPORT #: P\PLANET_SZ2\2938UT6\2938UT6TestReport.doc Page 3 of 6 APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23150T27 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/m ABOVE 960 MHz 54.0 dBuV/m TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 27.3 27.26 36.7 H 0.80 34.14 71.64 8.36 27.3 54.52 21.7 H 1.01 9.96 32.67 7.33 27.3 54.52 24.5 V 1.01 9.42 34.93 5.07 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. All measurements below 30 MHz were taken using an EMC Test Systems Passive Loop Antenna. TEST PROCEDURE : The procedure used was ANSI STANDARD C63.4-2003. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes when necessary. PERFORMED BY: RICHARD BLOCK DATE: 11/1/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23150T27 REPORT #: P\PLANET_SZ2\2938UT6\2938UT6TestReport.doc Page 4 of 6 APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23150T27 NAME OF TEST: Occupied Bandwidth RULES PART NO.: 15.227 REQUIREMENTS: The field strength of any emissions appearing outside of 26.96…
