SZ23316T2727 MHz Remote Control Transmitter

27.095 MHz TX BLOCK DIAGRAM 3V DC POWER SUPPLY Magnify coding TX-2 RF oscillate 27.095 MHz RF Magnify 27.095 MHz ANT

FCC ID Label Sample for FCC ID: SZ23316T27_ FCC ID: SZ23316T27 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PLANET TOYS (HK) LTD. FCC ID: SZ23316T27 INTERNAL PHOTOS

TO: PLANET TOYS (HK) LTD. FAX: ATTN: MR NICK NG DATE: 2/1/08 FROM: MR VINCENT WONG REF NO: PAGE: 1 OF 1 APPLICANT : PLANET TOYS (HK) LTD. FCC ID : SZ23316T27 Circuit Description Q1 the 27.095 MHz crystal oscillator drives the base of Q2 the final/ buffer amplifier. Summed into the same base (Q2) is the modulation provided by IC1. The output of Q2 has the matching network consisting of L1, L2, C1, and C2 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground, and Power Source The antenna consists of a 158mm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt primary storage cell.

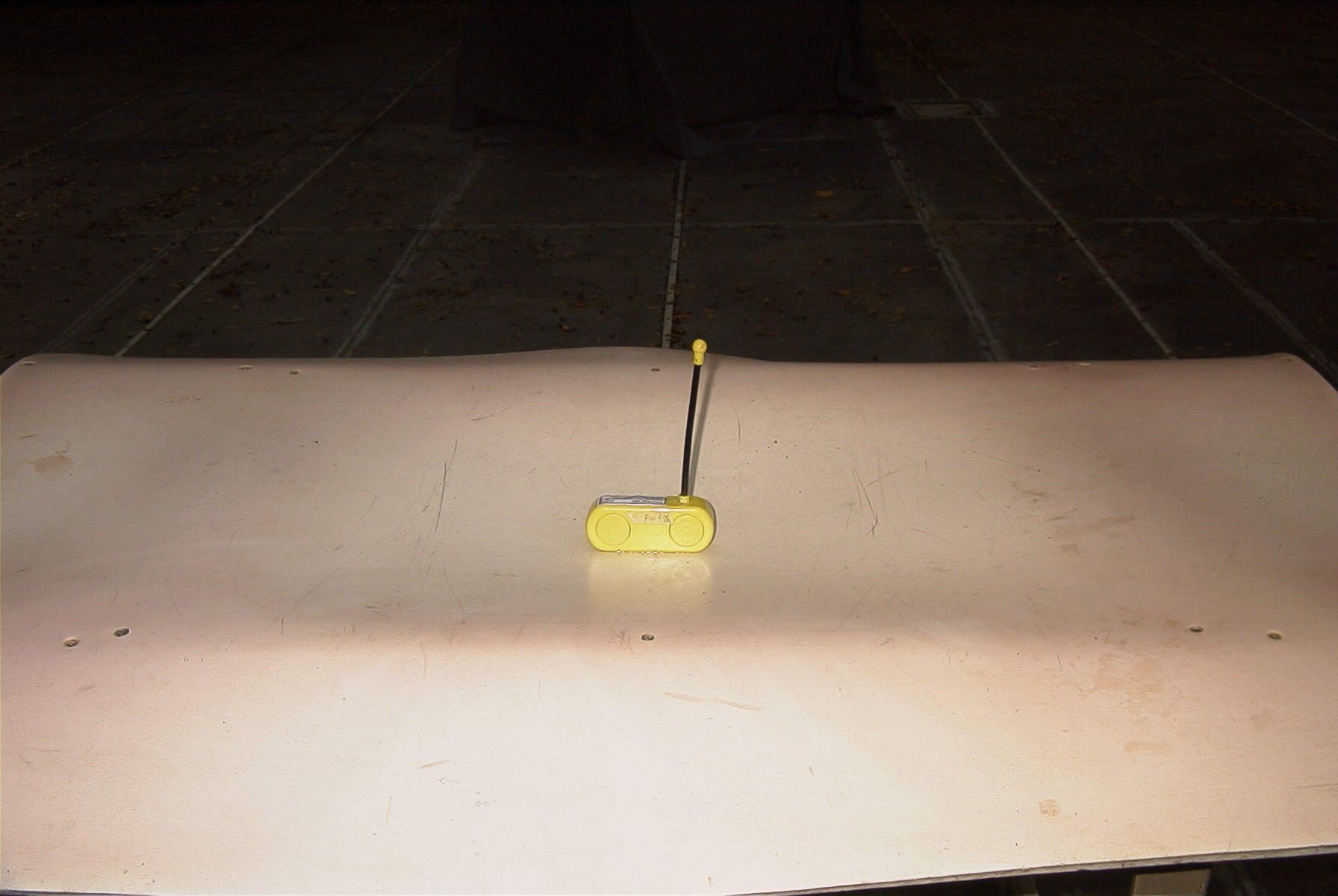

APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23316T27 REPORT: P\PLANET_SZ2\3876ZUT7\3876ZUT7TestReport.doc Page 2 of 10 mdea 09.20.2007 FCC PART 15.227 TEST REPORT LOW POWER UNLICENSED TRANSMITTER Applicant PLANET TOYS (HK) LTD. Address 1107 CHINACHEM GOLDEN PLAZA 77 MODY ROAD, TSIMSHATSUI EAST KOWLOON HONG KONG FCC ID SZ23316T27 Product Description 27 MHZ REMOTE CONTROL TRANSMITTER Date Sample Received 1/4/2008 Date Tested 1/10/2008 Tested By Nam Nguyen Approved By Mario de Aranzeta Timco Report No. 3876ZUT7TestReport.doc Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23316T27 REPORT: P\PLANET_SZ2\3876ZUT7\3876ZUT7TestReport.doc Page 3 of 10 mdea 09.20.2007 TABLE OF CONTENTS GENERAL REMARKS ....................................................................................................4 REPORT SUMMARY ......................................................................................................5 TEST ENVIRONMENT....................................................................................................5 TEST SETUP .................................................................................................................5 DUT SPECIFICATION ....................................................................................................6 TEST EQUIPMENT LIST ................................................................................................7 TEST PROCEDURES .....................................................................................................8 RADIATION INTERFERENCE .........................................................................................9 OCCUPIED BANDWIDTH.............................................................................................10 APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23316T27 REPORT: P\PLANET_SZ2\3876ZUT7\3876ZUT7TestReport.doc Page 4 of 10 mdea 09.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results only relate to the item tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 01/10/2008 APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23316T27 REPORT: P\PLANET_SZ2\3876ZUT7\3876ZUT7TestReport.doc Page 5 of 10 mdea 09.20.2007 REPORT SUMMARY Applicable Rule(s) FCC Pt 15.227, ANSI C63.4: 2003 TEST ENVIRONMENT Test Facility The test sites are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: Temperature: 26ºC Relative humidity: 50% TEST SETUP Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Deviation from the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control radio. APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23316T27 REPORT: P\PLANET_SZ2\3876ZUT7\3876ZUT7TestReport.doc Page 6 of 10 mdea 09.20.2007 DUT SPECIFICATION Applicant PLANET TOYS (HK) LTD. Description 27 MHZ REMOTE CONTROL TRANSMITTER-REPAIR & RETEST FCC ID SZ23316T27 Frequency Range 27.095-27.095 MHz 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23316T27 REPORT: P\PLANET_SZ2\3876ZUT7\3876ZUT7TestReport.doc Page 7 of 10 mdea 09.20.2007 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/20/07 3/19/10 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 7/18/07 7/18/09 Analyzer Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 5/17/07 5/17/09 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 5/17/07 5/17/09 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 5/17/07 5/17/09 LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro- Metrics EM-7820 2682 CAL 7/23/07 7/23/09 Antenna: Active Loop ETS- Lindgren 6502 00062529 CAL 3/30/06 3/30/08 APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23316T27 REPORT: P\PLANET_SZ2\3876ZUT7\3876ZUT7TestReport.doc Page 8 of 10 mdea 09.20.2007 TEST PROCEDURES Radiated Spurious Emissions: The test procedure used was ANSI C63.4-2003 using a spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was always greater than the RBW. Occupied Bandwidth: A small sample of the transmitter output was fed into the spectrum analyzer and the following plot was generated. The vertical scale is set to 10 dB per division…
