SZ23351T2727 MHz TRANSMITTER

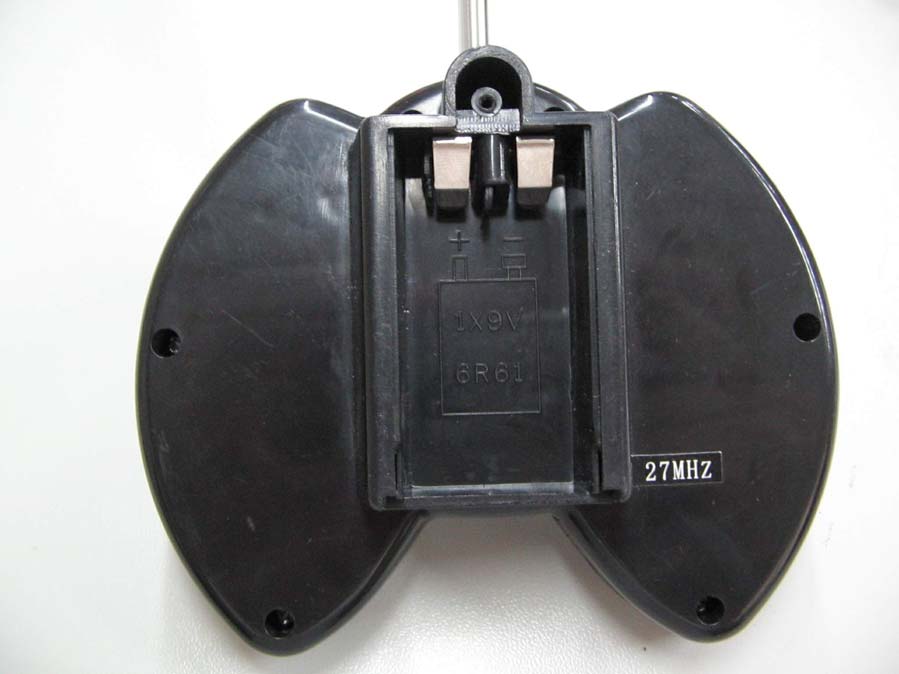

PLANET TOYS (HK) LTD. FCC ID: SZ23351T27 EXTERNAL PHOTOS

FCC ID Label Sample for FCCID: SZ23351T27_ FCC ID: SZ23351T27 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PLANET TOYS (HK) LTD. FCC ID: SZ23351T27 INTERNAL PHOTOS

APPLICANT: PLANET TOY LTD. FCC ID: SZ23351T27 Circuit Description Q1 the27.145 MHz crystal oscillator drives the base of Q2 the final/ buffer amplifier. Summed into the same base (Q2) is the modulation provided by U1. The output of Q2 has the matching network consisting of T1, L2, C9, C11, and C12 that limit the harmonic content and affect the proper coupling of the antenna to the output stage. Antenna, Ground, and Power Source The antenna consists of a 35cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt primary storage cell.

1 2 34 ABCD 4 3 2 1 D CBA 22-Nov-2005 Date: FairLandToy Electronic CO., LTD. Product Name Product Naumber Page of Drawn:Re v C10 403 L32.2uF 3351 01 01 02 C547pF C547pF R3 270K BACK FORWARD R4300K Y1 27.145MHz Q1 C945GR R2330R R847K R6220R C647pFC7 100pF C1156pF ANT1 RIGHTB 1 NC 2 GND 3 BACK 4 FORWARD 5 TURBOB 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 NC 13 LEFTB 14 U1 TX2C ATS302T C3 33uF Z14.3V Q2C945GR L22.2uF S BT9V D1LED R21K C0 403 LEFT RIGHT T1 13T R618k C8100pF C2 403 R7220R C12100pF TX 27.145MHz SCH Diagram

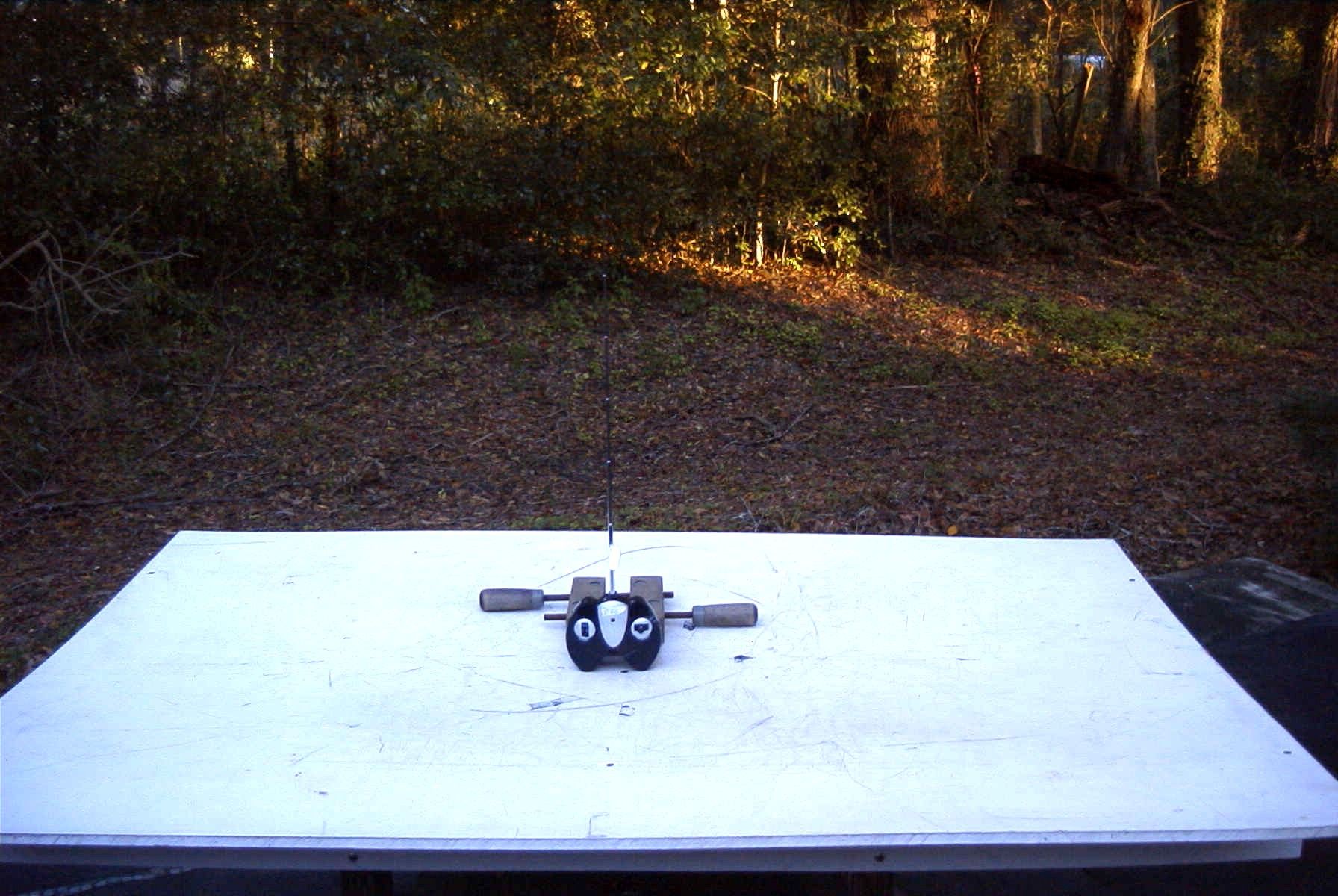

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23351T27 REPORT #: V:\P\PLANET_SZ2\2408UT5A\2408UT5ATestReport.doc COVER SHEET Test Report Product Name: 27 MHz TRANSMITTER FCC ID: SZ23351T27 Applicant: PLANET TOYS (HK) LTD. 1107 CHINACHEM GOLDEN PLAZA 77 MODY ROAD, TSIMSHATSUI EAST KOWLOON HONG KONG TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23351T27 REPORT #: V:\P\PLANET_SZ2\2408UT5A\2408UT5ATestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23351T27 TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURE PAGE 3...............RADIATION INTERFERENCE TEST DATA PAGE 4...............OCCUPIED BANDWIDTH PAGE 5...............OCCUPIED BANDWIDTH PLOT EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23351T27 REPORT #: V:\P\PLANET_SZ2\2408UT5A\2408UT5ATestReport.doc Page 1 of 5 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log-Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/04 7/10/06 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23351T27 REPORT #: V:\P\PLANET_SZ2\2408UT5A\2408UT5ATestReport.doc Page 2 of 5 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4- 2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23351T27 REPORT #: V:\P\PLANET_SZ2\2408UT5A\2408UT5ATestReport.doc Page 3 of 5 APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23351T27 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/m ABOVE 960 MHz 54.0 dBuV/m TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Pol Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 27.1 27.13 37.3 H 0.80 13.76 51.86 28.14 27.1 27.13 39.8 V 0.80 12.44 53.04 26.96 No harmonics found. SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. All measurements below 30 MHz were taken using an EMC Test Systems Passive Loop Antenna. TEST PROCEDURE : The procedure used was ANSI STANDARD C63.4-2003. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: RICHARD BLOCK DATE: 11/30/05 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23351T27 REPORT #: V:\P\PLANET_SZ2\2408UT5A\2408UT5ATestReport.doc Page 4 of 5 APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23351T27 NAME OF TEST: Occupied Bandwidth RULES PART NO.: 15.227 REQUIREMENTS: The field strength of any emissions appearing between the band edges and up to 10 kHz …
