SZ23357T49WIRELESS REMOTE CONTROL TRANSMITTER

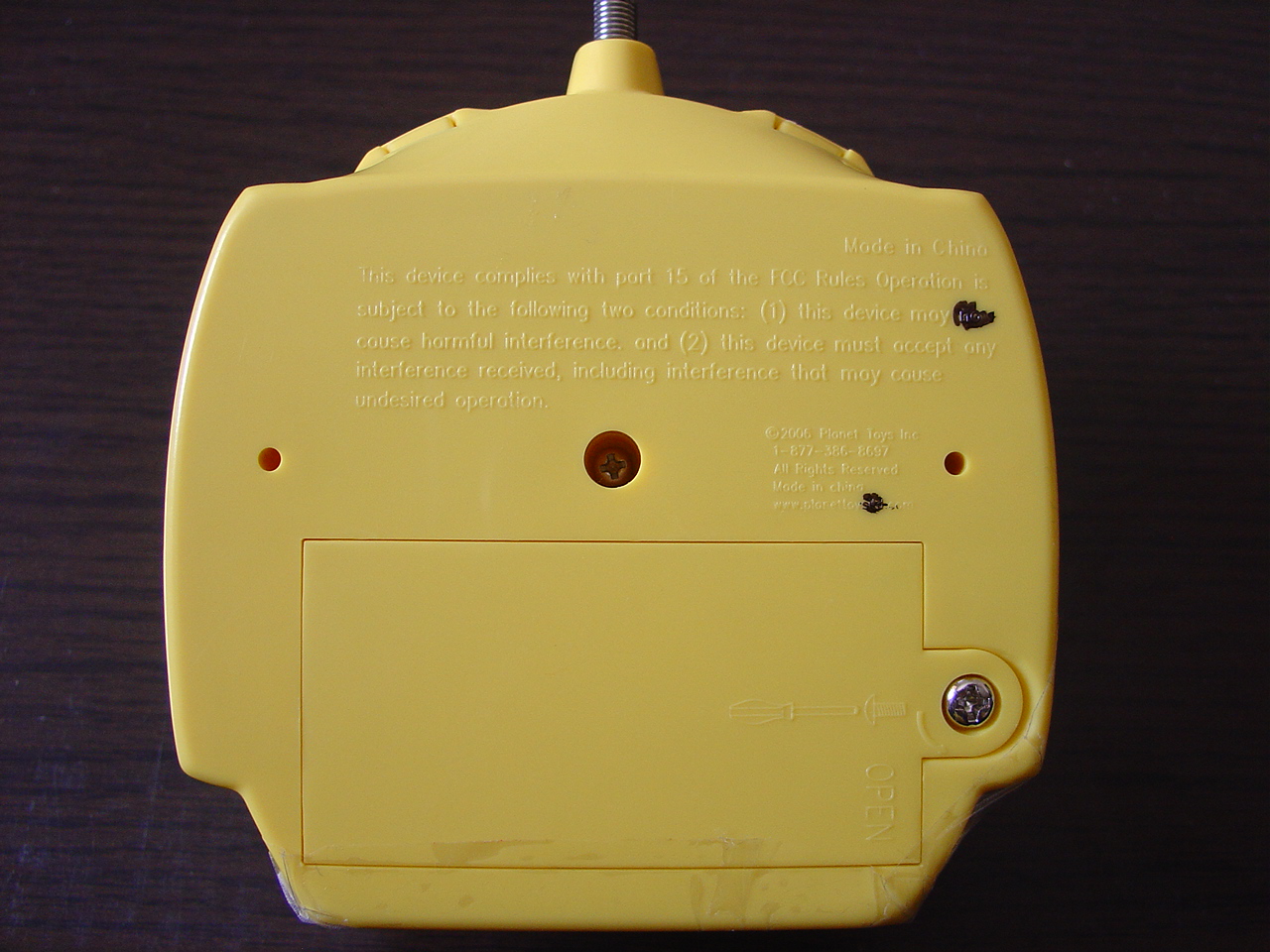

FCC ID Label Sample for FCCID: SZ23357T49_ FCC ID: SZ23357T49 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Model: 3357 8 JUNE., 2006 CIRCUIT DESCRIPTION: In transmitter U1 TX2 to switch code modulation, key K3 is forward,key K2 is backward, key K1 is right, key K4 is left, Q1 is 27MHz crystal oscillator. Q2 input mix modulation and 27Mhz crystal oscillator output to T1 and antenna. In receive Q1 & L2 to detector the modulation,U1 RX2C become amplifier of decode forward drive motor Q5,Q3 and Q4 to forward, backward drive motor Q6,Q7 and Q8 to backward, right drive motor Q12,Q2 and Q9 to right, left drive motor Q11,Q13 and Q10 to left. D2 is regulator 3.3V voltage to IC U1.

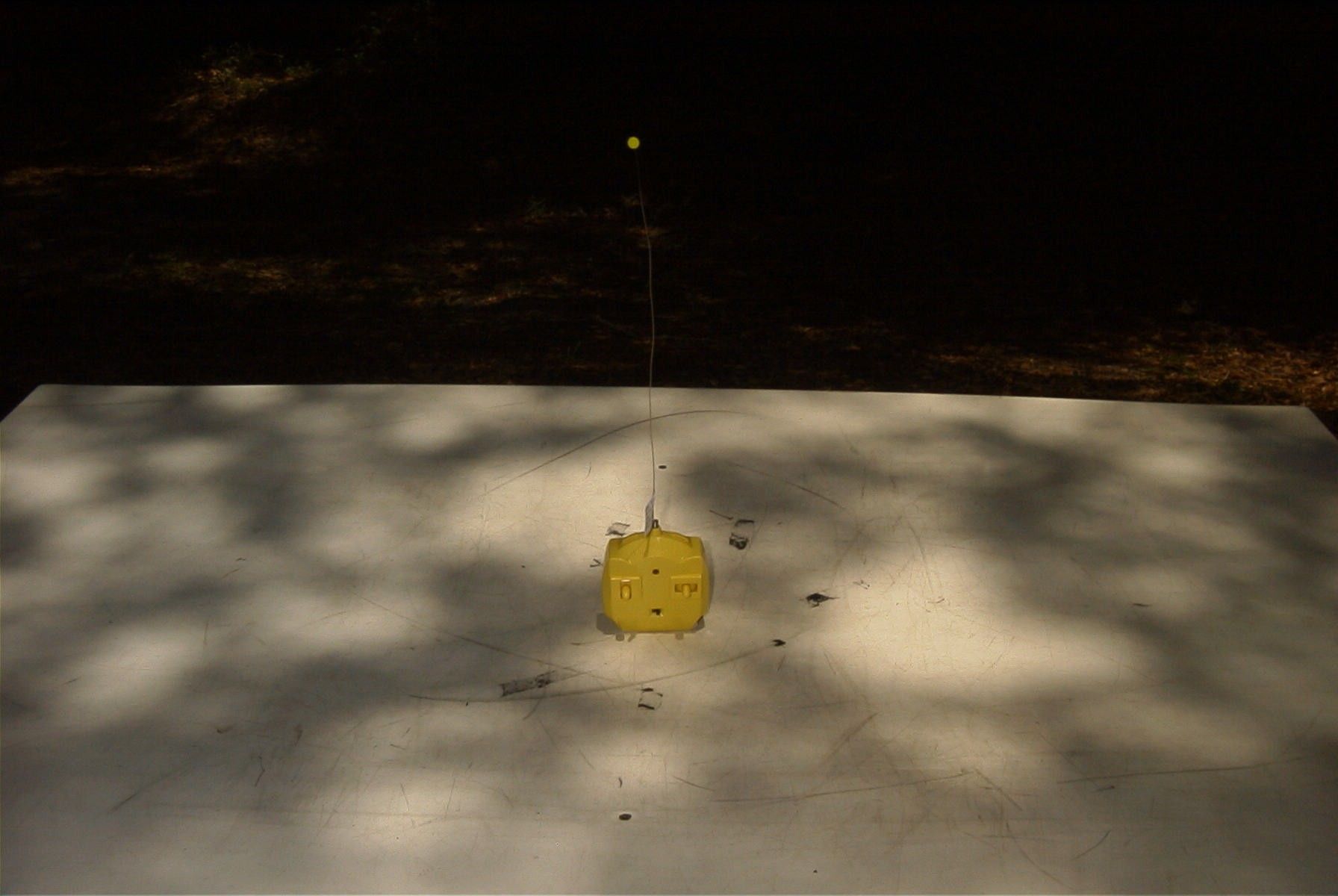

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23357T49 REPORT #: P\PLANET_SZ2\1002HT6\1002HT6TestReport.doc COVER SHEET Test Report Product Name: WIRELESS REMOTE CONTROL TRANSMITTER FCC ID: SZ23357T49 Applicant: PLANET TOYS (HK) LTD. 1107 CHINACHEM GOLDEN PLAZA 77 MODY ROAD, TSIMSHATSUI EAST KOWLOON HONG KONG Date Receipt: 5/12/2006 Date Tested: 5/17/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23357T49 REPORT #: P\PLANET_SZ2\1002HT6\1002HT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23357T49 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 5.............TEST PROCEDURE PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............OCCUPIED BANDWIDTH PAGE 5.............OCCUPIED BANDWIDTH PLOT PAGE 6.............TEST SET UP PHOTO EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23357T49 REPORT #: P\PLANET_SZ2\1002HT6\1002HT6TestReport.doc Page 1 of 6 Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Antenna: Biconnical Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro-Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro-Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23357T49 REPORT #: P\PLANET_SZ2\1002HT6\1002HT6TestReport.doc Page 2 of 6 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre- selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23357T49 REPORT #: P\PLANET_SZ2\1002HT6\1002HT6TestReport.doc Page 3 of 6 APPLICANT: PLANET TOYS (HK) LTD. FCC ID: SZ23357T49 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 49.80 48.5 H 0.97 11.64 61.11 18.89 49.80 60.2 V 0.97 10.72 71.89 8.11 99.70 19.5 H 1.40 10.89 31.79 11.71 99.70 24.3 V 1.40 11.42 37.12 6.38 149.50 13.5 H 1.75 16.15 31.40 12.10 149.50 17.5 V 1.75 16.85 36.10 7.40 199.40 13.4 H 2.10 17.08 32.58 10.92 199.40 18.5 V 2.10 17.68 38.28 5.22 249.30 13.6 H 2.35 12.37 28.32 17.68 249.30 22.1 V 2.35 12.46 36.91 9.09 299.10 6.2 H 2.60 14.06 22.86 23.14 299.10 13.4 V 2.60 14.29 30.29 15.71 349.00 6.4 H 2.85 14.88 24.13 21.88 349.00 13.1 V 2.85 14.43 30.38 15.63 398.80 6.4 H 3.09 15.98 25.47 20.53 398.80 9.9 V 3.09 15.78 28.77 17.23 448.70 6.9 H 3.29 17.61 27.80 18.20 448.70 9.6 V 3.29 18.01 30.90 15.10 498.60 6.2 H 3.49 17.96 27.65 18.35 498.60 11.5 V 3.49 18.12 33.11 12.89 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-2003. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. PERFORMED BY: JOE SCOGLIO DATE: 5/12/2006 TIMCO …
