SZ23415T27Toy Remote Control

Planet Toys (HK) Ltd.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Mar 28, 2005
Application Purpose: Original Equipment
Date of Application: Mar 28, 2005
Equipment Note: Toy Remote Control
Frequency Range: 27.14500000 - 27.14500000
Company: Planet Toys (HK) Ltd.
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

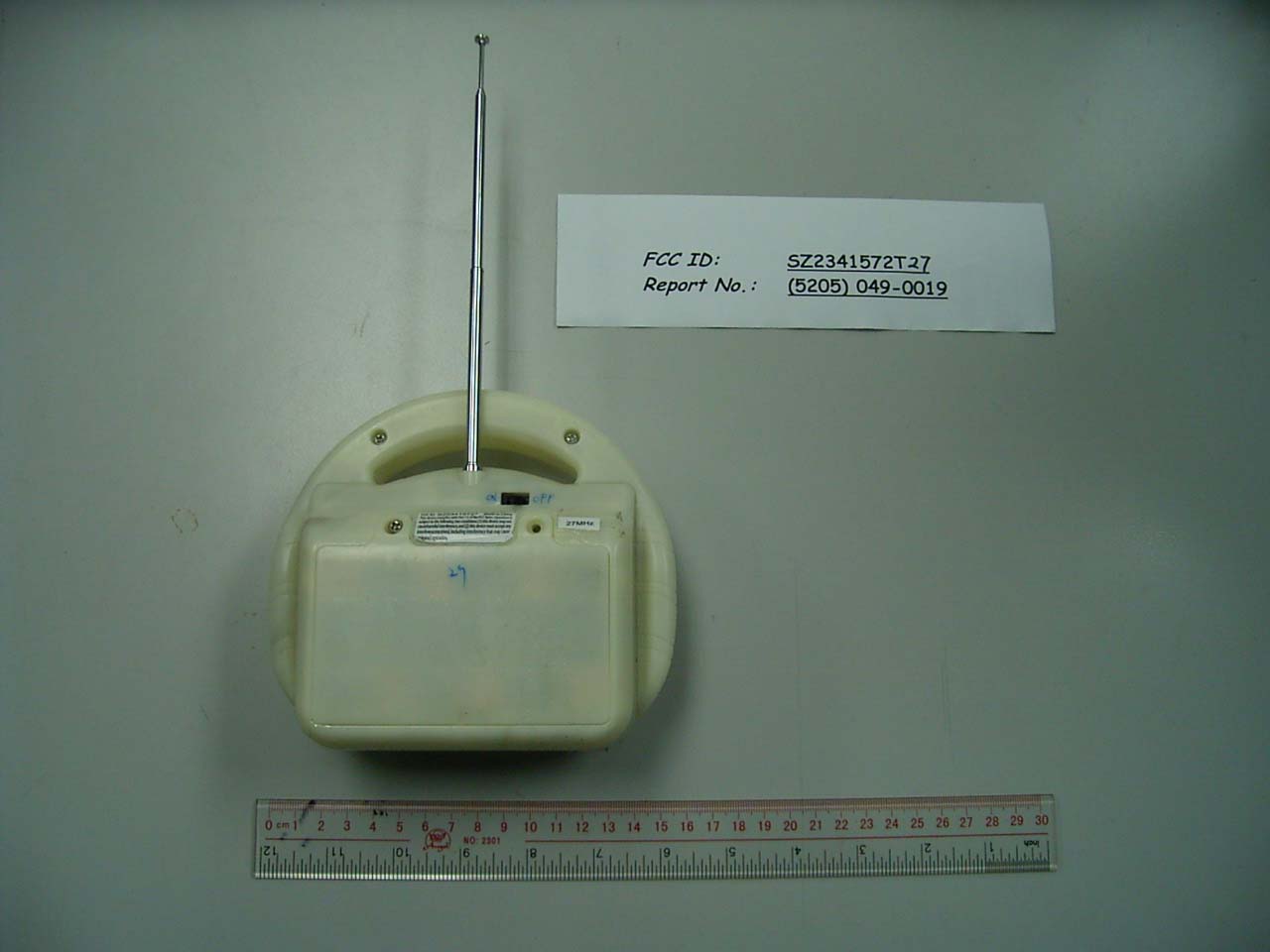

PLANET TOYS (HK) LTD. Technical Report: (5205) 049-0019 03 March, 2005 Page 1 of 2 Photographs - Exterior Sample Description: VW Bus and Herbie – 27MHz RF REMOTE CONTROLLER (27.145MHZ) FCC ID (if applicable): SZ23415T27 Photo #1: Front Panel PLANET TOYS (HK) LTD. Technical Report: (5205) 049-0019 03 March, 2005 Page 2 of 2 Sample Description: VW Bus and Herbie – 27MHz RF REMOTE CONTROLLER (27.145MHZ) FCC ID (if applicable): SZ23415T27 Photo #2: Rear Panel

ID Label/Location Info

PLANET TOYS (HK) LTD. Technical Report: (5205) 049-0019 03 March, 2005 Page 1 of 1 Photographs – Label (1) Sample Description: VW Bus and Herbie – 27MHz RF REMOTE CONTROLLER (27.145MHZ) FCC ID (if applicable): SZ23415T27 Photo #1: Location and Format of label

Internal Photos

PLANET TOYS (HK) LTD. Technical Report: (5205) 049-0019 03 March, 2005 Page 1 of 2 Photographs - Interior Sample Description: VW Bus and Herbie – 27MHz RF REMOTE CONTROLLER (27.145MHZ) FCC ID (if applicable): SZ23415T27 Photo #1: Front Panel PLANET TOYS (HK) LTD. Technical Report: (5205) 049-0019 03 March, 2005 Page 2 of 2 Sample Description: VW Bus and Herbie – 27MHz RF REMOTE CONTROLLER (27.145MHZ) FCC ID (if applicable): SZ23415T27 Photo #2: Rear Panel

Operational Description

PLANET TOYS (HK) LTD. Page 1 of 1 Description of EUT Operation: Sample Description: VW Bus and Herbie – 27MHz RF REMOTE CONTROLLER (27.145MHZ) FCC ID (if applicable): SZ23415T27 The Equipment Under Test (EUT) is a battery-operated hand-held / portable RF transmitter for remote controlling the movements of an electric toy vehicle, with retractable integrated antenna. The carrier frequency is fixed at 27.145 MHz. The command signals are amplitude-modulated. It has an on/off power switch on the rear panel. There are two shifter switches on the front control panel. The left-hand one controls the toy vehicle moving forward and backward, and the right-hand one controls steering left or right in direction.

Schematics

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:18-Feb-2005Sheet of File:D:\2005057\2005057\1-18.DdbDrawn By: 1 2 3 4 5 6 78 9 10 11 12 13 14 RIGHTB TESTB GND TURBOB FORW BACK SC LEFT NC OSC1 OSC0 PC VDD SO 12 SW1 12 SW2 12 SW3 12 SW5 C3 25P C5 103 C4 47P C7 100P C8 15P R3 270k R5 270k R4 560 R6 200 R7 10K R8 200 C2 100UF L3 L2 2.2uH L1 2.2UH 12 TAL 27.145 2 1 LED1 C6 33P C1 403 ANT BT1 9v Q1 C5343 Q2 C5343 R1 2 R2 560 Z1 4.3v SW1 C9 47P :PLANET TOYS :2005029RX 27.145MHZ:1.0 11

Test Setup Photos

PLANET TOYS (HK) LTD. Technical Report: (5205) 049-0019 03 March, 2005 Page 1 of 2 Test Set-up Photographs Sample Description: VW Bus and Herbie – 27MHz RF REMOTE CONTROLLER (27.145MHZ) FCC ID (if applicable): SZ23415T27 Test Set-up Photo #1: Vertical Polarization PLANET TOYS (HK) LTD. Technical Report: (5205) 049-0019 03 March, 2005 Page 2 of 2 Sample Description: VW Bus and Herbie – 27MHz RF REMOTE CONTROLLER (27.145MHZ) FCC ID (if applicable): SZ23415T27 Test Set-up Photo #2: Horizontal Polarization
