SZ23520R4949.82-49.90 MHz Wireless R/C Toy - RX

FCC ID Label Sample for FCCID: SZ23520R49_ FCC ID: SZ23520R49

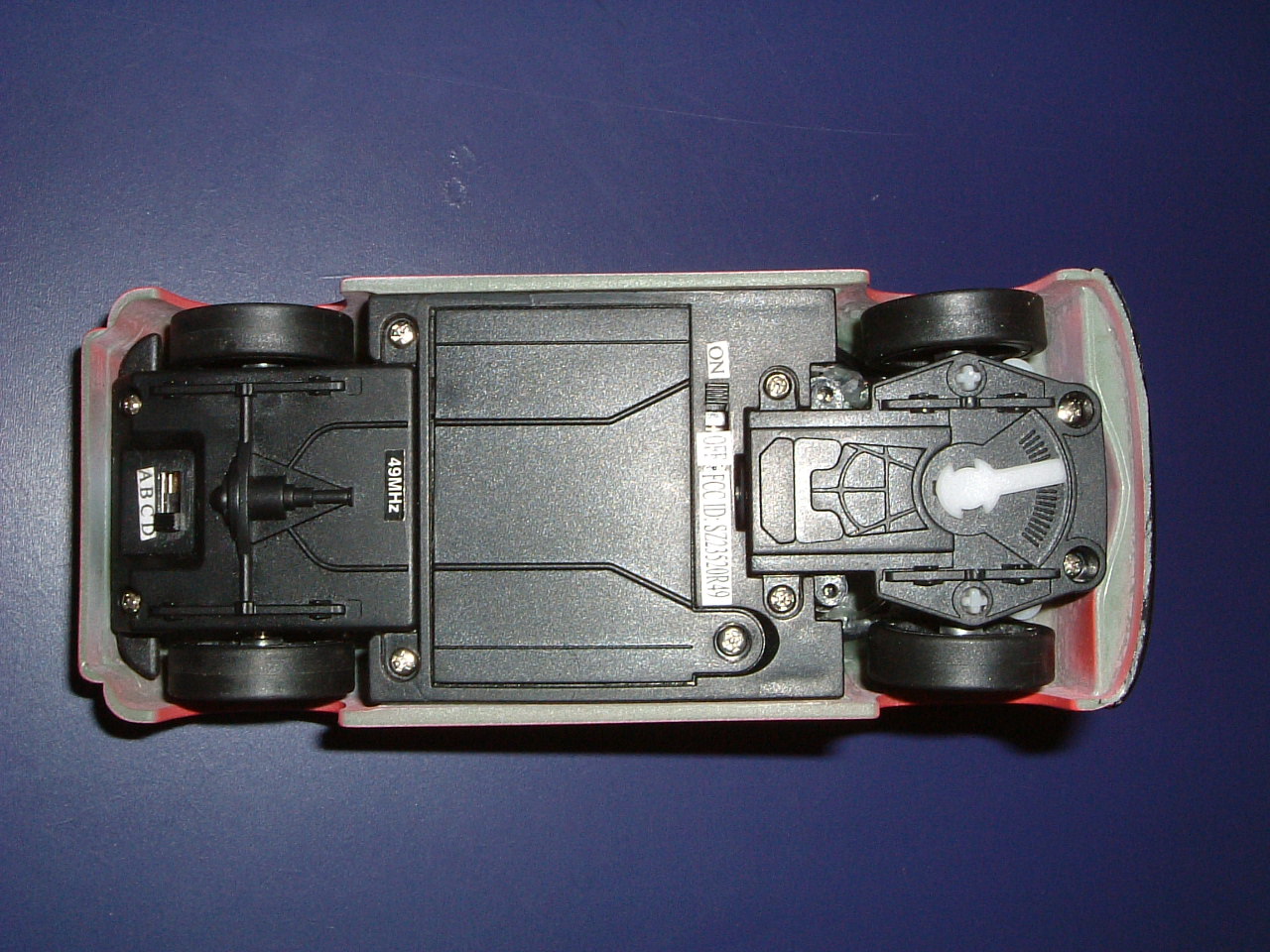

1. Introduction a. Four RC cars can be played individually in same frequency band b. Using Timing sharing for data transmission c. Using 4 different ID to distinguish from 4 different RC cars d. 4 functions including forward, backward, left and right 2. TX (49MHz) TX is supplied by a 9V battery and regulate 5V to the IC GPRC11A-005C. There is a four position selector S5 to select different ID for the TX. In the TX, there are four function keys S1, S2, S3 & S4 to control the RC car (left, right, backward & forward). The modulating signal from IOC1 of GPRC11A-005C will be modulated by carrier frequency 49.86MHz. The modulated signal will be amplified and pass through Q2 & matching network to antenna. The matching network consists of L3, C10 & L4. 3. RX (49MHz) RX is supplied by AAAx3 batteries to the IC GPRC11A-006C. There is a four position selector PDF 文件使用 "pdfFactory" ?用版本?建 www.fineprint.com.cn J1 to select different ID for the RC car. The modulated signal is received by the antenna and demodulated. The demodulated signal will be amplified through Q2 & Q3 to GPRC11A-006C for decoding. The outputs will control two motors driving left & right and forward & backward respectively.] PDF 文件使用 "pdfFactory" ?用版本?建 www.fineprint.com.cn

Schematic Diagram 49.82-49.90 MHz 1234 A B C D 4321 D C B A Wah Lung (Shen Zhen) Toys Co. Ltd Project Name:Project No: Drawn By:Date: Part Name:Part No: Sheet Of:Revision:Size: 華丰隆(深圳)玩具有限公司 C1 5P C3 22p C2 10P C4 222 C5 4.7u R2 680 R1 180K R3 1.8K Q1 C1815Y L3 3.3uH L2 6.5T R6 47 C15 103 C16 103 C14 220u C17 220uF D1 3.3V R20 100 R21 100 R18 100 R19 100 R22 1k R23 1k R16 1k R17 1k Q14 8050 Q15 8050 Q9 8050 Q8 8050 Q4 8050 Q7 8050 Q6 8550 Q5 8550 9V 9V VDD4.5V Q10 S8550 Q11 S8550 Q12 S8050 Q13 S8050 R5 100 VDD R13 2.2K C18 104 VCC VCC R15 51K C19 104 R14 2.2K VDD L4 10uH 123 J1 addr(out) 49.860MHZ C6 103 R7 6.8K C7 104 Q2 C1815GR C8 222 C9 102 R9 3K R8 470K R11 100K C10 104 Q3 C1815GR R10 10K VCCS C11 2200P R12 1K C13 103 C12 220u R4 1.5K VCCS F B RL C20104 C23104 C24 104 C25 104 IN IN B F L R 5" RC FOUR CAR L1 1.8uH 1 2 9V RX 49.860MHZ Sunny2005-3-16 11A4 IOD0 1 IOD1 2 I O D 6 3 I O D 7 4 I O C 7 5 I O C 6 6 I O C 2 7 I O C 1 8 V D D 9 NC 10 ROSC 11 TEST 12 RESET 13 AUD 14 V S S 1 5 O U T 2 1 6 I N 2 1 7 O U T 1 1 8 I N 1 1 9 EN 20 VDD 21 U1 49.860MHZ RX CIRCUIT SCHEMATIC PDF 文件使用 "pdfFactory" ?用版本?建 www.fineprint.com.cn

THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU, SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520R49 REPORT :THRU-505003 COVER SHEET Test Report Product Name: 49.82-49.90 MHz Wireless R/C Toy - RX FCC ID: SZ23520R49 Applicant: PLANET TOYS(HK) LTD. 1107 CHINACHEM GOLDEN PLAZA 77 MODY ROAD, TSIMSHATSUI EAST KOWLOON HONG KONG Date Receipt: April/18/2005 Date Tested: May/03/2005 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU , SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520R49 REPORT :THRU-505003 TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520R49 TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURES PAGE 3...............RADIATION INTERFERENCE TEST DATA EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SET UP PHOTO THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU , SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520R49 REPORT :THRU-505003 Page 1 of 3 APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520R49 TEST EQUIPMENT LIST DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2006.04.23. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2006.04.23 Spectrum Display 85662A Hewlett Packard 2542A12429 2006.04.23. Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2006.04.23. RF Preselector 85685A Hewlett Packard 2648A00504 2006.04.23 Pre-Amplifier 8449B Hewlett Packard 3008A00375 2006.04.23. Pre-Amplifier 8447F Hewlett Packard 3113A05367 2006.04.23. Spectrum Monitor EZM Rohde & Schwarz 862304/007 2006.04.23. Bico-Antenna 94455-1 Eaton 977 2007.04.01. Log-Periodic Antenna 3146 EMCO 2051 2007.04.01. Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2007.04.01. Horn Antenna SAS-571 A.H Systems 414 2007.04.01. Spectrum Analyzer R3261C Advantest 71720189 2006.04.23 LISN KNW-242 Kyoritsu 8-923-2 2007.04.25. LISN 8012-50-R- 24 Solar 8379121 2007.04.25.. Loop Ant 6507 EMCO 1435 2005.10.06. Signal Generator SMS Rohde & Schwarz 872165/100 2006.04.23. Modulation Analyzer 8901B Hewlett Packard 3438A05094 2006.04.23. Frequency Counter CMC251 Tektronic CMC-251TW52489 2006.04.23. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU , SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520R49 REPORT :THRU-505003 Page 2 of 3 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of ThruLab & Engineering. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHZ with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHZ and the video bandwidth was 300KHZ. The ambient temperature of the UUT was 19ºC with a humidity of 35%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. ANSI STANDARD C63.4-1992 12.1.1.1 SUPERREGENERATIVE RECEIVER: A signal Generator was set to the unit under test operating frequency. An un- Modulated continuous wave (CW) signal was radiated at the super regenerative receiver operating frequency to cohere the characteristic broadband emissions from the receiver. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. Not Applicable, battery operated. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU , SEOUL KOREA T81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520R49 REPORT :THRU-505003 Page 3 of 3 APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520R49 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: No Emission Frequency (MHz) Meter Reading dBuV/m Ant. Polaritry Correction Factor dB Cable Loss dB Field Strength (dBuv/m) Margin (dBuv) Limit (dBuv/m) 1 50.37 19.8 H 10.8 1.0 31.6 -8.4 40.0 2 53.69 11.8 V 9.6 1.1 22.5 -17.5 40.0 3 91.18 3.4 V 10.5 1.5 15.5 -28.0 43.5 4 147.62 4.7 H 16.3 2.1 23.1 -…
