SZ23520T2726.96-27.28 MHz Wireless R/C Toy - TX

Block Diagram 26.96-27.28 MHz Block diagram TX: 123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:12-Apr-2005Sheet of File:E:\luochunbo file\Planet toys\5¤o ̈®¥J.ddbDrawn By: 9V POWER CONTROL GPRC11A-005C AMP OSC 27.145MHZ ANT 27MHZ TX PDF 文件使用 "pdfFactory" ?用版本?建 www.fineprint.com.cn

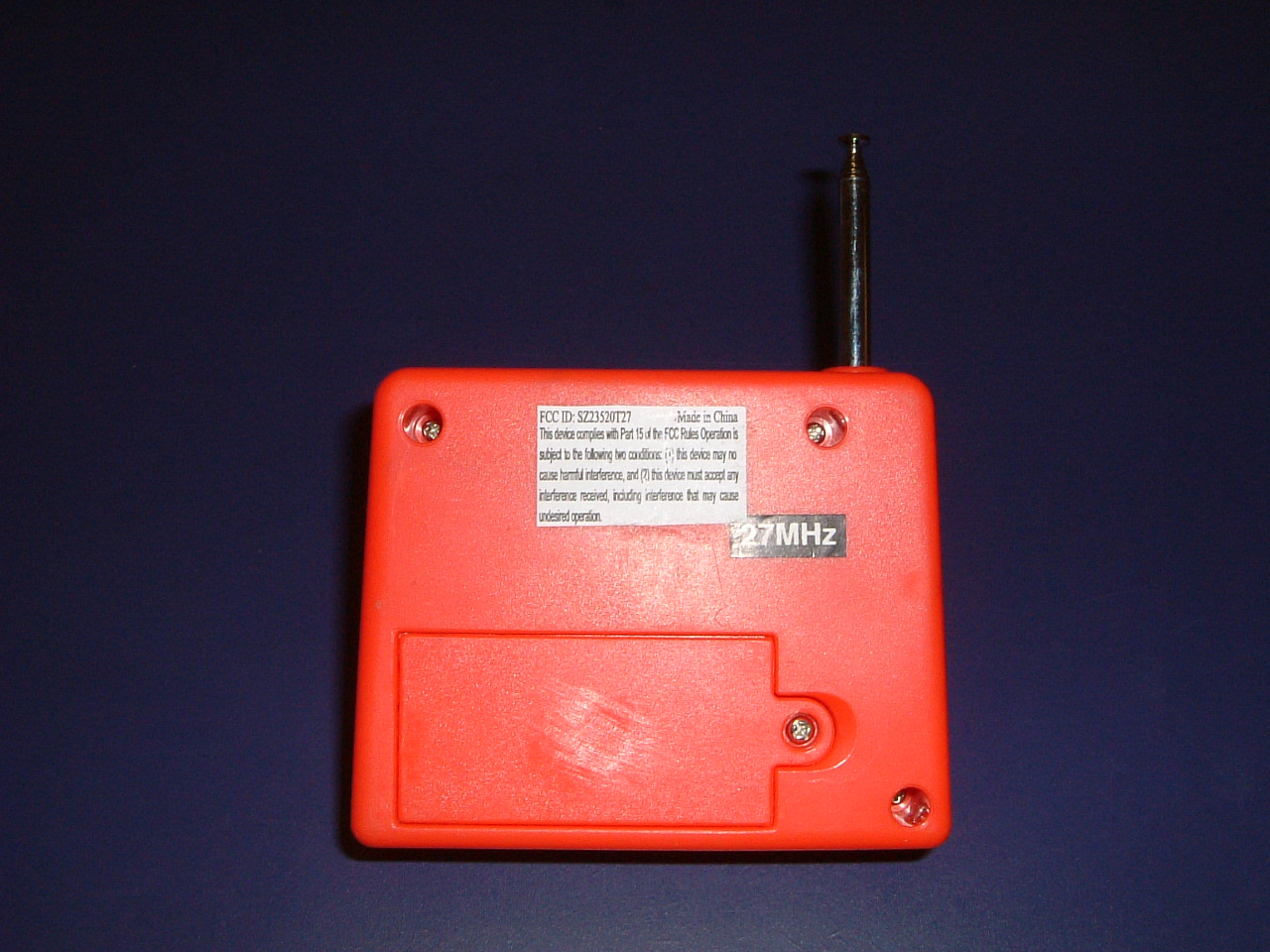

FCC ID Label Sample for FCCID: SZ23520T27_ FCC ID: SZ23520T27 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

4 Introduction e. Four RC cars can be played individually in same frequency band f. Using Timing sharing for data transmission g. Using 4 different ID to distinguish from 4 different RC cars h. 4 functions including forward, backward, left and right 4. TX (27MHz) TX is supplied by a 9V battery and regulate 5V to the IC GPRC11A-005C. There is a four position selector S5 to select different ID for the TX. In the TX, there are four function keys S1, S2, S3 & S4 to control the RC car (left, right, backward & forward). The modulating signal from IOC1 of GPRC11A-005C will be modulated by carrier frequency 27.145MHz. The modulated signal will be amplified and pass through Q2 & matching network to antenna. The matching network consists of L3, C10 & L4. 5. RX (27MHz) RX is supplied by AAA x 3 batteries and regulate 3V3 to the IC GPRC11A-006C. There is a four PDF 文件使用 "pdfFactory" ?用版本?建 www.fineprint.com.cn position selector J1 to select different ID for the RC car. The modulated signal is received by the antenna and demodulated. The demodulated signal will be amplified through Q2 & Q3 to GPRC11A-006C for decoding. The outputs will control two motors driving left & right and forward & backward respectively. PDF 文件使用 "pdfFactory" ?用版本?建 www.fineprint.com.cn

Schematic Diagram 26.96-27.28 MHz 1234 A B C D 4321 D C B A Wah Lung (Shen Zhen) Toys Co. Ltd Project Name:Project No: Drawn By:Date: Part Name:Part No: Sheet Of:Revision:Size: 華丰隆(深圳)玩具有限公司 ANT 27.145MHZ L4 5.6uH C12 200P C11 47P Q2 SC1815Y L2 2.2uH L1 2.2uH C9 100P Q1 SC1815Y C6 47P R8 300 Y1 27.145MHZ R6 30K R5 680R D3 S4 F S2 R S1 L S3 B R1 180R D1 5.6V + C2 100uF C3 104 R7 15K CAR TX Sunny 11A4 2005-3-16 C1 223 1 2 BT1 9V L3 6T C13 200P R9 10 C4 0.1uF 12 43 S5 SW DIP-2 R2 100K R3 100K D2 I N 4 1 4 8 R4 51K 27.145MHZ C5 104 C14 18P IOD0 1 IOD1 2 I O D 6 3 I O D 7 4 I O C 7 5 I O C 6 6 I O C 2 7 I O C 1 8 V D D 9 NC 10 ROSC 11 TEST 12 RESET 13 AUD 14 V S S 1 5 O U T 2 1 6 I N 2 1 7 O U T 1 1 8 I N 1 1 9 EN 20 VDD 21 D19 GPRC05 06 Q3 S8050 R10 10K SW 27.145MHZ TX CIRCUIT SCHEMATIC PDF 文件使用 "pdfFactory" ?用版本?建 www.fineprint.com.cn

THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520T27 REPORT #: THRU-505001 COVER SHEET Test Report Product Name: 26.96-27.28 MHz Wireless R/C Toy - TX FCC ID: SZ23520T27 Applicant: PLANET TOYS(HK) LTD. 1107 CHINACHEM GOLDEN PLAZA 77 MODY ROAD, TSIMSHATSUI EAST KOWLOON HONG KONG Date Receipt: April/18/2005 Date Tested: May/02/2005 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520T27 REPORT #: THRU-505001 TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520T27 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4-5...........DUTY CYCLE PLOT. PAGE 6-8...........RADIATION INTERFERENCE TEST DATA PAGE 9.............OCCUPIED BANDWIDTH PAGE 10-11.........OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 2............BLOCK DIAGRAM EXHIBIT 3............SCHEMATIC EXHIBIT 4A-4B........PARTS LIST EXHIBIT 5............INSTRUCTION MANUAL EXHIBIT 6............SAMPLE OF FCC ID LABEL EXHIBIT 7............LOCATION OF FCC ID LABEL EXHIBIT 8............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 9............EXTERNAL PHOTO - BACK SIDE EXHIBIT 10...........INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 11...........INTERNAL PHOTO - COPPER SIDE EXHIBIT 14...........CIRCUIT DESCRIPTION THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520T27 REPORT #: THRU-505001 Page 1 of 11 Test Equipment List DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2006.04.23. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2006.04.23 Spectrum Display 85662A Hewlett Packard 2542A12429 2006.04.23. Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2006.04.23. RF Preselector 85685A Hewlett Packard 2648A00504 2006.04.23 Pre-Amplifier 8449B Hewlett Packard 3008A00375 2006.04.23. Pre-Amplifier 8447F Hewlett Packard 3113A05367 2006.04.23. Spectrum Monitor EZM Rohde & Schwarz 862304/007 2006.04.23. Bico-Antenna 94455-1 Eaton 977 2007.04.01. Log-Periodic Antenna 3146 EMCO 2051 2007.04.01. Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2007.04.01. Horn Antenna SAS-571 A.H Systems 414 2007.04.01. Spectrum Analyzer R3261C Advantest 71720189 2006.04.23 LISN KNW-242 Kyoritsu 8-923-2 2007.04.25. LISN 8012-50-R- 24 Solar 8379121 2007.04.25.. Loop Ant 6507 EMCO 1435 2005.10.06. Signal Generator SMS Rohde & Schwarz 872165/100 2006.04.23. Modulation Analyzer 8901B Hewlett Packard 3438A05094 2006.04.23. Frequency Counter CMC251 Tektronic CMC-251TW52489 2006.04.23. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520T27 REPORT #: THRU-505001 Page 2 of 11 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of Thrulab & Engineering. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4- 1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 19ºC with a humidity of 35%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. Not Applicable, battery operated. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520T27 REPORT #: THRU-505001 Page 3 of 11 APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520T27 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227(a) REQUIREMENTS: CARRIER FREQUENCY SHALL NOT EXCEEDS 10,000 microvolts/meter AT 3M. Frequency (MHz) Reading Receiver dBuv/m PK Polar Ant Height m Antenna Factor dB Cable Loss dB Result dBuv PK Duty Cycle dB Result dBuv AV Limit dBuv/m PK Limit dBuv/m AV Margin dBuv/m PK Margin dBuv/m AV 27.154 35.9 H 2.1 16.5 0.9 53.3 -24.4 28.9 100 80 -46.7 -51.1 27.154 54.8 V 1.70 16.5 0.9 72.2 -24.4 47.8 100 80 -27.8 -32.2 Duty Cycle :20log((100sec *16 +300usec * 9)/71.6msec)= -24.4dB SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE : The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical pl…

Text truncated - open the document above for the full version.

THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520T27 REPORT #: THRU-505001 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520T27 REPORT #: THRU-505001 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: PLANET TOYS(HK) LTD. FCC ID: SZ23520T27 REPORT #: THRU-505001
