SZV-PTM200Wireless Switch

Pushbutton Transmitter Device PTM 200 User Manual V1.1 March 2005 Revision History The following major modifications and improvements have been made to the first version of this document (User Manual PTM 200, V1.0): No Major Changes V1.1 - Note added, that simultaneously operating of 2 buttons can be differentiated, but not of 3 or 4 buttons (Chapter 2.2) - No. of packets defined to 3-5 depending on residual energy (chapter 1.3 and 2.3) - FCC/IC Approval Requirements added (chapter 3.6) Published by EnOcean GmbH, Kolpingring 18a, 82041 Oberhaching, Germany www.enocean.com, [email protected], phone ++49 (89) 6734 6890 © EnOcean GmbH All Rights Reserved Important! This information describes the type of component and shall not be considered as assured characteristics. No responsibility is assumed for possible omissions or inaccuracies. Circuitry and specifications are subject to change without notice. For the latest product specifications, refer to the EnOcean website: http://www.enocean.com. As far as patents or other rights of third parties are concerned, liability is only assumed for devices, not for the described applications, processes and circuits. EnOcean does not assume responsibility for use of devices described and limits its liability to the replacement of devices determined to be defective due to workmanship. Devices or systems containing RF components must meet the essential requirements of the local legal authorities. The devices must not be used in any relation with equipment that supports, directly or indirectly, human health or life or with applications that can result in danger for people, animals or real value. Components of the devices are considered and should be disposed of as hazardous waste. Local government regulations are to be observed. Packing: Please use the recycling operators known to you. By agreement we will take packing material back if it is sorted. You must bear the costs of transport. For packing material that is returned to us unsorted or that we are not obliged to accept, we shall have to invoice you for any costs incurred. ©EnOcean GmbH, A. Anders Page 2 of 22 PTM 200 User Manual V1.1 Table of Contents Revision History_________________________________________________________________________2 Table of Contents________________________________________________________________________3 1. GENERAL DESCRIPTION________________________________________________________________4 1.1 Functional Principle_________________________________________________________________4 1.2 Typical Applications_________________________________________________________________5 1.3 Features Overview__________________________________________________________________5 1.4 Mechanical Interface________________________________________________________________6 1.5 Environmental Conditions__________________________________________________________9 1.6 Ordering Information______________________________________________________________10 2. FUNCTIONAL DESCRIPTION__________________________________________________________11 2.1 Block Diagram______________________________________________________________________11 2.2 Contact Nipples Designation_______________________________________________________12 2.3 PTM 200 Radio Telegram__________________________________________________________13 2.4 PTM 200 Serial Data Communication via Receiver Device RCM 120_____________15 2.5 Basic Switching Features via Receiver Devices RCM 110 and RCM 120_________15 2.6 Learning of PTM 200 to RCM 110/120 Receivers_________________________________16 3. APPLICATIONS INFORMATION_______________________________________________________17 3.1 Rocker Model_______________________________________________________________________17 3.2 Construction of Suitable Switch Rockers_________________________________________18 3.3 Device Mounting___________________________________________________________________18 3.4 Transmission Range_______________________________________________________________18 3.5 CE Approval Requirements________________________________________________________19 3.6 FCC/IC Approval Requirements___________________________________________________19 4. DEVELOPMENT TOOLS_________________________________________________________________21 4.1 Evaluation Kit EVA 100____________________________________________________________21 4.2 Field Intensity Meter EPM 100____________________________________________________21 5. DECLARATION OF CONFORMITY______________________________________________________22 ©EnOcean GmbH, A. Anders Page 3 of 22 PTM 200 User Manual V1.1 1. GENERAL DESCRIPTION The radio transmitter device PTM 200 from EnOcean enables the implementation of wireless remote controls without batteries. Power is provided by a built-in electro- dynamic power generator. The PTM 200 device serves the 868 MHz air interface protocol of EnOcean. Together with the receiver devices RCM 110 or RCM 120, this device can be easily integrated in operation and control units for the implementation of different application-specific system solutions. (2) Contact nipples for switch rocker identification (1) Energy bow on both device sides Rotation axis for pushbuttons or switch rocker Figure 1: Piezo-radio transmitter device PTM 200 1.1 Functional Principle A common electro-dynamic energy transducer is actuated by a bow (1), which can be pushed from outside the device on the left or right by an appropriate pushbutton or switch rocker. When the energy bow is pushed down, electrical energy is created and an RF telegram is transmitted including a 32-bit device ID. Releasing the energy bow generates different telegram data, so every PTM telegram contains the information that the bow was pressed or released. “Long” or “Short” pushbutton operation (the time between pushing and releasing the pushbutton) can be easily detected by the receiver. By doing that, applications such as dimming control or jalousie control including slat action are simple to i…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 April 18, 2005 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Company requests confidentiality for the following product: FCC ID Number Product Title/Model SZV-PTM200 EnOcean PTM200 Radio Switch For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain Company trade secrets and proprietary information that could be of benefit to our competitors. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) Name: Armin Anders, VP Product Marketing Company: EnOcean GmbH Address: Kolpingring 18a, D-82041 Oberhaching, Germany Phone: +49 89 6734 689 0 Email: [email protected]

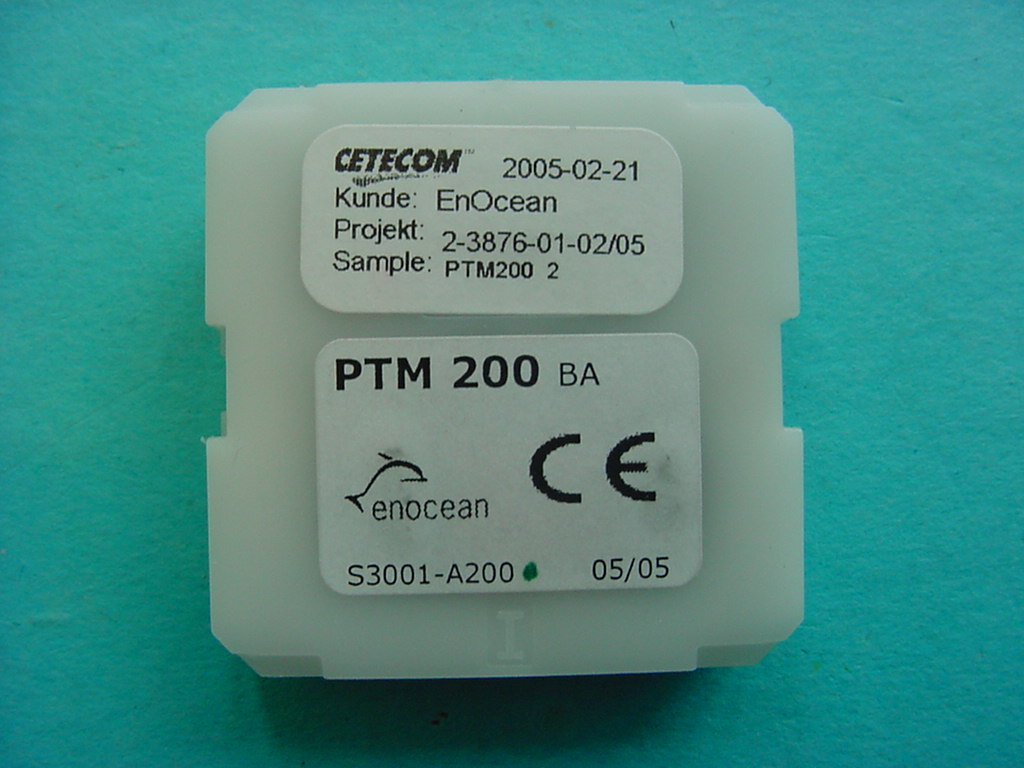

CETECOM ICT Services GmbH Test report no.: 2-3876-01-02/05 Date:2005-03-11 Page 21 (25) 5 Photographs of test sample Photograph no.: 1 CETECOM ICT Services GmbH Test report no.: 2-3876-01-02/05 Date:2005-03-11 Page 22 (25) Photograph no.: 2

FCC ID: S ZV -PTM200 IC: 5713A-PTM200 S3001-A200-* 02/05 PTM200 DA FC C/IC approval PTM 200:Labelling I n f ormation A. Anders, EnOcean G m bH, April 2004 Label Diem ensi o ns: approx. 18 mm x 18 mm

CETECOM ICT Services GmbH Test report no.: 2-3876-01-02/05 Date:2005-03-11 Page 23 (25) Photograph no.: 3 CETECOM ICT Services GmbH Test report no.: 2-3876-01-02/05 Date:2005-03-11 Page 24 (25) Photograph no.: 4 CETECOM ICT Services GmbH Test report no.: 2-3876-01-02/05 Date:2005-03-11 Page 25 (25) Photograph no.: 5

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598- 0, Fax +49 (0) 598 9075 Test report No.: 2-3876-01-02/05 This test report consists of 25 pages Page 1 (25) Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. :2-3876-01-02/05 Standard :FCC Part15/RSS210 Applicant :EnOcean GmbH Type :PTM200 FCC-ID :SZV-PTM200 IC :5713A-PTM200 CETECOM ICT Services GmbH Test report no.: 2-3876-01-02/05 Date:2005-03-11 Page 2 (25) Table of contents 1 General information _________________________________________________________ 3 1.1 Notes ___________________________________________________________________ 3 1.2 Testing laboratory_______________________________________________________ 4 1.3 Details of applicant ______________________________________________________ 4 1.4 Application details ______________________________________________________ 4 1.5 Test item_______________________________________________________________ 5 1.6 Test specifications: ______________________________________________________ 5 2 Technical test _______________________________________________________________ 7 2.1 Summary of test results __________________________________________________ 7 2.2 Test results _____________________________________________________________ 8 2.2.1 Timing behavior 15.231(a1) ____________________________________________ 8 2.2.2 Field Strength 15.231(b1) _____________________________________________ 11 2.2.3 Bandwidth of Emissions 15.231(c)______________________________________ 13 2.2.4 Spurious Emission (radiated) __________________________________________ 14 3 Test equipment and ancillaries used for tests _____________________________________ 17 4 Photographs of test site ______________________________________________________ 19 5 Photographs of test sample ___________________________________________________ 21 CETECOM ICT Services GmbH Test report no.: 2-3876-01-02/05 Date:2005-03-11 Page 3 (25) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test laboratory manager: 2005-03-11 RSC - 8414 Ames Date Section Name Signature Technical responsibility for area of testing: 2005-03-11 RSC - 8412 Hausknecht D. Date Section Name Signature CETECOM ICT Services GmbH Test report no.: 2-3876-01-02/05 Date:2005-03-11 Page 4 (25) 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone : + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-081/94-D0 Listed by: Federal Communications Commission (FCC) Identification/Registration No: 90462 Anechoic chamber registration no.: 3463 (IC) Accredited Bluetooth ® Test Facility (BQTF) 1.3 Details of applicant Name : EnOcean GmbH Street : Kolpingring 18a City : 82041 Oberhaching Country : Germany Telephone: + 49 (0) 89 6734 689 33 Fax : Mobile : +49 171 228 2856 Contact person: Name : Mr. Armin Anders Telephone: + 49 (0) 89 6734 689 33 Fax : Mobile : +49 171 228 2856 E-mail : [email protected] 1.4 Application details Date of test: 2005-03-09 to 2005-03-11 CETECOM ICT Services GmbH Test report no.: 2-3876-01-02/05 Date:2005-03-11 Page 5 (25) 1.5 Test item Type of equipment : Wireless switch Type designation : PTM200 Manufacturer : - applicant - Street : City : Country : Serial number : - / - Additional information : Frequency : 868.3 MHz Type of modulation : 200K0A1D Channel spacing : >25 kHz Number of channels : 1 Antenna : Printed L-antenna 6.3 cm Max. ERP : Peak: 99.7 dBμV/m ; Average: 60.5 dBμV/m (at 3m distance) Power supply : Via build-in manual operated generator FCC-ID : SZV-PTM200 IC No : 5713A-PTM200 1.6 Test specifications: CANADA RSS-210 ( 11/2001 ) FCC Part15.231 CETECOM ICT Services GmbH Test report no.: 2-3876-01-02/05 Date:2005-03-11 Page 6 (25) Test Report Cover Sheet/Performance Test Data TEST REPORT NUMBER: 2-3876-01-02/05 EQUIPMENT MODEL NUMBER: PTM200 CERTIFICATION NO: 5713A-PTM200 MANUFACTURER : EnOcean GmbH TESTED TO RADIO STANDARDS SPECIFICATION NO. : RSS210 Issue 5 OPEN AREA TEST SITE INDUSTRY CANADA NUMBER: 3463 FREQUENCY RANGE (or fixed frequency): 868.3 MHz R.F. POWER IN WATTS AND ANTENNA INFORMATION: Printed L-antenna 6.3 cm 99.7 dBμV/m Peak, 60.5 dBμV/m AV at 3m OCCUPIED BANDWIDTH (99% BW): 225.4 kHz TYPE OF MODULATION: A1D (ASK) EMISSION DESIGNATOR (TRC-43): 225KA1D TRANSMITTER SPURIOUS (worst case): 58.2 dBμV/m at 3m RECEIVER SPURIOUS (worst case): n.a. ATTESTATION: DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: Date: 2005-03-11 CETECOM ICT Services GmbH Test report no.: 2-3876-01-02/05 Date:2005-03-11 Page 7 (25) 2 Technical test 2.1 Summary of test results The radia…
