T2X-V2-CLESSRFID READER

V2 CLESS – NOTICE D’UTILISATION - USER MANUAL v1.0 1 V2 CLESS Notice d’utilisation User Manual V2 CLESS – NOTICE D’UTILISATION - USER MANUAL v1.0 2 AVANT-PROPOS INSTALLATION. Nous vous recommandons de lire attentivement cette notice. Elle est jointe à votre lecteur V2 CLess pour vous donner les indications nécessaires à son installation. UTILISATION. Une fois votre lecteur V2 Cless installé, vous pouvez l’utiliser. GARANTIE. SECURITE. Afin de bénéficier de la garantie attachée à cet appareil, et afin de respecter les consignes de sécurité, seul une personne agrée peut effectuer les opérations de montage ou de démontage et installer le lecteur. SOMMAIRE 1. CONSIGNES DE SECURITE ................................................................................................................. 3 2. DEBALLAGE. CONSTITUTION DU PRODUIT................................................................................. 4 3. DESCRIPTION DU LECTEUR HF........................................................................................................ 5 4. INSTALLATION DU V2 CLESS ............................................................................................................ 7 4.1 Module................................................................................................................................................... 7 4.2 Antenne ................................................................................................................................................. 8 5. (DES)INSTALLION DES SAM............................................................................................................... 9 6. UTILISATION JOURNALIERE .......................................................................................................... 10 7. CARACTERISTIQUES DU V2 CLESS ............................................................................................... 11 8. MARQUAGE CE DE CONFORMITE................................................................................................. 12 9. DECLARATION DE CONFORMITE FCC ........................................................................................ 12 V2 CLESS – NOTICE D’UTILISATION - USER MANUAL v1.0 3 1.CONSIGNES DE SECURITE A- Pour mettre votre lecteur V2 Cless hors tension : Déconnecter l’alimentation du lecteur V2 Cless du réseau d’alimentation électrique. B- Réseau d’alimentation électrique a. N’utiliser que des câbles Parkeon prévus pour les lecteurs Cless b. N’utiler que le câble d’antenne Parkeon avec ses ferrites spéciales CEM c. L’alimentation du lecteur V2 CLess doit être de +12VDC +/-10% C- Trappe d’accès du lecteur La trappe d’accès situé sur le côté (voir chapitre – (DES)INSTALLION DES SAM) doit être en place au cours de l’utilisation normale de l’appareil. V2 CLESS – NOTICE D’UTILISATION - USER MANUAL v1.0 4 2.DEBALLAGE. CONSTITUTION DU PRODUIT Conserver soigneusement l’emballage de votre V2 Cless et de l’antenne, ils devront être réutilisés pour tout transport. V2 CLESS – NOTICE D’UTILISATION - USER MANUAL v1.0 5 3. DESCRIPTION DU LECTEUR HF Rappel des consignes de sécurité : Choisir l’alimentation électrique recommandée provenant de chez Excelsys Connectique du lecteur V2 Cless COM0 = liaison série pour debuguage (option) SMB = connecique RF pour l’antenne HOST = liaison série + alimentation SWITCH = switch de détection de badge (option) COM0 SMB SERVEUR INTERRUPTEUR V2 CLESS – NOTICE D’UTILISATION - USER MANUAL v1.0 6 Diagramme de connection Contactless reader cable Antenna cable Power supply converterCentral Unit Access Contactless reader Antenna support Com 4 • Câble du lecteur Cless L’alimentation et la communication du lecteur sans contact avec le connecteur de carte fond de panier sont effectués via un câble identifié par « CLESS » et « PC – POWER CLESS » • Câble d’antenne L’antenne est connectée au lecteur sans contact par l’intermédiaire d’un connecteur coudé SMB et d’un connecteur droit SMB. COM4 Câble du lecteur Cless Lecteur Contact Less Support d’antenne Convertisseur de tension Câble d’antenne Unité centrale V2 CLESS – NOTICE D’UTILISATION - USER MANUAL v1.0 7 4.INSTALLATION DU V2 CLESS 4.1 Module Outils nécessaire: tournevis empreinte Philips Temps requis pour l’intervention : 2 min Autre composant à retirer/manipulation initiale : Couper l’alimentation du périphérique en mode EMS ou avec le bouton devant le CPU • Déconnecter le câble d’antenne et le toron du lecteur sans contact • Retirer légèrement les deux vis de fixation avec un tournevis ayant une empreinte Philips • Dévisser les deux boulons de maintien du module Lecteur sans contact • Retirer le module défectueux • Mettre le nouveau module avec les SAMs (si présent dans l’ancien) • Connecter les câbles de l’ancien module • Appuyer sur le bouton de mise en route du CPU • Effectuer un test fonctionnel en utilisant le test « test de connexion » du menu EMS « lecteur de carte voyageur » Vis de fixation X2 Câble lecteur sans Contact Câble antenne V2 CLESS – NOTICE D’UTILISATION - USER MANUAL v1.0 8 4.2 Antenne • Connecter le câble d’antenne • Fixer la sur les quatre vis V2 CLESS – NOTICE D’UTILISATION - USER MANUAL v1.0 9 5.(DES)INSTALLION DES SAM Outils nécessaire : Clef de 8 Temps requis pour l’installation : 8 + 3 min • Dévisser la vis qui maintien la trappe de SAMs • Effectuer une rotation de la trappe de SAMs Lecteur sans contact • Retirer les SAMs de leur module • Insérer un nouveau SAM dans un emplacement vide • Remplacer le lecteur si besoin • Connecter les câbles au lecteur sans contact • Appuyer sur le bouton de mise en route du CPU • Effectuer un test fonctionnel en utilisant le test « test de connexion » du menu EMS « lecteur de carte voyageur » connecteur SAMs Vis de fixation Trappe d’accès SAMs V2 CLESS – NOTICE D’UTILISATION - USER MANUAL v1.0 10 6. UTILISATION JOURNALIERE Il n’y a pas d’attention particulière à respecter. Nettoyer l’antenne tous les ans avec de l’alcool Isopropylique. V2 CLESS – NOT…

Text truncated - open the document above for the full version.

Parc La Fayette 6 rue Isaac Newton 25075 Besançon cedex 9 - France Tél : +33 (0)3 81 54 56 00 Fax : + 33 (0)3 81 54 49 99 PARKEON · Siège Social : Le Barjac· 1 boulevard Victor · 75015 Paris · France Tél : +33 (0)1 58 09 81 10 · Fax : +33 (0)1 58 09 81 26 · www.parkeon.com · [email protected] S.A.S. au capital de 30.382.146 euros · 444 719 272 RCS Paris Federal Communications Commission 7435 Oakland ills Road Columbia, MD 21046 U.S.A. Subject : Request for withholding from public disclosure the schematic diagrams, operational description and system block diagrams pursuant to an application for certification. Applicant : PARKEON Product : V2 Cless Model : V2 Cless FCC ID : T2X-V2-CLESS Dear Sir/Madam, We, PArkeon, would like to request that the following files : • T2X-V2-CLESS-Schematics.pdf • T2X-V2-CLESS-OpDes.pdf • T2X-V2-CLESS-BlockDiagram.pdf Submittes with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission’s Rules and section 552(b)(4) of the Freedom of Information Act. These sections authorize of law if retainded by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any queries, please do not hesitate to contact us : • Phone : + 33 (0)381546831 • Email: [email protected] Best Regards, Alexandre Maurel

Parc La Fayette 6 rue Isaac Newton 25075 Besançon cedex 9 - France Tél : +33 (0)3 81 54 56 00 Fax : + 33 (0)3 81 54 49 99 PARKEON · Siège Social : Le Barjac· 1 boulevard Victor · 75015 Paris · France Tél : +33 (0)1 58 09 81 10 · Fax : +33 (0)1 58 09 81 26 · www.parkeon.com · [email protected] S.A.S. au capital de 30.382.146 euros · 444 719 272 RCS Paris Federal Communications Commission 7435 Oakland ills Road Columbia, MD 21046 U.S.A. Subject : Professional Installation Justification Applicant : PARKEON Product : V2 Cless Model : V2 Cless FCC ID : T2X-V2-CLESS Dear Sir/Madam, The V2 Cless is a “contactless” system of validation, payment or identification which provides cardholders to validate , pay or identify with a RFID Card on a passive target. V2 Cless is composed of : • Module lect Cless is a RFID reader which includes the analog and digital parts to manage ISO 14443 RFID chip. • A passive antenna • Coaxial cable with SMB connectors to connect the module and the antenna V2 CLess was developed by Parkeon for Parkeon’s machines. It’s destined to be only integrated in Parkeon’s machines (non exhaustive) : • Pay and Display Parking machine (On street Parking) • Automatic Fare Collection • Off street Parking • ... Like V2 Cless is only intended for Parkeon’s machine, we control : • The integration of the system in different machines • The installation by way of quality control in production • The maintenance because it’s ensured by Parkeon or authorized person If you have any queries, please do not hesitate to contact us : • Phone : + 33 (0)381546831 • Email: [email protected] Best Regards, Alexandre Maurel

Parc La Fayette 6 rue Isaac Newton 25075 Besançon cedex 9 - France Tél : +33 (0)3 81 54 56 00 Fax : + 33 (0)3 81 54 49 99 PARKEON · Siège Social : Le Barjac· 1 boulevard Victor · 75015 Paris · France Tél : +33 (0)1 58 09 81 10 · Fax : +33 (0)1 58 09 81 26 · www.parkeon.com · [email protected] S.A.S. au capital de 30.382.146 euros · 444 719 272 RCS Paris Federal Communications Commission 7435 Oakland ills Road Columbia, MD 21046 U.S.A. Subject : Professional Installation Justification Applicant : PARKEON Product : V2 Cless Model : V2 Cless FCC ID : T2X-V2-CLESS Dear Sir/Madam, The V2 Cless is a “contactless” system of validation, payment or identification which provides cardholders to validate , pay or identify with a RFID Card on a passive target. V2 Cless is composed of : • Module lect Cless is a RFID reader which includes the analog and digital parts to manage ISO 14443 RFID chip. • A passive antenna • Coaxial cable with SMB connectors to connect the module and the antenna V2 CLess was developed by Parkeon for Parkeon’s machines. It’s destined to be only integrated in Parkeon’s machines (non exhaustive) : • Pay and Display Parking machine (On street Parking) • Automatic Fare Collection • Off street Parking • ... Like V2 Cless is only intended for Parkeon’s machine, we control : • The integration of the system in different machines • The installation by way of quality control in production • The maintenance because it’s ensured by Parkeon or authorized person If you have any queries, please do not hesitate to contact us : • Phone : + 33 (0)381546831 • Email: [email protected] Best Regards, Alexandre Maurel

To whom it may concern, Parkeon would like to apply for Modular FCC Approval. This letter is our application for such according to FCC Part 15.212: Modular transmitter requirements Manufacturer clarification A- In order to be considered a transmitter module, the device must be a complete RF transmitter, i.e. it must have its own reference oscillator (e.g. VCO), antenna, etc. The only connectors to the module, if any, may be the power supply and modulation/data inputs. A reference oscillator is 27.12MHz quartz A specific Antenna is connected to Module Lect Cless Data inputs are transmitted by a RS232 serial communication to Module Lect Cless Power supply is connected to a sub-D 15 pins connector on Module Lect Cless B- Compliance with FCC RF exposure requirements may, in some instances, limit the output power of a module and/or the final applications in which the approved module may be employed. Measures for FCC RF exposures requirements were performed at maximal power C- While the applicant for a device into which an authorized module is installed is not required to obtain a new authorization for the module, this does not preclude the possibility that some other form of authorization or testing may be required for the device (e.g. a WLAN into which an authorized module is installed must still be authorized as a PC peripheral, subject to the appropriate equipment authorization). Module Lesct Cless is only installed in Parkeon’s machine; when it will be integrated in new Parkeon’s product, Parkeon will verify if supplementary tests or from of authorization are required D- In the case of a modular transceiver, the modular approval policy only applies to the transmitter portion of such devices. Pursuant to Section 15.101(b), the receiver portion will either be subject to Verification, or it will not be subject to any authorization requirements (unless it is a Scanning Receiver, in which case it is also subject to Certification, pursuant to Section 15.101(a)). Module Lect Cless is a transceiver. It operates at 13.56 MHz in respect of the ISO14443 standard. Data are received on transceiver by a sub carrier modulation of 848KHz on the 13.56MHz carrier modulation of the transmitter which is not causing harmful interference E- The holder of the grant of equipment authorization (Grantee) of the module is responsible for the compliance of the module in its final configuration, provided that the OEM, integrator and/or end user has complied with all of the instructions provided by the Grantee which indicate installation and/or operating conditions necessary for compliance. Operational description indicates conditions of integration of the equipment. More over, it’s only integrated in Parkeon’s machines 1- The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. Such coupling may result in non-compliant operation. A RF shielding is made with the metal box (See pictures in T2X-V2-CLESS external_photos.pdf 2- The modular transmitter must have buffered modulation/data inputs (if such inputs are Data inputs are not directly connected to the HF stage. Data inputs are numeric inputs connected provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over modulation. to the HF stage by way of a FPGA which has a internal buffer 3- The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. T2X-V2-CLESS has it’s own power supply converters (linear and DC.DC) which generates all the internal voltages. 4- The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module; either at the time of initial authorization or through a class II permissive change. The “professional installation” provision of Section 15.203 may not be employed for modules. T2X-V2-CLESS is a equipment which must be professionally installed (see professional installation justification in cover letter. The passive Antenna is connected to the module lect Cless with a specific coaxial cable ( SMB connectors). 5- The modular transmitter must be tested in a stand-alone configuration, i.e. the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. T2X-V2-CLESS was tested alone. See EMitech Radio Measurement Certification Report (D051- PTC-10-104464) 6- The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. FFC ID of module lect Cless is T2X-V2-CLESS. See T2X-V2-CLESS- Lable_Location_Information.pdf) 7- The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The equipement is only integrated by Parkeon 8- the modular transmitter must comply with any applicable RF exposure requirements. See Emitech Radio Measurement Certification Report (D051-PTC-10-104464) Sincerely, 01-27-2011 Maurel

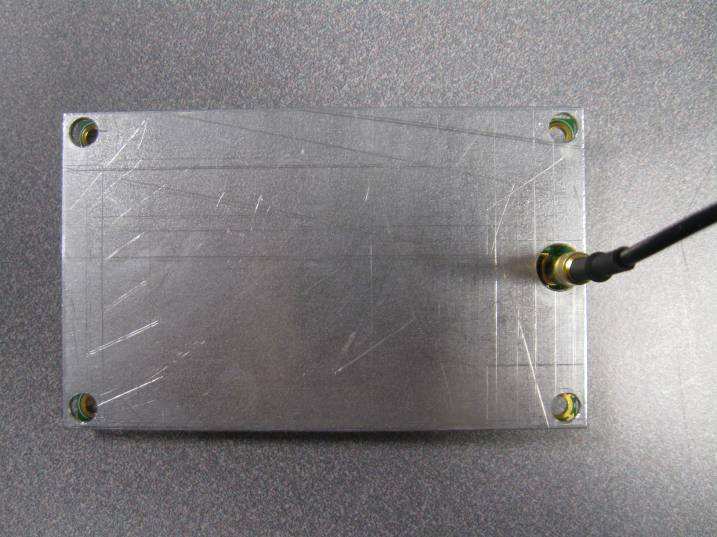

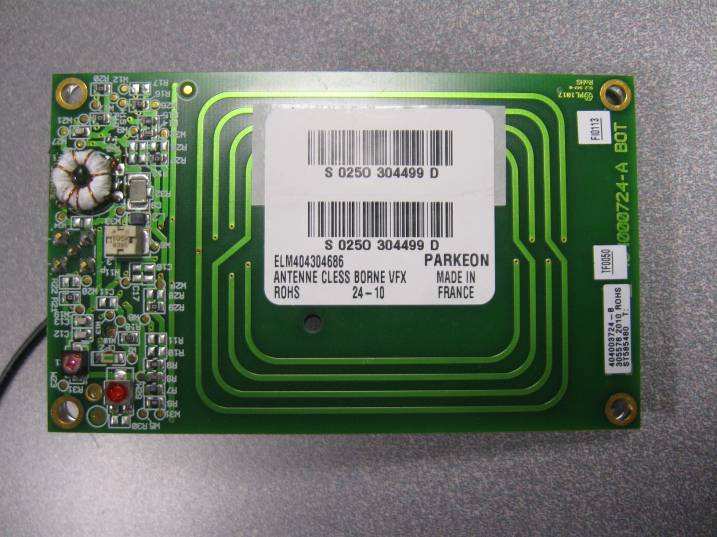

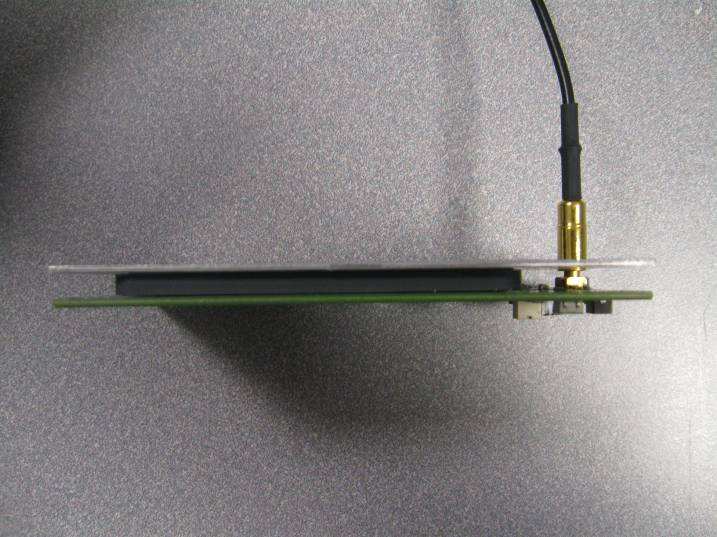

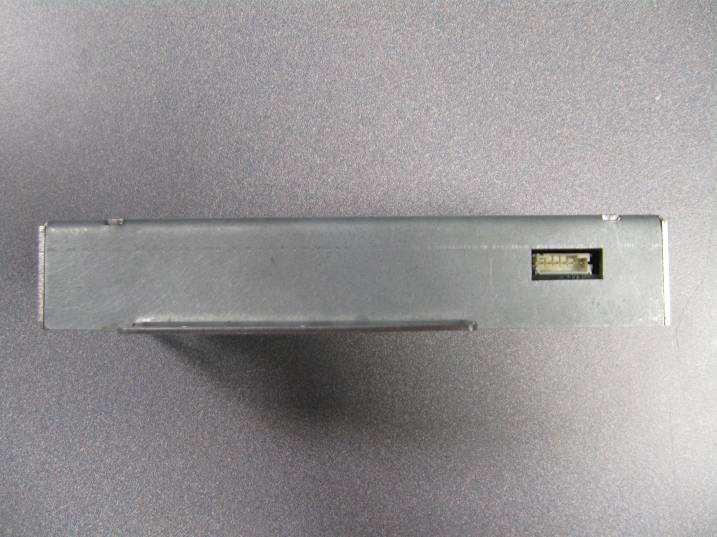

V2 CLESS Pictures of equipment External views V2 CLESS - External Views 1 © Copyright 2010 Parkeon. All rights reserved. Parkeon reserves all proprietary rights relating to the contents of this document.Parkeon Reserves all rights over usage, reproduction, representation, marketing, translation, adaptation Or modification, and generally all rights over present and future utilisation by any means, for any Purpose and in any territory, throughout the period of protection. All use of the contents of this Document requires the prior written permission of Parkeon. Parkeon reserves the right to change data, drawings and descriptions without prior notice. Certain characteristics may vary according to customer requirements and do not represent a commitment by Parkeon. Parkeon UK Ltd. Membrain House Ferndown Industrial Estate Wimborne, Dorset BH21 7PP – United Kingdown Phone +44 1202 850927 - Fax +44 1202 850903 Parkeon Inc. 40 Twosome Drive, Unit 7 Moorestown NJ 08057 – USA Phone +1 856 234 8000 - Fax +1 856 234 7178 Parkeon S.A.S Parc La Fayette, 6 rue Isaac Newton, 25075 Besançon Cedex 9 - France Phone +33 (0)3 81 54 56 00 – Fax +33 (0)3 81 54 49 96 Head office : Le Barjac, 1 boulevard Victor, 75015 Paris - France Parkeon S.A.S au capital de 30.382.146 euros 444 719 272 R.C.S Paris Printed in France. V2 CLESS - External Views 2 1. Module Lect V2 CLESS General Views V2 CLESS - External Views 3 2. Antenne CLESS Borne VFX General Views V2 CLESS - External Views 4 3. Excelsys XLB4400 power module General Views V2 CLESS - External Views 5

V2 CLESS ID Label / Location Information V2 CLESS - ID Label Location Information 1 © Copyright 2010 Parkeon. All rights reserved. Parkeon reserves all proprietary rights relating to the contents of this document.Parkeon Reserves all rights over usage, reproduction, representation, marketing, translation, adaptation Or modification, and generally all rights over present and future utilisation by any means, for any Purpose and in any territory, throughout the period of protection. All use of the contents of this Document requires the prior written permission of Parkeon. Parkeon reserves the right to change data, drawings and descriptions without prior notice. Certain characteristics may vary according to customer requirements and do not represent a commitment by Parkeon. Parkeon UK Ltd. Membrain House Ferndown Industrial Estate Wimborne, Dorset BH21 7PP – United Kingdown Phone +44 1202 850927 - Fax +44 1202 850903 Parkeon Inc. 40 Twosome Drive, Unit 7 Moorestown NJ 08057 – USA Phone +1 856 234 8000 - Fax +1 856 234 7178 Parkeon S.A.S Parc La Fayette, 6 rue Isaac Newton, 25075 Besançon Cedex 9 - France Phone +33 (0)3 81 54 56 00 – Fax +33 (0)3 81 54 49 96 Head office : Le Barjac, 1 boulevard Victor, 75015 Paris - France Parkeon S.A.S au capital de 30.382.146 euros 444 719 272 R.C.S Paris Printed in France. V2 CLESS - ID Label / Location Information 2 1. Location Information V2 CLESS General View Position of the FCC ID V2 CLESS - ID Label / Location Information 3 2. ID Label 42 mm 3. Identification Label Position of the Identification label for the MODULE LECT V2 CLESS V2 CLESS - ID Label / Location Information 4 20 mm Trade Name Model Number Position of the Identification label for the ANTENNE CLESS BORNE VFX Position of the Identification label for the Excelsys XLB4400 power module V2 CLESS - ID Label / Location Information 5 Trade Name Model Number Trade Name Model Number

V2 CLESS FCC Label Sample V2 CLESS - Label Sample 1 © Copyright 2010 Parkeon. All rights reserved. Parkeon reserves all proprietary rights relating to the contents of this document.Parkeon Reserves all rights over usage, reproduction, representation, marketing, translation, adaptation Or modification, and generally all rights over present and future utilisation by any means, for any Purpose and in any territory, throughout the period of protection. All use of the contents of this Document requires the prior written permission of Parkeon. Parkeon reserves the right to change data, drawings and descriptions without prior notice. Certain characteristics may vary according to customer requirements and do not represent a commitment by Parkeon. Parkeon UK Ltd. Membrain House Ferndown Industrial Estate Wimborne, Dorset BH21 7PP – United Kingdown Phone +44 1202 850927 - Fax +44 1202 850903 Parkeon Inc. 40 Twosome Drive, Unit 7 Moorestown NJ 08057 – USA Phone +1 856 234 8000 - Fax +1 856 234 7178 Parkeon S.A.S Parc La Fayette, 6 rue Isaac Newton, 25075 Besançon Cedex 9 - France Phone +33 (0)3 81 54 56 00 – Fax +33 (0)3 81 54 49 96 Head office : Le Barjac, 1 boulevard Victor, 75015 Paris - France Parkeon S.A.S au capital de 30.382.146 euros 444 719 272 R.C.S Paris Printed in France. V2 CLESS - Label Sample 2 42 mm V2 CLESS - Label Sample 3 20 mm

V2 CLESS Pictures of equipment Internal views V2 CLESS - Internal Views 1 © Copyright 2010 Parkeon. All rights reserved. Parkeon reserves all proprietary rights relating to the contents of this document.Parkeon Reserves all rights over usage, reproduction, representation, marketing, translation, adaptation Or modification, and generally all rights over present and future utilisation by any means, for any Purpose and in any territory, throughout the period of protection. All use of the contents of this Document requires the prior written permission of Parkeon. Parkeon reserves the right to change data, drawings and descriptions without prior notice. Certain characteristics may vary according to customer requirements and do not represent a commitment by Parkeon. Parkeon UK Ltd. Membrain House Ferndown Industrial Estate Wimborne, Dorset BH21 7PP – United Kingdown Phone +44 1202 850927 - Fax +44 1202 850903 Parkeon Inc. 40 Twosome Drive, Unit 7 Moorestown NJ 08057 – USA Phone +1 856 234 8000 - Fax +1 856 234 7178 Parkeon S.A.S Parc La Fayette, 6 rue Isaac Newton, 25075 Besançon Cedex 9 - France Phone +33 (0)3 81 54 56 00 – Fax +33 (0)3 81 54 49 96 Head office : Le Barjac, 1 boulevard Victor, 75015 Paris - France Parkeon S.A.S au capital de 30.382.146 euros 444 719 272 R.C.S Paris Printed in France. V2 CLESS - Internal Views 2 1. Module Lect V2 CLESS General Views V2 CLESS - Internal Views 3 2. Antenne V2 CLESS Borne VFX General Views V2 CLESS - Internal Views 4 3. Excelsys XLB4400 power module General Views V2 CLESS - Internal Views 5

V2 CLESS Parts List V2 CLESS - Parts List 1 © Copyright 2010 Parkeon. All rights reserved. Parkeon reserves all proprietary rights relating to the contents of this document.Parkeon Reserves all rights over usage, reproduction, representation, marketing, translation, adaptation Or modification, and generally all rights over present and future utilisation by any means, for any Purpose and in any territory, throughout the period of protection. All use of the contents of this Document requires the prior written permission of Parkeon. Parkeon reserves the right to change data, drawings and descriptions without prior notice. Certain characteristics may vary according to customer requirements and do not represent a commitment by Parkeon. Parkeon UK Ltd. Membrain House Ferndown Industrial Estate Wimborne, Dorset BH21 7PP – United Kingdown Phone +44 1202 850927 - Fax +44 1202 850903 Parkeon Inc. 40 Twosome Drive, Unit 7 Moorestown NJ 08057 – USA Phone +1 856 234 8000 - Fax +1 856 234 7178 Parkeon S.A.S Parc La Fayette, 6 rue Isaac Newton, 25075 Besançon Cedex 9 - France Phone +33 (0)3 81 54 56 00 – Fax +33 (0)3 81 54 49 96 Head office : Le Barjac, 1 boulevard Victor, 75015 Paris - France Parkeon S.A.S au capital de 30.382.146 euros 444 719 272 R.C.S Paris Printed in France. V2 CLESS - Parts List 2 1. Module Lect V2 CLESS Part List Code Designation Complementary Designation Qty Topological name 404005758 CARTE UCT CLESS V2 DBR2 400600665 TRANSFORMATEUR HF 1.000000 TF3 Ferrite collee sur le PCB 404000758 CI NU LECTEUR CLESS V2 1.000000 500120005 TRANS MOSP FDN304P SOT23 CO 10A 20V R07 3.000000 Q1,Q4,Q6 500121004 TRANS DMOSN BSH103 SOT23 CO A85 30V R5 2.000000 Q5,Q7 500229006 DIODE SCHOTT 10BQ040 SMB SCH 1A 40V V6 2.000000 D3,D17 500229007 DIODE SCHOTT MBR0520LT SOD123 SCH A1 20V V3 1.000000 D2 500230005 DIODE ZENER BZV55-C4V7 S OD80CZEN 4V7 6% W5 1.000000 D10 500249002 DIODE SUPPRB SM6T18CA SO D6SUP 18V 25V/24A 1.000000 D13 500249011 DIODE SUPPRB 0603ESDA 0603 SUP 14V 35V/30A 3.000000 D5-D7 500309002 LED HSMG-C150 VERTE CMS 1206VER 12MCD/A02 4.000000 OP1-OP3,OP10 500604000 QUARTZ 32,768KHZ 12.5PF CMS -10/60 1.000000 Y2 500604012 OSCILLATEUR 32,768MHZ HCMOS 100PPM -40/85 1.000000 Y3 500604013 OSCILLATEUR 27,120MHZ HC MOS100PPM -40/85 1.000000 Y5 500605000 FERRITE CMS 1206 500R/ 100MHZ WURTH 742792116 5.000000 L2,L7,L11-L13 500610011 SELF 33UH/110MA 10% 2,5X 2X1,816MHZ 4R2 1.000000 L1 500610020 SELF 15UH/1A11 20% 6X6X2 ,8500KHZ 0R07 1.000000 L14 500610026 COUPLEUR 50OHM 5-900MHZ 10DB1W CD542 1DB 1.000000 L18 500610041 SELF 1UH/320MA 5% 3,5X3,2X1,5 2R8 2.000000 L8,L10 500610042 SELF 180NH/400MA 2% 2,2X1,5X1,4 R64 1.000000 L6 500610043 SELF 39NH/1A3 2% 2,7X2,6 X2,3 R09 1.000000 L17 500610044 SELF 3,3UH/150MA 2% 2,6X2,7X2,3 7R8 3.000000 L3-L4,L20 500629004 RELAIS STAT 250MA 50MA CI 250MA 40V CACC 3.000000 OP5,OP7,OP9 500730002 CONN SUBD 15P F COUDE SO UDENO-VER CI-VIS 1.000000 P11 500739032 CONN SAMTEC 2X5 M DR 1MM 27 SOU SAMTE FTSH10501L 1.000000 P1 500739043 CONN JST 6P M CD 2MM CMS JST S6BPHSM3TB 1.000000 P12 500739069 CONN SMB MAL CD CI CMS DORE 3.000000 P2,P4-P5 500739081 CONN USIM/SAM 6P+SWITCH CCM03-3754 4.000000 P13-P16 501000000 RES CMS 0 OHM 0,25W 5% 1 2060,25W 5% 1206 1.000000 R196 501000012 RES CMS 12 OHM 0,25W 5% 12060.25W 5% 1206 4.000000 R39-R40,R107,R110 501030000 RES CMS 0 OHM 0,1W 5% 08 050,1W 5% 0805 7.000000 R4,R13,R62,R73,R97,R150,R167 Part List Code Designation Complementary Designation Qty Topological name 501040000 RES CMS 0 OHM 0,06W 5% 0 6030,062W 5% 0603 20.000000 R11-R12,R16-R17,R20,R29-R36,R41,R135,R142- R143,R186-R187,R195 501040022 RES CMS 22 OHM 0,06W 5% 06030.062W 5% 0603 8.000000 R111-R114,R116-R117,R119,R122 501040051 RES CMS 51 OHM 0,06W 5% 06030,062W 5% 0603 1.000000 R49 501040110 RES CMS 100 OHM 0,06W 5% 06030,062W 5% 0603 12.000000 R7,R14,R54- R56,R58,R60,R96,R121,R129,R191,R193 501040115 RES CMS 150 OHM 0,06W 5% 06030.062W 5% 0603 1.000000 R82 501040122 RES CMS 220 OHM 0,06W 5% 06030.062W 5% 0603 1.000000 R91 501040133 RES CMS 330 OHM 0,06W 5% 06030.062W 5% 0603 2.000000 R80-R81 501040156 RES CMS 560 OHM 0,06W 5% 06030,062W 5% 0603 9.000000 R63-R64,R134,R137-R141,R172 501040210 RES CMS 1 KOHM 0,06W 5% 06030,062W 5% 0603 15.000000 R9,R27-R28,R51,R53,R66,R95,R103,R118,R123- R124,R130-R131,R188-R189 501040227 RES CMS 2,7 KOHM 0,06W 5 % 0603 0.062W 5% 0603 1.000000 R83 501040268 RES CMS 6,8 KOHM 0,06W 5 % 0603 0,062W 5% 0603 1.000000 R145 501040275 RES CMS 7,5KOHM 0,06W 5% 06030,06W 5% 0603 1.000000 R126 501040310 RES CMS 10 KOHM 0,06W 5% 06030,062W 5% 0603 13.000000 R8,R24,R45,R47,R50,R61,R92-R93,R99,R127- R128,R136,R182 501040347 RES CMS 47 KOHM 0,06W 5% 06030,062W 5% 0603 4.000000 R10,R21,R38,R144 501040410 RES CMS 100 KOHM 0,06W 5 % 0603 0,062W 5% 0603 11.000000 R65,R69,R84,R133,R149,R151,R155,R162,R183- R185 501040418 RES CMS 180 KOHM 0,06W 5 % 0603 0.062W 5% 0603 2.000000 R2,R5 501040427 RES CMS 270 KOHM 0,06W 5 % 0603 0.062W 5% 0603 2.000000 R3,R6 501040912 RES CMS 1.2 OHM 0,06W 5% 06030.062W 5% 0603 4.000000 R37,R44,R108,R120 501150010 RESEAU 100 OHM 5% BOITIE RX4RISOL 1/16 250PPM 8.000000 RS1-RS6,RS8-RS9 501300056 COND CER 56PF 50V 5% NPO 0603CMS 0603 12.000000 C7,C14-C15,C26,C34,C37,C47-C48,C53-C54,C56- C57 501300134 COND CER 82PF 100V 2% NP O 0805 CMS 0805 2.000000 C115,C120 501300968 COND CER 6,8PF 50V 5% NP O 0603 CMS 0603 1.000000 C4 501301033 COND CER 33PF 50V 5% NPO 0805CMS 0805 3.000000 C18-C19,C185 501301069 COND CER 47PF 100V 10% NPO 0805 1.000000 C68 501301110 COND CER 100PF 50V 5% NP O 0805 CMS 0805 2.000000 C85,C173 501301122 COND CER 220PF 50V 5% NP O 0805 CMS 0805 3.000000 C113,C130,C139 501301147 COND CER 470PF 50V 5% NP O 0805 CMS 0805 1.000000 C86 501303310 COND CER 10NF 50V 5% NPO 1210CMS 1210 1.000000 C184 501310210 COND CER 1NF 50V 10% X7R 0603CMS 0603 12.000000 C2,C6,C8,C12- C13,C32,C40,C66,C75,C106,C176,C180 501390002 COND CER 22NF 25V 10% X7 R 0603 CMS 0603 1.000000 C69 501310410 COND CER 100NF 16V 10% X 7R 603 CMS 0603 51.000000 C1,C5…

Text truncated - open the document above for the full version.

Z.I. Angers - Beaucouzé - 15, rue de la Claie - 49070 BEAUCOUZE - Siret : 344 545 645 00055 Tél. : 02 41 73 26 27 - Fax : 02 41 73 26 40 - E-mail : [email protected] - URL : www.emitech.fr Siège Social : 3, rue des Coudriers - CAP 78 - ZA de l’Observatoire - 78180 MONTIGNY LE BX S.A. au capital de 1 560 000 € - R.C.S. VERSAILLES 344 545 645 - APE 7112B R051-24-10-104464-2/A Ed. 0 RADIO test report according to standard: FCC Part 15 Equipment under test: RFID 13.56 MHZ READER 404305128 FCC ID: T2X-V2-CLESS Company: PARKEON DISTRIBUTION: Mr MAUREL Company: PARKEON Number of pages: 33 including 4 annexes Technical Verification Ed. Date ModifiedWritten by Quality Approval pages Name Visa Name Visa 0 31-Jan-11 CreationM. DUMESNIL Duplication of this document is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the …
