T38C8680GPWCDMA mobile phone

Page 1 WCDMA mobile phone User Manual GP‐201(fx), C8680GP
Page 2 Phone display & key basics To turn on your phone, long press Power Key. To turn off your phone, press and hold Power Key till Phone options menu appears. And then touch Power off. HOME Key: Press to return to the Home screen. Press and hold to bring up the recent applications window. MENU Key: Press to open a list of actions you can take on the current screen. BACK Key: Within a menu, press to return to the previous screen or to dismiss a dialog box or menu. When the onscreen keyboard is open, press to close the onscreen keyboard. Search Key: On the Home screen, opens search for searching your phone and the web. Volume Keys: Press to adjust the volume.
Page 3 Installing the battery and SD Card (1) Remove the back cover (2) Remove the battery (3) Install the SIM card
Page 4 (4) Install the battery (5) Install the back cover (6) Insert T-flash card
Page 5 Home screen Wherever you are, whatever you’re doing on your phone, simply press HOME Key to return to Home screen. The home screen is your starting point for using applications on your phone. You can customize your Home screen as you like. To add a Home screen item, touch and hold a specific application or widget add it to the home screen. To remove items from the Home screen, touch and hold an item until Remove icon appears , drag it to the Remove icon.
Page 6 Onscreen Keyboard When you start a program or select a field that requires text or numbers, the onscreen keyboard becomes available. When you do not need the keyboard, you can close it by pressing Back Key. To adjust onscreen keyboard settings, you can go to Settings > Language & input > Android keyboard.
Page 7 Phone calls To make a call, touch a phone number in Contacts, an Email, a text message or anywhere on your phone. You can also enter the phone number manually by virtual keypad and dial directly. To answer a call, drag the phone icon to the right. To reject a call, drag the phone icon to the left. To end a call, touch the End Call icon .
Page 8 Gallery Gallery lets you to access photos and videos you have taken. For photos, you can do basic editing tasks, set them as wallpaper or contact picture and share them to your friends. To view a picture, press Home Key, touch the application tab and then touch Gallery icon. Slide your finger left or right to move between pictures.
Page 9 Camera Your phone lets you take pictures and record videos with the built- in camera. To open camera, press Home Key, touch the application tab and then select Camera. In picture mode, touch icon to take a picture. In video mode, touch icon to record a video.
Page 10 Music At any level in your music library, touch and hold a list (a song, artist, album or playlist) to open the context menu. Select a song to play and go to the playback screen.
Page 11 Video To record a video, press Home key, touch application tab and then touch Camera. You can also touch icon and switch to video mode in Camera menu. To play video files, press Home key, touch application tab and touch Videos icon. Touch a video you want to watch in the video list to play.
Page 12 Browser Browser supports you to browse web pages when your phone is connected to available network. To connect to WLAN or enable mobile network, you can go to Settings > Wireless & networks. Open the Browser screen and tap the web address tab to enter the address you’d like to visit. To zoom in or zoom out within a web page, you can also pinch your fingers together or apart.
Page 13 Clock Your phone has a built-in alarm clock which enables you to set multiple clocks. To set an alarm, touch Add alarm. After editing the alarm details, touch Done to save the alarm. To turn alarm off, long press an alarm and select Turn alarm off on the context menu that appears. To delete an alarm, long press the alarm and select Delete alarm on the context menu that appears.
Page 14 Search To search your phone, press Search Key to open the search bar. Type in what you’d like to search, the search results will be listed under the search bar. To make search faster, you can select the search type like All, Web, Apps, Contacts or others.
Page 15 Safety Information and Notices Failure to comply with the following precautions may be dangerous or illegal. Please carefully read and observe the terms below: Safe power on Do not use your mobile phone where it is forbidden to use or you might cause a disturbance or danger. Safe transportation first Please observe all related local laws and regulations. Please drive with both hands. Transportation security should be considered when driving. Disturbance All mobile phone performances might be disturbed Turn off when in hospital Please follow related limitations. Please turn off your mobile phone when near a medical instrument. Turn off on an airplane Please follow related limitations. Do not use your phone on an airplane. Turn off when at a gasoline station Do not use your mobile phone at a filling station or around fuels or chemicals. Turn off around exposure Area Please observe related limitations and do not use your mobile phone around an area where explosions can occur. Proper use As described in this manual, your mobile phone can be used only in right location. If possible, please do not touch the antenna area on your phone. Use qualified after sale service Only a qualified maintainer can install or repair your mobile phone. Accessories and batteries
Page 16 Only use the authorized accessories and batteries and do not connect to unmatched manufacturers or products. You can also use a shielded USB cable for charging with Notebook PC. Waterproof Your mobile phone is not waterproof. Please keep it away from water. Backup Do remember to make a backup or keep a written record of all important information saved in your mobile phone. Connect to other devices Please read the user manual of the device to get more detailed security instructions before…

Text truncated - open the document above for the full version.

Cellon Communications Technology (Shenzhen) Co.,Ltd. 13/F, Skyworth C Building, Gaoxin S.Ave1, Hi-Tech Industrial Park, Nanshan District, Shenzhen,China Tel: +86-755-86365704; Fax: +86-755-86365686 Date: January 24, 2013 Statement We, Cellon Communications Technology (Shenzhen) Co.,Ltd., states that our device, FCC ID: T38C8680GP . The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ maggie xu

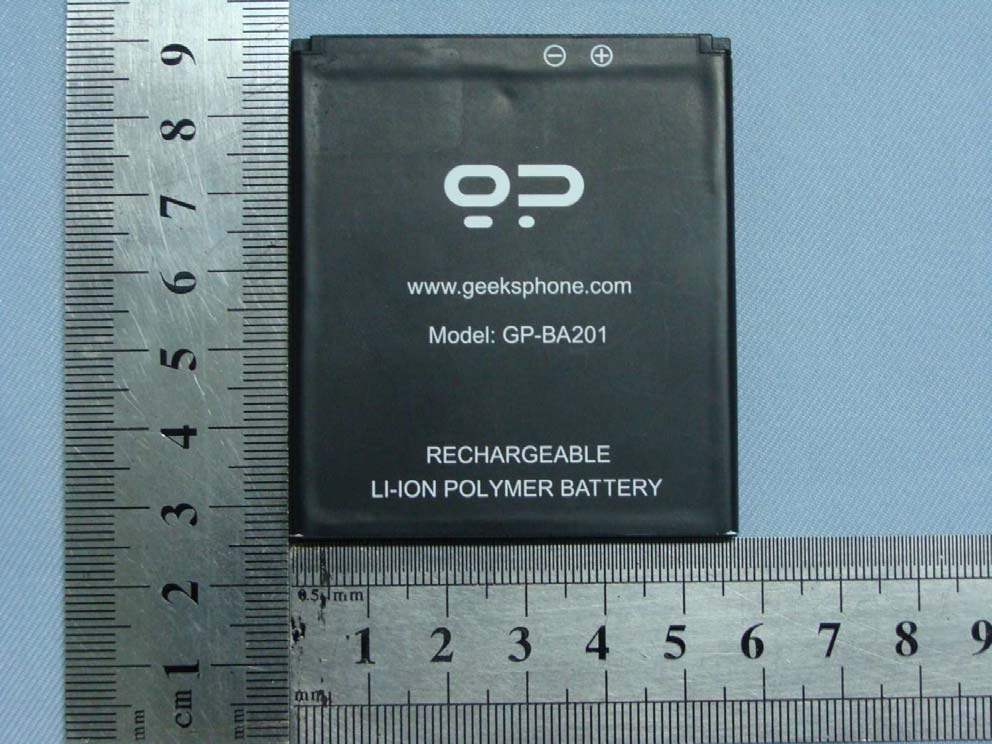

Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP 1. External Photograph of EUT Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP List of Accessory: Specification of Accessory AC Adapter Brand Name GP Model Name DSA-5PFK-05 FUS 050100a Battery Brand Name GP Model Name GP-BA201 USB Cable Signal Line Type 0.66m, shielded cable with core Earphone Signal Line Type 1.23m, non-shielded cable without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP AC Adapter Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Battery Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP

Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP 3. Internal Photograph of EUT Bluetooth & WLAN Antenna WWAN Antenna GPS Antenna Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP Bluetooth & WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP2D2101 Brand Name: Geeksphone, Cellon; Model Name: C8680GP, GP-201(fx); Marketing Name: Peak SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 23, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : T38C8680GP GPS Antenna <Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 52 TEL : 86-755-8637-9589 Report Issued Date : Jan. 23, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : T38C8680GP FCC SAR Test Report Report No. : FA2D2101 FCC SAR Test Report APPLICANT : Cellon Communications Technology Co., Ltd. EQUIPMENT : WCDMA moblie phone BRAND NAME : Geeksphone, Cellon MODEL NAME : C8680GP, GP-201(fx) MARKETING NAME : Peak FCC ID : T38C8680GP STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Jan. 21, 2013. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (SHENZHEN) INC. No. 101, Complex Building C, Guanglong Village, Xili Town, Nanshan District, Shenzhen, Guangdong, P.R.C. SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 52 TEL : 86-755-8637-9589 Report Issued Date : Jan. 23, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : T38C8680GP FCC SAR Test Report Report No. : FA2D2101 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Maximum RF output power among production units ...............................................................................................7 3.3 Product Photos .......................................................................................................................................................9 3.4 Applied Standard .....................................................................................................................................................9 3.5 Device Category and SAR Limits ............................................................................................................................9 3.6 Test Conditions ........................................................................................................................................................9 4. Specific Absorption Rate (SAR) ..................................................................................................................................10 4.1 Introduction ...........................................................................................................................................................10 4.2 SAR Definition .......................................................................................................................................................10 5. SAR Measurement System ..........................................................................................................................................11 5.1 E-Field Probe ........................................................................................................................................................12 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................13 5.3 Robot ....................................................................................................................................................................13 5.4 Measurement Server .............................................................................................................................................13 5.5 Phantom ................................................................................................................................................................14 5.6 Device Holder .......................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. SAR Measurement Evaluation .............................................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : B1 of B1 TEL : 86-755-8637-9589 Report Issued Date : Jan. 23, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : T38C8680GP FCC SAR Test Report Report No. : FA2D2101 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 25.12.2012 45 GSM850_GSM_Right Cheek_Ch128 DUT: 2D2101 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_121225 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (61x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.569 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.061 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.618 mW/g SAR(1 g) = 0.507 mW/g; SAR(10 g) = 0.394 mW/g Maximum value of SAR (measured) = 0.571 W/kg 0 dB = 0.571 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 25.12.2012 46 GSM850_GSM_Right Tilted_Ch128 DUT: 2D2101 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_121225 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (61x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.383 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.248 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.414 mW/g SAR(1 g) = 0.336 mW/g; SAR(10 g) = 0.261 mW/g Maximum value of SAR (measured) = 0.382 W/kg 0 dB = 0.382 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 25.12.2012 47 GSM850_GSM_Left Cheek_Ch128 DUT: 2D2101 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_121225 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (61x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.582 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.625 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.645 mW/g SAR(1 g) = 0.508 mW/g; SAR(10 g) = 0.389 mW/g Maximum value of SAR (measured) = 0.584 W/kg 0 dB = 0.584 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 25.12.2012 47 GSM850_GSM_Left Cheek_Ch128_2D DUT: 2D2101 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_121225 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (61x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.582 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.625 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.645 mW/g SAR(1 g) = 0.508 mW/g; SAR(10 g) = 0.389 mW/g Maximum value of SAR (measured) = 0.584 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 25.12.2012 48 GSM850_GSM_Left Tilted_Ch128 DUT: 2D2101 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_121225 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (61x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.396 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.509 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.433 mW/g SAR(1 g) = 0.349 mW/g; SAR(10 g) = 0.269 mW/g Maximum value of SAR (measured) = 0.399 W/kg 0 dB = 0.399 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 23.12.2012 37 GSM1900_GSM_Right Cheek_Ch512 DUT: 2D2101 Communication System: Generic GSM; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_121223 Medium parameters used: f = 1850.2 MHz; σ = 1.361 mho/m; ε r = 39.822; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : C1 of C1 TEL : 86-755-8637-9589 Report Issued Date : Jan. 23, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : T38C8680GP FCC SAR Test Report Report No. : FA2D2101 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D835V2, serial No. 4d091 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 4d091 ʳ 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.18.2011 -25.734 ʳ 50.867 ʳ -5.1504ʳ -22.318 ʳ47.082 ʳ -6.8594ʳ 11.17.2012 -25.917 0.7149.7731.09-5.13290.02 -22.4660.6648.683 1.60 -6.35980.50 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data> - D835V2, serial no. 4d091 835MHz - Head 835MHz – Body SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D1900V2, serial no. 5d118 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5d118 ʳ 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.21.2011 -22.535 ʳ 53.449 ʳ 6.9277ʳ-22.401 ʳ47.82 ʳ 7.1133ʳ ʳ11.17.2012 -22.603 0.3053.491 -0.047.10090.17-22.45 0.2246.14 -1.68 6.7234-0.39 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data>- D1900V2, serial no. 5d118 1900MHz – Head 1900MHz - Body SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibra…
