A1.251125 www.anytone.net AT-D890UV Operating Manual Multi-Protocol Digital+Analog Handheld Radio DMR DIGITAL MOBILE RADIO ASSOCIATION THANK YOU! Thank you very much for choosing our Multi-Protocol Digital +Aonalog Handheld Radio This radio adopts the latest advances in technology, providing reliable communication in today’s demanding communication environment. This radio offers both digital and analog communication, introduces innovative digital processing system to achieve SMS, high-audio quality and digital encryption. It offers great stability, and reliability, together with long-distance communication as well as fashionable design and compact exterior lines. AT-D890UV has Text Messaging, Recording, Voice Message, Digital Encryption, Emergency Alarm, Man Down Alarm, Work Alone GPS, APRS Location Reporting, Roaming, Vibration, Analog DTMF, 2TONE, 5TONE, CTCSS/DCS encode/decode functions. » When programming the radio, start by reading the factory software data, and then rewrite this data with your frequency etc., to a new saved code plug, otherwise errors may occur. » You can use the programming cable with a PC to program the frequency, channel type, power etc. Your programming must comply with your FCC (or other country) license certification. CONTENTS 1.UNPACKING AND CHECKING THE EQUIPMENT ........................1 1.1 Supplied Accessories .........................................................................1 1.2 Standard Accessories ........................................................................2 1.3 Optional Accessories .........................................................................2 2.BATTERY INFORMATION ..............................................................3 2.1 Charging the Battery Pack .................................................................3 2.2 Charger Supplied ...............................................................................3 2.3 Use Caution with the Li-ion Battery ...................................................3 2.4 How to Charge ...................................................................................4 2.5 Charging Stand Indicator ...................................................................5 2.6 How to Store the Battery ....................................................................5 3. PREPARATION ..............................................................................6 3.1 Installing / Removing the Battery .......................................................6 3.2 Installing / Removing the Antenna .....................................................6 3.3 Installing / Removing the Belt Clip .....................................................7 3.4 Installing the Additional Speaker/Microphone (Optional) ...................7 4. Radio Overview.............................................................................8 4.1 LCD ....................................................................................................9 4.2 Status Indications ..............................................................................9 4.3 Programmed Key .............................................................................10 4.4 Hot Key Setting for PF1, PF2, PF3, P1, P2 .....................................13 4.5 Combination Key Function ...............................................................13 5.BASIC OPERATIONS ...................................................................14 5.1 Power on the Radio .........................................................................14 5.2 Adjust Volume ..................................................................................14 5.3 Main band/Sub band switch .............................................................14 5.4 VFO/Channel switch ........................................................................14 5.5 Set up VFO frequency .....................................................................14 5.6 Select a Channel .............................................................................14 5.7 Receiving and Responding to a Radio Call .....................................15 5.8 Making a Call ...................................................................................15 5.9 Monitor .............................................................................................16 5.10 Emergency Alarm ..........................................................................16 5.11 Man Down Alarm ............................................................................16 5.12 Battery Voltage Test .......................................................................16 6. ADVANCED FEATURES .............................................................17 6.1 Access Advanced Features for Private Call .....................................17 6.2 Set up Advanced Features for Private Call ......................................17 7. MAIN MENU FUNCTIONS ...........................................................19 7.1 Talk Group .......................................................................................19 7.2 SMS .................................................................................................19 7.3 Call Log ............................................................................................19 7.4 Zone .................................................................................................19 7.5 Scan .................................................................................................20 7.6 Roaming ..........................................................................................20 7.7 Settings ............................................................................................21 7.7.1 Radio Set ...................................................................................21 7.7.2 Chan Set....................................................................................30 7.7.3 Device Info............................................…

Text truncated - open the document above for the full version.

Qixiang Electron Science& Technology Co., Ltd ADD: Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian, China TEL: 86-592-22652998 FAX: 86-595-22656927 E-mail: [email protected] Attestation Letter Date: 2025-11-27 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD21046 Dear Sir or Madam: We, Qixiang Electron Science& Technology Co., Ltd type of Equipment: Multi-Protocol Digital+Analog Handheld Radio, Model name: AT-D890UV, AT-D890UVII, AT-D890UV PLUS, AT-D890UV PRO FCC ID: T4K-D890UV The product, only support Radio RX/TX: 136-174MHz , 400-480MHz and BT : 2402-2480 MHz(Modulation Type: GFSK,π/4-DQPSK), BLE: 2402-2480 MHz (1M, 2M ), RX: GPS(1575.42MHz) and FM(87.5-108MHz) for the purpose of marketing, other frequencies has been shielded by software, the end user has no capability to activate it. Best Regards, Sincerely Yours, Signature: Contact Person: Ken Xu Title: Manager

Qixiang Electron Science& Technology Co., Ltd ADD: Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian, China TEL: 86-592-22652998 FAX: 86-595-22656927 E-mail: [email protected] CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Attestation Letter Date: 2025-11-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID: T4K-D890UV Qixiang Electron Science& Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Qixiang Electron Science& Technology Co., Ltd (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Qixiang Electron Science& Technology Co., Ltd (“the applicant”) certifies that the equipment does not use Kaspersky's software information. Sincerely, Signature: Contact Person: Ken Xu Title: Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2025-11-27 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: T4K-D890UV Qixiang Electron Science& Technology Co., Ltd (“the Applicant”) certifies that, as of the date of the filing of the application, AMS Inc is our designated U.S. agent for service of process for the above referenced FCC ID. Qixiang Electron Science& Technology Co., Ltd (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. AMS Inc accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: AMS Inc Address: 4416 Technology Dr, Fremont, CA 94538, United States FRN: 0034134825 Tel.: ( 510)353-0211 Email: [email protected] Signed by (printed name): Frank Wang Signature: Applicant: Qixiang Electron Science& Technology Co., Ltd Tel: 86-592-22652998 Email: Address:Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian, China FRN: 0014815799 [email protected] Signed by (printed name): Ken Xu Signature:

QA-FR-170-B Qixiang Electron Science& Technology Co., Ltd ADD: Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian, China TEL: 86-592-22652998 FAX: 86-595-22656927 E-mail: [email protected] FCC Authorization Date: 2025-11-27 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Qixiang Electron Science& Technology Co., Ltd hereby authorizes Bay Area Compliance Laboratories Corp. (Xiamen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Xiamen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature: Contact Person: Ken Xu Title: Manager

QA-FR-171-A Qixiang Electron Science& Technology Co., Ltd ADD: Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian, China TEL: 86-592-22652998 FAX: 86-595-22656927 E-mail: [email protected] FCC Confidential Authorization Date: 2025-11-27 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: T4K-D890UV In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Qixiang Electron Science& Technology Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • BOM • Tune Up Procedure The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Contact Person: Ken Xu Title: Manager

Qixiang Electron Science& Technology Co., Ltd ADD: Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian, China TEL: 86-592-22652998 FAX: 86-595-22656927 E-mail: [email protected] DECLARATION OF SIMILARITY Date: 2025-09-05 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, Qixiang Electron Science& Technology Co., Ltd, hereby declare that the product: Multi-Protocol Digital+Analog Handheld Radio, FCC ID: T4K-D890UV, model: AT-D890UVII, AT-D890UV PLUS, AT-D890UV PRO are electrically identical with the model: AT-D890UV which was tested by Bay Area Compliance Laboratories Corp.(Xiamen) with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar areas follows: They are the same product, but due to different e-commerce sales channels, different model names, everything else is the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Contact Person: Ken Xu Title: Manager

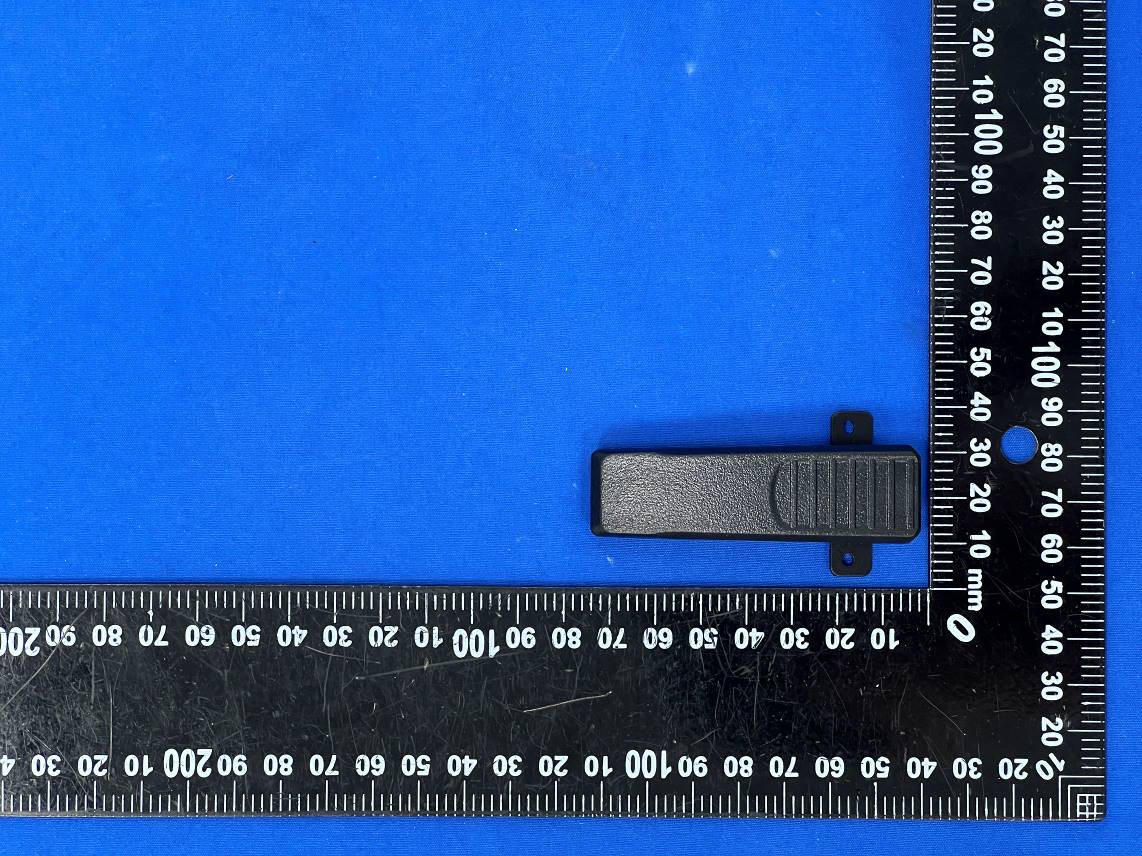

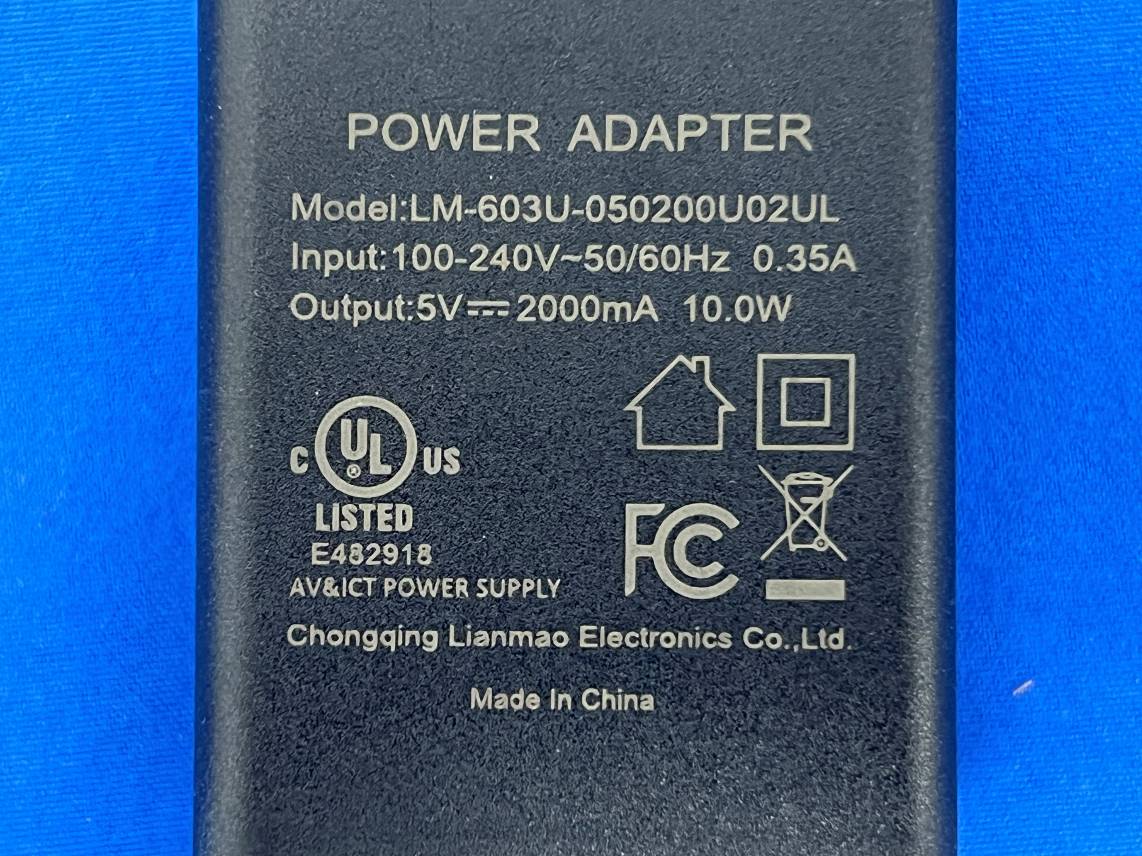

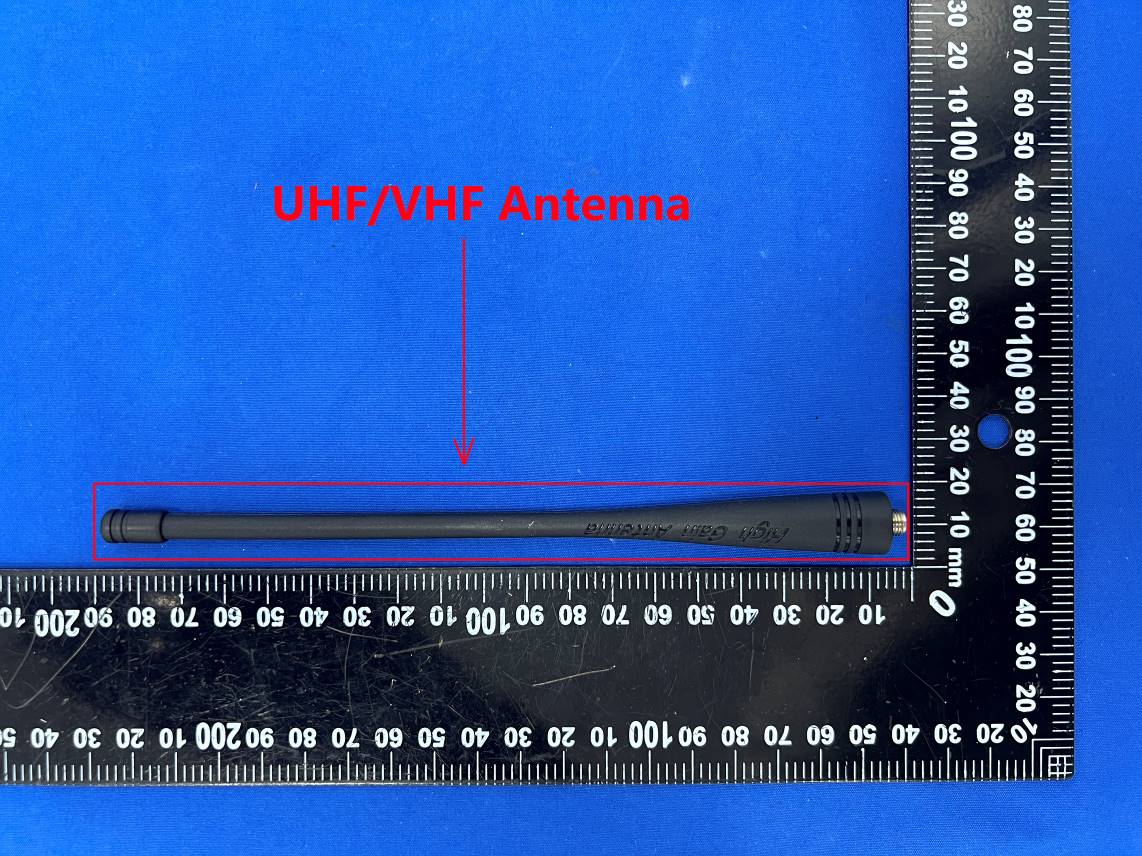

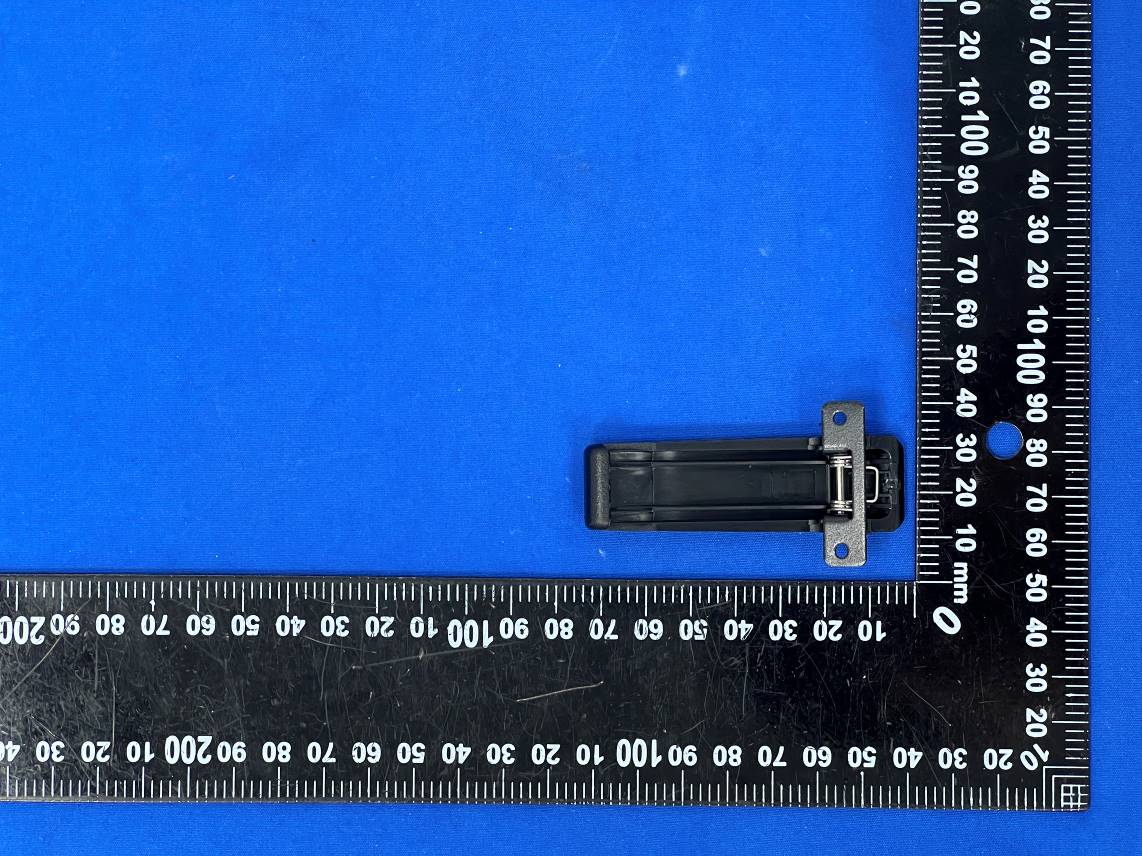

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 1 / 19 EUT EXTERNAL PHOTOS AT-D890UV Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 2 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 3 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 4 / 19 AT-D890UVII Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 5 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 6 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 7 / 19 AT-D890UV PLUS Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 8 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 9 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 10 / 19 AT-D890UV PRO Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 11 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 12 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 13 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 14 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 15 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 16 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 17 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 18 / 19 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-EXP Page 19 / 19

Model:AT-D890UV Frequency:136~174MHz(V) 400~480MHz(U) FCC ID:T4K-D890UV MADE IN CHINA S/NO.1940250210001 MADE IN CHINA Multi-Protocol Digital+Analog Handheld Radio Qixiang Electron Science& Technology Co., Ltd

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 1 / 12 EUT INTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 2 / 12 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 3 / 12 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 4 / 12 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 5 / 12 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 6 / 12 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 7 / 12 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 8 / 12 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 9 / 12 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 10 / 12 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 11 / 12 Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-INP Page 12 / 12

Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-03 FCC Part 15.247 Page 14 of 98 RF EXPOSURE EVALUATION Applicable Standard According to§2.1093, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission's guideline According to KDB447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] - [√f(GHz)] < 3.0 for 1-g SAR and < 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is <5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Measurement Result The max conducted power including tune-up tolerance is 2.5dBm (1.78 mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =1.78/5*(√2.480) = 0.56< 3.0 Result: Compliant. The stand-alone SAR evaluation is not necessary

2400MHz Gain:2.17dBi Efficiency: 44.68% 2410MHz Gain:2.45dBi Efficiency: 41.70% 1. Antenna Describe Antenna Antenna Gain 3.24dBi Frequency Range Model Name Manufacture Manufacturer Address L5 2.4-2.5GHz Shenzhen HCT Technology Co.,LTD Songwang 5th Road, Sunshine Community, Xili Street, Nanshan District, Shenzhen size 55mm 2. Antenna image2. Antenna image2. Antenna image 3. Antenna gain3. Antenna gain Integral antenna 2420MHz Gain:2.61dBi Efficiency: 41.56% 2430MHz Gain:2.8dBi Efficiency: 46.70% 2440MHz Gain:2.93dBi Efficiency: 46.34% 2450MHz Gain:3.24dBi Efficiency: 44.88% 2460MHz Gain:3.18dBi Efficiency: 46.96% 2470MHz Gain:2.95dBi Efficiency: 46.37% 2480MHz Gain:2.84dBi Efficiency: 45.51% 2490MHz Gain:2.71dBi Efficiency: 47.79% 2500MHz Gain:2.41dBi Efficiency:44.69%

FCC PART 15.247 TEST REPORT For Qixiang Electron Science& Technology Co., Ltd Qixiang Building, Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian, China FCC ID: T4K-D890UV Report Type: Original Report Product Name: Multi-Protocol Digital+Analog Handheld Radio Report Number: 2507X13489E-RF-03 Re port Date: 2025-11-26 Reviewed By: Ash Lin Approved By: Miles Chen Prepared By : Bay Area Compliance Laboratories Corp. (Xiamen) Unit 102, No. 902 Meifeng South Road, Binhai West Avenue, Science and Technology Innovation Park, Torch High tech Zone XiaMen Tel: +86-592-3200111 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Xiamen) Report No.: 2507X13489E-RF-03 FCC Part 15.247 Page 2 of 98 TABLE OF CONTENTS REPORT REVISION HISTORY................................................................................................................................. 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 TEST FACILITY ............................................................................................................................................................. 6 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 TEST MODE AND VOLTAGE .......................................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 ★EUT EXERCISE SOFTWARE ...................................................................................................................................... 7 SPECIAL ACCESSORIES ................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 8 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................. 12 TEST EQUIPMENT LIST ......................................................................................................................................... 13 RF EXPOSURE EVALUATION ............................................................................................................................... 14 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 15 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 TEST SYSTEM SETUP .................................................................................................................................................. 16 EMI TEST RECEIVER SETUP ....................................................................................................................................... 16 TEST PROCEDURE ...................................................................................................................................................... 17 RESULT &MARGIN CALCULATION ............................................................................................................................. 17 TEST DATA ................................................................................................................................................................ 18 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS ........................................................................... 22 APPLICABLE STANDARD ............................................................................................................................................ 22 TEST SYSTEM SETUP .................................................................................................................................................. 22 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 24 FINAL MEASUUREMENT FOR EMISSION IDENTIFED DING THE …
