T4PBT180020061010Bluetooth Car Kit

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter. Note: This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. - 8 -

1 Helen Zhao Subject: FW: Caron Autosound Ltd, FCC ID: T4PBT180020061010, Assessment NO.: AN06T6315, Notice#1 User Manual_BT-1800.pdf 06-10-MAS-169_Te st Report_01.p... From: hsieh Sent: Sunday, November 19, 2006 6:51 PM To: Helen Zhao Subject: Re: Caron Autosound Ltd, FCC ID: T4PBT180020061010, Assessment NO.: AN06T6315, Notice#1 Dear Helen, Below is our answer for the questions: Re-Q#1: The manufacturer provide a radiated EUT that the DC 3.3V power of Bluetooth module has extended out by DC power cable for stable power purpose during radiated test. No matter stand-along or charge mode will provide DC 3.3V to the Bluetooth module (please see the block diagram of this device). The setup photos of radiated are stand-along mode (worse case) and the DC power is 3.3V for the Bluetooth module only. We add DC 3.3V information at page11 of revise test report at attached. If that is not satisfactory, please let me know. Thank you. Re-Q#2: Attached please find the revise User manual. Thank you for your prompt. Best regards, Joe -----Original Message----- From: Helen Zhao Sent: Friday, November 17, 2006 4:19 PM To: Helen Zhao Subject: Caron Autosound Ltd, FCC ID: T4PBT180020061010, Assessment NO.: AN06T6315, Notice#1 Question #1: The test report shows the device was not ever tested as stand-alone, powered by battery. You may need to do preliminary test to determine whether stand-alone mode is a worse mode compared to charging mode. Question #2: The user manual does not contain 15.19(a)(3) user information. Please update the user manual. Best Regards, Helen Zhao 2 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

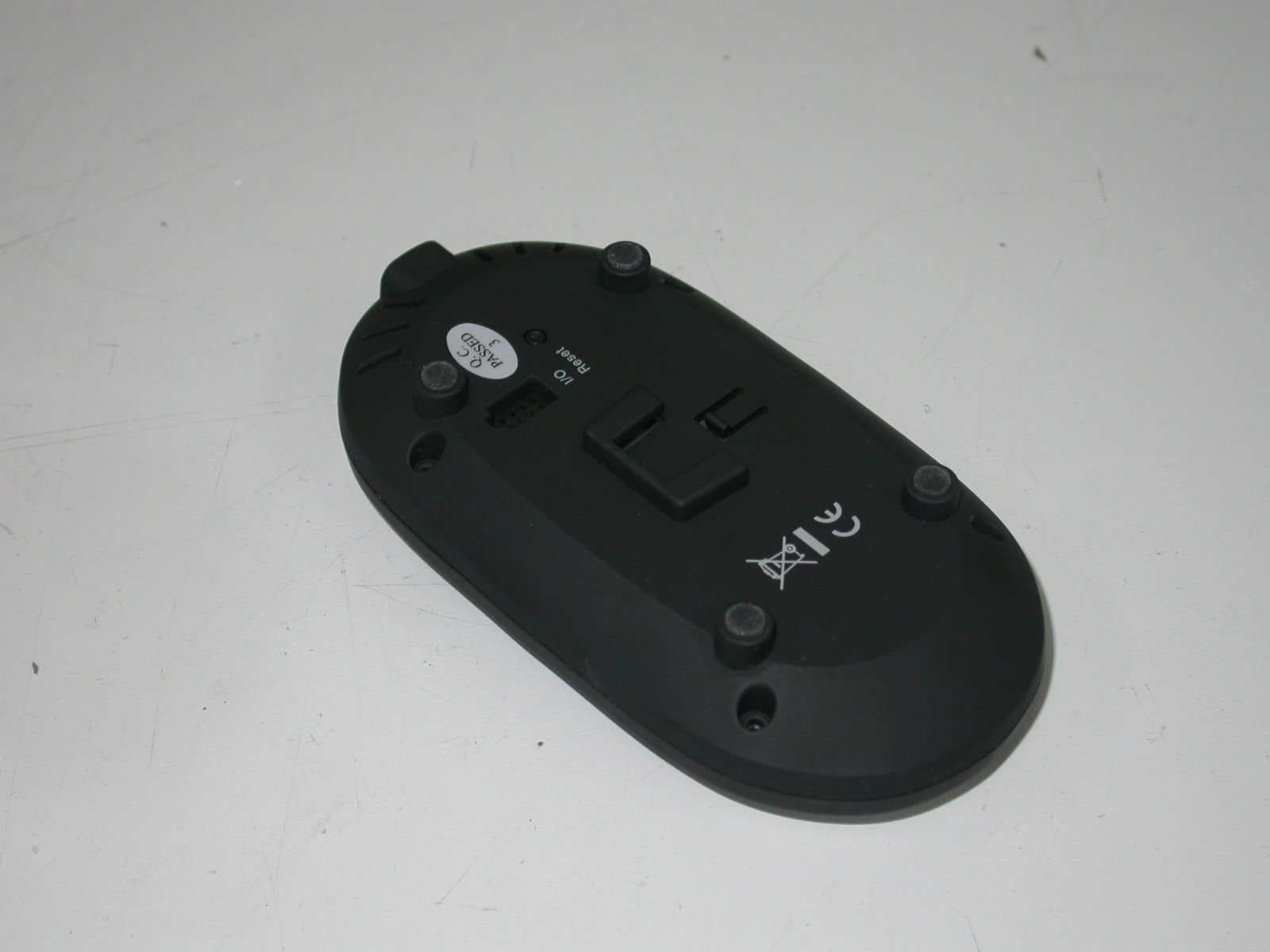

ETC Report No.: 06-10-MAS-169 Page A1 of A1 FCC ID: T4PBT180020061010 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

L L a a b b e e l l l l o o c c a a t t i i o o n n o o f f B B T T - - 1 1 8 8 0 0 0 0 The FCC ID label will stick on the bottom side of main unit. FCC ID Label

ETC Report No.: 06-10-MAS-169 Page B1 of B3 FCC ID: T4PBT180020061010 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: 06-10-MAS-169 Page B2 of B3 FCC ID: T4PBT180020061010 3. Front view of PCB1 4. Rear view of PCB1 ETC Report No.: 06-10-MAS-169 Page B3 of B3 FCC ID: T4PBT180020061010 5. Front view of PCB2

ETC Report No. : 06-10-MAS-169 Sheet 1 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 06-10-MAS-169 Client: Caron Autosound Ltd Product: Bluetooth Car Kit Model: BT-1800 FCC ID: T4PBT180020061010 Manufacturer/supplier: Grand Union Electronics (Shenzhen ) Company Ltd Date test item received: 2006/10/25 Date test campaign completed: 2006/11/13 Date of issue: 2006/11/14 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 59 pages Total number of pages of photos: External photos 1 pages Internal photos 3 pages Setup photos 2 pages Test Engineer Checked By Approved By Jeng De Hsu James Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C.TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : 06-10-MAS-169 Sheet 2 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 Client : Caron Autosound Ltd Address : Rm 1610-1611, 16/F, Metropole Square, 2 On Yiu Street, Shatin, HK Manufacturer : Grand Union Electronics (Shenzhen ) Company Ltd Address : Zheng Keng Industrial Area, Bantian, Buji Town, Shenzhen City, China EUT : Bluetooth Car Kit Trade name : CARON Model No. : BT-1800 Power Source : DC 3.3V Regulations applied : FCC 47 CFR, Part 15 Subpart C (2006) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA 5 FCC Registration Number: 90588, 91094, 91095 NVLAP Lab Code 200133-0 ETC Report No. : 06-10-MAS-169 Sheet 3 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ................................................................................................................ 5 1.1 Product Description................................................................................................................................ 5 1.2 Characteristics of Device ....................................................................................................................... 5 1.3 Test Methodology .................................................................................................................................. 5 1.4 Modifiction List of EUT ........................................................................................................................ 5 1.5 Test Facility............................................................................................................................................ 5 2 PROVISIONS APPLICABLE............................................................................................................... 6 2.1 Definition ............................................................................................................................................... 6 2.2 Requirement for Compliance................................................................................................................. 7 2.3 Restricted Bands of Operation ............................................................................................................... 9 2.4 Labeling Requirement............................................................................................................................ 9 2.5 User Information .................................................................................................................................. 10 3. SYSTEM TEST CONFIGURATION ................................................................................................. 11 3.1 Justification.......................................................................................................................................... 11 3.2 Devices for Tested System................................................................................................................... 11 4 RADIATED EMISSION MEASUREMENT ..................................................................................... 12 4.1 Applicable Standard............................................................................................................................. 12 4.2 Measurement Procedure....................................................................................................................... 12 4.3 Measuring Instrument .......................................................................................................................... 14 4.4 Radiated Emission Data....................................................................................................................... 15 4.5 Field Strength Calculation.................................................................................................................... 22 5 CONDUCTED EMISSION MEASUREMENT.…

Text truncated - open the document above for the full version.

ETC Report No. : 06-10-MAS-169 Sheet 42 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 10 NUMBER of HOPPING CHANNELS 10.1 Standard Applicable According to 15.247(b)(1), for frequency hopping systems, operating in the 2400-2483.5MHz band employing at least 75 hopping channels 10.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set EUT to hopping operating mode and set spectrum analyzer miximum to measure the number of hopping channels. 10.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Agilent 8564EC 09/22/2007 10.4 Measurement Data Test Date : Nov. 13, 2006 Temperature : 23 °C Humidity : 72% Number of hopping channels = 79 channels Note: Please refer to page 43 to page 45 for chart. ETC Report No. : 06-10-MAS-169 Sheet 43 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 ETC Report No. : 06-10-MAS-169 Sheet 44 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 ETC Report No. : 06-10-MAS-169 Sheet 45 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 ETC Report No. : 06-10-MAS-169 Sheet 46 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 11 HOPPING CHANNEL CARRIER FREQUENCY SEPARATED 11.1 Standard Applicable According to 15.247(a)(1), the frequency hopping system shall have hopping channel carrier frequencies seperated by minimum of 25kHz or the 20dB bandwidth of hopping channel, whichever is greater. 11.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any measurement frequency within its operating ragne and make sure the instrument is operated in its linear range. 3. Set spectrum analyzer maximum hold to measure channel carrier frequency , then adjust channel carrier frequency to adjacent channel. 4. Repeat above procedure until all measured frequencies were complete. 11.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Agilent 8564EC 09/22/2007 ETC Report No. : 06-10-MAS-169 Sheet 47 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 11.4 Measurement Data Test Date : Nov. 13, 2006 Temperature : 23 °C Humidity : 72% Channel Frequency (MHz) Hopping Channel Carrier Frequency Separated (MHz) Chart 0 2402 1 Page 48 39 2441 1 Page 49 78 2480 1 Page 50 Note: Please refer to page 48 to page 50 for chart. ETC Report No. : 06-10-MAS-169 Sheet 48 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 ETC Report No. : 06-10-MAS-169 Sheet 49 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 ETC Report No. : 06-10-MAS-169 Sheet 50 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 ETC Report No. : 06-10-MAS-169 Sheet 51 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 12 Dwell Time 12.1 Standard Applicable According to 15.247(a)(1)(iii), frequency hopping system in the 2400-2483.5MHz band employing at least 15 non-overlapping channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 second multiplied by the number of hopping channels employed. 12.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 4. 12.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Agilent 8564EC 09/22/2007 12.4 Measurement Data Test Date : Nov. 13, 2006 Temperature : 23 °C Humidity : 72% 13.4.1 DH1 Test period=0.4(second/channel) 79× channel=31.6sec 2402MHz dwell time= 415.0 us × 79 800 × 31.6 = 132.8 ms Note: Please refer to page 52 to page 53 for chart. ETC Report No. : 06-10-MAS-169 Sheet 52 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 ETC Report No. : 06-10-MAS-169 Sheet 53 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 ETC Report No. : 06-10-MAS-169 Sheet 54 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 12.4.2 DH3 Test period=0.4(second/channel) 79× channel=31.6sec 2441MHz dwell time= 1.67 ms × 79 400 × 31.6 = 267.2 ms Note: Please refer to page 55 to page 56 for chart. ETC Report No. : 06-10-MAS-169 Sheet 55 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 ETC Report No. : 06-10-MAS-169 Sheet 56 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 ETC Report No. : 06-10-MAS-169 Sheet 57 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 12.4.3 DH5 Test period=0.4(second/channel) 79× channel=31.6sec 2480MHz dwell time= 2.9 ms × 79 260 × 31.6 = 309.37 ms Note: Please refer to page 58 to page 59 for chart. ETC Report No. : 06-10-MAS-169 Sheet 58 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0 ETC Report No. : 06-10-MAS-169 Sheet 59 of 59 Sheets FCC ID: T4PBT180020061010 Rev. No 1.0

ETC Report No. : 06-10-MAS-169 Sheet 1 of 2 Sheets FCC ID: T4PBT180020061010 Photos of Radiation Measuring Setup x-axis ETC Report No. : 06-10-MAS-169 Sheet 2 of 2 Sheets FCC ID: T4PBT180020061010 y-axis z-axis
