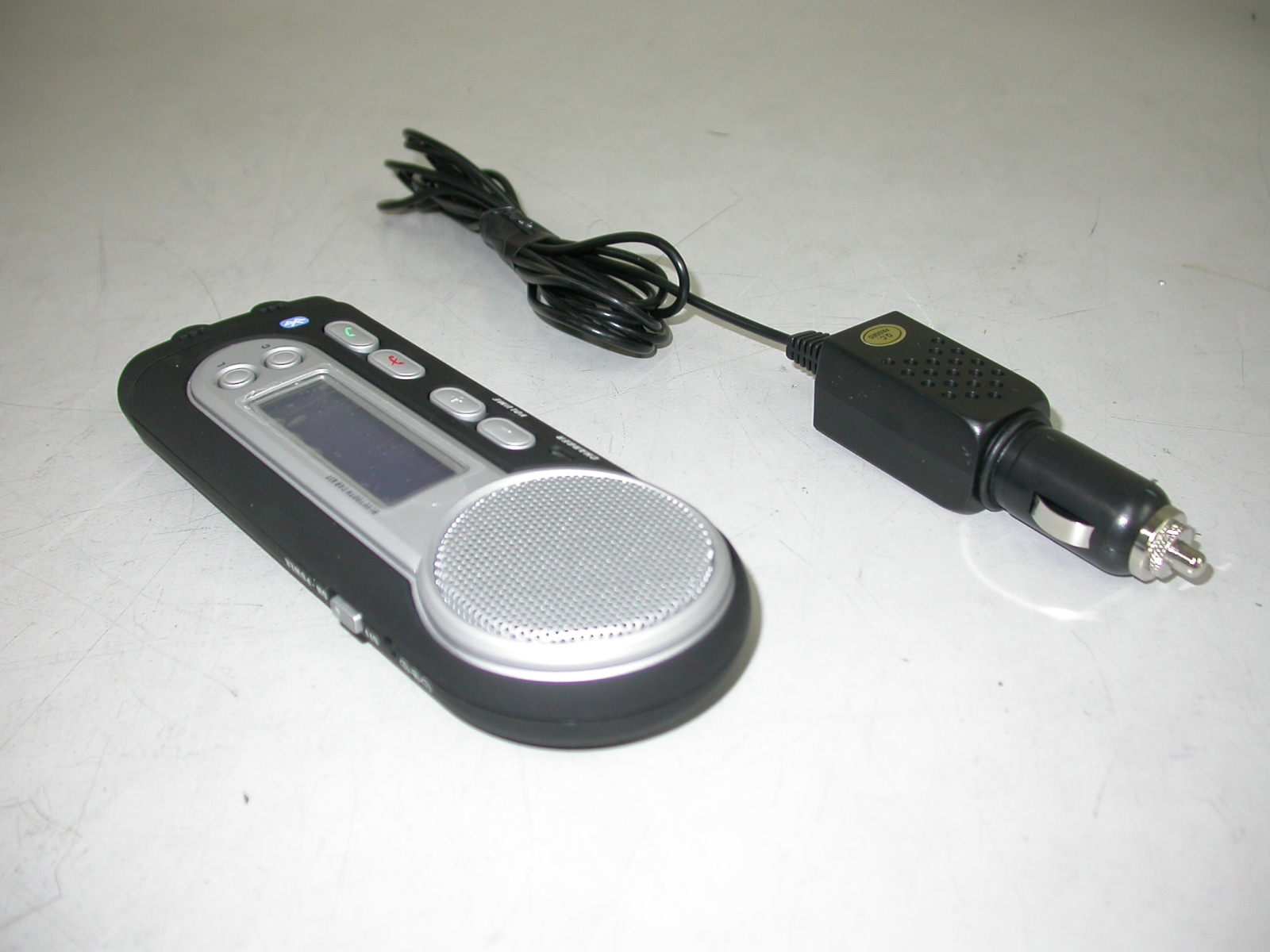

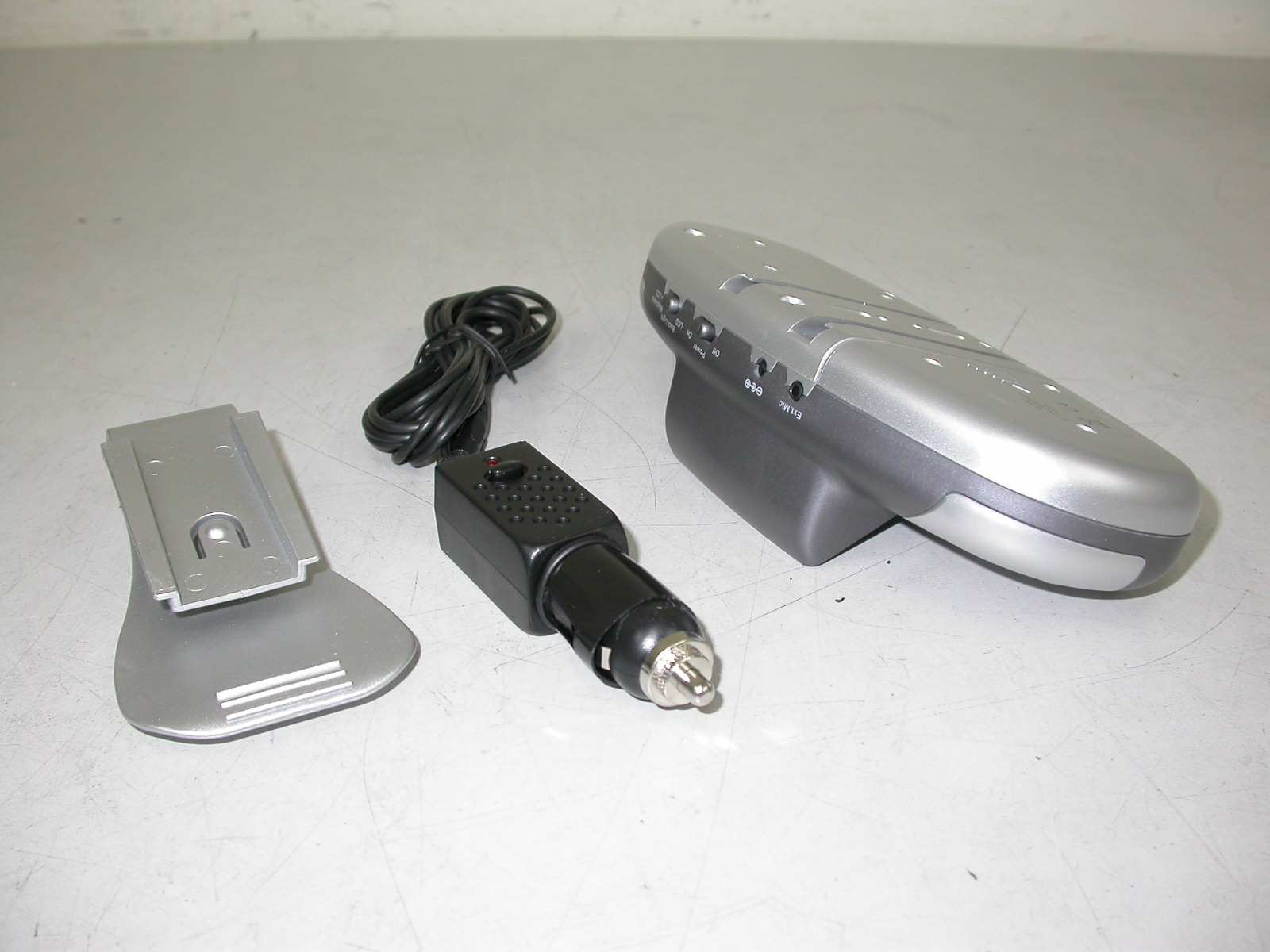

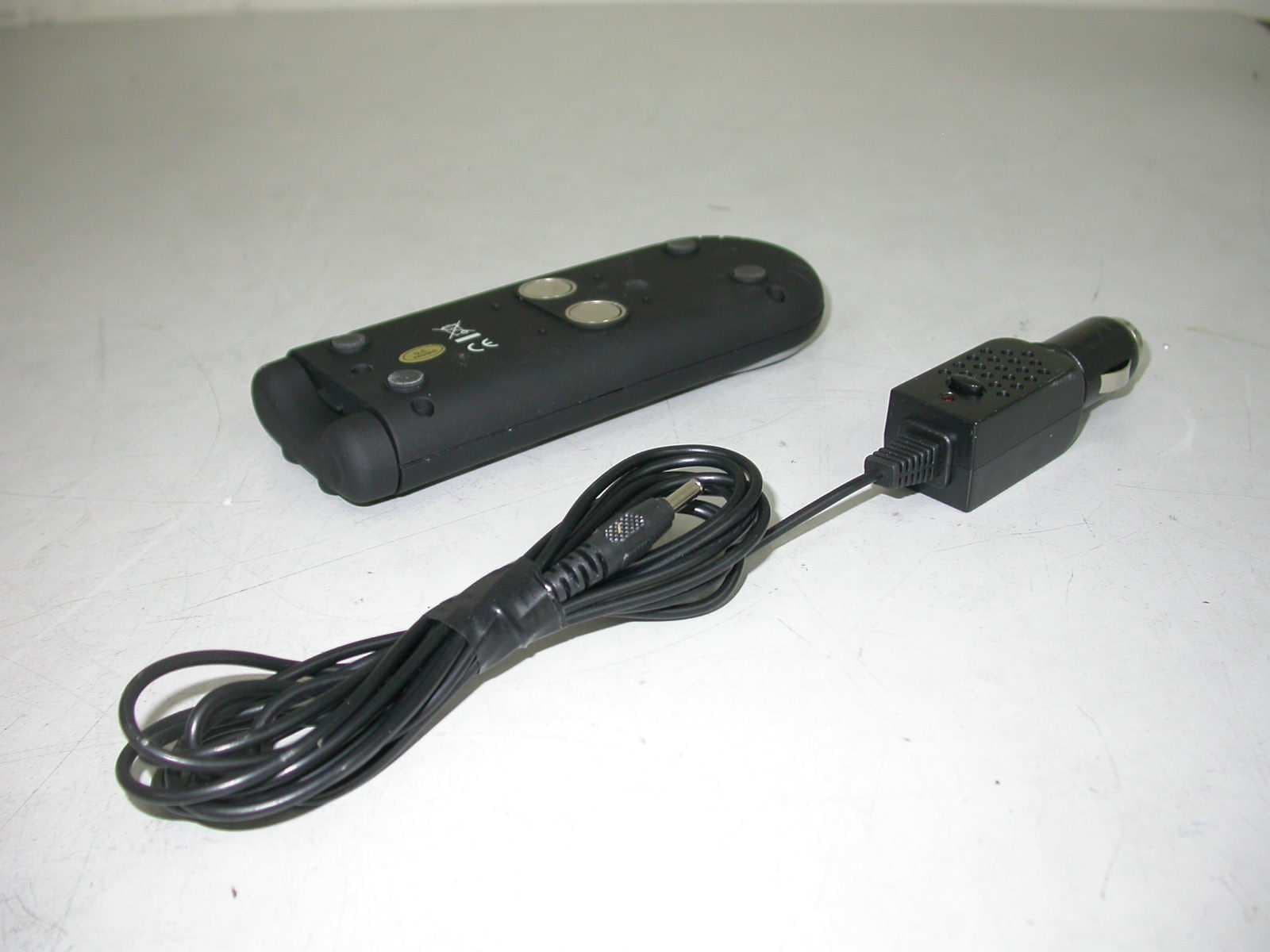

ETC Report No.: 06-01-MAS-103 Page A1 of A2 FCC ID: T4PBT200020060101 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT Model No. : BT-2000 1. Outside view 1 of EUT 2. Outside view 2 of EUT ETC Report No.: 06-01-MAS-103 Page A2 of A2 FCC ID: T4PBT200020060101 Model No. : BT-2100 3. Outside view 1 of EUT 4. Outside view 2 of EUT

40 mm 32 mm Model : BT-2000 FCC ID : T 4PBT200020060101 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Label location of BT-2100 The FCC ID label will stick on the bottom side of main unit. FCC ID label 32 mm 31 mm Model : BT-2100 FCC ID : T4PBT200020060101 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

ETC Report No.: 06-01-MAS-103 Page B1 of B8 FCC ID: T4PBT200020060101 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT Model No. : BT-2000 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: 06-01-MAS-103 Page B2 of B8 FCC ID: T4PBT200020060101 3. Inside View 3 of EUT 4. Front view of PCB1 ETC Report No.: 06-01-MAS-103 Page B3 of B8 FCC ID: T4PBT200020060101 5. Rear view of PCB1 6. Front view of PCB2 ETC Report No.: 06-01-MAS-103 Page B4 of B8 FCC ID: T4PBT200020060101 7. Front view of PCB2 8. Front view of PCB2 ETC Report No.: 06-01-MAS-103 Page B5 of B8 FCC ID: T4PBT200020060101 9. Rear view of PCB2 10. Adaptor ETC Report No.: 06-01-MAS-103 Page B6 of B8 FCC ID: T4PBT200020060101 Model No. : BT-2100 11. Inside View 1 of EUT 12. Inside View 2 of EUT ETC Report No.: 06-01-MAS-103 Page B7 of B8 FCC ID: T4PBT200020060101 13. Front view of PCB 14. Front view of PCB ETC Report No.: 06-01-MAS-103 Page B8 of B8 FCC ID: T4PBT200020060101 15. Rear view of PCB

ETC Report No. : 06-01-MAS-103 Sheet 1 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 06-01-MAS-103 Client: Caron Autosound Ltd Product: Bluetooth car kit Model: BT-2000，BT-2100 FCC ID: T4PBT200020060101 Manufacturer/supplier: Grand Union Electronics (Shenzhen ) Company Ltd Date test item received: 2006/01/11 Date test campaign completed: 2006/05/09 Date of issue: 2006/05/11 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 84 pages Total number of pages of photos: External photos 2 pages Internal photos 8 pages Setup photos 2 pages Test Engineer Checked By Approved By Jeng De Hsu James Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C.TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : 06-01-MAS-103 Sheet 2 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 Client : Caron Autosound Ltd Address : Rm 1610-1611, 16/F, Metropole Square, 2 On Yiu Street, Shatin, HK Manufacturer : Grand Union Electronics (Shenzhen ) Company Ltd Address : Zheng Keng Industrial Area, Bantian, Buji Town, Shenzhen City, China EUT : Bluetooth car kit Trade name : CARON Model No. : BT-2000，BT-2100 Power Source : 12.0Vdc for Vehicle Regulations applied : FCC 47 CFR, Part 15 Subpart C (2005) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA 5 FCC Registration Number: 90588, 91094, 91095 NVLAP Lab Code 200133-0 ETC Report No. : 06-01-MAS-103 Sheet 3 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ..............................................................................................................5 1.1 Product Description..............................................................................................................................5 1.2 Characteristics of Device .....................................................................................................................5 1.3 Test Methodology ................................................................................................................................5 1.4 Modifiction List of EUT ......................................................................................................................5 1.5 Test Facility..........................................................................................................................................5 2 PROVISIONS APPLICABLE.............................................................................................................6 2.1 Definition .............................................................................................................................................6 2.2 Requirement for Compliance...............................................................................................................7 2.3 Restricted Bands of Operation .............................................................................................................9 2.4 Labeling Requirement..........................................................................................................................9 2.5 User Information ................................................................................................................................10 3. SYSTEM TEST CONFIGURATION ...............................................................................................11 3.1 Justification........................................................................................................................................11 3.2 Devices for Tested System.................................................................................................................11 4 RADIATED EMISSION MEASUREMENT ...................................................................................12 4.1 Applicable Standard...........................................................................................................................12 4.2 Measurement Procedure.....................................................................................................................12 4.3 Measuring Instrument ........................................................................................................................14 4.4 Radiated Emission Data.....................................................................................................................15 4.5 Field Strength Calculation..................................................................................................................30 5 CONDUCTED EMISSION MEASUREMENT....................................…

Text truncated - open the document above for the full version.

ETC Report No. : 06-01-MAS-103 Sheet 50 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 10 NUMBER of HOPPING CHANNELS 10.1 Standard Applicable According to 15.247(b)(1), for frequency hopping systems, operating in the 2400-2483.5MHz band employing at least 75 hopping channels 10.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 3. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set EUT to hopping operating mode and set spectrum analyzer miximum to measure the number of hopping channels. 10.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Agilent 8564EC 09/23/2006 10.4 Measurement Data Test Date : Feb. 08, 2006 Temperature : 13 °C Humidity : 70% Number of hopping channels = 79 channels Note: Please refer to page 51 to page 53 for chart. ETC Report No. : 06-01-MAS-103 Sheet 51 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 52 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 53 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 54 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 11 HOPPING CHANNEL CARRIER FREQUENCY SEPARATED 11.1 Standard Applicable According to 15.247(a)(1), the frequency hopping system shall have hopping channel carrier frequencies seperated by minimum of 25kHz or the 20dB bandwidth of hopping channel, whichever is greater. Alternatively, frequency hopping system operating in the 2400 ~ 2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two- thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the system operate with an output power no greater than 125 mW. 11.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 3. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any measurement frequency within its operating ragne and make sure the instrument is operated in its linear range. 3. Set spectrum analyzer maximum hold to measure channel carrier frequency , then adjust channel carrier frequency to adjacent channel. 4. Repeat above procedure until all measured frequencies were complete. 11.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Agilent 8564EC 09/23/2006 ETC Report No. : 06-01-MAS-103 Sheet 55 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 11.4 Measurement Data Test Date : Feb. 08, 2006 Temperature : 13 °C Humidity : 70% Channel Frequency (MHz) Hopping Channel Carrier Frequency Separated (MHz) Chart 0 2402 1 Page 56 39 2441 1 Page 57 78 2480 1 Page 58 Note: Please refer to page 56 to page 58 for chart. ETC Report No. : 06-01-MAS-103 Sheet 56 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 57 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 58 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 59 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 12 POWER SPECTRAL DENSITY 12.1 Standard Applicable According to 15.247(d), for bluetooth device, the peak power spectral density conducted from the intentional radiator to the antenna shall not be greater them 8dBm in any 3kHz band during any time interral of continuous transmission. 12.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 3. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any measured frequency within its operating range and make sure the instrument is operated in its linear range. 3. Set RBW of spectrum analyzer to 3kHz, VBW to 30 kHz, sweep 300kHz and sweep time 100 sec. 4. Measure the highest amplitude appearing on spectral display and record the level to calculate result data. 5. Repeat above procedures until all frequencies measured were complete. 12.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Agilent 8564EC 09/23/2006 ETC Report No. : 06-01-MAS-103 Sheet 60 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 12.4 Measurement Data Test Date : Feb. 08, 2006 Temperature : 13 °C Humidity : 70% Channel Frequency (MHz) Reading (dBm) Cable Loss (dB) Power Spectral Density (dBm) FCC Limit (dBm) Chart 0 2402 -13.50 1 -12.50 8 Page 61 39 2441 -14.33 1 -13.33 8 Page 62 78 2480 -16.33 1 -15.33 8 Page 63 Note: Please refer to page 61 to page 63 for chart. ETC Report No. : 06-01-MAS-103 Sheet 61 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 62 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 63 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0

ETC Report No. : 06-01-MAS-103 Sheet 64 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 13 Dwell Time 13.1 Standard Applicable According to 15.247(a)(1)(iii), frequency hopping system in the 2400-2483.5MHz band employing at least 15 non-overlapping channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 second multiplied by the number of hopping channels employed. 13.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. The setup of the EUT as shown in figure 3. 13.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Agilent 8564EC 09/23/2006 13.4 Measurement Data Test Date : Feb. 08, 2006 Temperature : 13 °C Humidity : 70% 13.4.1 DH1 Test period=0.4(second/channel) 79× channel=31.6sec a) 2402MHz dwell time= 415.0 us × 79 800 × 31.6 = 132.8 ms b) 2441MHz dwell time= 415.0 us × 79 800 × 31.6 = 132.8 ms c) 2480MHz dwell time= 415.0 us × 79 800 × 31.6 = 132.8 ms Note: Please refer to page 65 to page 70 for chart. ETC Report No. : 06-01-MAS-103 Sheet 65 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 66 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 67 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 68 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 69 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 70 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 71 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 13.4.2 DH3 Test period=0.4(second/channel) 79× channel=31.6sec a) 2402MHz dwell time= 1.66 ms × 79 400 × 31.6 = 265.6 ms b) 2441MHz dwell time= 1.66 ms × 79 400 × 31.6 = 265.6 ms c) 2480MHz dwell time= 1.66 ms × 79 400 × 31.6 = 265.6 ms Note: Please refer to page 72 to page 77 for chart. ETC Report No. : 06-01-MAS-103 Sheet 72 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 73 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 74 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 75 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 76 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 77 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0

ETC Report No. : 06-01-MAS-103 Sheet 78 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 13.4.3 DH5 Test period=0.4(second/channel) 79× channel=31.6sec a) 2402MHz dwell time= 2.9 ms × 79 260 × 31.6 = 308.56 ms b) 2441MHz dwell time= 2.9 ms × 79 260 × 31.6 = 308.56 ms c) 2480MHz dwell time= 2.9 ms × 79 260 × 31.6 = 308.56 ms Note: Please refer to page 79 to page 84 for chart. ETC Report No. : 06-01-MAS-103 Sheet 79 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 80 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 81 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 82 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 83 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0 ETC Report No. : 06-01-MAS-103 Sheet 84 of 84 Sheets FCC ID: T4PBT200020060101 Rev. No 1.0

ETC Report No. : 06-01-MAS-103 Sheet 1 of 2 Sheets FCC ID: T4PBT200020060101 Model No. : BT-2000 Photos of Radiation Measuring Setup ETC Report No. : 06-01-MAS-103 Sheet 2 of 2 Sheets FCC ID: T4PBT200020060101 ETC Report No. : 06-01-MAS-103 Sheet 3 of 2 Sheets FCC ID: T4PBT200020060101 Model No. : BT-2100
