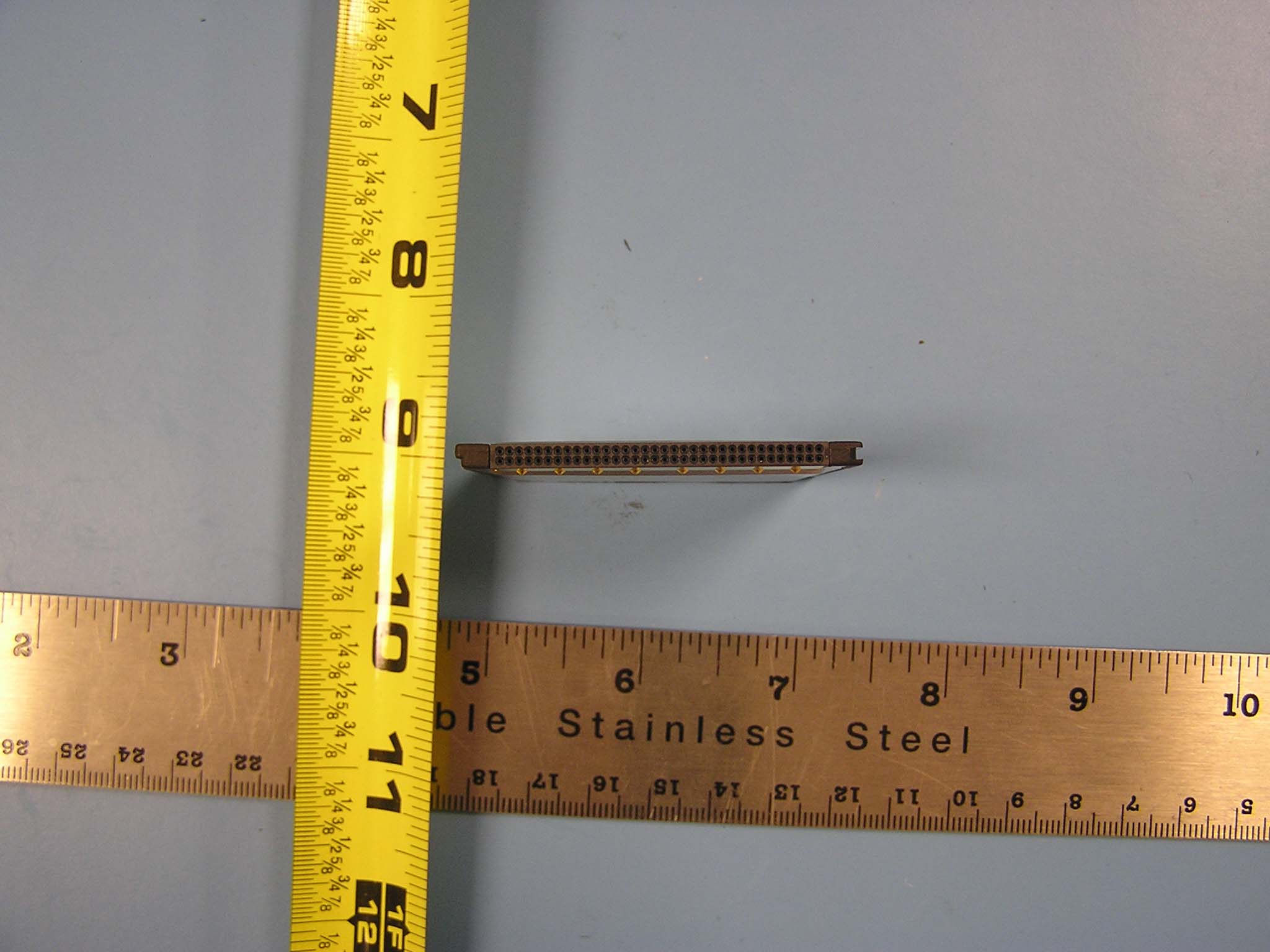

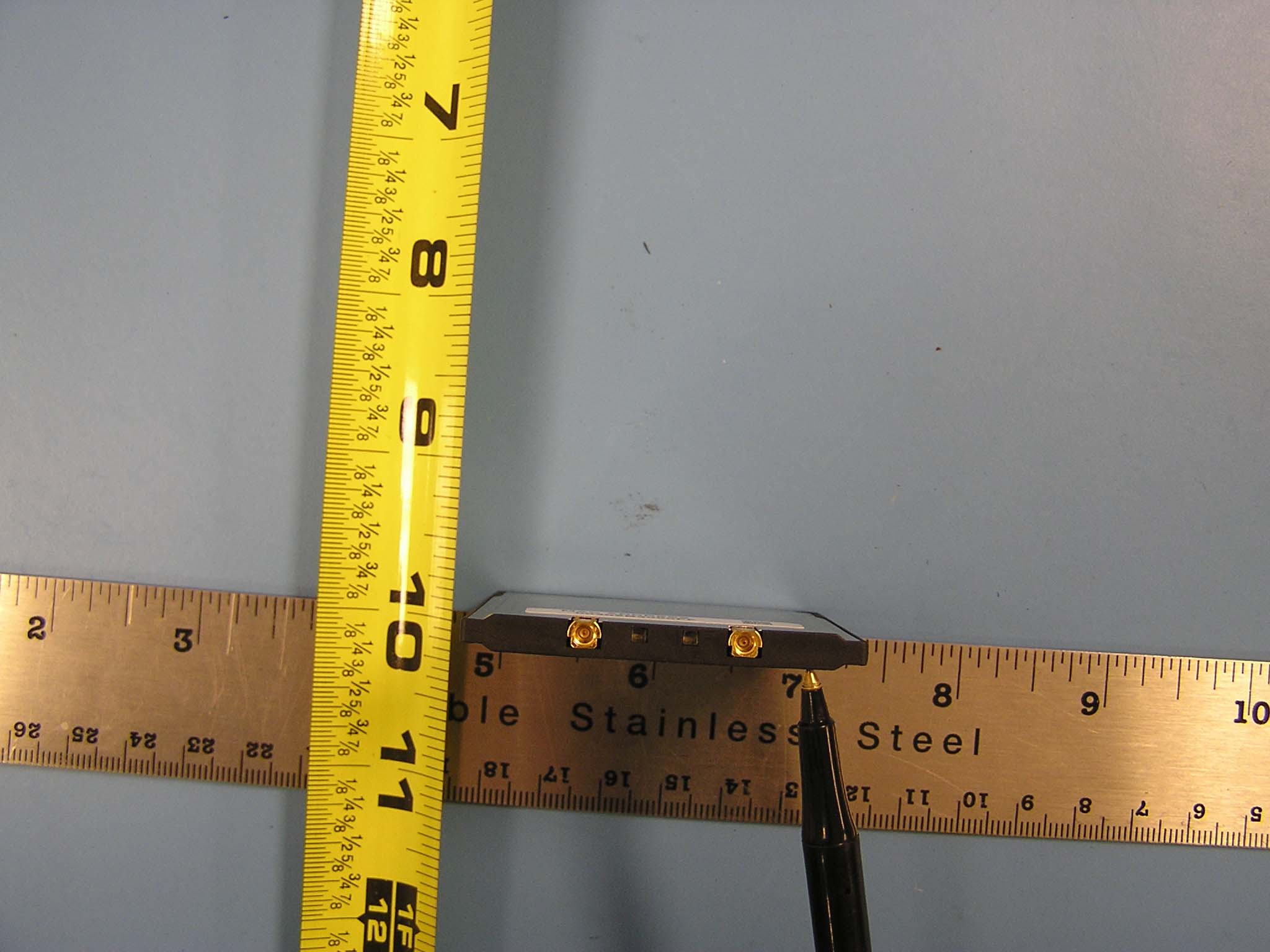

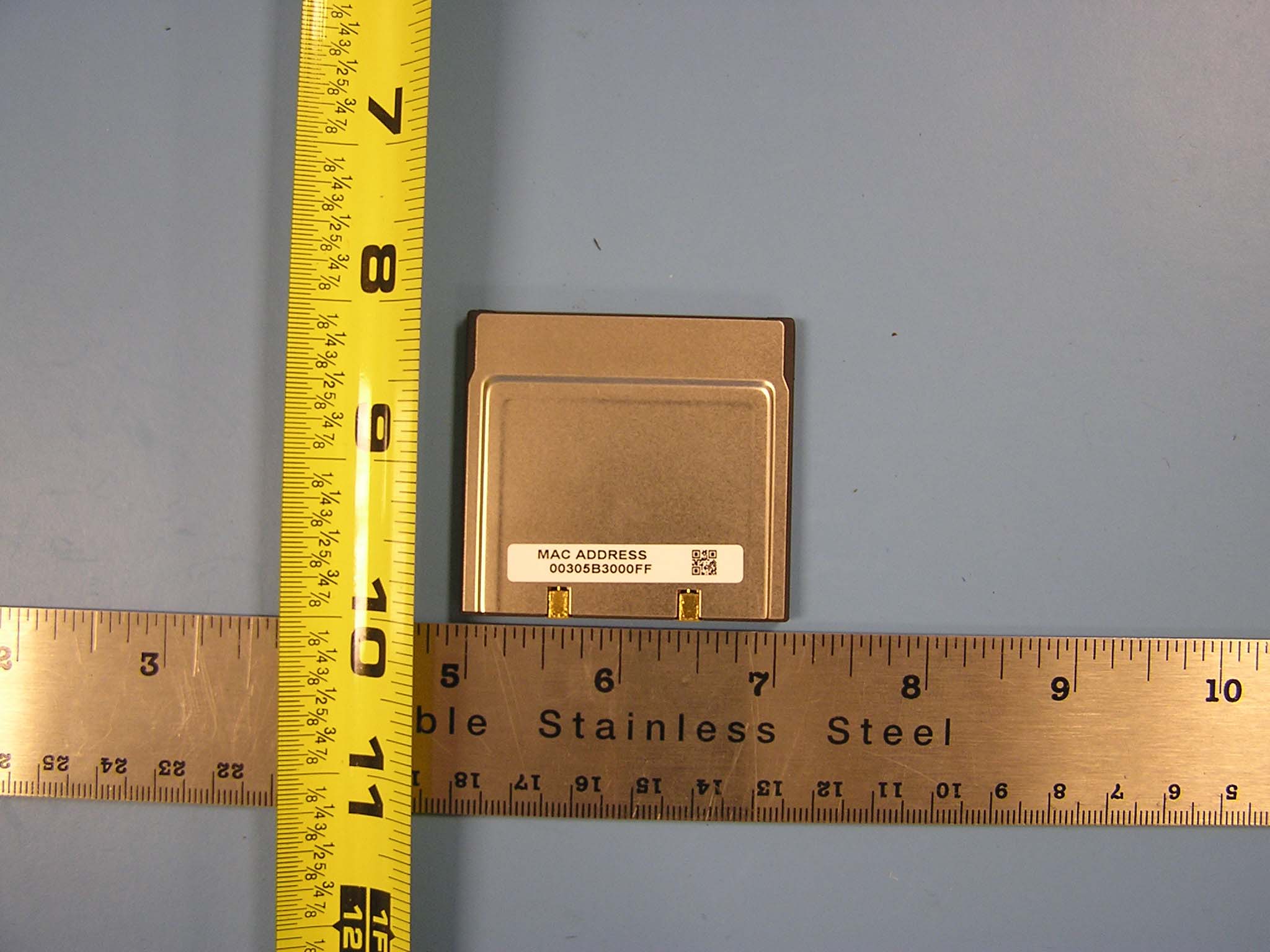

T4S-35220-QABWireless Station

The following standards were applied: (Omni) „ Radio: EN 300-328 v1.6.1 (2.4-GHz operation) „ EN 301-893 v1.2.3 (5-GHz operation) „ EMC: EN 301.489-1 v1.4.1, EN 301.489-17 v1.2.1 „ Safety: IEC 60950 ( 1999 3rd Edition with Amend. 1,2,3,4 ) & EN 60950 ( 2000 ) Note: This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to certain frequencies and/or may require a license for operation. For more details, contact your customer service representative. To comply with RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Member States shall ensure that the manufacturer or the person responsible for placing the apparatus on the market provides information for the user on the intended use of the apparatus, together with the declaration of conformity to the essential requirements. Where it concerns radio equipment, such information shall be sufficient to identify on the packaging and the instructions for use of the apparatus the Member States or the geographical area within a Member State where the equipment is intended to be used and shall alert the user by the marking on the apparatus referred to in Annex VII, paragraph 5, to potential restrictions or requirements for authorization of use of the radio equipment in certain Member States. Declaration of Conformity Trade Name: Honda R&D Co., Ltd. Model No. : 35220-QAB Responsible Party: TOKO, Inc. Address: 18 Oaza Gomigaya Tsurugashimashi Saitama-ken 350-2281 JAPAN Telephone: +81-49-279-1625 This phone number is for FCC-related matters only. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Česky [Czech] HONDA tímto prohlašuje, že tento 35220-QAB je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede HONDA erklærer herved, at følgende udstyr 35220-QAB overholder de væsentlige krav og øvrige relevante krav I direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt HONDA dass sich das Gerät 35220-QAB in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab HONDA seadme 35220-QAB vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, HONDA declares that this 35220-QAB is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente HONDA declara que el 35220-QAB cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΤΗΝ ΠΑΡΟΥΣΑHONDA ∆ΗΛΩΝΕΙ ΟΤΙ35220-QAB ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente HONDA déclare que l'appareil 35220-QAB est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente HONDA dichiara che questo 35220-QAB è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar šo HONDA deklarē, ka 35220-QAB atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šiuo HONDA deklaruoja, kad šis 35220-QAB atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Nederlands [Dutch] Hierbij verklaart HONDA dat het toestel 35220-QAB in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti [Maltese] Hawnhekk, HONDA , jiddikjara li dan 35220-QAB) jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Magyar [Hungarian] Alulírott, HONDA nyilatkozom, hogy a 35220-QAB megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Polski [Polish] Niniejszym, HONDA , deklaruję, że 35220-QAB spełnia wymagania zasadnicze oraz stosowne postanowienia zawarte Dyrektywie 1999/5/EC. Português [Portuguese] HONDA declara que este 35220-QAB está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko [Slovenian] HONDA izjavlja, da je ta 35220-QAB v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. Slovensky [Slovak] HONDA týmto vyhlasuje, že 35220-QAB spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Suomi [Finnish] HONDA vakuuttaa täten että 35220-QAB tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Svenska [Swedish] Härmed intygar HONDA att denna 35220-QAB står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. IEEE02.11a IEEE802.11g/b

1 Mike Kuo From: Alvin Ilarina Sent: Thursday, April 27, 2006 6:16 PM To: Mike Kuo; Claire Hoque Cc: Michael Heckrotte; Mika Kaneko; Scott Wang; Thu Chan; Kathy Yao Subject: RE: Honda R&D Co., Ltd., FCC ID: T4S-35220-QAB , Assessment NO.: AN06T5712, Notice#1 Attachments: 06J10177-1B FCC DTS Report.pdf; 06J10177-2B FCC UNII Report.pdf 06J10177-1B FCC DTS Report.pd... 06J10177-2B FCC UNII Report.pd... Hi, Please see answers and attachments for Questions #1 #2 and #3: Question #1: Page 6 section 5.3 of test report, both antennas are listed as point-to-point antenna which do not agree with antenna specification and information disclosed in the user manual. Please explain. Question #2: Page 6, section 5.5 of test report, the worst case is determined the data rate is 1 Mbps which is not available data rate for OFDM modulation. Please explain how such data rate is used . Answer #1,2: The data rate used was 6Mbps. Please see revised report: 06J10177-2B FCC UNII Report.pdf Question #3: Per the test setup photos taken during radiated spurious emission tests, EUT's antenna was placed flat on the turn table. Based upon the antenna pattern and the un-defined antenna installation orientation, please clearly explain what steps have taken to determine the worst case. Answer #3: The testing was performed with the antennas attached to the card as intended for use by the manufacturer. The setup photos with this configuration have been clarified in the report. Please see revised reports: 06J10177-2B FCC UNII Report.pdf and 06J10177-1B FCC DTS Report.pdf If there are any additional questions please let me know. Thanks, Alvin -----Original Message----- From: Mike Kuo Sent: Wednesday, April 26, 2006 5:24 PM To: Claire Hoque Cc: Alvin Ilarina; Michael Heckrotte; Mika Kaneko Subject: FW: Honda R&D Co., Ltd., FCC ID: T4S-35220-QAB , Assessment NO.: AN06T5712, Notice#1 -----Original Message----- From: Mike Kuo Sent: Wednesday, April 26, 2006 5:23 PM To: Mike Kuo Subject: Honda R&D Co., Ltd., FCC ID: T4S-35220-QAB , Assessment NO.: AN06T5712, Notice#1 2 Question #1: Page 6 section 5.3 of test report, both antennas are listed as point-to-point antenna which do not agree with antenna specification and information disclosed in the user manual. Please explain. Question #2: Page 6, section 5.5 of test report, the worst case is determined the data rate is 1 Mbps which is not available data rate for OFDM modulation. Please explain how such data rate is used . Question #3: Per the test setup photos taken during radiated spurious emission tests, EUT's antenna was placed flat on the turn table. Based upon the antenna pattern and the un-defined antenna installation orientation, please clearly explain what steps have taken to determine the worst case. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

PROPOSED FCC ID LABEL AND LOCATION Honda R&D Co., Ltd. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: T4S-35220-QAB FCC ID LABEL

REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 19 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.1.3. MAXIMUM PERMISSIBLE EXPOSURE LIMITS §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 20 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d = √ ((30 * P * G) / (3770 * S)) Changing to units of Power to mW and Distance to cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) yields d = 100 * √ ((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 * √ (P * G / S) where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yields d = 0.282 * 10 ^ ((P + G) / 20) / √ S where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Rearranging terms to calculate the power density at a specific distance yields S = 0.0795 * 10 ^ ((P + G) / 10) / (d^2) REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 21 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. LIMITS From §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 RESULTS NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. No non-compliance noted: (MPE distance equals 20 cm) ModeMPEOutputAntennaPower DistancePowerGainDensity (cm)(dBm)(dBi)(mW/cm^2) 802.11a20.014.915.700.02

FCC CFR47 PART 15 SUBPART E CERTIFICATION TEST REPORT FOR WIRELESS STATION MODEL NUMBER: 35220-QAB FCC ID: T4S-35220-QAB REPORT NUMBER: 06J10177-2B ISSUE DATE: APRIL 27, 2006 Prepared for HONDA R&D CO., LTD. 8-1 HONCHO, WAKO-SHI SAITAMA-KEN, 351-0114 JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 2 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By A 4/25/06 Initial Issue Thu B 4/27/06 Re-inserted the correct setup photos based on Client's setup instruction A. Ilarina Typo Correction on Section 5.5 REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 3 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.........................................................................................4 2. TEST METHODOLOGY............................................................................................................5 3. FACILITIES AND ACCREDITATION.......................................................................................5 4. CALIBRATION AND UNCERTAINTY......................................................................................5 4.1. MEASURING INSTRUMENT CALIBRATION......................................................................5 4.2. MEASUREMENT UNCERTAINTY.......................................................................................5 5. EQUIPMENT UNDER TEST......................................................................................................6 5.1. DESCRIPTION OF EUT.....................................................................................................6 5.2. MAXIMUM OUTPUT POWER............................................................................................6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS......................................................................6 5.4. SOFTWARE AND FIRMWARE............................................................................................6 5.5. WORST-CASE CONFIGURATION AND MODE..................................................................6 5.6. DESCRIPTION OF TEST SETUP........................................................................................7 6. TEST AND MEASUREMENT EQUIPMENT..............................................................................9 7. LIMITS AND RESULTS..........................................................................................................10 7.1. CHANNEL TESTS FOR THE 5150 TO 5250 MHz BAND....................................................10 7.1.1. EMISSION BANDWIDTH.........................................................................................10 7.1.2. PEAK POWER..........................................................................................................14 7.1.3. MAXIMUM PERMISSIBLE EXPOSURE..................................................................19 7.1.4. AVERAGE POWER..................................................................................................22 7.1.5. PEAK POWER SPECTRAL DENSITY......................................................................23 7.1.6. PEAK EXCURSION..................................................................................................28 7.1.7. CONDUCTED SPURIOUS EMISSIONS....................................................................32 7.2. RADIATED EMISSIONS...................................................................................................36 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS.............................................36 7.2.2. TRANSMITTER ABOVE 1 GHz FOR THE 5150 TO 5250 MHz BAND – WITH ANTENNA TMM1260..............................................................................................................39 7.2.3. TRANSMITTER ABOVE 1 GHz FOR THE 5150 TO 5250 MHz BAND – WITH ANTENNA TMM1261..............................................................................................................48 7.2.4. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz..........................................57 7.3. FREQUENCY STABILITY.................................................................................................59 7.4. POWERLINE CONDUCTED EMISSIONS.........................................................................62 8. SETUP PHOTOS......................................................................................................................66 REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 4 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: HONDA R&D CO., LTD. 8-1 HONCHO, WAKO-SHI SAITAMA-KEN, 351-0114 JAPAN EUT DESCRIPTION: WIRELESS STATION MODEL: 35220-QAB SERIAL NUMBER: 00305B3000FD DATE TESTED: MARCH 31 - APRIL 05, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART E NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results docu…

Text truncated - open the document above for the full version.

REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 31 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PEAK EXCURSION HIGH CH (802.11a mode) REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 32 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.1.7. CONDUCTED SPURIOUS EMISSIONS LIMITS §15.407 (b) (1 & 2) For transmitters operating in the 5.15-5.35 GHz band: all emissions outside of the 5.15-5.35 GHz band shall not exceed an EIRP of -27dBm / MHz. TEST PROCEDURE Conducted RF measurements of the transmitter output are made to confirm that the EUT antenna port conducted emissions meet the specified limit and to identify any spurious signals that require further investigation or measurements on the radiated emissions site. The transmitter output is connected to the spectrum analyzer. The resolution bandwidth is set to 1 MHz. The video bandwidth is set to 1 MHz. Peak detection measurements are compared to the average EIRP limit, adjusted for the maximum antenna gain. If necessary, additional average detection measurements are made. Measurements are made over the 30 MHz to 40 GHz range with the transmitter set to the lowest, middle, and highest channels. RESULTS No non-compliance noted: REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 33 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. SPURIOUS EMISSIONS (802.11a MODE) LOW CH SPURIOUS (802.11a mode) REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 34 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. MID CHANNEL SPURIOUS (802.11a mode) REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 35 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. HIGH CHANNEL SPURIOUS (802.11a mode) REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 36 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.2. RADIATED EMISSIONS 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS LIMITS §15.205 (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 1 0.495 - 0.505 2.1735 - 2.1905 4.125 - 4.128 4.17725 - 4.17775 4.20725 - 4.20775 6.215 - 6.218 6.26775 - 6.26825 6.31175 - 6.31225 8.291 - 8.294 8.362 - 8.366 8.37625 - 8.38675 8.41425 - 8.41475 12.29 - 12.293 12.51975 - 12.52025 12.57675 - 12.57725 13.36 - 13.41 16.42 - 16.423 16.69475 - 16.69525 16.80425 - 16.80475 25.5 - 25.67 37.5 - 38.25 73 - 74.6 74.8 - 75.2 108 - 121.94 123 - 138 149.9 - 150.05 156.52475 - 156.52525 156.7 - 156.9 162.0125 - 167.17 167.72 - 173.2 240 - 285 322 - 335.4 399.9 - 410 608 - 614 960 - 1240 1300 - 1427 1435 - 1626.5 1645.5 - 1646.5 1660 - 1710 1718.8 - 1722.2 2200 - 2300 2310 - 2390 2483.5 - 2500 2655 - 2900 3260 - 3267 3332 - 3339 3345.8 - 3358 3600 - 4400 4.5 - 5.15 5.35 - 5.46 7.25 - 7.75 8.025 - 8.5 9.0 - 9.2 9.3 - 9.5 10.6 - 12.7 13.25 - 13.4 14.47 - 14.5 15.35 - 16.2 17.7 - 21.4 22.01 - 23.12 23.6 - 24.0 31.2 - 31.8 36.43 - 36.5 ( 2 ) 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6 §15.205 (b) Except as provided in paragraphs (d) and (e), the field strength of emissions appearing within these frequency bands shall not exceed the limits shown in Section 15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. REPORT NO: 06J10177-2B DATE: APRIL 27, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 37 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. §15.209 (a) Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table: Frequency Field Strength Measurement Distance (MHz) (microvolts/meter) (meters) ______________________________________________________________ 30 - 88 100 ** 3 88 - 216 150 ** 3 216 - 960 200 ** 3 Above 960 500 3 _______________________________________________________________ ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz. However, operation within these frequency bands is perm…

Text truncated - open the document above for the full version.

REPORT NO: 06J10177-2 DATE: APRIL 25, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 66 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06J10177-2 DATE: APRIL 25, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 67 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 06J10177-2 DATE: APRIL 25, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 68 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 06J10177-2 DATE: APRIL 25, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 69 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 06J10177-2 DATE: APRIL 25, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 70 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. LINE CONDUCTED BACK PHOTO REPORT NO: 06J10177-2 DATE: APRIL 25, 2006 EUT: WIRELESS STATION FCC ID: T4S-35220-QAB Page 71 of 71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT FREQUENCY STABILITY
