IC Tele-Interaction Card / Sensor User’s Guide 74110-QAB 32410-QAB Preliminary Revision September 01 2006 Honda Motor Co., Ltd. IC Tele-Interaction Card / Sensor User’s Guide Warning FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for product compliance could void the user's authority to operate the equipment. IC Tele-Interaction Card / Sensor User’s Guide Labeling [IC Tele-Interaction Card] The IC Tele-Interaction Card 74110-QAB is labeled as below. FCC ID: T4S-74110-QAB [Sensor] The Sensor 32410-QAB is labeled as below. FCC ID: T4S-32410-QAB The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the host, "Contains FCC ID: T4S-32410-QAB" shall be placed on the outside of final host. IC Tele-Interaction Card / Sensor User’s Guide Safety Information WARNING • Opening the unit, for whatever reason, could read to damages that are not covered by the warranty. • Do not touch the device or accessories during thunder storms. Electrical shock could result. • For indoor use only. • Do not use this equipment on hospital premises. Doing so many cause medical devices to malfunction. • If using the equipment near a pacemaker, make sure it is at least 9inches (22cm) away from the pacemaker. • Do not use this equipment in an aircraft, as doing so could cause the aircraft’s equipment to malfunction. • While using the IC Tele-Interaction Card or Sensor, do not cover it or turn it on its side. Do not cover the IC Tele-Interaction Card or Sensor with objects such as magazines or newspapers or use it in confined, enclosed places, such as the spaces between walls and furniture. Further, do not turn the IC Tele-Interaction Card or Sensor on its side while using it. Either situation could cause heat to build up inside the IC Tele-Interaction Card or Sensor, leading to overheating and possible fire. • Avoid locations that are directly exposed to sunlight or heaters. • Internal overheating could result in fire or damage to the unit. • Make sure connectors are properly connected. - Do not insert any metallic objects inside the connectors. Short-circuiting then pins could cause fire or damage to the unit. - Be careful to insert connectors squarely. Crooked insertion could cause pins to short-circuit, possibly causing fire or damage to the unit. IC Tele-Interaction Card / Sensor User’s Guide Precautions Safety Do not drop the IC Tele-Interaction Card and Sensor. Careful handling will help prevent damage. Installation Do not place the IC Tele-Interaction Card or Sensor where it will be exposed to the following conditions : • Unstable surface. • High humidity or poor ventilation. • Excessive dust. • Direct sunlight or extreme heat. • Closed cars. • Magnetized location (near magnet, speakers, or televisions). • Locations exposed to frequent vibration. • Locations where the transmission of radio waves may be obstructed by metal plates or concrete walls. Operation Exposure to cold-to hot temperature extremes or very damp environments may cause moisture to condense on internal parts. This may prevent the IC Tele-Interaction Card or Sensor from operating properly. If this should happen, unplug the power cable and let the IC Tele-Interaction Card or Sensor sit for two to three hours or until the moisture evaporates. Cleaning Clean the casing with a soft cloth lightly moistened with water or a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzene. This may damage the finish of the casing. IC Tele-Interaction Card / Sensor User’s Guide Contents 1. PACKAGE CONTENTS .................................................................................................... 1 2. HARDWARE DESCRIPTION ........................................................................................... 1 3. DEVICE INSTALLATION................................................................................................. 2 3.1 PREPARATION: IC TELE-INTERACTION CARD................................................................. 2 3.2 PREPARATION: SENSOR................................................................................................... 2 3.3 COMMUNICATION BETWEEN IC TELE-INTERACTION CARD AND SENSOR....................... 2 4. SPECIFICATIONS ............................................................................................................ 3 IC Tele-Interaction Card / Sensor User’s Guide Rev12, Page 1 1. Package Contents Once you have unpacked the units, make sure that all of the following items are present. IC Tele-Intera…
Text truncated - open the document above for the full version.

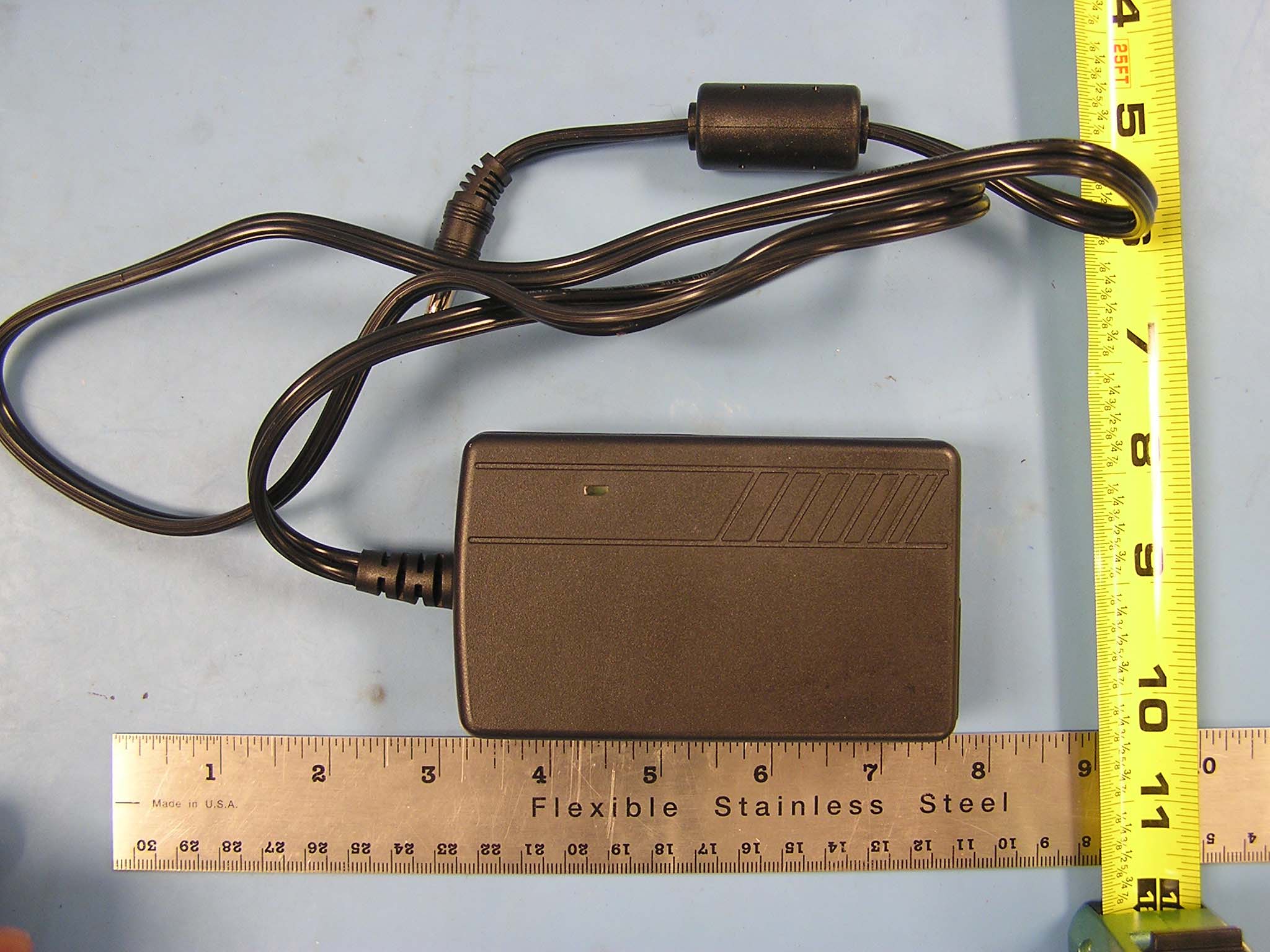

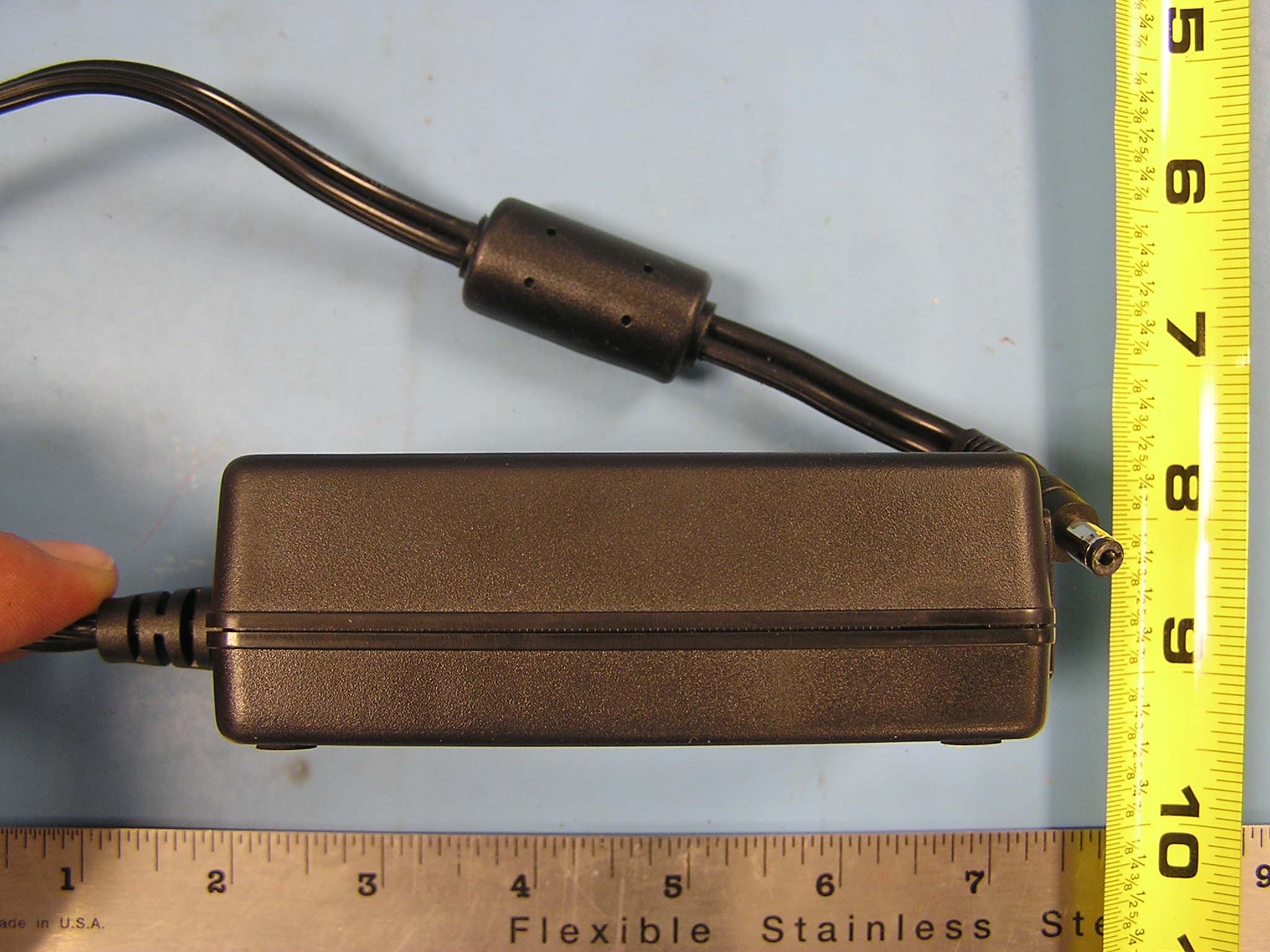

Helen Zhao Subject: FW: Honda R&D Co., Ltd., FCC ID: T4S-74110-QAB, Assessment NO.: AN06T6115, Notice#1 - IC card 9/6/2006 From: Kathy Yao Sent: Wed 9/6/2006 2:27 PM To: Kathy Yao Cc: Michael Heckrotte; Claire Hoque; Vien Tran; Thu Chan Subject: RE: Honda R&D Co., Ltd., FCC ID: T4S-74110-QAB, Assessment NO.: AN06T6115, Notice#1 - IC card Answer #1: The normal operation of the EUT is with Battery pack. External DC supply was used only for testing purposes to prevent loss or degradation of power during the testing. An external DC supply is not provided with the equipment and cannot be used under normal installation. Answer #2: Please see revised report with bandedge plots installed. Thanks, Kathy -----Original Message----- Sent: Wednesday, September 06, 2006 5:32 PM Subject: Honda R&D Co., Ltd., FCC ID: T4S-74110-QAB, Assessment NO.: AN06T6115, Notice#1 Question #1: Page 8 of the test report indicates "The EUT (IC Card) either can be operated by battery pack of 3.7 VDC or DC Power Supply." Please provide photos of DC power supply. Question #2: Please provide bandedge test plots to clearly show FCC15.249(d) requirement is met: (d) Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general radiated emission limits in Section 15.209, whichever is the lesser attenuation. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.
PROPOSED FCC ID LABEL AND LOCATION Honda R&D Co., Ltd. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: T4S-74110-QAB FCC ID LABEL
FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR IC TELE-INTERACTION CARD MODEL NUMBER: 74110-QAB FCC ID: T4S-74110-QAB REPORT NUMBER: 06J10511-1B ISSUE DATE: SEPTEMBER 6, 2006 Prepared for HONDA R&D CO., LTD. 8-1 HONCHO, WAKO-SHI SAITAMA-KEN, 351-0114 JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06J10511-1BDATE: SEPTEMBER 6, 2006 EUT: IC TELE-INTERACTION CARD FCC ID: T4S-74110-QAB Page 2 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 9/5/06 Initial Release A. Ilarina B 9/6/06 Add Bandedge plots to section 7.2 A. Ilarina REPORT NO: 06J10511-1BDATE: SEPTEMBER 6, 2006 EUT: IC TELE-INTERACTION CARD FCC ID: T4S-74110-QAB Page 3 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. DUTY CYCLE ............................................................................................................................. 10 7.2. RADIATED EMISSIONS.............................................................................................................13 7.2.1. TRANSMITTER RADIATED EMISSIONS ..................................................................... 13 8. SETUP PHOTOS .............................................................................................................................. 24 REPORT NO: 06J10511-1BDATE: SEPTEMBER 6, 2006 EUT: IC TELE-INTERACTION CARD FCC ID: T4S-74110-QAB Page 4 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: HONDA R&D CO., LTD. 8-1 HONCHO, WAKO-SHI SAITAMA-KEN, 351-0114 JAPAN EUT DESCRIPTION: IC TELE-INTERACTION CARD MODEL: 74110-QAB SERIAL NUMBER: A3 & A4 (RF Conducted test), A2 & A5 (For Radiated Emission test) DATE TESTED: AUGUST 23 TO 26, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: ALVIN ILARINA VIEN TRAN EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 06J10511-1BDATE: SEPTEMBER 6, 2006 EUT: IC TELE-INTERACTION CARD FCC ID: T4S-74110-QAB Page 5 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003, FCC CFR 47 Part 2 and FCC CFR 47 Part 15. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities …
