Bluetooth Speaker BS-216 User Manual Before used Charging the Battery as follows: 1. The attached USB Cable a type side connected in to the PC USB connector and the Micro USB plug side connected in to the Bluetooth Speaker. 2. The Red LED will light on during charging. 3. When charging completed the Red LED go off. Power On and Power Off the Bluetooth Speaker 1. Press the ON/OFF switch to ON and wait for about 5s an alert tone will ―Di‖ and then Blue LED flash 3 times ,‖du‖, ‖du‖ then enter the Pairing mode and the Red and Blue LED will fast blink alternately 2. Press the ON/OFF switch to OFF to power off the power. Pairing the Bluetooth Speaker with a Mobile Phone Make sure your mobile phone is Bluetooth-enabled. Specific pairing steps may vary with different cell phones. Refer to the User Guide for your mobile phone for further information. The general pairing steps are as follows: 1. Keep the Bluetooth Speaker close to your mobile phone. 3. Press the ON/OFF switch to ON and wait for the unit entered the Pairing mode when the Red and Blue LED will fast blink alternately 2. Search the Bluetooth Device under the pairing mode in the mobile phone. 3. Once the search is completed, the ―BT Speaker‖ will show in the Bluetooth device list. 4. Selected the ―BT Speaker‖ to connect and entering the matching code with ―0000‖. 5. The pairing will completed at the moment and the Blue LED of the Bluetooth Speaker will blink two times every 3S. Notes: If pairing is not successful, Switch Off the Bluetooth Speaker and then redo the pairing procedure again. If pairing is successful, the paired devices will remember each other. Unless the pairing information is deleted because of a new pairing, there is no need to go through the pairing procedure again when using the same devices the next time. Playing Music Under the paired and connected status, if your mobile phone support A2DP and AVRCP the function as follow: 1. Press the button to play or pause the Music. 2. Press the button to next Music. 3. Press the button to previous Music. VOL+ VOL- 4. Press and hold the Volume + to increase the sound level or press and hold the Volume – to decrease the sound level. Playing Line in Music Plug in the attached audio line to AUX socket and the other end of the audio line connected to the music player audio output socket, the unit will change to play the line in music automatically. When plug down the audio line from the AUX socket will change to the Bluetooth function automatically. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

Victorwood Holdings Limited SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 Victorwood Holdings Limited SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/9/02 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Victorwood Holdings Limited hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： Bluetooth Stereo Speaker Model Name： BS-216 FCC ID： T5HBS-216 We affirm that between SIEMIC and ___ Victorwood Holdings Limited __, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Signature Date:2013/11/16 Name: Norman Yiu Title: R&D Manager Tel: 852-2324 4880 Company: Victorwood Holdings Limited

Victorwood Holdings Limited SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Victorwood Holdings Limited SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013/11/16 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: T5HBS-216 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Date:2013/11/16 Name: Norman Yiu Title: R&D Manager Tel: 852-2324 4880 Company: Victorwood Holdings Limited

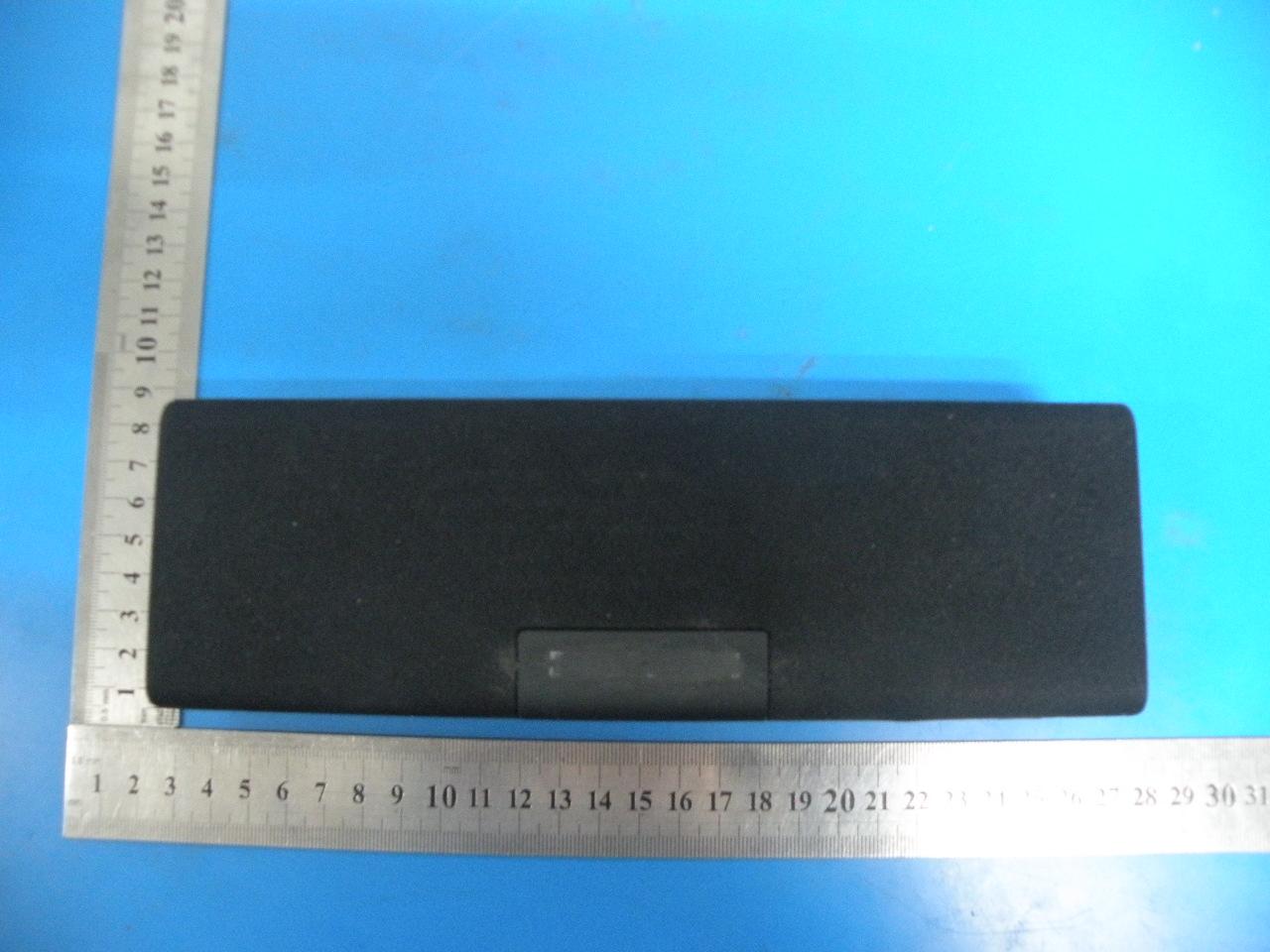

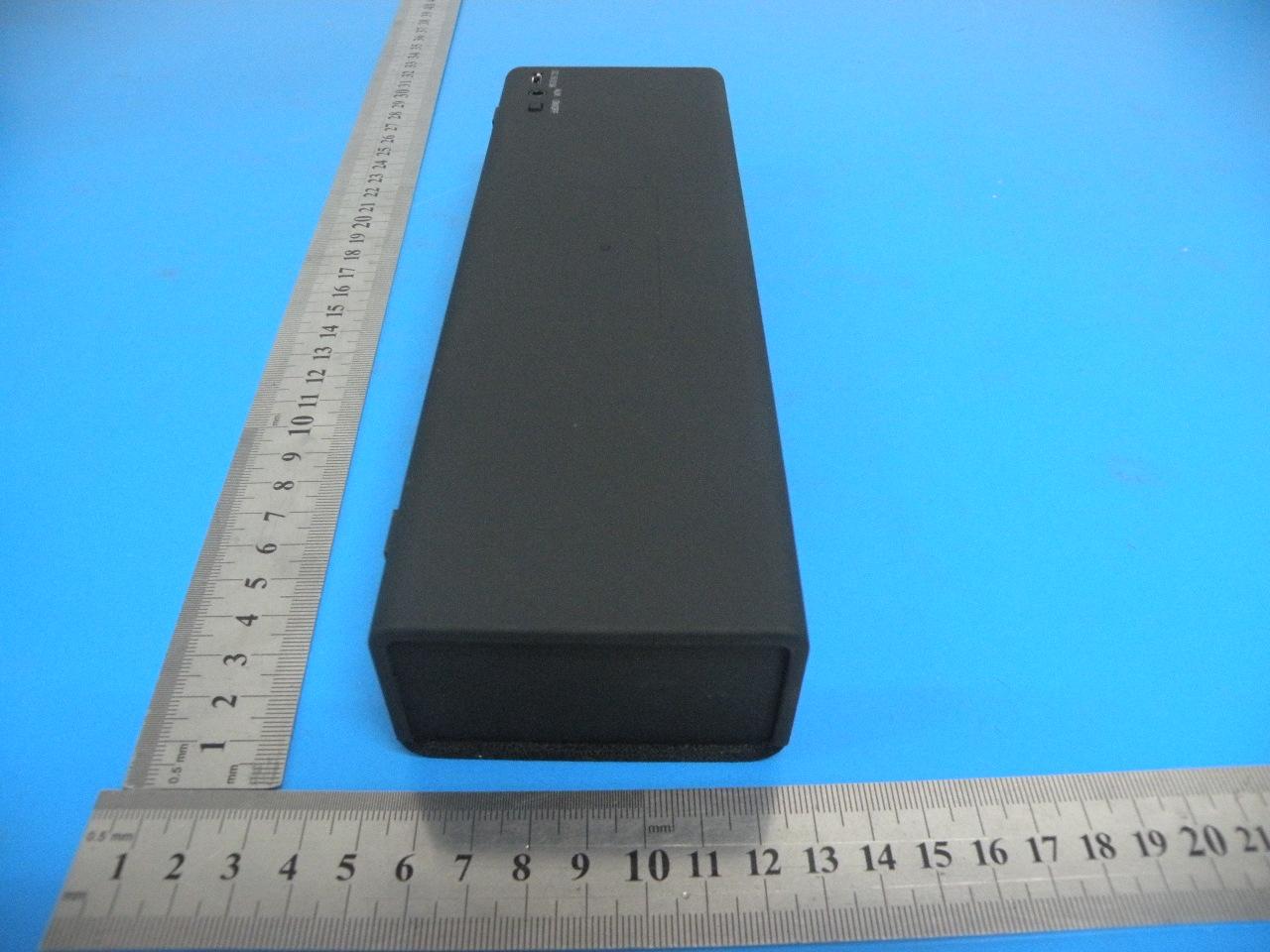

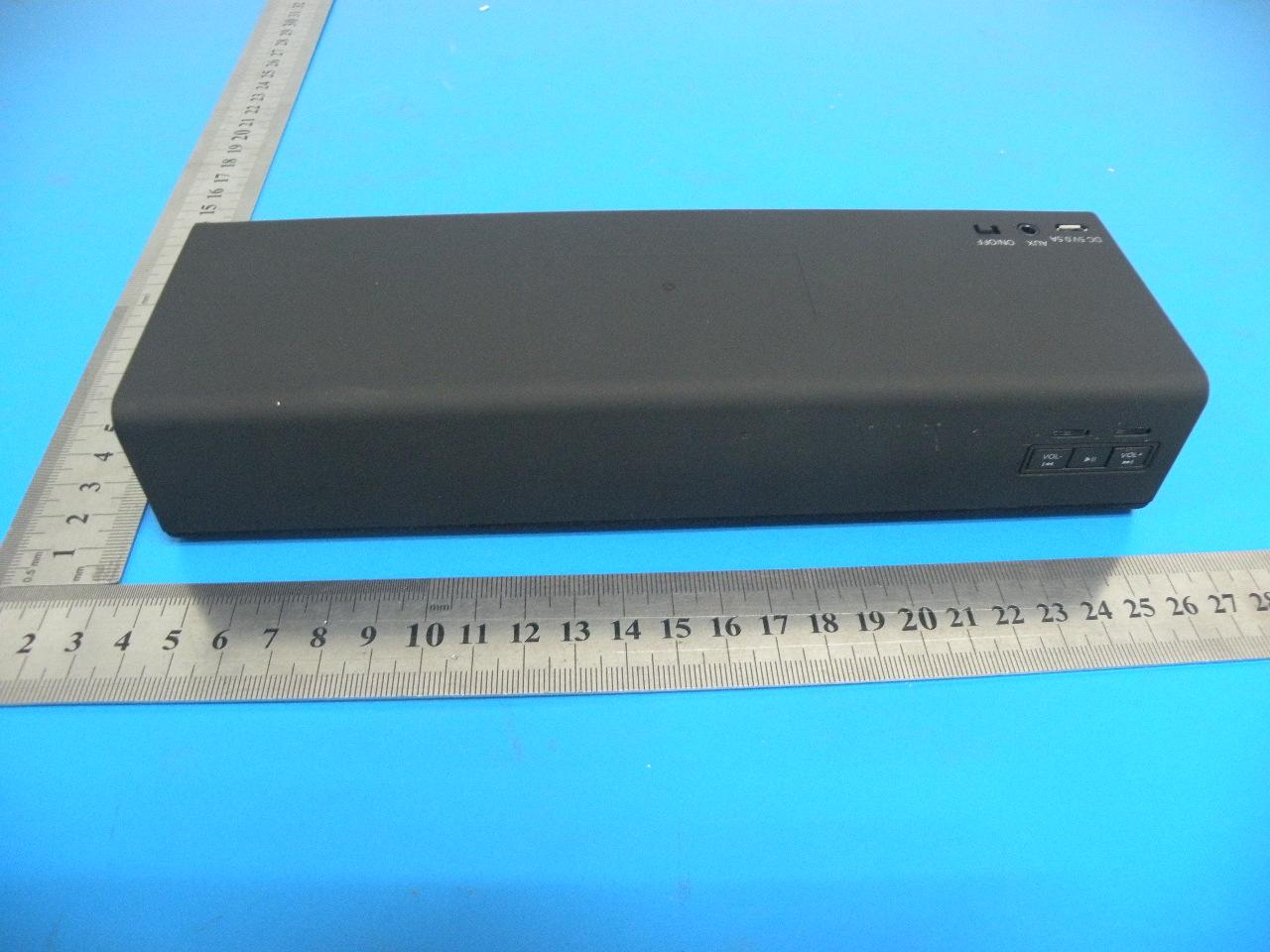

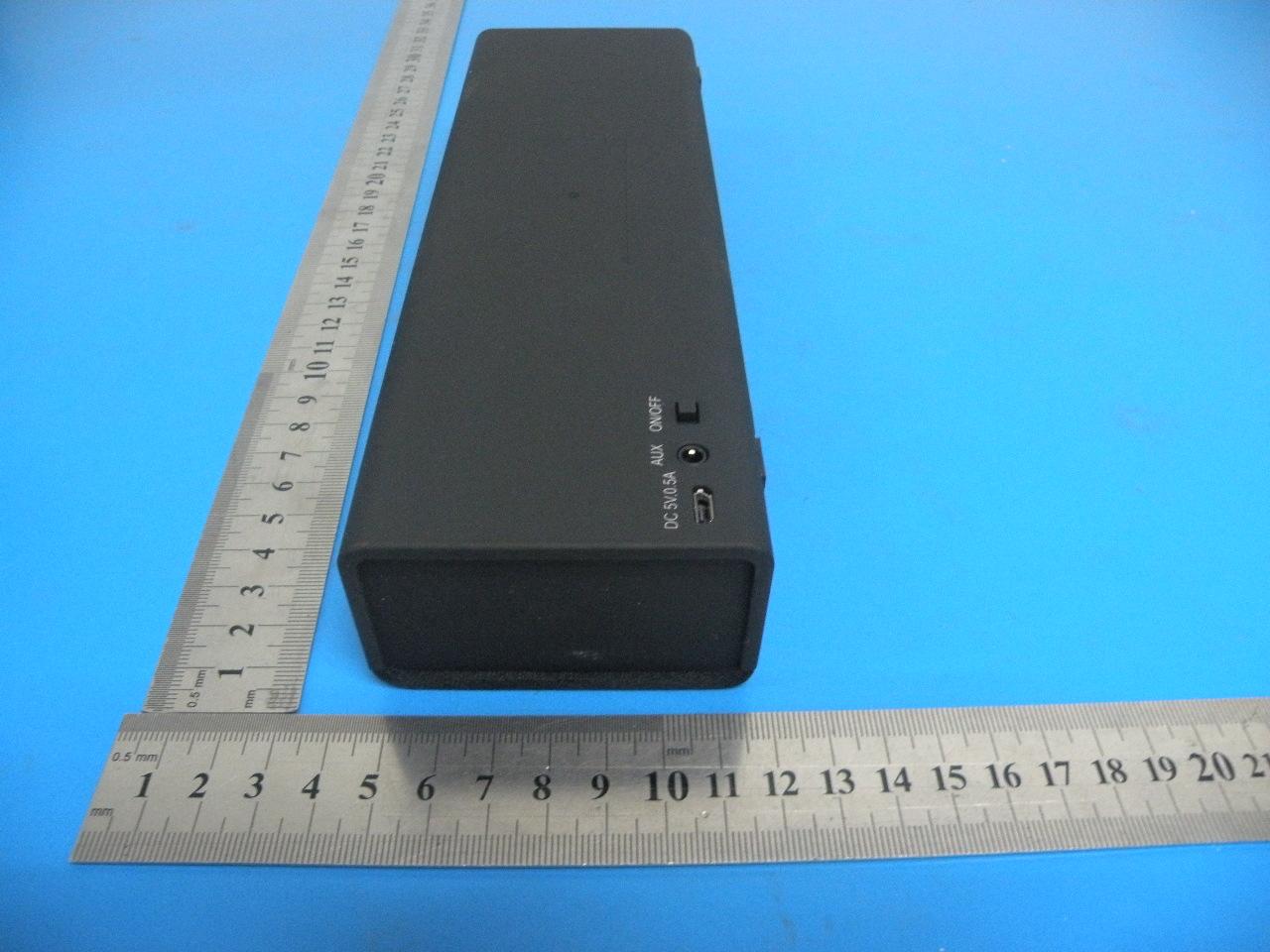

Top View Bottom View Rear View Left View Right View Front View

Label: FCC ID: T5HBS-216 Victorwood Industries Limited Model No.: BS-216 Model name: Bluetooth Stereo Speaker This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

Top View Top View Antenna Bottom View Top View Bottom View

FCC ID: T5HBS-216 RF EXPOSURE TEST FCC ID: T5HBS-216 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: T5HBS-216 Maximum measured transmitter power. GFSK frequency range Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power (mW) 2402 2.97 1.98 2441 2.85 1.93 2480 2.81 1.91 8-DPSK frequency range Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power (mW) 2402 2.52 1.79 2441 2.46 1.76 2480 2.37 1.73 The max.output power E.I.R.P is 2.97dBm=1.98mW, Frequency is 2.402GHz So (1.98/5)* √2.402=0.6138≤ 3.0 Note: √2.402 =1.550 Conclusion: No SAR is required.

FCC RADIO TEST REPORT FCC ID: T5HBS-216 Product： Bluetooth Stereo Speaker Trade Name： N/A Model Number： BS-216 Serial Model： N/A Report No.： BZT-131116073F Prepared for Victorwood Holdings Limited Unit 15, 8/F., Block B, Sun Fung Centre, 88 Kwok Shui Road, Kwai Chung, N.T., Hong Kong, China Prepared by BZT Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Page 2 of 77 Report No.: BZT-131116073F TEST RESULT CERTIFICATION Applicant’s name ................. : Victorwood Holdings Limited Address .................................. : Unit 15, 8/F., Block B, Sun Fung Centre, 88 Kwok Shui Road, Kwai Chung, N.T., Hong Kong, China Manufacture's Name ............ : Victorwood Holdings Limited Address .................................. : Unit 15, 8/F., Block B, Sun Fung Centre, 88 Kwok Shui Road, Kwai Chung, N.T., Hong Kong, China Product description Product name ............................ : Bluetooth Stereo Speaker Model and/or type reference .............................. : BS-216 Serial Model： N/A Ratings DC 5V from PC AC 120V/60Hz or DC 3.7V from battery Standards ............................. : FCC Part15.247 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by BZT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BZT, this document may be altered or revised by BZT, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 12 November. 2013 ~15 November. 2013 Date of Issue .......................................... : 16 November. 2013 Test Result .............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 77 Report No.: BZT-131116073F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 30 4 . NUMBER OF HOPPING CHANNEL 46 4.1 APPLIED PROCEDURES / LIMIT 46 4.1.1 TEST PROCEDURE 46 4.1.2 DEVIATION FROM STANDARD 46 4.1.3 TEST SETUP 46 4.1.4 EUT OPERATION CONDITIONS 46 4.1.5 TEST RESULTS 47 Page 4 of 77 Report No.: BZT-131116073F Table of Contents Page 5 . AVERAGE TIME OF OCCUPANCY 49 5.1 APPLIED PROCEDURES / LIMIT 49 5.1.1 TEST PROCEDURE 49 5.1.2 DEVIATION FROM STANDARD 49 5.1.3 TEST SETUP 49 5.1.4 EUT OPERATION CONDITIONS 49 5.1.5 TEST RESULTS 50 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 62 6.1 APPLIED PROCEDURES / LIMIT 62 6.1.1 TEST PROCEDURE 62 6.1.2 DEVIATION FROM STANDARD 62 6.1.3 TEST SETUP 62 6.1.4 EUT OPERATION CONDITIONS 62 6.1.5 TEST RESULTS 63 7 . BANDWIDTH TEST 68 7.1 APPLIED PROCEDURES / LIMIT 68 7.1.1 TEST PROCEDURE 68 7.1.2 DEVIATION FROM STANDARD 68 7.1.3 TEST SETUP 68 7.1.4 EUT OPERATION CONDITIONS 68 7.1.5 TEST RESULTS 69 8 . PEAK OUTPUT POWER TEST 73 8.1 APPLIED PROCEDURES / LIMIT 73 8.1.1 TEST PROCEDURE 73 8.1.2 DEVIATION FROM STANDARD 73 8.1.3 TEST SETUP 73 8.1.4 EUT OPERATION CONDITIONS 73 8.1.5 TEST RESULTS 74 9 . ANTENNA REQUIREMENT 75 9.1 STANDARD REQUIREMENT 75 9.2 EUT ANTENNA 75 10 . EUT TEST PHOTO 76 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 77 Report No.: BZT-131116073F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 77 Report No.: BZT-131116073F 1.1 TEST FACILITY BZT Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.: 701733 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 77 Report No.: BZT-131116073F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluetooth Stereo Speaker Trade Name N/A Model Name BS-216 Serial Model N/A Model Difference N.A Product Description The EUT is a Bluetooth Stereo Speaker Operation Frequency: 2402~2480 MHz Modulation Type: FHSS Bit Rate of Transmitter GFSK(1Mbps), …
