T5HUP90R00USB Phone

1 USER Manual for UP-90 USB Phone Driver installation: 1. Insert the UP-90 driver into your CD-ROM. 2. You now should see the menu page (see diagram 1). Please click “Install USB Phone Driver (needed)”. Please click this to install driver. (Diagram 1) 3. The driver will start to preparing to install and will show “window Installer” page (see diagram 2). (Diagram 2) 2 4. The driver will take you to “Welcome to the USB Phone Driver Setup Wizard” (See diagram 3) , and click “Next” to continue (Diagram 3) 5. The driver will take you to “Select Installation Folder” (See diagram 4). click “Next” button to continue. (Diagram 4) 3 6. The “Confirm Installation” page will show, (see diagram 5) Click the “Next” button to start installation. (Diagram 5) 7. You now should see the page to show the installing process. (Diagram 6) ( Diagram 6) 4 8. After the installation completed the page show (See the Diagram 7). Click “Close” Button to finish. (Diagram 7) 9. The page will show to prompt you to re-start the computer. Please click “Yes” Button to restart the computer. 5 Activate the UP-90 USB Phone Plug your UP-90 into the USB port on your PC. Once Skype, Net2phone ,MSN Messenger, SJ phone or X-Lite has been installed, the UP-90 USB phone is activated. An icon will appear on the bar at the right bottom of the Windows: Double click the circle icon on the above picture and the program window pop up: Select Skype. 6 Press the [Start] button at the bottom of the UP-90 USB phone. The window of Skype softphone pop up: 7 Press the [Down] button to scroll the contact list, when you reach the name at the bottom, please press [Down] and hold on at least 2 seconds until going back to the first name. 8 To make a call 1. Make a call to a person on the contact list: Select the name you want to call and press [OK] button. The phone call will be initiated. To terminate the call, just hang up the phone. 9 2.To move to the other tabs, please press [Start] button. 10 3. Make a call to Public Telephone Network (Charged Service provided by service provider: Move to the dialling pad of the softphone and press the buttons on the keypad of “UP-90” as if dialling through normal phone and press [OK] button. Warning: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference ,and (2)this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These 11 limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different form that to which the receiver is needed. • Consult the dealer or an experienced radio/TV technician for help. ~~The End~~ If at any time in the future you should need to dispose this product please note that: Waste electrical products should not be disposed together with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

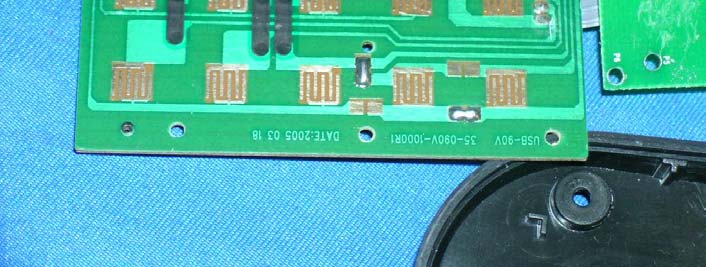

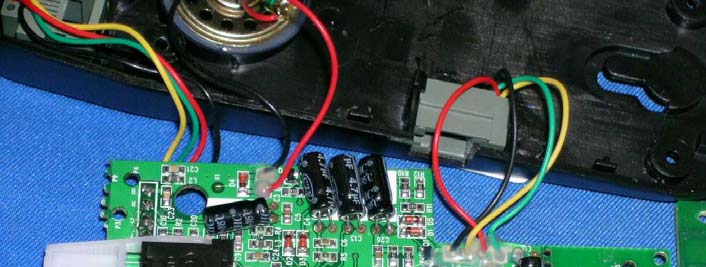

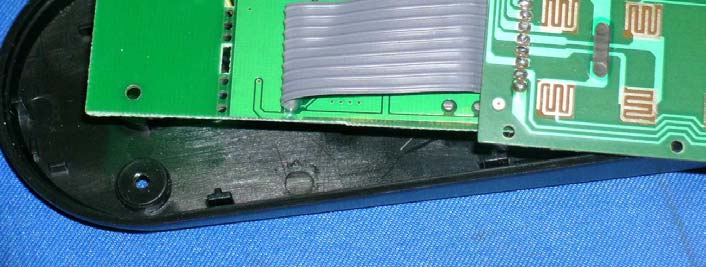

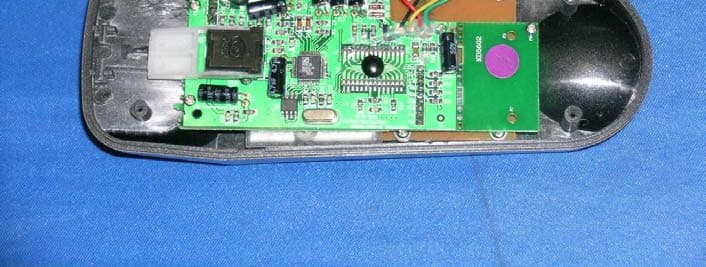

INTERTEK TESTING SERVICES Internal photos FCC ID: T5HUP90R00 internal photos - 1 of 3 Product assembly Product Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: T5HUP90R00 internal photos - 2 of 3 Product Main PCB solder side (View 1) Product Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: T5HUP90R00 internal photos - 3 of 3 Product Keypad front side Product Keypad rear side

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Website: www.hk.intertek-etlsemko.com Victorwood Holdings Limited Application For Certification USB Phone (FCC ID: T5HUP90R00) 0603372 TL/ Ann Choy May 10, 2006 INTERTEK TESTING SERVICE FCC ID: T5HUP90R00 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2 : General Description EXHIBIT 3 : System Test Configuration EXHIBIT 4 : Measurement Results EXHIBIT 5 : Equipment Photographs EXHIBIT 6 : Product Labelling EXHIBIT 7 : Technical Specifications EXHIBIT 8 : Instruction Manual EXHIBIT 9 : Confidentiality Request INTERTEK TESTING SERVICES FCC ID: T5HUP90R00 ii MEASUREMENT/TECHNICAL REPORT Victorwood Holdings Limited- MODEL: UP-90 FCC ID: T5HUP90R00 This report concerns (check one) Original Grant X Class II Change Equipment Type: JBP - Part 15 Class B Computer Peripheral Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Leung Wai Leung, Tommy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: T5HUP90R00 iii Table of Contents 1.0 Summary of test results ..................................................................................... 2 2.0 General Description .................................................................................................. 4 2.1 Product Description............................................................................................. 4 2.2 Related Submittal(s) Grants ................................................................................ 5 2.3 Test Methodology ............................................................................................... 5 2.4 Test Facility ........................................................................................................ 5 3.0 System Test Configuration ...................................................................................... 7 3.1 Justification......................................................................................................... 7 3.2 EUT Exercising Software .................................................................................... 7 3.3 Support Equipment List and Description.............................................................. 8 3.4 Measurement Uncertainty ........................................................................................ 9 3.5 Equipment Modification....................................................................................... 9 4.0 Emission Results ................................................................................................... 11 4.1 Field Strength Calculation ................................................................................. 12 4.2 Radiated Emission Configuration Photograph....................................................... 13 4.3 Radiated Emission Data.................................................................................... 14 4.4 AC Line Conducted Emission............................................................................ 16 4.5 Line Conducted Configuration Photograph ........................................................ 17 4.6 Line Conducted Emission Configuration Data.................................................... 18 5.0 Equipment Photographs ........................................................................................ 20 6.0 Product Labelling................................................................................................... 22 7.0 Technical Specifications ........................................................................................ 24 8.0 Instruction Manual ...................................................................................................... 26 9.0 Confidentiality Request ............................................................................................... 28 INTERTEK TESTING SERVICES FCC ID: T5HUP90R00 iv List of attached file Exhibit type File Description filename Cover Letter Confidentiality Request request.pdf Test Report Test Report report.pdf Test Report Conducted Emission Test Result conduct.pdf Test Setup Photo Radiated Emission config photos.doc Test Setup Photo Conducted Emission config photos.doc External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf User Manual FCC Information FCC information.pdf Operation Description Technical Description descri.pdf INTERTEK TESTING SERVICES FCC ID: T5HUP90R00 1 EXHIBIT 1 SUMMARY OF TEST RESULTS INTERTEK TESTING SERVICES FCC ID: T5HUP90R00 2 1.0 Summary of Test Victorwood Holdings Limited - MODEL: UP-90 FCC ID: T5HUP90R00 TEST REFERENCE RESULTS Radiated Emission 15.109 Pass AC Conducted Emission 15.107 Pass INTERTEK TESTING SERVICES FCC ID: T5HUP90R00 3 EXHIBIT 2 GENERAL DESCRIP…

Text truncated - open the document above for the full version.

Report No.: 0603372 Standby Mode Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:0603372 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 0603372 Standby Mode Ctrl No.: N/A Tested By:Hong, Report No.:0603372 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.20000 47.1 63.6 0.70500 36.6 56.0 0.98500 38.3 56.0 1.38500 37.3 56.0 1.97500 46.1 56.0 2.17000 48.3 56.0 3.13000 43.0 56.0 4.78500 37.8 56.0 18.00000 44.3 60.0 24.00000 47.1 60.0 Frequency AV Level AV Limit MHz dBuV dBuV 0.20000 46.8 53.6 0.30000 37.5 50.2 0.50500 27.1 46.0 0.70500 32.1 46.0 1.05500 31.8 46.0 1.14500 34.1 46.0 1.77500 37.5 46.0 2.17000 40.4 46.0 3.13000 39.2 46.0 4.78500 36.6 46.0 5.89000 30.5 50.0 8.34500 32.1 50.0 16.77000 35.7 50.0 24.00000 38.2 50.0 * limit

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: T5HUP90R00 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: T5HUP90R00 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: T5HUP90R00 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
