T62-IPMICi-Pilot Micro Remote

MICRO REMOTE ACCESSORY FOR i-PILOT AND i-PILOT LINK Compact wireless remote to use in addition to your i-Pilot or i-Pilot Link remote. COMPLETE i-PILOT / i-PILOT LINK SYSTEM SOLD SEPARATELY SYSTÈME i-PILOT/i-PILOT LINK COMPLET VENDU SÉPARÉMENT FEATURES • Compact, wireless remote accessory for i-Pilot or i-Pilot Link • Take control of: - Speed and steering - Spot-Lock - AutoPilot - High Speed Bypass • i-Pilot and Link can learn multiple remotes - so you can use your original remote and Micro Remote together • Includes neck lanyard, is waterproof and floats CARACTÉRISTIQUES • Accessoire de télécommande sans fil compact pour le i-Pilot ou le i-Pilot Link • Prenez le contrôle : - De la vitesse et de la direction - Du mode Spot-Lock - Du pilote automatique - Des dépassements à haute vitesse • Le i-Pilot et le Link peuvent apprendre à fonctionner avec plusieurs télécommandes – vous pouvez donc utiliser votre télécommande d’origine et la microtélécommande ensemble • Équipée d’un codon pour être portée autour du cou, résiste à l’eau et flotte Made in Taiwan ©2014 All Rights Reserved Johnson Outdoors Marine Electronics, Inc. U.S. Patent Nos: 8,645,012; 5,884,213; other patents pending. Part # 2375359 Johnson Outdoors Marine Electronics, Inc. 121 Power Drive Mankato, MN 56001 minnkotamotors.com FEATURES MINN KOTA’S TWO-YEAR WARRANTY Product Code: 1866360 Micro Remote WARNING: This product contains chemical(s) known to the state of California to cause cancer and/or reproductive toxicity. Product Contains: FCC ID: T62-IPMIC IC ID: 4397A-IPMIC Prop On/Off Marche/arrêt de l’hélice Increase Speed Augmenter la vitesse Decrease Speed Diminuer la vitesse Steer Right Tourner à droite Steer Left Tourner à gauche High Speed Bypass Dépassement à haute vitesse AutoPilot On/Off Marche/arrêt du pilote automatique Spot-Lock Spot-Lock i-Pilot and i-Pilot Link give you full command of your motor. But when you want simplified, compact control, the Micro Remote accessory provides quick command of the most used features. i-Pilot and Link can learn multiple remotes, and all of our remotes are watertight and float. Le i-Pilot et le i-Pilot Link vous donnent le plein contrôle sur votre moteur. Mais quand vous voulez un contrôle compact et simplifié, l’accessoire de microtélécommande vous fournit une commande rapide des fonctionnalités les plus utilisées. Le i-Pilot et le Link peuvent apprendre à fonctionner avec plusieurs télécommandes et toutes nos télécommandes sont étanches et flottent. REMOTE ONLY. COMPLETE i-PILOT OR i-PILOT LINK SYSTEM SOLD SEPARATELY. This Micro Remote is designed for use as an additional remote for an i-Pilot Link or i-Pilot system. Requires CR2450 battery (included.) TÉLÉCOMMANDE UNIQUEMENT. SYSTÈME i-PILOT LINK OU i-PILOT COMPLET VENDU SÉPARÉMENT. Cette microtélécommande est conçue pour être utilisée comme une télécommande supplémentaire pour un système i-Pilot Link ou i-Pilot. Nécessite une pile CR2450 (incluse). ACCESSOIRE DE MICROTÉLÉCOMMANDE POUR LE i-PILOT ET LE i-PILOT LINK MICRO REMOTE ACCESSORY FOR i-PILOT AND i-PILOT LINK

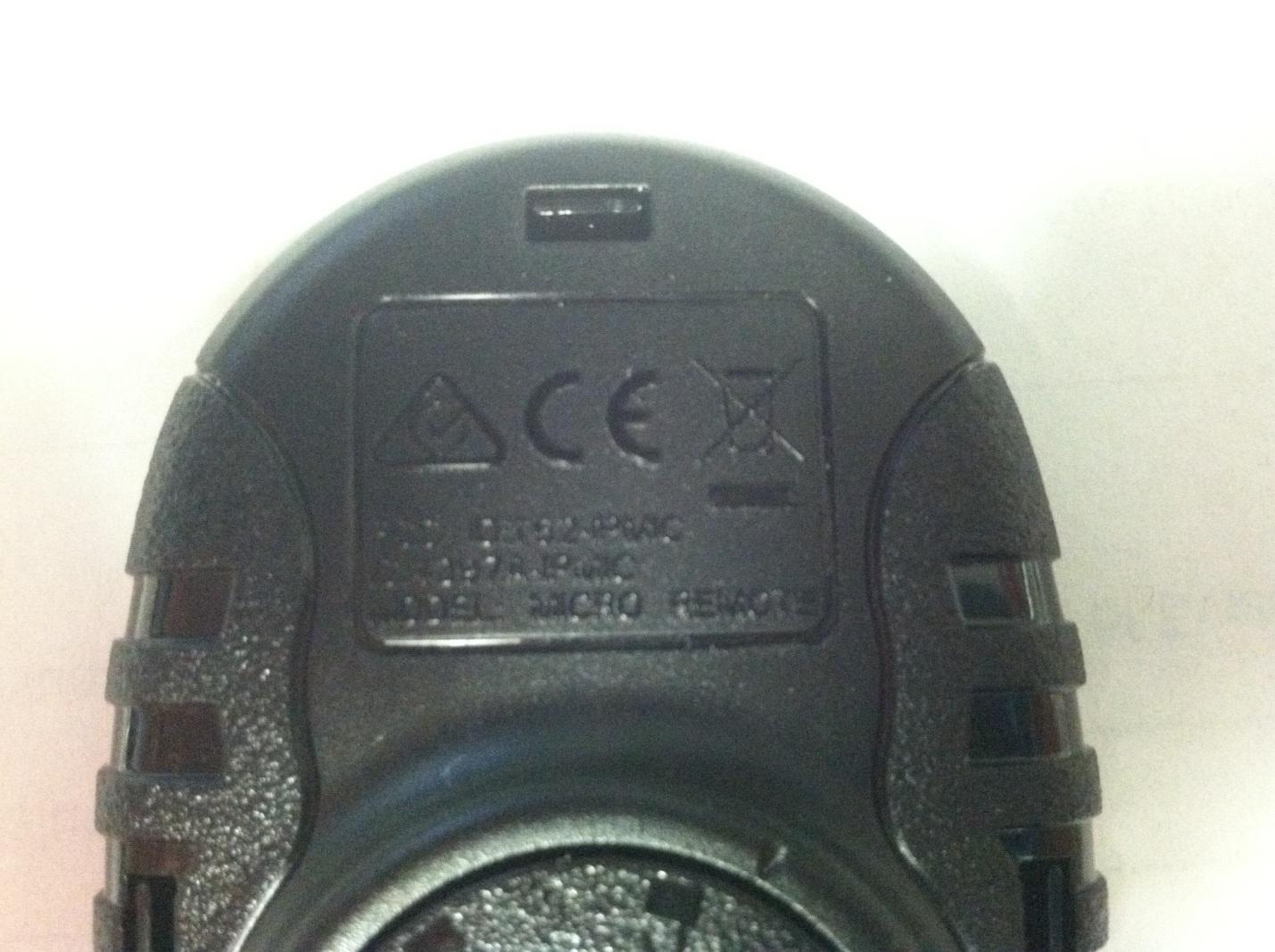

FCC ID: T62-IPMIC Industry Canada ID: 4397A-IPMIC The FCC and IC label can be found on the back side of the remote. FCC and Industry Canada Compliance Statement: This device complies with FCC Rules Part 15 and Industry Canada RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference, including interference that may cause undesired operation of the device Le prsent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorise aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radiolectrique subi, mme si le brouillage est susceptible d'en compromettre le fonctionnement The radiated output power of the controller is well below the FCC radio frequency exposure limits. The controller should be operated at a minimum distance of 20 cm from a person’s body. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Per FCC Part 15.21.

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Request for Confidentiality Date: 2014 AUGUST 22 Subject: Confidentiality Request for: FCC ID: T62-IPMIC, IC: 4397A-IPMIC Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Test Setup Photos Johnson Outdoors, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 1 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ ____Nic Johnson, NCEE Labs_________ (Signature/Title 2 ) (Print name) 1 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 External Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 1 of 6 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 External Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 2 of 6 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 External Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 3 of 6 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 External Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 4 of 6 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 External Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 5 of 6 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 External Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 6 of 6

D C B A D C B A 1 3 4 5 6 7 8 1 2 3 4 5 6 7 8 REVISIONS REV ECN NO DESCRIPTION BY DATE PART NO. 2 PART NO.: PART NAME: SCALE: D SIZE LIFECYCLE STATUS: U/M: MATERIAL: REV.: DRAWN BY: DATE: This document is the confidential property of Johnson Outdoors and is loaned subject to return upon demand; title to same is never sold/transferred for any reason. This document is to be used only pursuant to written instructions of Johnson Outdoors. All rights to designs and inventions are reserved by Johnson Outdoors. Possession of this document is accepted subject to the foregoing. CONFIDENTIAL PROPERTY- TOLERANCES: .XXXX
#.0010 .X
#.015 .XXX
#.005 FRACTIONAL
#1/64 .XX
#.010 ANGULAR
#0
$30' IN. SHEET OF THIRD ANGLE PROJECTION UNLESS OTHERWISE SPECIFIED JOHNSON OUTDOORS MARINE ELECTRONICS, INC. Circled dimensions are critical. Dimensions marked * require Proof of Quality with each shipment. QUALITY REQUIREMENTS: RoHS2 AND REACH COMPLIANCE: Supplier certifies that this part complies with 2011/65/EU (EU RoHS2) and (EC) No 1907/2006 (EU REACH). Upon request, supplier will furnish verification of compliance via: JOI form; supplier declaration or analytical testing referencing JOI part number. 3.375 85,73[] 2.199 55,85[] .235 5,97[] 5X .040 1,02[] .094 2,39[] .898 22,82[] 1.285 32,65[] .183 4,66[] 2.061 52,34[] 2.356 59,83[] 1.494 37,95[] .937 23,79[] 4X .038 0,95[] 4X .060 1,52[] 4X .069 1,75[] .069 1,75[] .531 13,49[] .015 0,38[] .050 1,27[] .085 2,16[] .235 5,97[] .354 8,99[] .419 10,64[] .389 9,87[] .304 7,72[] 5X .254 6,45[] 5X .110 2,79[] .980 24,89[] .665 16,89[] .040 1,02[] 1.197 30,4[] 1.145 29,08[] 1.073 27,25[] 1.045 26,55[] .255 6,48[] .082 2,08[] R.005 0,13[] 1.000 25,4[] 2.950 74,93[] .750 19,05[] .030 0,76[] 2372575 HOUSING BACK 2372575 Concept 1 2 5 2.0:1 135580RELEASE FOR QUOTEDES1/30/14 235738RELEASE FOR TOOLINGDES4/10/14 335763 FIX UNINTENDED UNDERCUT NEAR BATTERY HOLDER. 3-D MODEL CHANGE ONLY. DES4/15/14 435794ADD INSERT AREA FOR FUTURE MARKINGSDES4/30/14 535877ADD AGENCY MARKINGS TO INSERTED AREADES6/12/14 DES1/30/14 NOTES: 1. MATERIAL: SABIC LEXAN 143R-701, COLOR:BLACK MATERIAL REGRIND: NOT ALLOWED VOLUME: 0.7049 IN^3 2. COSMETIC SURFACE QUALITY: UNLESS OTHERWISE SPECIFIED ALL EXTERIOR SURFACES TO BE PER SPI "COSMETIC SPECIFICATION OF INJECTION MOLDED PARTS" GRADE 1, SURFACE A 3. MATERIAL PROCESSING: ALL MATERIALS MUST BE PROCESSED WITHIN THE MATERIAL MANUFACTURER'S SPECIFIED PROCESSING PROPERTIES UNLESS OTHERWISE AUTHORIZED BY JOI ENGINEERING. 4. TEXTURING: ALL EXTERIOR SURFACES TO BE TEXTURED AS NOTED ALL INTERIOR OR CORE FEATURES TO BE FININISHED FOR SMOOTH AND REPEATABLE PART EJECTION FROM TOOL. ALL TEXTURING TO BE APPLIED AFTER SAMPLES HAVE BEEN SUBMITTED TO JOI AND UPON JOI APPPROVAL OF ALL DIMENSIONS. 5. FILLETS AND RADII: PER 3-D DATABASE, R.005 MINIMUM UNLESS OTHERWISE SPECIFIED. 6. FLASH AND BURRS TO BE .005 MAXIMUM UNLESS OTHERWISE SPECIFIED. 7. GATES, PARTING LINES, WELD LINES AND EJECTOR PIN LOCATIONS TO BE APPROVED BY JOI ENGINEERING PRIOR TO TOOL CREATION. EJECTOR PIN MARKS TO BE FLUSH WITH PART SURFACE +.005/-.010. 8. PART TO BE TOOLED PER 3-D DATABASE PROVIDED BY JOI ENGINEERING. DIMENSIONS SHOWN ON DRAWING MUST BE MEASURED ON THE FIRST ARTICLE INSPECTION REPORT. FOR ALL OTHER NON-DIMENSIONED FEATURES USE 3-D DATABASE. 9. DRAFT ANGLES AND DIRECTION DETERMINED BY 3-D DATABASE. DURING MOLD DESIGN BY TOOLMAKER/SUPPLIER DRAFT & PART GEOMETRY MUST BE REVIEWED. IF DRAFT IS REQUIRED, PREFERRED, OR IN NEED OF MODIFICATION IT IS THE RESPONSIBILITY OF THE TOOLMAKER/SUPPLIER TO NOTIFY JOI ENGINEERING FOR REVIEW AND POSSIBLE UPDATE OF PART GEOMETRY. 10. FOR DIMENSIONS SHOWN TO CORNERS WITH RADII ASSUME DIMENSION APPLIES TO THEORETICAL SHARP CORNER (INCLUDING DRAFT IF APPLICABLE) UNLESS OTHERWISE SPECIFIED. 11. JOI ENGINEERING MUST REVIEW AND APPROVE ALL PRINTS AND DATABASES ASSOCIATED PRIOR TO TOOLING, RELOCATING, OR RETOOLING OF THIS PART. 12. CAVITY # REQUIRED FOR MULTIPLE CAVITIES. NOMENCLATURE TO BE RAISED OR RECESSED .015 MAX ABOVE OR BELOW SURFACE. CHARACTER HEIGHT TO BE .05 MINIMUM/.100 MAXIMUM. 13. STEEL SAFE DIMENSIONS ON PART FEATURES ARE TO BE MADE OUT OF TOLERANCE BY X.XX" ON INITIAL PART SAMPLING. THESE FEATURES WILL THEN BE READJUSTED TO WITHIN NOMINAL PRINT . DIMENSIONS AFTER INITAL SAMPLES ARE INSPECTED. 14. PART TO BE FREE OF OILS, LUBRICANTS, MOLD RELEASE, AND ANY FORIEGN DEBRIS AND PACKAGED TO PREVENT DAMAGE DURING SHIPMENT. 15. PART MUST MATE AND FIT WITH PART NUMBER 2372570. 16. HIGH POLISH SURFACE TO MEET SPI "COSMETIC SPECIFICATION OF INJECTION MOLDED PARTS" GRADE 1, SURFACE A. TEXTURE MT-11010 SEE SHEET 2 FOR MORE DETAILS. TEXTURE MT-1055-8 SEE SHEET 2 FOR MORE DETAILS. HIGH POLISH WITHIN STYLE LINE SEE NOTE 16 SEE SHEET 2 FOR MORE DETAILS. HIGH POLISH 12 PLACES SEE NOTE 16. SEE SHEET 2 FOR MORE DETAILS. AREA WITHIN STYLE LINE TO BE INSERTED. THE INSERT WILL BE HAVE AGENCY MARKINGS AND OTHER INFORMATION ADDED AT LATER DATE. SECTION B-B SEE DETAIL A SECTION C-C DETAIL A SCALE 4.000 OUTSIDE SURFACE OF RIB IS SEALING SURFACE. IT MUST BE SMOOTH AND FREE OF NICKS AND BURRS THAT PREVENTS AN AIR TIGHT SEAL WITH THE MATING PART 2375133. HIGH POLISH SEALING SURFACE SEE NOTE 16. SCALE 1.000 SCALE 1.000 DTM9 DTM9 DTM9 D C B A D C B A 1 3 4 5 6 7 8 1 2 3 4 5 6 7 8 REVISIONS REV ECN NO DESCRIPTION BY DATE PART NO. 2 PART NO.: PART NAME: SCALE: D SIZE LIFECYCLE STATUS: U/M: MATERIAL: REV.: DRAWN BY: DATE: This document is the confidential property of Johnson Outdoors and is loaned subject to return upon demand; title to same is never sold/transferred for any reason. This document is to be used only pursuant to written instructions of Johnson Outdoors. All rights to designs and inventions are reserved by Johnson Outdoors. Possession of this document is accepted subject to the foregoing. CONFIDENTIAL PROPERTY- TOLERANCES: .XXXX
#.0010 .X
#.015 .XXX
#.005 FRACTIONAL
#1/64 .XX
#.010 ANGULAR
#0
$30' IN. SHEET OF THIRD ANGLE PROJECTION UNLESS OTHERWI…

Text truncated - open the document above for the full version.

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Internal Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 1 of 3 Figure 1 - Internal photo of PCB Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Internal Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 2 of 3 Figure 2 - RF Section detail Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Internal Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 3 of 3 Figure 3 - Front side of PCB

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 RF Exposure Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 1 of 1 From KDB 447498 D01 v05: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where ・ f(GHz) is the RF channel transmit frequency in GHz ・ Power and distance are rounded to the nearest mW and mm before calculation17 ・ The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion f(GHz) = 2.462 Power = 6.00 mW Minimum separation distance = 5.00 mm (device is handheld and transmitting antenna can be less than 5 mm, so the 5 mm minimum was used) [6.00 mW] / [5.00 mm] • [√2.462 ] = 1.89 Limit = 3.0 6.00 mW was taken from test report R20140520-20 *Note: minimum separation distance was defined as the closest point from the transmitting antenna to human tissue. It is assumed that the user could hold the remote from any point on the outside case.

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Test Setup Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 1 of 4 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Test Setup Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 2 of 4 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Test Setup Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 3 of 4 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Test Setup Photos Applicant: Johnson Outdoors Model Name: MICRO REMOTE (iPilot Micro Remote) Page 4 of 4
