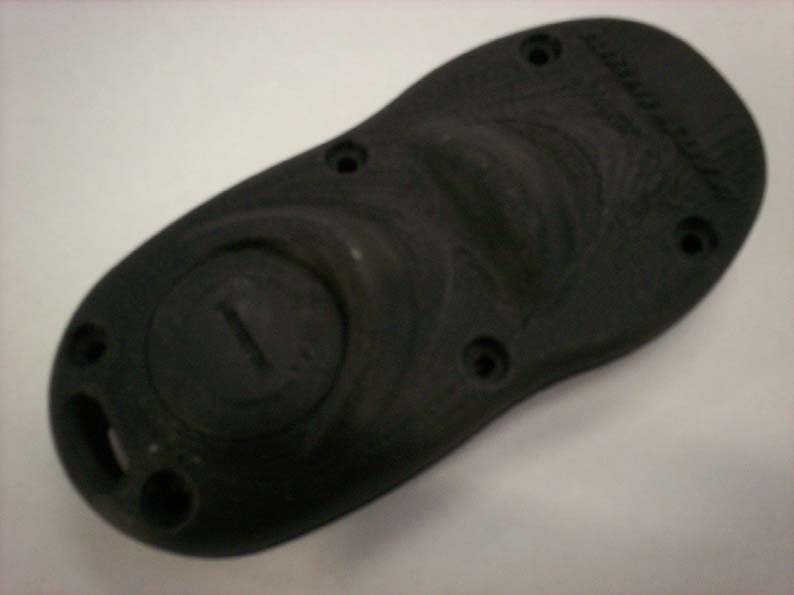

T62-IPREM15Remote Control Transmitter for Fishing Boat Motor

Owner’s Manual © 2011 Johnson Outdoors Marine Electronics, Inc. TABLE OF CONTENTS Introduction ...................................................................................... 3 Two-Year Warranty ........................................................................ 4-5 Installation.................................................................................... 6-25 Parts List............................................................................................6-9 Preparing for Installation ....................................................................10 Installation of i-Pilot Controller...................................................... 11-27 Verifying Installation ..................................................................... 28-29 Getting Started........................................................................... 30-37 Knowing Your Remote ................................................................. 30-32 Knowing Your i-Pilot Controller ................................................... 33-36 System Startup ...................................................................................37 Manual Control........................................................................... 38-41 GPS Motor Control ......................................................................42-61 Spot Lock..................................................................................... 44-47 Cruise Control.............................................................................. 48-49 AutoPilot /Advanced AutoPilot.................................................... 50-55 Track Recording/Playback.............................................................56-61 Frequently Asked Questions........................................................ 62-63 Troubleshooting.......................................................................... 64-67 Glossary ..................................................................................... 68-69 Compliance Statements .............................................................. 70-71 Notes ......................................................................................... 72-73 2 2377152 Revision A minnkotamotors.com 3 INTRODUCTION Overview Thank you for purchasing the Minn Kota ® i-Pilot ® . This revolutionary control system uses GPS technology to record and store tracks and locations which are then used to deliver unprecedented levels of boat control. Intuitive features and wireless control help to accurately position your boat and improve your bait presentation. i-Pilot navigates and positions your boat for you, so you can focus on fishing. This i-Pilot Owner's Manual is divided into four main sections: Installation, Getting Started, Manual Control, and GPS Motor Control. A waterproof and easy-to-read Quick Reference Guide is also included as a supplement to the User Guide, both of which can be stored in the boat for easy access. A French version of the manual is available online at minnkotamotors.com Une version français du manuel est disponible en ligne à minnkotamotors.com Safety and Cautions You are responsible for the safe and prudent operation of your vessel. We have designed i-Pilot to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the responsibility for safe operation of your boat. You must avoid hazards to navigation and always maintain a permanent watch so you can respond to situations as they develop. You must always be prepared to regain manual control of your boat. Learn to operate your i-Pilot in an area free from hazards and obstacles. Warranty and Registration To receive all the benefits of your product warranty please fill out and mail the warranty registration card. You may also register your product online at minnkotamotors.com. Correctly installing i-Pilot on a Minn Kota trolling motor will not void the original motor warranty or the warranty of any previously installed accessories. Installing i-Pilot will not extend the warranty of any Minn Kota product it is being installed into or in conjunction with. minnkotamotors.com LIMITED TWO-YEAR WARRANTY ON ENTIRE PRODUCT: Johnson Outdoors Inc. warrants to the original purchaser that the purchaser’s entire i-Pilot System ® accessory is free from defects in materials and workmanship appearing within two (2) years after the date of purchase. Johnson Outdoors Inc. will, at its option, either repair or replace, free of charge, any parts found to be defective during the term of this warranty. Such repair or replacement shall be the sole and exclusive liability of Johnson Outdoors Inc. and the sole and exclusive remedy of the purchaser for breach of this warranty. These limited warranties do not apply to i-Pilot Systems used commercially, nor do they cover normal wear and tear, blemishes that do not affect the operation, or damage caused by accidents, abuse, alteration, modification, misuse or improper care or maintenance. DAMAGE CAUSED BY THE USE OF OTHER REPLACEMENT PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY THIS LIMITED WARRANTY. The cost of normal maintenance or replacement parts that are not defective are the responsibility of the purchaser. To obtain warranty service in the U.S., the part believed to be defective and proof of original purchase (including the date of purchase) must be presented to a Minn Kota Authorized Service Center or to Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or shipping/freight to/from the Minn Kota Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service, or any other similar items are the sole and exclusive responsibility of the purchaser. i-Pilot systems purchased outside of the U.S. (or parts of such systems) must be returned prepaid …

Text truncated - open the document above for the full version.

minnkotamotors.com This section describes all Manual Control functions of i-Pilot. A manual function is one in which the operator takes full control of the function such as manually steering the motor in a desired direction or manually adjusting the prop speed to the desired setting. Any of these functions do not require a GPS signal. How Do I . . . Turn the Motor On/Off? Motor On/Off To turn the motor on or off press . The prop icon on the LCD will be on if the prop is enabled and off if the prop is disabled. With the prop enabled, the icon will be stationary if the motor speed is zero and the icon will rotate if the motor speed is greater than zero. MANUAL CONTROL FUNCTIONALITY 38 minnkotamotors.com Prop EnabledMotor Speed Greater Than Zero Pressing the MOM or CON button on the foot pedal will adjust the motor speed setting to the foot pedal speed setting. minnkotamotors.com How Do I . . . Control Motor Speed? Motor Speed Control Increase Motor Speed To increase the motor speed push on the remote. Each push of will increment the motor speed by ½ to a maximum of 10. Decrease Motor Speed To decrease the motor speed push on the remote. Each push of will decrement the motor speed by ½ to a minimum of 0. The remote LCD will display the current motor speed setting. This is not to be confused with the GPS speed which is also displayed on the remote LCD. MANUAL CONTROL 39 minnkotamotors.com Motor SpeedGPS Speed While the MOM button is pressed on the foot pedal, all speed and prop changes from the i-Pilot remote are ignored. minnkotamotors.com How Do I . . . Steer the Motor? Motor Steering Control Steer Left To steer the motor to the left press . Steer right To steer the motor to the right press . If a steering button is held down for more than six to eight seconds, the steering will stop to prevent the coil cord from wrapping on the motor. 40 minnkotamotors.com minnkotamotors.com MANUAL CONTROL 41 minnkotamotors.com How Do I . . . Engage High Speed Bypass? High Speed Bypass Operation Engage Pressing will set the motor speed to maximum immediately. Disengage Pressing again will set the motor speed to the value it was at previously. *Note: High Speed Bypass does not enable or disable the prop. How Do I . . . Turn LCD Backlighting On? LCD Backlight Button To turn on LCD backlighting press and release . The backlight will turn off eight seconds after the last button press to conserve battery power. minnkotamotors.com UNDERSTANDING HOW THE I-PILOT SYSTEM WORKS Navigation i-Pilot uses GPS satellite signals as well as digital compass data to know where it is, where it is heading and the direction the motor is pointing. Since i-Pilot depends on GPS satellite signals for navigation, a minimum GPS signal level of one bar is required in order for GPS navigation controls to be enabled. Best results are achieved when a GPS signal level of four bars can be obtained. In simple terms, i-Pilot remembers and creates points to navigate your boat automatically. i-Pilot also uses a method of GPS navigation called arrival circles. These imaginary circles allow i-Pilot to understand when it has drifted away from a point and when it has arrived at a point. The size of the arrival circles vary depending on GPS signal strength, thus the greater the signal strength the smaller the arrival circles. Tracks Tracks are made of many points that i-Pilot records when recording a track. The distance between these points varies based on GPS signal strength and the speed at which you record the track. When a track is played back, i-Pilot uses the track points and arrival circles to navigate the track. 42 minnkotamotors.com minnkotamotors.com GPS MOTOR CONTROL Memory i-Pilot has the capability of storing up to six individual tracks (each two miles in length) and six individual Spot Lock locations. These locations are stored in memory even when power is removed from the system. Spot Lock and Track memory locations are separate from each other and they cannot over write each other. Memory locations are identifi ed on the remote LCD with an icon shown as A, B, C, D, E or F. When the memory icon is fl ashing, a different location can be selected by pressing or . 43 minnkotamotors.com minnkotamotors.com Spot Lock Spot Lock uses a single point as a reference for the spot you want to stay on. This point is recorded and stored into one of the six memory locations when the Spot Lock button is pushed. Around the Spot Lock location i-Pilot uses an arrival circle to determine prop speed and direction. If i-Pilot sees it is within the circle, it will adjust the motor speed to zero. If i-Pilot sees it is outside of the circle, it will control motor speed in an attempt to get the boat back into the circle. HOW SPOT LOCK WORKS 44 minnkotamotors.com minnkotamotors.com SPOT LOCK 45 minnkotamotors.com minnkotamotors.com ENGAGING SPOT LOCK 1. Press on the remote. 2. The Memory Location icon will fl ash on the remote LCD for three seconds, allowing you to choose a memory location by pressing or . Pressing again or waiting for three seconds accepts the memory location. DISENGAGING SPOT LOCK 1. To disengage Spot Lock press any of these buttons: or . 46 minnkotamotors.com Pressing any foot pedal button will disengage Spot Lock. minnkotamotors.com RE-ENGAGE A SAVED SPOT LOCK LOCATION 1. Manually navigate the boat to within a quarter mile of the saved Spot Lock location. Due to safety reasons, i-Pilot will not re-engage a saved Spot Lock location greater than a quarter mile away. 2 Press on the remote. 3. The Memory Location icon will fl ash on the remote LCD for three seconds allowing you to choose a memory location by pressing or . Pressing again or waiting for three seconds accepts the memory location. SPOT LOCK ESCAPE 1. If the Spot Lock button is accidentally hit, press or any manual navigation button within three seconds to cancel the command. Using Spot Lock with Other i-Pilot Functions SinceSpot Lock takes over full control of the motor, it cannot …

Text truncated - open the document above for the full version.

Owner’s Manual © 2011 Johnson Outdoors Marine Electronics, Inc. TABLE OF CONTENTS Introduction ...................................................................................... 3 Two-Year Warranty ........................................................................ 4-5 Installation.................................................................................... 6-25 Parts List............................................................................................6-9 Preparing for Installation ....................................................................10 Installation of i-Pilot Controller...................................................... 11-27 Verifying Installation ..................................................................... 28-29 Getting Started........................................................................... 30-37 Knowing Your Remote ................................................................. 30-32 Knowing Your i-Pilot Controller ................................................... 33-36 System Startup ...................................................................................37 Manual Control........................................................................... 38-41 GPS Motor Control ......................................................................42-61 Spot Lock..................................................................................... 44-47 Cruise Control.............................................................................. 48-49 AutoPilot /Advanced AutoPilot.................................................... 50-55 Track Recording/Playback.............................................................56-61 Frequently Asked Questions........................................................ 62-63 Troubleshooting.......................................................................... 64-67 Glossary ..................................................................................... 68-69 Compliance Statements .............................................................. 70-71 Notes ......................................................................................... 72-73 2 2377152 Revision A minnkotamotors.com 3 INTRODUCTION Overview Thank you for purchasing the Minn Kota ® i-Pilot ® . This revolutionary control system uses GPS technology to record and store tracks and locations which are then used to deliver unprecedented levels of boat control. Intuitive features and wireless control help to accurately position your boat and improve your bait presentation. i-Pilot navigates and positions your boat for you, so you can focus on fishing. This i-Pilot Owner's Manual is divided into four main sections: Installation, Getting Started, Manual Control, and GPS Motor Control. A waterproof and easy-to-read Quick Reference Guide is also included as a supplement to the User Guide, both of which can be stored in the boat for easy access. A French version of the manual is available online at minnkotamotors.com Une version français du manuel est disponible en ligne à minnkotamotors.com Safety and Cautions You are responsible for the safe and prudent operation of your vessel. We have designed i-Pilot to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the responsibility for safe operation of your boat. You must avoid hazards to navigation and always maintain a permanent watch so you can respond to situations as they develop. You must always be prepared to regain manual control of your boat. Learn to operate your i-Pilot in an area free from hazards and obstacles. Warranty and Registration To receive all the benefits of your product warranty please fill out and mail the warranty registration card. You may also register your product online at minnkotamotors.com. Correctly installing i-Pilot on a Minn Kota trolling motor will not void the original motor warranty or the warranty of any previously installed accessories. Installing i-Pilot will not extend the warranty of any Minn Kota product it is being installed into or in conjunction with. minnkotamotors.com LIMITED TWO-YEAR WARRANTY ON ENTIRE PRODUCT: Johnson Outdoors Inc. warrants to the original purchaser that the purchaser’s entire i-Pilot System ® accessory is free from defects in materials and workmanship appearing within two (2) years after the date of purchase. Johnson Outdoors Inc. will, at its option, either repair or replace, free of charge, any parts found to be defective during the term of this warranty. Such repair or replacement shall be the sole and exclusive liability of Johnson Outdoors Inc. and the sole and exclusive remedy of the purchaser for breach of this warranty. These limited warranties do not apply to i-Pilot Systems used commercially, nor do they cover normal wear and tear, blemishes that do not affect the operation, or damage caused by accidents, abuse, alteration, modification, misuse or improper care or maintenance. DAMAGE CAUSED BY THE USE OF OTHER REPLACEMENT PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY THIS LIMITED WARRANTY. The cost of normal maintenance or replacement parts that are not defective are the responsibility of the purchaser. To obtain warranty service in the U.S., the part believed to be defective and proof of original purchase (including the date of purchase) must be presented to a Minn Kota Authorized Service Center or to Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or shipping/freight to/from the Minn Kota Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service, or any other similar items are the sole and exclusive responsibility of the purchaser. i-Pilot systems purchased outside of the U.S. (or parts of such systems) must be returned prepaid …

Text truncated - open the document above for the full version.

minnkotamotors.com This section describes all Manual Control functions of i-Pilot. A manual function is one in which the operator takes full control of the function such as manually steering the motor in a desired direction or manually adjusting the prop speed to the desired setting. Any of these functions do not require a GPS signal. How Do I . . . Turn the Motor On/Off? Motor On/Off To turn the motor on or off press . The prop icon on the LCD will be on if the prop is enabled and off if the prop is disabled. With the prop enabled, the icon will be stationary if the motor speed is zero and the icon will rotate if the motor speed is greater than zero. MANUAL CONTROL FUNCTIONALITY 38 minnkotamotors.com Prop EnabledMotor Speed Greater Than Zero Pressing the MOM or CON button on the foot pedal will adjust the motor speed setting to the foot pedal speed setting. minnkotamotors.com How Do I . . . Control Motor Speed? Motor Speed Control Increase Motor Speed To increase the motor speed push on the remote. Each push of will increment the motor speed by ½ to a maximum of 10. Decrease Motor Speed To decrease the motor speed push on the remote. Each push of will decrement the motor speed by ½ to a minimum of 0. The remote LCD will display the current motor speed setting. This is not to be confused with the GPS speed which is also displayed on the remote LCD. MANUAL CONTROL 39 minnkotamotors.com Motor SpeedGPS Speed While the MOM button is pressed on the foot pedal, all speed and prop changes from the i-Pilot remote are ignored. minnkotamotors.com How Do I . . . Steer the Motor? Motor Steering Control Steer Left To steer the motor to the left press . Steer right To steer the motor to the right press . If a steering button is held down for more than six to eight seconds, the steering will stop to prevent the coil cord from wrapping on the motor. 40 minnkotamotors.com minnkotamotors.com MANUAL CONTROL 41 minnkotamotors.com How Do I . . . Engage High Speed Bypass? High Speed Bypass Operation Engage Pressing will set the motor speed to maximum immediately. Disengage Pressing again will set the motor speed to the value it was at previously. *Note: High Speed Bypass does not enable or disable the prop. How Do I . . . Turn LCD Backlighting On? LCD Backlight Button To turn on LCD backlighting press and release . The backlight will turn off eight seconds after the last button press to conserve battery power. minnkotamotors.com UNDERSTANDING HOW THE I-PILOT SYSTEM WORKS Navigation i-Pilot uses GPS satellite signals as well as digital compass data to know where it is, where it is heading and the direction the motor is pointing. Since i-Pilot depends on GPS satellite signals for navigation, a minimum GPS signal level of one bar is required in order for GPS navigation controls to be enabled. Best results are achieved when a GPS signal level of four bars can be obtained. In simple terms, i-Pilot remembers and creates points to navigate your boat automatically. i-Pilot also uses a method of GPS navigation called arrival circles. These imaginary circles allow i-Pilot to understand when it has drifted away from a point and when it has arrived at a point. The size of the arrival circles vary depending on GPS signal strength, thus the greater the signal strength the smaller the arrival circles. Tracks Tracks are made of many points that i-Pilot records when recording a track. The distance between these points varies based on GPS signal strength and the speed at which you record the track. When a track is played back, i-Pilot uses the track points and arrival circles to navigate the track. 42 minnkotamotors.com minnkotamotors.com GPS MOTOR CONTROL Memory i-Pilot has the capability of storing up to six individual tracks (each two miles in length) and six individual Spot Lock locations. These locations are stored in memory even when power is removed from the system. Spot Lock and Track memory locations are separate from each other and they cannot over write each other. Memory locations are identifi ed on the remote LCD with an icon shown as A, B, C, D, E or F. When the memory icon is fl ashing, a different location can be selected by pressing or . 43 minnkotamotors.com minnkotamotors.com Spot Lock Spot Lock uses a single point as a reference for the spot you want to stay on. This point is recorded and stored into one of the six memory locations when the Spot Lock button is pushed. Around the Spot Lock location i-Pilot uses an arrival circle to determine prop speed and direction. If i-Pilot sees it is within the circle, it will adjust the motor speed to zero. If i-Pilot sees it is outside of the circle, it will control motor speed in an attempt to get the boat back into the circle. HOW SPOT LOCK WORKS 44 minnkotamotors.com minnkotamotors.com SPOT LOCK 45 minnkotamotors.com minnkotamotors.com ENGAGING SPOT LOCK 1. Press on the remote. 2. The Memory Location icon will fl ash on the remote LCD for three seconds, allowing you to choose a memory location by pressing or . Pressing again or waiting for three seconds accepts the memory location. DISENGAGING SPOT LOCK 1. To disengage Spot Lock press any of these buttons: or . 46 minnkotamotors.com Pressing any foot pedal button will disengage Spot Lock. minnkotamotors.com RE-ENGAGE A SAVED SPOT LOCK LOCATION 1. Manually navigate the boat to within a quarter mile of the saved Spot Lock location. Due to safety reasons, i-Pilot will not re-engage a saved Spot Lock location greater than a quarter mile away. 2 Press on the remote. 3. The Memory Location icon will fl ash on the remote LCD for three seconds allowing you to choose a memory location by pressing or . Pressing again or waiting for three seconds accepts the memory location. SPOT LOCK ESCAPE 1. If the Spot Lock button is accidentally hit, press or any manual navigation button within three seconds to cancel the command. Using Spot Lock with Other i-Pilot Functions SinceSpot Lock takes over full control of the motor, it cannot …

Text truncated - open the document above for the full version.

Marine Electronics Group A Division of Johnson Outdoors Inc Authority to Act as Agent Date: 7/27/2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: NCEE is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____5-5-2012____ By: _________________________ Daniel Baston (Signature 1 ) (Print name) Title: Senior Electrical Engineer On behalf of: Johnson Outdoors, Inc. 555 Main St. Racine, WI 56002 Telephone: 507-345-4623 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521-5376 Phone: 402.472.5880 Fax: 402.472.5881 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521-5376 Phone: 402.472.5880 Fax: 402.472.5881 Request for Confidentiality Date: 7/27/2011 Subject: Confidentiality Request for: ___ FCC ID: T62-IPREM15; IC: 4397A-IPREM15_________ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: ______________________Test Engineer Nic Johnson (On behalf of Johnson Outdoors, Inc. (Signature/Title 2 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhea

Marine Electronics Group A Division of Johnson Outdoors Inc Authority to Act as Agent Date: 7/27/2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: NCEE is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____5-5-2012____ By: _________________________ Daniel Baston (Signature 1 ) (Print name) Title: Senior Electrical Engineer On behalf of: Johnson Outdoors, Inc. 555 Main St. Racine, WI 56002 Telephone: 507-345-4623 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521-5376 Phone: 402.472.5880 Fax: 402.472.5881 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521-5376 Phone: 402.472.5880 Fax: 402.472.5881 Request for Confidentiality Date: 7/27/2011 Subject: Confidentiality Request for: ___ FCC ID: T62-IPREM15; IC: 4397A-IPREM15_________ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Test Setup Photos Short …
