T7B-1TTPMS Transmitter

Re: Certification for EnTire Transmitter Model(s): 52933-2F000 FCC ID: T7B-1T IC: 6484A-1T USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: T7B-1T IC: 6484A-1T This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for EnTire Transmitter Model(s): 52933-2F000 FCC ID: T7B-1T IC: 6484A-1T POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for EnTire Transmitter Model(s): 52933-2F000 FCC ID: T7B-1T IC: 6484A-1T REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, EnTire requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) EnTire has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan June 19, 2006 Re: Certification for EnTire Transmitter Model(s): 52933-2F000 FCC ID: T7B-1T IC: 6484A-1T STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for EnTire Transmitter Model(s): 52933-2F000 FCC ID: T7B-1T IC: 6484A-1T GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: EnTire Solutions, LLC 24175 Research Drive Farmington Hills, MI 48335-2642 Redhwan Mawari Tel: 248-478-7210 ext 4827 Fax: 248-478-7241 It will be manufactured by: TRW Automotive Electronics 2240 Cranbrook Drive Auburn, NY 13021 Redhwan Mawari Tel: 315-258-3300 Fax: 248-478-7241 Canadian Contact: TRW Canada Limited 16643 Highway 12 Midland, Ontario, Canada L4R4L5 Phone Number: 705.526.8791 FAX: 705.527.6232 Contact: Bob Millett ext 4103 EnTire Solutions, LLC 24175 Research Drive Farmington Hills, Mi 48335 FR – Letterhead 03/06 Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Letter of Agency for FCC Compliance Testing of Tire Pressure Monitoring Systems Receiver Sensor Initiator Please be advised that EnTire Solutions LLC authorizes Professor Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to the certification of the above said systems. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated this 20 Day of April, 2006-4-20 EnTire Solutions LLC Tim Regnerus Quality Director

BLOCK DIAGRAM Figure 2. TPM Sensor Block Diagram Housing Valve - Rim Mount Pressure / Temperature Sensor / Control IC 125KHz Receive r 315MHz RF Transmitte r Battery Oscillator9.8375 MEG

June 19, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for EnTire Transmitter Model(s): 52933-2F000 FCC ID: T7B-1T IC: 6484A-1T Please find enclosed application materials for certification of EnTire 52933-2F000 Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist June 19, 2006 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for EnTire Transmitter Model(s): 52933-2F000 FCC ID: T7B-1T IC: 6484A-1T Please find enclosed application materials for certification of EnTire 52933-2F000 Transmitter. We tested the device and found it to comply with RSS-GEN/102/210. The product is identified by: IC: 6484A-1T If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

June 19, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: T7B-1T IC: 6484A-1T Model(s): 52933-2F000 Please find enclosed application materials for certification of EnTire 52933-2F000 Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

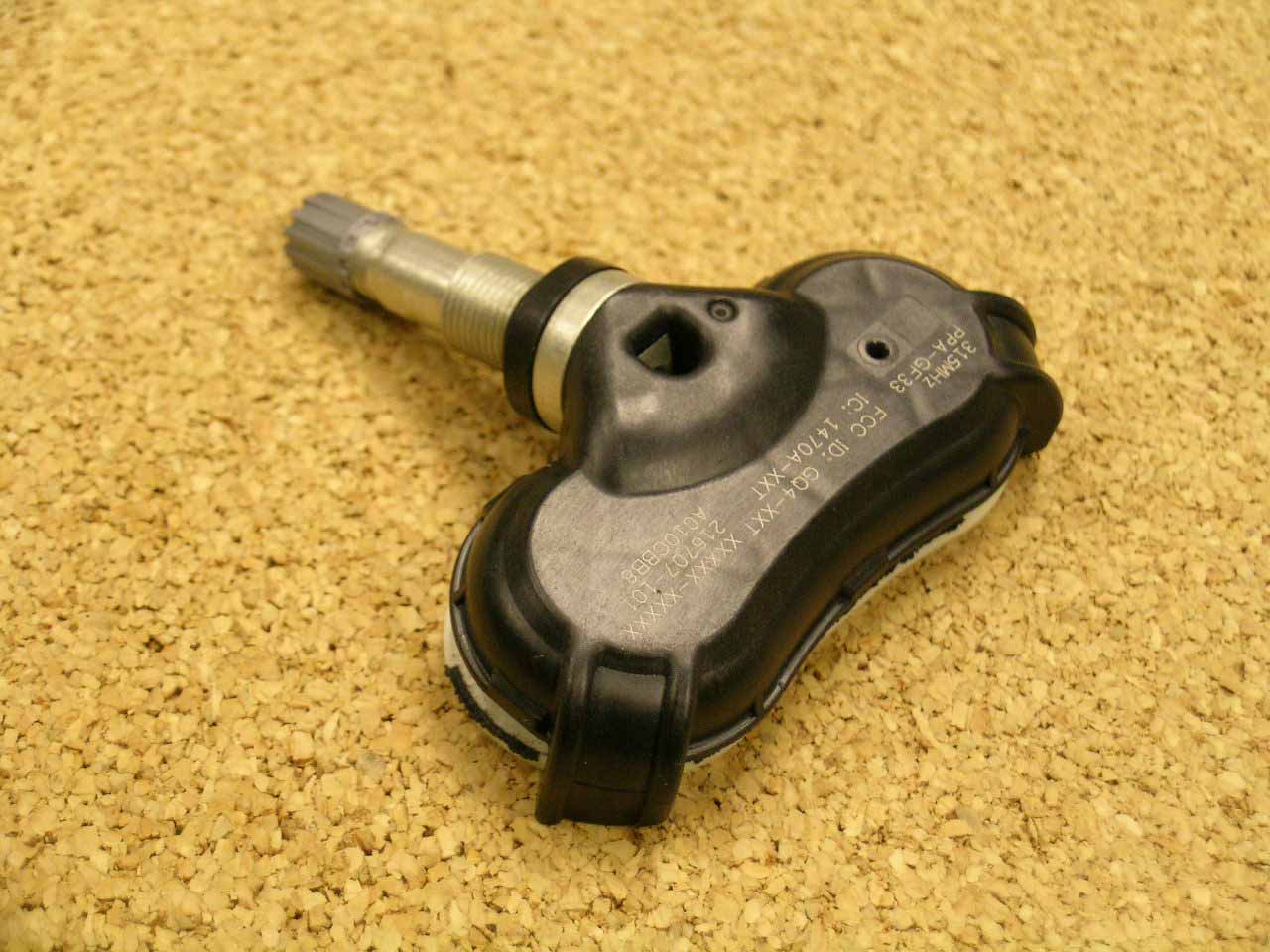

June 06, 2006 TRW Automotive U.S. LLC d.b.a TRW Automotive Electronics 24175 Research Drive Farmington Hills, MI 48335 Tel: 248.478.7210 Fax: 248.478.7241 RE: Certification for TRW TPM ’07 Sensor Model #: 52933-2F000 FCC ID: T7B-1T Canada IC: 6484A-1T EXHIBIT_______ Page ___ of ___ TR W FCC/IC IDENTIFIER AND MODEL NUMBER Please see Figure 1 for the FCC/IC identifier location and model number location. Figure 1. FCC/IC Identifier and Model Number The model number for the sensor is: 52933-2F000 The FCC ID for the sensor is: T7B-1T The Canada IC number for the sensor is: 6484A-1T

June 06, 2006 TRW Automotive U.S. LLC d.b.a TRW Automotive Electronics 24175 Research Drive Farmington Hills, MI 48335 Tel: 248.478.7210 Fax: 248.478.7241 RE: Certification for TRW TPM ’07 Sensor Model #: 52933-2F000 FCC ID: T7B-1T Canada IC: 6484A-1T EXHIBIT_______ Page ___ of ___ TR W GENERAL DESCRIPTION This transmitter is a transmitter device with tire valve, which is mounted in the valve hole of the wheel rim and transmits the pressure and temperature inside the tire, the battery voltage of the transmitter, and the tire identification code (ID) at normal and abnormal condition with the radio wave (RF) that conforms to the used area. Also this device has a countermeasure function such as the random delay of transmission time so that the RF signal from each tire will not interfere such as due to the simultaneous transmission. The transmitter device also has a Low Frequency (LF) receiver. This receiver supports Low Frequency (LF) magnetic field communications allowing the changing of measurement/monitoring states of the transmitter by commands sent via the wheel-arch mounted TPMS Initiator (LF transmitter) for the Highline System only. The RF signal operates at 315MHz and uses FSK Manchester modulation.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-304 Page 1 of 10 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From EnTire Solutions, LLC TPM Transmitter Model(s): 52933-2F000 Report No. 415031-304 June 19, 2006 Copyright © 2006 For: EnTire Solutions, LLC 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Redhwan Mawari Tel: 248-478-7210 ext 4827 Fax: 248-478-7241 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Valdis V. Liepa Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210, were performed on EnTire Solutions, LLC model(s) 52933-2F000. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on March 31, 2006, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 0.3 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from a 12 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-304 Page 2 of 10 1. Introduction EnTire Solutions, LLC model 52933-2F000 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS- 210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-304 Page 3 of 10 3. Configuration and Identification of Device Under Test The DUT is a 315 MHz TPMS, Tire Pressure Monitor Sensor (transmitter), approximately 3 x 0.75 x 3 inches in size. It operates at 315 MHz and the carrier is FSK modulated. The device transmits automatically, or can be actuated by a LF (125 kHz) source. The transmitter consists of an RF MMIC that is stabilized by a 9.8 MHz crystal. The antenna is integral to the PCB. The DUT was designed and manufactured by EnTire Solutions, LLC, 24175 Research Drive, Farmington Hills, MI 48335-2642. It is identified as: EnTire Solutions, LLC TPMS Transmitter Model(s): 52933-2F000 FCC ID: T7B-1T IC: 6484A-1T Two samples were provided, one was selected for testing and the other was dismantled for photographs. An LF source was used to actuate the sensor for testing purposes. Note: The DUT can be either manually (LF) or automatically activated and ceases to transmit within 5 seconds of deactivation in both cases. See Figure 6.1. 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231), Subpart B, (Section 15.109), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210, (Sections 6.1 and 6.3). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. As a digital device, the DUT is considered as a Class B device. 4.1 Radiated Emission Limits Table 4.1.…
