T8GA041Car Infotainment System

MMI Navigation System plus Oper ating Manual Audi V orsprung durch Technik MMI Navigation System plus Englisch 06.2012 MMI Navigation System plus Operating Manual Englisch 06.2012 131.566.3MH.20  1315663MH20www.audi.com 2 Titel oder Name, Abteilung, Datum © 2012 AUDI AG AUD I AG works continuously to develop and further improve all models. You will appreci- ate that we must therefore reserve the right to alter any part of the vehicle and its equip- ment or technical specifications at any time. No legal commitment can therefore be im- plied by the information, illustrations or de- scriptions in this Manual. No part of this publication may be reprinted, reproduced or translated without the written permission of AUDI AG. All rights under the laws of copyright are expressly reserved by AUDI AG. Subject to alteration and amend- ment. Printed in Germany. Date of publication: 20.04.2012 For the sake of the environment This paper was bleached without use of chlorine. 2 Titel oder Name, Abteilung, Datum Foreword Thank you for choosing the MMI Navigation System plus . Your new Audi is designed with the latest technology, enabling you to control all on-board electronic systems and other settings centrally via the MMI. We recommend that you read this Operating Manual carefully so that you quick- ly become familiar with all the available functions of the MMI and can take full advantage of them in everyday use. Please note that this Operating Manual is intended to supplement the informa- tion in the Owner's Manual for your vehicle, so it should only be used in conjunc- tion with the current edition of the Owner's Manual. We wish you safe and enjoyable motoring with your Audi. AUDI AG  1315663MH20 2 Titel oder Name, Abteilung, Datum 2Table of Contents Notes about this Operating Manual . . . . . . . . . . . . . . . . . . . . . . . .4 Controls . . . . . . . . . . . . . . . . . . . . . . .5 Overview . . . . . . . . . . . . . . . . . . . . . .5 Controls and displays at a glance . . . .5 Notes on traffic safety . . . . . . . . . . . . .5 Cleaning and care . . . . . . . . . . . . . . . . .6 Notes on software licences . . . . . . . . .6 MMI control console . . . . . . . . . . 7 Switching the MMI system on/off . . . . 7 Adjusting the volume . . . . . . . . . . . . . 7 How to use the controls . . . . . . . . . . . . 7 MMI touch . . . . . . . . . . . . . . . . . . . . . . 8 Speller for letters/numbers . . . . . . . . 9 Menus and symbols . . . . . . . . . . . . . . . 10 Multi-function steering wheel 12 How to use the controls . . . . . . . . . . . . 12 Using the telephone . . . . . . . . . . . . . . 13 Navigation . . . . . . . . . . . . . . . . . . . . . . 14 Listening to the radio . . . . . . . . . . . . . . 15 Playing media . . . . . . . . . . . . . . . . . . . .15 Speech dialogue system . . . . . .17 How to use the speech dialogue system . . . . . . . . . . . . . . . . . . . . . . . . .16 Notes on the overviews of commands18 Global commands . . . . . . . . . . . . . . . .18 Telephone . . . . . . . . . . . . . . . . . . . . . . .18 Navigation . . . . . . . . . . . . . . . . . . . . . .19 Radio . . . . . . . . . . . . . . . . . . . . . . . . . .21 Media . . . . . . . . . . . . . . . . . . . . . . . . . .21 Media drives/connections . . . .22 Introduction . . . . . . . . . . . . . . . . . . . . .22 Notes . . . . . . . . . . . . . . . . . . . . . . . . . .22 Jukebox . . . . . . . . . . . . . . . . . . . . . . . . .23 DVD drive . . . . . . . . . . . . . . . . . . . . . . .24 SD card readers . . . . . . . . . . . . . . . . . .24 Bluetooth audio players . . . . . . . . . . . .25 Audi music interface . . . . . . . . . . . . . .25 Supported media and file formats . . .27 Troubleshooting . . . . . . . . . . . . . . . . . .28 System settings . . . . . . . . . . . . . . .29 Setting the time/date . . . . . . . . . . . . .29 Adjusting the sound . . . . . . . . . . . . . . .29 Adjusting the system volume . . . . . . .30 Restarting the MMI system (Reset) . .31 Speed display on driving school vehicles . . . . . . . . . . . . . . . . . . . . . . . . .31 Other settings . . . . . . . . . . . . . . . . . . . 31 Communication . . . . . . . . . . . . . . . 33 Telephone . . . . . . . . . . . . . . . . . . . . . 33 Introduction . . . . . . . . . . . . . . . . . . . . . 33 Bonding a mobile phone . . . . . . . . . . . 33 Calling up the telephone . . . . . . . . . . . 35 Dialling a telephone number . . . . . . . . 35 Answering/ignoring telephone calls . . 36 During a telephone call . . . . . . . . . . . . 37 Storing a telephone number . . . . . . . . 37 Other settings . . . . . . . . . . . . . . . . . . . 38 Audi Phone Box . . . . . . . . . . . . . . . . . . 39 Directory . . . . . . . . . . . . . . . . . . . . . .41 Calling up the directory . . . . . . . . . . . .41 Storing a contact . . . . . . . . . . . . . . . . .41 Using a contact . . . . . . . . . . . . . . . . . .42 Editing/deleting a contact . . . . . . . . . .43 Importing/exporting contacts . . . . . .43 Other settings . . . . . . . . . . . . . . . . . . .44 Navigation . . . . . . . . . . . . . . . . . . . . .45 Navigation . . . . . . . . . . . . . . . . . . . . .45 Calling up the navigation menu . . . . .45 Entering a destination . . . . . . . . . . . . .45 Starting/stopping route guidance . . . .48 How to use the map . . . . . . . . . . . . . . .49 Calling up traffic information . . . . . . .50 Other settings . . . . . . . . . . . . . . . . . . .50 Entertainment . . . . . . . . . . . . . . . .54 Listening to the radio . . . . . . . . .54 Calling up the radio . . . . . . . . . . . . . . .54 Radio functions . . . . . . . . . . . . . . . . . .54 2 Titel oder Name, Abteilung, Datum 3Table of Contents Controls Communication Navigation Entertainment Other settings . . . . . . . . . . . . . . . . . . .55 Troubleshooting . . . . . . . . . . . . . . . . . .57 Playing media . . . . . . . . . . . . . . . . .58 Calling up the media menu . . . . . . . . .58 Media cent…

Text truncated - open the document above for the full version.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 02.01.2012 Datum: 00.00.0000 Seite 1 von 1 Long/Short-term Confidentiality Request PHOENIX TESTLAB GmbH Date: 15 November 2012 Product Certification Königswinkel 10 D 32825 Blomberg FCC ID: T8GA041 To Whom it may concerns, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be temporarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: 2013/03/01 not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Applicant’s Company address : PHOENIX TESTLAB GmbH Koenigswinkel 10 32825 Blomberg, Germany Signature : ____________________________ Job Title and Dept. : Graduated Certification Specialist International Radio Type Approval

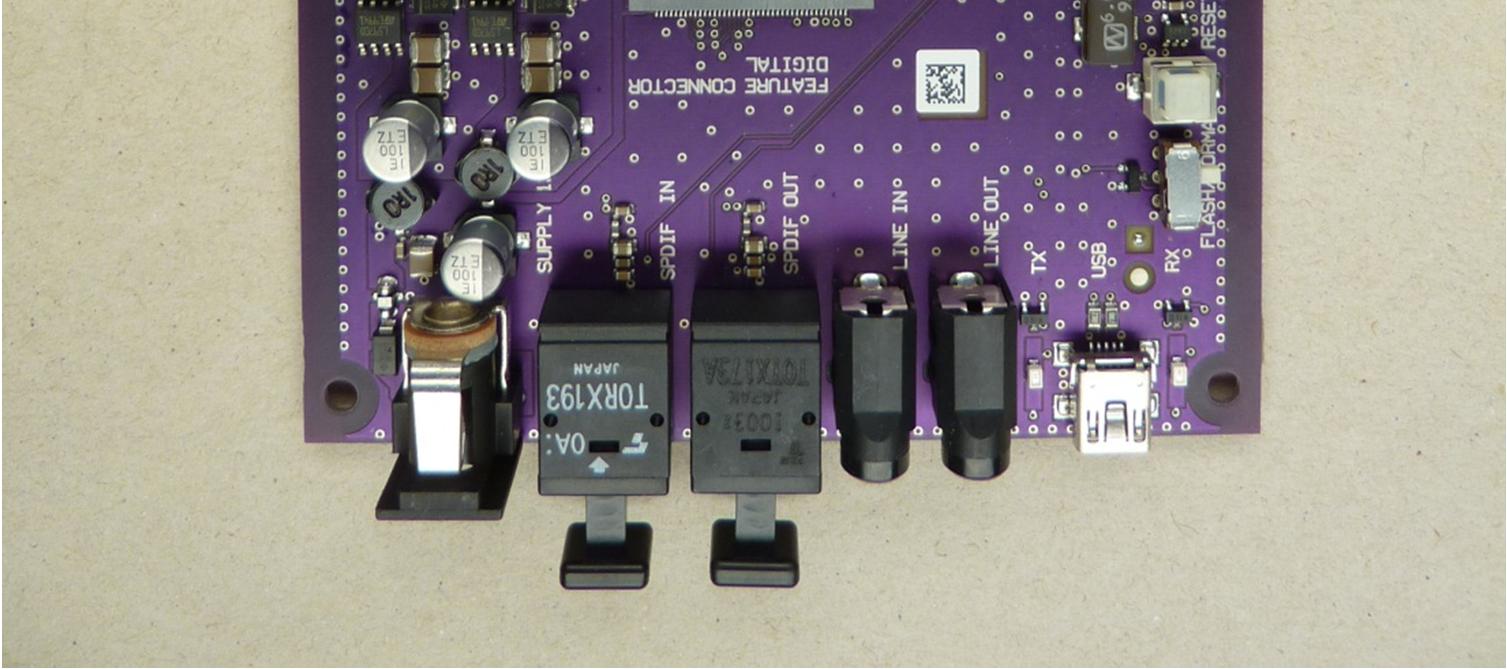

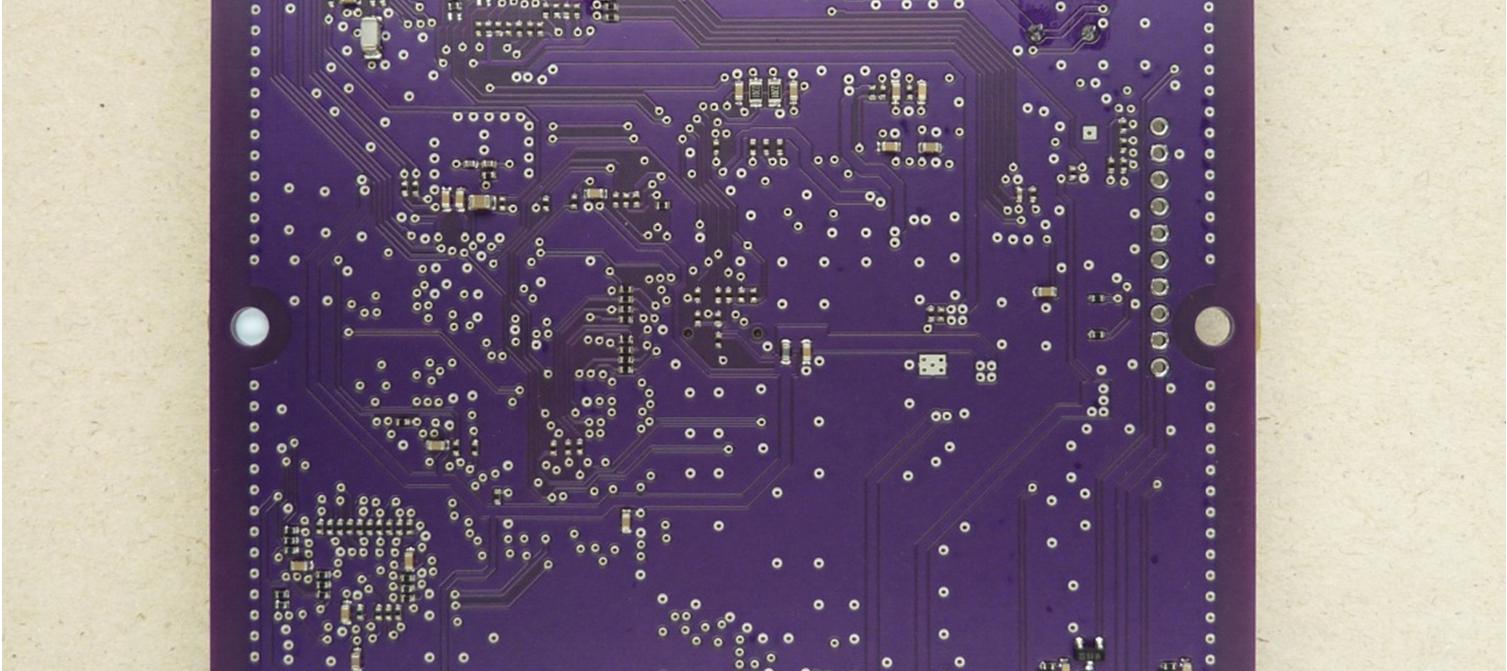

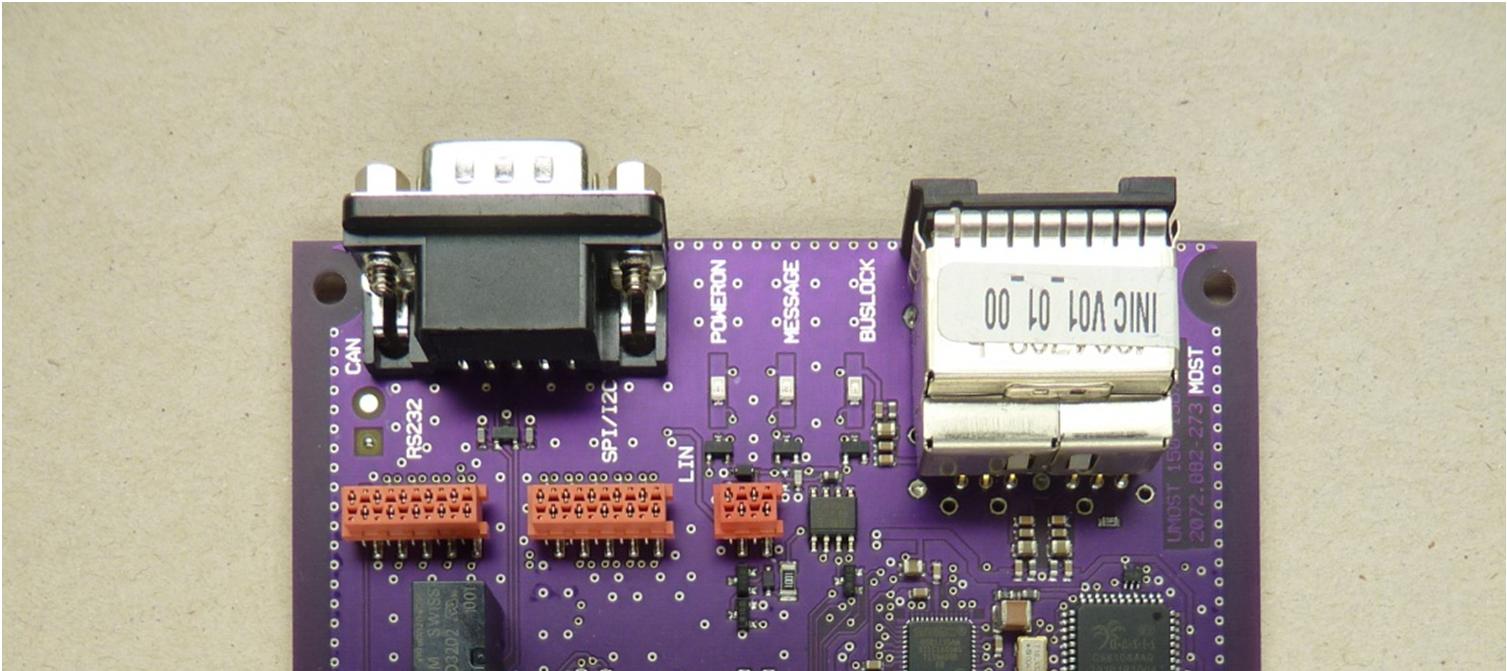

ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 1 of 8 123736_18.JPG: Audi MIB, 3D view 1 ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 2 of 8 123736_19.JPG: Audi MIB, 3D view 2 ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 3 of 8 123736_24.JPG: Evaluation board, top view ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 4 of 8 123736_25.JPG: Evaluation board, bottom view ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 5 of 8 123736_21.JPG: Audi MIB, type plate 1, sample radiated measurments ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 6 of 8 123736_20.JPG: Audi MIB, type plate 2, sample radiated measurments ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 7 of 8 123736_22.JPG: Audi MIB, type plate 1, sample conducted measurments ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 8 of 8 123736_23.JPG: Audi MIB, type plate 2, sample conducted measurments

MIB MainUnit Productlabel Certification-Label – DRAFT – QD ID: B019469 FCC ID: T8GA041 IC: 6434A-A041 Contains FCC ID: QIPAH6A-US Includes IC: 7830A-AH6AUS MIB MainUnit 0700

ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 1 of 13 123736_8.JPG: Audi MIB, WLAN/BT board, top view ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 2 of 13 123736_10.JPG: Audi MIB, WLAN/BT board, bottom view ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 3 of 13 123736_9.JPG: Audi MIB, detail view to WLAN/BT circuit ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 4 of 13 123736_16.JPG: Audi MIB, detail view to temporary antenna connectors ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 5 of 13 123736_26.JPG: UMTS module, bottom view ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 6 of 13 123736_27.JPG: UMTS module, top view ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 7 of 13 123736_28.JPG: Audi MIB, top view with removed UMTS module ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 8 of 13 123736_29.JPG: Audi MIB, top cover removed ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 9 of 13 123736_30.JPG: Audi MIB, CD/DVD drive removed, top view ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 10 of 13 123736_31.JPG: Audi MIB, main PCB, bottom view ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 11 of 13 123736_32.JPG: Audi MIB, left hand view with removed top cover ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 12 of 13 123736_33.JPG: Audi MIB, front cover removed ANNEX C INTERNAL PHOTS Examiner: Manuel BASTERT Test Report No.: F123736E1 Date of issue: 15 October 2012 Order No.: 12-113736 page 13 of 13 123736_35.JPG: Audi MIB, main PCB, top view

Königswinkel 10 32825 Blomberg Germany Phone: +49 (0) 52 35 95 00-0 Fax: +49 (0) 52 35 95 00-10 Test Report Report Number: F123736E2 Applicant: Harman Becker Automotive Systems GmbH Manufacturer: Harman Becker Automotive Systems GmbH Equipment under Test (EUT): MIB MAIN-UNIT Laboratory (CAB) accreditedby Deutsche Gesellschaft für Akkreditierung mbH in compliance with DIN EN ISO/IEC 17025 under the Reg. No. DGA-PL-105/99-22, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469A-1 Test engineer: Manuel BASTERT Report Number: F123736E2 Date of issue: 16 October 2012 Order Number: 12-113736 page 2 of 49 REFERENCES [1] ANSI C63.4-2009 American National Standard for Methods of Measuring of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. [2] FCC CFR 47 Part 15 (August 2011) Radio Frequency Devices [3] FCC Public Notice DA 00-705 (March 2000) [4] RSS-210 Issue 8 (December 2010) Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment [5] RSS-Gen Issue 3 (December 2010) General Requirements and Information for the Certification of Radio Apparatus [6] Publication Number 913591 (March 2007) Measurement of radiated emissions at the edge of the band for a Part 15 RF Device TEST RESULT The requirements of the tests performed as shown in the overview (clause 4) were fulfilled by the equipment under test. The complete test results are presented in the following. RESERVATION This test report is only valid in its original form. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Test engineer: Manuel BASTERT 16 October 2012 Name Signature Date Authorized reviewer: Bernd STEINER 16 October 2012 Name Signature Date Test engineer: Manuel BASTERT Report Number: F123736E2 Date of issue: 16 October 2012 Order Number: 12-113736 page 3 of 49 Contents: Page 1 IDENTIFICATION................................................................................................................................4 1.1 Applicant ........................................................................................................................................4 1.2 Manufacturer ..................................................................................................................................4 1.3 Test laboratory ...............................................................................................................................4 1.4 EUT (Equipment Under Test) .........................................................................................................5 1.5 Technical data of equipment ...........................................................................................................5 1.6 Dates .............................................................................................................................................5 2 OPERATIONAL STATES ....................................................................................................................6 3 ADDITIONAL INFORMATION .............................................................................................................7 4 OVERVIEW ........................................................................................................................................8 5 TEST RESULTS .................................................................................................................................9 5.1 20 dB bandwidth ............................................................................................................................9 5.1.1 Method of measurement .......................................................................................................9 5.1.2 Test results ........................................................................................................................ 10 5.2 Carrier frequency separation ........................................................................................................ 12 5.2.1 Method of measurement ..................................................................................................... 12 5.2.2 Test results ........................................................................................................................ 13 5.3 Number of hopping frequencies .................................................................................................... 15 5.3.1 Method of measurement ..................................................................................................... 15 5.3.2 Test results ........................................................................................................................ 16 5.4 Dwell time .................................................................................................................................... 17 5.4.1 Method of measurement ..................................................................................................... 17 5.4.2 Test results ........................................................................................................................ 18 5.5 Maximum peak output power ........................................................................................................ 21 5.5.1 Method of measurement ..................................................................................................... 21 5.5.2 Test results ......................................................................................…

Text truncated - open the document above for the full version.

ANNEX D MEAUREMENT RESULTS WLAN / BLUETOOTH COLOCATION Test engineer: Manuel BASTERT Report Number: F123736E1 Date of issue: 15 October 2012 Order Number: 12-113736 page 1 of 7 1 Test results (radiated emissions) with internal antenna 1.1 Preliminary radiated emission measurement (9 kHz to 1 GHz) Ambient temperature 20 °C Relative humidity 40 % Position of EUT: The EUT was set-up on a non-conducting table of a height of 0.8 m. The distance between EUT and antenna was 3 m. Cable guide: The cable of the EUT is running vertically to the false floor. For detail information of test set-up and the cable guide refer to the pictures in annex A of this test report. Test record: All results are shown in the following. Supply voltage: During all measurements the EUT was battery supplied with 12 V DC . Operation mode: WLAN: Continuous modulated transmission at Ch. 1 (2412 MHz) with power setting 15 in 802.11b-mode. Bluetooth: Continuous modulated transmission at Ch. 78 (2480 MHz) with packet type DH5. 123736_CO1.wmf: Spurious emissions from 9 kHz to 150 kHz: 1MAX A 1MA UnitdB Ì V Start 9 kHzStop 150 kHz14.1 kHz/ Ref Lvl 70 dB Ì V Ref Lvl 70 dB Ì V RF Att 0 dBRBW 200 Hz SWT 18 s VBW 200 Hz 1MA IN1 -20 -10 0 10 20 30 40 50 60 -30 70 Date: 5.OCT.2012 14:00:18 ANNEX D MEAUREMENT RESULTS WLAN / BLUETOOTH COLOCATION Test engineer: Manuel BASTERT Report Number: F123736E1 Date of issue: 15 October 2012 Order Number: 12-113736 page 2 of 7 123736_CO2.wmf: Spurious emissions from 150 kHz to 1 MHz: 123736_CO3.wmf: Spurious emissions from 1 MHz to 30 MHz: No significant frequencies above the noise floor of the system were found during the preliminary radiated emission test inside this frequency range, so no measurements were carried out on the outdoor test site. Test equipment used: 29, 31 – 34, 55 1MAX Ref Lvl 70 dB Ì V Ref Lvl 70 dB Ì V RF Att 0 dB A 1MA UnitdB Ì V Start 1 MHzStop 30 MHz2.9 MHz/ RBW 10 kHz SWT 740 ms VBW 10 kHz 1MA IN1 -20 -10 0 10 20 30 40 50 60 -30 70 Date: 5.OCT.2012 13:29:09 UnitdB Ì V A RBW 200 Hz SWT 18 s VBW 200 Hz IN1 1MA RF Att 0 dB Ref Lvl 70 dB Ì V Ref Lvl 70 dB Ì V Start 9 kHzStop 150 kHz14.1 kHz/ 1MAX1MA -20 -10 0 10 20 30 40 50 60 -30 70 Date: 5.OCT.2012 12:29:09 ANNEX D MEAUREMENT RESULTS WLAN / BLUETOOTH COLOCATION Test engineer: Manuel BASTERT Report Number: F123736E1 Date of issue: 15 October 2012 Order Number: 12-113736 page 3 of 7 123376_CO4.wmf: Spurious emissions from 30 MHz to 230 MHz : 123376_CO5.wmf: Spurious emissions from 230 MHz to 1000 MHz : The same frequencies as in clause 5.5.2.1 were found. Please refer to clause 5.5.2.2 for the result of the final measurement. Test equipment used: 29, 31 - 35, 47 1MAX A 1MA UnitdB Ì V/m Start 30 MHzStop 230 MHz20 MHz/ TDF P20 Ref Lvl 70 dB* Ref Lvl 70 dB* RBW 100 kHz VBW 100 kHz SWT 110 ms RF Att 0 dB 1MA IN1 -20 -10 0 10 20 30 40 50 60 -30 70 Date: 5.OCT.2012 14:35:35 1MAX A 1MA UnitdB Ì V/m P20 TDF Start 230 MHzStop 1 GHz77 MHz/ Ref Lvl 70 dB* Ref Lvl 70 dB* RBW 100 kHz VBW 100 kHz SWT 195 ms RF Att 0 dB 1MA IN1 -20 -10 0 10 20 30 40 50 60 -30 70 Date: 5.OCT.2012 14:44:37 ANNEX D MEAUREMENT RESULTS WLAN / BLUETOOTH COLOCATION Test engineer: Manuel BASTERT Report Number: F123736E1 Date of issue: 15 October 2012 Order Number: 12-113736 page 4 of 7 1.2 Preliminary radiated emission measurement (1 GHz to 25 GHz) Ambient temperature 21 °C Relative humidity 38 % Position of EUT: The EUT was set-up on a non-conducting table of a height of 0.8 m. The distance between EUT and antenna was 3 m. Cable guide: The cable of the EUT is running vertically to the false floor. For detail information of test set-up and the cable guide refer to the pictures in annex A of this test report. Test record: All results are shown in the following. Supply voltage: During all measurements the EUT was battery supplied with 12 V DC . Resolution bandwidth: For all measurements a resolution bandwidth of 1 MHz was used. Operation mode: WLAN: Continuous modulated transmission at Ch. 1 (2412 MHz) with power setting 15 in 802.11b-mode. Bluetooth: Continuous modulated transmission at Ch. 78 (2480 MHz) with packet type DH5. 123736_CO6.wmf: Spurious emissions from 1 GHz to 4 GHz: 1MAX Ref Lvl 70 dB Ì V Ref Lvl 70 dB Ì V RBW 100 kHz VBW 100 kHz SWT 760 ms RF Att 0 dB A IN1 1MA1MA UnitdB Ì V Start 1 GHzStop 4 GHz300 MHz/ P20 -20 -10 0 10 20 30 40 50 60 -30 70 Date: 5.OCT.2012 15:50:21 ANNEX D MEAUREMENT RESULTS WLAN / BLUETOOTH COLOCATION Test engineer: Manuel BASTERT Report Number: F123736E1 Date of issue: 15 October 2012 Order Number: 12-113736 page 5 of 7 123736_CO7.wmf: Spurious emissions from 4 GHz to 12 GHz: 123736_CO8.wmf: Spurious emissions from 12 GHz to 18 GHz: 1MAX SWT 2 s A 1MA UnitdB Ì V Start 4 GHzStop 12 GHz800 MHz/ Ref Lvl 70 dB Ì V Ref Lvl 70 dB Ì V RBW 100 kHz VBW 100 kHz RF Att 0 dB 1MA IN1 -20 -10 0 10 20 30 40 50 60 -30 70 Date: 5.OCT.2012 16:08:52 1MAX Ref Lvl 70 dB Ì V Ref Lvl 70 dB Ì V RBW 100 kHz VBW 100 kHz SWT 1.5 s RF Att 0 dB A IN1 1MA1MA UnitdB Ì V Start 12 GHzStop 18 GHz600 MHz/ -20 -10 0 10 20 30 40 50 60 -30 70 Date: 8.OCT.2012 10:47:55 ANNEX D MEAUREMENT RESULTS WLAN / BLUETOOTH COLOCATION Test engineer: Manuel BASTERT Report Number: F123736E1 Date of issue: 15 October 2012 Order Number: 12-113736 page 6 of 7 123736_CO9.wmf: Spurious emissions from 18 GHz to 25 GHz: The following frequency was found inside the restricted bands during the preliminary radiated emission test: - 4.804 GHz. The following frequency was found outside the restricted bands during the preliminary radiated emission test: - 2.402 GHz. These frequencies have to be measured in a final measurement. The results were presented in the following. Test equipment used: 29, 31 – 34, 36, 37, 39, 41, 42, 46, 49 – 51, 72 1MAX Ref Lvl 70 dB Ì V Ref Lvl 70 dB Ì V RBW 100 kHz VBW 100 kHz SWT 1.75 s RF Att 0 dB A IN1 1MA1MA UnitdB Ì V Start 18 GHzStop 25 GHz700 MHz/ -20 -10 0 10 20 30 40 50 60 -30 70 Date: 8.OCT.2012 11:11:44 ANNEX D MEAUREMENT RESULTS WLAN / BLUETOOTH COLOCATIO…

Text truncated - open the document above for the full version.

ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E2 Date of issue: 15 October 2012 Order No.: 12-113736 page 1 of 6 123736_1.JPG: Test setup fully anechoic chamber ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E2 Date of issue: 15 October 2012 Order No.: 12-113736 page 2 of 6 123736_2.JPG: Test setup fully anechoic chamber ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E2 Date of issue: 15 October 2012 Order No.: 12-113736 page 3 of 6 123736_3.JPG: Test setup fully anechoic chamber ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E2 Date of issue: 15 October 2012 Order No.: 12-113736 page 4 of 6 123736_4.JPG: Test setup fully anechoic chamber ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E2 Date of issue: 15 October 2012 Order No.: 12-113736 page 5 of 6 123736_5.JPG: Test setup fully anechoic chamber ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F123736E2 Date of issue: 15 October 2012 Order No.: 12-113736 page 6 of 6 123736_6.JPG: Test setup open area test site
