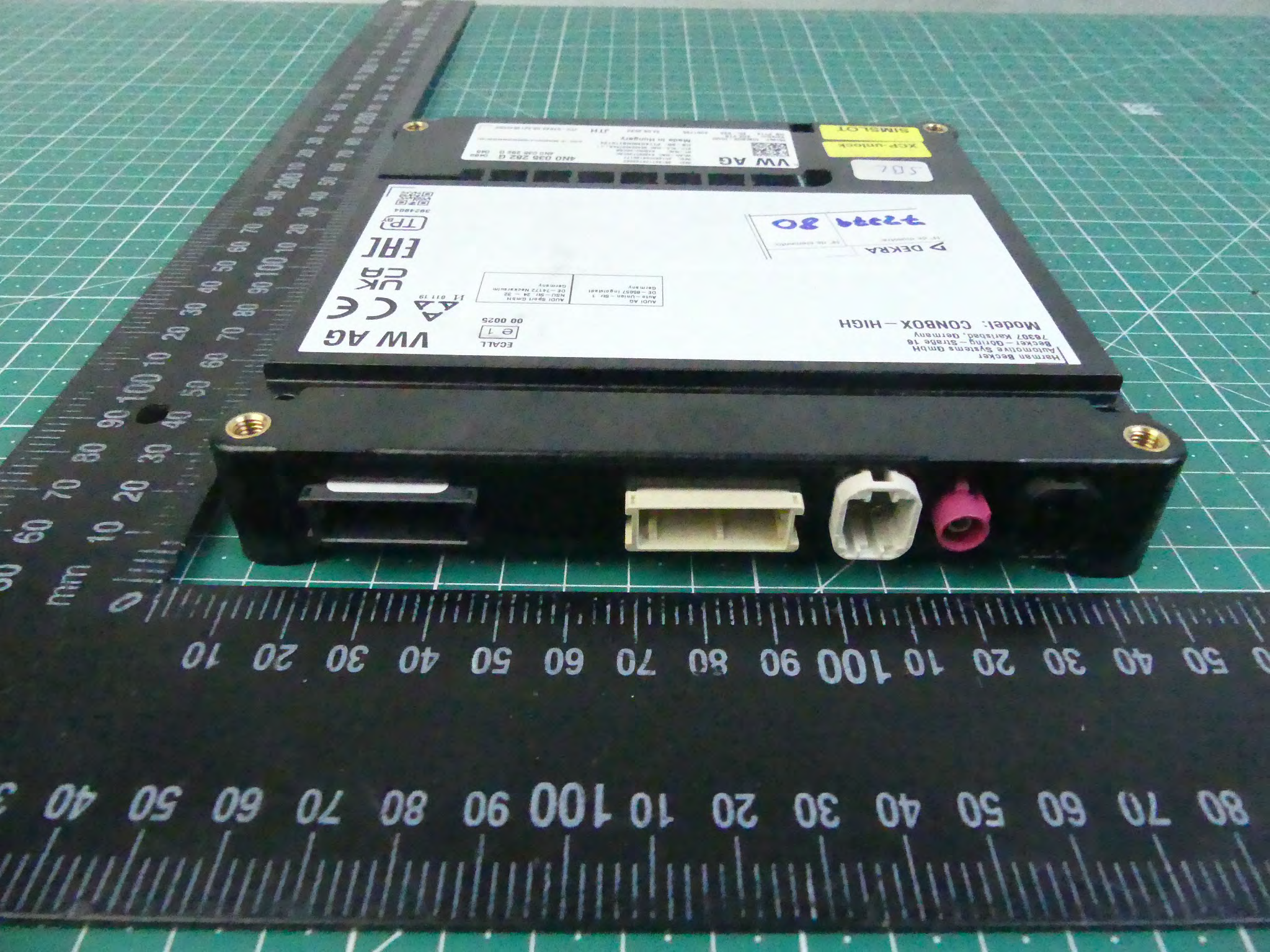

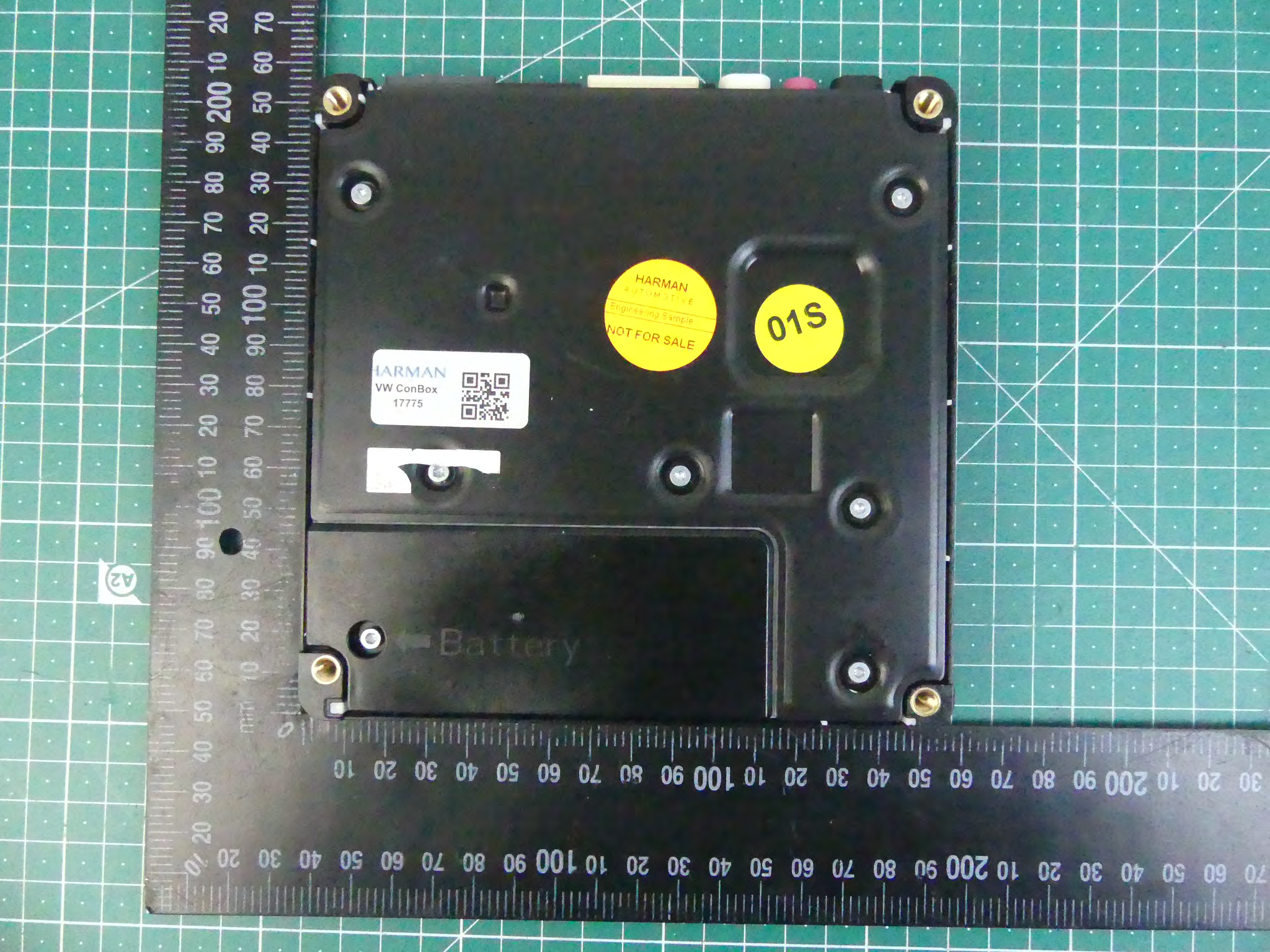

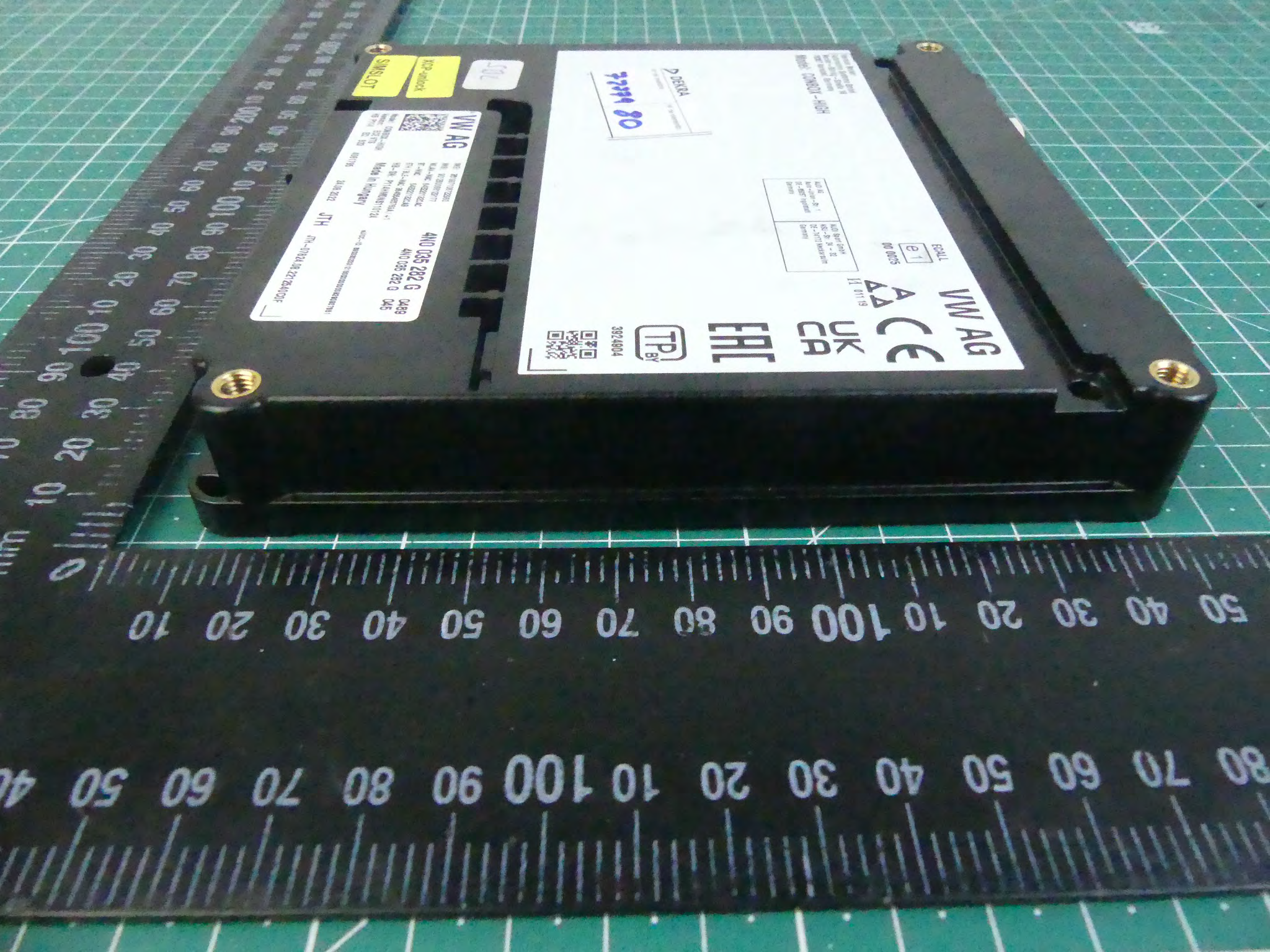

T8GCONBOXRDTelematic control unit with wireless technologies, used in automotive industry.

Technical User Manual Input Version 2.0 24.04.2022 Harman Becker Automotive Systems GmbH CONNECTIVITY BOX HIGH REDESIGN (RD) 1. Input for the User manual for variants 4KE.035.282 J / 4KE.035.282 J / 9J1.035.282 G / 4N0.035.282 F 1.1. Declaration of Conformity (DoC in short form) 1.1.1. English: Hereby, Harman Becker Automotive Systems GmbH declares that the radio equipment type CONBOX HIGH RD will be compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity will be available at the following internet Address: http://www.harman.com/compliance Overview of technical radio values (ECE variant) Bluetooth: 2400 – 2483,5 MHz <10 dBm Bluetooth LE: 2.4 - to 2.483-GHz Class 2 <4 dBm WLAN: 2401 - 2483,5 MHz <10 dBm WLAN: 5735 - 5835 MHz <14 dBm GSM: EGSM900 Class 4 (+33dBm ±2dB) GSM: GSM1800 Class 1 (+30dBm ±2dB) GSM: GSM 900 8-PSK Class E2 (+27dBm ± 3dB) GSM: GSM 1800 8-PSK Class E2 (+26dBm +3 /-4dB) UMTS: B1 (2100MHz) Class 3 (+24dBm +1/-3dB) UMTS: B3 (1800MHz) Class 3 (+24dBm +1/-3dB) UMTS: B8 (900MHz) Class 3 (+24dBm +1/-3dB) LTE: FDD B1 (2100MHz) Class 3 (+23dBm ±2dB) LTE: FDD B3 (1800MHz) Class 3 (+23dBm ±2dB) LTE: FDD B7 (2600MHz) Class 3 (+23dBm ±2dB) LTE: FDD B8 (900MHz) Class 3 (+23dBm ±2dB) LTE: FDD B20 (800MHz) Class 3 (+23dBm ±2dB) LTE: FDD B28 (700MHz) Class 3 (+23dBm ±2dB) LTE: FDD B32 (1500MHz) Class 3 (+23dBm ±2dB) LTE: TDD B38 (2600MHz) Class 3 (+23dBm ±2dB) Note: For the overview of the technical radio values for all the variants per country please refer to the table from the annex. Manufacturer Harman Becker Automotive Systems GmbH Becker-Goering-Strasse 16 76307 Karlsbad, Germany 1.2. Overview of technical radio values (ECE variant) Bluetooth: 2400 - 2483 MHz <10 dBm Bluetooth LE: 2.4 - to 2.483-GHz Class 2 <4 dBm WLAN: 2400 - 2483,5 MHz <10 dBm WLAN: 5735 - 5835 MHz <14 dBm Note: For the overview of the technical radio values for all the variants per country please refer to the table from the annex. 1.3. Manufacturer Harman Becker Automotive Systems GmbH Becker-Goering-Strasse 16 76307 Karlsbad, Germany 1.4. FCC Compliance statement Model: CONBOX HIGH RD FCC ID: T8GCONBOXRD This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. To comply with RF exposure compliance requirements, the device must be installed to provide a separation distance of at least 25 cm from all persons. 1.5. Target market Bolivia Model: CONBOX HIGH RD Brand: VW AG 1.6. Target market Nepal Model: CONBOX HIGH RD Brand: VW AG 1.7. Target market Brazil Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. 1.8. Target market Indonesia For device made in Hungary VW/AUDI For device made in Hungary LAMBORGHINI HHHHH-AA-FFFFF XXXXX /SDPPI/ YYYY 12545 Dilarang melakukan perubahan Spesifikasi yang dapat Menimbulkan gangguan fisik dan/atau elektromagnetik terhadap lingkungan sekitarnya XXXXX /SDPPI/ YYYY 4334 Dilarang melakukan perubahan Spesifikasi yang dapat Menimbulkan gangguan fisik dan/atau elektromagnetik terhadap lingkungan sekitarnya 1.9. Target market NIGERIA Model: CONBOX HIGH RD 1.10. Target market Oman 1.11. Target market Paraguay Importer/dealer in Paraguay: DIESA S.A. Address of the importer/dealer: Av. Eusebio Ayala km 4,5 Local phone of the importer/dealer: 00595 9 81400701 1.12. Target market UKRAINE Цим Harman Becker Automotive Systems GmbH заявляє, що тип радіообладнання: Головний блок з технологією WLAN, BLUETOOTH, GNSS. Mодель: CONBOX HIGH RD відповідає Технічному регламенту радіообладнання; повний текст декларації про відповідність доступний на веб-сайті за такою адресою: www.harman.com Connection and use of this communications equipment is permitted by the Nigerian Communications Commission OMAN - TRA TRA/NN-N/YYYY/HH Dxxxxxx 1.13. Target market UAE 1.14. Target market Argentina 2. Input for the User manual for variant 4KE.035.285 E / 4KE.035.285 E / 4KE.035.285 J 2.1. Overview of technical radio values For the overview of the technical radio values for all the variants per country please refer to the table from the annex. 2.2. Manufacturer Harman Becker Automotive Systems GmbH Becker-Goering-Strasse 16 76307 Karlsbad, Germany 2.3. Target market Kyrgyzstan - Armenia - Kazakhstan - Belarus - Eurasian Economic Union - Russian Federation 2.4. Target market BELARUS 3. Input for the User manual for variant 4K2.035.284 H / 9JA.035.284 G / 4K2.035.284 H / 9JA.035.284 J 3.1. ISED Compliance statement, CANADA Model: CONBOX HIGH RD IC: 6434A-CONBOXRD This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le present appareil est confore aux CNR d`industie Caqnada applicables aux appareil radio exempts de cicence. L`exploitation est autorisée aux deux conditions suivantes : (1)l`appareil ne doit pas produire de brouillage, te (2)l`utilisateur de l`appareil doit accepter tout brouillage radio électrique subi, même si le brouillage est susceptible d`en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. To comply with RF exposure compliance requirements, the device must be installed to provide a separation distance of minimum 25 cm from all persons. FCC/ISED Regulatory notices Modificatio…

Text truncated - open the document above for the full version.

FCB012_05 //DEKRA Testing and Certification, S.A.U. // www.dekra-product-safety.com/wireless Date: 10/04/2023 DEKRA Testing and Certification, S.A.U. C/ Severo Ochoa 2 & 6. Parque Tecnológico de Andalucía 29590 Campanillas. Málaga, España Ref: Confidentiality request for FCC ID: T8GCONBOXRD To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Harman Becker Automotive Systems GmbH hereby requests that a part of the subject FCC application be held confidential to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Internal Photos Short Term Permanent Operation Description Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term User’s Manual Short Term Permanent SDR software and security information Permanent Confidentiality: The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to us and provide unjustified benefits to our competitors. Short-Term Confidentiality: We hereby request short-term confidentiality for the product stated above to avoid premature release of sensitive information prior to marketing or release of the product to the public. Release date of short term confidentiality is: 45 days from grant date marked 90 days from grant date marked 135 days from grant date marked 180 days from grant date marked Specific date: We are also aware that we are responsible to notify DEKRA in the event information regarding the product or the product is made available to the public. DEKRA will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, __________________________ By: Simon Voegele Title: Regulatory Compliance Expert Company: Harman Becker Automotive Systems GmbH Telephone: +49 7248 71 3667 e-mail: [email protected]

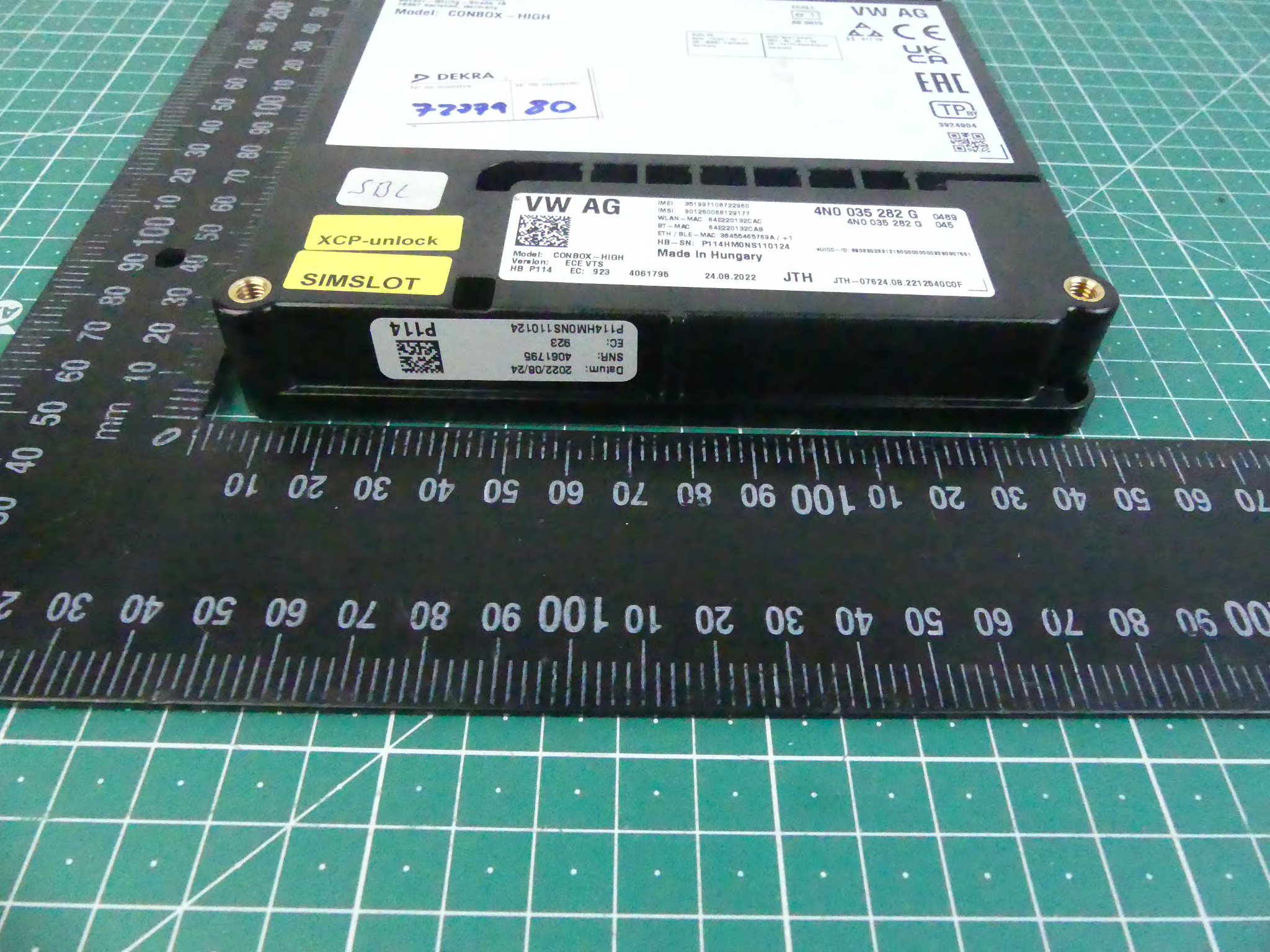

Label Design and location

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 72779RAN.001A1 2023-04-24 Test report No: NIE: 72779RAN.001A1 Assessment report RF EXPOSURE REPORT ACCORDING TO FCC 47 CFR Part 2.1091; FCC 47 CFR Part 1.1307 FCC 47 CFR Part 1.1310 (*) Identification of item under evaluation Telematic control unit with wireless technologies, used in automotive industry (*) Trademark VW AG (*) Model and /or type reference CONBOX HIGH RD (*) Other identification of the product FCC ID: T8GCONBOXRD Contains FCC ID: QIPALAS66A-US IC: 6434A-CONBOXRD Contains IC: 7830A-ALAS66AUS (*) Features GSM, UMTS, LTE, GNSS, Wi-Fi, BTLE, BT_EDR HW version: 045 SW version: 495 (*) Manufacturer HARMAN BECKER AUTOMOTIVE SYSTEMS GMBH BECKER-GOERING-STR. 16; 76307 KARLSBAD GERMANY Test method requested, standard FCC 47 CFR Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. FCC 47 CFR Part 1.1307: Actions that may have a significant environmental effect, for which Environmental Assessments (EAs) must be prepared. FCC 47 CFR Part 1.1310: Radiofrequency radiation exposure limits. Summary IN COMPLIANCE Approved by (name / position & signature) Miguel Lacave Antennas Lab Manager Date of issue 2023-04-24 Report template No FAN36_02 (*) “Data provided by the client” DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 72779RAN.001A1 Page 2 of 13 2023-04-24 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Data provided by the client .......................................................................................................... 3 Identification of the client............................................................................................................. 3 Document history ........................................................................................................................ 4 Appendix A: FCC RF Exposure assessment result ..................................................................... 5 General description of the device under evaluation ................................................................ 6 Evaluation Results .................................................................................................................. 9 Appendix B: FCC RF Exposure information .............................................................................. 10 RF Exposure determination of exemption ............................................................................. 11 RF Exposure evaluation ....................................................................................................... 13 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 72779RAN.001A1 Page 3 of 13 2023-04-24 Competences and guarantees In order to assure the traceability to other national and international laboratories, DEKRA Testing and Certification, S.A.U. has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification, S.A.U. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Testing and Certification, S.A.U. at the time of performance of the test. DEKRA Testing and Certification, S.A.U. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Assessment Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Testing and Certification, S.A.U. General conditions 1. This report is only referred to the item that has undergone the assessment. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Testing and Certification, S.A.U. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Testing and Certification, S.A.U. and the Accreditation Bodies Data provided by the client The following data has been provided by the client: 1. Information relating to the description of the sample ("Identification of the item under evaluation", "Trademark", "Model and/or type reference", “General description of the device”, “Other identification of the product”). 2. Maximum output power (from datasheets and measurement reports), maximum antenna gain (from datasheets) and use distance information. 3. The device under evaluation consists of a Telematics control unit with wireless technologies, used in automotive, equipped with one modem, OEM. This unit was designed for automotive usage and contains the following features: GSM, UMTS, LTE, GNSS, Wifi (a, b, g, n, ac), Bluetooth Low Energy (BTLE) and Bluetooth EDR. DEKRA Testing and Certification S.A.U. declines any responsibility with respect to the information provided by the client and that may affect the validity of results. Identification of the client HARMAN BECKER AUTOMOTIVE SYSTEMS GMBH BECKER-GOERING-STR. 16; 76307 …

Text truncated - open the document above for the full version.

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 2023-04-12 ISED CABid: ES1909 Lab. Company Number: 4621A Test Report No: 72779RRF.007A1 Test Report USA FCC Part 15.247, 15.209 CANADA RSS-247, RSS-Gen (*) Identification of item tested Telematic control unit with wireless technologies, used in automotive industry (*) Trademark VW AG (*) Model and /or type reference CONBOX HIGH RD Other identification of the product FCC ID: T8GCONBOXRD Contains FCC ID: QIPALAS66A-US IC: 6434A-CONBOXRD Contains IC: 7830A-ALAS66AUS (*) Features GSM, UMTS, LTE, GNSS, Wi-Fi, BTLE, BT_EDR HW version: 045 SW version: 0494 Applicant HARMAN BECKER AUTOMOTIVE SYSTEMS GMBH BECKER-GOERING-STR. 16; 76307 KARLSBAD GERMANY Test method requested, standard USA FCC Part 15.247 (10-1-21) Edition: Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 15.209 (10-1-21) Edition: Radiated emission limits; general requirements. CANADA RSS-247 Issue 2 (Feb. 2017). CANADA RSS-Gen Issue 5 Amendment 1 (Mar. 2019) + Amendment 2 (Feb. 2021). Guidance for Performing Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid Systems Devices Operating Under Section 15.247 of the FCC Rules. 558074 D01 Meas Guidance v05r02 dated April 2, 2019. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Summary IN COMPLIANCE Approved by (name / position & signature) José Manuel Gómez Galván EMC Consumer & RF Lab. Manager Date of issue 2023-04-12 Report template No. FDT08_24 (*) “Data provided by the client”

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 2 of 222 2023-04-12 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Uncertainty ................................................................................................................................. 3 Data provided by the client .......................................................................................................... 4 Usage of samples ....................................................................................................................... 7 Test sample description .............................................................................................................. 8 Identification of the client............................................................................................................. 9 Testing period and place ............................................................................................................. 9 Document history ........................................................................................................................ 9 Environmental conditions ............................................................................................................ 9 Remarks and comments ........................................................................................................... 10 Testing verdicts ......................................................................................................................... 11 Summary .................................................................................................................................. 11 Appendix A: Test results. Bluetooth EDR (GFSK, Pi/4-DQPSK, 8DPSK) .................................. 13 Appendix B: Test results. Bluetooth Low Energy 1M ............................................................... 112 Appendix C: Test results. 802.11 b/g/n20 1x1 ......................................................................... 149 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 3 of 222 2023-04-12 Competences and guarantees DEKRA Testing and Certification is a testing laboratory accredited by the National Accreditation Body (ENAC - Entidad Nacional de Acreditación) to perform the tests indicated in the Certificate No. 51/LE 147. DEKRA Testing and Certification is an FCC-recognized accredited testing laboratory with appropriate scope of accreditation that covers the performed tests in this report. DEKRA Testing and Certification is an ISED-recognized accredited testing laboratory, CABid: ES1909, Company Number: 4621A, with the appropriate scope of accreditation that covers the performed tests in this report. In order to assure the traceability to other national and international laboratories, DEKRA Testing and Certification has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and it is based on the knowledge and technical facilities available at DEKRA Testing and Certification at the time of performance of the test. DEKRA Testing and Certification is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Testing and Certification. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Testing and Certification S.A.U. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Testing and Certification S.A.U. and the Accreditation Bodies. Uncertainty Uncertainty (factor k=2) was calculated according to the DEKRA Testing and Certification S.A.U. internal document PODT000. The total uncertainty of the measurement system for the radiated emissions of EUT from 30 MHz to 1 GHz is: Measurement uncertainty ≤ ± 5.35 dB with factor (k = 2). The total uncertainty of the measurement system for the radiated emissions of EUT from 1 GHz to 17 GHz is: Measurement uncertainty ≤ ± 4.32 dB with factor (k = 2). The total uncertainty of the measurement system for the radiated emissions of EUT from 17 GHz to 26 GHz is: Measurement uncertainty ≤ ± 5.51 dB with factor (k = 2). The total uncertainty of the measurement system for the conducted testing of EUT is: RF Peak Output Power: Measurement uncertainty ≤ ± 0.80 dB RF Average Output Power: Measurement uncertainty ≤ 0.99 dB Power Spectral Density: Measurement uncertainty ≤ 0.99 dB Accumulated Dwell Time: Measurement uncertainty ≤ ± 0.16 % Minimum Frequency Occupation Time: Measurement uncertainty ≤ ± 0.53 % Hopping Frequency Separation: Measurement uncertainty ≤ ± 1.74 % Occupied Channel Bandwidth: Measurement uncertainty ≤ ± 1.40 % 6dB Bandwidth…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 59 of 222 2023-04-12 Attachments GFSK – Band edge emissions - HOPPING ON  Low Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 60 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 61 of 222 2023-04-12  High Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 62 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 63 of 222 2023-04-12 - HOPPING OFF  Low Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 64 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 65 of 222 2023-04-12  High Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 66 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 67 of 222 2023-04-12 Pi/4 DQPSK – Band edge emissions - HOPPING ON  Low Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 68 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 69 of 222 2023-04-12  High Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 70 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 71 of 222 2023-04-12 - HOPPING OFF  Low Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 72 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 73 of 222 2023-04-12  High Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 74 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 75 of 222 2023-04-12 8DPSK – Band edge emissions - HOPPING ON  Low Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 76 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 77 of 222 2023-04-12  High Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 78 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 79 of 222 2023-04-12 - HOPPING OFF  Low Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 80 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 81 of 222 2023-04-12  High Band Edge: Level in dBm DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 82 of 222 2023-04-12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 83 of 222 2023-04-12 FCC 15.247 (d) / RSS-247 5.5 Emission limitations radiated (Transmitter) Limits Radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c) / RSS-Gen): Frequency Range (MHz) Field strength (μ…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 93 of 222 2023-04-12 - High Channel: The peak above the limit is the carrier frequency. Level in dBμV/m DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 94 of 222 2023-04-12 FREQUENCY RANGE 3 - 17 GHz  GFSK modulation (DH5) - Low Channel: - Middle Channel: Level in dBμV/m Level in dBμV/m DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 95 of 222 2023-04-12 - High Channel: Level in dBμV/m DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 96 of 222 2023-04-12  Pi/4-DQPSK modulation (2DH5) - Low Channel: - Middle Channel: Level in dBμV/m Level in dBμV/m DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 97 of 222 2023-04-12 - High Channel: Level in dBμV/m DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 98 of 222 2023-04-12  8-DPSK modulation (3DH5) - Low Channel: - Middle Channel: Level in dBμV/m Level in dBμV/m DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 72779RRF.007A1 Page 99 of 222 2023-04-12 - High Channel: FREQUENCY RANGE 17 - 26 GHz This plot is valid for Low, Middle and High C…

Text truncated - open the document above for the full version.
