T8GB067Car Radio

Owner's Manual NAVIGATION, ENTERTAINMENT, COMMUNICATIONS. OWNER'S MANUAL. The Ultimate Driving Machine NAVIGATION, ENTERTAINMENT, COMMUNICATIONS. OWNER'S MANUAL. Contents A-Z Online Edition for Part no. 01 40 2 912 857 - 07 12 490 Owner's Manual for Vehicle Thank you for choosing a BMW. The more famliar you are with the systems of your BMW, the more easily you will be able to take full advantage of them. We therefore strongly suggest: Read this Owner's Manual before starting off in your new BMW. Also use the Integrated Owner's Manual in your vehicle. It con‐ tains important information on the operation of your navigation system, the entertainment and communication systems that will help you make full use of the technical features they offer. Any updates made after the editorial deadline for the printed or integrated Owner's Manual are located in the appendix of the printed quick reference for the vehicle. Supplementary information can be found in the additional bro‐ chures in the onboard literature. We wish you a safe and enjoyable drive. BMW AG Online Edition for Part no. 01 40 2 912 857 - 07 12 490 © 2012 Bayerische Motoren Werke Aktiengesellschaft Munich, Germany Reprinting, including excerpts, only with the written consent of BMW AG, Munich. US English VI/12, 07 12 490 Printed on environmentally friendly paper, bleached without chlorine, suitable for recycling. Online Edition for Part no. 01 40 2 912 857 - 07 12 490 Contents The fastest way to find information on a partic‐ ular topic or item is by using the index, refer to page 130. Navigation 8Navigation system 9Destination input 18Destination guidance 22Map view 25Traffic bulletins 29Navigation data 30What to do if ... Entertainment 34Tone 37Radio 45CD/multimedia 68Rear entertainment Communication 78Telephone 88Office 100Contacts 103ConnectedDrive 110Telephone in the rear Reference 130Everything from A to Z Online Edition for Part no. 01 40 2 912 857 - 07 12 490 Online Edition for Part no. 01 40 2 912 857 - 07 12 490 Navigation This chapter contains various examples of how the navigation system can guide you reliably to your destination. Online Edition for Part no. 01 40 2 912 857 - 07 12 490 Navigation system Vehicle equipment All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems. General information The navigation system can determine the pre‐ cise position of the vehicle, with the aid of sat‐ ellites and vehicle sensors, and can reliably guide you to every entered destination. Navigation data are stored in the vehicle and can be updated. Entries in stationary vehicle Enter data only when the vehicle is sta‐ tionary, and always give priority to the applicable traffic regulations in the event of any contradic‐ tion between traffic and road conditions and the instructions issued by the navigation system. Failure to take to this precaution can place you in violation of the law and put vehicle occupants and other road users in danger.◀ Starting navigation system 1. Press the button on the controller. 2. "Navigation" The navigation system can also be ac‐ cessed directly with the button on the con‐ troller. Seite 8 NavigationNavigation system 8 Online Edition for Part no. 01 40 2 912 857 - 07 12 490 Destination input Vehicle equipment All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems. Manual destination entry General information The system supports you in entering city or street names e.g. by automatically completing the entry. Stored town/city and street names can be called up quickly. ▷If the existing entries should not be changed, the entries for the state/province and town/ city can be skipped. ▷Destination guidance is started to the town/ city center if no street is entered. ▷If part of an address has not been entered, or not entered unambiguously, a list of cor‐ responding options will be displayed after the destination has been accepted. If cities or addresses are included in the list multiple times, they will be displayed in splitscreen. Entering a state/province 1. "Navigation" 2."Enter address" 3.Select "State/Province" or the displayed state/province. Entering a town/city 1. Select "Town/City/Postal Code" or the dis‐ played town/city. 2. Select letters, if applicable. The list is narrowed down further with each entry. 3. Move the controller to the right. 4. Select the town/city name from the list. If there are several towns/cities with the same name: 1. Change to the list of town/city names. 2. Highlight the town/city. 3. Select the town/city. Seite 9 Destination inputNavigation 9 Online Edition for Part no. 01 40 2 912 857 - 07 12 490 Entering the postal code 1. Select "Town/City/Postal Code" or the dis‐ played town/city. 2. Select the symbol. 3.Select the numbers. 4.Change to the list of postal codes and towns/ cities. 5.Highlight the entry. 6.Selecting an entry. Entering a street and intersection 1. Select "Street" or the displayed street. 2.Enter a street and intersection in the same way as you would enter a town/city. If there are several streets with the same name: 1. Change to the list of street names. 2.Highlight the street. 3.Select the street. Alternative: enter the street address and house number 1. Select "Street" or the displayed street. 2.Enter the street as you would the town/city. 3. "House number" 4. Select the numbers. 5. Change to the list of house numbers. 6. Select a house number or range of house numbers. Street does not exist in the destination city/town The desire…

Text truncated - open the document above for the full version.

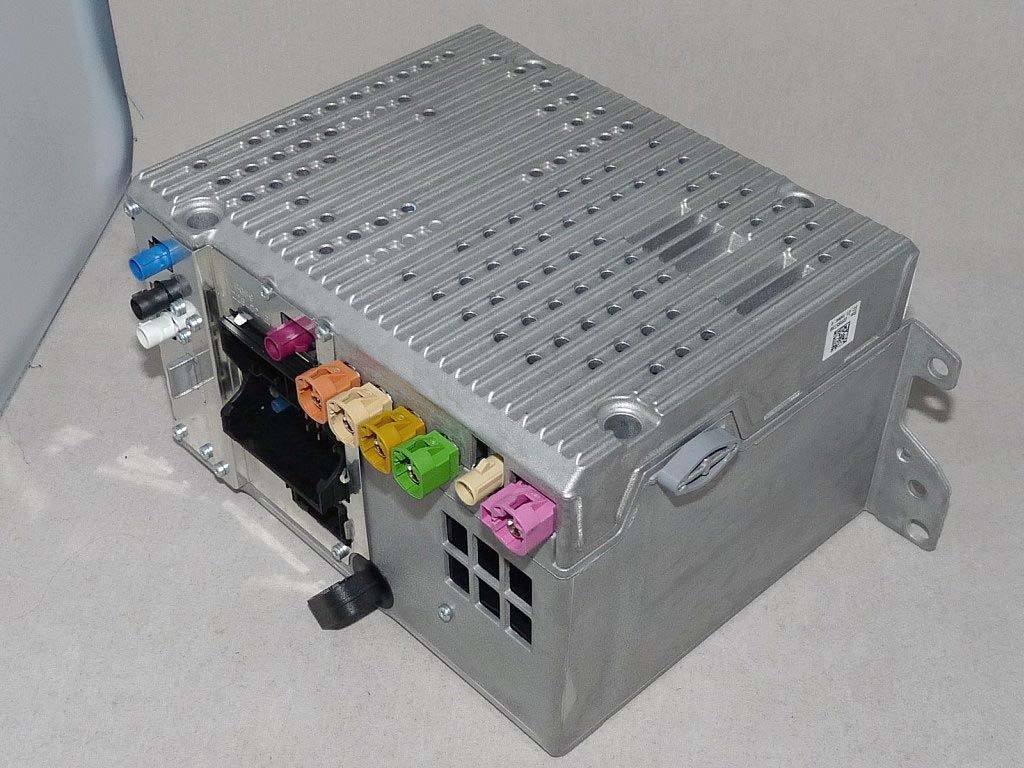

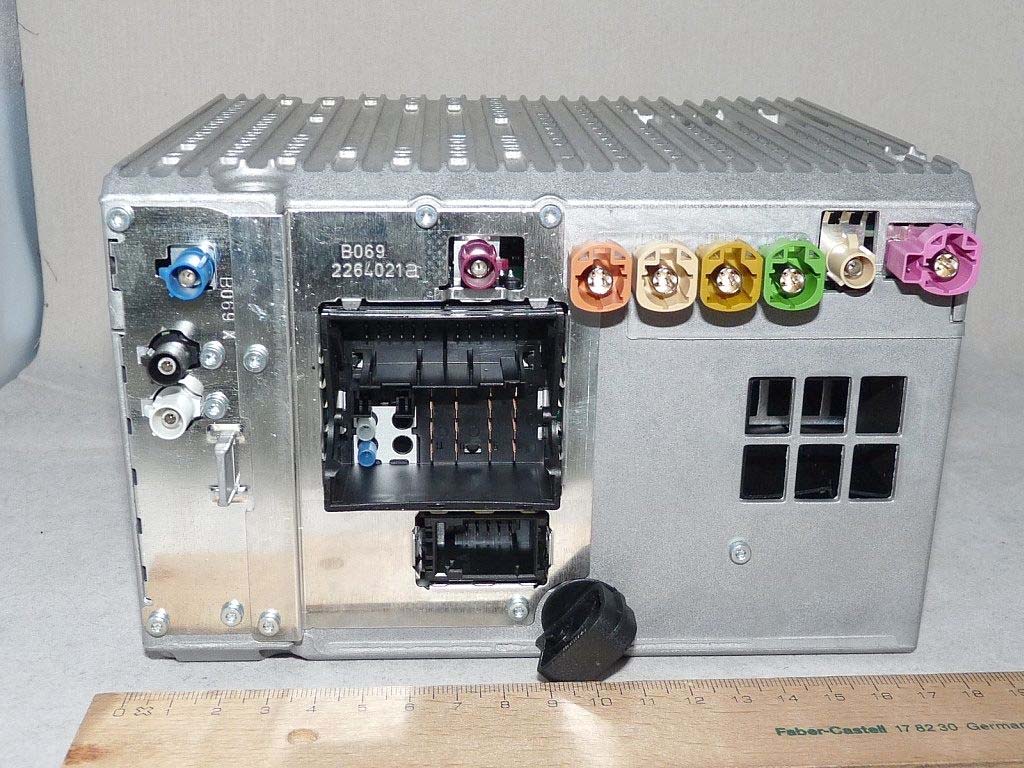

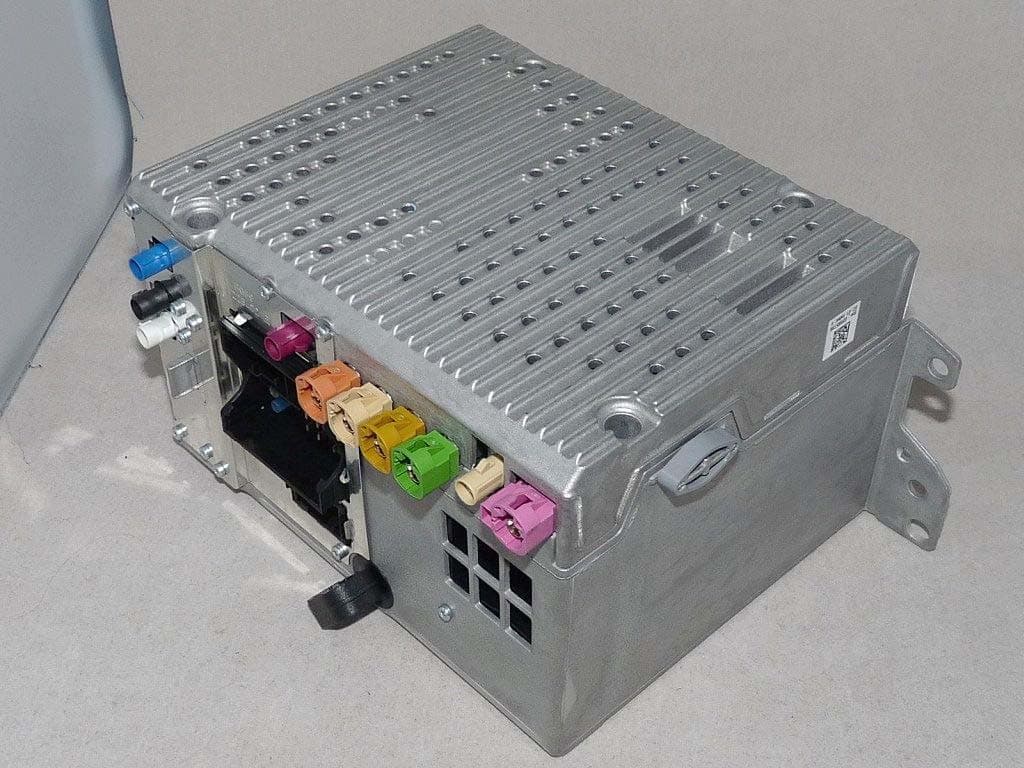

Test Laboratory: Borsigstr. 11 Germany 7Layers AG 40880 Ratingen Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7 layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Ralf Mertens USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Photo Report on EUT (External Photos) NBT HU Report Reference: MDE_HARMAN_1013_FCC_Photo_EUT_HU Test report Reference: MDE_HARMAN_1013_FCC_Photo_EUT_HU Page 2 of 5 Photo 1: EUT NBT HU / 43080a01 (top/right/front side) Test report Reference: MDE_HARMAN_1013_FCC_Photo_EUT_HU Page 3 of 5 Photo 2: EUT NBT HU / 43080a01 (bottom/left/rear side) Test report Reference: MDE_HARMAN_1013_FCC_Photo_EUT_HU Page 4 of 5 Photo 3: EUT NBT HU / 43080a01 (interfaces) Test report Reference: MDE_HARMAN_1013_FCC_Photo_EUT_HU Page 5 of 5 Photo 4: EUT NBT HU / 43080a01 and auxiliary equipment and cable harness

Scale 1:1 1 10 130 140 clear width: FINISH: wound on role: one track lengthwise on carrier, external coil, minor diameter 76mm 1000-3000 pieces per role (max. diameter 200 mm) format: 130 x 110mm printing: max. 4 colors form feed in agreement with HAD text and border: Black ral 9005 edges rounded missing mass, position of the diagrams and character font see B069/2239256.cdr Scale not dimensioned! B069_MRT27 08.02.11Eb.HPHnew in BOMa Draft- not final! Design for BMW NBT product certifikation label 130x110mm B069 B0692239256 2:1 (1:1) B069/2239256.cdr 29.07.10 KEberhard A3 11 look at delivery specification Raflacoat painted detention paper with adhesive RP051 (-20 to + 80 degree C max.) 29.07.10 Index/ Rev. mal/ mul. Änderungs-Art/ type of change Änd.-Nr/ chg.-nr. Änd.-Datum/ date of chg. bearb./ auth. geprüft/ checked Format/drawing size Werkstoff/ material Name/name Datum/date geprüft/checked erstellt/created Untolerierte Maße nach/dim. without tol. accord. to Typ-Nr./mod.No. Ident-Nr. / P/N Blatt/sheetBlätter/of Oberfläche/ finish\} Benennung/description Maßstab/scale Ersatz für:/substi. forErsetzt durch:/subst. by Fertiggewicht in g/ weight in g The reproduction, distribution and utilization of this document as well as the communication of its contents to others without explicid authorization is prohibited.Offenders will be held liable for the payment of damages. All rights reservedin the event of the grant of a patent, utility model or design. Weitergabe sowie Vervielfältigung dieses Dokuments, Verwertung und Mitteilung seines Inhalts sind verboten, soweit nicht ausdrücklich gestattet.Zuwiderhandlungen verpflichten zu Schadenersatz. Alle Rechte für den Fallder Patent-, Gebrauchsmuster- oder Geschmacksmustereintragung vorbehalten. Copyright reserved CAD F E D C B A F E D C B A 87654321 87654321 Tolerierung/ tolerancing ISO 8015 feed direction APPROVED TA-XXXX/XXX Complies with IDA Standards DB19172 Numero d ́agrément: MR XXXX ANRT XXXX Date d ́agrément: XXXXXXXX AGREE PAR ́L ANRT MAROC DIN EN 60825-1:2008-05 Manufactured by: Model: NBT HU COFETEL: XXXXXXXXX-XXXX Aprobado CNC XX-XXXX TRC/XXXXXX/XX ETA: XXX/XXXX/XXXX TRA REGISTERED No: DEALER No: 00XXXXXX 00XXXXXX THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE TO THE DATE OF MANUFACTURE. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND INDUSTRY CANADA LICENSE-EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CCABXXGXXXXXXX Type Approved NTC No.:ESD-XXXXXXX I C N A U T I MO M N S O C E L E T L A N O I T A N C O N M O M I I S S HD Radio Technology Manufactured Under License from iBiquity Digital Corp. U.S. and Foreign Patents. The HD and HD Radio logos are proprietary trademarks of iBiquity Digital Corp. TM Sirius/ HD unit equipped in US / Canada products only o XXXX Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent # ́s: 5.451.942; 5.956.674; 5.974.380; 5.978.762; 6.487.535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. DTS, Inc. All Rights Reserved.© Certification No.: XXXXXX CMIIT ID:XXXXXXXXX LB-XXX XXXXX XXXXX 1024 12V 12A FCC ID: T8GB067 IC: 6434A-B067 Anatel: XXXX-XX-XXXX 1234/POSTEL/2011 R T XXXWWXXXXXXX XXXXXXXXXX APPROVED TA-XXXX/XXX Complies with IDA Standards DB19172 Numero d ́agrément: MR XXXX ANRT XXXX Date d ́agrément: XXXXXXXX AGREE PAR ́L ANRT MAROC DIN EN 60825-1:2008-05 Manufactured by: Model: NBT HU COFETEL: XXXXXXXXX-XXXX Aprobado CNC XX-XXXX TRC/XXXXXX/XX ETA: XXX/XXXX/XXXX TRA REGISTERED No: DEALER No: 00XXXXXX 00XXXXXX THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE TO THE DATE OF MANUFACTURE. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND INDUSTRY CANADA LICENSE-EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CCABXXGXXXXXXX Type Approved NTC No.:ESD-XXXXXXX I C N A U T I MO M N S O C E L E T L A N O I T A N C O N M O M I I S S HD Radio Technology Manufactured Under License from iBiquity Digital Corp. U.S. and Foreign Patents. The HD and HD Radio logos are proprietary trademarks of iBiquity Digital Corp. TM Sirius/ HD unit equipped in US / Canada products only o XXXX Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent # ́s: 5.451.942; 5.956.674; 5.974.380; 5.978.762; 6.487.535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. DTS, Inc. All Rights Reserved.© Certification No.: XXXXXX CMIIT ID:XXXXXXXXX LB-XXX XXXXX XXXXX 1024 12V 12A FCC ID: T8GB067 IC: 6434A-B067 Anatel: XXXX-XX-XXXX 1234/POSTEL/2011 R T XXXWWXXXXXXX XXXXXXXXXX

Final Report on BMW NBT (Headunit) MDE_HARMAN_1013_FCCa acc. Title 47 CFR chapter I part 15 subpart C Report Reference: May 03, 2012 Date: Test Laboratory: 7Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7Layers AG Aufsichtsratsvorsitzender Registergericht registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Ralf Mertens USt-IdNr  VAT No.: Phone: +49 (0) 2102 749 0 Vorstand Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Reference: MDE_HARMAN_1013_FCCa acc. Title 47 CFR chapter I part 15 subpart C 1 Administrative Data 1.1 Project Data Torsten Lohoff Project Responsible: 2012/05/03 Date Of Test Report: 2012/03/22 Date of first test: 2012/04/05 Date of last test: 1.2 Applicant Data Company Name: Harman Becker Automotive Systems GmbH Becker-Göring-Str. 16 Street: 76307 Karlsbad City: Germany Country: Contact Person: Mr. Stefan Blaschek Regulatory Compliance Mgt. Department: +49 7248 71 3382 Phone: +49 7248 71 3802 Fax: +49 172 94 191 49 Mobile: [email protected] E-Mail: 1.3 Test Laboratory Data The following list shows all places and laboratories involved for test result generation: 7 layers DE Company Name : 7 layers AG Street : Borsigstrasse 11 City : 40880 Ratingen Country : Germany Contact Person : Mr. Michael Albert Phone : +49 2102 749 201 Fax : +49 2102 749 444 E Mail : [email protected] Laboratory Details Accreditation InfoLab IDIdentificationResponsible DAkkS-Registration no. D-PL-12140-01-01Radiated Emissions Lab 1Mr. Robert Machulec Mr. Andreas Petz DAkkS-Registration no. D-PL-12140-01-01 Regulatory Bluetooth RF Test Solution Lab 2Mr. Jimmy Chatheril Mr. Sören Berentzen Page 2 of 83 Reference: MDE_HARMAN_1013_FCCa acc. Title 47 CFR chapter I part 15 subpart C 2.2 Detailed Description of OUT Samples Sample : a01 OUT Identifier BMW NBT (Headunit) Sample Description radiated sample HW Status D3 SW Status Bios Control Date of Receipt 2012/03/08 Normal Temp.Nominal Voltage 12 V20 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 Frequency_high 2480 (MHz) Frequency_low 2402 (MHz) Frequency_mid 2441 (MHz) Sample : b01 OUT Identifier BMW NBT (Headunit) Sample Description conducted sample HW Status D3 SW Status Bios Control Date of Receipt 2012/03/08 Low VoltageLow Temp. 9 V-40 °C High Temp.High Voltage 16 V+85 °C Normal Temp.Nominal Voltage 12 V20 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 Frequency_high 2480 (MHz) Frequency_low 2402 (MHz) Frequency_mid 2441 (MHz) Page 4 of 83 Reference: MDE_HARMAN_1013_FCCa acc. Title 47 CFR chapter I part 15 subpart C 2.3 OUT Features Features for OUT: BMW NBT (Headunit) Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 BT EUT supports Bluetooth data rate of 1 Mbps with GFSK modulation in the band 2400 MHz - 2483.5 MHz DC The OUT is powered by or connected to DC Mains Eant removable antenna supplied and type tested with the radio equipment, designed as an indispensable part of the equipment EDR2 EUT supports Bluetooth using data rate of 2 Mbps with PI/4 DQPSK modulation in the band 2400 MHz - 2483.5 MHz EDR3 EUT supports Bluetooth using data rate of 3 Mbps with 8DPSK modulation in the band 2400 MHz - 2483.5 MHz PantC permanent fixed antenna connector, which may be built-in, designed as an indispensable part of the equipment 2.4 Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No. List of OUT samplesList of auxiliary equipment A01 (radiated setup) a01radiated sample Sample: B01 (conducted setup) b01conducted sample Sample: Page 5 of 83 Reference: MDE_HARMAN_1013_FCCa acc. Title 47 CFR chapter I part 15 subpart C 3 Results 3.1 General Available at the test laboratory. The results of the inspection are described on the following pages, where 'Conformity' or 'Passed' means that the certification criteria were verified and that the tested device is conform to the applied standard. In cases where 'Declaration' is printed, the required documents are available in the manufacturers product documentation. In cases where 'not applicable' is printed, the test case requirements are not relevant to the specific equipment implementation. Documentation of tested devices: Interpretation of the test results: 1) The laboratory environmental conditions are available and recorded in the Interlab System. 2) Special Software for testing: The OUT was connected to a Laptop via Serial/USB connection. The OUT could be set into Bluetooth Test Modes by using the program "Wireless Tool" provided by the applicant. The specific test modes could be set and controlled by the signalling unit "CBT" by Rohde&Schwarz over the air. 3) This test report focuses on the Bluetooth functionality of the OUT. Note: 3.2 List of the Applicable Body (Body for Scope: FCC_v2) DesignationDescription Subpart C - Intentional Radiators; 15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. FCC47CFRChIPART15c247RADIO FREQUENCY DEVICES 3.3 List of Test Specification Test Specification: FCC part 2 and 15 Version10-1-11 Edition Title:PART 2 - GENERAL RULES AND REGULATIONS PART 15 - RADIO FREQUENCY DEVICES Page 6 of 83 Reference: MDE_HARMAN_1013_FCCa acc. Title 47 CFR chapter I part 15 subpart C 3.4 Summary Test Case Identifier / Name SetupDate of TestResultTest (condition)Ref. Lab 15c.2 Spurious radiated emissions §15.247 (d), §15.35 (b), §15.209 15c.2; Frequency = 2402, Mode = BT transmit using 1 Mbps with GFSK modulation, Channel = low 2012/03/22…

Text truncated - open the document above for the full version.

Test Laboratory: Borsigstr. 11 Germany 7Layers AG 40880 Ratingen Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7Layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Ralf Mertens USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com FCC Measurement/Technical Report on WLAN transceiver BMW NBT (Headunit) Report Reference: MDE_HARMAN_1013_FCCb Test report Reference: MDE_HARMAN_1013_FCCb Page 2 of 60 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 6 1.1 Testing Laboratory 6 1.2 Project Data 6 1.3 Applicant Data 6 1.4 Manufacturer Data 6 2 Test object Data 7 2.1 General EUT Description 7 2.2 EUT Main components 8 2.3 Ancillary Equipment 8 2.4 Auxiliary Equipment 8 2.5 EUT Setups 9 2.6 Operating Modes 9 2.7 Product labelling 9 3 Test Results 10 3.1 Occupied bandwidth 10 3.2 Peak power output 13 3.3 Spurious RF conducted emissions 15 3.4 Spurious radiated emissions 18 3.5 Band edge compliance 23 3.6 Power density 26 4 Test Equipment 29 5 Photo Report 35 6 Setup Drawings 35 7 FCC and IC Correlation of measurement requirements 36 8 Annex measurement plots 37 8.1 Occupied bandwidth 37 8.2 Peak power output 39 8.3 Band edge compliance conducted and Spurious RF conducted emissions 45 8.4 Power density 59 Test report Reference: MDE_HARMAN_1013_FCCb Page 3 of 60 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Digital Device / Spread Spectrum). Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 (10-1-11 Edition) and 15 (10-1-11 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Note: The tests were selected and performed with reference to the FCC measurement guide line “Measurement of Digital Transmission Systems Operating under Section 15.247 March 23, 2005” Instead of applying ANSI C63.4–1992 which is referenced in the FCC Public Note, the newer ANSI C63.4–2009 is applied. Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Test report Reference: MDE_HARMAN_1013_FCCb Page 4 of 60 0.2 Measurement Summary FCC Part 15, Subpart C § 15.207 Conducted emissions (AC power line) The measurement was performed according toANSI C63.4 2009 OP-Mode Setup Port Final Result N/A FCC Part 15, Subpart C § 15.247 (a) (1) Occupied bandwidth The measurement was performed according toFCC § 15.31 10-1-11 Edition OP-Mode Setup Port Final Result op-mode 1b Setup_02 Perm.ant.connector passed op-mode 1g Setup_02 Perm.ant.connector passed op-mode 2b Setup_02 Perm.ant.connector passed op-mode 2g Setup_02 Perm.ant.connector passed op-mode 3b Setup_02 Perm.ant.connector passed op-mode 3g Setup_02 Perm.ant.connector passed FCC Part 15, Subpart C § 15.247 (b) (1) Peak power output The measurement was performed according toFCC § 15.31 10-1-11 Edition OP-Mode Setup Port Final Result op-mode 1b Setup_02 Perm.ant.connector passed op-mode 1g Setup_02 Perm.ant.connector passed op-mode 2b Setup_02 Perm.ant.connector passed op-mode 2g Setup_02 Perm.ant.connector passed op-mode 3b Setup_02 Perm.ant.connector passed op-mode 3g Setup_02 Perm.ant.connector passed FCC Part 15, Subpart C § 15.247 (d) Spurious RF conducted emissions The measurement was performed according toFCC § 15.31 10-1-11 Edition OP-Mode Setup Port Final Result op-mode 1b Setup_02 Perm.ant.connector passed op-mode 1g Setup_02 Perm.ant.connector passed op-mode 2b Setup_02 Perm.ant.connector passed op-mode 2g Setup_02 Perm.ant.connector passed op-mode 3b Setup_02 Perm.ant.connector passed op-mode 3g Setup_02 Perm.ant.connector passed Test report Reference: MDE_HARMAN_1013_FCCb Page 6 of 60 1 Administrative Data 1.1 Testing Laboratory Company Name: 7Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: Laboratory accreditation no.: DAkkS D-PL-12140-01-01 Responsible for Accreditation Scope:Dipl.-Ing. Bernhard Retka Dipl.-Ing. Robert Machulec Dipl.-Ing. Thomas Hoell Dipl.-Ing. Andreas Petz Report Template Version: 2012-03-14 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Marco Kullik Date of Test(s): 2012-03-08 to 2012-04-20 Date of Report: 2012-04-27 1.3 Applicant Data Company Name: Harman Becker Automotive Systems GmbH Address: Becker-Göring-Straße 16 76307 Karlsbad Germany Contact Person: Mr. Stefan Blaschek 1.4 Manufacturer Data Company Name: please see applicant data Address: Contact Person: Test report Reference: MDE_HARMAN_1013_FCCb Page 7 of 60 2 Test object Data 2.1 General EUT Description Equipment under Test: WLAN transceiver Type Designation: NBT Kind of Device: (optional) Car Radio (Headunit) Voltage Type: DC Voltage Level: 12 V Tested Modulation Types: DBPSK; OFDM:BPSK; General product description: The WLAN (Wireless Local Area Network) Transceiver is operating in the 2.4 GHz ISM band in the range 2412.0 – 2462.0 MHz and uses the Direct Sequence Spread Spectrum (DSSS) Modulation. It supports the modes IEEE 802.11b and IEEE 802.11g. The EUT provides the following ports: Ports Permanent antenna conn…

Text truncated - open the document above for the full version.

Test Laboratory: Borsigstr. 11 Germany 7Layers AG 40880 Ratingen Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7Layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Ralf Mertens USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com FCC Measurement/Technical Report on Bluetooth – WLAN transceiver BMW NBT (Headunit) Report Reference: MDE_HARMAN_1013_FCCc Test report Reference: MDE_HARMAN_1013_FCCc Page 2 of 22 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 5 1.1 Testing Laboratory 5 1.2 Project Data 5 1.3 Applicant Data 5 1.4 Manufacturer Data 5 2 Test object Data 6 2.1 General EUT Description 6 2.2 EUT Main components 7 2.3 Ancillary Equipment 7 2.4 Auxiliary Equipment 7 2.5 EUT Setups 8 2.6 Operating Modes 8 2.7 Product labelling 8 3 Test Results 9 3.1 Spurious radiated emissions 9 4 Test Equipment 15 5 Setup Drawings 21 6 FCC and IC Correlation of measurement requirements 22 Test report Reference: MDE_HARMAN_1013_FCCc Page 3 of 22 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Digital Device / Spread Spectrum). Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 (10-1-11 Edition) and 15 (10-1-11 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Note: The tests were selected and performed with reference to the FCC measurement guide line “Measurement of Digital Transmission Systems Operating under Section 15.247 March 23, 2005” Instead of applying ANSI C63.4–1992 which is referenced in the FCC Public Note, the newer ANSI C63.4–2009 is applied. Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Test report Reference: MDE_HARMAN_1013_FCCc Page 5 of 22 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR-Registration no. DGA-PL-192/99-02 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Robert Machulec Dipl.-Ing. Thomas Hoell Dipl.-Ing. Andreas Petz Report Template Version: 2012-03-14 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Carsten Steinröder Date of Test(s): 2012-03-30 to 2012-04-02 Date of Report: 2012-04-19 1.3 Applicant Data Company Name: Harman Becker Automotive Systems GmbH Address: Becker-Göring-Straße 16 76307 Karlsbad Germany Contact Person: Mr. Stefan Blaschek 1.4 Manufacturer Data Company Name: please see applicant data Address: Contact Person: Test report Reference: MDE_HARMAN_1013_FCCc Page 6 of 22 2 Test object Data 2.1 General EUT Description Equipment under Test Bluetooth / WLAN transceiver Type Designation: NBT Kind of Device: (optional) Car Radio Voltage Type: DC Voltage level: 12 V Modulation Type: Bluetooth: GFSK, 8DPSK, π/4 DQPSK WLAN: BPSK, DQPSK, QPSK, 16-QAM, 64-QAM, CCK General product description: Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, the Bluetooth technology defines 79 RF channels spaced 1 MHz (2402 - 2480 MHz). The actual RF channel is chosen from a pseudo-random hopping sequence through the 79 channels. A channel is occupied for a defined amount of time slots, with a nominal slot length of 625 μs. The maximum time slot length on one channel is defined by the packet type and is 0.625 ms for DH1 packets, 1.875 ms for DH3 and 3.125 ms for DH5. The nominal hop rate is 1600 hops/s for DH1, 1600/3 for DH3 and 1600/5 for DH5. All frequencies are equally used. The maximum nominal average time of occupancy is 0.4 s within a period of 79*0.4 seconds. The basic data rate of 1 Mbps uses GFSK modulation and the enhanced data rate uses PSK modulation. For the enhanced data rate of 3 Mbps 8DPSK modulation and of 2 Mbps π/4 DQPSK modulation is used. The WLAN transceiver operates in the 2.4 GHz ISM band using Direct Sequence Spread Spectrum (DSSS) Modulation. The EUT supports the modes 802.11b (maximum data rate 11 Mbps), 802.11g (maximum data rate 54 Mbps). Specific product description for the EUT: The EUT is a Car Radio which uses Bluetooth and WLAN technology to setup radio links to other devices. The EUT provides the following ports: Ports Permanent antenna connector WLAN Permanent antenna connector Bluetooth Permanent antenna connector GPS Car Connector APIX Display USB (3x) Ethernet FM1/AM FM2 …

Text truncated - open the document above for the full version.
