T8GBE9410Bluetooth Handsfree Car Kit with WLAN

MMI Navigation plusEnglisch Nordamerika 11.2009 MMI Navigation plusOperating Instructions MMI high B 8, for internal use only © 2009 AUDI AGIt has always been Audi's policy to continuously improve its products. Audi, therefore, reserves the right to make changes in design and specifications, and to make additions or improvements in its prod-ucts without incurring any obligation to install them on products previously manufactured. Text, illustr ations and specifications in this book are based on the most up-to- date information available at the time of printing. May not be reproduced or trawritten consent of AUDI AG. A to alteration or amendment. Editorial deadline: 08/28/2 0 For the sake of the e n Printed on environmentally f r rine, recyclable) MMI high B 8, for internal use only ForewordYou have decided on the Audi MMI Navi gation plus - thank you very much for your confidence in us.With your new Audi, you are receiving a vehicle with a state-of-the art system that allows you the change the vehicle's settings and operate the electronic equipment using a Multi Media Interface called the Audi MMI . We recommend that you read these Operating Instructions carefully so that you quickly get to know all of the functions and possibilities that the MMI of fers and are able to make full use of them while driving.Please note that these operating instructions are a supplement to your vehicle Owner's Manual and should only be used in conjunction with your current vehicle Owner's Manual.Should you have any further question s about the MMI in your vehicle, please ask your authorized Audi dealer for assistance.We hope you enjoy driving your Audi.AUDI AG MMI high B 8, for internal use only Table of contents 2 Table of contentsAbout this book . . . . . . . . MMI components . . . . . . Overview . . . . . . . . . . . . . . . . . . . . . Controls at a glance . . . . . . . . . . . MMI: Multi Media Interface . . . . . Traffic safety tips . . . . . . . . . . . . . Tips on caring for the MMI . . . . . Drives . . . . . . . . . . . . . . . . . . . . . . . . Introduction . . . . . . . . . . . . . . . . . Overview of drives . . . . . . . . . . . . . CD/DVD mode general information . . . . . . . . . . . . . . . . . . Memory card general informationJukebox . . . . . . . . . . . . . . . . . . . . . . CD/DVD drive . . . . . . . . . . . . . . . . . CD changer . . . . . . . . . . . . . . . . . . . Memory card reader . . . . . . . . . . . Audi music interface . . . . . . . . . . . Aux-in connection . . . . . . . . . . . . . Cell phone prep . . . . . . . . . . . . . . . Introduction . . . . . . . . . . . . . . . . . Starting . . . . . . . . . . . . . . . . . . . . . MMI control panel . . . . General operation . . . . . . . . . . . . All MMI menus at a glance . . . . . Switching on/off . . . . . . . . . . . . . . Operating the system . . . . . . . . . . MMI Display . . . . . . . . . . . . . . . . . . Adjusting the volume . . . . . . . . . . Adjusting the sound . . . . . . . . . . . Setting the time . . . . . . . . . . . . . . Restarting the MMI (Reset) . . . . . Additional settings . . . . . . . . . . . . Listening to the radio . . . . . . . . Introduction . . . . . . . . . . . . . . . . . System information . . . . . . . . . . . Starting radio mode . . . . . . . . . . . Activating your Satellite Radio service . . . . . . . . . . . . . . . . . . . . . . Selecting frequency band . . . . . . Selecting a station from the station list . . . . . . . . . . . . . . . . . . . Selecting the station . . . . . . . . . . Scanning stations . . . . . . . . . . . . . Storing stations . . . . . . . . . . . . . . Selecting a stored station . . . . . . Moving stored stations . . . . . . . . Additional settings . . . . . . . . . . . . Playing media . . . . . . . . . . . . . . . . Introduction . . . . . . . . . . . . . . . . . Starting Media mode . . . . . . . . . . Selecting source . . . . . . . . . . . . . . Selecting a folder . . . . . . . . . . . . . Selecting a track . . . . . . . . . . . . . . Fast forward/rewind . . . . . . . . . . Next/previous track or chapter . Track information . . . . . . . . . . . . . Repeat options . . . . . . . . . . . . . . . Shuffle . . . . . . . . . . . . . . . . . . . . . . DVD main menu . . . . . . . . . . . . . . DVD full screen display . . . . . . . . DVD parental control . . . . . . . . . . Pausing/continuing playback . . . Additional settings . . . . . . . . . . . . Directory . . . . . . . . . . . . . . . . . . . . . . Introduction . . . . . . . . . . . . . . . . . .Opening the directory . . . . . . . . . .Storing a new directory entry . . .Importing directory entries . . . . .Exporting address cards . . . . . . . .Using a directory entry . . . . . . . . .Editing a directory entry . . . . . . . .Managing profiles . . . . . . . . . . . . .Additional settings . . . . . . . . . . . . Calling . . . . . . . . . . . . . . . . . . . . . . . . Introduction . . . . . . . . . . . . . . . . . .Starting Telephone mode . . . . . . .Dialing a telephone number . . . . .Answering/ignoring a call . . . . . .Ending a call . . . . . . . . . . . . . . . . . .Storing a phone number in the directory . . . . . . . . . . . . . . . . . . . . .Dialing stored phone numbers . .Deleting local call lists . . . . . . . . .Bluetooth settings . . . . . . . . . . . . .Additional settings . . . . . . . . . . . . Navigating . . . . . . . . . . . . . . . . . . . . Introduction . . . . . . . . . . . . . . . . . .Starting Navigation mode . . . . . .Entering a destination . . . . . . . . .Stopping route guidance . . . . . . .Display . . . . . . . . . . . . . . . . . . . . . . .Storing a destination . . . . . . . . . . .Loading a destination . . . . . . . . . .Additional settings . . . . . . . . . . . . Calling up traffic information . Introduction . . . . . . . . . . . . . . . . . .Calling up TMC traffic reports . . . 4677778999 11121214141617212222222628282829293334 3637384040404141424343444545464648484848494950505151525253535455 575757575…

Text truncated - open the document above for the full version.

Consumer Information 331 Controls and equip- ment Safety first Vehicle operation Vehicle care Do-it-yourself service Technical data ment zones. Doing so will increase the risk of injury if airbags are triggered in an accident!• Before you check anything in th e engine compartment, always read and heed all WARNINGS ⇒ page 256 . Note • If items other than genuine Audi spare parts, add-on equipment and accessory items are used or if repair work is not performed according to specified methods, this can result in severe damage to your vehicle’s engine and body (such as corrosion) and adversely affect your vehicle's warranty.• If emergency repairs must be performed elsewhere, have the vehicle examined by an authorized Audi dealer as soon as possible.• The manufacturer cannot be held liable for damage which occurs due to failure to comply with these stipulations.Technical ModificationsOur guidelines must be co mplied with when technical modifications are made. Always consult an authorized Audi dealer before starting work on any modifications.This will help ensure that vehicle function, performance and safety are not impaired ⇒ . Attempting to work on electronic components and the software used with them can cause malfunctions. Because of the way elec-tronic components are interconnected with each other, such malfunctions can also have an adverse affect on other systems that are not directly involved. This means that you risk both a substantial reduction in the operational safety of your vehicle and an increased wear of vehicle parts ⇒ . Authorized Audi dealers will perfor m this work in a professional and competent manner or, in special cases, refer you to a professional company that specializes in such modifications. WARNING Improper repairs and modifications can change the way vehicle systems work and cause serious personal injury. Note If emergency repairs must be performed elsewhere, have the vehicle examined by an authorized Audi dealer as soon as possible.Declaration of Compliance, Telecommunications and Electronic SystemsRadio Frequency Devices and Radiocommunication Equipment User Manual Notice.The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.DevicesThe following devices each comply with FCC Part 15.19, FCC Part 15.21 and RSS-Gen Issue 1:• Convenience key* • Audi side assist* • Cell phone package* • Electronic immobilizer • HomeLink® universal remote control* • Remote control key WARNING (continued) s1k4.book Seite 331 Freitag, 5. September 2008 3:59 15 Consumer Information 332 • Tire pressure monitoring system* FCC Part 15.19This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.FCC Part 15.21CAUTION:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.RSS-Gen Issue 1Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device. s1k4.book Seite 332 Freitag, 5. September 2008 3:59 15

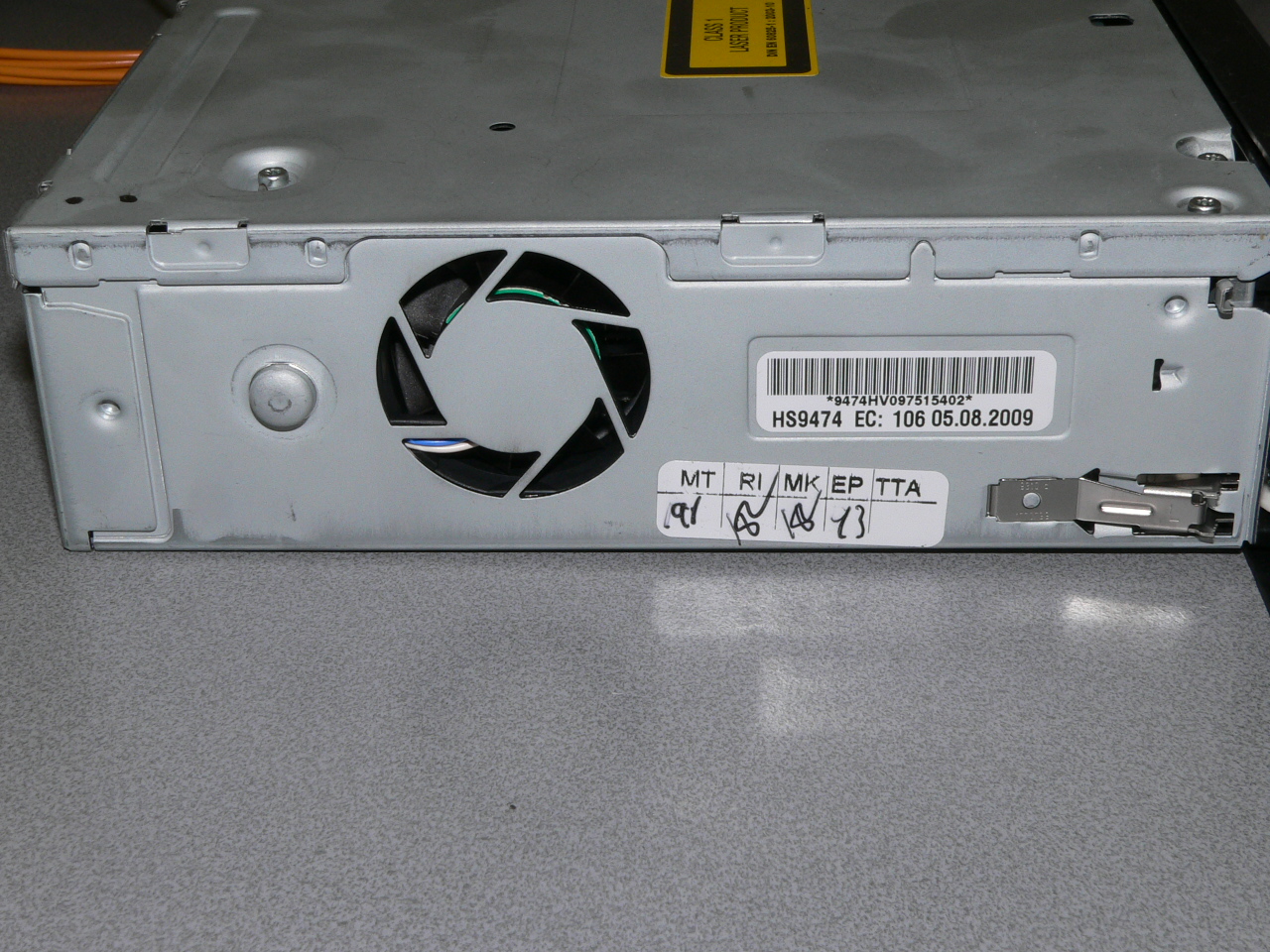

ID Lable Location Info FCC ID: T8GBE9410 IC: 6434A-BE9410 Model Number: 9410

Bluetooth Transceiver WLAN Transceiver

7 layers AG Aufsichtsratsvorsitzenderh Re gistergerichth registered in: Borsigstrasse 11 Chairman of the Su perv isory Boa rd: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hermann Buitkamp TAX No. 147/5869/0385 www.7Layers.com Wilfried Klassmann Torsten Lohoff 02. March 2010 Phone +49 (0) 2102 749 306 Fax +49 (0) 2102 749 350 RF exposure requirements - FCC ID: T8GBE9410, WLAN portion Dear Application Examiner, The maximum measured power output is 25,41 mW (14,05 dBm), the maximum antenna gain is 2 dBi = numeric gain 1,58 (see also FCC test report) The maximum permissable exposure is defined in 47 CFR 1.1310 with 1 mW/cm². The distance from the EUT's transmitting antenna where the exposure level reaches the maximum permitted level is calculated using the general equation: S = P*G / 4πR² S = maximum exposure in mW/cm², P = 25,41 mW, linear power gain relative to the isotropic radiator = 2 dBi = 1,58 (numeric gain), R = 20 cm Solving for S, a maximum exposure of 0,00798 mW/cm² limit is reached in a distance of 20 cm to the transmitting antenna. Please contact us if you have any additional questions. Best Regards 7layers AG FCC Federal Communications Commission MDE_HARMAN_0702

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg TAX No. 147/5869/0385 www.7Layers.com René Schildknecht FCC Measurement/Technical Report on WLAN transceiver MMI3G+ Report Reference: MDE_HARMAN_0904_FCCe Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] DGA-PL-192/99-02 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Test report Reference: MDE_HARMAN_0904_FCCe Page 2 of 68 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 6 1.1 Testing Laboratory 6 1.2 Project Data 6 1.3 Applicant Data 6 1.4 Manufacturer Data 6 2 Test object Data 7 2.1 General EUT Description 7 2.2 EUT Main components 8 2.3 Ancillary Equipment 8 2.4 EUT Setups 8 2.5 Operating Modes 9 2.6 Product labeling 9 3 Test Results 10 3.1 Occupied bandwidth 10 3.2 Peak power output 12 3.3 Spurious RF conducted emissions 14 3.4 Spurious radiated emissions 16 3.5 Band edge compliance 21 3.6 Power density 24 4 Test Equipment 26 5 Photo Report 33 6 Setup Drawings 36 7 Annex measurement plots 37 7.1 Occupied bandwidth 37 7.2 Band edge compliance and Spurious RF emissions conducted 43 7.3 Power density 57 7.4 Peak power output 63 Test report Reference: MDE_HARMAN_0904_FCCe Page 3 of 68 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Digital Device / Spread Spectrum). Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 (10-1-09 Edition) and 15 (10-1-09 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Note: The tests were selected and performed with reference to the FCC measurement guide line “Measurement of Digital Transmission Systems Operating under Section 15.247 March 23, 2005” Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Test report Reference: MDE_HARMAN_0904_FCCe Page 4 of 68 0.2 Measurement Summary FCC Part 15, Subpart C § 15.207 Conducted emissions (AC power line) The measurement was performed according to ANSI C63.4 2003 OP-Mode Setup Port Final Result N/A FCC Part 15, Subpart C § 15.247 (a) (1) Occupied bandwidth The measurement was performed according to FCC § 15.31 10-1-09 OP-Mode Setup Port Final Result op-mode 1b Setup_b01 Temp.ant.connector passed op-mode 1g Setup_b01 Temp.ant.connector passed op-mode 2b Setup_b01 Temp.ant.connector passed op-mode 2g Setup_b01 Temp.ant.connector passed op-mode 3b Setup_b01 Temp.ant.connector passed op-mode 3g Setup_b01 Temp.ant.connector passed FCC Part 15, Subpart C § 15.247 (b) (1) Peak power output The measurement was performed according to FCC § 15.31 10-1-09 OP-Mode Setup Port Final Result op-mode 1b Setup_b01 Temp.ant.connector passed op-mode 1g Setup_b01 Temp.ant.connector passed op-mode 2b Setup_b01 Temp.ant.connector passed op-mode 2g Setup_b01 Temp.ant.connector passed op-mode 3b Setup_b01 Temp.ant.connector passed op-mode 3g Setup_b01 Temp.ant.connector passed FCC Part 15, Subpart C § 15.247 (d) Spurious RF conducted emissions The measurement was performed according to FCC § 15.31 10-1-09 OP-Mode Setup Port Final Result op-mode 1b Setup_b01 Temp.ant.connector passed op-mode 1g Setup_b01 Temp.ant.connector passed op-mode 2b Setup_b01 Temp.ant.connector passed op-mode 2g Setup_b01 Temp.ant.connector passed op-mode 3b Setup_b01 Temp.ant.connector passed op-mode 3g Setup_b01 Temp.ant.connector passed FCC Part 15, Subpart C § 15.247 (d), § 15.35 (b), § 15.209 Spurious radiated emissions The measurement was performed according to ANSI C63.4 2003 OP-Mode Setup Port Final Result op-mode 1b Setup_a01 Enclosure passed op-mode 2b Setup_a01 Enclosure passed op-mode 3b Setup_a01 Enclosure passed Test report Reference: MDE_HARMAN_0904_FCCe Page 6 of 68 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR-Registration no. DGA-PL-192/99-02 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Robert Machulec Dipl.-Ing. Thomas Hoell Dipl.-Ing. Andreas Petz Report Template Version: 2010-01-28 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Robert Machulec Date of Test(s): 2009-12-10 to 2010-02-12 Date of Report: 2010-02-12 1.3 Applicant Data Company Name: HARMAN/BECKER Automotive Systems GmbH Address: Söflinger Strasse 100 89077 Ulm Germany Contact Person: Mr. Stefan Blaschek 1.4 Manufacturer Data Company Name: please see applicant data Address: Contact Person: Test report Reference: MDE_HARMAN_0904_FCCe Page 7 of 68 2 Test object Data 2.1 General EUT Description Equipment under Test: WLAN transceiver Type Designation: MMI3G+ Kind of Device: (optional) WLAN transceiver build in a head unit of car radio system Voltage Type: DC (CAR battery) Voltage level: 12 V General product description: The WLAN (Wireless Local Area Network) Transceiver is operating in the 2.4 GHz ISM band in the range 2412.0 – 2462.0 MHz and uses the Direct…

Text truncated - open the document above for the full version.

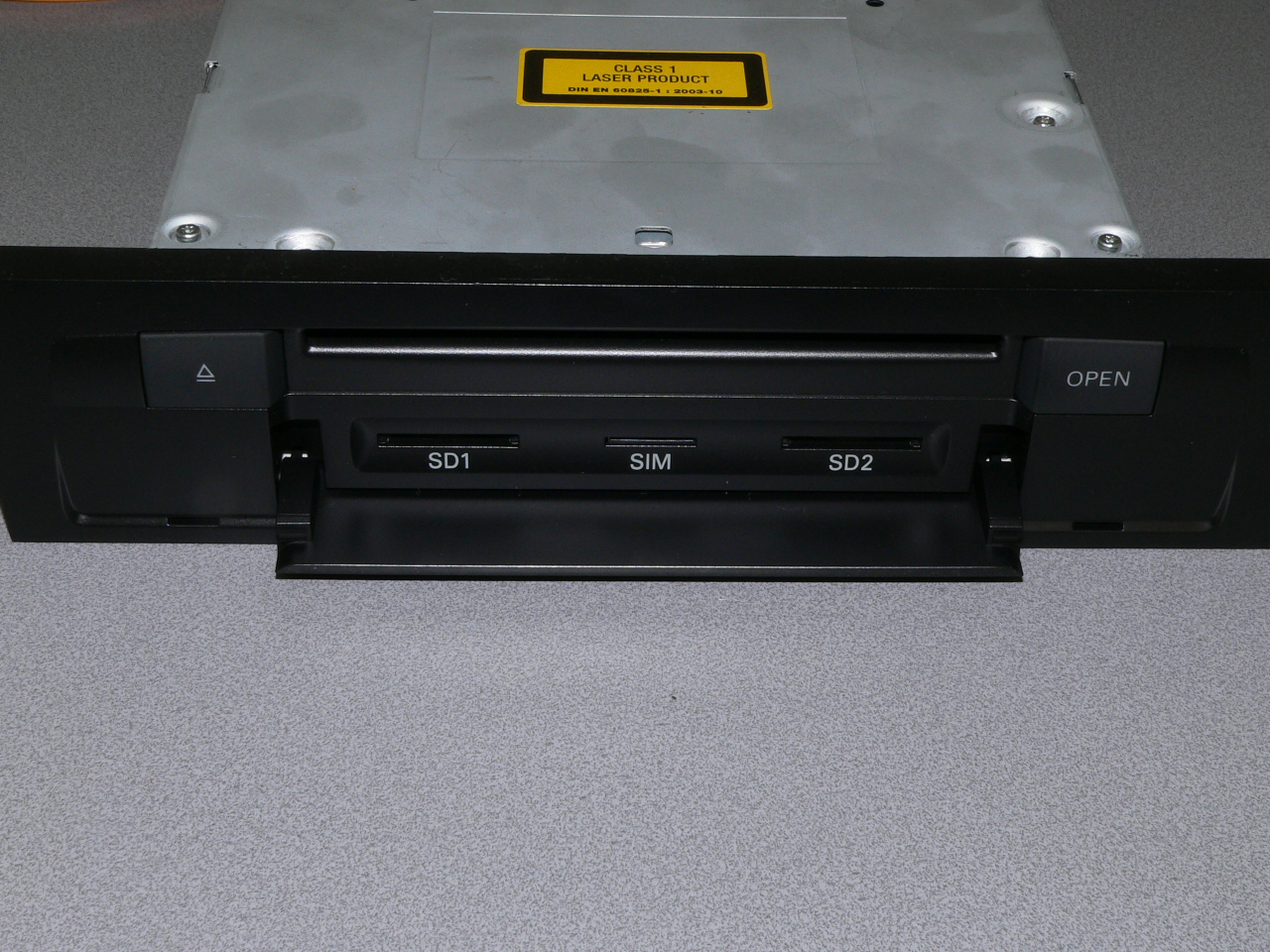

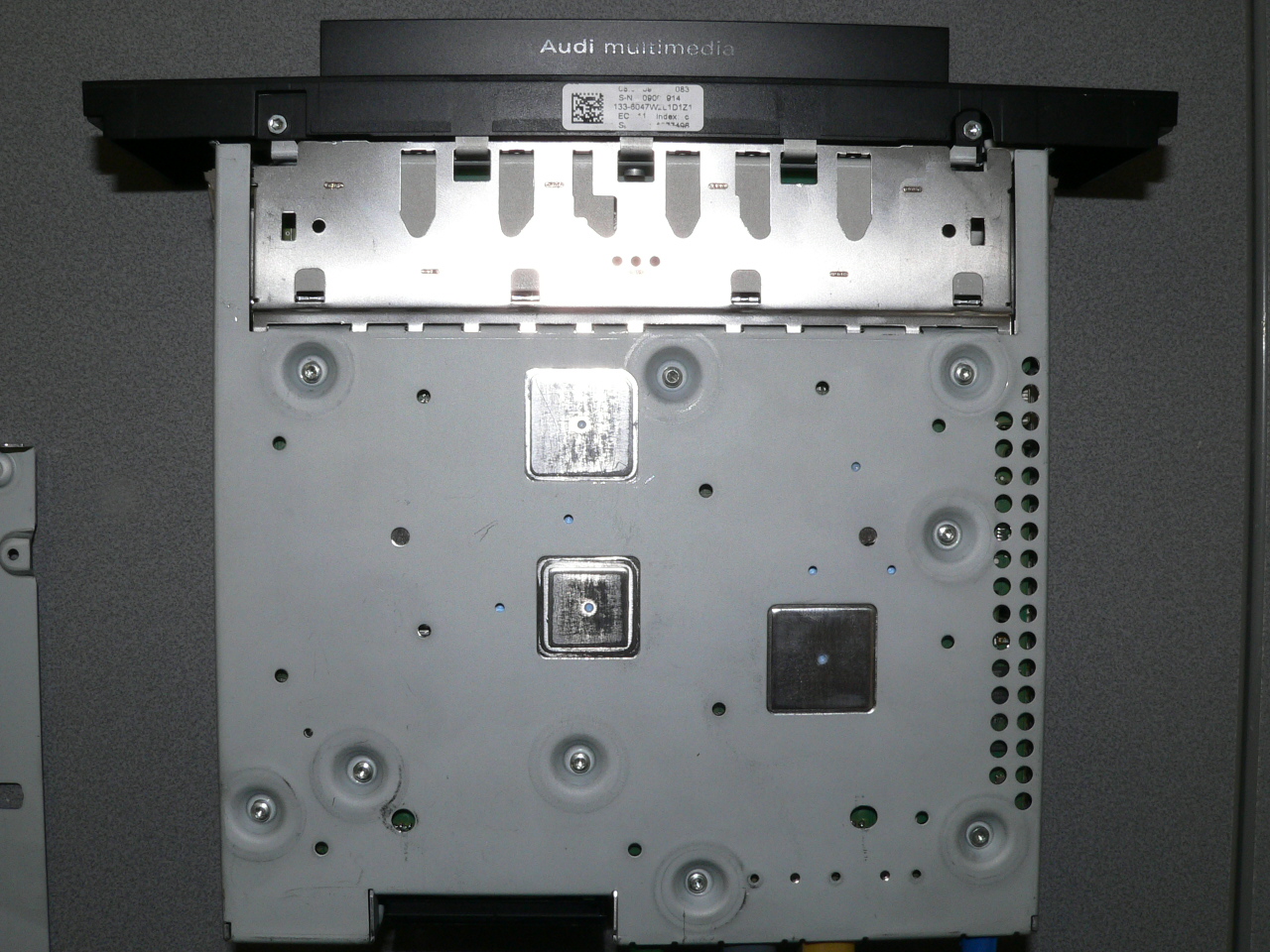

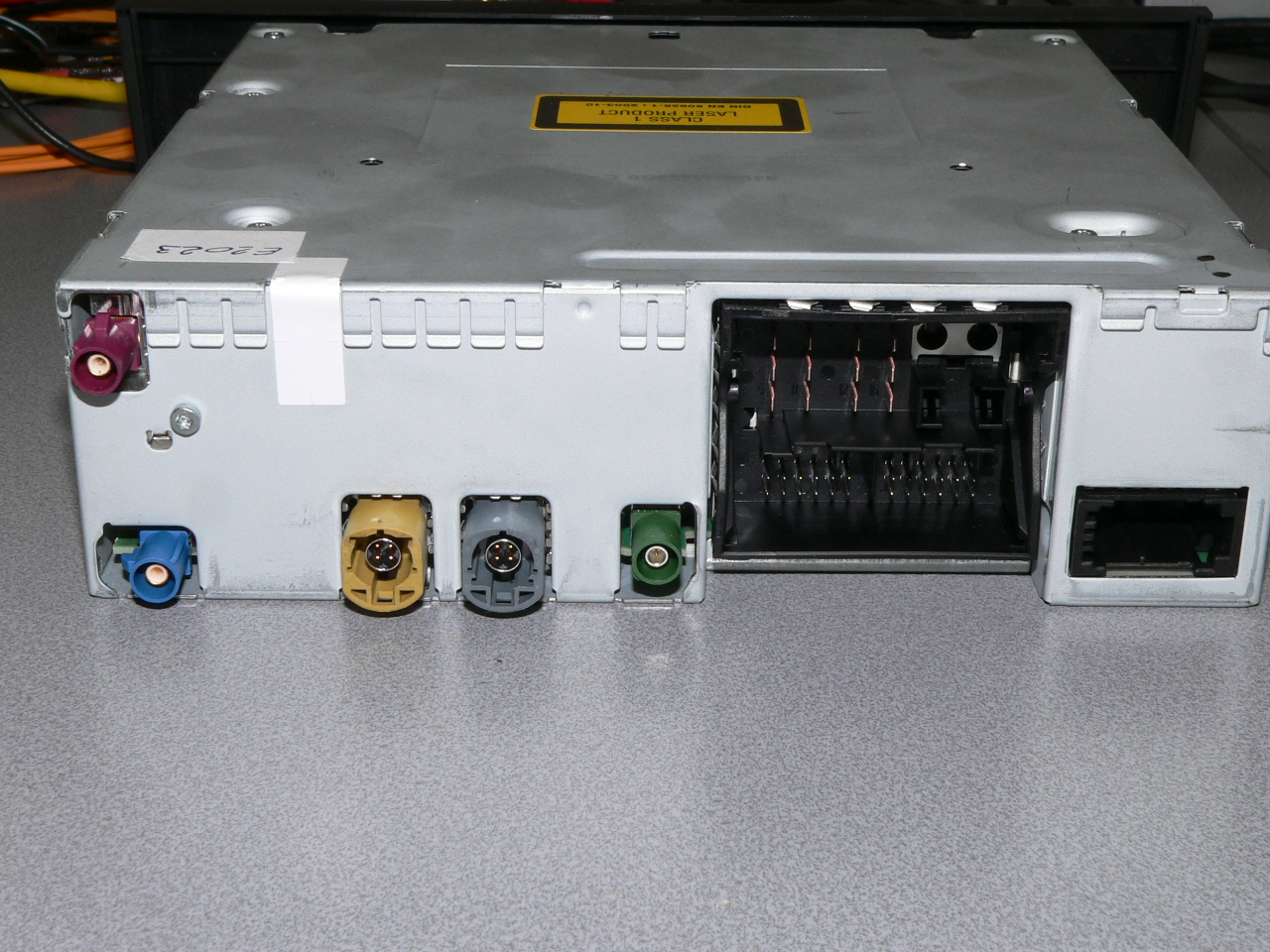

Test Setup Photos (DTS)
