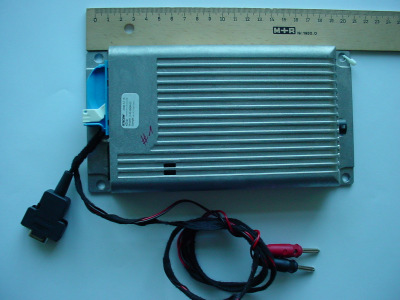

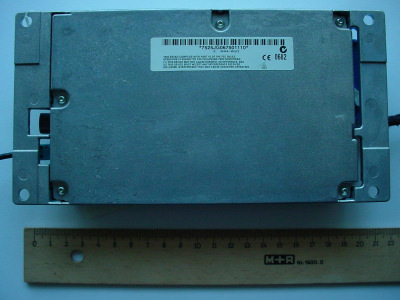

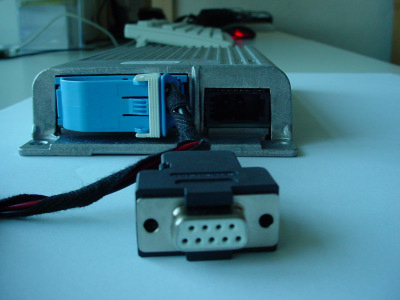

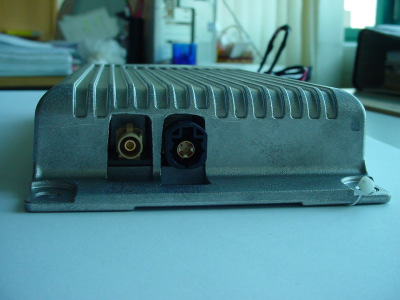

T8GMULF2-HIBluetooth Handsfree Carkit

Harman/Becker reserves the copyright to this document. It must not be copied, communicated or made available to third parties without the written authorisation of Harman/Becker Department EDH Date Name Drawn MULF2 Check BMW Rel. QME Page Harman/Becker User Manual 1 01 04.08.06 SchneidAutomotive Systems of 66 Rev. Change / Note Date Name File UserManual_MULF2.doc Printed. 04.08.06 MULF2 BMW User Manual Harman/Becker reserves the copyright to this document. It must not be copied, communicated or made available to third parties without the written authorisation of Harman/Becker Page 2 - EDH Revision 01 vom 04.08.06 of UserManual_MULF2.doc 6 Printed: 04.08.06 Inhaltsverzeichnis 1 Abstract ........................................................................................................................... 3 1.1 Revision index............................................................................................................ 3 1.2 Applicable documents ................................................................................................ 3 1.3 Abbreviations ............................................................................................................. 4 1.4 Purpose of the document ........................................................................................... 5 2 General............................................................................................................................. 5 3 Power supply...................................................................................................................5 4 Antenna............................................................................................................................ 5 5 Bluetooth ......................................................................................................................... 5 5.1 Generally.................................................................................................................... 5 5.2 Summary.................................................................................................................... 6 6 FCC note .......................................................................................................................... 6 MULF2 BMW User Manual Harman/Becker reserves the copyright to this document. It must not be copied, communicated or made available to third parties without the written authorisation of Harman/Becker Page 3 - EDH Revision 01 vom 04.08.06 of UserManual_MULF2.doc 6 Printed: 04.08.06 1 Abstract 1.1 Revision index No. State Version Change Description Changed pages Autor 1 ready 1.0 All Schneider 1.2 Applicable documents Ref. State Version Document Description Autor MULF2 BMW User Manual Harman/Becker reserves the copyright to this document. It must not be copied, communicated or made available to third parties without the written authorisation of Harman/Becker Page 4 - EDH Revision 01 vom 04.08.06 of UserManual_MULF2.doc 6 Printed: 04.08.06 1.3 Abbreviations Document Description BT Bluetooth EC Echo cancellation NR Noise reduction MULF2 BMW User Manual Harman/Becker reserves the copyright to this document. It must not be copied, communicated or made available to third parties without the written authorisation of Harman/Becker Page 5 - EDH Revision 01 vom 04.08.06 of UserManual_MULF2.doc 6 Printed: 04.08.06 1.4 Purpose of the document User manual for the MULF2. 2 General The MULF2 is not sold direct to the customer. The MULF2 will be delivered directly to the car manufacturer. MULF2 is manufactured for BMW AG. BMW AG is responsible for the correct installation of the MULF2. This document is a guide for the correct use of the MULF2. 3 Power supply Normal operation voltage of the MULF2 is 9V – 16V. The nominal supply current of the MULF2 is 180 mA at 14V. The MULF2 may only be operated on a fused power supply. The recommended fuse is a 10A Type. 4 Antenna The MULF2 has an external antenna connector. The connector is a FAKRA type. Only the following antenna should be connected to the MULF2: • 6 928 461 (BMW part number) This antenna has a gain of 2,1 dBi. It is possible, to connect the antenna via a coax cable. 5 Bluetooth 5.1 Generally Bluetooth operates in the 2.4 GHz ISM (Industrial Scientific Medicine) band at 2.4 GHz. A frequency hop transceiver is applied to combat interference and fading. Modulation is GFSK (Gaussian Frequency Shift Keying) with a BT=0.5. The Modulation index is 0.32. A binary one is represented by a positive frequency deviation, and a binary zero is represented by a negative frequency deviation. The symbol rate is 1 Ms/s. For full duplex transmission, a Time-Division Duplex (TDD) scheme is used. On the channel, information is exchanged through packets. Each packet is transmitted on a different hop frequency. A packet nominally covers a single slot, but can be extended to cover up to five slots. The Bluetooth protocol uses a combination of circuit and packet switching. Slots can be reserved for synchronous packets. Bluetooth can support an asynchronous data channel, up to three simultaneous synchronous voice channels, or a channel which simultaneously supports asynchronous data and synchronous voice. Each voice channel supports a 64 kb/s synchronous (voice) channel in each direction. The asynchronous channel can support maximal 723.2 kb/s asymmetric (and still up to 57.6 kb/s in the return direction), or 433.9 kb/s symmetric. MULF2 BMW User Manual Harman/Becker reserves the copyright to this document. It must not be copied, communicated or made available to third parties without the written authorisation of Harman/Becker Page 6 - EDH Revision 01 vom 04.08.06 of UserManual_MULF2.doc 6 Printed: 04.08.06 5.2 Summary • Modulation: GFSK, BT = 0,5 • Data rate: 1Mbit/s • working frequency range: 2402 MHz to 2480 MHz • frequency range with guard band: 2400 MHz to 2483,5 MHz • Channels: 79 channels with 1 MHz channel spacing • max output power: 4 dBm 6 FCC note I…
