T8GP104Wireless Headphone with KLEER-RF-Technology

P104_UserManual-SV_130226.docx P104 – wireless headphone User Instruction Version: 1.1 Date: 2013-02-26 Edit: S. Voegele HARMAN description Harman PN Daimler PN Fond Entertainment P104 A 222 820 18 89 SplitView P106 A 222 820 38 89 User Instruction P104 P104_UserManual-SV_130226.docx Version 1.0 2/9 Content 1 USER INFORMATION ................................................................................................................ 3 1.1 Purpose ................................................................................................................................... 3 2 MAIN FEATURES ....................................................................................................................... 3 2.1 Product Description ................................................................................................................. 3 2.2 Product Handling 4 3 TECHNICAL INFORMATION...................................................................................................... 7 3.1 Mechanical Features ............................................................................................................... 7 3.2 Materials .................................................................................................................................. 7 3.3 Declaration of Conformity to EC regulation R&TTE ................................................................ 7 3.4 FCC statements (North America) ............................................................................................ 8 3.5 Industry Canada (IC) statement............................................................................................... 8 3.6 Type of Equipment User’s Guide for KOREA.......................................................................... 9 3.7 Environmental information ....................................................................................................... 9 User Instruction P104 P104_UserManual-SV_130226.docx Version 1.0 3/9 1 User Information 1.1 Purpose This document describes the features, functionality and usage of the P104 headphone featured by Kleer technology. It contains and specifies all relevant information about the headphone’s appearance and the environment it is designated to be used in. The P104 is designed to combine the comfort and acoustical performance of premium headphones with compliance to automotive requirements. Two variants are offered; one to be used only in the front and one to be used on every passenger seat in the car. 2 Main Features
Small size
Folding mechanism for easy storage
Rich sound through 40mm transducer
High-quality digital audio with Kleer technology
Comfortable through ergonomic fit and gimbaled earphones
Adjustable from children to adults 2.1 Product Description P104 is wireless stereo headphones, featuring Kleer technology for lossless digital audio transmission and operates in 2.4GHz ISM band. They are designed for individual entertainment in vehicles and meets the relevant requirements, such as widened operating temperature range, low battery consumption for longer battery life and low signal latency for lip-sync. The channel switch provides the facility to select between three different sources (front right, rear left, rear right). P104 is powered with two AAA batteries. Both, disposable and rechargeable can be used. An LED indicates the functional state, but also turns from green to red when the batteries’ voltage reaches the low level to signalize that they have to be changed soon. Acoustical characteristic is semi-closed with supra-aural earphones. Sound radiation to the environment is low, so that other passengers will not be disturbed. The mechanic design guarantees comfortable wearing constantly for several hours. User Instruction P104 P104_UserManual-SV_130226.docx Version 1.0 4/9 User Instruction P104 P104_UserManual-SV_130226.docx Version 1.0 5/9 User Instruction P104 P104_UserManual-SV_130226.docx Version 1.0 6/9 User Instruction P104 P104_UserManual-SV_130226.docx Version 1.0 7/9 3 Technical Information 3.1 Mechanical Features • P104 is adjustable in size to fit from children to adults • Foldable for easy storage • When placed on the seat, the product will withstand an adult person accidentally sitting on it. • The headphone features round edges to prevent injury. • The design of the headphone bears the OEM-logo, printed on both ear cups. 3.2 Materials P104 is in compliance with the latest releases of directives RoHS (2002/95/EC) and ELV (2000/53/EC), and also the REACH regulation (EC) No. 1907/2006. Marking of polymer parts acc. to VDA 260 respectively EN ISO 1043. 3.3 Declaration of Conformity to EC regulation R&TTE Česky [Czech]: HARMAN tímto prohlašuje, že tento P104-Headphone je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish]: Undertegnede HARMAN erklærer herved, at følgende udstyr P104-Headphone overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German]: Hiermit erklärt HARMAN, dass sich das Gerät P104-Headphone in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian]: Käesolevaga kinnitab HARMAN seadme P104-Headphone vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English: Hereby, HARMAN, declares that this P104-Headphone is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish]: Por medio de la presente HARMAN declara que el P104-Headphone cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek]: ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ HARMAN ΗΛΝΕΙ ΟΤΙ P104-Headphone ΣΥΜΜΟΡΦΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΙΑΤΑΞΕΙΣ ΤΗΣ ΟΗΓΙΑΣ 1999/5/ΕΚ. Français [French]: Par la pré…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: 28.02.2013 Subject: Confidentiality Request for: FCC ID: T8GP104 IC: 6434A-P104 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Harman Becker Automotive Systems has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of (180) days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid prem at ure release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Manager Certification Thomas Ring 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

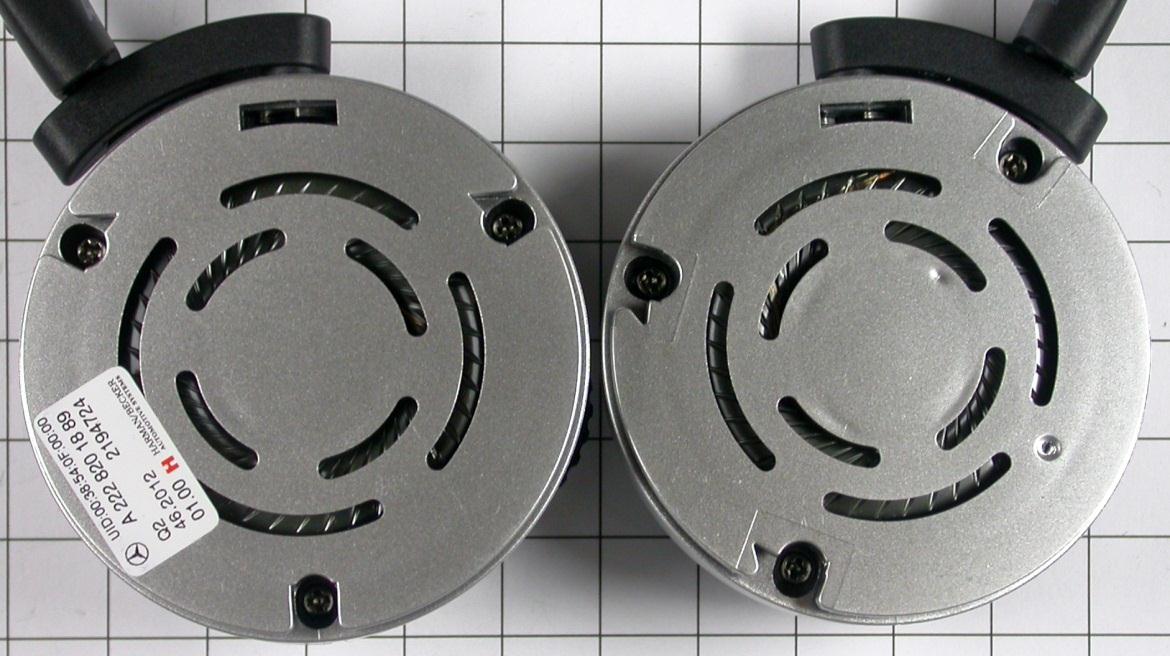

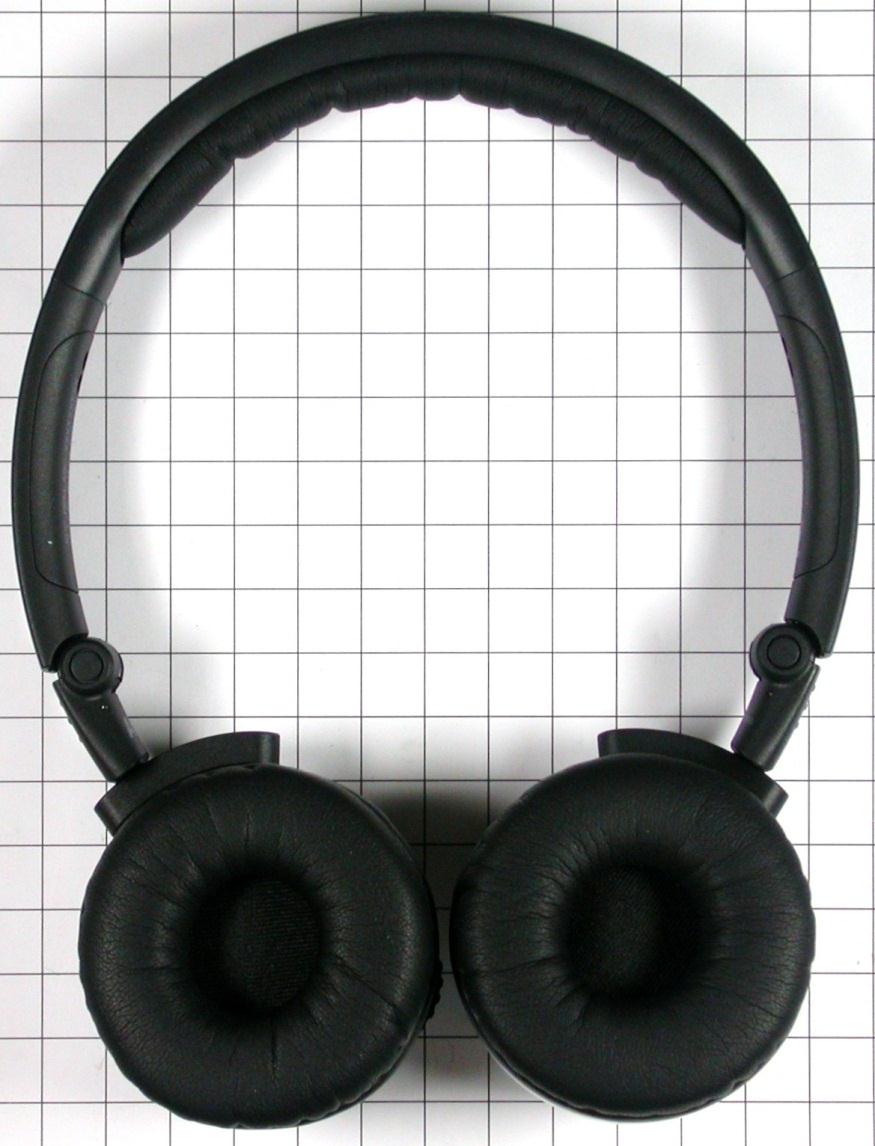

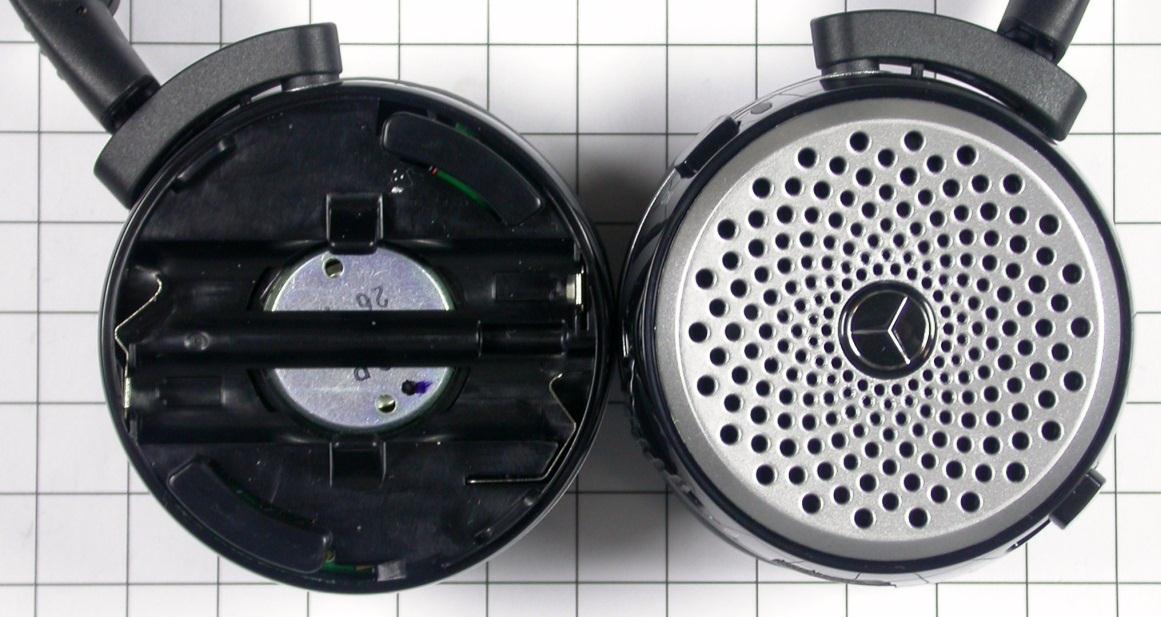

FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 44 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 A T T A C H M E N T A External Photos of the EuT Unfolded headphone Unfolded headphone FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 45 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 Lable placement (right side) Lable placement (left side) FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 46 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 Open battery case – left side Power switch / volume control / interface plug (only for service) – right side Without ear pad

Label Location

FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 47 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 Internal Photos of the EuT PCB top view – left side FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 48 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 PCB top view – right side FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 49 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 Detailed view of antenna 1 & antenna 2 – right side FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 50 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 PCB botttom view – right side FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 51 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 Interface / converter board Top view Botttom view

FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 1 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 EMI − T E S T R E P O R T - FCC Part 15.247, RSS210 - Test Report No. : T36587-00-01KJ 27. February 2013 ______________________________________________________________________________________________ Date of issue Type / Model Name : P104 Headphone Product Description : Wireless Headphone with KLEER-RF-technology Applicant : HARMAN BECKER Automotive Systems GmbH Address : Becker-Göring-Str. 16 76307 KARLSBAD, GERMANY Manufacturer : HARMAN BECKER Automotive Systems GmbH Address : Becker-Göring-Str. 16 76307 KARLSBAD, GERMANY Licence holder : HARMAN BECKER Automotive Systems GmbH Address : Becker-Göring-Str. 16 76307 KARLSBAD, GERMANY Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 2 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 2.1 Test result summery 4 2.2 General remarks 5 2.3 Final assessment 6 3 E Q U I P M E N T U N D E R T E S T 7 3.1 Photo documentation of the EUT – Detailed photos see attachment A 7 3.2 Power supply system utilised 7 3.3 Short description of the equipment under test (EUT) 7 4 T E S T E N V I R O N M E N T 8 4.1 Address of the test laboratory 8 4.2 Environmental conditions 8 4.3 Statement of the measurement uncertainty 8 4.4 Measurement protocol for FCC and IC 9 5 T E S T C O N D I T I O N S A N D R E S U L T S 11 5.1 Conducted emissions 11 5.2 Emission bandwidth 12 5.3 Occupied bandwidth 15 5.4 Maximum peak conducted output power 18 5.5 Spurious emissions conducted 21 5.6 Band edge compliance 26 5.7 Radiated emissions in restricted bands 29 5.8 Power spectral density 33 5.9 Standalone SAR test exclusion considerations 36 5.10 Antenna application - Detailed photos see attachment A 37 5.11 Receiver AC power line conducted emissions 38 5.12 Receiver radiated emissions 39 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 43 A T T A C H M E N T A 44 External Photos of the EuT 44 Internal Photos of the EuT 47 FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 3 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (September, 2012) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15 Subpart B - Unintentional Radiators (September, 2012) Part 15, Subpart B, Section 15.107 AC Line conducted emission Class A device Class B device Part 15, Subpart B, Section 15.109 Radiated emission, general requirements FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (September, 2010) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.247 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz and 5725 - 5850 MHz FCC Rules and Regulations Part 1, Subpart I - Procedures Implementing the National Environmental Policy Act of 1969 Part 1, Subpart I, Section 1.1310 Radiofrequency radiation exposure limits Part 1, Subpart 2, Section 2.1093 Radiofrequency radiation exposure evaluation: portable device OET Bulletin 65, 65A, 65B, 65C Edition 97-01, August 1997 – Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. ANSI C63.4: 2009 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C63.10: 2009 Testing Unlicensed Wireless Devices ANSI C95.1: 2005 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 KDB 558074 D01 v02 Guidance for performing compliance measurements on DTS operating under Section 15.247, 2012-10-4. KDB 447498 D01 v05 General RF Exposure Guidance FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 4 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 2 S U M M A R Y 2.1 Test result summery The device using digital modulation: Operating in the 2400 MHz – 2483.5 MHz: FCC Rule Part RSS Rule Part Description Result 15.207(a) RSS Gen, 7.2.4. AC power line conducted emissions not applicable 15.247(a)(2) RSS210, A8.2(a) -6 dB Emission bandwidth passed RSS-Gen, 4.6.1 99 % Occupied bandwidth passed 15.247(b)(3) RSS-210, A8.4(4) Maximum peak conducted output power passed 15.247(d) RSS-210, A8.5 Spurious emissions conducted passed 15.247(d) RSS-210, A8.5 Band edge compliance passed 15.247(d) 15.205(a) RSS-Gen, 7.2.2 Radiated emissions in restricted bands passed 15.247(e) RSS-210, A8.2(b) Power spectral density passed 15.247(i) RSS 102, 2.5.2 SAR test exclusion considerations passed 15.247(b)(4) RSS-Gen, 7.1.2 Antenna require…

Text truncated - open the document above for the full version.

FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 12 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 5.2 Emission bandwidth For test instruments and accessories used see section 6 Part MB. 5.2.1 Description of the test location Test location: Shielded Room S4 5.2.2 Photo documentation of the test set-up 5.2.3 Applicable standard According to FCC Part 15, Section 15.247(a)(2): Systems using digital modulation techniques may operate in the 902 - 928 MHz, 2400 – 2483.5 MHz and 5725 – 5850 MHz bands. The minimum 6 dB bandwidth shall be at least 500 kHz. 5.2.4 Description of Measurement The bandwidth was measured at an amplitude level reduced from the reference level of a modulated channel by a ratio of -6 dB. The reference level is the level of the highest signal amplitude observed at the transmitter at either the fundamental frequency or the first order modulation products in all typical modes of operation, including the unmodulated carrier, even if atypical. An alternative is to use the bandwidth measurement of the analyser. The cable loss of 1.3 dB @ 2.45 GHz is taken into account. Spectrum analyser settings: RBW: 100 kHz, VBW: 300 kHz, Detector: Max peak, Trace Mode: Max hold, Sweep time: Auto FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 15 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 5.3 Occupied bandwidth For test instruments and accessories used see section 6 Part MB. 5.3.1 Description of the test location Test location: Shielded Room S4 5.3.2 Photo documentation of the test set-up 5.3.1 Applicable standard According to RSS-Gen, 4.6.1: When an occupied bandwidth value is not specified in the applicable RSS, the transmitted signal bandwidth to be reported is to be its 99 % emission bandwidth, as calculated or measured. 5.3.2 Description of Measurement The bandwidth was measured with the function “bandwidth measurement” of the spectrum analyser. The EUT is connected via suitable attenuator at the spectrum analyser. The measurement is repeated for every different modulation standard of the EUT and recorded. The cable loss of 1.3 dB @ 2.45 GHz is taken into account. Spectrum analyser settings: RBW: 100 kHz, VBW: 300 kHz, Detector: Max peak, Trace Mode: Max hold, Sweep time: Auto FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 18 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 5.4 Maximum peak conducted output power For test instruments and accessories used see section 6 Part CPC 3. 5.4.1 Description of the test location Test location: Shielded Room S4 5.4.2 Photo documentation of the test set-up 5.4.3 Applicable standard According to FCC Part 15, Section 15.247(b)(3): For systems using digital modulation in the 2400-2483.5 MHz and 5725 – 5850 MHz bands, the maximum peak output power of the transmitter shall not exceed 1 Watt. The limit is based on transmitting antennas of directional gain that do not exceed 6 dBi. 5.4.4 Description of Measurement The output power is measured using the spectrum analyzer method according KDB 558074, clause 8.1 option 1. The EUT is set while measuring in TX continuous mode with a duty cycle, x = 1. The cable loss of 1.3 dB @ 2.45 GHz is taken into account. FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 21 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 5.5 Spurious emissions conducted For test instruments and accessories used see section 6 Part SEC 2 and SEC 3. 5.5.1 Description of the test location Test location: Shielded Room S4 5.5.2 Photo documentation of the test set-up 5.5.3 Applicable standard According to FCC Part 15, Section 15.247(d): In any 100 kHz bandwidth outside the frequency bands 2400 – 2483.50 MHz and 5725 – 5850 MHz, the digitally modulated radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or an radiated measurement. Attenuation below the general limits specified in Section 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limit specified in Section 15.209(a) (see Section 15.205(c)). 5.5.4 Description of measurement The spurious emissions are measured conducted using a spectrum analyser in a test setup following the procedures set out in KDB 558074 for DTS. The transmitter is set to the lowest operating frequency (CH0), the middle (CH7) and to the highest operating frequency (CH15). The frequency spectrum outside from the operating frequency range (2400 - 2483.5 MHz) is scanned for emissions that exceed the defined limit. The measurement is performed at normal test conditions in modulated TX continuous mode. The cable loss of the complete frequency range is taken into account. Spectrum analyser search setting: RBW: 100 kHz, VBW: 300 kHz, Detector: Max peak, Trace Mode: Max hold, Sweep time: Auto FCC ID: T8GP104 IC ID: 6434A-P104 mikes-testingpartners gmbh File No. T36587-00-01KJ, page 26 of 51 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481240 Rev. No. 1.2, 2012-12-12 5.6 Band edge compliance For test instruments and accessories used see section 6 Part MB. 5.6.1 Description of the test location Test location: Shielded Room S4 5.6.2 Photo documentation of the test set-up 5.6.3 Applicable standard According to FCC Part 15C, Section 15.247(d): In any 100 kHz bandwidth outside the frequency bands 2400 – 2483.5 MHz and 5725 – …
