T8GSCON2Rear Seat Control Unit for Automotive infotainment System with WLAN feature

AUDI SCON2 Installation: SCON2 is placed in the cars like in bellow picture Description: SCON2 is a Rear Seat Remote that can be used to control convenience and infotainment functions: air conditioner parameters or media playback, from the rear cabin. CAUTION – Prevent the Rear Seat Remote from coming into contact with liquids. Note – Please note that the Rear Seat Remote can only be used when the ignition is switched on and within range of the vehicle’s active Wi-Fi hotspot. – Please note that the Wi-Fi connection does not enable you to use the Internet. – Signals from Bluetooth devices and Wi-Fi hotspots within range of the vehicle can interfere with the in-car Wi-Fi services. If several Bluetooth devices and Wi-Fi hotspots are within range of the vehicle, the data transmission rates may be reduced, the connection may be lost and there may be restrictions to media broadcasts. Overview Rear Seat Remote: Overview Bellow you can find Menus available for SCON2 ’ CERTIFICATION INFORMATION For EU / EFTA countries: Radio Equipment Directive – Declaration of Conformity Hereby, Harman Becker Automotive Systems GmbH declares that the radio Equipment types SCON2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet Address: (*1) (*1) http://www.harman.com/compliance WLAN: 2400 - 2483,5 MHz <20 dBm WLAN: 5170 - 5835 MHz <20 dBm Manufacturer: Harman Becker Automotive Systems GmbH Becker-Goering-Strasse 16 76307 Karlsbad, Germany FCC / ISED statement Model: SCON2 FCC ID: T8GSCON2 IC: 6434A-SCON2 Modification statement SCON2 has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. SCON2 n’approuve aucune modification apportée à l’appareil par l’utilisateur, quelle qu’en soit la nature. Tout changement ou modification peuvent annuler le droit d’utilisation de l’appareil par l’utilisateur. Interference statement This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Wireless notice: This device complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS‐102 of the ISED radio frequency (RF) Exposure rules. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. WARNING! This device must be installed and used at a distance >5 cm from the body. Le présent appareil est conforme à l'exposition aux radiations FCC / ISED définies pour un environnement non contrôlé et répond aux directives d'exposition de la fréquence de la FCC radiofréquence (RF) et RSS‐102 de la fréquence radio (RF) ISED règles d'exposition. L'émetteur ne doit pas être colocalisé ni fonctionner conjointement avec à autre antenne ou autre émetteur. ATTENTION! Ce produit doit être installé de façon à garantir une distance minimale de séparation de 5 cm ou plus de tout corps humain FCC Class B digital device notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAN ICES-3 (B) / NMB-3 (B) This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003.

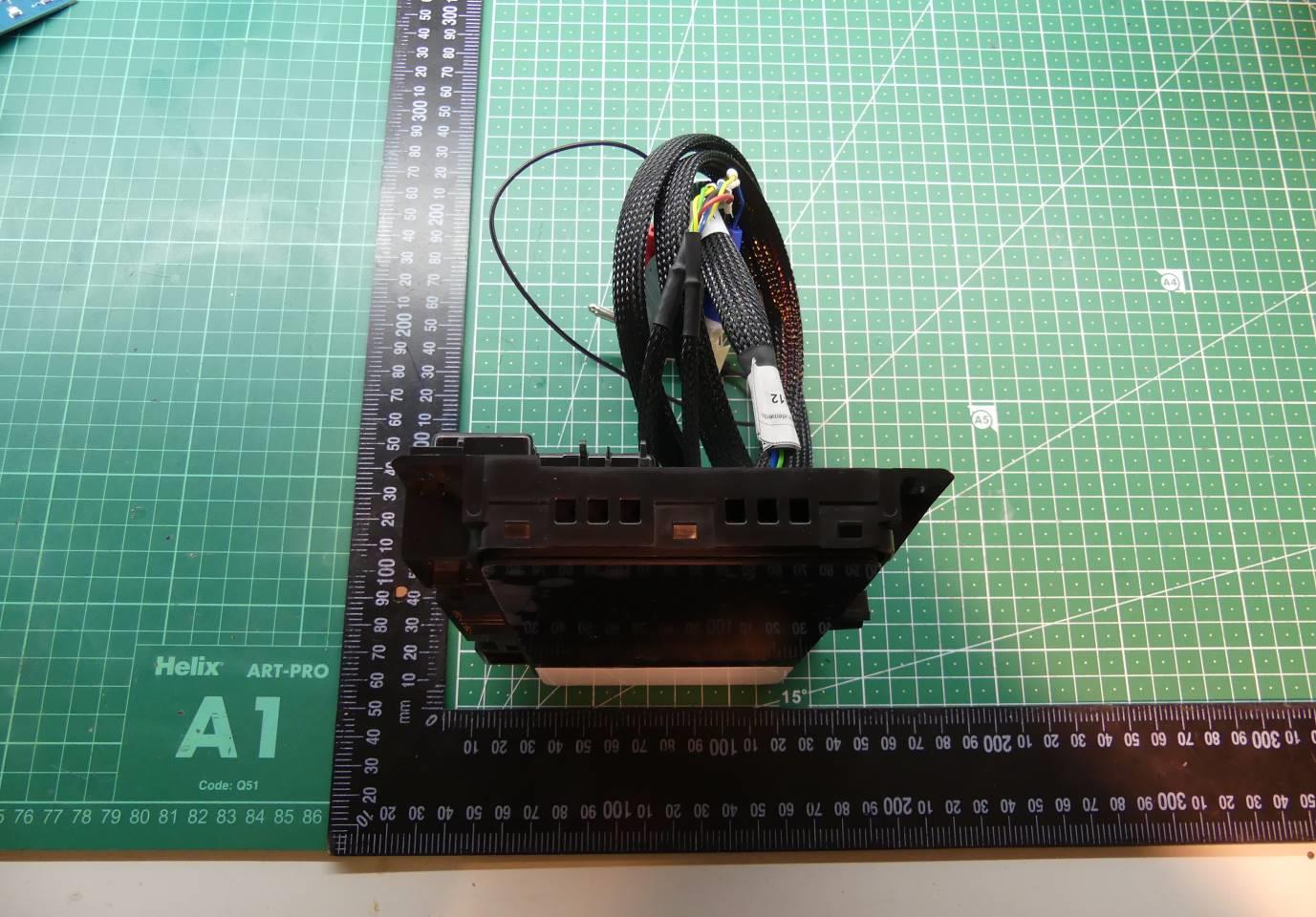

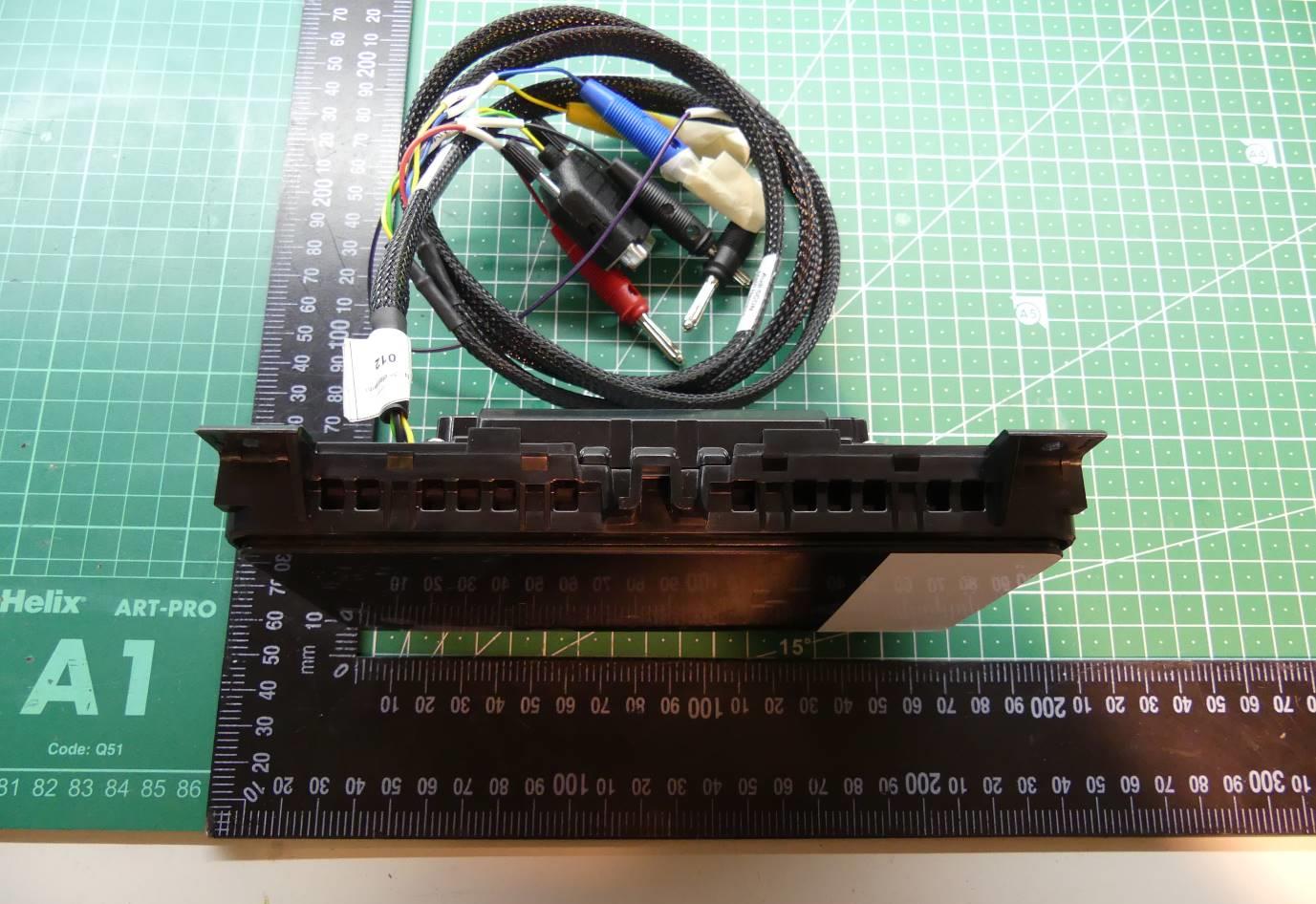

External Pictures

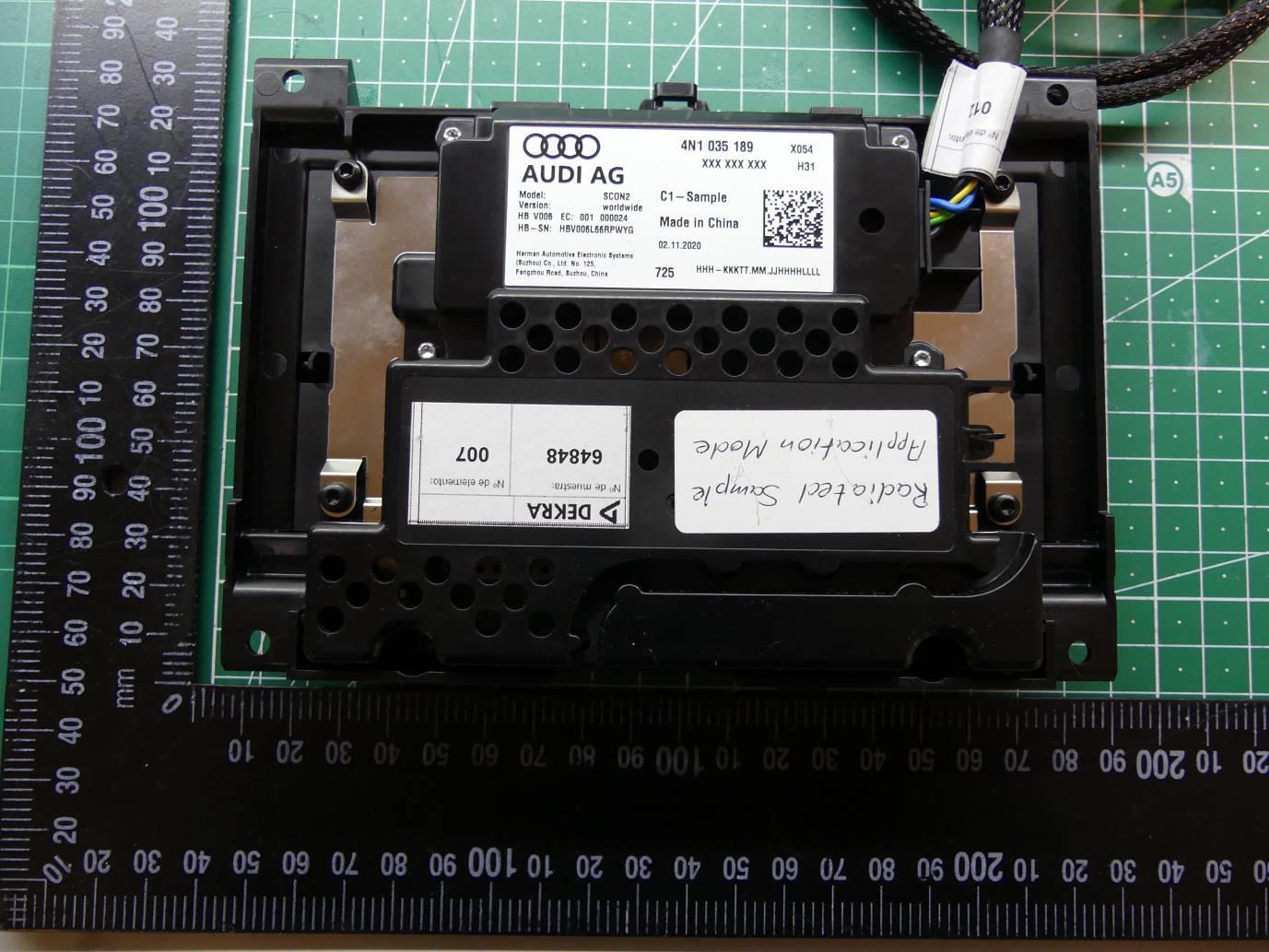

Internal Pictures

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: 64848REM.002 2021-02-15 Test report No: NIE: 64848REM.002 Test report FCC Rules and Regulations CFR 47, Part 15, Subpart B (10-1-19 Edition) & ICES-003 Issue 7 (October 2020) (*) Identification of item tested Automotive infotainment System (*) Trademark Audi (*) Model and /or type reference SCON2 Other identification of the product HW version: C1 SW version: 0107 (*) Features Wi-Fi Manufacturer HARMAN BECKER AUTOMOTIVE SYSTEMS GMBH BECKER-GOERING-STR. 16 76307 KARLSBAD, GERMANY Test method requested, standard FCC CFR 47, Part 15, Subpart B (10-1-19 Edition) & ICES-003 Issue 7 (October 2020) Summary IN COMPLIANCE Approved by (name / position & signature) Rafael López Martín EMC Consumer & RF Lab. Manager Date of issue 2021-02-15 Report template No FDT08_23 (*) “Data provided by the client” DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: 64848REM.002 Page 2 of 20 2021-02-15 Index ACRONYMS ................................................................................................................................................................. 3 COMPETENCES AND GUARANTEES ....................................................................................................................... 3 GENERAL CONDITIONS ............................................................................................................................................. 4 UNCERTAINTY ............................................................................................................................................................ 4 DATA PROVIDED BY THE CLIENT ............................................................................................................................ 4 USAGE OF SAMPLES ................................................................................................................................................. 5 TEST SAMPLE DESCRIPTION ................................................................................................................................... 6 IDENTIFICATION OF THE CLIENT ............................................................................................................................. 8 TESTING PERIOD AND PLACE .................................................................................................................................. 8 DOCUMENT HISTORY ................................................................................................................................................ 8 ENVIRONMENTAL CONDITIONS ............................................................................................................................... 9 REMARKS AND COMMENTS ................................................................................................................................... 10 TESTING VERDICTS ................................................................................................................................................. 10 LIST OF EQUIPMENT USED DURING THE TEST ................................................................................................... 10 SUMMARY .................................................................................................................................................................. 11 APPENDIX A: TEST RESULTS ................................................................................................................................. 12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: 64848REM.002 Page 3 of 20 2021-02-15 Acronyms Acronym ID Acronym Description Avg Radiated Average Level Avg Conducted Average Level Az Azimuth CPL Zones / Coupling Cables Code EMC Test Code Freq Frequency Freq Rng Frequency Range H Height Line Conducted Emissions - Tested Line MP Measurement Point Max Conducted Maximum Level MaxPeak Radiated Maximum Peak Level OM Operation Mode Pol Polarization QuasiPeak Conducted Quasi Peak Level QuasiPeak Radiated Quasi Peak Level S/ Sample V Verdict Volt Immunity Lvl Voltage Immunity Severity Level Volt Immunity Type Voltage Immunity Type Competences and guarantees DEKRA Testing and Certification S.A.U. is a testing laboratory accredited by the National Accreditation Body (ENAC -Entidad Nacional de Acreditación), to perform the tests indicated in the Certificate No. 51/LE 147. In order to assure the traceability to other national and international laboratories, DEKRA Testing and Certification S.A.U. has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification S.A.U. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Testing and Certification S.A.U. at the time of performance of the test. DEKRA Testing and Certification S.A.U. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Testing and Certification S.A.U. DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: 64848REM.002 P…
