T8I-CONEKT5NORTEK MOBILE-READY CONTACTLESS SMARTCARD READER

This Quick Start Guide is intended for experienced installing technicians. It is a basic reference to ensure all connections are properly made. Models include Nortek CSB-3500, CSKB-2600 and CSKB-3400. 1.0 Introduction A key component of a physical security electronic access control system, a mobile-ready reader combining BLE and contactless smartcard technologies is based on RFID technology. In operation it is capable of reading data stored on a contactless smartcard credential via high frequency—or reading data from mobile credential stored in a smartphone’s wallet app via BLE technology—and without physical contact, and then passing the data obtained to the physical access control system. Access control systems typically manage and record the movement of individuals through a protected area, such as a locked door. 2.0 Mounting Provisions Each reader may be installed either indoors or outdoors. Mounting options shown in the table below. Use supplied #6 mounting screws, or equivalent security screws, for installation. CSB-3500CSKB-2600CSKB-3400 Mullion Mount •• Single-gang Wall Mount* •• *Plastic or metal. 3.0 Reader Wiring WiegandMagstripe ConductorFunctionConductorFunction RedDC (8-14 VDC)RedDC (8-14 VDC) BlackGroundBlackGround GreenData 0GreenClock WhiteData 1WhiteData BrownBlue LED a BrownBlue LED OrangeGreen LED b OrangeGreen LED YellowNot UsedYellowNot Used BlueBeeperBlueBeeper VioletRead Mode c VioletRead Mode DrainShield GroundDrainShield Ground 4.0 Cable Requirements 24 AWG minimum, multi-conductor stranded with an overall foil shield, for example Belden 9535 or similar, supporting the five conductors comprising the physical layer of the Wiegand interface (power, ground, data 0, data 1, and/or beeper and LED). Alternatively, Belden 9539 or similar, for all reader functions. Contact your access control system manufacturer for their specific requirements. Per the SIA’s Wiegand specification, maximum cable length is 500 feet (152 m). 5.0 Output Formats Wiegand (industry standard 26-bit Wiegand and custom Wiegand formats) Magnetic Stripe (ABA Track II, clock and data, with card present) 6.0 Grounding Shield (drain) continuity must run from the reader to the access panel. Shield (drain) and reader ground must be tied together at the access panel and connect to an earth ground at one point. 7.0 Power Reader may be powered by the access panel. A linear power supply is recommended for best operation. QUICK START GUIDE NORTEK MOBILE-READY CONTACTLESS SMARTCARD READERS NOTES: a Single Line LED: This is the standard operating mode and does not make use of the Orange conductor. The LED is Blue when the reader is idle and flashes when a card is presented. The LED turns Green when the Brown Conductor is pulled low by the access control panel. b Dual Line LED: This mode makes use of both the Brown and Orange conductors. The Brown conductor controls the Blue LED and the Orange conductor controls the Green LED. LED states are determined by the access control system option and capability. c Read Mode: In regards to contactless smartcard credentials, the reader will only read and output the credential’s Card Serial Number (CSN) when the Violet conductor is pulled low (connected to ground). Otherwise, the reader will only read and output the credential’s programmed Sector data. Unused conductors should be trimmed, isolated and taped back to prevent unintended current flows. Apply positive voltage only to the Red DC Conductor. P/N: 01180-002 ∙ Rev. 11.20 8.0 Voltage 8 to 14 VDC. 12 VDC at the reader is recommended for best operation. 9.0 Read Mode For sector data reads, do not connect the Violet conductor (leave it high). For CSN reads, pull the Violet conductor low (connect the Violet conductor to ground). 10.0 Connection Connection must be done in accordance with NFPA 70. Do not connect to a receptacle controlled by a switch. Connect to a power limited DC voltage source. 11.0 Troubleshooting 1. When the reader is first powered on it will beep 4-times, and the LED will shine red. 2. Presenting a supported access credential will result in the reader beeping and the LED flashing once. 3. Mobile operation is optimized for smartphones supporting BLE (Bluetooth LE) version 4.2 or newer. Further, for the downloading of mobile access credentials, a stable, high-quality internet connection is recommended. NOTE: The access panel controls LED functionality, such as switching the LED to green. If the reader does not recognize the mobile credential or card or tag (no beep, no LED flash) or exhibits short read range, please see the table below for possible causes and solutions. Possible CauseCorrective Action Incorrect cablingVerify gauge, connections and cabling length Not enough power12 VDC recommended Incorrect credential usedVerify if credential technology is supported Reader/access panel not properly groundedEarth ground needed—verify shield and reader ground are tied at access panel and connect to ground at one point Supply generating interferenceLinear power supply recommended, verify switching power supply before use Should any of the corrective actions mentioned above not improve performance, disconnect the reader from the access panel and power it with a separate power supply or 9VDC battery, and re-test card functionality. By powering the readers separately, most variables that may lead to reduced performance can be eliminated. Should the problem persist, please contact Farpointe directly. QUICK START GUIDE NORTEK MOBILE-READY CONTACTLESS SMARTCARD READERS FCC Compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by Farpointe Data could void the user's authority to operate the equipment. Product can be us…

Text truncated - open the document above for the full version.

November 25, 2020 Attention: Application Examiner RE: Request for Confidentiality Applicant: Farpointe Data, Inc. FCC ID: T8I-CONEKT5 To Whom It May Concern: Permanent Confidentiality Request is hereby submitted by Farpointe Data, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block Diagrams  Detailed Operational/Functional Description  Parts list  Internal Photos (Circuit board covered with epoxy. Please see photos with and without epoxy. Farpointe Data, Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. The fee for confidentiality has been submitted along with the fee for certification.] If you have questions or need further information, please contact the undersigned. Sincerely, Kirk Bierach Kirk Bierach Director of Engineering Farpointe Data, Inc. Farpointe Data, Inc. 2195 Zanker Road San Jose, CA 95131 USA Office: +1-408-731-8700 Fax: +1-408-731-8705 www.farpointedata.com

2195 Zanker Road, San Jose, CA 95131 USA +1-408-731-8700 www.farpointedata.com November 25, 2020 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Farpointe Data, Inc. FCC ID: T8I-CONEKT5 To Whom It May Concern, We Farpointe Data, Inc., hereby authorize Intertek Testing Services to act as our Agent for the purpose of preparing the application for FCC ID number T8I-CONEKT5 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is November 25, 2020. The Limited Agency Agreement expires on November 25, 2030, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C.862, and no party to the application is subject to denial of federal benefits pursuant to that section. Sincerely, Kirk Bierach Kirk Bierach Director of Engineering Farpointe Data, Inc.

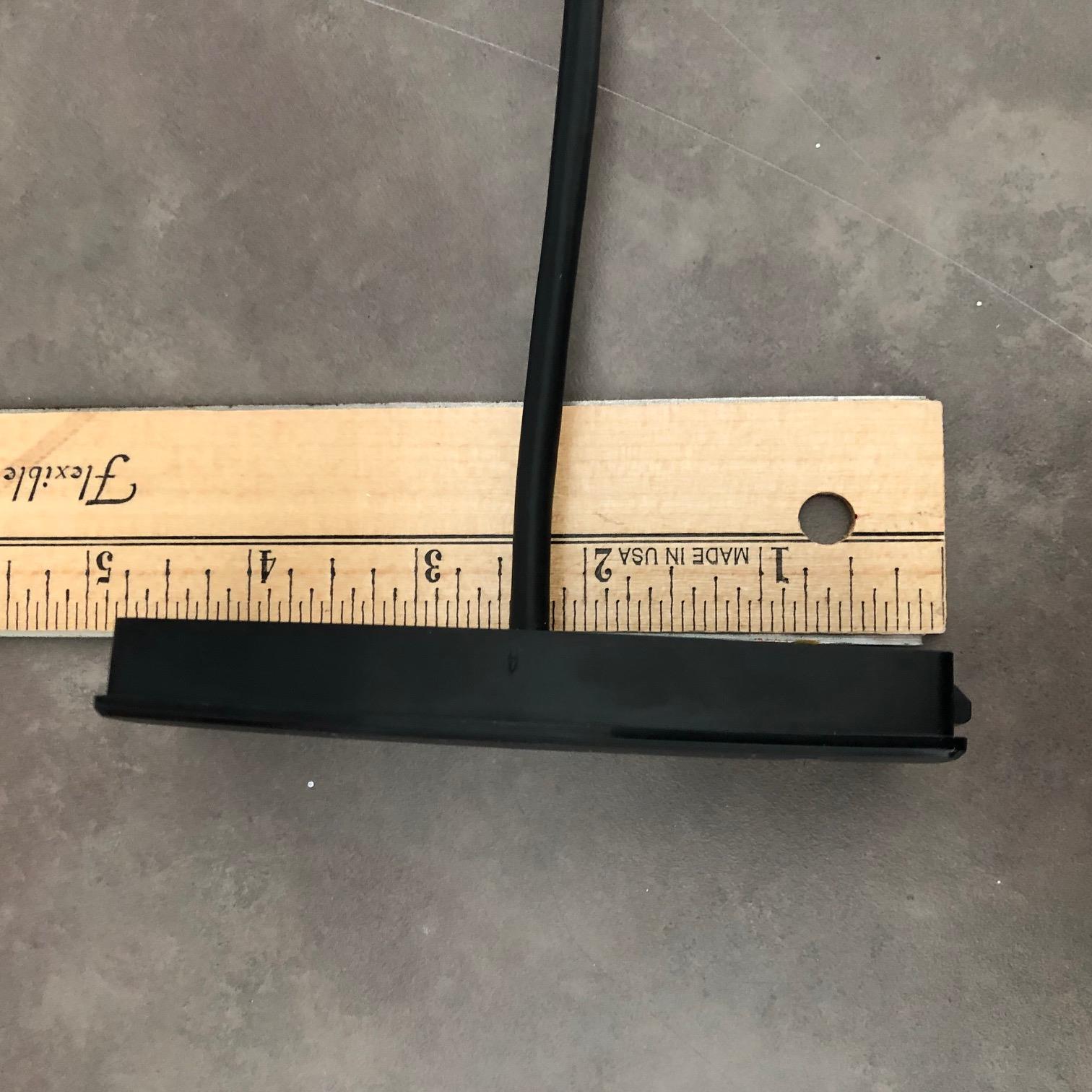

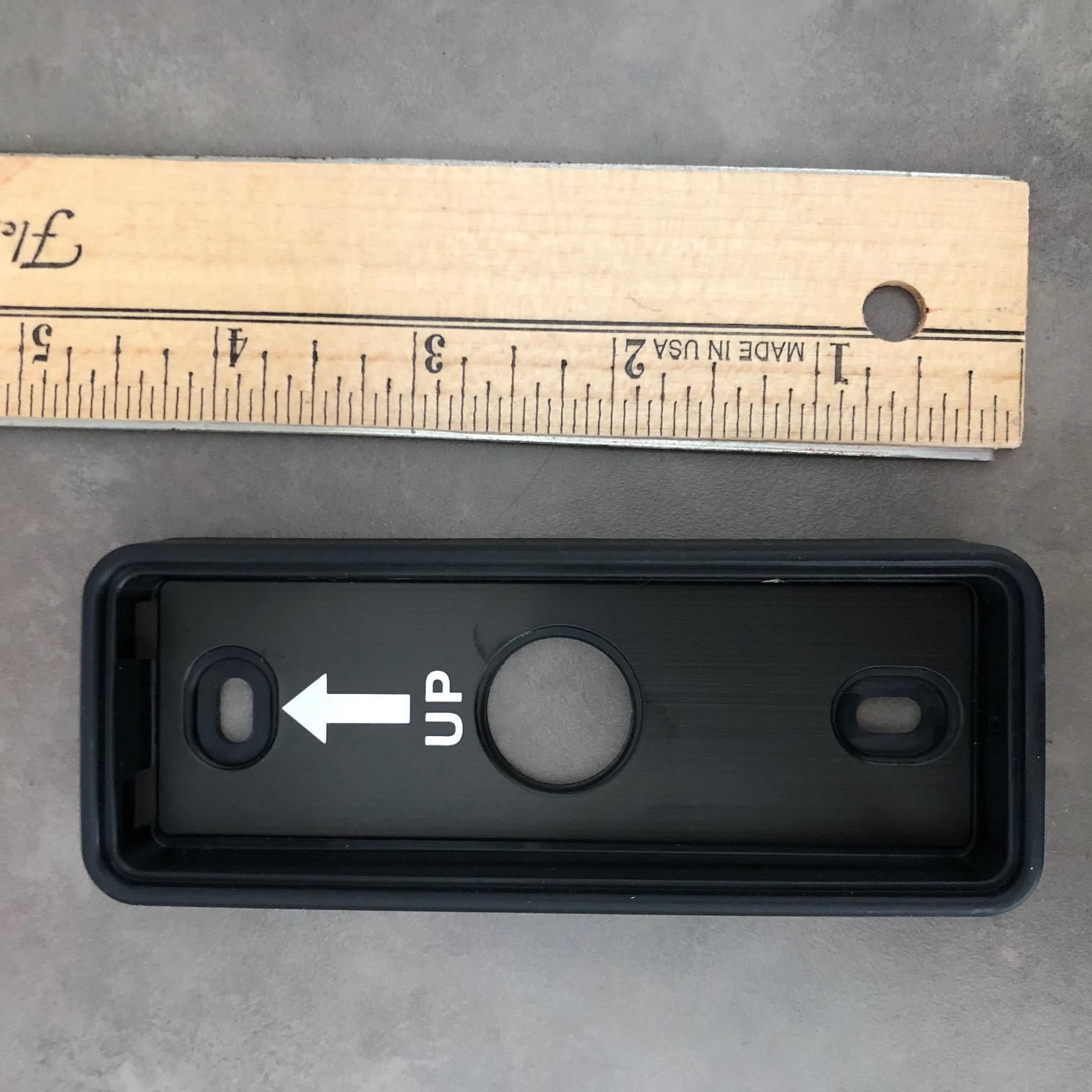

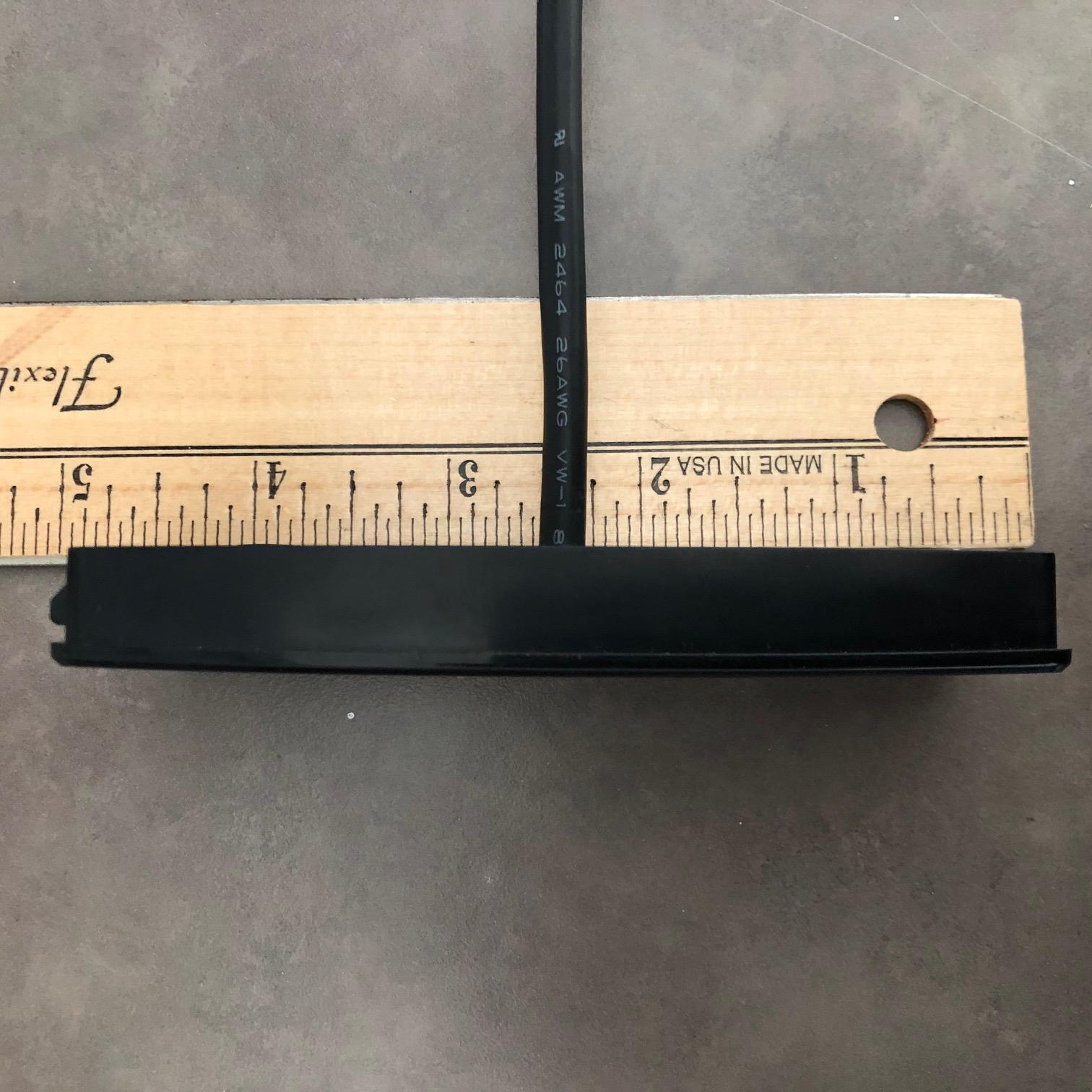

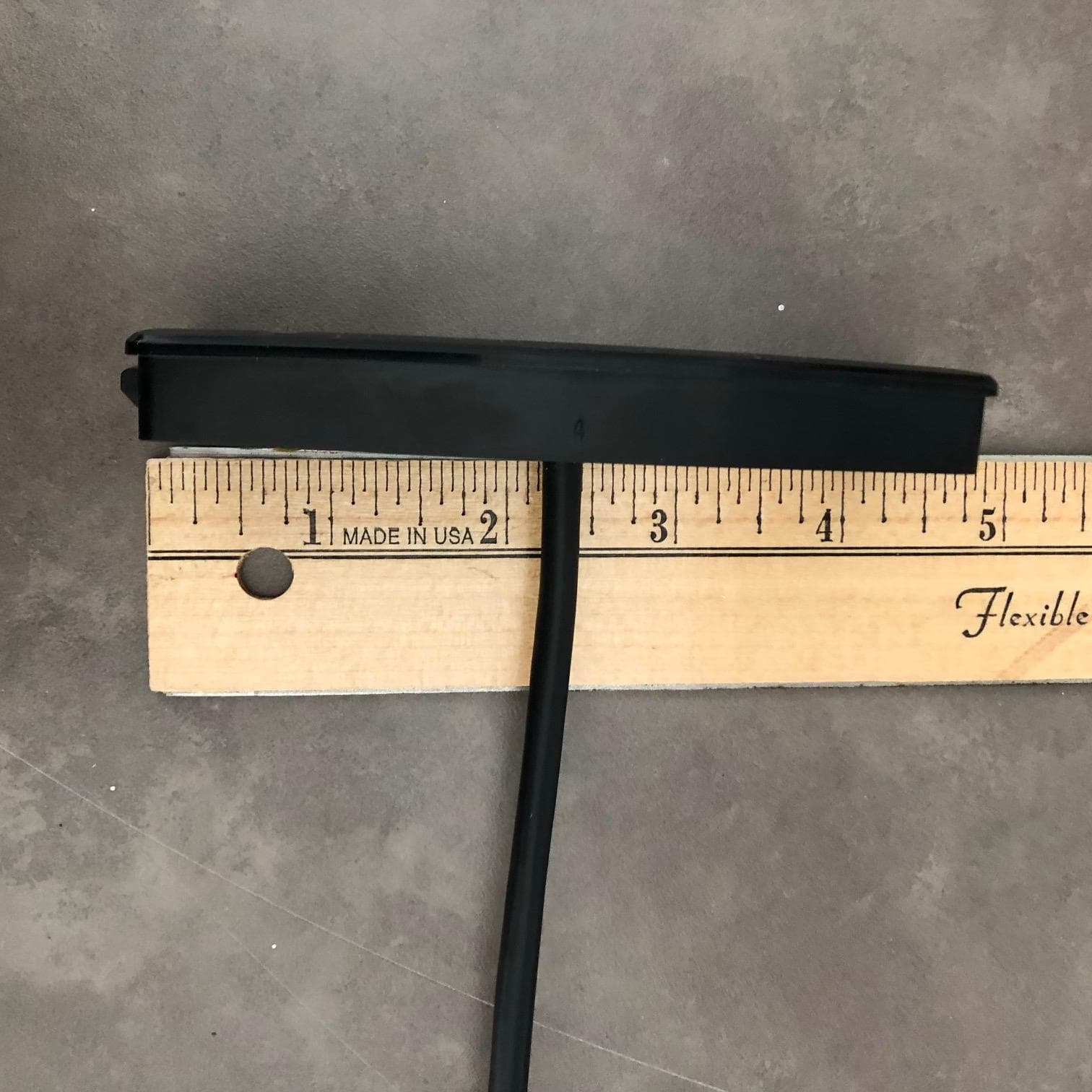

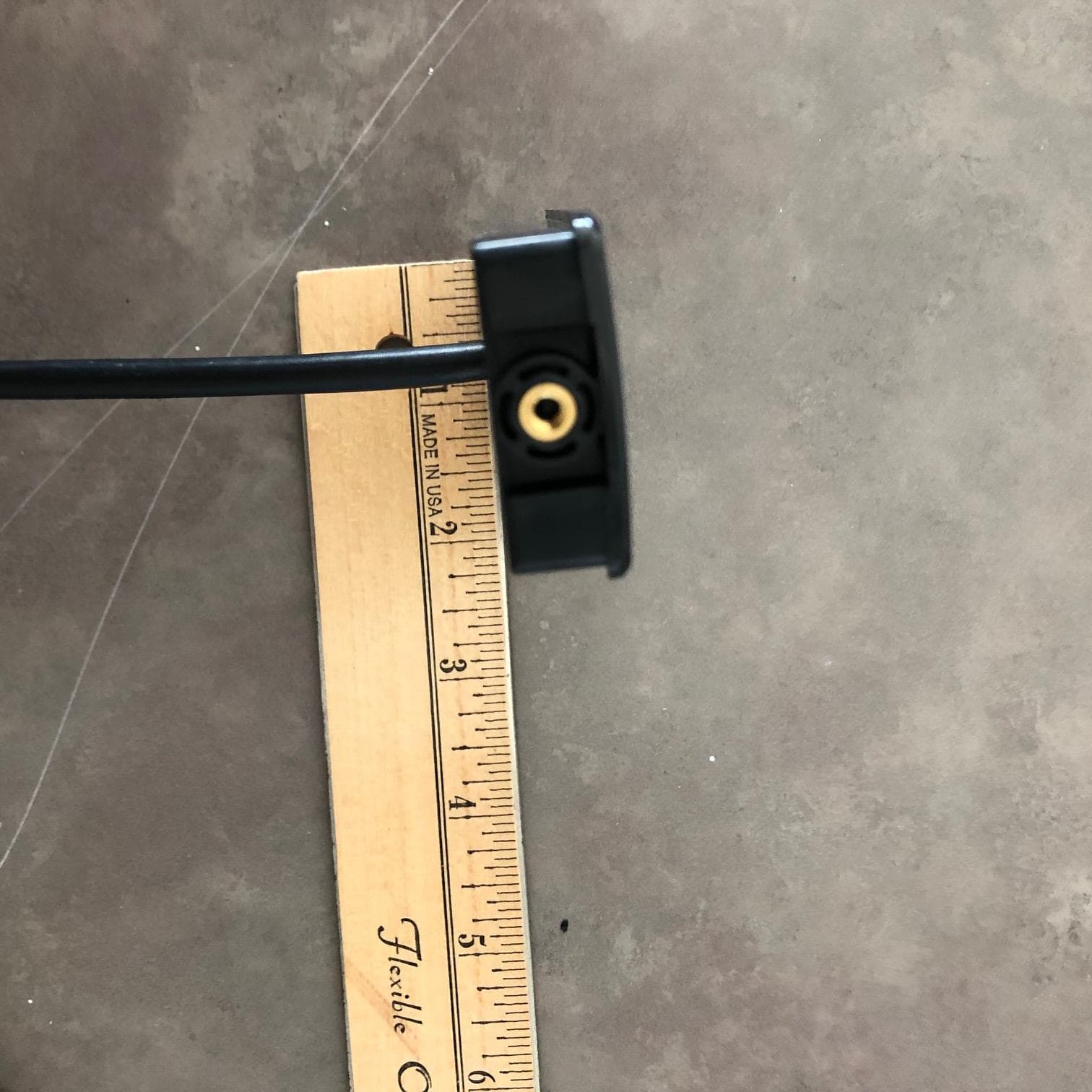

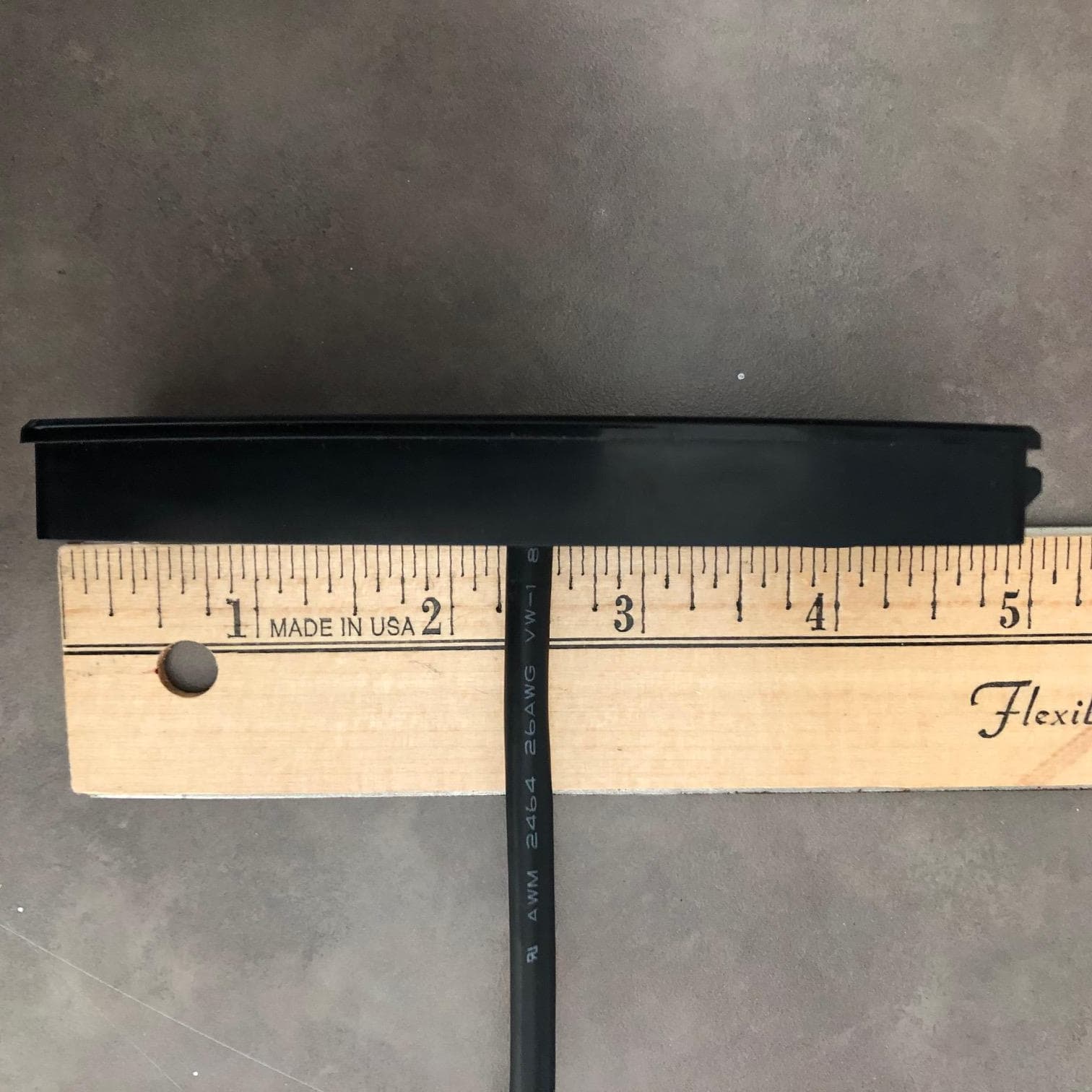

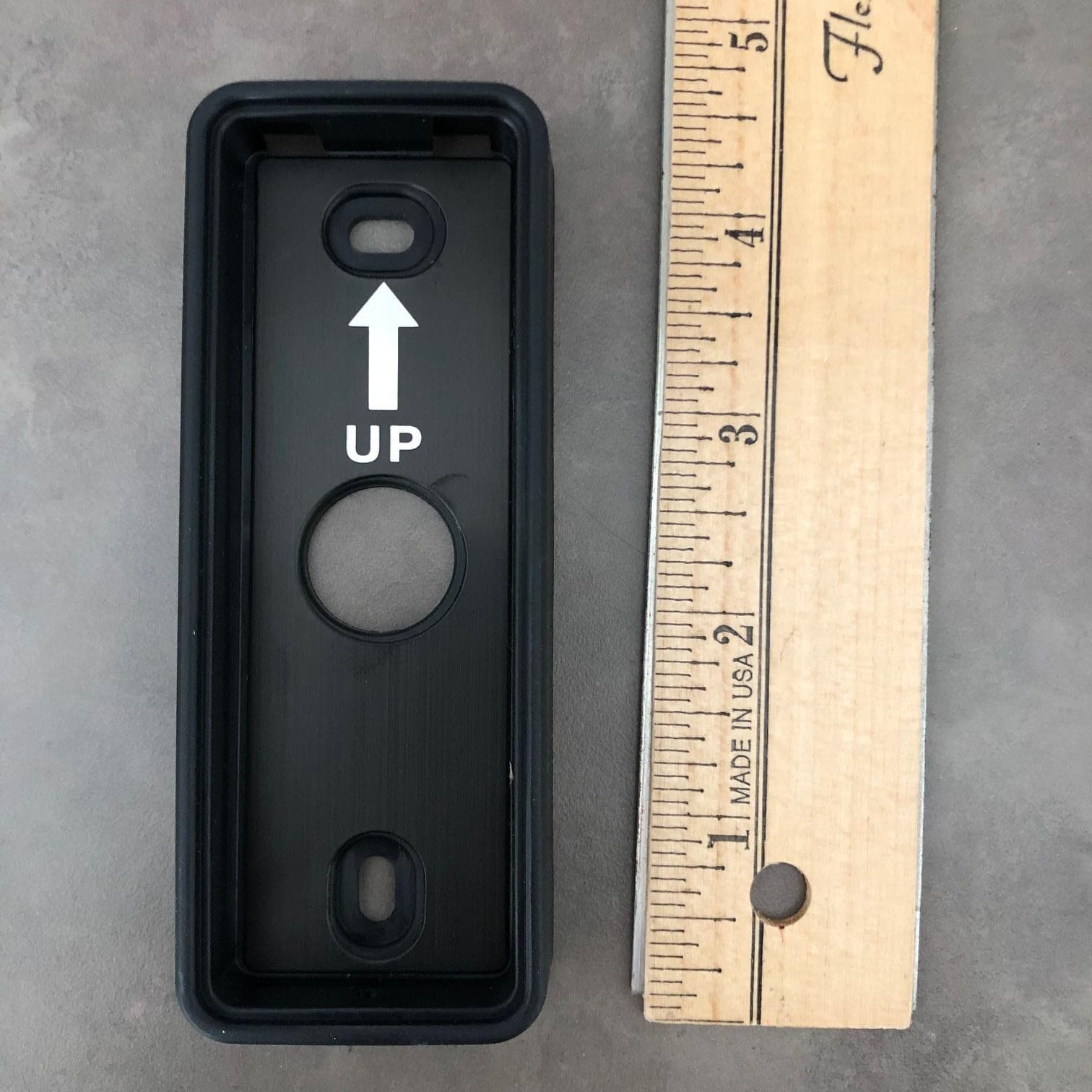

CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data External View CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data External Enclosure Back with serial Number Label CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Enclosure Front CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data External Enclosure Top CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data External Enclosure Bottom CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data External Enclosure Side 1 CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data External Enclosure Side 2 CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Gangbox backplate front CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Gangbox backplate back CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Gangbox backplate Side 1 CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Gangbox backplate Side 2 CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Gangbox backplate top CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Gangbox backplate bottom CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Mullion backplate front CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Mullion Backplate back CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Mullion Backplate side 1 CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Mullion Backplate side 2 CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Mullion Backplate bottom CSB-3500 External Photos Farpointe data, Inc. Confidential and Proprietary Data Mullion Backplate top

Serial Number Label Specification Label P/N: 05568-002SL Date: 03SEP2020 Product P/N: 05568-002 Rev. 1 Label Stock: Label 1.5" x 1.0" - REF: Quote Number Q261583 Genuine Zebra-Z-Ultimate 4000T White Polyester Label, 3" core, 5240 labels per roll. Dimensions: 1.5" wide x 1" long Ribbon - Part Number: 1150-00215 Zebra 5095 Performance Resin Ribbon Case, 1.57" x 1476 Ft. Usage: 3:1 Labels to Ribbon

CSB-3500 CSB-3500 ID label with location on unit

Farpointe Data, Inc. RF Exposure Exhibit SCOPE OF WORK EMC TESTING – Mobile-Ready Contactless Smartcard Reader, Model Tested: CSB 3500 REPORT NUMBER 104449578MPK-001A ISSUE DATE October 29, 2020 PAGES 9 DOCUMENT CONTROL NUMBER Non-Specific Radio Report Shell Rev. December 2017 MPK © 2017 INTERTEK Non-Specific Radio Report Shell Rev. December 2017 MPK EMC Report for Farpointe Data, Inc. on the Mobile-Ready Contactless Smartcard Reader Page 2 of 9 RF Exposure Exhibit (mobile devices) Report Number: 104449578MPK-001A Project Number: G104449578 Issue Date: October 29, 2020 Product Designation: Model Tested: Mobile-Ready Contactless Smartcard Reader CSB 3500 FCC ID: T8I-CONEKT5 IC: 6504A-CONEKT5 to 47CFR 2.1091 RSS-102 Issue 5 for Farpointe Data, Inc. Tested by: Client: Intertek 1365 Adams Court Menlo Park, CA 94025 USA Farpointe Data, Inc. 2195 Zanker Road San Jose, CA 95131 USA Report prepared by: Report reviewed by: Anderson Soungpanya/ Project Engineer Krishna Vemuri / EMC Manager This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. REPORT NUMBER: 104449578MPK-001A Issued: October 29, 2020 Non-Specific Radio Report Shell Rev. December 2017 MPK EMC Report for Farpointe Data, Inc. on the Mobile-Ready Contactless Smartcard Reader Page 3 of 9 Report No. 104449578MPK-001A Equipment Under Test: Mobile-Ready Contactless Smartcard Reader Trade Name: Farpointe Data, Inc. Model(s) Tested: CSB 3500 Applicant: Farpointe Data, Inc. Contact: Kirk Bierach Address: Farpointe Data, Inc. 2195 Zanker Road San Jose, CA 95131 Country: USA Tel. Number: (408) 731-8700 Email: [email protected] Applicable Regulation: 47CFR 2.1091 RSS-102 Issue 5 REPORT NUMBER: 104449578MPK-001A Issued: October 29, 2020 Non-Specific Radio Report Shell Rev. December 2017 MPK EMC Report for Farpointe Data, Inc. on the Mobile-Ready Contactless Smartcard Reader Page 4 of 9 TABLE OF CONTENTS Farpointe Data, Inc. ......................................................................................................................................... 1 1.0 RF Exposure Summary ............................................................................................................................ 5 2.0 RF Exposure Limits .................................................................................................................................. 5 3.0 Test Results (Mobile Configuration) ......................................................................................................... 7 4.0 Document History ................................................................................................................................... 9 REPORT NUMBER: 104449578MPK-001A Issued: October 29, 2020 Non-Specific Radio Report Shell Rev. December 2017 MPK EMC Report for Farpointe Data, Inc. on the Mobile-Ready Contactless Smartcard Reader Page 5 of 9 1.0 RF Exposure Summary Test Reference FCC Reference Industry Canada Result Radio frequency Radiation Exposure Evaluation 47 CFR§2.1091 RSS-102 Issue 5 Complies 2.0 RF Exposure Limits In this document, we evaluate the RF Exposure to human body due the intentional transmission from the transmitter (EUT). The limits for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 and RSS-102 are followed. 2.1 FCC Limits According to FCC 1.1310 table 1: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 0.3 – 3.0 614 1.63 *100 6 3.0 – 30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300 - 1500 ... ... F/300 6 1500 - 100,000 ... ... 5 6 (B )Limits For General Population / Uncontrolled Exposure 0.3 – 1.34 614 1.63 *100 30 1.34 – 30 824/f 2.19/f *180/f 2 30 30 – 300 27.5 0.073 0.2 30 300 - 1500 ... ... F/1500 30 1500 - 100,000 ... ... 1.0 30 F = Frequency in MHz * = plane wave equivalent density REPORT NUMBER: 104449578MPK-001A Issued: October 29, 2020 Non-Specific Radio Report Shell Rev. December 2017 MPK EMC Report for Farpointe Data, Inc. on the Mobile-Ready Contactless Smartcard Reader Page 6 of 9 2.2 Industry Canada Limits According to RSS-102, Industry Canada has adopted the SAR and RF field strength limits established in Health Canada’s RF exposure guideline, Safety Code 6. Table 4: RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range Electric Field Magnetic Field Power Density Reference Period (MHz) (V/m rms) (A/m rms) (W/m 2 ) (minutes) 0.003-10 83 90 - Instantaneous* 0.1-10 - 0.73/ ƒ - 6** 1.1-10 87/ ƒ 0.5 - - 6** 10-20 27.46 0.0728 -2 6 20-48 58.07/ ƒ 0.25 0.1540/ ƒ 0.25 8.944/ ƒ0.5 6 48-300 22.06 0.05852 1.291 6 300-6000 3.142 ƒ 0.3417 0.008335 ƒ 0.3417 0.02619 ƒ 0.6834 6 6000-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10-4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note: ƒ is frequency in MHz.…

Text truncated - open the document above for the full version.

EMC Report for Farpointe Data, Inc. on the Mobile-Ready Contactless Smartcard Reader File: 104449578MPK-001 Page 1 of 56 TEST REPORT Report Number: 104449578MPK-001 Project Numbers: G104449578, G104274802 Report Issue Date: October 27, 2020 Testing performed on MOBILE-READY CONTACTLESS SMARTCARD READER Model Number: CSB 3500 FCC ID: T8I-CONEKT5 IC: 6504A-CONEKT5 to FCC Part 15 Subpart C (15.247) Industry Canada RSS-247 Issue 2 For Farpointe Data, Inc. Test Performed by: Test Authorized by: Intertek 1365 Adams Court Menlo Park, CA 94025 USA Farpointe Data, Inc. 2195 Zanker Road San Jose, CA 95131 USA Prepared by: Date: October 27, 2020 Anderson Soungpanya Reviewed by: Date: October 27, 2020 Krishna K Vemuri This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Cli ent. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Inter tek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report for Farpointe Data, Inc. on the Mobile-Ready Contactless Smartcard Reader File: 104449578MPK-001 Page 2 of 56 Report No. 104449578MPK-001 Equipment Under Test: MOBILE-READY CONTACTLESS SMARTCARD READER Model Number: CSB 3500 Applicant: Farpointe Data, Inc. Contact: Kirk Bierach Address: Farpointe Data, Inc. 2195 Zanker Road San Jose, CA 95131 Country: USA Tel. Number: (408) 731-8700 Email: [email protected] Applicable Regulation: FCC Part 15 Subpart C (15.247) Industry Canada RSS-247 Issue 2 Date of Test: September 11, 2018, May 7, 2020 & October 5 – 23, 2020 We attest to the accuracy of this report: Anderson Soungpanya Project Engineer Krishna K Vemuri EMC Manager EMC Report for Farpointe Data, Inc. on the Mobile-Ready Contactless Smartcard Reader File: 104449578MPK-001 Page 3 of 56 TABLE OF CONTENTS 1.0 Summary of Tests ................................................................................................................. 4 2.0 General Information ............................................................................................................. 5 2.1 Product Description ............................................................................................................ 5 2.2 Related Submittal(s) Grants ................................................................................................ 6 2.3 Test Facility ......................................................................................................................... 6 2.4 Test Methodology ............................................................................................................... 6 2.5 Measurement Uncertainty ................................................................................................. 6 3.0 System Test Configuration ..................................................................................................... 7 3.1 Support Equipment ............................................................................................................. 7 3.2 Block Diagram of Test Setup ............................................................................................... 7 3.3 Justification ......................................................................................................................... 9 3.4 Software Exercise Program ................................................................................................. 9 3.5 Mode of Operation during Test .......................................................................................... 9 3.6 Modifications Required for Compliance ............................................................................. 9 3.7 Additions, Deviations and Exclusions from Standards ........................................................ 9 4.0 Measurement Results .......................................................................................................... 10 4.1 6-dB Bandwidth and 99% Occupied Bandwidth ............................................................... 10 4.2 Maximum Peak Conducted Output Power at Antenna Terminals ................................... 18 4.3 Maximum Power Spectral Density .................................................................................... 22 4.4 Out of Band Antenna Conducted Emission....................................................................... 26 4.5 Transmitter Radiated Emissions ....................................................................................... 31 4.6 AC Line Conducted Emission ............................................................................................. 47 5.0 List of Test Equipment .......................................................................................................... 55 6.0 Document History ................................................................................................................ 56 EMC Report for Farpointe Data, Inc. on the Mobile-Ready Contactless Smartcard Reader File: 104449578MPK-001 Page 4 of 56 1.0 Summary of Tests Test Reference FCC Reference Industry Canada Result RF Output Power 15.247(b)(3) RSS-247, 5.4.d) Complies 6 dB Bandwidth 15.247(a)(2) RSS-247, 5.2.a) Complies Power Density 15.247(e) RSS-247, 5.2.b) …

Text truncated - open the document above for the full version.

Farpointe Data, Inc. Mobile-Ready Contactless Smartcard Reader EUT Photo Farpointe Data, Inc. Mobile-Ready Contactless Smartcard Reader Radiated Emissions The following photographs show the testing configurations used. Farpointe Data, Inc. Mobile-Ready Contactless Smartcard Reader Farpointe Data, Inc. Mobile-Ready Contactless Smartcard Reader Farpointe Data, Inc. Mobile-Ready Contactless Smartcard Reader AC Line Conducted Emission The following photographs show the testing configurations used.
