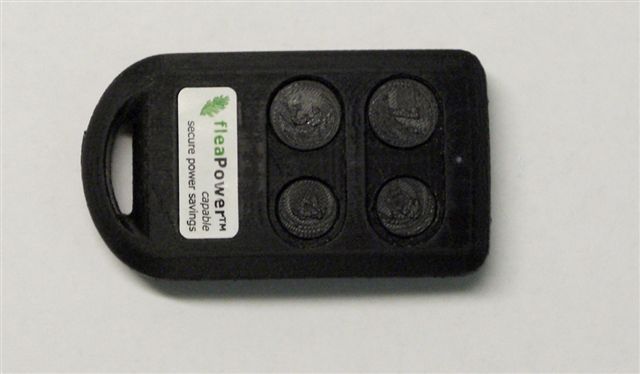

T8I-RANGER2Security Transmitter

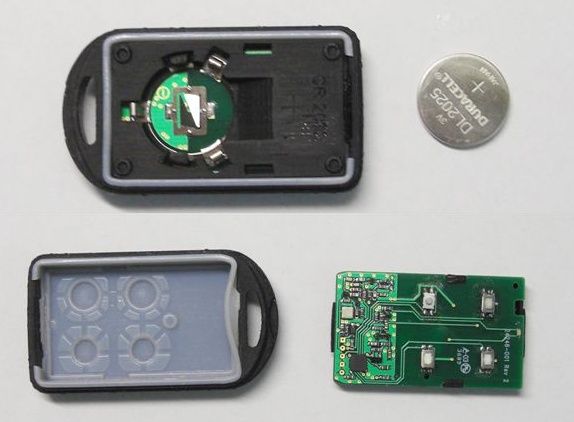

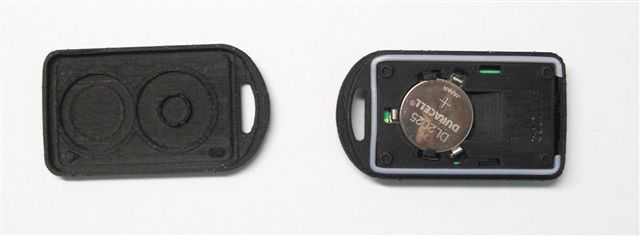

Ranger Long-Range Wireless Radio Transmitter 2177 Leghorn Street01602-001 - Rev. 1.2 Mountain View, CA 94043-1605 USA1 of 2 Tel: +1-650-964-2615 Fax: +1-650-988-6687 Web: www.farpointedata.com E-mail: [email protected] Installation Guide WRT-4 Transmitter These Operating Instructions are a basic guide in the proper use and care of the Ranger Transmitters. Addi- tional information may be downloaded from the Farpointe Data website found at www.farpointedata.com; under Products > Ranger™ Long Range Transmitters and Receivers. The Ranger Long-Range Wireless Radio Transmitter is compliant with the following organizations: FCC compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired oper- ation. Product can be used without license conditions or restrictions in all European Union countries, including Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Spain, Sweden, United Kingdom, as well as other non-EU countries, including Iceland, Norway, and Switzerland. 1.0Description Wireless Radio Transmitters (commonly known as “clickers”) and Long Range Receivers with integrated antenna form Farpointe Data’s ultra-high frequency, long-range identification solution known as Ranger. Intended for security access control applications, Ranger’s wireless communications are based upon a secure, digital, anti-playback routine 1 . Ranger Transmitters feature one or four-buttons, each corresponding to its own Wiegand output on the Ranger Receiver. Each Transmitter includes an integrated red LED, used to indicate positive button press as well as battery strength. They are also equipped standard with a proximity module for use with Farpointe’s Pyramid Series Proximity™ readers. This allows the Transmitter to be used as a close-range prox- imity access credential 2 . 2.0Transmitter Layout 1. Eliminates the risk of code sniffing and unauthorized duplication. As such, the Transmitter must be clicked twice to be learned by the Receiver upon initial Receiver power up. 2. Formatting of the proximity module matches that of the Transmitter. 1 3 2 4 Legend Red Led ID Label Buttons 1 to 4 Key Ring Holder FrontBack Ranger Long-Range Wireless Radio Transmitter 2177 Leghorn Street01602-001 - Rev. 1.2 Mountain View, CA 94043-1605 USA2 of 2 Tel: +1-650-964-2615 Fax: +1-650-988-6687 Web: www.farpointedata.com E-mail: [email protected] Installation Guide WRT-4 Transmitter 3.0Output Formats Transmitters are sequentially coded in either the industry standard 26-bit Wiegand format or custom Wie- gand formats, with exact number sequences. As a cross reference the Transmitters’ internal ID number is printed on the ID label found on the back of the Transmitter. Specific coding details, including format, facility code, and ID range can be found on the Transmitter ship- ping box, as well as the shipment’s packing list. 4.0Battery Replacement Transmitters include a replaceable CR2032, 3 Volt lithium battery 1 . The battery should be replaced when a button press does not result in a flash of the LED, reliable read range, and/or an output from the Receiver. To replace the battery, follow the directions below: 1. Unsnap the back of the case using a small coin. 2. Remove the old battery. 2 3. Insert the new CR2032 3 Volt lithium battery. Be sure the plus (+) side of the battery is oriented accord- ing to marking inside of unit. 4. Replace the back of the case, snapping it back into place. 5.0Range 3 Maximum read range between the Transmitter and Receiver is up to 150-feet (45.7 m). 4 Farpointe Data reserves the right to change specifications at any and without notice. © 2009 Farpointe Data, Inc. All rights reserved. Protected by U. S. and worldwide patents. Farpointe Data, Inc. and the Farpointe Data logo are registered trademarks of Farpointe Data, Inc. HID is a registered trademarks of HID Global. MIFARE is a registered trademark of NXP B.V. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners. 1. The CR2032 3 Volt lithium battery was specifically selected for use with the Ranger Transmitter. When placing, only use this type of battery. It supports a relatively high current drain when used on an intermittent basis, such as when a button is pressed. This alkaline battery is widely available, and commonly used in electronic devices, including cameras. 2. Dispose of the battery according to local requirements. Recycle when possible. 3. For best performance it is important that the Transmitter be used as far from interference sources as possible. These sources may include, but are not limited to, large metal obstructions, such as duct work and appliances, as well as mag- netic fields and radio emissions. 4. The read range between the Transmitter and Receiver may be adjusted at the Receiver. As shipped, the Receiver is set for the maximum read range. This may be reduced to a minimum of several feet by an adjustment on the Receiver.

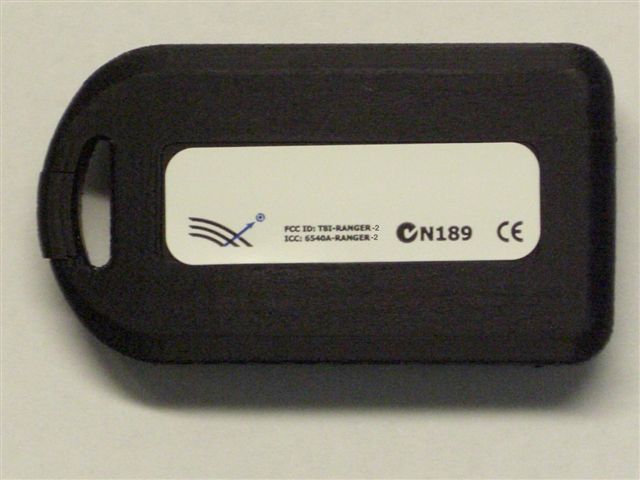

T8I-RANGER2 2010-01-04 Page 1 of 7 Farpointe Data, Inc. ● 2177 Leghorn Street ● Mountain View, CA 94043 Farpointe Data, Inc. Transmitter FCC ID: T8I-RANGER2 Certification Test Report January 4, 2010 T8I-RANGER2 2010-01-04 Page 2 of 7 Farpointe Data, Inc. ● 2177 Leghorn Street ● Mountain View, CA 94043 Contents 1. Introduction ...............................................................................................................................................................3 2. Statement of Compliance ...........................................................................................................................................3 2.1. FCC Part 2 §2.907 ..................................................................................................................................................3 2.2. FCC Part 2 §2.911 ..................................................................................................................................................3 2.3. FCC Part 2 §2.913 ..................................................................................................................................................3 2.4. FCC Part 2 §2.915 ..................................................................................................................................................3 2.5. FCC Part 2 §2.925 ..................................................................................................................................................3 2.6. FCC Part 2 §2.943, 2.945 .......................................................................................................................................3 2.7. FCC Part 2 §2.947 ..................................................................................................................................................3 2.8. FCC Part 2 §2.948 ..................................................................................................................................................4 2.9. FCC Part 2 §2.1033 ................................................................................................................................................5 3. Discussion of Laboratory Measurements and Rules Compliance ..............................................................................6 3.1. FCC Part 15 §15.231(a)(1) .....................................................................................................................................6 3.2. FCC Part 15 §15.231(a)(3) .....................................................................................................................................6 3.3. FCC Part 15 §15.231(a)(4) .....................................................................................................................................6 3.4. FCC Part 15 §15.231(a)(5) .....................................................................................................................................6 3.5. FCC Part 15 §15.231(b) .........................................................................................................................................6 3.5.1. Raw Field Strength Limits ...................................................................................................................................6 3.5.2. Duty Cycle Correction Factor and Resulting Limits ............................................................................................7 3.5.3. Measured Radiated Field Strength Data ..............................................................................................................7 3.6. FCC Part 15 §15.231(c)..........................................................................................................................................7 1. Introduction This device is a transmitter for use in a wireless security system. The unit is powered by a 3V battery. The transmitter is centered at 433.92MHz and is controlled by a SAW resonator. The device measures approximately 2 x 1.25 x 0.5 inches and weighs approximately 2 ounces. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2. Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1. FCC Part 2 §2.907 This is an application for certification of original equipment 2.2. FCC Part 2 §2.911 a) This application has been filed electronically using form 731. b) All required information has been supplied in this application and its attachments. c) This applicant has signed the application electronically. d) The technical test data has been signed by the agency performing the testing. e) Signature supplied in appropriate block on form 731. f) Processing fee has been paid by credit card. g) Signatures have been supplied electronically. 2.3. FCC Part 2 §2.913 a) This application has been filed electronically. b) Appropriate fees have been filed electronically. c) Equipment samples shall be supplied as requested. 2.4. FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5. FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: T8I- RANGER2”. See Exhibit A for a photograph showing the label and location on the back of the device. 2.6. FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7. FCC Part 2 §2.947 a) Measurement procedure follows ANSI C63.4. b) A description of utilized test equipment is contained in the report. 2.8. FCC Part 2 §2.948 Radiated measurements were taken at the following FCC-approved facility: Rhein Tech Laboratories, Inc. 360 Herndon Pkwy, Suite 1400 Herndon, VA 20170 Contact: Rick McMurray Phone: 703-689-0368 A photograph of the test site is shown below: 2.9. FCC Part 2 §2.1033 a) Form 731 has been filed electronically. b) The technical report, alo…

Text truncated - open the document above for the full version.

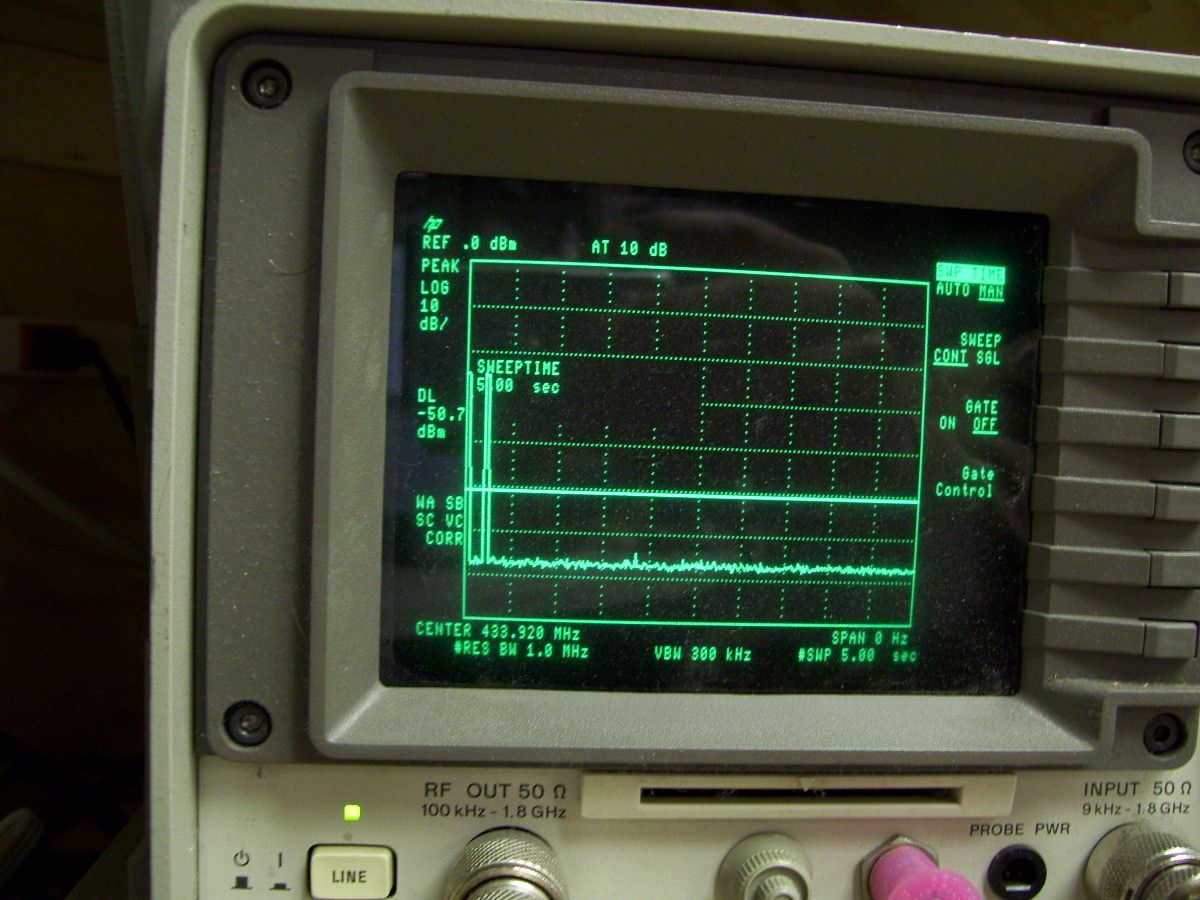

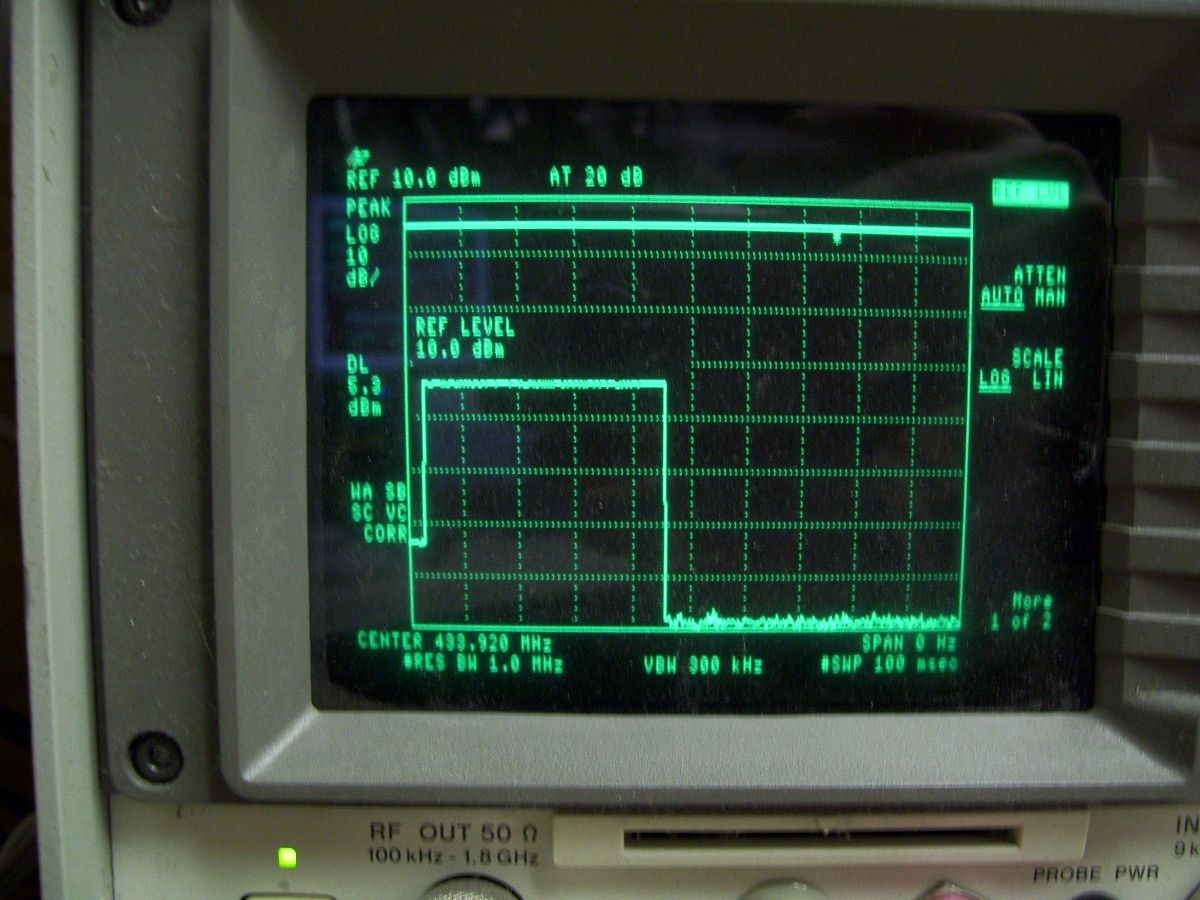

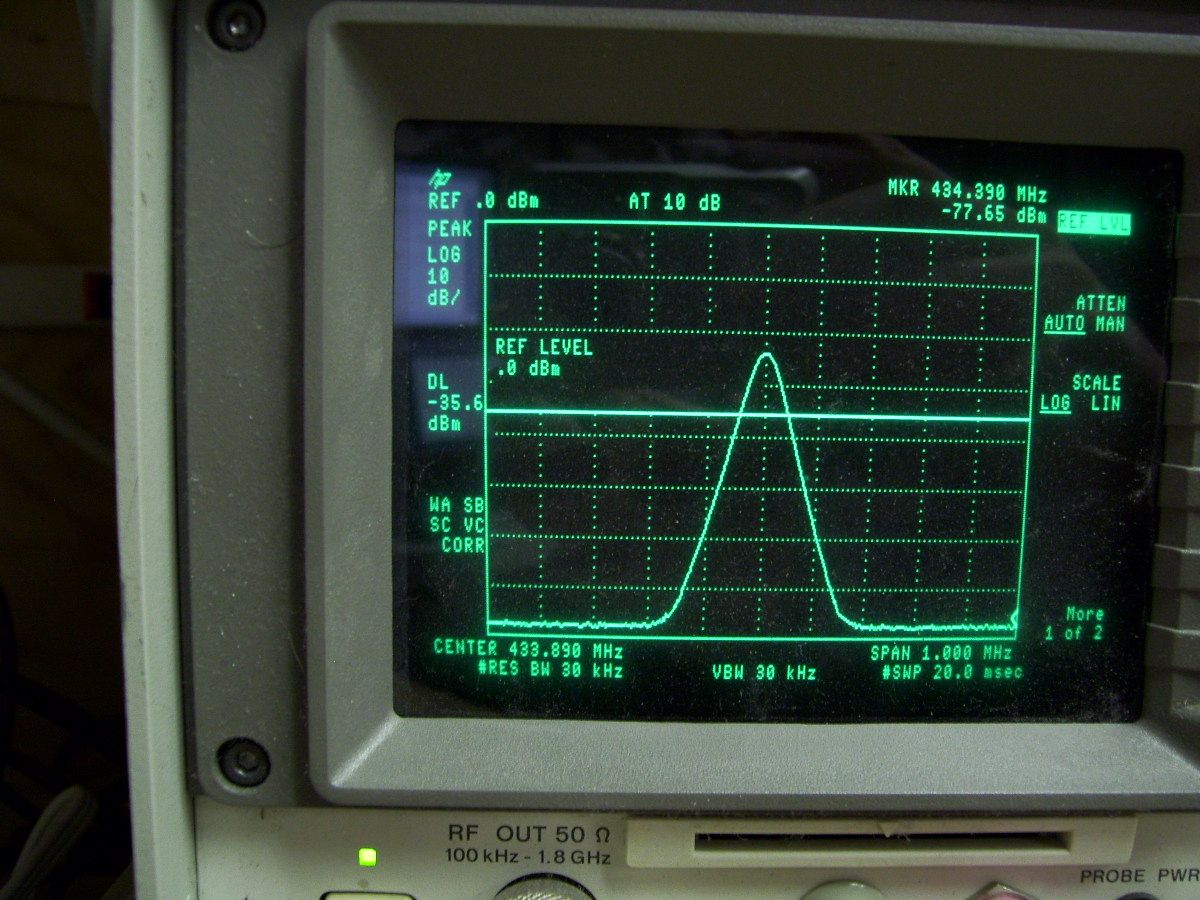

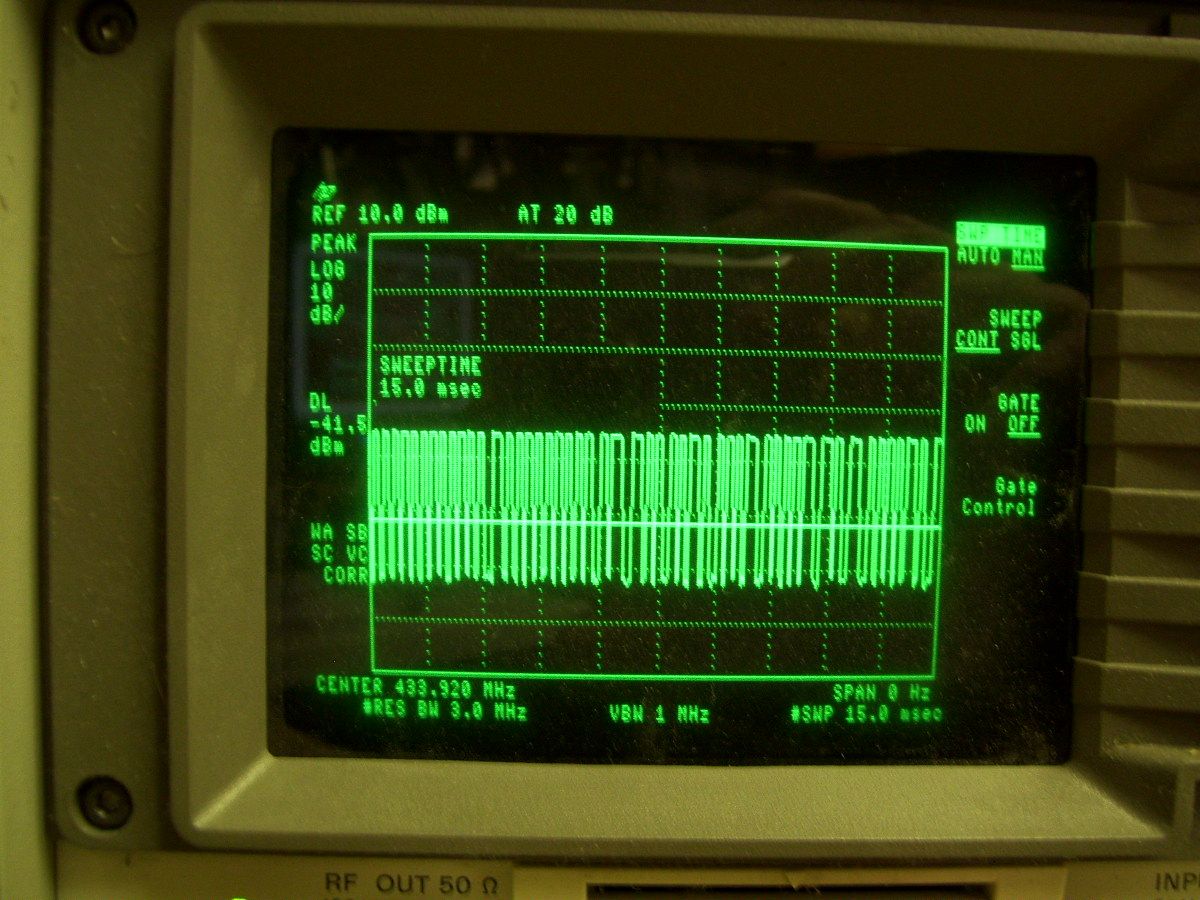

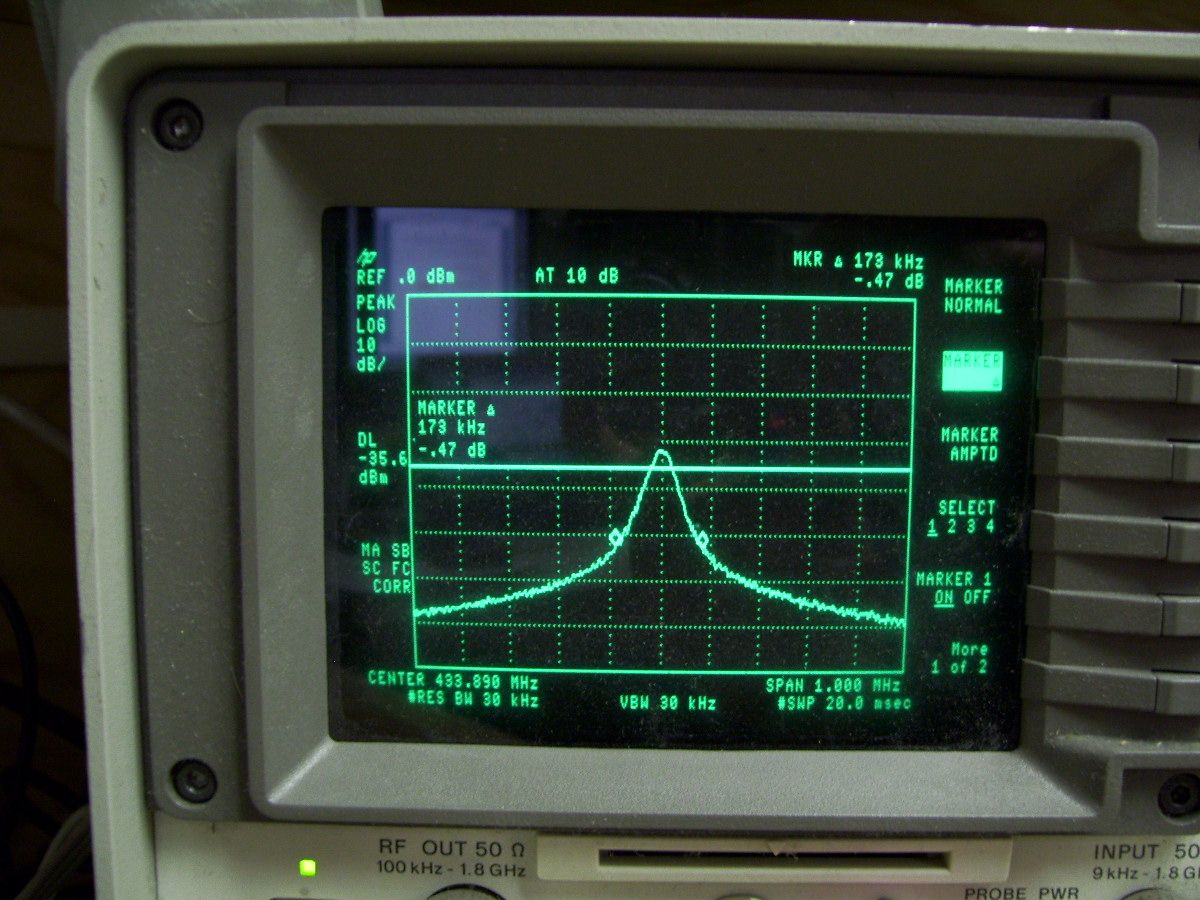

Engineering and Testing for EMC and Safety Compliance Accredited under A2LA Testing Certificate # 2653.01 KeyFob Frequency (MHz) Horizontal Polarity – Spectrum Analyzer Level (dBuV) Vertical Polarity – Spectrum Analyzer Level (dBuV) Site Correction Factor (dB/m) Corrected Analyzer Level (dBuV/m) Peak Limit (dBuV/m) Margin (dB) 433.889 100.7 102.0 -14.6 87.4 100.8 -13.4 867.777 60.6 65.9 -8.8 57.1 80.8 -23.7 1301.670 48.2 55.5 -5.4 50.1 74.0 -23.9 1735.560 31.0 30.7 -2.1 28.9 80.8 -51.9 2169.449 49.7 42.0 -6.4 43.3 80.8 -37.5 2603.338 40.9 46.1 -6.9 39.2 80.8 -41.6 3037.227 28.2 25.3 -5.8 22.4 80.8 -58.4 3471.116 22.5 23.0 -5.5 17.5 80.8 -63.3 3905.005 18.8 18.2 -4.3 14.5 74.0 -59.5 4338.894 18.4 20.2 1.1 21.3 74.0 -52.7 Test Equipment for Testing Field Strength of Spurious Radiation RTL Asset # Manufacturer Model Part Type Serial Number Calibration Due Date 900791 Chase CBL6111B Bilog antenna (30 MHz – 2000 MHz) N/A 12/12/10 900772 EMCO 3161-02 Horn Antennas (2 – 4 GHz) 9504-1044 6/14/10 901215 Hewlett Packard 8596EM EMC Analyzer (9 kHz – 12.8 GHz) 3826A00144 10/23/10 901425 Insulated Wire Corp. KPS- 1503- 2400-KPS RF Cable, 20' NA 10/17/10 901424 Insulated Wire Inc. KPS- 1503-360- KPS RF Cable 36" NA 10/17/10
