T8I-DELTAProximity RFID Tag Reader

Delta Series Mifare Readers Quick Reference Guide 2177 Leghorn Street 05465-001 Rev. 1.1 Mountain View, CA 94043-1605 USA 1 of 2 Tel: +1-650-964-2615 Fax: +1-650-988-6687 Web: http://www.farpointedata.com E-mail: [email protected] The Delta Series models include the Delta3, Delta5, and Delta 6.4. The Delta 6.4 is simply a Delta5 with a keypad attachment. All Delta Series Readers are compliant with the following organizations: FCC compliance Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes made to this equipment that is not authorized by Farpointe Data Inc. may void the user’s authority to operate the equipment. 1.0 Cable Requirements All readers operate at up to 500 feet (152 m) of cable, using nine-conductor, shielded, stranded cable. Per the Security Industry Association’s Wiegand specification, AWG 24 (such as Belden 9539) is the minimum gauge required for data transfer in a 500-foot run length. However, the proper wire gauge to use must be determined by the current draw requirements of the reader, the length of the cable run, and the voltage applied to the reader. If the reader is to be operated at 5 VDC, 5 VDC must be available at the reader (long cable runs have a voltage drop due to the resistance in the cable). A larger gauge of wire (having less resistance) or a separate power supply near the reader may be required to ensure 5 VDC is available at the reader. 2.0 Reader Modes Delta Series readers can be configured to operate in any of the following modes: • Sector Only Mode: Reader looks for access control data in a secure sector but if no valid data is found the reader outputs nothing. This is the default mode. • CSN Only Mode: Reader does not look for access control data in a secure sector data and simply outputs the card’s CSN. • Sector Plus CSN Mode: reader looks for access control data in a secure sector but if none is found the reader outputs the card’s CSN instead. 3.0 CSN Output Formats Delta Series readers can be configured to output the card’s CSN in any of the following ways: • 32-bit Wiegand: The reader outputs the 32-bit CSN as Wiegand data starting with the MSB. This is the default mode. • 26-bit Wiegand: The reader outputs 26-bit Wiegand data comprised of the 16 lower bits of the 32-bit CSN, fixed 8-bit facility code, and beginning and ending parity bits. Facility code defaults to 001 (Note: cutting off 16 MSBs from CSN can cause card duplication). • 34-bit Wiegand: The reader outputs 34-bit Wiegand data comprised of the 32-bit CSN MSB first plus beginning and ending parity bits. • 40-bit Wiegand: The reader outputs 40-bit Wiegand data comprised of the 32-bit CSN followed by an 8-bit check sum. • Magnetic Stripe (ABA Track II, clock and data, with card present): 32-bit CSN is output in ABA Track II format. 4.0 Secure Sector Access Control Data Output Formats Access control data programmed onto a secure mifare sector can be output in any of the following ways: • Wiegand (industry standard 26-bit Wiegand and custom formats) • Magnetic Stripe (ABA Track II, clock and data, with card present) 5.0 Grounding Shield (drain) continuity must run from the reader to the access panel. Shield (drain) and reader ground must be tied together at the access panel and connect to an earth ground at one point. 6.0 Power Reference Document Delta Series Mifare Readers Delta Series Mifare Readers Quick Reference Guide 2177 Leghorn Street 05465-001 Rev. 1.1 Mountain View, CA 94043-1605 USA 2 of 2 Tel: +1-650-964-2615 Fax: +1-650-988-6687 Web: http://www.farpointedata.com E-mail: [email protected] A reader may be powered by the access panel, so the reader is powered on when the access supply is powered on. However the best case is to power the reader by a separate, linear power supply. 7.0 Voltage • Can range from 5 to 14 VDC, 12 VDC is nominal 8.0 Reader Wiring Please note that at minimum the power, ground, data 0, and data 1 lines must be connected to the access panel. Other lines are for additional functionality. 9.0 Connections in Detail Wire Color Line I/O Description Red Reader Input voltage Input 5 to 14 VDC Green Wiegand data 0/ Magstripe Clock Output Wiegand data or ABA Track II clock White Wiegand data 1/ Magstripe Data Output Wiegand data or ABA Track II data Brown Red LED host control Input LED host control. In single line LED control mode (default mode) pull line low to turn on green LED. In dual line LED mode pull line low to turn on Red LED Orange Green LED host control Input LED host control, only used in dual LED mode. In dual LED mode pull line low to turn on green LED. Blue Audio tone host control Input Beeper host control. Pull line low for beep. Purple Read mode control Input Read mode host control. Pull line low for “CSN Only” mode. Yellow Card Present Output (can be configured as TTL or open collector) Card present line for ABA Track II magnetic stripe output. Black Reader Ground Input Reader Ground Silver Cable shield N/A Cable shield (drain), should be grounded Wire Color Function Green Blue Red Purple Brown Shield (Drain) White Yellow Black Silver Data 0 Beeper Reader Power Read Mode LED line 1 LED line 2 Data 1 Card Present Reader Ground Orange Figure 1: Wiring Connections to Access Panel Access Panel Reference Document Delta Series Mifare Readers Delta Series Mifare Readers Quick Reference Guide 2177 Leghorn Street 05465-001 Rev. 1.1 Mountain View, CA 94043-1605 USA 3 of 2 Tel: +1-650-964-2615 Fax: +1-650-988-6687 Web: http://www.farpointedata.com E-mail: [email protected] Mifare® is a registered trademark of Philips Electronics N.V.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 email: [email protected] Compliance Certification Services 30 October 2006 561 F Monterey Road Morgan Hill CA 95037 Attention: Mike Kuo Re: Request for confidentiality per 0.457 of FCC Rules Applicant: Farpointe Data Inc. FCC ID: T8I-DELTA Dear Mike, On behalf of my client Farpointe Data Inc., I request the following documents associated with this application for certification be withheld from public view: Schematics Block diagrams Operational description Internal photographs Justification for including internal photographs in confidentiality request: In final assembly all circuits are surrounded by opaque potting material, Removing this material to inspect circuits will likely destroy circuits imbedded in the potting material. Farpointe Data Inc. has expended considerable time and funds in developing the referenced product, and disclosure of these documents to competitors would afford them an unfair advantage in developing similar competing products. If you have questions or need further information please don’t hesitate to contact me. Sincerely, T.N. Cokenias Agent for Farpointe Data Inc.

Helen Zhao Subject: FW: Farpointe Data Inc., FCC ID: T8I-DELTA, Assessment NO.: AN06T6325, Notice#1 12/12/2006 From: Thomas Cokenias [mailto:[email protected]] Sent: Tuesday, December 12, 2006 5:08 PM To: Helen Zhao Subject: Re: Farpointe Data Inc., FCC ID: T8I-DELTA, Assessment NO.: AN06T6325, Notice#1 Hi Helen, Answer 1. I have attached a corrected user manual Answer 2. The Delta 3 uses the same circuitry as the Delta 5, but has a smaller coil and therefore a lower field strength emissions. Answer 3. Attached please find a report with the corrections you requested, except that line conducted tabular data is not available. Please accept the graphical data that has been already presented. best regards Tom From: Helen Zhao Sent: Sun 12/3/2006 9:17 PM To: Helen Zhao Subject: Farpointe Data Inc., FCC ID: T8I-DELTA, Assessment NO.: AN06T6325, Notice#1 Question #1: The user manual does not contain user information as specified in FCC15.21. Please update the user manual. Question #2: The operational description and the external/internal photos all show three model numbers: Delta 3, Delta 5 and Delta 6.4. But the test report mentions Delta 5 and Delta 6.4 only. Please clarify. If Delta 3 will be included as well, please specify the model difference between Delta 3 and Delta 5 in the test report. Question #3: Please update the Test Report in the following areas: - Please submit a bandwidth plot to show bandedge compliance. - Please submit line conducted emission test data, in addition to test plots. - Page 1 refers to 15.249, please check if it is a typo. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

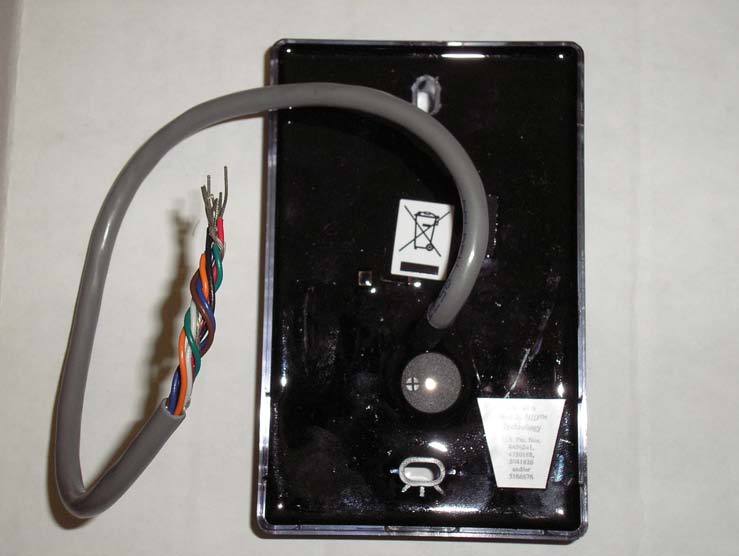

Product Photographs – External Views Applicant: Farpointe Data Inc. FCC ID: T8I-DELTA Model No.: Delta 3 Applicant: Farpointe Data Inc. FCC ID: T8I-DELTA Model No.: Delta 5 Applicant: Farpointe Data Inc. FCC ID: T8I-DELTA Model No.: Delta 6.4

LABEL AND LABEL PLACEMENT FarPointe Data Systems FCC ID: T8I-DELTA FCC ID: T8I-DELTA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation

Product Photographs – Internal Views Applicant: Farpointe Data Inc. FCC ID: T8I-DELTA Model No.: Delta 3 Applicant: Farpointe Data Inc. FCC ID: T8I-DELTA Model No.: Delta 5 Applicant: Farpointe Data Inc. FCC ID: T8I-DELTA Model No.: Delta 6.4 Keypad portion Applicant: Farpointe Data Inc. FCC ID: T8I-DELTA Model No.: Delta 6.4 Keypad portion Applicant: Farpointe Data Inc. FCC ID: T8I-DELTA Model No.: Delta 6.4 RF transmitter board

Farpointe Data FCC ID: T8I-DELTA Report No. 06PR048FCC Rev1.1 13 December 2006 page1 Test Report for Unlicensed Low Power Transmitter FCC Applicable Rule Parts: 15.205, 15.207, 15.209 Applicant: Farpointe Data Inc. 2177 Leghorn Street Mountain View, CA 94043 FCC ID: T8I-DELTA Model Nos .: Delta 3, Delta 5, Delta 6.4 Description of device: The DELTA Series Proximity line of OEM proximity readers, cards, and tags are low frequency, non-contact, identification solutions based upon the latest techniques in radio frequency identification (RFID). The proximity reader has a receiver circuit, a microprocessor, and a 13.56 MHz exciter circuit that includes a magnetic coil. The tags and cards that are read by the reader have a highly reliable radio frequency integrated circuit (RFIC), attached to a magnetic coil inside a durable, environmentally secure plastic housing. The referenced models all use the same RF transmit and receive circuits, the differences among models consist of coil size, non-RF features such as keypads, and form factors. Model Delta 5 has the largest coil and the highest output power at the fundamental. Model Delta 6.4 is a Delta 5 with a digital keypad entry and is worst-case representative for both radiated and line conducted emissions. Model Delta 3 is identical to model Delta 5 with a smaller coil and lower radiated emissions at the fundamental. TEST REQUIREMENTS The referenced device is subject to certification under Part 2 of FCC Rules. The specific emissions limits and test requirements are found in Part 15 of FCC Rules. In addition to the device specific requirements listed in 15.225 (re-printed below), the following Part 15 requirements are universal to all unlicensed transmitters and would also apply: 15.19 Labeling requirements 15.20 Accessories 15.21 Information to user 15.31 Measurement standards 15.33 Frequency range of measurements 15.35 Measurement detector functions and bandwidths 15.109 Radiated Emissions (unintentional radiators) 15.203 Antenna requirement 15.204 External radio frequency power amplifiers and antenna modifications. 15.205 Restricted bands of operation. 15.207 Conducted limits Farpointe Data FCC ID: T8I-DELTA Report No. 06PR048FCC Rev1.1 13 December 2006 page2 15.209 Radiated emission limits, general requirements. 15.225 Operation within the band 13.110 – 14.010 MHz REVISION INFORMATION AND ATTESTATION OF RESULTS Report No: 06PR048FCC REV No. Description Revised By: Date - Original Issue T. Cokenias 10/30/06 1.1 Correct typo T. Cokenias 12/12/06 Add bandedge plot 1.2 Include Delta 5 T. Cokenias 12/13/06 model information FCC ID: T8I-DELTA meets all FCC requirements for a device of this type. THOMAS N. COKENIAS 13 December 2006 EMC and Radio Regulatory Consultant Agent for Farpointe Data Inc. Farpointe Data FCC ID: T8I-DELTA Report No. 06PR048FCC Rev1.1 13 December 2006 page3 15.205 Restricted bands of operation. Only spurious emissions are permitted in any of the frequency bands listed below: The field strength of emissions appearing within these frequency bands shall not exceed the limits shown in Section 15.209. MHz MHz MHz GHz 0.090 - 0.110 10.495 - 0.505 2.1735 - 2.1905 4.125 - 4.128 4.17725 - 4.17775 4.20725 - 4.20775 6.215 - 6.218 6.26775 - 6.26825 6.31175 - 6.31225 8.291 - 8.294 8.362 - 8.366 8.37625 - 8.38675 8.41425 - 8.41475 12.29 - 12.293 12.51975 - 12.52025 12.57675 - 12.57725 13.36 - 13.41 16.42 - 16.423 16.69475 - 16.69525 16.80425 - 16.80475 25.5 - 25.67 37.5 - 38.25 73 - 74.6 74.8 - 75.2 108 - 121.94 123 - 138 149.9 - 150.05 156.52475 - 156.52525 156.7 - 156.9 162.0125 - 167.17 167.72 - 173.2 240 - 285 322 - 335.4 399.9 - 410 608 - 614 960 - 1240 1300 - 1427 1435 - 1626.5 1645.5 - 1646.5 1660 - 1710 1718.8 - 1722.2 2200 - 2300 2310 - 2390 2483.5 - 2500 2655 - 2900 3260 - 3267 3332 - 3339 3345.8 - 3358 3600 - 4400 4.5 - 5.15 5.35 - 5.46 7.25 - 7.75 8.025 - 8.5 9.0 - 9.2 9.3 - 9.5 10.6 - 12.7 13.25 - 13.4 14.47 - 14.5 15.35 - 16.2 17.7 - 21.4 22.01 - 23.12 23.6 - 24.0 31.2 - 31.8 36.43 - 36.5 15.209 Radiated emission limits, general requirements. Except as provided elsewhere in this paragraph the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table: Frequency (MHz) Field Strength uV/m Measurement distance, m 0.009 - 0.490 0.490 - 1.705 1.705 - 30.0 30 - 88 88 - 216 216 - 960 Above 960 2400/F(kHz) 24000/F (kHz) 30 100 ** 150 ** 200 ** 500 300 30 30 3 3 3 3 ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz. Farpointe Data FCC ID: T8I-DELTA Report No. 06PR048FCC Rev1.1 13 December 2006 page4 15.225 Operation within the band 13.110 – 14.010 MHz. (a) The field strength of any emissions within the band 13.553-13.567 MHz shall not exceed 15,848 microvolts/meter (= 84 dBuV/m) at 30 meters. (b) Wi thin the bands 13.410-13.553 MHz and 13.567-13.710 MHz, the field strength of any emissions shall not exceed 334 microvolts/meter (=50.5dBuV/m) at 30 meters. (c) Wi thin the bands 13.110-13.410 MHz and 13.710-14.010 MHz the field strength of any emissions shall not exceed 106 microvolts/meter (=40.5 dBuV/m) at 30 meters. (d) The field strength of any emissions appearing outside of the 13.110-14.010 MHz band shall no t exceed the general radiated emission limits in § 15.209. (e) The frequency tolerance of the carrier signal shall be main tained within +/- 0.01% of the operating frequency over a temperature variation of –20 degrees to +50 degrees C at normal supply voltage, and for a variation in the primary supply voltage from 85% to 115% of the rated supply voltage at a temperature of 20 degrees C. For bat tery operated equipment, the equipmen t tests shall be performed using a new battery. (f) In the case of radio frequency powered tags designed to operate with a device authorized under this section, the tag may be approved wi…

Text truncated - open the document above for the full version.

Test Set-up Photographs Applicant: Farpointe Data Inc. FCC ID: T8I-DELTA Radiated emissions below 30 MHz, 10m Radiated Emissions, 30 – 1000 MHz AC Line Conducted Emissions Frequency Stability
