T94BD-8008TWIRELESS MOUSE

1 The mouse can work only on a clean, flat, and non-slippery surface in order to ensure smooth and accurate cursor action. 2 This optical mouse senses light to detect mouse’s movement. When it works on the glass, translucent, reflective, or dark-colored surface, the mouse movement may be affected sometimes. 1 We recommend using alkaline batteries for a longer battery life. 2 Don't mix different types of batteries or new and old batteries together. Always replace old batteries with new and same type batteries. 3 Remove batteries after long periods of non-use. Battery leakage or corrosion may damage the device quality and cause danger. 4 Battery low Alarm: - When the mouse battery is low, the RED LED indicator behind mouse scroll wheel will blink when the mouse is moved. Please change batteries immediately when the RED LED indicator lights up to ensure the good use of this mouse. After you change the batteries, the RED LED indicator will disappear. FCC Guidelines This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference toradio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct the interference byone or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Use only shielded cables to connect I/O devices to this equipment. FCC Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. Information to user: The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Shielded interface cable, if any, must be used in order to comply with emission limits.

深圳市博顿电子技术服务有限公司 Bontek Compliance Laboratory Ltd DATE: December 10, 2007. Dear TCB Section of Timco Engineering, Inc., Thank you for cooperation. I would like to submit FCC application of ShenZhen Xinbond Technology Co., Ltd. / FCCID: T94BD-8008T by your TCB Approval today. Best Regards, Bontek Compliance Laboratory Ltd Tony Wu EMC Engineer

Enternal Photographs EUT - Front View EUT - Rear View

FCC ID Label Sample for FCCID: T94BD-8008T FCCID: T94BD-8008T

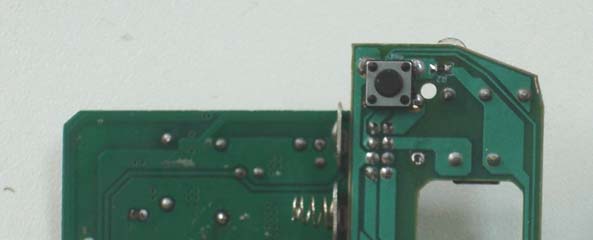

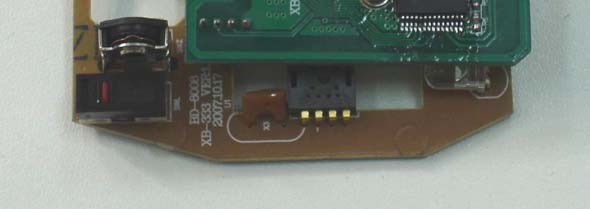

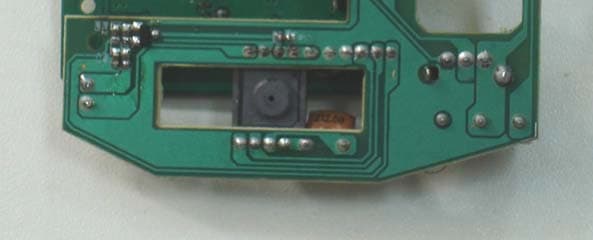

Internal Photographs EUT – Uncover View EUT – PCB View

BD-8008 Circuit Description Sensor PAN3101 translates the mouse movement into X and Y coordinates and passes to MCU MA6221-S7K。Sensor PAN3101 Work Clock Frequency is 12MHz，Light source is use LED(Light –Emitting Diode)。 MA6221-S7K encode the mouse button data and mouse movement X and Y coordinates data and passes them to RF circuit in it。The RF circuit transmits these data to the Receiver。MA6221-S7K use work clock Frequency 76.8KHz crystal。 RF circuit use a 27.042MHz crystal。 MA6221-S7K IC has DC/DC power processor in it。 Receiver first uses MC3361 to perform RF amplification， mixing ， demodulating then pass the data to MA6162-25 IC。MA6162-25 decode these data with its decoding unit inside，and passes decoded data to inside USB interface unit。 USB interface unit passes all these data to the computer USB processor。 The USB processor then processes all incoming instruction， The power for the receiver is supplied by PC USB。 MC3361 use a 26.590MHz crystal，MA6162-25 use a 6.0MHz crystal。

Schematic Diagram FCCID: T94BD-8008T Model No.: BD- 8008T 1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:27-Jul-2007Sheet of File:D:\正在作业中的文档\JD-9288\JD-9288.DdbDrawn By: OSC1 1 VSS 2 OSC2 3 VDD 4 RBUT 5 MBUT 6 LBUT 7 RFOUT 8 ORFIN0 9 ORFIN1 10 ORFO 11 TXD 12 PD 13 WA 14 WB 15 Z1IN 16 Z2IN 17 SDIO 18 SCLK 19 BATL 20 TYPE 21 TXCB 22 BBUT 23 FBUT 24 SVD_IN 25 DCVR 26 VL 27 VL_NM 28 U2 MA6221-S7K OSCIN 1 OSCOUT 2 SDIO 3 SCK 4 LED 5 VSS 6 VDD 7 VREF 8 U1 PAN3101DB R1 10M C2 22P C1 22P C3 104SWR SWM SWL C4 33P L2 1.8uH C7 75P C10 22P C11 24P C12 12P C9 22P C8 3PC5 33P X2 27.042MHz C6 10nF SW_Z ENCODER R2 560 LED2 BAT LED SWID D1 RB421 C18104 + C19 100U R5 220K R6 100K J31H 0 J31L 0/10nF X3 12.0MHz R7 100R R9220K LED1 1 2 3 Q2 2N3906 C15 104 + C20 100uF L1 100uH - + VBAT1 UM-4(X2) C14 104 +C13 100U R810K VBT DCVR DCVR SVDIN PD SCLK SCLK SDIO SDIO PD TYPE TYPE MA6221-S7K+PAN3101DB 1.01 SW4 SW5 X1 76.8K

Test Report of FCC Part 15 C for FCC Certificate On Behalf of Shenzhen Xinbond Technology Co., Ltd. Product description: Wireless Mouse Model No.: BD-8008(T) Remark: (T) refer to transmitter FCC ID: T94BD-8008T Prepared for: Shenzhen Xinbond Technology Co., Ltd. Xinbond Building, NO.10th, Honghualing Industrial Park, Longxi, Longgang, Shenzhen, China. Prepared by: Bontek Compliance Laboratory Ltd Rm 802~804, 8/F, Jinmin Bld., Zizhu 6 th Rd.,Zhuzi Lin, Futian, Shenzhen 518040, P.R. China. Tel: 86-755-82871080 Fax: 86-755-82871368 Issue Date: December 09, 2007 Test Date: December 01~07, 2007 Test by: Reviewed By: Kendy Wang Tony Wu TABLE OF CONTENTS 1. GENERAL INFORMATION............................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ............................................................ 3 1.2 Related Submittal(s) / Grant (s) .............................................................................................. 3 1.3 Test Methodology ................................................................................................................... 3 1.4 Test Facility............................................................................................................................. 4 2. SYSTEM TEST CONFIGURATION .................................................................................................. 5 2.1 EUT Configuration .................................................................................................................. 5 2.2 EUT Exercise .......................................................................................................................... 5 2.3 General Test Procedures........................................................................................................ 5 2.4 List of Measuring Equipments Used ....................................................................................... 6 3. SUMMARY OF TEST RESULTS ......................................................................................................7 4. TEST OF CONDUCTED EMISSION ................................................................................................. 8 4.1 Applicable Standard................................................................................................................ 8 4.2 Test Setup Diagram ................................................................................................................ 8 5- RADIATED EMISSIONS ................................................................................................................... 9 5.1 Limit of Radiated Emissions.................................................................................................. 9 5.2 Test Equipment Used ............................................................................................................. 9 5.3 EUT Setup ............................................................................................................................ 10 5.4 Test Procedure ..................................................................................................................... 11 5.5 Test Result............................................................................................................................ 11 6- EMISSIONS WITHIN BAND EDGES .............................................................................................. 16 6.1 Limit of Emissions within Band Edges .................................................................................. 16 6.2 Test Equipment Used ........................................................................................................... 16 6.3 Test Procedure ..................................................................................................................... 16 6.4 Emissions within Band Edges Test Result............................................................................ 16 Report No. BCT07KR-753E Page 2 of 17 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Applicant: Shenzhen Xinbond Technology Co., Ltd. Address of applicant: Xinbond Building, NO.10th, Honghualing Industrial Park, Longxi, Longgang, Shenzhen, China. Manufacturer: Shenzhen Xinbond Technology Co., Ltd. Address of manufacturer: Xinbond Building, NO.10th, Honghualing Industrial Park, Longxi, Longgang, Shenzhen, China. EUT Description: Wireless Mouse Trade Name: N/A Model No.: BD-8008(T) Remark: (T) refer to transmitter Rated Voltage DC 3V (2 x1.5V AAA battery) for Transmitter Frequency range 27.045MHz Number of channels 1 Channel Separation None Product Class: Low Power Communication Device Transmitter Measurement Procedure ANSI C63.4-2003 Remark: * The test data gathered are from the production sample provided by the manufacturer. 1.2 Related Submittal(s) / Grant (s) This submittal(s) is a test report based on the Electromagnetic Interference (EMI) tests performed on the EUT. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4 - 2003. The tests were performed in order to determine compliance with FCC Part 15, Subpart C, section 15.227 rules. 1.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4 - 2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. Radiated testing was performed at an antenna to EUT distance 3 meters. Report No. BCT07KR-753E Page 3 of 17 1.4 Test Facility All measurement required was performed at laboratory of Solid Industrial (Shenzhen) Co., Ltd. at 333 Bulong Highway Buji Longgang, Shenzhen, Guangdong, China. The test facility is recognized, certified, or accredited by the following organizations: FCC – Registration No.: 759397 Solid Industrial., Ltd, EMC Laboratory has been reg…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Radiated Emission
