RN-42 Specification CONTENTS RN-42 Specification...............................................................................................................................1 Ty pe： Release......................................................................................................................... 1 Document： RN-42-001................................................................................................................... 1 Version： 1.0................................................................................................................................. 1 Release Date： Jan 08, 2010................................................................................................................ 1 Release Record...................................................................................................................................... 1 Device Features..................................................................................................................................... 2 Description............................................................................................................................................. 2 Application............................................................................................................................................. 3 1Ordering Information ................................................................................................................... 5 2Key Features .................................................................................................................................. 5 3Block Diagram ...............................................................................................................................5 4Electrical Characteristic ............................................................................................................... 6 4.1Absolute Maximum ratings ...................................................................................................... 6 4.2Recommend operation conditions ........................................................................................... 6 4.3Electrica Characteristics .......................................................................................................... 6 4.4Radio characteristics ................................................................................................................. 7 4.5Digital I/O characteristics ......................................................................................................... 7 5Mechanical Dimensions ................................................................................................................ 8 6Pin Definition Descriptions ........................................................................................................... 9 7Design Concerns .......................................................................................................................... 12 7.1Reset circuit ............................................................................................................................. 12 7.2Factory reset PIO4 .................................................................................................................. 12 7.3Connection status .................................................................................................................... 12 7.4HCI mode ................................................................................................................................. 12 7.5Using SPI bus for flash upgrade ............................................................................................ 12 7.6Minimizing radio interface ..................................................................................................... 13 7.7Soldering reflow profile .......................................................................................................... 13 8Reference Application Schematic .............................................................................................. 14 9SMT Reflow Profile ..................................................................................................................... 15 9.1Reliability solder temperature chart: .................................................................................... 15 9.2Reflow temperature chart: ..................................................................................................... 15 Flaircomm Technologies Confidential 4 RN-42 Specification 4 Electrical Characteristic 4.1 Absolute Maximum ratings Rating Minimum Maximum Store temperature -40°C +120°C Operation temperature -40°C +85°C Power Supply -0.4 Volt DC 3.6Volt 4.2 Recommend operation conditions Rating Minimum Type Maximum Store temperature -40°C +25°C +85°C Operation temperature -20°C +25°C +70°C Power Supply - DC 3.3Volt DC 3.6Volt 4.3 Electrica Characteristics Parameter Min Typ. Max Unit Supply Voltage (DC) 3.0 3.3 3.6 V RX Supply Current 35 60 mA TX Supply Current 65 100 mA Average power consumption Standby/Idle (default settings) 25 mA Connected (normal mode) 30 mA Connected (low power Sniff) 8 mA Standby/Idle (Deep sleep enabled) 250uA 2.5 mA Flaircomm Technologies Confidential 6 RN-42 Specifi cation 4.4Radio characteristics Freq. (GHz) Bluetooth S pecification P arameter Min Typ Max Units 2.402- -80 -86 dBm 2.442- -80 -86 dBm Sensitivity @ 0.1%BER <=-70 2.480- -80 -86 dBm 2.4025.0 6.0 dBm 2.4425.0 6.0 dBm RF Transmit Power <=6 2.4805.0 6.0 dBm 2.402- 5 75 kHz 2.442- 5 75 kHz Initial Carrier Frequency Tolerance 75 2.480- 5 75 kHz 20dB bandwidth for modulated carrier - 900 1000 <=1000 kHz Drift (Five slots packet) - 15 - 40 kHz Drift Rate - 13 - 20 kHz 2.402140 165 175 kHz 2.442140 165 175 kHz △f1avg Max Modulation >140 2.480140 165 175 kHz 2.402140 190 - kHz 2.442140 190 - kHz △f2avg Min Modulation 115 2.480140 190 - kHz 4.5Digital I/O characteristics 2.7V<=VDD<=3…

Text truncated - open the document above for the full version.

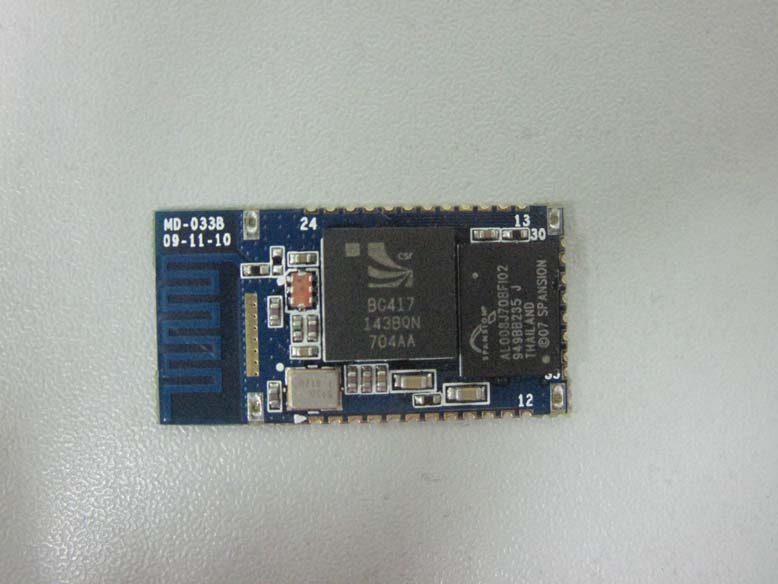

RN-42 EUT Photograph-External Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo

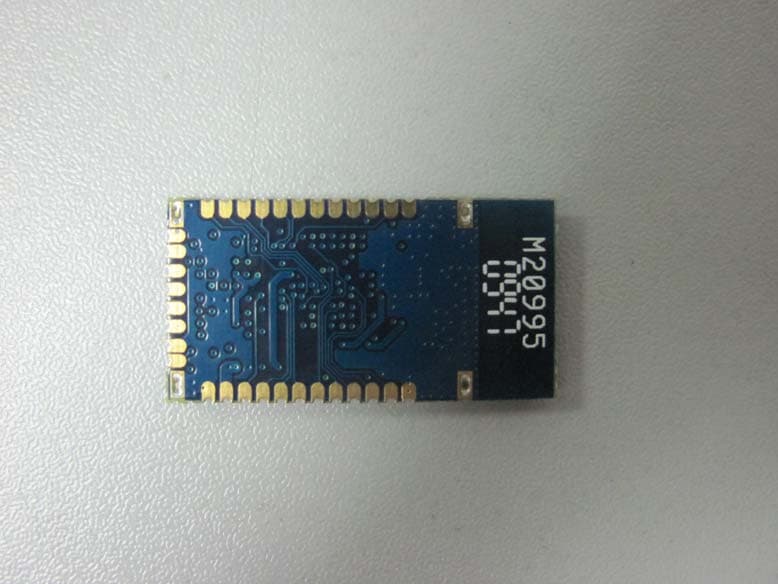

RN-42 EUT Photograph-External Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner t hat ensure t hat the public is not e xposed to radi o frequency energy level in excess of the Commission’s guideline. Thi s i s a mobile device. 2. Measurement Result: This a mobile device and the max peak output power is 5.51 dBm = (0.004 W). Lower that low threshold 60/f GHz mW = (24.19 mW), d <2.5 cm general population category. The SAR/MPE measurement is not necessary.

FCC Part15 Subpart C FHSS Test Report Industry Canada RSS-Gen Issue 2/RSS-210 Issue 7 Product Name : RN-42 Model No. : RN-42 FCC ID : T9J-RN42 IC ID : 6514A-RN42 Applicant ： Roving networks, Inc. Address ： 809 university avenue, los gatos, ca 95032 Date of Receipt ： Feb. 03, 2010 Test Date ： Feb. 03, 2010~ Feb. 05, 2010 Issued Date ： Feb. 08, 2010 Report No. ： 102S003R-RF-US-P06V01 Report Version ： V3.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 102S003R-RF-US-P06V01 Page: 2 of 84 Test Report Certification Issued Date : Feb. 08, 2010 Report No. : 102S003R-RF-US-P06V01 Product Name : RN-42 Applicant : Roving networks, Inc. Address : 809 university avenue, los gatos, ca 95032 Manufacturer : Flaircomm Technologies Inc Address : 3F Keyuan Bldg, No. 5, Bibo Rd, Zhangjiang High-Tech Park, Shanghai 201203 Model No. : RN-42 FCC ID : T9J-RN42 IC ID : 6514A-RN42 EUT Voltage : DC 3.3V Trade Name : Roving Applicable Standard : FCC CFR Title 47 Part 15 Subpart C / ANSI C63.4: 2003 RSS-Gen Issue 2/RSS-210 Issue 7 Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392, IC Lab Code: 4075B Documented By : ( Engineering ADM: Alice Ni ) Reviewed By : ( Engineering Supervisor: Marlin Chen ) Approved By : ( Engineering Manager: Dream Cao ) Report No： 102S003R-RF-US-P06V01 Page: 3 of 84 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/emc/accreditations/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Report No： 102S003R-RF-US-P06V01 Page: 4 of 84 TABLE OF CONTENTS Description Page 1. General Information....................................................................................................7 1.1. EUT Description.........................................................................................................7 1.2. Mode of Operation.....................................................................................................9 1.3. Tested System Details..............................................................................................10 1.4. Configuration of Tested System............................................................................... 11 1.5. EUT Exercise Software............................................................................................ 11 2. Technical Test...........................................................................................................13 2.1. Summary of Test Result...........................................................................................13 2.2. Test Environment.....................................................................................................14 3. Conducted Emission................................................................................................15 3.1. Test Equipment........................................................................................................15 3.2. Test Setup................................................................................................................15 3.3. Limit..........................................................................................................................16 3.4. Test Procedure.........................................................................................................16 3.5. Uncertainty...............................................................................................................16 3.6. Test Result...............................................................................................................17 4. Radiated Emission...................................................................................................17 4.1. Test Equipment........................................................................................................19 4.2. Test Setup................................................................................................................20 4.3. Limit..........................................................................................................................21 4.4. Test Procedure..................................................…

Text truncated - open the document above for the full version.

RN-42 Test Photograph for Conducted Emission of FCC P15 Description: Front View of Conducted Emission Test Setup Description: Front View of Conducted Emission Test Setup Description: Front View of Radiated Emission Test Setup for Below 1GHz Description: Front View of Radiated Emission Test Setup for Above 1GHz Description: Front View of Radiated Emission Test Setup for Above 18GHz
