TA8AKRB90118-1WCDMA Base station amplifier

Ericsson Confidential EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EMWJOK 8/0061-BFM 901 087/2 Uen Approved Checked Date Rev Reference 2005-10-21 A TA8AKRB90118-1 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch SP Sveriges Provnings- och ForskningsInstitut Brinellgatan 4 Box 857 S-501 15 Borås Sweden October 21, 2005 Subject: Certification for FCC ID: TA8AKRB90118-1 Gentlemen; Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This base station power amplifier (PAU) is designed for use in the WCDMA 850 MHz cellular telephone system. The power amplifier will operate from 869 to 894 MHz. The base station operates in the 850 MHz cellular radiotelephone services as per 47 CFR Part 22 subpart H. It meets the requirements of 3GPP specification for operation in WCDMA cellular systems. This base station power amplifier (PAU) will in normal mode operate at a nominal output power of 42.4 dBm (typical value) at the output connector (antenna reference point). Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Ericsson AB accept by this request the agreement set out in the document "Bilaga SPCR 125 - Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden" If additional information is needed, please contact me on the below listed number. Sincerely, Jan-Olof Karlsson System Verification, WCDMA Base Stations Ericsson AB FCC Registration Number (FRN): 0013476155 Lindholmspiren 11 SE-431 84 Göteborg Sweden Telephone No.: +46 31 7471134 Fax No.: +46 31 747 6033 e-mail [email protected]

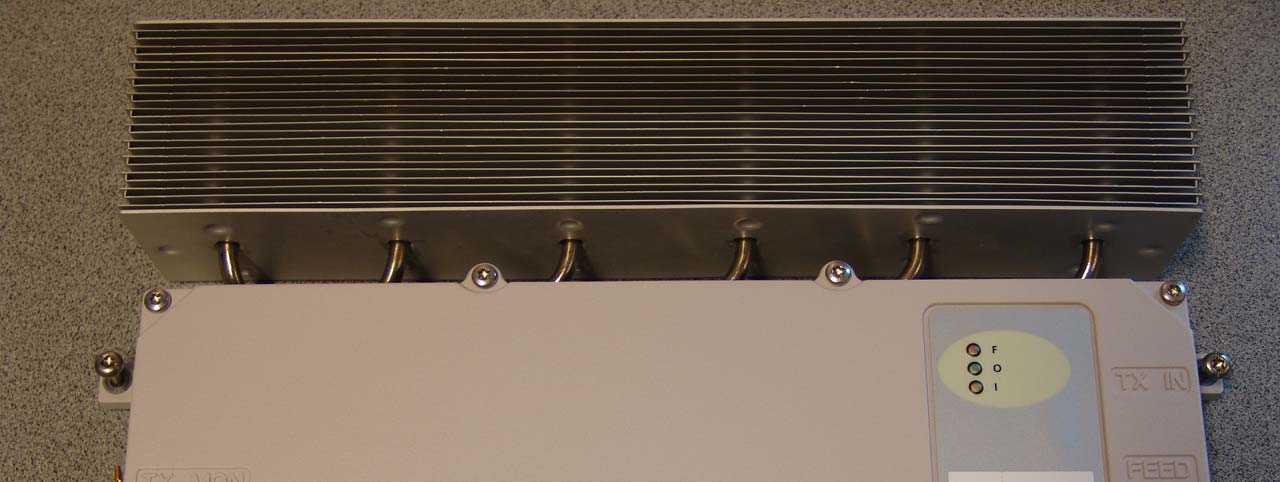

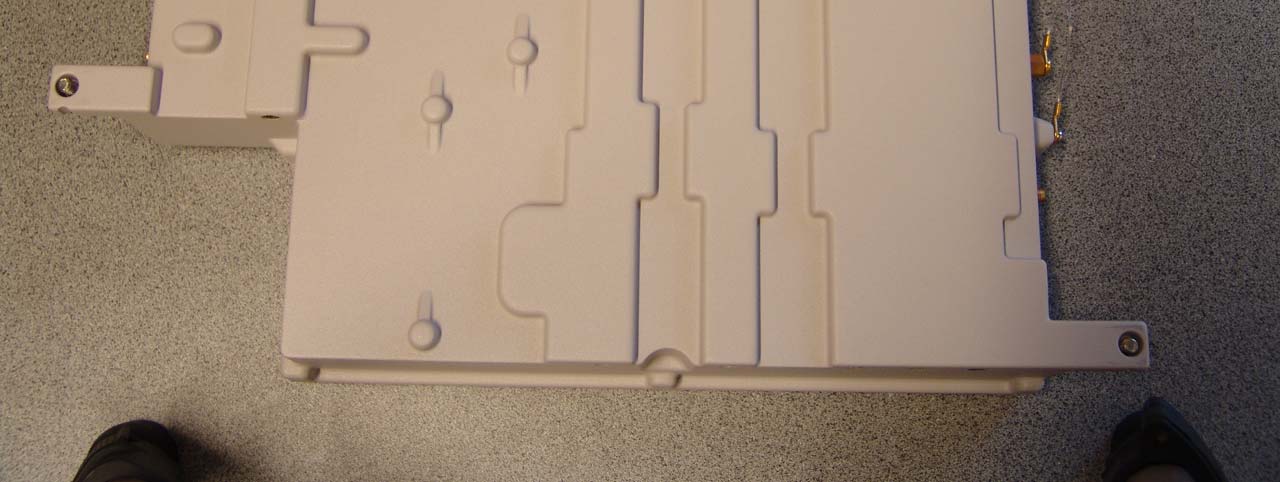

Front Left Rear Right

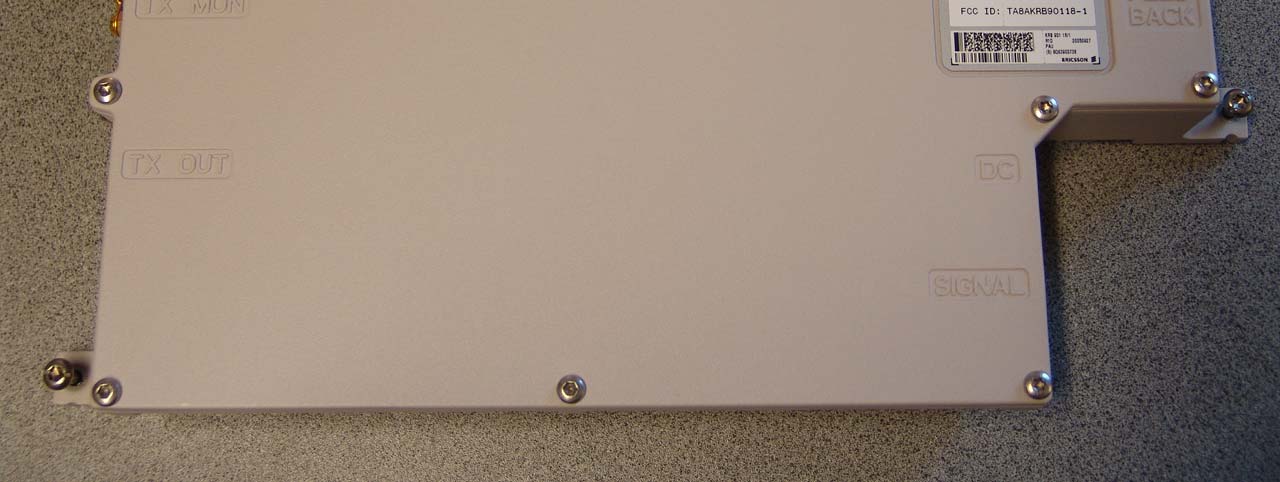

FCC ID Label FCC ID placement

Ericsson Confidential LETTER 1 (3) Prepared (also subject responsible if other) No. EMWTHAN 2/0061-KRB 901 18/1 Uen Approved Checked Date Rev Reference EAB/PDB/RG [Thomas Andersson] 2005-10-18 A TA8AKRB90118-1 Exhibit 12 – Circuit Description Contents 1 2.1033(c) Circuit Description ...............................................................2 1.1 (2) FCC Identifier: TA8AKRB90118-1 .................................................2 1.2 (4) Type of Emission: F9W ..................................................................2 1.3 (5) Frequency range: 869 to 894 MHz ................................................2 1.4 (6) Range of Operating Power: ...........................................................2 1.5 (7) Maximum Power Rating: ................................................................2 1.6 (8) Final Amplifier Voltage and Current In normal operation ...............2 1.7 (10) Frequency Stabilizing Circuit Description ....................................2 1.8 (10) Spurious and Harmonic Suppression ..........................................2 1.9 (10) Limiting Power .............................................................................3 1.10 (10) Digital Modulation QPSK and 16QAM .........................................3 Ericsson Confidential LETTER 2 (3) Prepared (also subject responsible if other) No. EMWTHAN 2/0061-KRB 901 18/1 Uen Approved Checked Date Rev Reference EAB/PDB/RG [Thomas Andersson] 2005-10-18 A TA8AKRB90118-1 1 2.1033(c) Circuit Description 1.1 (2) FCC Identifier: TA8AKRB90118-1 This PAU (Power Amplifier Unit) consists of one amplifier operating in the frequency band of 869 to 894 MHz. The PAU is capable of operation in a WCDMA system. 1.2 (4) Type of Emission: F9W 1.3 (5) Frequency range: 869 to 894 MHz 1.4 (6) Range of Operating Power: The PAU is designed to supply a nominal power level of 44.5 dBm at the output connector which corresponds to 42.4 dBm in the Antenna Reference Point. 1.5 (7) Maximum Power Rating: The maximum power rating with one PAU under environmental and supply voltage variations is equal to 44.5 ±1 dBm which corresponds to 42.4 ±1 dBm in the Antenna Reference Point. 1.6 (8) Final Amplifier Voltage and Current In normal operation Average Output Power 44.5 dBm Values for Q2 and Q3 each Voltage 30.5 Volt DC Current 2.35 Ampere DC 1.7 (10) Frequency Stabilizing Circuit Description N.A. 1.8 (10) Spurious and Harmonic Suppression Spurious and harmonic suppression is achieved by using band pass filters in PAU. A filter module at the output (in PAU) works like a band pass filter around the carrier Ericsson Confidential LETTER 3 (3) Prepared (also subject responsible if other) No. EMWTHAN 2/0061-KRB 901 18/1 Uen Approved Checked Date Rev Reference EAB/PDB/RG [Thomas Andersson] 2005-10-18 A TA8AKRB90118-1 1.9 (10) Limiting Power The PAU measures the output power via an RF detector. The output will be switch off, if the power at the output connector exceeds 46.5 dBm. The PAU must be reset to switch on the output power again. 1.10 (10) Digital Modulation QPSK and 16QAM The PAU is intended for amplification of QPSK and 16QAM in a WCDMA system.

Ericsson Confidential LETTER 1 (1) Prepared (also subject responsible if other) No. EMWTHAN 1/0061-KRB 901 18/1 Uen Approved Checked Date Rev Reference EAB/PDB/RG [Thomas Andersson] 2005-10-18 A TA8AKRB90118-1 Exhibit 10- Tune up procedure PAU 1 2.1033(c)(9) Tune-Up Procedure All the necessary adjustments will be set in the factory, and no adjustments are needed. The Base Station Controller (BSC) remotely controls the maximum output power level. If the Power Amplifier Unit is not able to maintain the requirements for power output, frequency stability, etc an alarm is sent to the BSC. On severe faults the Power Amplifier Unit will disable transmission.

Date Reference Page REPORT 2005-11-11 F518646-F22B 2 (2) FCC ID: TA8AKRB90118-1 Table of contents Description of the test object Appendix 1 Operation mode during measurements Appendix 1 Test setups Appendix 1 Purpose of test Appendix 1 RF power output Appendix 2 Occupied bandwidth Appendix 3 Band edge Appendix 4 Spurious emission at antenna terminals Appendix 5 Field strength of spurious radiation Appendix 6 Photos Appendix 7 Date Reference Page REPORT 2005-11-11 F518646-F22B 1 (4) FCC ID: TA8AKRB90118-1 Appendix 1 Description – Test object Equipment: WCDMA Power Amplifier Unit (PAU) 850 MHz, single carrier Tx Frequency range: 869 - 894 MHz Modulations: QPSK and 16QAM Maximum output power: 42.4 dBm (17.4 W) Nominal power voltage: -48 VDC Tested channels ARFCN Frequency 4357 871.4 MHz 4407 881.4 MHz 4458 891.6 MHz Operation mode during measurements Test models All measurements were performed with the test object configured with the Test models 1 and 5 as defined in 3GPP TS 25.141. Test model 1 use the QPSK modulation only, and Test model 5 includes the 16QAM modulation. Test model 1: 64 DPCH:s at 30 ksps (SF=128) Test model 5: 30 DPCH:s at 30 ksps (SF=128) and 8 HS-PDSCH:s at 240 ksps (SF=16) Conducted measurements All RF conducted measurements were performed with the test object installed in a RBS 3303 cabinet powered with -48 VDC. The sTRX ROJ 119 2288/1 WCDMA transceiver unit were used to generate the carrier channels. The measurements were done at the output connector (Ant A) of the single Antenna Interface Unit (sAIU) KRY 112 124/1. All measurements were performed at maximum output power with both modulations. A directional coupler were used the measure the input signal. Radiated measurements All radiated measurements were performed with the test object installed in a RBS 3303 cabinet powered with -48 VDC. The sTRX ROJ 119 2288/1 WCDMA transceiver unit were used to generate the carrier channels. The sTRX was activated for maximum transmit power. The sTRX was sequentially allocated to UARFCN 4357 (871.4 MHz), 4407 (881.4 MHz) and 4458 (891.6 MHz) for downlink and to UARFCN 4132 (826.4 MHz), 4182 (836.4 MHz) and 4233 (846.6 MHz) for uplink. Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in FCC CFR 47. Date Reference Page REPORT 2005-11-11 F518646-F22B 2 (4) FCC ID: TA8AKRB90118-1 Appendix 1 References Measurements were done according to relevant parts of the following standards: ANSI/TIA/EIA-603-B-2002 3GPP TS 25.141 Reservation The test results in this report apply only to the particular test object as declared in the report. Delivery of test object The test object was delivered: 2005-10-17. Manufacturer’s representative Jan-Olof Karlsson, Ericsson AB Test engineers Fredrik Isaksson and Reinhold Reul Test witness Ronny Hansson, Ericsson AB Date Reference Page REPORT 2005-11-11 F518646-F22B 3 (4) FCC ID: TA8AKRB90118-1 Appendix 1 Test set-up, conducted measurements RBS 3303: FAR 102 125/6 with software CXP 901 0809/1 rev. R12B Enclosure: BDE 202 85/2, R-state: R1C, Serial No: SS781315039 1. RNC Sim CES 4780BA Mini-sim #23, Serial no.: 0219 Rev. CCA 2. Switch, Netgear Ethernet switch DS108 3. Computer, Naturetech, ETE ASSET ID: 207505 4. ROJ 119 2288/1 Rev. R1C, Serial No: SAE52088733 (FCC ID: TA8AROJ1192288-1) 5. KRB 901 18/1 Rev. R1D, Serial no: SBQ63900738 (FCC ID: TA8AKRB90118-1) 6. KRY 112 124/1, Rev. R1B, Serial no: SA400298164 7. 50 ohm terminator Interfaces: Type of port: Power, -48 VDC DC power Iub, configured as T1 by CBU, shielded multi-wire with RJ-45 connector Telecom Mub, shielded multi-wire with RJ-45 connector Test purpose Test, no cable attached Test purpose Xalm, no cable attached. Signal GPS, no cable attached. Signal Date Reference Page REPORT 2005-11-11 F518646-F22B 4 (4) FCC ID: TA8AKRB90118-1 Appendix 1 Test set-up, radiated measurements RBS 3303: FAR 102 125/6 with software CXP 901 0809/1 rev. R12B Enclosure: BDE 202 85/2, R-state: R1C, Serial No: SS781315039 1. RNC Sim CES 4780BA Mini-sim #23, Serial no.: 0219 Rev. CCA 2. Switch, Netgear Ethernet switch DS108 3. Computer, Naturetech, ETE ASSET ID: 207505 4. ROJ 119 2288/1 Rev. R1C, Serial No: SAE52088733 (FCC ID: TA8AROJ1192288-1) 5. KRB 901 18/1 Rev. R1D, Serial no: SBQ63900738 (FCC ID: TA8AKRB90118-1) 6. KRY 112 124/1, Rev. R1B, Serial no: SA400298164 7. 50 ohm terminator Interfaces: Type of port: Power, -48 VDC DC power Iub, configured as T1 by CBU, shielded multi-wire with RJ-45 connector Telecom Mub, no cable attached Test purpose Test, no cable attached Test purpose Xalm, Multi-wire TEL 431 01/013 Signal GPS, no cable attached Signal Date Reference Page REPORT 2005-11-11 F518646-F22B 1 (1) FCC ID: TA8AKRB90118-1 Appendix 2 RF power output measurements according to 47 CFR 2.1046 Date 2005-10-20 2005-10-31 Temperature 22 °C ± 3 °C 23 °C ± 3 °C Humidity 34 % ± 5 % 47 % ± 5 % Test set-up and procedure The output was connected to a Peak power analyzer. The transmitter was set up according to Test model 1 and Test model 5 during the measurements. Measurement equipment Calibration Due SP number Boonton RF Peak power meter/analyzer 2005-11 503 144 Boonton Power sensor 56518-S/4 2005-11 503 145 Multimeter Fluke 87 2005-11 502 190 Testo 610, Temperature and humidity meter 2006-12 502 658 Measurement uncertainty: 0.5 dB Results Rated output power level after sAIU (maximum): 42.4 dBm Test conditions Transmitter output power (dBm) Average T nom 22 °C/ V nom -48 V DC Frequency 871.4 MHz Frequency 881.4 MHz Frequency 891.6 MHz QPSK 42.8 43.0 42.8 16QAM 42.8 43.0 42.7 Test conditions Input power level at PAU input (dBm) Average T nom 23 °C/ V nom -48 V DC Frequency 871.4 MHz Frequency 881.4 MHz Frequency 891.6 MHz QPSK 1.7 1.3 1.5 16QAM 1.7 1.4 1.6 Limits According to CFR § 22 there are no conducted limits at the antenna connector. CFR § 22.913: The effective radiated power (ERP) of base transmitters and cellular repeaters must not exceed 500 Watts (57 dBm). C…
