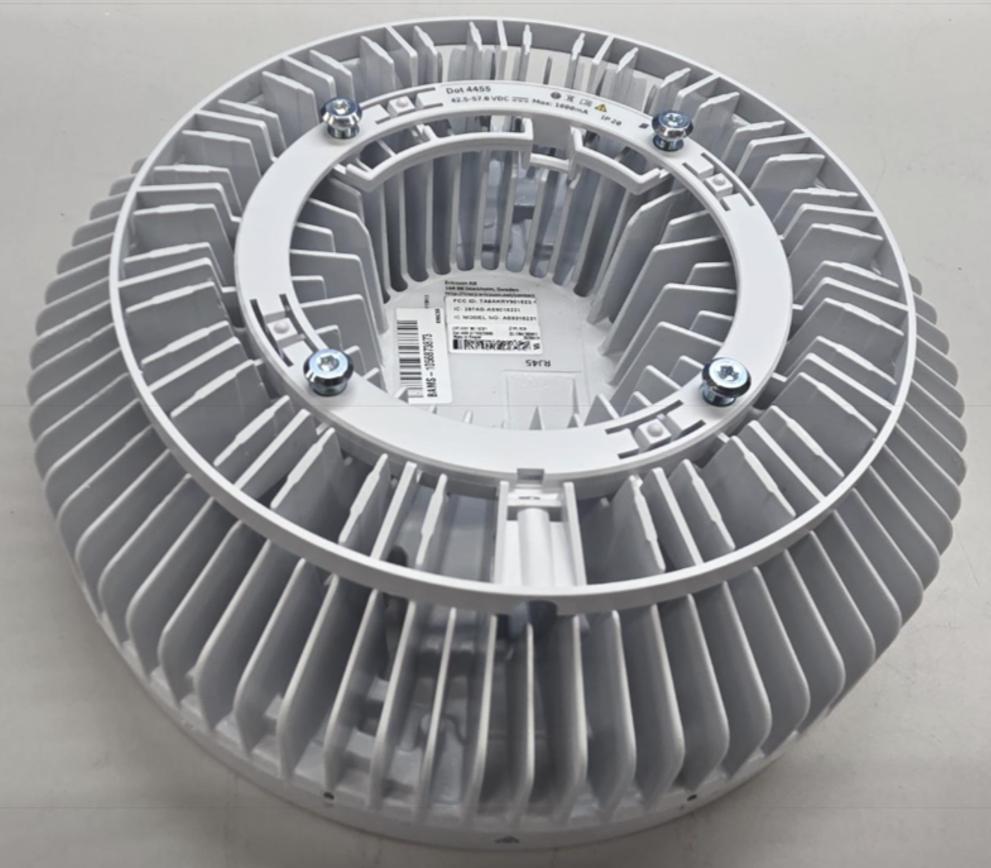

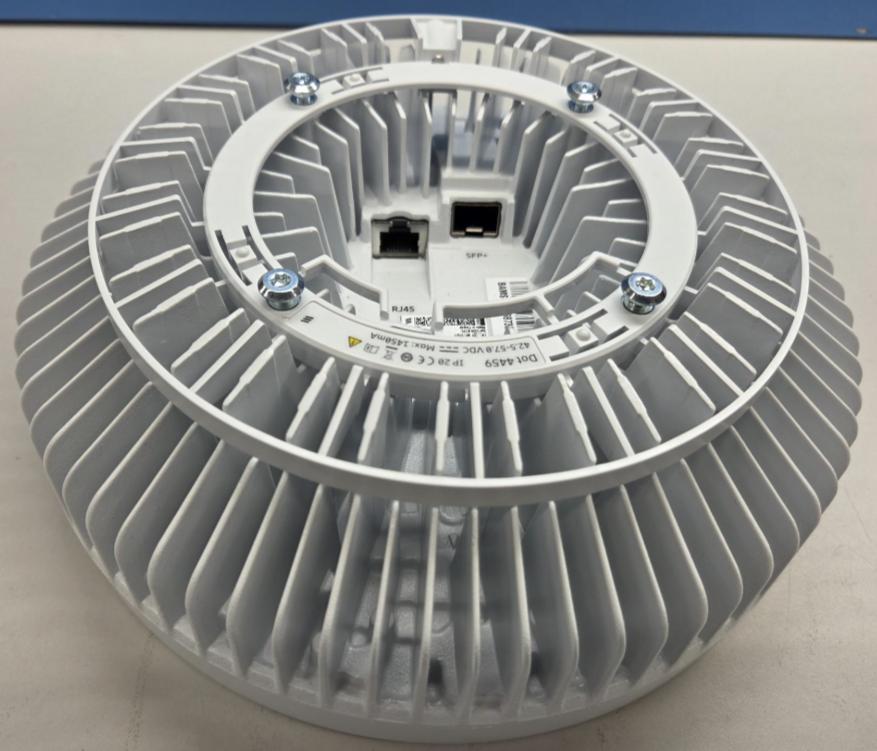

TA8AKRD901316Multi-standard remote radio

Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 316 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 317 of 812 LTE-1C-B25-UE Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 5 1000 -28.05 1 T QPSK 5 1000 -28.05 Channel Position B Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 318 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 319 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 320 of 812 Channel Position T Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 321 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 322 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 323 of 812 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 10 1000 -28.05 1 T QPSK 10 1000 -28.05 Channel Position B Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 324 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 325 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 326 of 812 Channel Position T Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 327 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 328 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 329 of 812 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 15 1000 -28.05 1 T QPSK 15 1000 -28.05 Channel Position B Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 330 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 331 of 812 Channel Position T Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 332 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 333 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 334 of 812 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 20 1000 -28.05 1 T QPSK 20 1000 -28.05 Channel Position B Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 335 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 336 of 812 Channel Position T Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 337 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 338 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 339 of 812 LTE-2C-B25-UE Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 5 1000 -28.05 1 T QPSK 5 1000 -28.05 Channel Position B Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 340 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 341 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 342 of 812 Channel Position T Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 343 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 344 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 345 of 812 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 10 1000 -28.05 1 T QPSK 10 1000 -28.05 Channel Position B Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 346 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 347 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 348 of 812 Channel Position T

Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 93 of 595 QPSK, 80MHz, Channel position B QPSK, 80MHz, Channel position M Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 94 of 595 QPSK, 80MHz, Channel position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 95 of 595 5 Unwanted Emissions at Band Edge Test result: Pass 5.1 Limit The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. 5.2 Measurement Procedure The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. For MIMO mode configurations, the limit was adjusted with a correction of -15.05dB [10Log(1/32)] by using the Measure and Add 10Log(N) dB technique according to KDB 662911 D01 Multiple Transmitter Output accounting for simultaneous transmission from antenna ports. Then the limit was adjusted to -28.05dBm. In the 1 MHz bands immediately outside and adjacent to the frequency block, a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed and a RBW of 1MHz for measurements of emissions > 1MHz away from the band edges. Spectrum analyzer detector was set as RMS. Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 96 of 595 5.3 Measurement result NR-1C-B66-UE Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 5 51 -28.05 1 T QPSK 5 51 -28.05 Channel Position B Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 97 of 595 Channel Position T Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 10 100 -28.05 1 T QPSK 10 100 -28.05 Channel Position B Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 98 of 595 Channel Position T Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 15 150 -28.05 1 T QPSK 15 150 -28.05 Channel Position B Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 99 of 595 Channel Position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 100 of 595 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 20 200 -28.05 1 T QPSK 20 200 -28.05 Channel Position B Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 101 of 595 Channel Position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 102 of 595 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 25 270 -28.05 1 T QPSK 25 270 -28.05 Channel Position B Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 103 of 595 Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 104 of 595 Channel Position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 105 of 595 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 30 300 -28.05 1 T QPSK 30 300 -28.05 Channel Position B Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 106 of 595 Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 107 of 595 Channel Position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 108 of 595 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 35 360 -28.05 1 T QPSK 35 360 -28.05 Channel Position B Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 109 of 595 Channel Position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 110 of 595 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 40 430 -28.05 1 T QPSK 40 430 -28.05 Channel Position B Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 111 of 595 Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 112 of 595 Channel Position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 113 of 595 NR-2C-B66-UE Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 5 51 -28.05 1 T QPSK 5 51 -28.05 Channel Position B Channel Position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 114 of 595 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 10 100 -28.05 1 T QPSK 10 100 -28.05 Channel Position B Channel Position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 115 of 595 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 15 150 -28.05 1 T QPSK 15 150 -28.05 Channel Position B Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 116 of 595 Channel Position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 117 of 595 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 20 200 -28.05 1 T QPSK 20 200 -28.05 Channel Position B Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 118 of 595 Channel Position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 119 of 595 Antenna Port Channel Position Modulation Carrier BW (MHz) RBW (kHz) Limit (dBm) 1 B QPSK 25 270 -28.05 1 T QPSK 25 270 -28.05 Channel Position B Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 120 of 595 Channel Position T Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 121 …

Text truncated - open the document above for the full version.

Ericsson AB RF TEST REPORT Report Type: RF report PRODUCT NAME: AIR 3286 B25 B66 REPORT NUMBER: 2606B0600SHA-002 ISSUE DATE: June 26, 2026 DOCUMENT CONTROL NUMBER: TTRFFCC Part 27_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCC Part 24_V1 © 2018 Intertek Page 2 of 595 Report no.: 2606B0600SHA-002 Applicant: Ericsson AB Isafjordsgatan 10 SE-164 80 Stockholm 16480 Sweden Manufacturer: Ericsson AB Isafjordsgatan 10 SE-164 80 Stockholm 16480 Sweden FCC ID: TA8AKRD901316 IC: 287AB-AS901316 SUMMARY: The equipment is tested according to the following standard(s) or Specification: FCC CFR 47 Part 27: MISCELLANEOUS WIRELESS COMMUNICATIONS SERVICES ISED RSS-139 Issue 4: Advanced Wireless Services Equipment Operating in the Bands 1710-1780 MHz and 2110-2200 MHz PREPARED BY: REVIEWED BY: Project Engineer Victor Yang Reviewer Jackson Huang Report No.: 2606B0600SHA-002 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 3 of 595 Content REVISION HISTORY................................................................................................................................................ 4 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ................................................................................................ 6 1.2 TECHNICAL SPECIFICATION ................................................................................................................................ 7 1.3 DESCRIPTION OF TEST FACILITY .......................................................................................................................... 8 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 RELATED DOCUMENTS ..................................................................................................................................... 9 2.2 PRODUCT INFORMATION .................................................................................................................................. 9 2.3 CONFIGURATION DESCRIPTION ........................................................................................................................ 10 2.4 TEST SETUP ................................................................................................................................................. 15 2.5 TEST ENVIRONMENT CONDITION: ..................................................................................................................... 18 2.6 INSTRUMENT LIST ......................................................................................................................................... 19 2.7 MEASUREMENT UNCERTAINTY ......................................................................................................................... 20 3 MAXIMUM OUTPUT POWER AND PEAK TO AVERAGE POWER RATIO AND EIRP ........................................ 21 3.1 LIMIT ......................................................................................................................................................... 21 3.2 MEASUREMENT PROCEDURE .......................................................................................................................... 21 3.3 MEASUREMENT RESULT ................................................................................................................................. 22 4 OCCUPIED BANDWIDTH ............................................................................................................................ 63 4.1 MEASUREMENT PROCEDURE .......................................................................................................................... 63 4.2 MEASUREMENT RESULT ................................................................................................................................. 64 5 UNWANTED EMISSIONS AT BAND EDGE .................................................................................................... 95 5.1 LIMIT ......................................................................................................................................................... 95 5.2 MEASUREMENT PROCEDURE .......................................................................................................................... 95 5.3 MEASUREMENT RESULT ................................................................................................................................. 96 6 CONDUCTED UNWANTED EMISSION ........................................................................................................165 6.1 LIMIT .............…

Text truncated - open the document above for the full version.

Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 786 of 812 30-1000MHz, Vertical 1-3GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 787 of 812 1-3GHz, Vertical 3-18GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 788 of 812 3-18GHz, Vertical 18-26GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 789 of 812 18-26GHz, Vertical Configuration Carrier NR BW LTE BW Modulation Channel Position NR+LTE-1 2 Carrier 20MHz 5MHz QPSK B & M & T Polarization Frequency Emission level PK (dBμV/m) Limits (dBμV/m) Horizontal 321.582MHz 17.40 84.40 Vertical 271.724MHz 17.20 84.40 Horizontal 1.9295GHz 40.74 RMS 84.40 Horizontal 1.9955GHz 48.90 84.40 Horizontal 2.1095GHz 41.29 RMS 84.40 Horizontal 2.2005GHz 49.30 84.40 Vertical 1.9295GHz 40.77 RMS 84.40 Vertical 1.9955GHz 49.20 84.40 Vertical 2.1095GHz 41.70 RMS 84.40 Vertical 2.2005GHz 50.30 84.40 Horizontal 17.994GHz 50.25 84.40 Vertical 17.994GHz 50.31 84.40 Horizontal 25.391GHz 45.46 84.40 Vertical 19.747GHz 42.55 84.40 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 790 of 812 30-1000MHz, Horizontal 30-1000MHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 791 of 812 1-3GHz, Horizontal 1-3GHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 792 of 812 3-18GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 793 of 812 3-18GHz, Vertical 18-26GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 794 of 812 18-26GHz, Vertical Configuration Carrier NR BW LTE BW Modulation Channel Position NR+LTE-2 6 Carrier 5MHz 20MHz QPSK B & M & T Polarization Frequency Emission level PK (dBμV/m) Limits (dBμV/m) Horizontal 324.201MHz 17.40 84.40 Vertical 322.552MHz 17.20 84.40 Horizontal 1.9295GHz 50.20 84.40 Horizontal 1.9955GHz 57.70 84.40 Horizontal 2.1095GHz 50.70 84.40 Horizontal 2.2005GHz 41.55 RMS 84.40 Vertical 1.9295GHz 48.90 84.40 Vertical 1.9955GHz 54.60 84.40 Vertical 2.1095GHz 49.20 84.40 Vertical 2.2005GHz 41.42 RMS 84.40 Horizontal 17.675GHz 49.57 84.40 Vertical 17.946GHz 50.52 84.40 Horizontal 19.780GHz 42.19 84.40 Vertical 25.391GHz 45.48 84.40 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 795 of 812 30-1000MHz, Horizontal 30-1000MHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 796 of 812 1-3GHz, Horizontal 1-3GHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 797 of 812 3-18GHz, Horizontal 3-18GHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 798 of 812 18-26GHz, Horizontal 18-26GHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 799 of 812 Configuration Carrier NR BW LTE BW Modulation Channel Position NR+LTE-3 2 Carrier 20MHz 5MHz QPSK B & M & T Polarization Frequency Emission level PK (dBμV/m) Limits (dBμV/m) Horizontal 323.522MHz 16.80 84.40 Vertical 272.888MHz 20.40 84.40 Horizontal 1.9295GHz 49.00 84.40 Horizontal 1.9905GHz 40.73 RMS 84.40 Horizontal 2.1095GHz 50.20 84.40 Horizontal 2.2005GHz 41.53 RMS 84.40 Vertical 1.9295GHz 49.00 84.40 Vertical 1.9905GHz 40.66 RMS 84.40 Vertical 2.1095GHz 48.90 84.40 Vertical 2.2005GHz 41.67 RMS 84.40 Horizontal 17.976GHz 49.59 84.40 Vertical 17.711GHz 49.62 84.40 Horizontal 18.898GHz 41.70 84.40 Vertical 19.747GHz 42.28 84.40 30-1000MHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 800 of 812 30-1000MHz, Vertical 1-3GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 801 of 812 1-3GHz, Vertical 3-18GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 802 of 812 3-18GHz, Vertical 18-26GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 803 of 812 18-26GHz, Vertical Configuration Carrier NR BW LTE BW Modulation Channel Position NR+LTE-4 6 Carrier 5MHz 20MHz QPSK B & M & T Polarization Frequency Emission level PK (dBμV/m) Limits (dBμV/m) Horizontal 274.828MHz 20.20 84.40 Vertical 46.005MHz 19.70 84.40 Horizontal 1.9295GHz 49.30 84.40 Horizontal 1.9905GHz 56.60 84.40 Horizontal 2.1095GHz 51.50 84.40 Horizontal 2.2005GHz 41.46 RMS 84.40 Vertical 1.9295GHz 49.30 84.40 Vertical 1.9905GHz 54.20 84.40 Vertical 2.1095GHz 49.80 84.40 Vertical 2.2005GHz 41.51 RMS 84.40 Horizontal 17.988GHz 49.82 84.40 Vertical 18.000GHz 49.63 84.40 Horizontal 19.764GHz 43.06 84.40 Vertical 19.747GHz 42.02 84.40 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 804 of 812 30-1000MHz, Horizontal 30-1000MHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 805 of 812 1-3GHz, Horizontal 1-3GHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 806 of 812 3-18GHz, Horizontal 3-18GHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 807 of 812 18-26GHz, Horizontal 18-26GHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 808 of 812 8 Frequency Stability Test result: Tested 8.1 Limit The frequency stability shall be sufficient to ensure that the fundamental emissions stay within the authorized bands of operation. 8.2 Measurement Procedure Temperature Variation The EUT was tested over the temperature range -30°C to +50°C in 10°C steps with -48 VDC Power Supply. At each temperature step, the Base Station was configured to transmit at maximum power on the middle channel of the operating band. Voltage Variation The EUT was tested at the supplied voltages varied from 85 to 115 percent of the nominal v…

Text truncated - open the document above for the full version.

Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 567 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 568 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 569 of 812 NR+LTE-4-UE Antenna Port Channel Position Modulation NR BW (MHz) LTE BW (MHz) RBW (kHz) Limit (dBm) 1 M QPSK 20 5 1000 -28.05 1 T QPSK 20 5 1000 -28.05 Channel Position M Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 570 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 571 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 572 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 573 of 812 Channel Position T Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 574 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 575 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 576 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 577 of 812 7 Radiated Unwanted Emission Test result: Pass 7.1 Limit The field strength of the carrier has been calculated assuming that the power is to be fed to a half-wave tuned dipoles as per 2.1053 (a). E(V/m) = (30 x Gi x Po ) 0.5 / d Where Gi is the antenna gain of ideal half-wave dipoles, Po is the power out of the transceiver in W, d is the measurement distance in meter. As per FCC part 24 & RSS-133 the unwanted emission limit is -13dBm: Therefore the limit at 3m measurement distance is: E(V/m) = 84.4 dBμV/m These limits have been used to determine Pass or Fail for the harmonics measured and detailed in the following results. 7.2 Measurement Procedure This measurement is carried out in semi-anechoic chamber. A preliminary profile of the Spurious Radiated Emissions was obtained by operating the EUT on a remotely controlled turntable within the chamber. Measurements of emissions from the EUT were obtained with the measurement antenna in both horizontal and vertical polarizations. Emissions identified within the range 30MHz to 26GHz were then formally measured using a peak detector as the worst case. The EUT was measured with the antenna height varied between 1 and 4 m with the turntable rotated between 0 and 360 degrees. The emission of any outside a licensee’s frequencies within 20dB of the limit were measured with the substitution method used according to the standard. The measurements were performed at a 3m distance unless otherwise stated. Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 578 of 812 7.3 Measurement result Configuration Carrier Channel Bandwidth Modulation Channel Position NR-1C-B25 1 Carrier 5MHz QPSK B & M & T Polarization Frequency Emission level PK (dBμV/m) Limits (dBμV/m) Horizontal 274.343MHz 22.00 84.40 Vertical 74.814MHz 20.20 84.40 Horizontal 1930MHz 40.26 RMS 84.40 Horizontal 1995MHz 48.80 84.40 Vertical 1930MHz 41.05 RMS 84.40 Vertical 1995MHz 48.70 84.40 Horizontal 17.994GHz 50.57 84.40 Vertical 17.850GHz 50.07 84.40 Horizontal 23.034GHz 40.78 84.40 Vertical 19.747GHz 42.81 84.40 30-1000MHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 579 of 812 30-1000MHz, Vertical 1-3GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 580 of 812 1-3GHz, Vertical 3-18GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 581 of 812 3-18GHz, Vertical 18-26GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 582 of 812 18-26GHz, Vertical Configuration Carrier Channel Bandwidth Modulation Channel Position NR-1C-B25 1 Carrier 30MHz QPSK B & M & T Polarization Frequency Emission level PK (dBμV/m) Limits (dBμV/m) Horizontal 270.463MHz 29.00 84.40 Vertical 272.985MHz 25.10 84.40 Horizontal 1930MHz 66.70 84.40 Horizontal 1995MHz 50.40 84.40 Vertical 1930MHz 62.00 84.40 Vertical 1995MHz 49.90 84.40 Horizontal 17.952GHz 50.62 84.40 Vertical 17.994GHz 49.66 84.40 Horizontal 19.747GHz 42.73 84.40 Vertical 19.635GHz 42.74 84.40 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 583 of 812 30-1000MHz, Horizontal 30-1000MHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 584 of 812 1-3GHz, Horizontal 1-3GHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 585 of 812 3-18GHz, Horizontal 3-18GHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 586 of 812 18-26GHz, Horizontal 18-26GHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 587 of 812 Configuration Carrier Channel Bandwidth Modulation Channel Position NR-1C-B25 1 Carrier 40MHz QPSK B & M & T Polarization Frequency Emission level PK (dBμV/m) Limits (dBμV/m) Horizontal 274.440MHz 27.00 84.40 Vertical 270.269MHz 26.60 84.40 Horizontal 1930MHz 49.10 84.40 Horizontal 1995MHz 41.33 RMS 84.40 Vertical 1930MHz 49.40 84.40 Vertical 1995MHz 66.00 84.40 Horizontal 17.742GHz 49.34 84.40 Vertical 17.994GHz 49.86 84.40 Horizontal 19.731GHz 42.74 84.40 Vertical 25.359GHz 44.18 84.40 30-1000MHz, Horizontal 30-1000MHz, Vertical Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 588 of 812 1-3GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 589 of 812 1-3GHz, Vertical 3-18GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 590 of 812 3-18GHz, Vertical 18-26GHz, Horizontal Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 591 of 812 18-26GHz, Vertical Configuration Carrier Channel Bandwidth Modulation Channel Position NR-2C…

Text truncated - open the document above for the full version.

Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 545 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 546 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 547 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 548 of 812 Channel Position T Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 549 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 550 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 551 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 552 of 812 NR+LTE-2-UE Antenna Port Channel Position Modulation NR BW (MHz) LTE BW (MHz) RBW (kHz) Limit (dBm) 1 M QPSK 20 5 1000 -28.05 1 T QPSK 20 5 1000 -28.05 Channel Position B Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 553 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 554 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 555 of 812 Channel Position M Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 556 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 557 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 558 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 559 of 812 Channel Position T Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 560 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 561 of 812 Report No.: 2606B0600SHA-001 TEST REPORT TTRFFCC Part 24_V1 © 2018 Intertek Page 562 of 812 NR+LTE-3-UE Antenna Port Channel Position Modulation NR BW (M…
