TA8AKRC118046-1WCDMA / LTE Radio Equipment

Exhibit 2 FCC authorization ‐ letter

EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. RSACGUS TA8AKRC118046-1 Approved Checked Date Rev Reference EAB/FJB/VA [Christer Gustavsson] 2012-06-19 C Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch SP Technical Research Institute of Sweden Brinellgatan 4 Box 857 S-501 15 Borås Sweden June 19, 2012 Subject: Certification for FCC ID: TA8AKRC118046-1 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This base station transceiver (Radio Unit – AIR 21 B4A B2P) is designed for use in WCDMA and LTE cellular telephone system. The transmitter will operate from 2110 MHz to 2155 MHz. The receiver circuit supports 1710 MHz to 1755 MHz. It supports channel bandwith of 1.4, 3, 5, 10, 15 and 20 MHz for LTE. This base station transceiver (RU) supports modulation type and QPSK, 16QAM and 64QAM for WCDMA and LTE. The base station operates in the Cellular band as per 47 CFR Part 27 subpart L. It meets the requirements of Third Generation Partnership Project (3GPP) for the Universal Mobile Telephone System (UMTS 3G) mobile standard (cellular telephone system) for operation in WCDMA and LTE cellular system s. This RU supports spectrum consisting of two or more sub- blocks separated by sub-block gap(s), NCS (None-Contiguous Spectrum). This base station transceiver (AIR 21 B4A B2P) will in normal mode operate at a nominal power out of 30 watts at the output connecto rs. The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Ericsson AB accept by this request the agreement set out in the document "Bilaga SPCR 125 -Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden". Christer Gustavsson Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 SE-164 80 Stockholm, Sweden Telephone No.: +46107175949 e-mail: [email protected]

Ericsson Internal EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EAB/FJR/VA Christer Gustavsson Approved Checked Date Rev Reference EAB/FJR/VA Christer Gustavsson 2011-11-16 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch SP Technical Research Institute of Sweden Brinellgatan 4 Box 857 SE -501 15 Borås Sweden Exhibit 13 NDA Confidentiality Clause Confidentiality . Each party agrees that all confidential documents, work product and information (including all computer code, internal photographs of products, block diagrams, schematic diagrams, technical and/or user manuals, related materials, and the existence of this Agreement) received or otherwise obtained from the other party pursuant to this Agreement, whether before or after the Effective Date, will be, and will be deemed to have been, received in confidence and will be used only for the purpose of carrying out the obligations of, or as otherwise contemplated by, this Agreement. In addition, each party agrees that public access to all confidential equipment supplied will be restricted either by installation of the equipment in a restricted area or by physically securing the equipment by other means, including, but not limited to, using a key-lock that can only be opened by authorized personnel. Without the other party’s prior written consent, neither party may disclose any such information to any third party or grant access to the confidential equipment to any unauthorized person, and each party will disclose such information only to such of its officers, employees and agents that have a need to know such information for the purposes contemplated hereby. However, the provisions of this Section will not apply to any such information that (i) is or becomes generally available to the public without the fault or negligence of either party, (ii) is already in the possession of the receiving party without being subject to another confidentiality obligation, (iii) is or becomes available to the receiving party on a non-confidential basis from a source other than the disclosing party; provided that such source is not bound by a confidentiality obligation of the disclosing party, (iv) is required to be disclosed pursuant to an arbitration proceeding conducted in accordance with this Agreement, or (v) is required to be disclosed pursuant to a requirement of any governmental authority or any statute, rule or regulation; provided that the party required to disclose such information of the other party provide to the other party notice of such requirement of any such disclosure and cooperates with the other party to prevent or restrict any such disclosure to the extent allowed by applicable law.

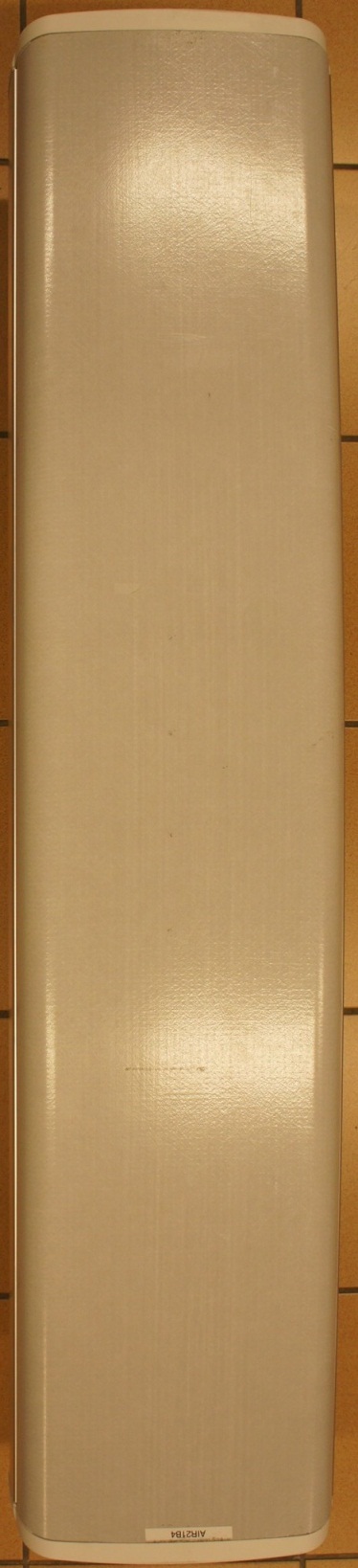

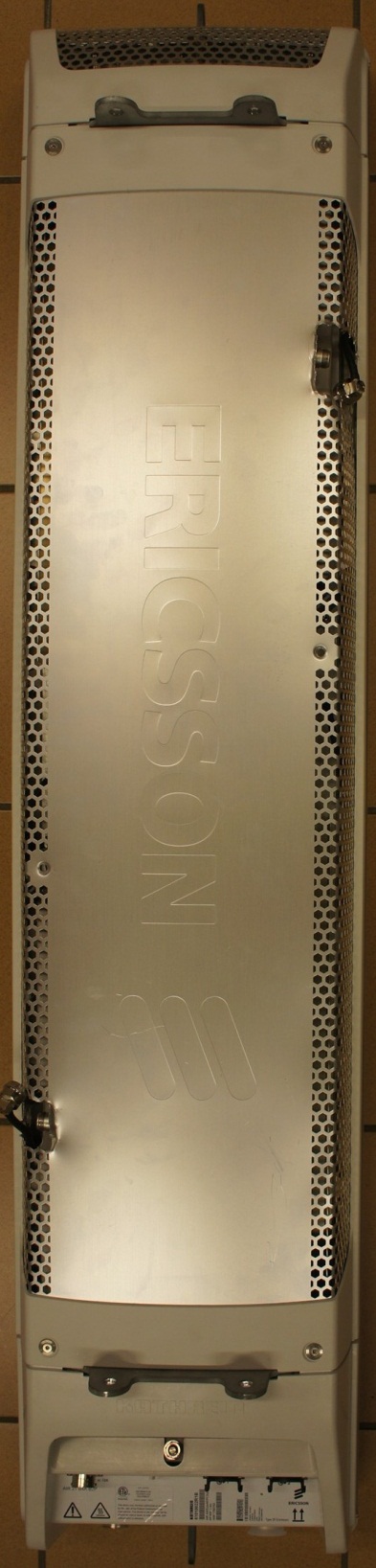

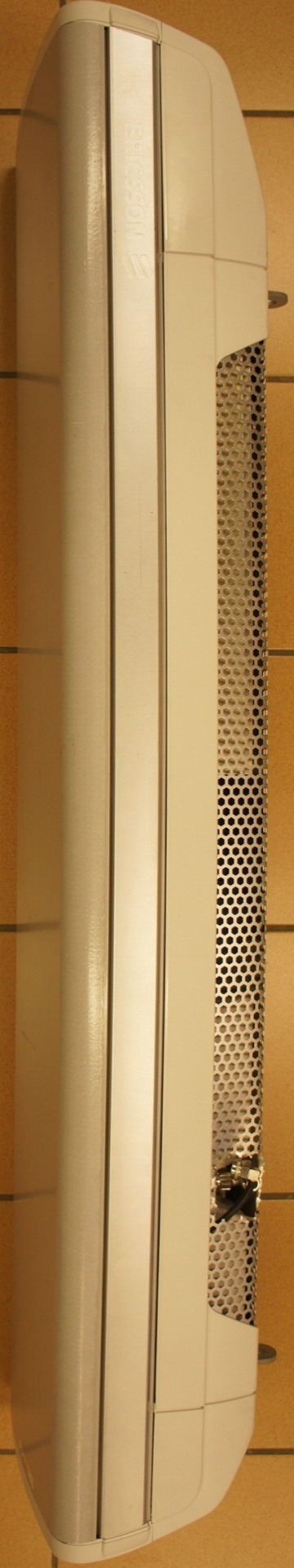

Date Page Exhibit 3 External photos 2012-06-13 1(3) FCC ID: TA8AKRC118046-1 IC: 287AB-AS1180461 Front side Rear side Date Page Exhibit 3 External photos 2012-06-13 2(3) FCC ID: TA8AKRC118046-1 IC: 287AB-AS1180461 Left side Right side Date Page Exhibit 3 External photos 2012-06-13 3(3) FCC ID: TA8AKRC118046-1 IC: 287AB-AS1180461 Top side Bottom side

Date Page Exhibit 1 ID label and placement 2012-06-13 1(1) FCC ID: TA8AKRC118046-1 IC: 287AB-AS1180461 Back side ID label

Date Reference Page REPORT FCC ID: TA8AKRC118046-1 IC: 287AB-AS1180461 2012-06-18 FX211814-F27L 2 (2) Table of contents Description of the test object Appendix 1 Operation mode during measurements Appendix 1 Purpose of test Appendix 1 Test setups Appendix 1 RF power output Appendix 2 Occupied bandwidth Appendix 3 Band edge Appendix 4 Spurious emission at antenna terminals Appendix 5 Field strength of spurious radiation Appendix 6 Frequency stability Appendix 7 External photos Appendix 8 Date Reference Page REPORT FCC ID: TA8AKRC118046-1 IC: 287AB-AS1180461 2012-06-18 FX211814-F27L 1 (7) Appendix 1 Description of test object Equipment: Radio equipment AIR 21 B4A/B2P running in LTE mode Frequency bands: TX: 2110 – 2155 MHz RX: 1710 – 1755 MHz The highest and lowest EARFCNs and the corresponding frequencies for each supported channel BW configuration are listed below and are pursuant to 3GPP TS 36.141 section 5.7 Channel arrangement Supported channel bandwidth configurations 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz and 20 MHz Modulation and access scheme OFDMA in FDD OFDM subcarrier modulation System information and pilots use BPSK and QPSK. For payload data QPSK, 16QAM and 64QAM can be used. Nominal output power per antenna port: Single carrier: 1x 44.8 dBm (1x30 W) Number of antenna ports: 2 TX ports configured for TX diversity Nominal supply voltage: -48 VDC Tested frequencies and EARFCNs for TX measurements EARFCN Downlink Frequency [MHz] Comment 1957 2110.7 TX bottom (B) frequency in 1.4 MHz BW configuration 1965 2111.5 TX bottom (B) frequency in 3 MHz BW configuration 1975 2112.5 TX bottom (B) frequency in 5 MHz BW configuration 2000 2115.0 TX bottom (B) frequency in 10 MHz BW configuration 2025 2117.5 TX bottom (B) frequency in 15 MHz BW configuration 2050 2120.0 TX bottom (B) frequency in 20 MHz BW configuration 2175 2132.5 TX band mid (M) frequency in all BW configurations 2300 2145.0 TX top (T) frequency in 20 MHz BW configuration 2325 2147.5 TX top (T) frequency in 15 MHz BW configuration 2350 2150.0 TX top (T) frequency in 10 MHz BW configuration 2375 2152.5 TX top (T) frequency in 5 MHz BW configuration 2385 2153.5 TX top (T) frequency in 3 MHz BW configuration 2393 2154.3 TX top (T) frequency in 1.4 MHz BW configuration Note: EARFCN are derived according to 3GPP TS 36.141, table 5.7.3-1. Date Reference Page REPORT FCC ID: TA8AKRC118046-1 IC: 287AB-AS1180461 2012-06-18 FX211814-F27L 2 (7) Appendix 1 Operation modes during measurements Measurements were performed with the test object transmitting test models as defined in 3GPP TS 36.141. Test model E-TM1.1 was used to represent QPSK, test model E-TM3.2 to represent 16QAM and test model E-TM3.1 to represent 64QAM payload modulation. The setting TX single carrier with test model E-TM1.1 in channel bandwidth configuration 1.4 MHz was found to be representative for all traffic scenarios when several settings with different modulations and channel bandwidth configurations were compared to find a worst case setting. This setting was used for all measurements unless noted otherwise. The test object was powered with -48 VDC unless noted otherwise. All measurements were performed with the test object configured for maximum transmit power. Conducted measurements The EUT was a pole mounted unit supplied with -48 VDC by an external power supply. All TX parameters were measured at port RF A with port RF B terminated into 50 ohm. Complete measurements were made on RF A with additional measurements on RF B to verify that the ports are identical. Radiated measurements The test object was powered with -48 VDC. All measurements were performed with the test object configured for maximum transmit power. The configuration of E-TM1.1, with 1.4 MHz BW at Mid channel represents worst case for radiated spurious emission measurements. Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in applicable parts of FCC CFR 47, IC RSS-133 and IC RSS-Gen. References Measurements were done according to relevant parts of the following standards: ANSI C63.4-2003 ANSI/TIA/EIA-603-C-2004 3GPP TS 36.141, version 8.5.0 CFR 47 part 2, October 1 st , 2010 CFR 47 part 24 Subpart E, October 1 st , 2010 RSS-139 Issue 2 RSS-Gen Issue 3 Date Reference Page REPORT FCC ID: TA8AKRC118046-1 IC: 287AB-AS1180461 2012-06-18 FX211814-F27L 3 (7) Appendix 1 Measurement equipment Measurement equipment Calibration Due SP number Test site Tesla 2014-01 503 881 R&S FSIQ 40 2012-07 503 738 R&S FSQ 40 2012-07 504 143 R&S ESI 26 2012-07 503 292 Control computer with R&S software EMC32 version 8.52.0 - 503 479 High pass filter 2012-07 504 199 High pass filter 2013-01 901 373 High pass filter 2012-07 503 739 High pass filter 2012-07 503 740 RF attenuator 2012-07 504 159 RF attenuator 2012-07 900 233 Boonton RF Peak power meter/analyzer 2012-11 503 144 Boonton Power sensor 56518-S/4 2012-11 503 145 Chase Bilog Antenna CBL 6111A 2013-10 503 182 EMCO Horn Antenna 3115 2014-01 502 175 Std.gain horn FLANN model 20240-20 - 503 674 μComp Nordic, Low Noise Amplifier 2013-03 901 545 MITEQ Low Noise Amplifier 2012-07 503 285 Temperature cabinet - 503 360 Testo 635 Temperature and humidity meter 2013-05 504 203 Uncertainties Measurement and test instrument uncertainties are described in the quality assurance documentation ”SP-QD 10885”. The uncertainties are calculated with a coverage factor k=2 (95% level of confidence). Compliance evaluation is based on a shared risk principle with respect to the measurement uncertainty. Reservation The test results in this report apply only to the particular test object as declared in the report. Delivery of test object The test object was delivered: 2012-05-28. Manufacturer’s representative Christer Gustavsson, Ericsson AB Test engineers Andreas Johnson Tomas Isbring, Hyder Khalaf, Kexin Chen, Jörgen Wassholm, and Martin Theorin, SP Test participant(-s) Mikael Jansson, Ericsson AB (Partly present) Date Reference Pa…

Text truncated - open the document above for the full version.

Date Reference Page REPORT 2012-06-18 FX211816-F27W 2 (2) FCC ID:TA8AKRC118046-1 IC:287AB-AS1180461 SP Technical Research Institute of Sweden Table of contents Description of the test object Appendix 1 Operation mode during measurements Appendix 1 Test setups Appendix 1 Purpose of test Appendix 1 RF power output Appendix 2 Occupied bandwidth Appendix 3 Band edge Appendix 4 Spurious emission at antenna terminals Appendix 5 Field strength of spurious radiation Appendix 6 Frequency stability Appendix 7 External photos Appendix 8 Date Reference Page REPORT 2012-06-18 FX211816-F27W 1 (7) FCC ID:TA8AKRC118046-1 IC:287AB-AS1180461 Appendix 1 SP Technical Research Institute of Sweden Description – Test object Equipment: Radio equipment AIR 21 B4A/B2P running in WCDMA mode supporting single and multi carrier. Antenna ports: 2 TX ports configured for TX diversity Frequency bands: TX: 2110 – 2155 MHz RX: 1710 – 1755 MHz Modulations: QPSK, 16QAM and 64QAM Nominal output power per antenna port: Single carrier: 1x 44.8 dBm (1x 30W) Multi carrier: 2x 41.8 dBm (2x 15W) 3x 40.0 dBm (3x 10W) 4x 48.8 dBm (4x 7.5W) Channel bandwidth: 4.2 to 5 MHz (configurable in steps of 100/200 kHz) Channel spacing: 4.4 to 5 MHz (configurable in steps of 100/200 kHz) Nominal power voltage: -48 VDC Tested channels Downlink Uplink Channel Frequency* UARFCN Frequency* UARFCN B 2112.4 1537 1712.4 1312 B+5 2117.4 1562 1717.4 1337 B+10 2122.4 1587 1722.4 1362 B+15 2127.4 1612 1727.4 1387 M 2132.6 1638 1732.6 1413 T-15 2137.6 1663 1737.6 1438 T-10 2142.6 1688 1742.6 1463 T-5 2147.6 1713 1747.6 1488 T 2152.6 1738 1752.6 1513 * Frequency in MHz Operation mode during measurements Measurements were performed with the test object transmitting the Test model 1 which are defined in 3GPP TS 25.141. Test model 1 (TM1) uses the QPSK modulation only. Test model 5 (TM5) includes the 16QAM modulation and Test model 6 (TM6) includes the 64QAM modulation. The settings below were found to be representative for all traffic scenarios when several settings with the different modulations, channel bandwidths and the number of carriers were tested to find the worst case setting. These settings were used for all measurements if not otherwise noted. Single carrier TM1: 64 DPCH:s at 30 ksps (SF=128) Multi carrier TM1: 32 DPCH:s at 30 ksps (SF=128) in each carrier (Two carriers activated) Channel bandwidth 5 MHz Date Reference Page REPORT 2012-06-18 FX211816-F27W 2 (7) FCC ID:TA8AKRC118046-1 IC:287AB-AS1180461 Appendix 1 SP Technical Research Institute of Sweden Conducted measurements The EUT was a pole mounted unit supplied with -48 VDC by an external power supply. All RF conducted measurements were performed with the test object configured for maximum transmit power. Complete measurements were made on RF A with additional measurements on RF B to verify that the ports are identical. Radiated measurements The test object was powered with -48 VDC. All measurements were performed with the test object configured for maximum transmit power. The configurations below represents worst case for radiated spurious emission measurements. The RF output power port was via a RF attenuator connected to functional test equipment for supervision. The AIR unit was allocated to the following UARFCN: Single Carrier: (One carrier configuration) Cell 1 1 1 Channel B M T Multi Carrier: (Two carrier configuration) Cell 1 2 Channel B B+10 Channel T-10 T Multi Carrier: (Four carrier configuration) Cell 1 2 3 4 Channel B B+5 B+10 B+15 Channel T T-5 T-10 T-15 Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in applicable items of FCC CFR 47 and Industry Canada RSS-139 and RSS-Gen. References Measurements were done according to relevant parts of the following standards: ANSI 63.4-2009 ANSI/TIA/EIA-603-C-2004 CFR 47 part 2, October 1 st , 2010 CFR 47 part 27, October 1 st , 2010 3GPP TS 25.141, version 8.9.0 RSS-Gen Issue 3 RSS-139 Issue 2 Date Reference Page REPORT 2012-06-18 FX211816-F27W 3 (7) FCC ID:TA8AKRC118046-1 IC:287AB-AS1180461 Appendix 1 SP Technical Research Institute of Sweden Measurement equipment Measurement equipment Calibration Due SP number Test site Tesla 2014-01 503 881 R&S FSIQ 40 2012-07 503 738 R&S FSQ 40 2012-07 504 143 R&S ESI 26 2012-07 503 292 Control computer with R&S software EMC32 version 8.52.0 - 503 479 High pass filter 2012-07 504 199 High pass filter 2013-01 901 373 High pass filter 2012-07 503 739 High pass filter 2012-07 503 740 RF attenuator 2012-07 504 159 RF attenuator 2012-07 900 233 Boonton RF Peak power meter/analyzer 2012-11 503 144 Boonton Power sensor 56518-S/4 2012-11 503 145 Chase Bilog Antenna CBL 6111A 2013-10 503 182 EMCO Horn Antenna 3115 2014-01 502 175 Std.gain horn FLANN model 20240-20 - 503 674 μComp Nordic, Low Noise Amplifier 2013-03 901 545 MITEQ Low Noise Amplifier 2012-07 503 285 Temperature cabinet - 503 360 Testo 635 Temperature and humidity meter 2013-05 504 203 Uncertainties Measurement and test instrument uncertainties are described in the quality assurance documentation ”SP-QD 10885”. The uncertainties are calculated with a coverage factor k=2 (95% level of confidence). Compliance evaluation is based on a shared risk principle with respect to the measurement uncertainty. Reservation The test results in this report apply only to the particular test object as declared in the report. Delivery of test object The test object was delivered 2012-05-28. Manufacturer’s representative Christer Gustavsson, Ericsson AB Date Reference Page REPORT 2012-06-18 FX211816-F27W 4 (7) FCC ID:TA8AKRC118046-1 IC:287AB-AS1180461 Appendix 1 SP Technical Research Institute of Sweden Test engineers Andreas Johnson Tomas Isbring, Hyder Khalaf, Kexin Chen, Jörgen Wassholm, and Martin Theorin, SP Test participant Mikael Jansson, Ericsson AB (Partly present) S T SP Technical Test set-up Test o 1. AIR 2 (FCC with s o Func t 2. DU 1: DU 2: 3. Comp u 4. Fast E 5. ERNC 6. Rubid 7. Termi n 8. A…

Text truncated - open the document above for the full version.
