TA8AKRC11822-1WCDMA Base Station Transceiver

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 17, 2005 RE: FCC ID: TA8AKRC11822-1 Attention: Keith Goshia I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the list of exhibits, the report exhibit list (pages 5 and 6 of the report) and the actual exhibit numbers themselves do not agree. Please correlate the list of exhibits with the actual exhibit numbers. (FYI – this is more for clarification and consistency). 2. Please note that the technical description appears to be for a 1900MHz and 2100MHz system but does not address the 850MHz system. Please also note that the technical description refers to FCC Part 24, but this device is a Part 22 (see page 33 of the pdf document). Please provide a technical description that addresses the system in the application. 3. Please note that 2.1033(c)(13) states, “For equipment employing digital modulation techniques, a detailed description of the modulation system to be used, including the response characteristics (frequency, phase and amplitude) of any filters provided, and a description of the modulating wavetrain, shall be submitted for the maximum rated conditions under which the equipment will be operated.” Please note that the technical description appears to address the system wide description but does not provide much on the actual transmitter description. A short technical description of the transmitter digital modulation system should be included. 4. Please note that there does not appear to be external photos for the radio unit. Please provide separate external photos or drawings of the device. 5. Please note that 22.901(d) as been removed from the CFR. The report references this deleted rule section on page 8. Please correct. 6. Please note that 22.917 went through a major revision that changed the out of band emissions requirements. Part 22 devices now only have to meet a required 43+10Log(P) requirements similarly as part 24. The report, on page 18, refers to sections that have been rmoved. Please correct. 7. Please note that on page 41 of the report the data does not clearly indicate how antenna substitution was used in determining compliance to the radiated spurious emissions requirements. Please confirm that the antenna substitution method for radiated emissions found in TIA603 was used. Please provide a sample of how the data was obtained (i.e. provide the sample formula used in the test to determine the ERP of the emissions) and please provide a short description of the antenna substitution test method used. 8. FYI – please note that clear designation of the band edges on the plots on pages 12 and 17 would help band edge compliance determination. 9. Please note that 22.917(b) stipulates that the lowest resolution bandwidth that is to be used for occupied band width and band edge measurements is 1% of the bandwidth. Please note that the resolution band width used in the data plots on pages 1 through 17 of the report was 30kHz. Please note that the bandwidth of the data appears to be greater than 3.5 MHz. This would mean that the lowest resolution bandwidth that should be used would be. Please justify the 30kHz resolution bandwidth in relation to the occupied bandwidth of the emission (i.e. was a wider resolution bandwidth used that showed the data in the report is accurate and acceptable?). z Page 2 October 17, 2005 Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Open EXHIBIT 1 1 (1) Prepared (also subject responsible if other) No. EWU/PR/HD Keith Goshia Approved Checked Date Rev Reference EWU/PR/H Thomas Funk 10/24/2005 A TA8AKRC11822-1 American Telecommunications Certification Body 6731 Whittier Ave Suite C110 McLean, VA 22101 Attention: Authorization and Evaluation Division Applicant: Ericsson Wireless Communications Equipment: FCC ID: TA8AKRC11822-1 To Whom It May Concern: Please find enclosed the following documentation for your review: EXHIBIT 1 Cover Letter EXHIBIT 2 Cover Letter Confidentiality EXHIBIT 3 Cover Letter Temperature Range EXHIBIT 4 Cover Letter Filter Unit EXHIBIT 5 External Photos EXHIBIT 6 FCC ID Photo EXHIBIT 7 Tune Up Procedure EXHIBIT 8 FCC Form 731 including Fee Processing Form. EXHIBIT 9 TA8AKRC118122-1 Test Report RU22 0840 FCC Registered Testing Laboratory: Criterion Technology Corp. PO Box 489 Rollinsville, CO 80474 PH (303) 258-0100 If any further information is required, please contact me directly. Also, would you please inform me when the Request for Confidentiality has been accepted and granted? Regards, Keith A. Goshia Engineer Staff Manager Ericsson Wireless 6210 Spine Road Boulder, CO 80301 Telephone: (303) 473-6956 Fax: (303) 473-6680 e-mail: [email protected]

Open EXHIBIT 2 1 (1) Prepared (also subject responsible if other) No. EWU/PR/HD Keith Goshia Approved Checked Date Rev Reference EWU/PR/H Thomas Funk 10/24/2005 A TA8AKRC11822-1 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Request for Confidentiality To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules. This due to the following reasons: DS-CDMA Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3 rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU) compared to the previous BS/RU, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. As out BS are generally installed in restricted places, public access is not possible all thought some types of our BS under certain circumstances can be installed in an unrestricted place, but the doors on all of our BS’s are key-locked and can be opened only by authorized personnel. It is therefore individual modules within our BS that should not be revealed to the public. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the BS and the RU, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase out BS and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 10 Internal Photos EXHIBIT 11 Block Diagram EXHIBIT 12 Schematics EXHIBIT 13 Users Guide EXHIBIT 14 Installation Guide EXHIBIT 15 Parts List EXHIBIT 16 Technical Circuit Description Regards, If any further information is required, please contact me directly. Also, would you please inform me when the Request for Confidentiality has been accepted and granted? Regards, Keith A. Goshia Engineer Staff Manager Ericsson Wireless 6210 Spine Road Boulder, CO 80301 Telephone: (303) 473-6956 Fax: (303) 473-6680 e-mail: [email protected]

Open EXHIBIT 3 1 (1) Prepared (also subject responsible if other) No. EWU/PR/HD Keith Goshia Approved Checked Date Rev Reference EWU/PR/H Thomas Funk 10/24/2005 A TA8AKRC11822-1 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Temperature Range Information for Certification for FCC ID: TA8AKRC11822-1 Gentlemen; Enclosed are requests of a Grant of Certification (Type Acceptance) for the above-mentioned FCC Identifier from Ericsson AB. The base station transceiver (Radio Unit – RU) are designed together with the cabinet and other boards for use in a temperature range of 0º C to +50º C. The base station transceiver (RU) is equipped with a thermal sensor that will shut down the exciter power amplifier in the RU in a controlled way at temperatures below -2º C and above + 52º C. The frequency stabilizing circuitry and the power amplifier are still in stand-by mode below and above these temperatures to be prepared to transmit with proper function if the environment temperature reaches the applicable temperature range again. There is also a non-destruct temperature range outside the range above where the base station is shut down totally. If additional information is needed, please contact me on the below listed number. Regards, Keith A. Goshia Engineer Staff Manager Ericsson Wireless 6210 Spine Road Boulder, CO 80301 Telephone: (303) 473-6956 Fax: (303) 473-6680 e-mail: [email protected]

Open EXHIBIT 4 1 (1) Prepared (also subject responsible if other) No. EWU/PR/HD Keith Goshia Approved Checked Date Rev Reference EWU/PR/H Thomas Funk 10/24/2005 A TA8AKRC11822-1 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Modem in Filter Unit for the Radio Unit with FCC ID: TA8AKRC11822-1 Gentlemen; Enclosed are requests of a Grant of Certification (Type Acceptance) for the above-mentioned FCC Identifier from Ericsson AB. The Cavity Filter Unit (FU) KRC 118 21/1 used for band pass filtering of the transmit signal from Radio Unit (RU) KRC 118 22/1 with the above FCC Identifier has a FSK/OOK modem. This modem is not activated. The intention is to use it for signaling to mast-mounted equipment in the future. This function will be treated as a permissible change when it is time for use of this function. If additional information is needed, please contact me on the below listed number. Regards, Keith A. Goshia Engineer Staff Manager Ericsson Wireless 6210 Spine Road Boulder, CO 80301 Telephone: (303) 473-6956 Fax: (303) 473-6680 e-mail: [email protected]

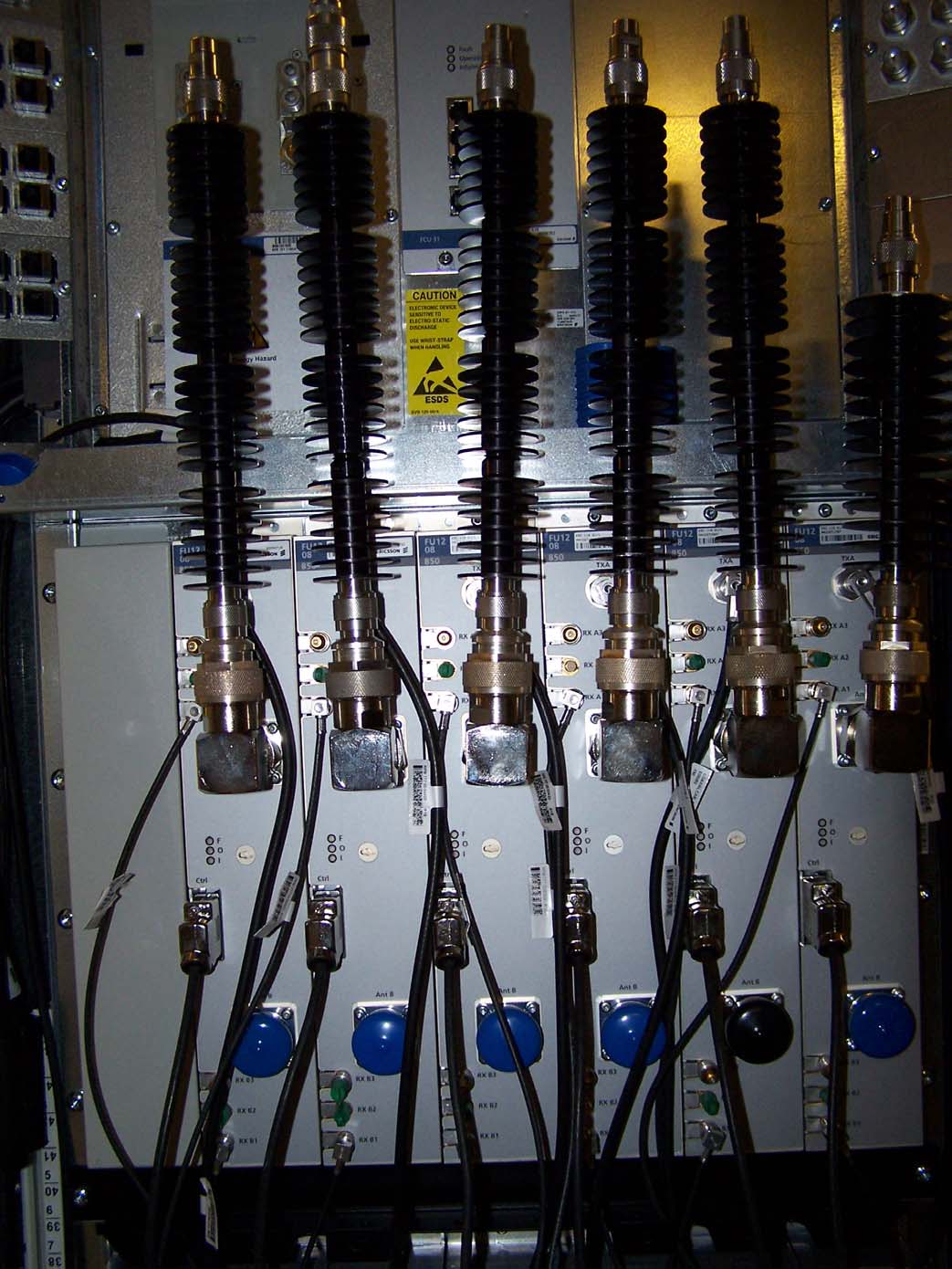

Open EXHIBIT 5 1 (4) Prepared (also subject responsible if other) No. EWU/PR/HD Keith Goshia Approved Checked Date Rev Reference EWU/PR/H Thomas Funk 10/24/2005 A TA8AKRC11822-1 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch External Photos Open EXHIBIT 5 2 (4) Prepared (also subject responsible if other) No. EWU/PR/HD Keith Goshia Approved Checked Date Rev Reference EWU/PR/H Thomas Funk 10/24/2005 A TA8AKRC11822-1 Open EXHIBIT 5 3 (4) Prepared (also subject responsible if other) No. EWU/PR/HD Keith Goshia Approved Checked Date Rev Reference EWU/PR/H Thomas Funk 10/24/2005 A TA8AKRC11822-1 Open EXHIBIT 5 4 (4) Prepared (also subject responsible if other) No. EWU/PR/HD Keith Goshia Approved Checked Date Rev Reference EWU/PR/H Thomas Funk 10/24/2005 A TA8AKRC11822-1

Open EXHIBIT 6 1 (1) Prepared (also subject responsible if other) No. EWU/PR/HD Keith Goshia Approved Checked Date Rev Reference EWU/PR/H Thomas Funk 10/24/2005 A TA8AKRC11822-1 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch FCC ID: IC : the Industry Canada Marking with not show the “ID” part on the final label FCC ID and IC ID Label Location

VERIFICATION RECORD, RU22 0840 Abstract This document comprises the results from the verifications of the RU22 0840 The objective of this verification is to verify that the tested Unit corresponds to the requirements in Requirement Specification (Ref.1). The verification was done in accordance to Verification Specification (Ref.2). Tested hardware UnitProduct nrRevSerial number RUKRC 118 22/1 R1C AE52099301 RUKRC 118 22/1 R1C AE52166301 Tested software Product id CXP9011215/1 CXP9011215%1_R4A02 Rev CXP9011215/1 CXP9011215%1_R4H01 Ericsson Confidential VERIFICATION RECORD Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other) Nr – N/o. ETCQIYA 100/102 65 - CNH 160 1143 /1-1 Uen Dokansv/Godk - Doc respons/Approved Kontr - Checked Datum - Date Rev File CBC/XRE [XIAN DONG KONG] 2005-10-10 A Evaluation notes were added to the output document. To get rid of these notes, please order your copy of ePrint IV now. 1REVISION HISTORY 2TERMINOLOGY 3VERIFICATION OBJECT 3.1Hardware 4VERIFICATION ENVIRONMENT 4.1Verification setup 4.2Verification tools 4.2.1Hardware tools 4.2.2Software tools 5SUMMARY OF AUTOMATED VERIFICATION RESULTS 5.1TX_OutPutPwrAccuracy 5.2TX_TotalDLCarrPwrMeas 5.3a TX_SPECMASK 5.3bTX_FCC_SPECMASK 5.4TX_PowerConsumption 5.5TX_ACP 5.6TX_OBW 5.7TX_PCDE 5.8TX_EVM 5.9TX_OffsetOfOrigin 5.10TX_FrequencyAccuracy 5.11TX_Spurious 5.12RX_Spurious 5.13RX_ULImeasAccuracy 5.14RX_DynamicRange 5.15RX_GainAccuracy 5.16RX_NoiseFigure 5.17RX_CrossTalk 5.18RX_EVM 5.19RX_ChFrequencies 5.20RX_Blocking 5.21RX_AdjChanSelectivity 5.22RX_Imsensitivity 6REFERENCES Contents Evaluation notes were added to the output document. To get rid of these notes, please order your copy of ePrint IV now. 1 REVISION HISTORY Document RevisionRevision Date PA19/29/2005 PA210/8/2005 A10/10/2005 2 TERMINOLOGY ANPAntenna Near Product DTXDiscontinuous Transmission LNALow Noise Amplifier RURadio Unit TXTransmitter RXReceiver 4 VERIFICATION ENVIRONMENT 4.1 VERIFICATION SETUP This verification has been performed on one RU. Only automatic tests are mentioned in this verification record. The input signals to the system were generated with signal generators. 4.2 VERIFICATION TOOLS 4.2.1 Hardware tools Fabrication R & S R & S R & S Agilent Power meter NRT Power meter NRP Spectrum analyzer FSQ Change First draft - Add instruments serial number - Add Tested HW+SW revision - Update some new test result( blue colored ) - Header updated Serial number 101954 1000478 100457 Instrument Document release after final review Switch/control unit 34970A MY41030894 Evaluation notes were added to the output document. To get rid of these notes, please order your copy of ePrint IV now. Agilent Agilent Agilent EAB EAB EAB EAB EAB EAB R & S R&S Delta Elektronika Delta Elektronika Delta Elektronika Delta Elektronika 5064 4.2.2 Software tools Rev Local copy 5 SUMMARY OF AUTOMATED VERIFICATION RESULTS 5.10 TX_FrequencyAccuracy x Carrier Freq Min Requirement Max RequirementDataDataDataDataData Result TestModel CH1/CH2 ( MHz ) HzHz0°C / 0%25°C / 50%25°C / 90%55°C / 15%5°C / 85%P/F TM1,48V871.4M/OFF-22.656422.65649.5/NA9.7/NA9.0/NA8.5/NAPASS TM1,48V882.5M/OFF-22.94522.94512.0/NA8.9/NA8.3/NA15.7/NAPASS TM1,48V891.6M/OFF-23.181623.18169.9/NA10.9/NA15.4/NA11.9/NAPASS TM1,38.9V871.4M/OFF-22.656422.656410.7/NA10.1/NA9.6/NA11.5/NAPASS TM1,38.9V882.5M/OFF-22.94522.9457.3/NA9.2/NA8.3/NA9.7/NAPASS TM1,38.9V891.6M/OFF-23.181623.181610.2/NA10.4/NA12.5/NA12.1/NAPASS TM1,57.6V871.4M/OFF-22.656422.656411.9/NA7.5/NA9.5/NA11.9/NAPASS TM1,57.6V882.5M/OFF-22.94522.9458.7/NA10.7/NA13.1/NA8.6/NAPASS TM1,57.6V891.6M/OFF-23.181623.181610.9/NA12.0/NA15.7/NA12.4/NAPASS Switch/control unit 34970A Switch/control unit 34970A Switch/control unit 34970A RF unit,LTN 214 1419/3a RF unit, LTN 214 1419/3b RF unit, LTN 214 1419/3c RF unit, LTN 214 1520/3 Signal Generator SMR Power supply SM7020-D RF unit, LTN 214 1531/3 RF unit, LTN 214 1519/3 Signal Generator SMU200A MY41030891 MY41030890 MY44003020 1 1 1 1 1 1 100889 101189 3144601000155 Power supply SM70-45 D 3144601000155 Power supply SM7020-D314601000108 Power supply SM70-45 D1117101000016 Power Amplifier1047 Product id CAL1202505 Evaluation notes were added to the output document. To get rid of these notes, please order your copy of ePrint IV now. TM1,48V871.4M/881.4M-22.656422.656410.5/9.713.6/9.518.0/10.1PASS TM1,48V876.6M/886.6M-22.791622.79169.9/10.012.5/8.311.1/14.8PASS TM1,48V881.6M/891.6M-22.921622.921611.5/12.811.0/14.211.6/10.0PASS TM1,48V871.4M/886.4M-22.656422.656413.0/12.117.7/14.914.7/13.5PASS TM1,48V876.6M/891.6M-22.791622.791613.7/10.313.7/8.014.5/12.5PASS TM1,38.9V871.4M/881.4M-22.656422.656415.0/10.911.5/9.313.9/11.3PASS TM1,38.9V876.6M/886.6M-22.791622.791614.1/11.29.8/12.111.4/13.8PASS TM1,38.9V881.6M/891.6M-22.921622.921610.7/10.811.4/9.513.2/11.2PASS TM1,38.9V871.4M/886.4M-22.656422.656410.4/11.110.4/11.98.8/8.9PASS TM1,38.9V876.6M/891.6M-22.791622.791615.2/11.411.3/10.411.6/10.6PASS TM1,57.6V871.4M/881.4M-22.656422.656415.1/10.911.8/14.114.4/11.2PASS TM1,57.6V876.6M/886.6M-22.791622.791615.6/11.011.6/11.312.8/10.8PASS TM1,57.6V881.6M/891.6M-22.921622.921614.7/11.814.8/9.311.5/10.5PASS TM1,57.6V871.4M/886.4M-22.656422.656415.6/9.912.3/11.911.9/14.1PASS TM1,57.6V876.6M/891.6M-22.791622.791612.1/11.212.9/11.312.2/11.0PASS 6 REFERENCES 10/10264-CNH160 1143/1-1Verification Specification for Radio performance RU22 0840 5/1056-CNH1601141/1 Requirement Specification for the RBS4b 850 MHz RU 293/1056-HSD101 02/1Radio Characteristics Requirement Spec for WCDMA commercial system in 850MHz band Evaluation notes were added to the output document. To get rid of these notes, please order your copy of ePrint IV now.

Ericsson Confidential REPORT 1 (9) Prepared (also subject responsible if other) No. EWUTHFU 10/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-12-01 A TA8AKRC11822-1 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch 1 Test Model 5 Conducted Measurements – 850MHz Conducted measurements captured using Test Model 5 (16QAM) per 3GPP TS 25.141 for the 850MHz RU22 0840. Test Model 1: 16 DPCH:s at 30 ksps (SF=128) Test Model 5: 6 DPCH:s at 30 ksps and 2 HSDPA DPCH:s at 240 ksps (SF=128) The significance of this information is to clarify the operation of the Ericsson Radio’s operation. The radio supports either QPSK or 16QAM per the 3GPP standard. Radio performance under either mode is covered by the submittal. This additional information is background information to show equivalent performance under either digital modulation format. 2 Occupied Bandwidth/Band Edge Measurements Equipment test configuration is per Ref [1]. 16QAM (Test Model 5) Plot 1 871.5MHz Plot 2 881.5MHz Plot 3 891.5MHz 16QAM –vs- QPSK: This plot is an overlay of the 16QAM data on top of the QPSK data. Plot 4 881.5MHz Ericsson Confidential REPORT 2 (9) Prepared (also subject responsible if other) No. EWUTHFU 10/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-12-01 A TA8AKRC11822-1 Plot 1 Measurement with 16QAM at 871.5MHz Ericsson Confidential REPORT 3 (9) Prepared (also subject responsible if other) No. EWUTHFU 10/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-12-01 A TA8AKRC11822-1 Plot 2 Measurement with 16QAM at 881.4MHz Ericsson Confidential REPORT 4 (9) Prepared (also subject responsible if other) No. EWUTHFU 10/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-12-01 A TA8AKRC11822-1 Plot 3 Measurement with 16QAM at 891.5MHz Ericsson Confidential REPORT 5 (9) Prepared (also subject responsible if other) No. EWUTHFU 10/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-12-01 A TA8AKRC11822-1 Plot 4 Overlay of 16QAM (Blue) and QPSK (Green) Ericsson Confidential REPORT 6 (9) Prepared (also subject responsible if other) No. EWUTHFU 10/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-12-01 A TA8AKRC11822-1 3 Conducted Spurious Emissions Equipment test configuration is per FCC Submittal Ref [1] (same set up, just data archived in a different report). 16QAM (Test Model 5) Plot 5 871.5MHz Plot 6 891.5MHz 16QAM –vs- QPSK: This plot is an overlay of the 16QAM data on top of the QPSK data. Plot 7 891.5MHz Ericsson Confidential REPORT 7 (9) Prepared (also subject responsible if other) No. EWUTHFU 10/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-12-01 A TA8AKRC11822-1 Plot 5 Measurement with 16QAM at 871.4MHz Ericsson Confidential REPORT 8 (9) Prepared (also subject responsible if other) No. EWUTHFU 10/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-12-01 A TA8AKRC11822-1 Plot 6 Measurement with 16QAM at 891.5MHz Ericsson Confidential REPORT 9 (9) Prepared (also subject responsible if other) No. EWUTHFU 10/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-12-01 A TA8AKRC11822-1 Plot 7 Overlay of 16QAM (Blue) and QPSK (Green) Reference [1] 2/0360-FCP 101 3765 FCC 22 Exhibit 9 - TA8AKRC11822-1 Test Report RU22 0840

Ericsson Internal REPORT 1 (51) Prepared (also subject responsible if other) No. EWUTHFU 2/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-11-29 B TA8AKRC11822-1 Sub-part 2.1033 (c): Equipment Identification FCC ID: TA8AKRC11822-1 Date of Report Thursday, October 06, 2005 Ericsson Internal REPORT 2 (51) Prepared (also subject responsible if other) No. EWUTHFU 2/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-11-29 B TA8AKRC11822-1 The applicant has been cautioned as to the following: 15.21 Information to User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27 (a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. Ericsson Internal REPORT 3 (51) Prepared (also subject responsible if other) No. EWUTHFU 2/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-11-29 B TA8AKRC11822-1 Table of Contents Rule Description 2.1033 List of General Information Required 2.1046 RF Power Output 2.1049 Occupied Bandwidth 22.917 Emission Requirements 2.1051 Spurious Emissions at Antenna Terminals 22.917 (e) 2.1053 Field Strength of Spurious Radiation 2.1055 Frequency Stability - Temperature & Voltage Variation 2.202 (g) Necessary Bandwidth and Emission Bandwidth 2.906 Testimonial & Statement of Certification Radio Frequency Radiation Exposure Limits Exhibits: Appendix: Ericsson Internal REPORT 4 (51) Prepared (also subject responsible if other) No. EWUTHFU 2/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-11-29 B TA8AKRC11822-1 List of General Information Required for Type Acceptance In Accordance with FCC Rules and Regulations, Volume II, Part 2 and to Part 22 sub-part H Sub-part 2.1033 (c)(1) Name and Address of Applicant: Ericsson Wireless Communications 6210 Spine Rd. Boulder, CO 80301 Vendor: Applicant 2.1033(c)(2): FCC ID: TA8AKRC11822-1 2.924 Model No RBS3206 & RBS3106 Technical Description: 2.1033(c)(4): Type of Emission: 4M17F9W 2.1033(c)(5) Frequency Range, MHz: 871.5 MHz 891.5 MHz 2.1033(c)(6) Power Rating, Watts: 5, 40 Switchable Adjustable x N/A 2.1033(c)(7) Maximum Power Rating, Watts: 40 2.1033(c)(8) Voltages & Currents in all Elements in Final RF Stage, Including Final Transistor or Solid State Device: Collector Current, ADC: 4X70A, 100A = per manual Collector Voltage, VDC: +24, –48 = per manual Supply Voltage, Vac 100-433 1 ø or 3ø = per manual Ericsson Internal REPORT 5 (51) Prepared (also subject responsible if other) No. EWUTHFU 2/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-11-29 B TA8AKRC11822-1 Open Exhibits 2.1033 Cover Letter: Please see Attached Exhibit 1 2.1033 Cover Letter Confidentiality: Please see Attached Exhibit 2 2.1033 Cover Letter Temperature Range: Please see Attached Exhibit 3 2.1033 Cover Letter Filter Unit: Please see Attached Exhibit 4 2.1033 External Photo’s: Please see Attached Exhibits 5 2.1033 Photo FCC ID: Please see Attached Exhibit 6 2.1033 Tuen-Up Procedure: Please see Attached Exhibit 7 2.1033 FCC Form 731 Including Fee Processing Form: Please see Attached Exhibit 8 2.1033 Test Report: Please see Attached Confidential Exhibits 2.1033 Internal Photo’s: Please see Attached Exhibit 10 2.1033 System Block Diagram: Please see Attached Exhibit 11 2.1033 Schematics: Please see Attached Exhibit 12 2.1033 Technical Product Guide: Please see Attached Exhibit 13 Ericsson Internal REPORT 6 (51) Prepared (also subject responsible if other) No. EWUTHFU 2/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-11-29 B TA8AKRC11822-1 2.1033 Installation Instruction: Please see Attached Exhibit 14 2.1033 Parts List: Please see Attached Exhibit 15 2.1033 Technical Circuit Description: Please see Attached Exhibit 16 Ericsson Internal REPORT 7 (51) Prepared (also subject responsible if other) No. EWUTHFU 2/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-11-29 B TA8AKRC11822-1 2.1033(c)(14) Test Report: Test Report Follows Ericsson Internal REPORT 8 (51) Prepared (also subject responsible if other) No. EWUTHFU 2/0360-FCP 101 3765 Uen Approved Checked Date Rev Reference EWU/PR/HD [Keith Goshia] 2005-11-29 B TA8AKRC11822-1 Sub-part 2.1033 (c) : Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II; Part 2, Sub-part J, Sections 2.1046, 2.1049, 2.1051, 2.105…
