TA8AKRC11874-1WCDMA/GSM Radio Equipment

Ericsson Confidential EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EAB/FJB/SV Christer Hjorth Approved Checked Date Rev Reference 2011-03-07 B Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch SP Technical Research Institute of Sweden Box 857 SE -501 15 Borås Sweden Feb 18, 2011 Subject: Certification for FCC ID: TA8AKRC11874-1 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This Remote Radio Unit multi-Standard (RRUS) is designed for use in GSM, WCDMA 1900 MHz cellular telephone system. The transmitter will operate in band 2 from 1930 MHz to 1990 MHz. The receiver circuit supports 1850 MHz to 1910 MHz. This Remote Radio Unit multi-Standard (RRUS) supports modulation type GMSK and 8PSK for GSM, and QPSK, 16QAM and 64QAM for WCDMA. The base station operates in the broadband PCS services as per 47 CFR Part 24 subpart E. It meets the requirements of 3GPP specification for operation in GSM, WCDMA and LTE cellular systems. This remote radio unit (RRUS) will in normal mode operates at a nominal power out of 20, 40 and 60 watts at the output connector. The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Ericsson AB accept by this request the agreement set out in the document "Bilaga SPCR 125 -Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden". Ericsson AB requests confidentiality according to attached letter. If additional information is needed, please contact me on the below listed number. Christer Hjorth Integration & Verification Engineer Ericsson AB FCC Registration Number (FRN): 0013476155 Ericsson AB, Lindholmspiren 11 417 56 GÖTEBORG Sweden Telephone No.: +46 10 712 3157 Fax No.: +46 10 712 6033 e-mail [email protected]

Ericsson Confidential EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EAB/FJB/SV Christer Hjorth Approved Checked Date Rev Reference 2011-02-17 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Industry Canada Certification and Engineering Bureau 3701 Carling Avenue, Bldg.94 Ottawa, Ontario K2H 8S2 Canada Feb 18, 2011 Subject: Request for Confidentiality To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules. This due to the following reasons: Our base station equipment is non-consumer devices thus they are not sold to the general public. They are not serviceable by consumer but by us / our designated technicians. They are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent equipment compared to the previous equipment, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC/IC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. As our equipment are generally installed in restricted places, public access is not possible all thought some types of our equipment under certain circumstances can be installed in an unrestricted place, but our equipment are either key-locked or mast mounted and therefore can not be opened except by authorized personnel or inaccessible to general public. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of our equipment, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase out BS and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 9 Internal Photos of Radio Unit EXHIBIT 4 Block Diagrams EXHIBIT 5 Schematic Diagrams EXHIBIT 8 Manuals EXHIBIT 10 Parts List EXHIBIT 12 Technical Circuit Description If additional information is needed, please contact me on the below listed number. Regards, Christer Hjorth Integration & Verification Engineer Ericsson AB FCC Registration Number (FRN): 0013476155 Ericsson AB, Lindholmspiren 11 417 56 GÖTEBORG Sweden Telephone No.: +46 10 712 3157 Fax No.: +46 10 712 6033 e-mail [email protected]

Confidentiality. Each party agrees that all confidential documents, work product and information (including all computer code, internal photographs of products, block diagrams, schematic diagrams, technical and/or user manuals, related materials, and the existence of this Agreement) received or otherwise obtained from the other party pursuant to this Agreement, whether before or after the Effective Date, will be, and will be deemed to have been, received in confidence and will be used only for the purpose of carrying out the obligations of, or as otherwise contemplated by, this Agreement. In addition, each party agrees that public access to all confidential equipment supplied will be restricted either by installation of the equipment in a restricted area or by physically securing the equipment by other means, including, but not limited to, using a key-lock that can only be opened by authorized personnel. Without the other party’s prior written consent, neither party may disclose any such information to any third party or grant access to the confidential equipment to any unauthorized person, and each party will disclose such information only to such of its officers, employees and agents that have a need to know such information for the purposes contemplated hereby. However, the provisions of this Section will not apply to any such information that (i) is or becomes generally available to the public without the fault or negligence of either party, (ii) is already in the possession of the receiving party without being subject to another confidentiality obligation, (iii) is or becomes available to the receiving party on a non-confidential basis from a source other than the disclosing party; provided that such source is not bound by a confidentiality obligation of the disclosing party, (iv) is required to be disclosed pursuant to an arbitration proceeding conducted in accordance with this Agreement, or (v) is required to be disclosed pursuant to a requirement of any governmental authority or any statute, rule or regulation; provided that the party required to disclose such information of the other party provide to the other party notice of such requirement of any such disclosure and cooperates with the other party to prevent or restrict any such disclosure to the extent allowed by applicable law.

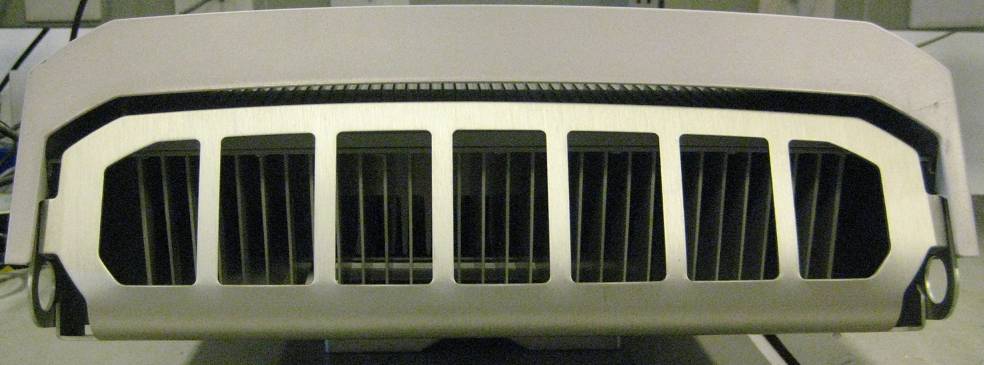

Date Page Exhibit 3 External photos 2/16/2011 1(2) FCC ID: TA8AKRC11874-1 IC: 287AB-AS118741 Front side Rear side Right side Left side Date Page Exhibit 3 External photos 2/16/2011 2(2) FCC ID: TA8AKRC11874-1 IC: 287AB-AS118741 Bottom side Top side

Date Page Exhibit 1 ID label and placement 2/16/2011 1(1) FCC ID: TA8AKRC11874-1 IC: 287AB-AS118741 The ID label is located under the solar shield. Solar shield removed: FCC ID: TA8AKRC11874-1 IC: 287AB-AS118741 IC MODEL NO: AS118741

Document 75912429 Report 01 Issue 2March 2011 Report On FCC and Industry Canada Testing of the Ericsson AB RRUS 01 B2 / KRC 118 74/1 COMMERCIAL-IN-CONFIDENCE FCC ID: TA8AKRC11874-1 IC ID: 287AB-AS118741 TÜV SÜD Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk COMMERCIAL-IN-CONFIDENCE Document 75912429 Report 01 Issue 2 Page 1 of 121 COMMERCIAL-IN-CONFIDENCE REPORT ON FCC and Industry Canada Testing of the Ericsson AB RRUS 01 B2 / KRC 118 74/1 Document 75912429 Report 01 Issue 2 March 2011 PREPARED FOR Ericsson AB Torshamnsgatan 23 SE-164 80 Stockholm Sweden PREPARED BY X Zhang Test Engineer APPROVED BY M J Hardy Authorised Signatory DATED 07 March 2011 This report has been up-issued to Issue 2 due to correct some typing errors. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate compliance with FCC CFR 47: Part 24 and Industry Canada RSS-133. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); X Zhang C Zhang COMMERCIAL-IN-CONFIDENCE Document 75912429 Report 01 Issue 2Page 2 of 121 COMMERCIAL-IN-CONFIDENCE CONTENTS SectionPage No 1REPORT SUMMARY .............................................................................................................. 3 1.1Introduction ............................................................................................................................. 4 1.2Brief Summary of Results ........................................................................................................ 5 1.3Declaration of Build Status ....................................................................................................... 9 1.4Product Information ............................................................................................................... 10 1.5Test Conditions...................................................................................................................... 15 1.6Deviations From the Standard................................................................................................ 15 1.7Modification Record ............................................................................................................... 15 1.8Alternative Test Site............................................................................................................... 15 2TEST DETAILS ..................................................................................................................... 16 2.1Maximum Peak Output Power - Conducted ............................................................................ 17 2.2Peak – average ratio .............................................................................................................. 21 2.3Modulation Characteristics ..................................................................................................... 37 2.4Occupied Bandwidth .............................................................................................................. 40 2.5Spurious Emissions at Antenna Terminals (±1MHz) ............................................................... 52 2.6Radiated Spurious Emissions ................................................................................................ 73 2.7Conducted Spurious Emissions ............................................................................................. 78 2.8Frequency Stability Under Temperature Variations .............................................................. 107 2.9Frequency Stability Under Voltage Variations....................................................................... 110 2.10Receiver Spurious Emissions .............................................................................................. 112 3TEST EQUIPMENT USED................................................................................................... 117 3.1Test Equipment Used .......................................................................................................... 118 3.2Measurement Uncertainty .................................................................................................... 119 4ACCREDITATION, DISCLAIMERS AND COPYRIGHT ....................................................... 120 4.1Accreditation, Disclaimers and Copyright ............................................................................. 121 COMMERCIAL-IN-CONFIDENCE Document 75912429 Report 01 Issue 2Page 3 of 121 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY FCC and Industry Canada Testing of the Ericsson AB RRUS 01 B2 / KRC 118 74/1 COMMERCIAL-IN-CONFIDENCE Document 75912429 Report 01 Issue 2Page 4 of 121 COMMERCIAL-IN-CONFIDENCE 1.1INTRODUCTION The information contained in this report is intended to show verification of the Ericsson AB RRUS 01 B2 / KRC 118 74/1 to the requirements of FCC CFR 47 Part 24 and Industry Canada RSS-133. Testing was carried out in support of an application for Grant of Equipment Authorisation in the name of RRUS 01 B2 / KRC 118 74/1. Objective To perform FCC and Industry Canada Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. ManufacturerEricsson AB Product NameRRUS 01 B2 Part NumberKRC 118 74/1 IC Model NameAS118741 Serial Number(s)CB4F662301 Software VersionCXP9017316/1_R25NU Hardware VersionR1A Number of Samples Tested1 Test Specification/Issue/DateFCC CFR 47 Part 24: 2009 Industry Canada RSS-133: 2009 Incoming Release Date Declaration of Build Status 17 January 2011 Order Number Date PTP 14 January 2011 Start of Test17 January 2011 Finish of Test28 January 2011 Name of Engineer(s) X Zhang C Zhang Related Document(s) ANSI C63.4: 2009 FCC CFR 47 Part 2: 2009 Indus…
