TA8AKRC161134-5WCDMA Radio Equipment

Ericsson Internal EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. QHANLII TA8AKRC161134-5 Uen Approved Checked Date Rev Reference CBC/XRV/EP/QHANLII EXUEJUN 2007-9-30 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Sept. 30, 2007 SP Technical Research Institute of Sweden Brinellgatan 4 Box 857 SE-501 15 Borås Sweden Subject: Certification for FCC ID: TA8AKRC161134-5 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This RRU(Remote Radio Unit) is designed for use in the WCDMA 850 MHz cellular telephone system. The transmitter will operate from 871.4 to 891.6 MHz with maximum 4.17 MHz Bandwidth. The receiver circuit supports 826.4 to 846.6 MHz. The RRU operates in the 850 MHz broadband PCS services as per 47 CFR Part 22 subpart H. It meets the requirements of 3GPP specification for operation in WCDMA cellular systems. This RRU will in normal mode operate at a nominal power out of 40 watts at the output connector. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Ericsson AB accepts by this request the agreement set out in the document "Bilaga SPCR 125 -Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden". If additional information is needed, please contact me on the below listed number. Regards Han Li Product Approval Engineer, Ericsson CBC/XRV Ericsson(China) Communications Company Ltd. Ericsson Tower No.5 Lize East Street, Chaoyang District Beijing 100102,P.R.China Telephone No.: +86 10 8476 7261 Fax No.: +86 10 8476 7738 e-mail:[email protected]

Ericsson Internal EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. QHANLII TA8AKRC161134-5 Uen Approved Checked Date Rev Reference CBC/XRV/EP/QHANLII EXUEJUN 2007-9-30 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Sept.30, 2007 SP Technical Research Institute of Sweden Brinellgatan 4 Box 857 SE-501 15 Borås Sweden Subject: Request for Confidentiality To Whom It May Concern: We, Ericsson CBC, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules. This due to the following reasons: WCDMA Remote Radio Unit (RRU) is designed strictly based on the technical specifications of the international project 3GPP (the 3rdGeneration Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent Remote Radio Unit (RRU) compared to the previous RRU, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. As outer RRU is generally installed in restricted places, public access is not possible althought some types of our RRU under certain circumstances can be installed in an unrestricted place, but the RRU is a single unit with an enclosure which can not be opened. Therefore, individual modules within our RRU should not be revealed to the public. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the RRU, block diagrams, schematic diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase our RRU and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 9 Internal Photos EXHIBIT 4 Block Diagram EXHIBIT 5 Schematics Diagrams EXHIBIT 8 Manuals & Requirement Specifications EXHIBIT 10 Parts List EXHIBIT 12 Technical Circuit Description If additional information is needed, please contact me on the below listed number. Regards, Han Li Product Approval Engineer, Ericsson CBC/XRV Ericsson(China) Communications Company Ltd. Ericsson Tower No.5 Lize East Street, Chaoyang District Beijing 100102,P.R.China Telephone No.: +86 10 8476 7261 Fax No.: +86 10 8476 7738 e-mail:[email protected]

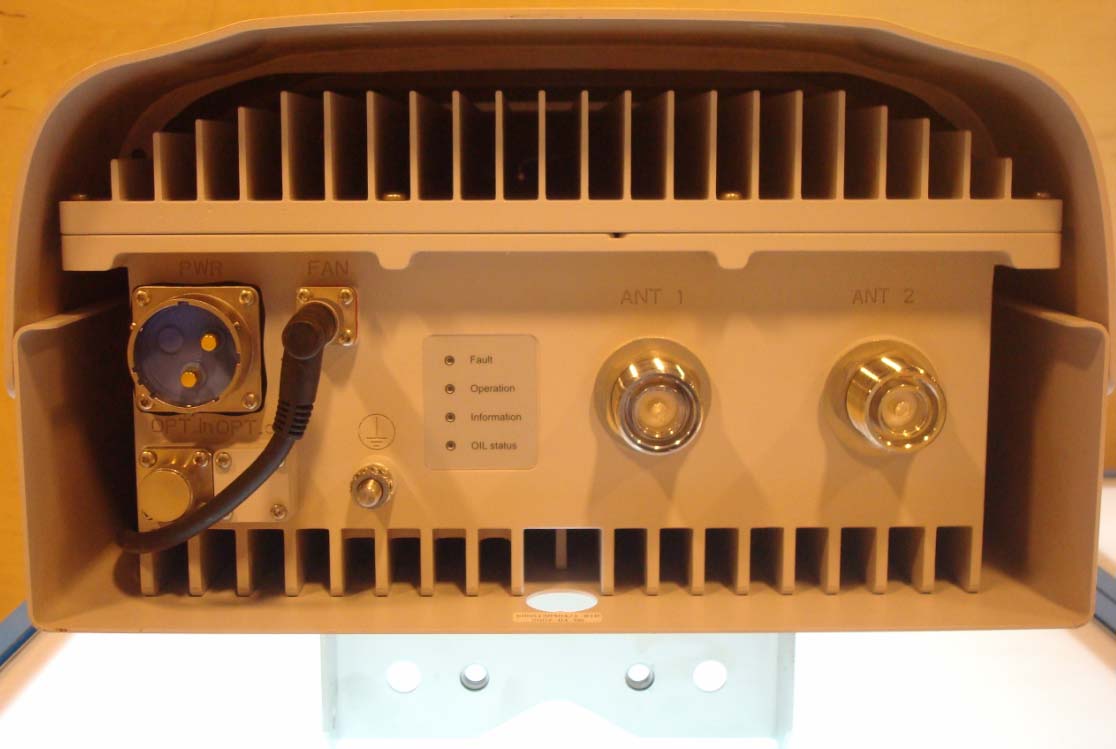

KRC 161 134/5 R1B Date 2007-10-31 Page 1 of 4 External photos Front view Back View KRC 161 134/5 R1B Date 2007-10-31 Page 2 of 4 External photos Right side Left side KRC 161 134/5 R1B Date 2007-10-31 Page 3 of 4 External photos Top view Bottom view KRC 161 134/5 R1B Date 2007-10-31 Page 4 of 4 External photos Front view without solar shield Top view without cover

KRC 161 134/5 R1B Date 2007-10-31 Page 1 of 1 FCC ID FCC ID label and placement

Date Reference Page 2007-10-30 F717142-F22 2 (2) REPORT FCC ID: TA8AKRC161134-5 Table of contents Description of the test object Appendix 1 Operation mode during measurements Appendix 1 Purpose of test Appendix 1 Test setups Appendix 1 RF power output Appendix 2 Occupied bandwidth Appendix 3 Band edge Appendix 4 Spurious emission at antenna terminals Appendix 5 Field strength of spurious radiation Appendix 6 Frequency stability Appendix 7 Receiver spurious emissions Appendix 8 External photos Appendix 9 Date Reference Page 2007-10-30 F717142-F22 1 (7) REPORT FCC ID: TA8AKRC161134-5 Appendix 1 Description – Test object Equipment: WCDMA Radio Equipment RRU22 0840, with 850 MHz single and multi carrier configuration. Tx Frequency range: 871.4 – 891.6 MHz Modulations: QPSK and 16QAM Maximum output power: Single carrier: 1x 46 dBm (1x 40W) Multi carrier: 2x 43 dBm (2x 20W) Nominal power voltage: -48 VDC Tested channels UARFCN Frequency 4357 871.4 MHz 4407 881.4 MHz 4408 881.6 MHz 4458 891.6 MHz Operation mode during measurements Test models All measurements were performed with the test object configured with the test models 1 and 5 as defined in 3GPP TS 25.141. Test model 1 uses the QPSK modulation only, and test model 5 includes the 16QAM modulation. Conducted measurements TX conducted measurements were done at the output connector Ant 1 of the RRU22 0840, KRC 161134/5. RX conducted measurements were done at the output connector Ant 2 of the RRU22 0840, KRC 161134/5. All measurements were performed at maximum output power with both modulations unless otherwise noted. The settings below was found to be representative for all traffic scenarios when several settings were tested to find the setting for worst case. Single carrier Test model 1: 64 DPCH:s at 30 ksps (SF=128) Test model 5: 30 DPCH:s at 30 ksps (SF=128) and 8 HS-PDSCH:s at 240 ksps (SF=16) Multi carrier Test model 1: 32 DPCH:s at 30 ksps (SF=128) Test model 5: 30 DPCH:s at 30 ksps (SF=128) and 8 HS-PDSCH:s at 240 ksps (SF=16) Date Reference Page 2007-10-30 F717142-F22 2 (7) REPORT FCC ID: TA8AKRC161134-5 Appendix 1 Radiated measurements All radiated measurements were performed with the test object powered with -48 VDC, either directly (power configuration 1) or with 120 VAC/60 Hz via the PSU AC/DC converter (power configuration 2) or via both ACCU and PSU (power configuration 3). The configurations were selected to represent worst cases. The RRU22 was activated as Single Carrier 1x 46 dBm and as Multi Carrier 2x 43 dBm. The RF output power ports were terminated with 50 ohm loads. The RRU22 was measured with the following settings: Single Carrier Downlink UARFCN 4357 (871,4 MHz) 4357 (871,4 MHz) 4407 (881,4 MHz) 4407 (881,4 MHz) 4458 (891.6 MHz) 4458 (891.6 MHz) Uplink UARFCN: 4132 (826,4 MHz) 4132 (826,4 MHz) 4182 (836,4 MHz) 4182 (836,4 Hz) 4233 (846.6 MHz) 4233 (846.6 MHz) Test model 1 5 1 5 1 5 Power configuration 1 1 2 2 3 3 Test model 1: 64 DPCHs at 30 ksps (SF=128) Test model 5: 30 DHCPs at 30 ksps (SF=128) and 8 HS-PDSCHs at 240 ksps (SF=16) Multi Carrier: Cell 1 2 Downlink 4357 (871,4 MHz) 4407 (881,4 MHz) Uplink 4132 (826,4 MHz) 4182 (836,4 MHz) Test model 1 5 Power configuration 1 1 Test model 1: 32 DPCHs at 30 ksps (SF=128) Test model 5: 30 DHCPs at 30 ksps (SF=128) and 8 HS-PDSCHs at 240 ksps (SF=16) Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in FCC CFR 47 and Industry Canada RSS-132. References Measurements were done according to relevant parts of the following standards: ANSI 63.4-2003 ANSI/TIA/EIA-603-B-2002 3GPP TS 25.141 RSS-Gen RSS-132 Date Reference Page 2007-10-30 F717142-F22 3 (7) REPORT FCC ID: TA8AKRC161134-5 Appendix 1 Reservation The test results in this report apply only to the particular test object as declared in the report. Delivery of test object The test object was delivered: 2007-10-01 Manufacturer’s representative Han Li, Ericsson (China) Communications Company Ltd. Test engineers . Jörgen Wassholm and Reinhold Reul Test witness Guanghua Chen, Ericsson (China) Communications Company Ltd. Date Reference Page 2007-10-30 F717142-F22 4 (7) REPORT FCC ID: TA8AKRC161134-5 Appendix 1 Test set-up, TX conducted measurements Test object RRU22 0840, KRC 161 134/5 revision R1B, serial no: CB44474900 Software CXP 9011610/1 revision R11AG02 with updated RRU load module CXP9011683/2 revision R2F01 FCC ID: TA8AKRC161134-5 Functional test equipment 1. RNC Mini-sim #48, 4780FA SN0218 Rev DBA 2. Hub, TP-Link, TL HP8MU, 10Base-T Ethernet 3. Computer, Sun Blade 1500, asset ID AP016574 4. RBS3418, product no. BFE4011019, serial no. TA63805732 5. Termination (50 ohm) Note: The Iub link between RNC Mini sim and RBS3418 is configured as T1. Interfaces: Type of port: Power input -48 VDC Power Ant 1 (TX/RX): Coaxial cable with N connector and adaptor to 7/16” Antenna Ant 2 (RX): 50 ohm terminator with N connector and adaptor to 7/16” Antenna Oil - optical interface link, data connection between RBS3418 and EUT Opto interface Date Reference Page 2007-10-30 F717142-F22 5 (7) REPORT FCC ID: TA8AKRC161134-5 Appendix 1 Test set-up, RX conducted measurements Test object RRU22 0840, KRC 161 134/5 revision R1B, serial no: CB44474900 Software CXP 9011610/1 revision R11AG02 with updated RRU load module CXP9011683/2 revision R2F01 FCC ID: TA8AKRC161134-5 Functional test equipment 1. RNC Mini-sim #48, 4780FA SN0218 Rev DBA 2. Hub, TP-Link, TL HP8MU, 10Base-T Ethernet 3. Computer, Sun Blade 1500, asset ID AP016574 4. RBS3418, product no. BFE4011019, serial no. TA63805732 5. Termination (50 ohm) Note: The Iub link between RNC Mini sim and RBS3418 is configured as T1. Interfaces: Type of port: Power input -48 VDC Power Ant 2 (RX): Coaxial cable with N connector and adaptor to 7/16” Antenna Ant 1 (TX/RX): 50 ohm terminator with N connector and adaptor to 7/16” Antenna Oil - optical interface link, data connection between RBS3418 and EUT Opto interface Date Reference Page 2007-1…

Text truncated - open the document above for the full version.
