TA8AKRC161198-1GSM Base station transceiver

Open EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. ERAPHEL TA8AKRC161198-1 Uen Approved Checked Date Rev Reference EAB/FJR/VA (Per Helmersson) 2010-06-28 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch SP Sveriges Provnings- och ForskningsInstitut Brinellgatan 4 Box 857 S-501 15 Borås Sweden June 28, 2010 Subject: Certification for FCC ID: TA8AKRC161198-1 Gentlemen; Ericsson AB requests a Grant of Certification (Type Acceptance) for the mentioned FCC Identifier above. This base station transceiver (Radio Unit – RUG 11 B2) is designed for use in the GSM 1900 MHz cellular telephone system. The transmitter will operate from 1930.2 to 1989.8 MHz. The receiver circuit supports 1850.2 to 1909.8 MHz. This base station transceiver supports modulation type GMSK and 8PSK. This transceiver is appropriate to use in different Ericsson radio base stations without re-measurement and re-filing when introducing a new base station type. The base station operates in the 1900 MHz broadband PCS services as per 47 CFR Part 24 subpart E. It meets the requirements of GSM1900 11.10-1 version 4.19.1 specification for operation in GSM cellular systems. This base station transceiver will in normal mode operate at a nominal power out of 45.5 dBm for GMSK and 42.2 dBm for 8-PSK at the antenna connector when without combined and 42.0 dBm for GMSK and 38.7 dBm for 8- PSK when combined. In TCC mode with two transmitters combined on the same frequency the nominal output power is 48.0 dBm for GMSK and 44.7 dBm for 8-PSK. Due to the too wide frequency spectrum at the band edges, the channel 512 – 1930.2 MHz and channel 810 – 1989.8 MHz can not be used. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Ericsson AB accept by this request the agreement set out in the document "Bilaga SPCR 125 -Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden" If additional information is needed, please contact me on the below listed number. Sincerely, Per Helmersson Staff Engineer, Regulatory Programs Ericsson AB Torshamnsgatan 21-23 (Färögatan 6) Kista, SE-164 80 Stockholm Sweden Telephone No.: +46 10 7141652 e-mail [email protected]

Ericsson Internal EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. ERAPHEL TA8AKRC161198-1 Approved Checked Date Rev Reference EAB/FJR/VA (Per Helmersson) 2010-07-07 B Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch SP Sveriges Provnings- och ForskningsInstitut Brinellgatan 4 Box 857 S-501 15 Borås Sweden July 7, 2010 Subject: Request for Confidentiality under 47 CFR 0.459 To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection. This due to the following reasons: FDMA Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU) compared to the previous BS/RU, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. As our BS are generally installed in restricted places, public access is not possible all thought some types of our BS under certain circumstances can be installed in an unrestricted place, but the doors on all of our BS’s are key-locked and can be opened only by authorized personnel. It is therefore individual modules within our BS that should not be revealed to the public. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the RU, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase out BS and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 4 Block Diagrams EXHIBIT 5 Schematic Diagrams EXHIBIT 8 Manuals EXHIBIT 9 Internal Photos of Radio Unit EXHIBIT 10 Parts List EXHIBIT 12 Technical Circuit Description If additional information is needed, please contact me on the below listed number. Regards, Per Helmersson Staff Engineer, Regulatory Programs Ericsson AB Torshamnsgatan 21-23 (Färögatan 6) Kista, SE-164 80 Stockholm Sweden Telephone No.: +46 10 7141652 e-mail [email protected]

Confidentiality. Each party agrees that all confidential documents, work product and information (including all computer code, internal photographs of products, block diagrams, schematic diagrams, technical and/or user manuals, related materials, and the existence of this Agreement) received or otherwise obtained from the other party pursuant to this Agreement, whether before or after the Effective Date, will be, and will be deemed to have been, received in confidence and will be used only for the purpose of carrying out the obligations of, or as otherwise contemplated by, this Agreement. In addition, each party agrees that public access to all confidential equipment supplied will be restricted either by installation of the equipment in a restricted area or by physically securing the equipment by other means, including, but not limited to, using a key-lock that can only be opened by authorized personnel. Without the other party’s prior written consent, neither party may disclose any such information to any third party or grant access to the confidential equipment to any unauthorized person, and each party will disclose such information only to such of its officers, employees and agents that have a need to know such information for the purposes contemplated hereby. However, the provisions of this Section will not apply to any such information that (i) is or becomes generally available to the public without the fault or negligence of either party, (ii) is already in the possession of the receiving party without being subject to another confidentiality obligation, (iii) is or becomes available to the receiving party on a non-confidential basis from a source other than the disclosing party; provided that such source is not bound by a confidentiality obligation of the disclosing party, (iv) is required to be disclosed pursuant to an arbitration proceeding conducted in accordance with this Agreement, or (v) is required to be disclosed pursuant to a requirement of any governmental authority or any statute, rule or regulation; provided that the party required to disclose such information of the other party provide to the other party notice of such requirement of any such disclosure and cooperates with the other party to prevent or restrict any such disclosure to the extent allowed by applicable law.

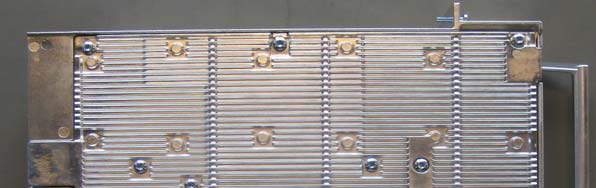

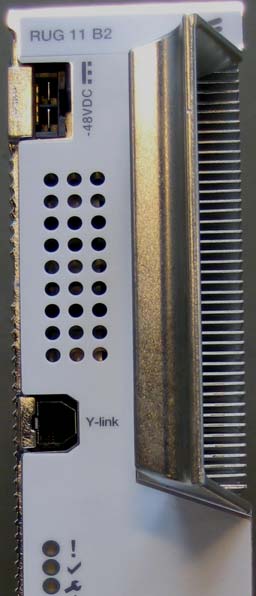

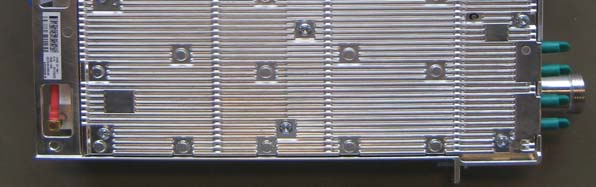

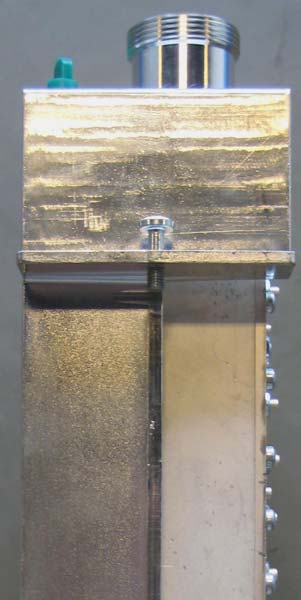

Date Page Exhibit 3 External photos 2010-06-28 1(3) FCC ID: TA8AKRC161198-1 IC: 287AB-AG1611981 Front side Rear side Date Page Exhibit 3 External photos 2010-06-28 2(3) FCC ID: TA8AKRC161198-1 IC: 287AB-AG1611981 Left side Right side Date Page Exhibit 3 External photos 2010-06-28 3(3) FCC ID: TA8AKRC161198-1 IC: 287AB-AG1611981 Top side Bottom side

Date Page Exhibit 1 ID label and placement 2010-06-28 1(1) FCC ID: TA8AKRC161198-1 IC: 287AB-AG1611981 The FCC ID and IC ID label is located on the front:

Document 75910227 Report 01 Issue 1 July 2010 Report On FCC and Industry Canada Testing of the Ericsson AB RUG 11 B2 COMMERCIAL-IN-CONFIDENCE FCC ID: TA8AKRC161198-1 IC ID: 287AB-AG1611981 TÜV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk COMMERCIAL-IN-CONFIDENCE Document 75910227 Report 01 Issue 1 Page 1 of 92 COMMERCIAL-IN-CONFIDENCE REPORT ON FCC and Industry Canada Testing of the Ericsson AB RUG 11 B2 Document 75910227 Report 01 Issue1 July 2010 PREPARED FOR Ericsson AB Torshamnsgatan 23 S-164 80 Stockholm Sweden PREPARED BY N Bennett Senior Administrator APPROVED BY M J Hardy Authorised Signatory DATED 6 July 2010 ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Part 24 and Industry Canada RSS-133. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Q LI C Zhang COMMERCIAL-IN-CONFIDENCE Document 75910227 Report 01 Issue 1 Page 2 of 92 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 3 1.1 Introduction ................................................................................................................................... 4 1.2 Brief Summary of Results ............................................................................................................. 5 1.3 Declaration of Build Status ......................................................................................................... 14 1.4 Product Information .................................................................................................................... 15 1.5 Test Conditions ........................................................................................................................... 20 1.6 Deviations From the Standard .................................................................................................... 20 1.7 Modification Record .................................................................................................................... 20 1.8 Alternative Test Site .................................................................................................................... 20 2 TEST DETAILS .......................................................................................................................... 21 2.1 Maximum Peak Output Power - Conducted ............................................................................... 22 2.2 Peak – Average Ratio ................................................................................................................. 25 2.3 Modulation Characteristics ......................................................................................................... 28 2.4 Occupied Bandwidth ................................................................................................................... 32 2.5 Spurious Emissions at Terminals (±1MHz) ................................................................................ 37 2.6 Radiated Spurious Emissions ..................................................................................................... 45 2.7 Conducted Spurious Emissions .................................................................................................. 56 2.8 Receiver Spurious Emissions ..................................................................................................... 82 2.9 Frequency Stability Under Temperature Variations ................................................................... 84 2.10 Frequency Stability Under Voltage Variations ............................................................................ 86 3 TEST EQUIPMENT USED ......................................................................................................... 88 3.1 Test Equipment Used ................................................................................................................. 89 3.2 Measurement Uncertainty .......................................................................................................... 90 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 91 4.1 Accreditation, Disclaimers and Copyright ................................................................................... 92 COMMERCIAL-IN-CONFIDENCE Document 75910227 Report 01 Issue 1 Page 3 of 92 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY FCC and Industry Canada Testing of the Ericsson AB RUG 11 B2 COMMERCIAL-IN-CONFIDENCE Document 75910227 Report 01 Issue 1 Page 4 of 92 COMMERCIAL-IN-CONFIDENCE 1.1 INTRODUCTION The information contained in this report is intended to show verification of the Ericsson AB RUG 11 B2 to the requirements of FCC CFR 47 Part 24 and Industry Canada RSS-133. Testing was carried out in support of an application for Grant of Equipment Authorisation in the name of Ericsson AB RUG 11 B2. Objective To perform FCC and Industry Canada Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Manufacturer Ericsson AB Product Model RUG 11 B2 Product Name KRC 161 198/1 Serial Number(s) CB4D438043 Software Version G10A/1_R25E Hardware Version R1A Number of Samples Tested 1 Test Specification/Issue/Date FCC CFR 47 Part 24: 2009 Industry Canada RSS-133: 2009 Incoming Release Date Declaration of Build Status 21 June 2010 Order Number Date PTP 18 June 2010 Start of Test 21 June 2010 Finish of Test 6 July 2010 Name of Engineer(s) Q Ll C Zhang Related Document(s) FCC CFR 47 Part 2: 2009 FCC CFR 47 Part 15: 2009 Industry Canada …

Text truncated - open the document above for the full version.

Document 75910227 Report 01 Issue 1 July 2009 Appendix 1 Setup Photos COMMERCIAL-IN-CONFIDENCE FCC ID: TA8AKRC161198-1 IC ID: 287AB-AG1611981 COMMERCIAL-IN-CONFIDENCE Doc Number 75910227 Report 01 Issue 1 Page 1 of 1 Radiated Emissions Test Setup
