TA8AKRC161321-2GSM/CDMA/WCDMA/LTE Radio Equipment

EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. RSACGUS TA8AKRC161321-2 Approved Checked Date Rev Reference EAB/FJB/VA [Christer Gustavsson] 2013-08-27 E Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch SP Technical Research Institute of Sweden Brinellgatan 4 Box 857 S-501 15 Borås Sweden Aug 27, 2013 Subject: Certification for FCC ID: TA8AKRC161321-2 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This base station transceiver (Remote Radio Unit – RRUS 12 B5) is designed for use in GSM, WCDMA LTE and CDMA cellular telephone system. The transmitter will operate from 869 MHz to 894 MHz. The receiver supports 824 MHz to 849 MHz. This Radio Unit supports channel bandwidths of 1.4, 3, 5, and 10 MHz for LTE. This Radio Unit supports modulation type GMSK, 8PSK, 16QAM, 32QAM and AQPSK for GSM and QPSK, 16QAM and 64QAM for WCDMA and LTE, QPSK, 8PSK and 16QAM for CDMA. The base station operates in the Cellular band as per 47 CFR Part 22 subpart H. It meets the requirements of Third Generation Partnership Project (3GPP) for the Universal Mobile Telephone System (UMTS 3G) mobile standard (cellular telephone system) for operation in GSM, WCDMA and LTE cellular systems. This Radio Unit will in normal mode operate at a nominal power out of maximum 2x60 watts (Wide Area Base Station class) at the output connectors (2 connectors, up to 60 watt in each connector). This Radio Unit supports spectrum consisting of two or more sub-blocks separated by sub-block gap(s), NCS (None- Contiguous Spectrum). This Radio Unit supports MIMO (Multiple Input Multiple Output) and has the ability to transmit with Multiple Outputs in the same Band with 3GPP MIMO/Spatial multiplexing and beam-forming technologies. This Radio Unit supports MSR (Multi Standard Radio) with the ability to receive and transmits two or more carriers simultaneously, where at least one carrier is of a different RAT (Radio Access Technology). This Radio Unit supports MSR with GSM, WCDMA, LTE and CDMA. The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Ericsson AB accept by this request the agreement set out in the document "Bilaga SPCR 125 -Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden". Christer Gustavsson Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 SE-164 80 Stockholm, Sweden Telephone No.: +46107175949 e-mail: [email protected]

Commercial in confidence EXHIBIT 13 1 (1) Prepared (Subject resp) No. EAB/FJB/VA Christer Gustavsson EAB/FJB-13:0138 Uen Approved (Document resp) Checked Date Rev Reference EAB/FJB/VA [Stefan Ekelöf] 2013-03-13 A NDA Confidentiality Clause Confidentiality. Each party agrees that all confidential documents, work product and information (including all computer code, internal photographs of products, block diagrams, schematic diagrams, technical and/or user manuals, related materials, and the existence of this Agreement) received or otherwise obtained from the other party pursuant to this Agreement, whether before or after the Effective Date, will be, and will be deemed to have been, received in confidence and will be used only for the purpose of carrying out the obligations of, or as otherwise contemplated by, this Agreement. In addition, each party agrees that public access to all confidential equipment supplied will be restricted either by installation of the equipment in a restricted area or by physically securing the equipment by other means, including, but not limited to, using a key-lock that can only be opened by authorized personnel. Without the other party’s prior written consent, neither party may disclose any such information to any third party or grant access to the confidential equipment to any unauthorized person, and each party will disclose such information only to such of its officers, employees and agents that have a need to know such information for the purposes contemplated hereby. However, the provisions of this Section will not apply to any such information that (i) is or becomes generally available to the public without the fault or negligence of either party, (ii) is already in the possession of the receiving party without being subject to another confidentiality obligation, (iii) is or becomes available to the receiving party on a non-confidential basis from a source other than the disclosing party; provided that such source is not bound by a confidentiality obligation of the disclosing party, (iv) is required to be disclosed pursuant to an arbitration proceeding conducted in accordance with this Agreement, or (v) is required to be disclosed pursuant to a requirement of any governmental authority or any statute, rule or regulation; provided that the party required to disclose such information of the other party provide to the other party notice of such requirement of any such disclosure and cooperates with the other party to prevent or restrict any such disclosure to the extent allowed by applicable law.

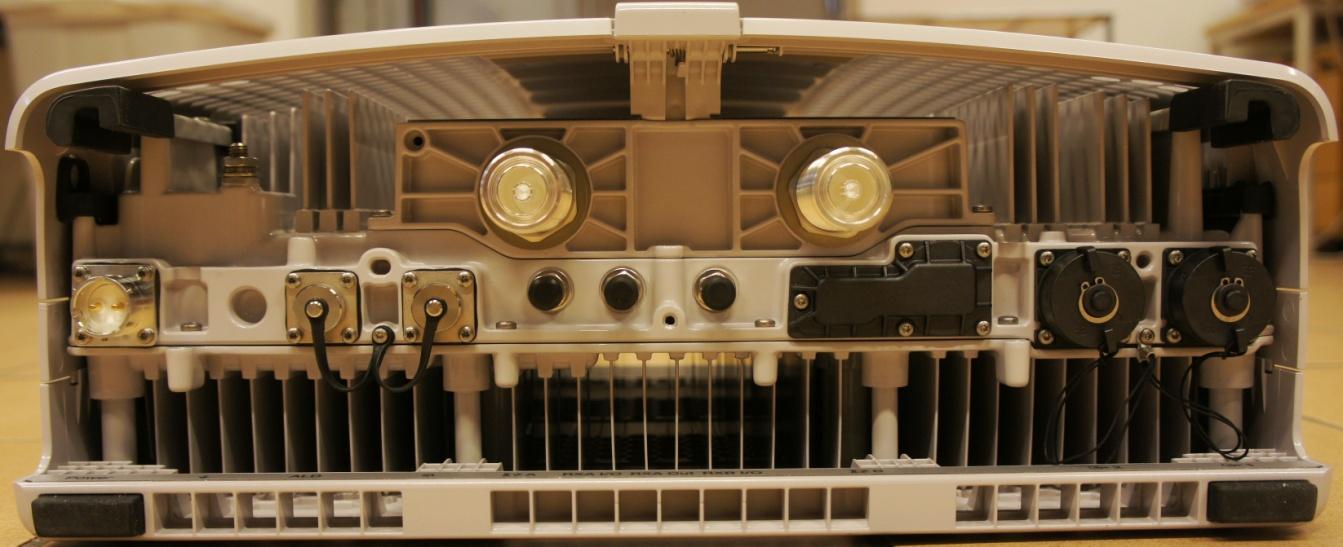

Date Page Exhibit 3 External photos 2013-06-25 1(3) FCC ID: TA8AKRC161321-2 IC: 287AB-AS1613212 Front side Rear side Left side Rigth side Date Page Exhibit 3 External photos 2013-06-25 2(3) FCC ID: TA8AKRC161321-2 IC: 287AB-AS1613212 Top side Bottom side Date Page Exhibit 3 External photos 2013-06-25 3(3) FCC ID: TA8AKRC161321-2 IC: 287AB-AS1613212 ID-label

Date Page Exhibit 1 External photos 2013-06-25 1(1) FCC ID: TA8AKRC161321-2 IC: 287AB-AS1613212 ID-label

REPORT Date Reference Page 2013-09-04 3P04068-01-F22 2 (2) SP Technical Research Institute of Sweden Table of contents Description of the test object Appendix 1 Purpose of test Appendix 1 Operation modes during measurements Appendix 1 RF power output Appendix 2 Occupied bandwidth Appendix 3 Band edge Appendix 4 Spurious emission at antenna terminals Appendix 5 Field strength of spurious radiation Appendix 6 Frequency stability Appendix 7 External photos Appendix 8 REPORT Date Reference Page 2013-09-04 3P04068-01-F22 1 (8) Appendix 1 SP Technical Research Institute of Sweden Description of the test object Equipment: Product name: RRUS 12 B5, supporting LTE Product number KRC 161 321/2 FCC ID TA8AKRC161321-2 IC: 287AB-AS1613212 IC MODEL NO: AS1613212 Frequency range: TX: 869 - 894 MHz RX: 824 - 849 MHz Antenna ports: 2 TX/RX ports RF configurations: Single carrier, multi carrier, TX diversity and MIMO 2x2 Nominal RF output power per antenna port: Single carrier: 1x 47.8 dBm (1 x 60.0W) Multi carrier: 2x 44.8 dBm (2 x 30.0W) Antenna: No dedicated antenna, handled during licensing Modulations: QPSK, 16QAM and 64QAM Channel bandwidths: 1.4 MHz, 3 MHz, 5 MHz and 10 MHz Nominal power voltage: -48VDC REPORT Date Reference Page 2013-09-04 3P04068-01-F22 2 (8) Appendix 1 SP Technical Research Institute of Sweden Operation mode during measurements LTE Single RAT Measurements were performed with the test object transmitting test models as defined in 3GPP TS 36.141. Test model E-TM1.1 was used to represent QPSK, test model E-TM3.2 to represent 16QAM and test model E-TM3.1 to represent 64QAM modulation. The settings below were deemed representative for all traffic scenarios when settings with different modulations, channel bandwidths, number of carriers and RF configurations has been tested to find the worst case setting.The settings below were used for all measurements if not otherwise noted. MIMO mode, single carrier: E-TM1.1 MIMO mode, multi carrier: 2 carriers E-TM1.1 All measurements were performed with the test object configured for the maximum transmit power applicable for the tested configuration. Conducted measurements The test object was supplied with -48 VDC by an external power supply. Additional connections are documented in the set-up drawings below. All measurements were made on RF A and additional measurements on RF B to verify that the ports were electrical identical, as declared by the client. Radiated measurements The test object was powered with -48 VDC. All measurements were performed with the test object configured for maximum transmit power Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in applicable items of FCC CFR 47 and Industry Canada RSS-132 and RSS-Gen. References Measurements were done according to relevant parts of the following standards: ANSI 63.4-2009 ANSI/TIA/EIA-603-C-2004 CFR 47 part 2, October 1 st , 2012 CFR 47 part 22, October 1 st , 2012 3GPP TS 36.141, version 11.4.0 RSS-Gen Issue 3 RSS-132 Issue 3 REPORT Date Reference Page 2013-09-04 3P04068-01-F22 3 (8) Appendix 1 SP Technical Research Institute of Sweden Measurement equipment Calibration Due SP number Test site Tesla 2014-01 503 881 R&S ESU 26 2013-07 901 553 R&S FSQ 40 2014-03 504 143 R&S FSW 43 2013-10 902 073 Control computer with R&S software EMC32 version 8.52.0 - 503 745 High pass filter 2013-07 901 501 High pass filter 2013-07 901 502 High pass filter 2013-07 504 199 High pass filter 2013-08 901 373 High pass filter 2014-08 503 739 High pass filter 2013-07 503 740 RF attenuator 2013-07 504 159 RF attenuator 2013-09 900 233 RF attenuator 2013-01 901 384 RF attenuator 2013-12 901 508 Chase Bilog Antenna CBL 6111A 2014-10 503 182 EMCO Horn Antenna 3115 2014-01 502 175 μComp Nordic, Low Noise Amplifier 2014-04 901 545 Temperature and humidity meter, Testo 635 2014-06 504 203 Temperature and humidity meter, Testo 625 2014-06 504 188 Temperature Chamber 2013-11 501 031 Datascan 7321 2013-11 502 698 Multimeter Fluke 87 2013-08 502 190 REPORT Date Reference Page 2013-09-04 3P04068-01-F22 4 (8) Appendix 1 SP Technical Research Institute of Sweden Uncertainties Measurement and test instrument uncertainties are described in the quality assurance documentation ”SP-QD 10885”. The uncertainties are calculated with a coverage factor k=2 (95% level of confidence). Compliance evaluation is based on a shared risk principle with respect to the measurement uncertainty. Reservation The test results in this report apply only to the particular test object as declared in the report. Delivery of test object The test object was delivered 2013-05-22. Manufacturer’s representative Christer Gustavsson, Ericsson AB. Test engineers Andreas Johnson, Tomas Lennhager, Tomas Isbring, Kexin Chen, Jörgen Wassholm and Martin Theorin, SP Test participant Adam Skoglund, Ericsson AB (partially) REPORT Date Reference Page 2013-09-04 3P04068-01-F22 5 (8) Appendix 1 SP Technical Research Institute of Sweden Test frequencies during measurements EARFCN Downlink Frequency [MHz] Symbolic name Comment 2407 869.7 B TX bottom frequency in 1.4 MHz BW configuration 2415 870.5 B TX bottom frequency in 3 MHz BW configuration 2425 871.5 B TX bottom frequency in 5 MHz BW configuration 2450 874.0 B TX bottom frequency in 10 MHz BW configuration 2407 2426 869.7 871.6 B2 2 carrier TX band bottom constellation 1.4 MHz BW configuration 2525 881.5 M TX band mid frequency all BW configurations 2482 2575 877.2 886.5 M2 2 carrier TX band mid constellation 1.4 MHz BW configuration 2643 893.3 T TX top frequency in 1.4 MHz BW configuration 2635 892.5 T TX top frequency in 3 MHz BW configuration 2625 891.5 T TX top frequency in 5 MHz BW configuration 2600 889.0 T TX top frequency in 10 MHz BW configuration 2624 2643 891.4 893.3 T2 2 carrier TX band top constellation 1.4 MHz BW configuration All RX frequencies were configured 45 MHz below the corresponding TX frequency according the applicable duplex offse…

Text truncated - open the document above for the full version.

REPORT Date Reference Page 2013-09-04 3P04068-02-F22 2 (2) SP Technical Research Institute of Sweden Table of contents Description of the test object Appendix 1 Purpose of test Appendix 1 Operation modes during measurements Appendix 1 RF power output Appendix 2 Occupied bandwidth Appendix 3 Band edge Appendix 4 Spurious emission at antenna terminals Appendix 5 Field strength of spurious radiation Appendix 6 Frequency stability Appendix 7 External photos Appendix 8 REPORT Date Reference Page 2013-09-04 3P04068-02-F22 1 (8) Appendix 1 SP Technical Research Institute of Sweden Description of the test object Equipment: Product name: RRUS 12 B5, supporting WCDMA Product number KRC 161 321/2 FCC ID TA8AKRC161321-2 IC: 287AB-AS1613212 IC MODEL NO: AS1613212 Frequency range: TX: 869 - 894 MHz RX: 824 - 849 MHz Antenna ports: 2 TX/RX ports RF configurations: Single carrier, multi carrier and MIMO 2x2 Maximum nominal output power per antenna port: Single carrier: 1x 47.8 dBm (1x 60W) Multi carrier: 2x 44.8 dBm (2x 30W) 3x 43.0 dBm (3x 20W) 4x 41.8 dBm (4x 15W) In WCDMA MIMO configuration the maximum nominal output power is limited to 47 dBm (50W) per carrier and port. Antenna: No dedicated antenna, handled during licensing Modulations: QPSK, 16QAM and 64QAM Channel bandwidths: 4.2 to 5 MHz (configurable in steps of 100/200 kHz) Channel spacings: 4.4 to 5 MHz (configurable in steps of 100/200 kHz) Nominal supply voltage: -48VDC REPORT Date Reference Page 2013-09-04 3P04068-02-F22 2 (8) Appendix 1 SP Technical Research Institute of Sweden Operation mode during measurements WCDMA, single RAT Measurements were performed with the test object transmitting test models as defined in 3GPP TS 25.141. Test model 1 (TM1) was used to represent QPSK. Test model 5 (TM5) to represent 16QAM modulation and Test model 6 (TM6) to represent 64QAM modulation. The settings below were deemed representative for all traffic scenarios when settings with different modulations, channel bandwidths, number of carriers and RF configurations has been tested to find the worst case setting.The settings below were used for all measurements if not otherwise noted. Single carrier TM1: 64 DPCH:s at 30 ksps (SF=128) MIMO mode,single carrier TM5: 8 HS-PDSCH at 240 ksps + 30 DPCH:s at 30 ksps (SF=128) MIMO mode, multi carrier, 2 carriers TM5: 8 HS-PDSCH at 240 ksps +30 DPCH:s at 30 ksps (SF=128) Channel bandwidth 5 MHz All measurements were performed with the test object configured for the maximum transmit power applicable for the tested configuration. Conducted measurements The test object was supplied with -48 VDC by an external power supply. Additional connections are documented in the setup drawings below. All measurements were made RF A and additional measurements on RF B to verify that the ports were electrical identical, as declared by the client. Radiated measurements The test object was powered with -48 VDC. All measurements were performed with the test object configured for maximum transmit power Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in applicable items of FCC CFR 47 and Industry Canada RSS-132 and RSS-Gen. References Measurements were done according to relevant parts of the following standards: ANSI 63.4-2009 ANSI/TIA/EIA-603-C-2004 CFR 47 part 2, October 1 st , 2012 CFR 47 part 22, October 1 st , 2012 3GPP TS 25.141, version 11.4.0 RSS-Gen Issue 3 RSS-132 Issue 3 REPORT Date Reference Page 2013-09-04 3P04068-02-F22 3 (8) Appendix 1 SP Technical Research Institute of Sweden Measurement equipment Calibration Due SP number Test site Tesla 2014-01 503 881 R&S ESU 26 2013-07 901 553 Control computer with R&S software EMC32 version 8.52.0 - 503 745 R&S FSQ 40 2014-03 504 143 High pass filter 2013-07 901 501 High pass filter 2013-07 901 502 High pass filter 2013-07 504 199 High pass filter 2013-08 901 373 High pass filter 2014-08 503 739 High pass filter 2013-07 503 740 RF attenuator 2013-07 504 159 RF attenuator 2013-09 900 233 RF attenuator 2013-01 901 384 RF attenuator 2013-12 901 508 Chase Bilog Antenna CBL 6111A 2014-10 503 182 EMCO Horn Antenna 3115 2014-01 502 175 μComp Nordic, Low Noise Amplifier 2014-04 901 545 Temperature and humidity meter, Testo 635 2014-06 504 203 Temperature and humidity meter, Testo 625 2014-06 504 188 Temperature Chamber 2013-11 501 031 Datascan 7321 2013-11 502 698 Multimeter Fluke 87 2013-08 502 190 REPORT Date Reference Page 2013-09-04 3P04068-02-F22 4 (8) Appendix 1 SP Technical Research Institute of Sweden Uncertainties Measurement and test instrument uncertainties are described in the quality assurance documentation ”SP-QD 10885”. The uncertainties are calculated with a coverage factor k=2 (95% level of confidence). Compliance evaluation is based on a shared risk principle with respect to the measurement uncertainty. Reservation The test results in this report apply only to the particular test object as declared in the report. Delivery of test object The test object was delivered 2013-05-22. Manufacturer’s representative Christer Gustavsson, Ericsson AB. Test engineers Andreas Johnson, Tomas Lennhager, Tomas Isbring, Kexin Chen, Jörgen Wassholm and Martin Theorin, SP Test participant Adam Skoglund (partially) REPORT Date Reference Page 2013-09-04 3P04068-02-F22 5 (8) Appendix 1 SP Technical Research Institute of Sweden Test frequencies used for conducted and radiated measurements UARFCN Downlink Frequency [MHz] Symbolic name Comment 4357 871.4 B Single carrier TX bottom frequency 4357 4382 871.4 876.4 B2 2 carrier TX band bottom constellation 4357 4407 871.4 881.4 B3 2 carrier TX band bottom constellation 4408 881.6 M Single carrier TX band mid frequency 4385 4431 877.0 886.2 M2 2 carrier TX band mid constellation 4458 891.6 T Single carrier TX top frequency 4433 4458 886.6 891.6 T2 2 carrier TX band top constellation 4408 4458 881.6 891.6 T3 2 carrier TX band top constellation 4458 4433 4408 4383 891.6 886.6 881.6 876.6 T4 …

Text truncated - open the document above for the full version.

REPORT Date Reference Page 2013-09-04 3P04068-03-F22 2 (2) SP Technical Research Institute of Sweden Table of contents Description of the test object Appendix 1 Purpose of test Appendix 1 Operation modes during measurements Appendix 1 RF power output Appendix 2 Occupied bandwidth Appendix 3 Band edge Appendix 4 Spurious emission at antenna terminals Appendix 5 Field strength of spurious radiation Appendix 6 Frequency stability Appendix 7 External photos Appendix 8 REPORT Date Reference Page 2013-09-04 3P04068-03-F22 1 (8) Appendix 1 SP Technical Research Institute of Sweden Description of the test object Equipment: Product name: RRUS 12 B5, supporting GSM Product number KRC 161 321/2 FCC ID TA8AKRC161321-2 IC: 287AB-AS1613212 IC MODEL NO: AS1613212 Frequency range: TX: 869 - 894 MHz RX: 824 - 849 MHz Antenna ports: 2 TX/RX ports RF configurations: Single and multi carrier Maximum nominal output power per antenna port: Single carrier: 1x 47.8 dBm (1 x 60.0W) Multi carrier: 2x 44.8 dBm (2 x 30.0W) 3x 43.0 dBm (3 x 20W) 4x 41.8 dBm (4 x 15W) Antenna: No dedicated antenna, handled during licensing Modulations : GMSK, 8PSK, AQPSK, 16QAM and 32QAM, Nominal power voltage: -48VDC REPORT Date Reference Page 2013-09-04 3P04068-03-F22 2 (8) Appendix 1 SP Technical Research Institute of Sweden Operation modes during measurements Measurements were performed with the test object transmitting following modulations: GMSK, AQPSK, 8-PSK, 16QAM and 32QAM. Unless otherwise stated, all measurements were performed with the test object transmitting pseudorandom data in all timeslots and settings for maximum transmitter output power applicable for each configuration. The settings below were deemed representative for all traffic scenarios when settings with different modulations and number of carriers has been tested to find the worst case setting.The settings below were used for all measurements if not otherwise noted. Single carrier GMSK modulation Multi carrier GMSK modulation Conducted measurements The test object was supplied with -48 VDC by an external power supply. Additional connections are documented in the set-up drawings below. All measurements were made on RF A and additional measurements on RF B to verify that the ports were electrical identical, as declared by the client. Radiated measurements The test object was powered with -48 VDC. All measurements were performed with the test object configured for maximum transmit power Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in applicable items of FCC CFR 47 and Industry Canada RSS-132 and RSS-Gen. References Measurements were done according to relevant parts of the following standards: ANSI 63.4-2009 ANSI/TIA/EIA-603-C-2004 ANSI/TIA/EIA 136-280-D-2002 J-STD007A Vol 1 CFR 47 part 2, October 1 st , 2012 CFR 47 part 22, October 1 st , 2012 RSS-Gen Issue 3 RSS-132 Issue 3 REPORT Date Reference Page 2013-09-04 3P04068-03-F22 3 (8) Appendix 1 SP Technical Research Institute of Sweden Test frequencies used for conducted and radiated measurements TX test frequencies, conducted measurements ARFCN Downlink Port A and B Frequency Port A and B [MHz] Symbolic name Comment 129 869.4 B Single carrier TX bottom frequency 129 132 869.4 870.0 B2 2 carrier TX band bottom constellation 129 132 136 139 869.4 870.0 870.8 871.4 B4 4 carrier TX band botttom constellation 190 881.6 M Single carrier TX mid frequency 190 193 881.6 882.2 M2 2 carrier TX band mid constellation 250 893.6 T Single carrier TX top frequency 247 250 893.0 893.6 T2 2 carrier TX band top constellation 185 250 880.6 893.6 B im 1 2 carrier TX band configuration 153 185 874.2 880.6 B im 2 2 carrier TX band configuration 129 137 869.4 871.0 B im 3 2 carrier TX band configuration 129 194 869.4 882.4 T im 1 2 carrier TX band configuration 194 226 882.4 888.8 T im 2 2 carrier TX band configuration 242 250 892.0 893.6 T im 3 2 carrier TX band configuration TX test frequencies, radiated measurements ARFCN Downlink Port A ARFCN Downlink Port B Frequency Port A [MHz] Frequency Port B [MHz] Symbolic name Comment 129 137 869.4 871.0 B Single carrier TX bottom frequency 165 215 876.6 886.6 M Single carrier TX mid frequency 242 250 892.0 893.6 T Single carrier TX top frequency 247 250 241 244 893.0 893.6 891.8 892.4 T2 2 carrier TX band top constellation 144 175 220 250 129 160 205 235 872.4 878.6 887.6 890.6 869.4 875.6 884.6 890.6 T4 4 carrier TX band mid constellation REPORT Date Reference Page 2013-09-04 3P04068-03-F22 4 (8) Appendix 1 SP Technical Research Institute of Sweden Test set-up conducted measurements GSM Note: Unconnected test object interfaces were omitted in the picture for simplicity, but are listed in the interface table on page 6. Test object: 1. RRUS 12 B5, KRC 161321/2, rev. R1B, s/n: C827002288 working software PIS CXP 901 7316/2, rev. R49DU with FCC ID TA8AKRC161321-2 and IC: 287AB-AS1613212 Functional test equipment: 2. DUG 2001 KDU 137 569/1, R3D, A402019156 3. RBS 6202 BAMS 1000961945 4. RBS Master LPY 107 1007/3 rev. R1C. BAMS 1001195170 5. Controlling computer HP EliteBook 8560 w, BAMS 1001236850 6. GPS Active Antenna, KRE 101 2082/1 7. GPS 02 01, NCD 901 41/1, rev. R1D, s/n: TU8K474887 8. SP Test Instrumentation according to measurement equipment list 9. Attenuator 10. Terminator, 50 ohm REPORT Date Reference Page 2013-09-04 3P04068-03-F22 5 (8) Appendix 1 SP Technical Research Institute of Sweden Test set-up radiated measurements Test object: 1. RRUS 12 B5, KRC 161 321/2, rev. R1B, s/n: C827002289 working software CXP 901 7316/2, rev. R49DU with FCC ID TA8AKRC161321-2 and IC: 287AB-AS1613212 Functional test equipment: 2. Main Unit SUP 6601, 1/BFL 901 009/4, rev. R1E, s/n: BR82691785 DUG 20 01, KDU 137 569/1, rev. R3D, s/n: A402019155 3. RBS master 2E, LPY 107 1007/3, BAMS-1001195172 4. Computer, EliteBook 8560w, BAMS – 1001236854 5. GPS 02 01, NCD 901 41/1, rev. R1D, s/n: TU8K356490 6. GPS Active Antenna, KRE 101 2082/1 7. Ter…

Text truncated - open the document above for the full version.

REPORT Date Reference Page 2013-09-04 3P04068-04-F22 2 (2) SP Technical Research Institute of Sweden Table of contents Description of the test object Appendix 1 Purpose of test Appendix 1 Operation modes during measurements Appendix 1 RF power output Appendix 2 Spurious emission at antenna terminals Appendix 3 Field strength of spurious radiation Appendix 4 External photos Appendix 5 REPORT Date Reference Page 2013-09-04 3P04068-04-F22 1 (8) Appendix 1 SP Technical Research Institute of Sweden Description of the test object Equipment: Product name: RRUS 12 B5 supporting mixed mode WCDMA + LTE Product number KRC 161 321/2 FCC ID TA8AKRC161321-2 IC: 287AB-AS1613212 IC MODEL NO: AS1613212 Frequency range: TX: 869 - 894 MHz RX: 824 - 849 MHz Antenna ports: 2 TX/RX ports RF configurations: Single carrier, multi carrier, TX diversity and MIMO 2x2 (TX diversity only LTE) Nomina output power per antenna port: 1-2 LTE + 1-3 WCDMA (Total power 47.8dBm, 60W) Total number of carriers 4 Antenna: No dedicated antenna, handled during licensing LTE Modulations: QPSK, 16QAM and 64QAM Channel bandwidth: 1.4 MHz, 3 MHz, 5 MHz and 10 MHz WCDMA Modulations: QPSK, 16QAM and 64QAM Channel bandwidth: 4.2 to 5 MHz (configurable in steps of 100/200 kHz) Channel spacing: 4.4 to 5 MHz (configurable in steps of 100/200kHz) Nominal supply voltage: -48VDC REPORT Date Reference Page 2013-09-04 3P04068-04-F22 2 (8) Appendix 1 SP Technical Research Institute of Sweden Operation modes during measurements MSR, WCDMA + LTE WCDMA measurements were performed with the test object transmitting test models as defined in 3GPP TS 25.141. Test model 1 (TM1) was used to represent QPSK. Test model 5 (TM5) to represent 16QAM modulation and Test model 6 (TM6) to represent 64QAM modulation. LTE measurements were performed with the test object transmitting test models as defined in 3GPP TS 36.141. Test model E-TM1.1 was used to represent QPSK, test model E-TM3.2 to represent 16QAM and test model E-TM3.1 to represent 64QAM modulation. The settings below were deemed representative for all traffic scenarios when settings with different modulations, channel bandwidths, number of carriers and RF configurations has been tested to find the worst case setting.The settings below were used for all measurements if not otherwise noted. WCDMA MIMO mode TM5:8 HS-PDSCH at 240ksps + 30 DPCH:s at 30 ksps (SF=128) Channel bandwidth 5 MHz LTE MIMO mode E-TM1.1 Channel bandwidth 1.4MHz. Measurements were performed with the test object configured for the maximum transmit power applicable for the tested configuration. Conducted measurements The test object was supplied with -48 VDC by an external power supply. Additional connections are documented in the set-up drawings below. All measurements were made on RF A and additional measurements on RF B to verify that the ports were electrical identical, as declared by the client. Radiated measurements The test object was powered with -48 VDC. All measurements were performed with the test object configured for maximum transmit power Purpose of test The purpose of the tests is to verify compliance to the performance characteristics specified in applicable items of FCC CFR 47 and Industry Canada RSS-132 and RSS-Gen. REPORT Date Reference Page 2013-09-04 3P04068-04-F22 3 (8) Appendix 1 SP Technical Research Institute of Sweden References Measurements were done according to relevant parts of the following standards: ANSI 63.4-2009 ANSI/TIA/EIA-603-C-2004 CFR 47 part 2, October 1st , 2012 CFR 47 part 22, October 1st, 2012 3GPP TS 25.141, version 11.4.0 3GPP TS 36.141, version 11.4.0 3GPP TS 37.141, version 11.3.0 RSS-Gen Issue 3 RSS-132 Issue 3 Measurement equipment Calibration Due SP number Test site Tesla 2014-01 503 881 R&S FSIQ 40 2013-07 503 738 R&S FSQ 40 2014-03 504 143 R&S ESI 26 2013-07 503 292 Control computer with R&S software EMC32 version 8.52.0 - 503 479 High pass filter 2013-07 901 501 High pass filter 2013-07 901 502 High pass filter 2013-07 504 199 High pass filter 2013-08 901 373 High pass filter 2014-08 503 739 High pass filter 2013-07 503 740 RF attenuator 2013-07 504 159 RF attenuator 2013-09 900 233 RF attenuator 2013-08 900 691 RF attenuator 2013-12 901 508 Chase Bilog Antenna CBL 6111A 2014-10 503 182 EMCO Horn Antenna 3115 2014-01 502 175 Std.gain horn FLANN model 20240-20 2014-03 503 674 Schwarzbeck preamplifier BBV 9742 2014-03 504 085 μComp Nordic, Low Noise Amplifier 2014-04 901 545 MITEQ Low Noise Amplifier 2013-08 503 285 Testo 635 Temperature and humidity meter 2014-06 504 203 Temperature and humidity meter, Testo 625 2014-06 504 188 REPORT Date Reference Page 2013-09-04 3P04068-04-F22 4 (8) Appendix 1 SP Technical Research Institute of Sweden Uncertainties Measurement and test instrument uncertainties are described in the quality assurance documentation ”SP-QD 10885”. The uncertainties are calculated with a coverage factor k=2 (95% level of confidence). Compliance evaluation is based on a shared risk principle with respect to the measurement uncertainty. Reservation The test results in this report apply only to the particular test object as declared in the report. Delivery of test object The test object was delivered 2013-05-22. Manufacturer’s representative Christer Gustavsson Test engineers Andreas Johnson, Tomas Lennhager, Kexin Chen, Tomas Isbring, Jörgen Wassholm and Martin Theorin, SP Test participant Adam Skoglund, Ericsson AB (partially) REPORT Date Reference Page 2013-09-04 3P04068-04-F22 5 (8) Appendix 1 SP Technical Research Institute of Sweden Test frequencies used for conducted and radiated measurements MSR, WCDMA + LTE TX test frequencies Configuration 1: WCDMA 1x30W LTE 2x15W UARFCN Downlink Frequency [MHz] BW [MHz] EARFCN Downlink Frequency [MHz] EARFCN Downlink Frequency [MHz] BW [MHz] 4408 881.6 5 2482 877.2 2572 886.2 1.4 Configuration 2: WCDMA 1x30W LTE…

Text truncated - open the document above for the full version.
