TA8AKRC161349-2LTE / WCDMA Radio Equipment

Ericsson AB
LTE / WCDMA Radio Equipment - FCC ID TA8AKRC161349-2 - Ericsson AB
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Jun 13, 2013
Application Purpose
Original Equipment
Date of Application
Jun 13, 2013
Equipment Note
LTE / WCDMA Radio Equipment
Frequency Range
2120.00000000 - 2145.00000000
Company
Ericsson AB
Country
Sweden

Documents & Files

Select a file to view

Attestation Statements

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Test Report

↗
↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

Exhibit 2 FCC authorization ‐ letter

Cover Letter(s)

Ericsson Internal EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EAB/FJR/VA Christer Gustavsson Approved Checked Date Rev Reference EAB/FJR/VA Christer Gustavsson 2011-11-16 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch SP Technical Research Institute of Sweden Brinellgatan 4 Box 857 SE -501 15 Borås Sweden Exhibit 13 NDA Confidentiality Clause Confidentiality . Each party agrees that all confidential documents, work product and information (including all computer code, internal photographs of products, block diagrams, schematic diagrams, technical and/or user manuals, related materials, and the existence of this Agreement) received or otherwise obtained from the other party pursuant to this Agreement, whether before or after the Effective Date, will be, and will be deemed to have been, received in confidence and will be used only for the purpose of carrying out the obligations of, or as otherwise contemplated by, this Agreement. In addition, each party agrees that public access to all confidential equipment supplied will be restricted either by installation of the equipment in a restricted area or by physically securing the equipment by other means, including, but not limited to, using a key-lock that can only be opened by authorized personnel. Without the other party’s prior written consent, neither party may disclose any such information to any third party or grant access to the confidential equipment to any unauthorized person, and each party will disclose such information only to such of its officers, employees and agents that have a need to know such information for the purposes contemplated hereby. However, the provisions of this Section will not apply to any such information that (i) is or becomes generally available to the public without the fault or negligence of either party, (ii) is already in the possession of the receiving party without being subject to another confidentiality obligation, (iii) is or becomes available to the receiving party on a non-confidential basis from a source other than the disclosing party; provided that such source is not bound by a confidentiality obligation of the disclosing party, (iv) is required to be disclosed pursuant to an arbitration proceeding conducted in accordance with this Agreement, or (v) is required to be disclosed pursuant to a requirement of any governmental authority or any statute, rule or regulation; provided that the party required to disclose such information of the other party provide to the other party notice of such requirement of any such disclosure and cooperates with the other party to prevent or restrict any such disclosure to the extent allowed by applicable law.

Cover Letter(s)

EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EMWON TA8AKRC161349-2 Approved Checked Date Rev Reference EAB/FJB/RGV [Ove Nilsson] 2013-05-29 B Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 USA Attention: Equipment Authorization Branch SP Technical Research Institute of Sweden Brinellgatan 4 Box 857 SE-501 15 Borås Sweden May 23, 2013 Subject: Certification for FCC ID: TA8AKRC161349-2 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This base station transceiver (Remote Radio Unit – RRUS 12 B4) is designed for use in WCDMA and LTE cellular telephone system. The transmitter will operate from 2110 MHz to 2155 MHz. The receiver circuit supports 1710 MHz to 1755 MHz. It supports channel bandwidths of 1.4, 3, 5, 10, 15 and 20 MHz for LTE. This Radio Unit supports modulation type and QPSK, 16QAM and 64QAM for WCDMA and LTE. The base station operates in the Cellular band as per 47 CFR Part 27 subpart L. It meets the requirements of Third Generation Partnership Project (3GPP) for the Universal Mobile Telephone System (UMTS 3G) mobile standard (cellular telephone system) for operation in WCDMA and LTE cellular system s. This Radio Unit will in normal mode operate at a nominal power out of maximum 2x60 watt (Wide Area Base Station class) at output connectors (2 connectors, up to 60 watt in each connector). This Radio Unit supports spectrum consisting of two or more sub-blocks separated by sub-block gap(s), NCS (Non- Contiguous Spectrum). This Radio Unit supports MIMO (Multiple Input Multiple Output) and has the ability to transmit with Multiple Outputs in the same Band with 3GPP MIMO/Spatial multiplexing and beam-forming technologies. This Radio Unit support MSR (Multi Standard Radio) with the ability to receive and transmits two or more carriers simultaneously, where at least one carrier is of a different RAT (Radio Access Technology). This Radio Unit supports MSR with WCDMA and LTE. The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. Ericsson AB accept by this request the agreement set out in the document "Bilaga SPCR 125 -Avtal om marknadskontroll för radioutrustning certifierad för USA-marknaden". If additional information is needed, please contact me on the below listed number . Ove Nilsson Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Lindholmspiren 11 SE-417 56 Gothenburg, Sweden Telephone No.: +46 10 7126490 e-mail: [email protected]

External Photos

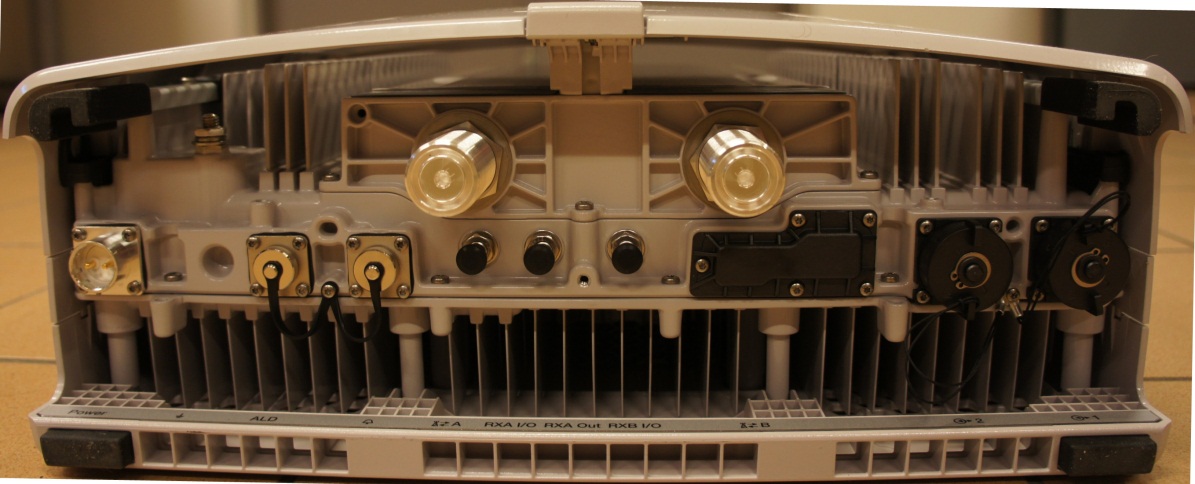

Date Page Exhibit 3 External photos 2013-05-21 1( 3) FCC ID: TA8AKRC161349-2 IC: 287AB-AS1613492 Front side Rear side Date Page Exhibit 3 External photos 2013-05-21 2( 3) FCC ID: TA8AKRC161349-2 IC: 287AB-AS1613492 Top side Bottom side Date Page Exhibit 3 External photos 2013-05-21 3( 3) FCC ID: TA8AKRC161349-2 IC: 287AB-AS1613492 Left side Rigth side

ID Label/Location Info

Date Page Exhibit 1 External photos 2013-05-24 1(1) FCC ID: TA8AKRC161349-2 IC: 287AB-AS1613492

Test Report

S T D O T P R O B S F F E R SP Technical Table of co Description o Operation mo Test setups Purpose of te RF power ou Occupied ban Band edge Spurious emi Field strength Frequency st External pho EPORT Research Ins ntents of the test ob ode during m est utput ndwidth ission at ante h of spurious tability tos stitute of Swe bject measurement enna termina s radiation Date 2013 eden ts als Refere 3-06-04 3P0 ence 03539-01-F2 App Ap p Ap p Ap p Ap p Ap p Ap p Ap p Ap p Ap p Ap p Page 27 2 (2) pendix 1 pendix 1 pendix 1 pendix 1 pendix 2 pendix 3 pendix 4 pendix 5 pendix 6 pendix 7 pendix 8 ) S D E A R F N p M C N R SP Technical Description Equipment: Antenna port RF configura Frequency ba Nominal outp per antenna p Modulations Channel band Nominal pow EPORT Research Ins n of the test ts: ations: ands: put power port: : dwidth: wer voltage: stitute of Swe t object Radio equi 2 TX/RX p Single car r TX: 2110 – RX: 1710 Single ca r Multi carr QPSK, 16 Q 1.4 MHz, 3 -48VDC Date 2013 eden uipment RRU ports rier, multi ca – 2155 MHz – 1755 MHz rrier: 1x 4 rier: 2 x 4 QAM and 64 3 MHz, 5 M Refere 3-06-04 3P0 Ap US 12 B4 sup arrier, TX div z z 7.8 dBm (1 x 44.8 dBm (2 4QAM Hz, 10 MH z ence 03539-01-F2 pendix 1 pporting LTE versity and M x 60W) x 30W) z, 15 MHz an Page 27 1 (8) E MIMO 2x2 nd 20 MHz ) S O M T r T d t o M M A p C T c A p R T o P T a R M A A C C 3 R R R SP Technical Operation m Measuremen TS 36.141. T represent 16Q The settings b different mod tested to find otherwise no MIMO mode MIMO mode All measurem power applic Conducted m The test obje connections a All measurem ports were el Radiated me The test obje object config Purpose of t The purpose applicable ite References Measuremen ANSI 63.4-2 ANSI/TIA/E CFR 47 part CFR 47 part 3GPP TS 36. RSS-Gen Iss RSS-139 Issu EPORT Research Ins mode during nts were perfo Test model E QAM and tes below were dulations, ch d the worst ca ted. e single carri e multi carrie ments were p cable for the t measuremen ect was suppl are documen ments were m lectrical iden easurements ect was powe gured for max test of the tests i ems of FCC nts were done 2009 EIA-603-C-20 2, October 1 27, October .141, version ue 3 ue 2 stitute of Swe g measureme ormed with t -TM1.1 was st model E-T deemed repr hannel bandw ase setting.T e r: E-TM1.1 er: 2 carriers performed wi tested config nts lied with -48 nted in the se made on RF A ntical, as decl s ered with -48 ximum trans is to verify co CFR 47 and e according t 004 1 st , 2012 1 st , 2012 n 8.4.0 Date 2013 eden ents the test objec used to repr TM3.1 to rep resentative fo widths, numb The settings b 1 E-TM1.1 ith the test ob guration. 8 VDC by an et-up drawing A and additi lared by the 8 VDC. All m smit power ompliance to Industry Ca to relevant pa Refere 3-06-04 3P0 Ap ct transmittin resent QPSK present 64QA or all traffic s ber of carriers below were u bject configu external pow gs below. onal measur client. measurement o the perform nada RSS-13 arts of the fo ence 03539-01-F2 pendix 1 ng test model K, test model AM modulati scenarios wh s and RF con used for all m ured for the m wer supply. A ements on R ts were perfo mance charac 39 and RSS- ollowing stan Page 27 2 (8) ls as defined E-TM3.2 to ion. hen settings w nfigurations measurement maximum tra Additional RF B to verify ormed with th cteristics spec -Gen. ndards: ) d in 3GPP with has been s if not ansmit y that the he test cified in S U M d ( C u R T D T M M T A M T N R SP Technical Uncertainti Measuremen documentatio (95% level o Compliance e uncertainty. Reservation The test resu Delivery of The test obje Manufactu Mihai Simon Test engine Andreas John Martin Theor Test partici None EPORT Research Ins ies nt and test ins on ”SP-QD 1 f confidence evaluation is n lts in this rep f test object ect was delive rer’s repre n, Ericsson A eers nson, Tomas rin, SP ipant stitute of Swe strument unc 10885”. The e). s based on a port apply on t ered 2013-05 esentative AB. s Lennhager, Date 2013 eden certainties are uncertaintie shared risk p nly to the par 5-06. Tomas Isbr i Refere 3-06-04 3P0 Ap e described i s are calcula principle with rticular test o ing, Kexin C ence 03539-01-F2 pendix 1 in the quality ted with a co h respect to t object as decl Chen, Jörgen Page 27 3 (8) y assurance overage facto the measurem lared in the r Wassholm a ) or k=2 ment report. and S M T R R R C R H H H H H H R R R R R C E S μ S M T T T D M R SP Technical Measureme Test site Tesl R&S FSIQ 4 R&S ESI 26 R&S FSQ 40 Control comp R&S softwar High pass filt High pass filt High pass filt High pass filt High pass filt High pass filt RF attenuato RF attenuato RF attenuato RF attenuato RF attenuato Chase Bilog EMCO Horn Std.gain horn μComp Nord Schwarzbeck MITEQ Low Temperature Temperature Temperature Datascan 732 Multimeter F EPORT Research Ins ent equipm la 40 0 puter with re EMC32 ve ter ter ter ter ter ter r r r r r Antenna CB n Antenna 31 n FLANN m dic, Low Noi k preamplifie w Noise Amp and humidit and humidit Chamber 21 Fluke 87 stitute of Swe ment ersion 8.52.0 BL 6111A 15 odel 20240-2 ise Amplifier er BBV 9742 plifier ty meter, Tes ty meter, Tes Date 2013 eden 0 20 r 2 sto 635 sto 625 Refere 3-06-04 3P0 Ap Calibrat 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 ence 03539-01-F2 pendix 1 tion Due S 14-01 13-07 13-07 14-03 - 13-07 13-07 13-07 13-08 14-08 13-07 13-07 13-09 13-08 13-01 13-12 14-10 14-01 14-03 14-04 14-03 13-08 13-06 13-06 13-11 13-11 13-08 Page 27 4 (8) SP number 503 881 503 738 503 292 504 143 503 479 901 501 901 502 504 199 901 373 503 739 503 740 504 159 900 233 900 691 901 384 901 508 503 182 502 175 503 674 901 545 504 085 503 285 504 203 504 188 501 031 502 698 502 190 ) S T S E D A a R SP Technical Test frequen Single RAT T EARFCN Downlink 1957 1965 1975 2000 2025 2050 2175 2393 2385 2375 2350 2325 2300 1980 2022 2328 2370 2100 2262 2088 2250 All RX frequ according the EPORT Research Ins ncies during TX test frequ …

Text truncated - open the document above for the full version.

Test Report

S T D O T P R O B S F F E R SP Technical Table of co Description o Operation mo Test setups Purpose of te RF power ou Occupied ban Band edge Spurious emi Field strength Frequency st External pho EPORT Research Ins ntents of the test ob ode during m est utput ndwidth ission at ante h of spurious tability tos stitute of Swe bject measurement enna termina s radiation Date 2013 eden ts als Refere 3-06-04 3P0 ence 03539-02-F2 App Ap p Ap p Ap p Ap p Ap p Ap p Ap p Ap p Ap p Ap p Page 27 2 (2) pendix 1 pendix 1 pendix 1 pendix 1 pendix 2 pendix 3 pendix 4 pendix 5 pendix 6 pendix 7 pendix 8 ) S D E A R F N p M C C N R SP Technical Description Equipment: Antenna port RF configura Frequency ba Nominal outp per antenna p Modulations Channel band Channel spac Nominal pow EPORT Research Ins n of the test ts: ations: ands: put power port: : dwidth: cing: wer voltage: stitute of Swe t object Radio equi 2 TX/RX p Single car r TX: 2110 – RX: 1710 Single ca r Multi carr In MIMO limited to QPSK, 16 Q 4.2 to 5 M 4.4 to 5 M -48VDC Date 2013 eden uipment RRU ports rier, multi ca – 2155 MHz – 1755 MHz rrier: 1x 4 rier: 2 x 4 3 x 4 4 x 4 configuratio 47 dBm (50 QAM and 64 MHz (configu MHz (configu Refere 3-06-04 3P0 Ap US 12 B4 sup arrier and MI z z 7.8 dBm (1 x 44.8 dBm (2 43.0 dBm (3 41.8 dBm (4 on the maxim 0W) per carri 4QAM rable in step rable in step ence 03539-02-F2 pendix 1 pporting WC IMO 2x2 x 60W) x 30W) x 20W) x 15W) mum nominal er and port. s of 100/200 s of 100/200 Page 27 1 (8) CDMA l output po w 0 kHz) 0 kHz) ) wer is S O M T 1 T d t o S T M T M T C A p C T c A p R T o P T a R M A A C C 3 R R R SP Technical Operation m Measuremen TS 25.141. T 16QAM mod The settings b different mod tested to find otherwise no Single carrier TM1: 64 DPC MIMO mode TM5: 8 HS-P MIMO mode TM5: 8 HS-P Channel band All measurem power applic Conducted m The test obje connections a All measurem ports were el Radiated me The test obje object config Purpose of t The purpose applicable ite References Measuremen ANSI 63.4-2 ANSI/TIA/E CFR 47 part CFR 47 part 3GPP TS 25. RSS-Gen Iss RSS-139 Issu EPORT Research Ins mode durin nts were perfo Test model 1 dulation and below were dulations, ch d the worst ca ted. r CH:s at 30 k e Single carri PDSCH at 24 e Multi carrie PDSCH at 24 dwidth 5 MH ments were p cable for the t measuremen ect was suppl are documen ments were m lectrical iden easurements ect was powe gured for max test of the tests i ems of FCC nts were done 2009 EIA-603-C-20 2, October 1 27, October .141, version ue 3 ue 2 stitute of Swe ng measure ormed with t (TM1) was u Test model 6 deemed repr hannel bandw ase setting.T ksps (SF=128 ier 40 ksps + 30 er, 2 carriers 40 ksps +30 Hz performed wi tested config nts lied with -48 nted in the se made RF A a ntical, as decl s ered with -48 ximum trans is to verify co CFR 47 and e according t 004 1 st , 2012 1 st , 2012 n 8.9.0 Date 2013 eden ements the test objec used to repre 6 (TM6) to r resentative fo widths, numb The settings b 8) 0 DPCH:s at 3 DPCH:s at 3 ith the test ob guration. 8 VDC by an et-up drawing and additiona lared by the 8 VDC. All m smit power ompliance to Industry Ca to relevant pa Refere 3-06-04 3P0 Ap ct transmittin esent QPSK. represent 64Q or all traffic s ber of carriers below were u 30 ksps (SF= 30 ksps (SF= bject configu external pow gs below. al measureme client. measurement o the perform nada RSS-13 arts of the fo ence 03539-02-F2 pendix 1 ng test model Test model QAM modula scenarios wh s and RF con used for all m =128) =128) ured for the m wer supply. A ents on RF B ts were perfo mance charac 39 and RSS- ollowing stan Page 27 2 (8) ls as defined 5 (TM5) to r lation. hen settings w nfigurations measurement maximum tra Additional B to verify th ormed with th cteristics spec -Gen. ndards: ) d in 3GPP represent with has been s if not ansmit hat the he test cified in S M T R R R C R H H H H H H R R R R R C E S μ S M T T T D M R SP Technical Measureme Test site Tesl R&S FSIQ 4 R&S ESI 26 R&S FSQ 40 Control comp R&S softwar High pass filt High pass filt High pass filt High pass filt High pass filt High pass filt RF attenuato RF attenuato RF attenuato RF attenuato RF attenuato Chase Bilog EMCO Horn Std.gain horn μComp Nord Schwarzbeck MITEQ Low Temperature Temperature Temperature Datascan 732 Multimeter F EPORT Research Ins ent equipm la 40 0 puter with re EMC32 ve ter ter ter ter ter ter r r r r r Antenna CB n Antenna 31 n FLANN m dic, Low Noi k preamplifie w Noise Amp and humidit and humidit Chamber 21 Fluke 87 stitute of Swe ment ersion 8.52.0 BL 6111A 15 odel 20240-2 ise Amplifier er BBV 9742 plifier ty meter, Tes ty meter, Tes Date 2013 eden 0 20 r 2 sto 635 sto 625 Refere 3-06-04 3P0 Ap Calibrat 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 ence 03539-02-F2 pendix 1 tion Due S 14-01 13-07 13-07 14-03 - 13-07 13-07 13-07 13-08 14-08 13-07 13-07 13-09 13-08 13-01 13-12 14-10 14-01 14-03 14-04 14-03 13-08 13-06 13-06 13-11 13-11 13-08 Page 27 3 (8) SP number 503 881 503 738 503 292 504 143 503 479 901 501 901 502 504 199 901 373 503 739 503 740 504 159 900 233 900 691 901 384 901 508 503 182 502 175 503 674 901 545 504 085 503 285 504 203 504 188 501 031 502 698 502 190 ) S U M d ( C u R T D T M M T A M T N R SP Technical Uncertainti Measuremen documentatio (95% level o Compliance e uncertainty. Reservation The test resu Delivery of The test obje Manufactu Mihai Simon Test engine Andreas John Martin Theor Test partici None EPORT Research Ins ies nt and test ins on ”SP-QD 1 f confidence evaluation is n lts in this rep f test object ect was delive rer’s repre n, Ericsson A eers nson, Tomas rin, SP ipant stitute of Swe strument unc 10885”. The e). s based on a port apply on t ered 2013-05 esentative AB. s Lennhager, Date 2013 eden certainties are uncertaintie shared risk p nly to the par 5-06. Tomas Isbr i Refere 3-06-04 3P0 Ap e described i s are calcula principle with rticular test o ing, Kexi…

Text truncated - open the document above for the full version.

Test Report

S T D O T P R S F E R SP Technical Table of co Description o Operation mo Test setups Purpose of te RF power ou Spurious emi Field strength External pho EPORT Research Ins ntents of the test ob ode during m est utput ission at ante h of spurious tos stitute of Swe bject measurement enna termina s radiation Date 2013 eden ts als Refere 3-06-04 3P0 ence 03539-03-F2 App Ap p Ap p Ap p Ap p Ap p Ap p Ap p Page 27 2 (2) pendix 1 pendix 1 pendix 1 pendix 1 pendix 2 pendix 3 pendix 4 pendix 5 ) S D E A R F N p L M C W M C C N R SP Technical Description Equipment: Antenna port RF configura Frequency ba Nominal outp per antenna p LTE Modulations Channel band WCDMA Modulations Channel band Channel spac Nominal pow EPORT Research Ins n of the test ts: ations ands: put power port: : dwidth: : dwidth: cing: wer voltage: stitute of Swe t object Radio equi WCDMA+ 2 TX/RX p Single car r (TX divers TX: 2110 – RX: 1710 1-2 LTE + Total num QPSK, 16 Q 1.4MHz, 3 QPSK, 16 Q 4.2 to 5 M 4.4 to 5 M -48VDC Date 2013 eden uipment RRU +LTE ports rier, multi ca sity only LTE – 2155 MHz – 1755 MHz + 1-3 WCDM mber of carrie QAM and 64 3 MHz, 5 MH QAM and 64 MHz (configu MHz (configu Refere 3-06-04 3P0 Ap US 12 B4 sup arrier, TX div E) z z MA (Total po ers 4 4QAM Hz, 10 MHz, 4QAM rable in step rable in step ence 03539-03-F2 pendix 1 pporting mixe versity and M ower 47.8dBm , and 15 MHz s of 100/200 s of 100/200 Page 27 1 (8) ed mode MIMO 2x2 m, 60W) Hz 0 kHz) 0 kHz) ) S O M W d ( m L 3 r T d t o W T C L E C M p C T c A p R T o R SP Technical Operation m MSR, WCDM WCDMA me defined in 3G (TM5) to rep modulation. LTE measure 3GPP TS 36. represent 16Q The settings b different mod tested to find otherwise no WCDMA MI TM5:8 HS-P Channel band LTE MIMO E-TM1.1 Channel band Measuremen power applic Conducted m The test obje connections a All measurem ports were el Radiated me The test obje object config EPORT Research Ins mode durin MA + LTE easurements GPP TS 25.1 present 16QA ements were .141. Test m QAM and tes below were dulations, ch d the worst ca ted. IMO mode PDSCH at 24 dwidth 5 MH mode dwidth 1.4M nts were perfo cable for the t measuremen ect was suppl are documen ments were m lectrical iden easurements ect was powe gured for max stitute of Swe ng measure were perform 41. Test mod AM modulati performed w odel E-TM1 st model E-T deemed repr hannel bandw ase setting.T 40ksps + 30 D Hz MHz. ormed with t tested config nts lied with -48 nted in the se made on RF A ntical, as decl s ered with -48 ximum trans Date 2013 eden ements med with the del 1 (TM1) ion and Test with the test .1 was used TM3.1 to rep resentative fo widths, numb The settings b DPCH:s at 30 the test objec guration. 8 VDC by an et-up drawing A and additi lared by the 8 VDC. All m smit power Refere 3-06-04 3P0 Ap e test object t was used to model 6 (T M object transm to represent present 64QA or all traffic s ber of carriers below were u 0 ksps (SF=1 ct configured external pow gs below. onal measur client. measurement ence 03539-03-F2 pendix 1 transmitting represent Q P M6) to repres mitting test m QPSK, test m AM modulati scenarios wh s and RF con used for all m 128) d for the max wer supply. A ements on R ts were perfo Page 27 2 (8) test models PSK. Test m sent 64QAM models as def model E-TM ion. hen settings w nfigurations measurement ximum transm Additional RF B to verify ormed with th ) as model 5 M fined in M3.2 to with has been s if not mit y that the he test S P T a R M A A C C 3 3 R R M T R R R C R H H H H H H R R R R C E S S μ M T T R SP Technical Purpose of The purpose applicable ite References Measuremen ANSI 63.4-2 ANSI/TIA/E CFR 47 part CFR 47 part 3GPP TS 25. 3GPP TS 36. RSS-Gen Iss RSS-139 Issu Measureme Test site Tesl R&S FSIQ 4 R&S FSQ 40 R&S ESI 26 Control comp R&S softwar High pass filt High pass filt High pass filt High pass filt High pass filt High pass filt RF attenuato RF attenuato RF attenuato RF attenuato Chase Bilog EMCO Horn Std.gain horn Schwarzbeck μComp Nord MITEQ Low Testo 635 Te Temperature EPORT Research Ins test of the tests i ems of FCC nts were done 2009 EIA-603-C-20 2, October 1 27, October .141, version .141, version ue 3 ue 2 ent equipm la 40 0 puter with re EMC32 ve ter ter ter ter ter ter r r r r Antenna CB n Antenna 31 n FLANN m k preamplifie dic, Low Noi w Noise Amp emperature a and humidit stitute of Swe is to verify co CFR 47 and e according t 004 1 st , 2012 1 st , 2012 n 8.9.0 n 8.4.0 ment ersion 8.52.0 BL 6111A 15 odel 20240-2 er BBV 9742 ise Amplifier plifier nd humidity ty meter, Tes Date 2013 eden ompliance to Industry Ca to relevant pa 0 20 2 r meter sto 625 Refere 3-06-04 3P0 Ap o the perform nada RSS-13 arts of the fo Calibrat 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 201 ence 03539-03-F2 pendix 1 mance charac 39 and RSS- ollowing stan tion Due S 14-01 13-07 14-03 13-07 - 13-07 13-07 13-07 13-08 14-08 13-07 13-07 13-09 13-08 13-12 14-10 14-01 14-03 14-03 14-04 13-08 13-06 13-06 Page 27 3 (8) cteristics spec -Gen. ndards: SP number 503 881 503 738 504 143 503 292 503 479 901 501 901 502 504 199 901 373 503 739 503 740 504 159 900 233 900 691 901 508 503 182 502 175 503 674 504 085 901 545 503 285 504 203 504 188 ) cified in S U M d ( C u R T D T M M T A M T N R SP Technical Uncertainti Measuremen documentatio (95% level o Compliance e uncertainty. Reservation The test resu Delivery of The test obje Manufactu Mihai Simon Test engine Andreas John Martin Theor Test partici None EPORT Research Ins ies nt and test ins on ”SP-QD 1 f confidence evaluation is n lts in this rep f test object ect was delive rer’s repre n, Ericsson A eers nson, Tomas rin, SP ipant stitute of Swe strument unc 10885”. The e). s based on a port apply on t ered 2013-05 esentative AB. s Lennhager, Date 2013 eden certainties are uncertaintie shared risk p nly to the par 5-06. Kexin Che n Refere 3-06-04 3P0 Ap e described i s are calcula principle with rticular test o n, Tomas Isbr ence 03539-03-F…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Peter Moberg(Head of PEU Radio)
[email protected]+46 10 719 00 00Fax: +46 10 716 00 28

Technical Contact

Ericsson ABOve Nilsson
[email protected]+46107126490

Lindholmspiren 11 · Gothenburg · Sweden

Test Firm

SP Technical Research Institute of SwedenMagnus Winehem
[email protected]46-10-516-53-71Fax: 46-33-12-19-30

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
7272.12 GHz - 2.15 GHz60 W20M0F9W0.05 ppm
Confidentiality
Long Term
Grant Notes
The power output listed is conducted per output port. This transmitter supports multi carrier operation, up to 4 carriers in WCDMA and up to 2 carriers in LTE. This transmitter must only be operated in the grantees RBS systems. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-locating requirements of 1.1307(b)(3).
