TA8AKRC161436-1Remote Radio Unit supports TDD-LTE

Exhibit 2 FCC Authorization Letter

Ericsson Internal EXHIBIT 13 1 (2) Prepared (also subject responsible if other) No. EJIAXIA TA8AKRC161436-1 Approved Checked Date Rev Reference CBC/XRV/D Xiaoying Jiang 2015-01-28 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch TUV SUD BABT Octagon House, Concorde Way Fareham, Hampshire, PO15 5RL United Kingdom January 28, 2015 Subject: Request for Confidentiality To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules. This due to the following reasons: Ericsson Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU)/Radio Dot (RD) compared to the previous BS/RU/RD, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the BS, RU and the RD, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase our BS/RU/RD and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 4 Block Diagrams EXHIBIT 5 Schematic Diagrams EXHIBIT 8 Manuals EXHIBIT 9 Internal Photos of Radio Unit EXHIBIT 10 Parts List EXHIBIT 12 Technical Circuit Description If additional information is needed, please contact me on the below listed number. Ericsson Internal EXHIBIT 13 2 (2) Prepared (also subject responsible if other) No. EJIAXIA TA8AKRC161436-1 Approved Checked Date Rev Reference CBC/XRV/D Xiaoying Jiang 2015-01-28 A Xiaoying Jiang Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 84767125 e-mail: [email protected]

Ericsson Internal EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EJIAXIA TA8AKRC161436-1 Approved Checked Date Rev Reference CBC/XRV/D Xiaoying Jiang 2015-01-28 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch TUV SUD BABT Octagon House, Concorde Way Fareham, Hampshire, PO15 5RL United Kingdom January 28, 2015 Subject: Certification for FCC ID: TA8AKRC161436-1 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. This base station transceiver (Remote Radio Unit – RRUS 82 B41) is designed for use in LTE mobile telephone system. The transmitter and receiver will operate from 2496 MHz to 2690 MHz. It supports Channel Bandwidth of 20 MHz. This base station transceiver (RRU) supports modulation type QPSK, 16QAM and 64QAM. This base station transceiver (RRU) is appropriate to use in different Ericsson radio base stations without re-measurement and re-filing when introducing a new base station type. The base station transceiver (RRU) operates in the Broadband Radio Service and Educational Broadband Service band as per 47 CFR Part 27 subpart M. It meets the requirements of 3GPP specification for operation in LTE cellular systems. This base station transceiver (RRUS 82 B41) will in normal mode operates at a nominal power out of 10 and 20 watts at each of the output connector. The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. If additional information is needed, please contact me on the below listed number. Xiaoying Jiang Staff Engineer, Regulatory Programs Ericsson AB Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 8476 7125 e-mail: [email protected]

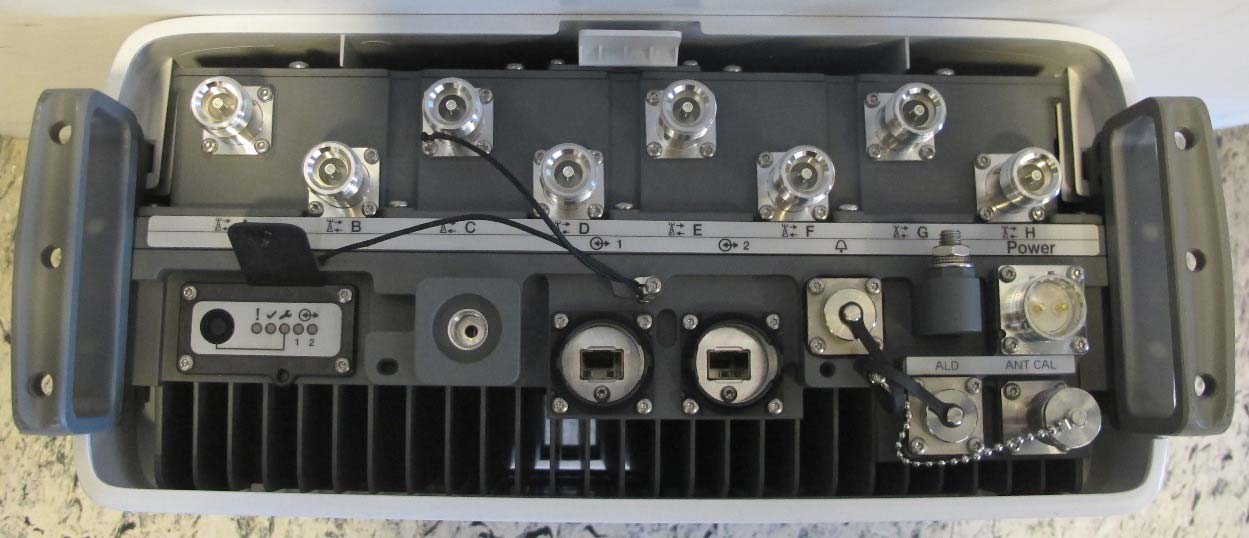

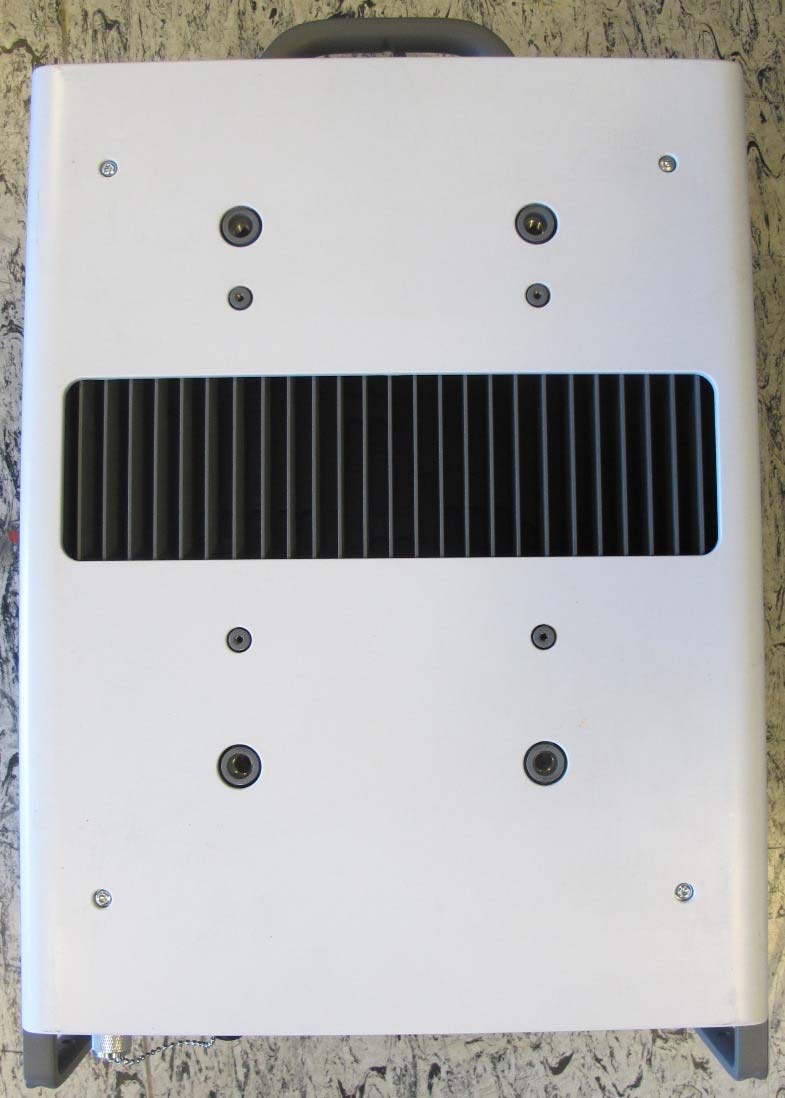

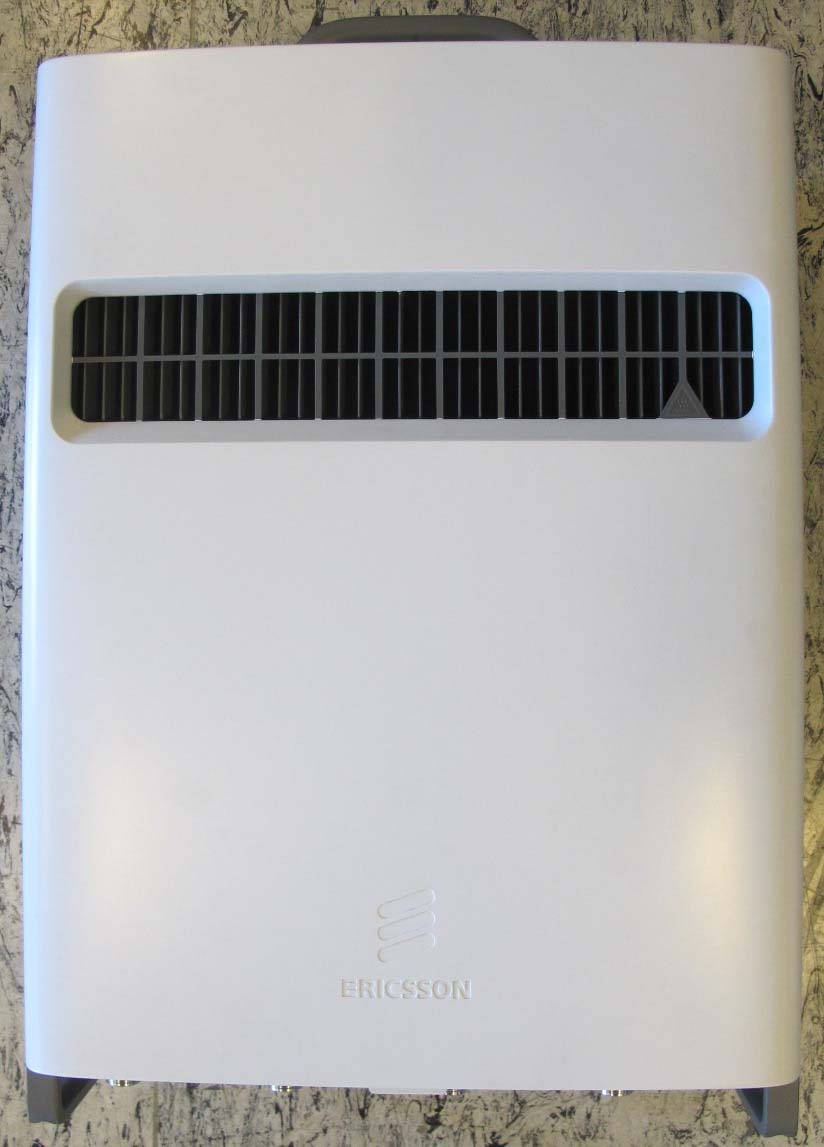

Date Page Exhibit 3 External photos 2/2/2015 1(4) FCC ID: TA8AKRC161436-1 Front side Date Page Exhibit 3 External photos 2/2/2015 2(4) FCC ID: TA8AKRC161436-1 Rear side Date Page Exhibit 3 External photos 2/2/2015 3(4) FCC ID: TA8AKRC161436-1 Left side Right side Date Page Exhibit 3 External photos 2/2/2015 4(4) FCC ID: TA8AKRC161436-1 Top side Bottom side

Date Page Exhibit 1 ID label and placement 1/30/2015 1(1) FCC ID: TA8AKRC161436-1 The ID label is located under the solar shield. Solar shield removed: FCC ID: TA8AKRC161436-1

Document 75929194 Report 01 Issue 1 February 2015 Report On FCC Testing of the Ericsson RRUS 82 B41 KRC 161 436/1 (2496 MHz - 2690 MHz) Remote Radio Unit in accordance with FCC CFR 47 Part 27 COMMERCIAL-IN-CONFIDENCE FCC ID: TA8AKRC161436-1 PREPARED BY APPROVED BY DATED 11 February 2015 Guangdi Dong Matt Russell Project Engineer Authorised Signatory Document 75929194 Report 01 Issue 1 Page 2 of 66 CONTENTS Section Page No 1 REPORT INFORMATION ............................................................................................................ 3 1.1 Report Details ................................................................................................................................ 4 1.2 Brief Summary of Results .............................................................................................................. 5 1.3 Configuration Description .............................................................................................................. 6 1.4 Declaration of Build Status ............................................................................................................ 7 1.5 Product Information ....................................................................................................................... 8 1.6 Test Setup ..................................................................................................................................... 9 1.7 Test Conditions ............................................................................................................................ 11 1.8 Deviation From The Standard ..................................................................................................... 11 1.9 Modification Record ..................................................................................................................... 11 1.10 Alternative Test Site ..................................................................................................................... 11 2 TEST DETAILS .......................................................................................................................... 12 2.1 Maximum RMS Output Power and Peak to Average Ratio - Conducted .................................... 13 2.2 Occupied Bandwidth .................................................................................................................... 18 2.3 Spurious Emission at Band Edge ................................................................................................ 23 2.4 Radiated Spurious Emissions ...................................................................................................... 33 2.5 Conducted Spurious Emissions ................................................................................................... 39 3 TEST EQUIPMENT USED ......................................................................................................... 61 3.1 Test Equipment Used .................................................................................................................. 62 3.2 Measurement Uncertainty............................................................................................................ 64 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 65 4.1 Accreditation, Disclaimers and Copyright .................................................................................... 66 Document 75929194 Report 01 Issue 1 Page 3 of 66 SECTION 1 REPORT INFORMATION Document 75929194 Report 01 Issue 1 Page 4 of 66 1.1 REPORT DETAILS The information contained in this report is intended to show verification of the Ericsson RRUS 82 B41 KRC 161 436/1 Remote Radio Unit to the requirements of FCC CFR 47 Part 27 Manufacturer Ericsson AB Address Isafjordsgatan 10 SE-164 80 Stockholm Sweden Product Name RRUS 82 B41 Product Number KRC 161 436/1 Serial Number(s) D820462482 PIS Version CXP 9025 219/2 Rev R1D08C Hardware Version R1B Number of Sample Tested 1 Test Specification/Issue/Date FCC CFR 47 Part 27: 2013 Start of Test 27 January 2015 Finish of Test 06 February 2015 Name of Engineer(s) Guangdi Dong Related Document(s) ANSI C63.4: 2009 ANSI/TIA-603-C-2004 FCC CFR 47 Part 2: 2013 KDB 971168 D01 v02 r02 KDB 662911 D01 v02 r01 Document 75929194 Report 01 Issue 1 Page 5 of 66 1.2 BRIEF SUMMARY OF RESULTS A brief summary of results for each configuration, in accordance with FCC CFR 47 Part 2, Part 27 is shown below. Section Spec Clause Test Description Result Part 2 Part 27 2.1 2.1046 27.50 (h) 27.50 (i) Maximum Peak Output Power and Peak to Average Ratio – Conducted Pass - 27.50 (h) Equivalent Isotropically Radiated Power (EIRP) N/A 1 2.2 2.1049(h) 27.53 (m) Occupied Bandwidth Pass 2.3 2.1051 27.53 (m) Spurious Emissions at Band Edge Pass 2.4 2.1053 27.53 (m) Radiated Spurious Emissions Pass 2.5 2.1051 27.53 (m) Conducted Spurious Emissions Pass 2.6 2.1055 27.54 Frequency Stability Pass - - - Receiver Spurious Emissions N/A N/A – Not Applicable N/A 1 – Not Applicable, due to no integrated antenna Document 75929194 Report 01 Issue 1 Page 6 of 66 1.3 CONFIGURATION DESCRIPTION Configuration Code Carrier(s) Configuration Description L-MIMO-SC 1C LTE MIMO, Single Carrier L-MIMO-MC 1 2C LTE MIMO, Multi Carrier x2 L-MIMO-MC 2 3C LTE MIMO, Multi Carrier x3 The settings below were deemed representative for all traffic scenarios when settings with different modulations, channel bandwidths, number of carriers and RF configurations has been tested to find the worst case setting. The settings below were used for all measurements if not otherwise noted: LTE: MIMO mode single carrier: E-TM1.1, E-TM3.2, E-TM3.1 MIMO mode multi carrier (x2): E-TM1.1 MIMO mode multi carrier (x3): E-TM1.1 The complete testing was performed with the EUT transmiting at maximum RF power unless otherwise stated. The Maximum Output Power was tested on all TX/RX output connector RF 1 to RF 8, all other TX measurements were perfor…

Text truncated - open the document above for the full version.

FCC ID: TA8AKRC161436-1 Ericsson AB RRUS 82 B41 KRC 161 436/1 2015 Not to be reproduced, except in its entirety, Page 1 of 2 without the Permission of TÜV SÜD Product Service Reference: 75929194 PHOTOGRAPHS OF TEST SET UP 30 MHz to 1GHz 1 GHz to 18 GHz FCC ID: TA8AKRC161436-1 Ericsson AB RRUS 82 B41 KRC 161 436/1 2015 Not to be reproduced, except in its entirety, Page 2 of 2 without the Permission of TÜV SÜD Product Service Reference: 75929194 18 GHz to 26 GHz Radiated Emissions
