TA8AKRC161650Remote radio unit

Page 1 (1) Attending to this matter, name, telephone Date Rev Our Reference BNEW DNEW RA RPSE1 RA2, Adam Sheng, +46 73 0958256 2020-12-04 K 1/0133-600/FEA2926603/14 Uen Ericsson AB Mail Office address Telephone V.A.T. No. SE556056625801 SE-164 80 Stockholm Torshamnsgatan 23 Nat 010 - 719 00 00 Reg. No: 556056-6258 SWEDEN KISTA Int + 46 10 719 00 00 FCC authorization letter I, the undersigned, hereby entrust Lars Wallin David Bolzon Xiaoying Jiang Linda Grell Denis Lalonde Hua Yang Bertil Johansson Ericsson Canada INC Wei Qun Chen Niklas Roos BNEW DNEW Tinting Wang Audun Helle PDU Radio Ericsson (China) Communications Co.Ltd. Ericsson AB 349 Terry Fox Drive BNEW DNEW BNEW DNEW Ottawa, K2K 2V 6 Canada PDU Radio PDU Radio No.5 Lize East Street, Chaoyang District Torshamnsgatan 23 100102 Beijing, China SE-164 80 Stockholm, Sweden Mihai Simon Xiao Hu Z Ericsson AB Ling Pan L BNEW DNEW Ericsson (China) Communications Co.Ltd. PDU Radio BNEW DNEW Lindholmspiren 11 PDU Radio SE-417 56 Gothenburg No.1366 Tianfu Avenue Sweden 610041 Chengdu, China to act as my representatives in the following: To make the necessary applications for FCC equipment certifications. ....................................... (Signature) Igor Tasevski Head PDU Radio Ericsson AB Torshamnsgatan 23 SE-164 80 Stockholm, Sweden DocuSign Envelope ID: B06C5A4E-3F9D-474E-80A3-34C1ADEBFC11 07 december 2020 | 21:19:17 CET

Ericsson Internal EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EWAGTIG TA8AKRC161650 Approved Checked Date Rev Reference Tingting Wang 2021-04-12 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Certification for FCC ID: TA8AKRC161650 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. The radio operates in the Cellular band as per 47 CFR Part 27. This radio (Radio 2212 B8) is designed for use LTE cellular telephone system. This FDD radio operates in Band 8, the transmitter is from 936.5 MHz to 939.5 MHz and the receiver from 897.5 MHz to 900.5 MHz. It supports radio access technology SR LTE. It can support in-band and standalone NB-IoT. It supports channel bandwidths of 1.4 and 3 MHz for LTE. The radio supports modulation types of QPSK, 16QAM, 64QAM and 256 QAM for LTE. The radio supports spectrum consisting of two or more sub-blocks separated by sub-block gap(s), NCS (None- Contiguous Spectrum). The radio unit supports carrier aggregation. The radio has the ability to be used in a RBS system configured for 3GPP MIMO/Spatial multiplexing and beam- forming technologies for LTE. This radio will in normal mode operates at a maximum power of 40W per port at the output connector. The radio has 2 TX/RX ports. The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. If additional information is needed, please contact me on the below listed number. Tingting Wang Staff Engineer, Regulatory Programs Ericsson AB Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 8476 7133 e-mail: [email protected]

Ericsson Internal EXHIBIT 13 1 (2) Prepared (also subject responsible if other) No. EWAGTIG TA8AKRC161650 Approved Checked Date Rev Reference Tingting Wang 2021-04-08 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046, USA Attention: Equipment Authorization Branch Subject: Request for Confidentiality FCC ID: TA8AKRC161650 To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules for FCC. This due to the following reasons: This Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU) / Remote Radio Unit (RRU) / Radio DoT (RD) compared to the previous BS/RU/RRU/RD, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the BS, RU, RRU and RD, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase our BS/RU/RRU/RD and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 4 Block Diagrams EXHIBIT 9 Internal Photos EXHIBIT 5 Schematics EXHIBIT 10 Parts List EXHIBIT 8 Manuals EXHIBIT 12 Technical Circuit Description Ericsson Internal EXHIBIT 13 2 (2) Prepared (also subject responsible if other) No. EWAGTIG TA8AKRC161650 Approved Checked Date Rev Reference Tingting Wang 2021-04-08 A Tingting Wang Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 6439 4884 e-mail: [email protected]

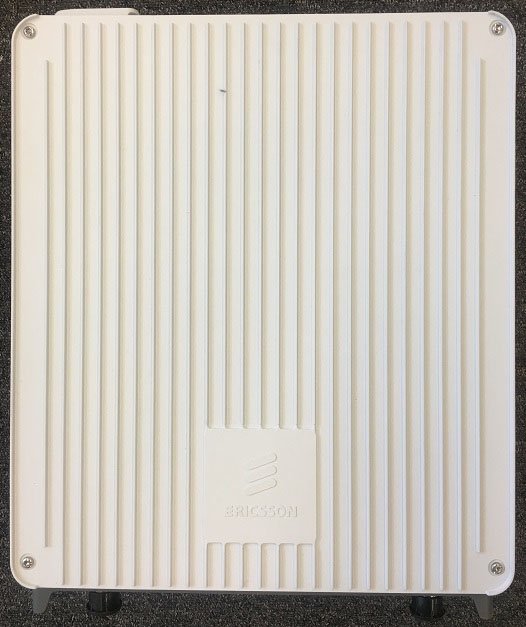

Date Page Exhibit 3 External photos 4/16/2021 1(3) FCC ID: TA8AKRC161650 Front side Rear side Date Page Exhibit 3 External photos 4/16/2021 2(3) FCC ID: TA8AKRC161650 Left side Right side Date Page Exhibit 3 External photos 4/16/2021 3(3) FCC ID: TA8AKRC161650 Top side Bottom side

Date Page Exhibit 1 ID label and placement 4/16/2021 1(1) FCC ID: TA8AKRC161650 FCC ID: TA8AKRC161650

Document 75950445 Report 02 Issue 2 April 2021 Report On FCC Testing of the Ericsson Radio 2212 B8, KRC 161 650/1 LTE and NB-IoT Stand Alone and NB-IoT In Band (936.5-939.5 MHz), Remote Radio Unit, with compatible Main Unit in a Base Station configuration in accordance with FCC CFR 47 Part 2 and FCC CFR Part 27 COMMERCIAL-IN-CONFIDENCE FCC: TA8AKRC161650 PREPARED BY APPROVED BY DATED 13 April 2021 Maggie Whiting Steve Scarfe Key Account Manager Authorised Signatory Document 75950445 Report 02 Issue 2 Page 1 of 56 COMMERCIAL – IN – CONFIDENCE CONTENTS Section Page No 1 REPORT INFORMATION ............................................................................................................ 2 1.1 Report Details ................................................................................................................................ 3 1.2 Brief Summary of Results .............................................................................................................. 4 1.3 Configuration Description .............................................................................................................. 5 1.4 Declaration of Build Status ............................................................................................................ 6 1.5 Product Information ....................................................................................................................... 8 1.6 Test Setup ..................................................................................................................................... 9 1.7 Test Conditions ............................................................................................................................ 11 1.8 Deviation From The Standard ..................................................................................................... 11 1.9 Modification Record ..................................................................................................................... 11 1.10 Additional Information .................................................................................................................. 11 2 TEST DETAILS .......................................................................................................................... 12 2.1 Band Edge ................................................................................................................................... 13 2.2 Occupied Bandwidth .................................................................................................................... 20 2.3 Maximum Peak Output Power and Peak to Average Ratio - Conducted .................................... 27 2.4 Transmitter Spurious Emissions .................................................................................................. 36 2.5 Radiated Emissions ..................................................................................................................... 45 2.6 Frequency Stability ...................................................................................................................... 50 3 TEST EQUIPMENT USED ......................................................................................................... 51 3.1 Test Equipment Used .................................................................................................................. 52 3.2 Measurement Uncertainty............................................................................................................ 54 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 55 4.1 Accreditation, Disclaimers and Copyright .................................................................................... 56 ANNEX A Module Lists .............................................................................................................................. A.2 Document 75950445 Report 02 Issue 2 Page 2 of 56 COMMERCIAL – IN – CONFIDENCE SECTION 1 REPORT INFORMATION Document 75950445 Report 02 Issue 2 Page 3 of 56 COMMERCIAL – IN – CONFIDENCE 1.1 REPORT DETAILS Manufacturer Ericsson Address Torshamnsgatan 23 Kista SE-16480 Stockholm Sweden Product Name & Product Number Radio 2212 B8 – KRC 161 650/1 IC Model Name AS161650 Serial Number(s) E238996984 Software Version CXP9013268/15 Rev R85BS Hardware Version R5H Test Specification/Issue/Date FCC CFR 47 Part 2: 2019 FCC CFR 47 Part 27: 2019 Test Plan Radio 2212 B8 for MANA FCC test plan V 0.5 Start of Test 01 December 2020 Finish of Test 08 December 2020 Name of Engineer(s) Neil Rousell Graeme Lawler Related Document(s) KDB 971168 D01 v03r01 ANSI C63.26:2015 FCC -20-67A1: May 2020 Neil Rousell Graeme Lawler This report has been revised to Issue 2 and should be read in place of Issue 1. This report has been revised to issue 2 to make minor corrections in the Manufacturers Declaration of Build Status. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate compliance with FCC CFR 47 Part 2: 2019, and FCC CFR Part 27. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Document 75950445 Report 02 Issue 2 Page 4 of 56 COMMERCIAL – IN – CONFIDENCE 1.2 BRIEF SUMMARY OF RESULTS A brief summary of results for each configuration, in accordance with FCC CFR 47 Part 2 and FCC CFR Part 27 is shown below. Section Specification Clause Test Description Result FCC CFR 47 Part 2 FCC CFR Part 27 FCC CFR Part 27, Subpart P (FCC-20-67A1) - 2.1046 - 27.1507 Effective radiated power limits for 900 MHz Broadband systems N/A 1 - 2.1046 - 27.1508 Field Strength N/A 1 - - - - Receiver Emission Limits N/A 2 2.1 2.1051 27.53 (h) 27.1506 Band Edge Pass 2.2 2.1049 27.53 27.1506 Occupied Bandwidth Pass 2.3 2.1046 27.50 27.1507 Maximum Peak Output Power and Peak to Average Ratio …

Text truncated - open the document above for the full version.

Document 75950445 Report 02 Issue 2 Page 30 of 56 COMMERCIAL – IN – CONFIDENCE Configuration A2 Maximum Output Power 43 dBm Antenna LTE-Modulation LTE Carrier Bandwidth Peak to Average Ratio (PAR) / Output Power Channel Position M PAR (dB) Average Power dBm dBm/MHz B 16QAM 1.4 MHz 8.26 43.11 42.69 Antenna B - LTE-Modulation 16QAM - LTE Carrier Bandwidth 1.4 MHz - Channel Position M Document 75950445 Report 02 Issue 2 Page 31 of 56 COMMERCIAL – IN – CONFIDENCE Configuration A2 Maximum Output Power 43 dBm Antenna LTE-Modulation LTE Carrier Bandwidth Peak to Average Ratio (PAR) / Output Power Channel Position T PAR (dB) Average Power dBm dBm/MHz B 16QAM 1.4 MHz 8.29 43.08 42.65 Antenna B - LTE-Modulation 16QAM - LTE Carrier Bandwidth 1.4 MHz - Channel Position T Document 75950445 Report 02 Issue 2 Page 32 of 56 COMMERCIAL – IN – CONFIDENCE Configuration A3 Maximum Output Power 46 dBm Antenna LTE-Modulation LTE Carrier Bandwidth Peak to Average Ratio (PAR) / Output Power Channel Position M PAR (dB) Average Power dBm dBm/MHz B 16QAM 1.4 MHz + 1.4MHz - 46.09 42.41 Antenna B - LTE-Modulation 16QAM - LTE Carrier Bandwidth 1.4 MHz + 1.4 MHz - Channel Position M Document 75950445 Report 02 Issue 2 Page 33 of 56 COMMERCIAL – IN – CONFIDENCE Configuration A4 Maximum Output Power 43 dBm Antenna NB-IoT SA Modulation NB-IoT SA Carrier Bandwidth Peak to Average Ratio (PAR) / Output Power Channel Position B PAR (dB) Average Power dBm dBm/MHz B QPSK 400 kHz 4.95 42.79 43.34 Antenna B - NB-IoT SA Modulation QPSK - NB-IoT SA Carrier Bandwidth 400 kHz - Channel Position B Document 75950445 Report 02 Issue 2 Page 34 of 56 COMMERCIAL – IN – CONFIDENCE Configuration A4 Maximum Output Power 43 dBm Antenna NB-IoT SA Modulation NB-IoT SA Carrier Bandwidth Peak to Average Ratio (PAR) / Output Power Channel Position M PAR (dB) Average Power dBm dBm/MHz B QPSK 400 kHz 4.96 42.80 43.30 Antenna B - NB-IoT SA Modulation QPSK - NB-IoT SA Carrier Bandwidth 400 kHz - Channel Position M Document 75950445 Report 02 Issue 2 Page 35 of 56 COMMERCIAL – IN – CONFIDENCE Configuration A4 Maximum Output Power 43 dBm Antenna NB-IoT SA Modulation NB-IoT SA Carrier Bandwidth Peak to Average Ratio (PAR) / Output Power Channel Position T PAR (dB) Average Power dBm dBm/MHz B QPSK 400 kHz 5.01 42.76 43.14 Antenna B - NB-IoT SA Modulation QPSK - NB-IoT SA Carrier Bandwidth 400 kHz - Channel Position T Measurement Limit PSD for antenna height of ≤ 304m height above average terrain ≤ 400 Watts/Megahertz PAR ≤ 13dB Document 75950445 Report 02 Issue 2 Page 36 of 56 COMMERCIAL – IN – CONFIDENCE 2.4 TRANSMITTER SPURIOUS EMISSIONS 2.4.1 Specification Reference FCC CFR 47 Part 2, Clause 2.1051 FCC CFR Part 27, Clause 27.53 (h) FCC-20-67A1, FCC CFR Part 27, Subpart P, Clause 27.1509 2.4.2 Date of Test and Modification State 01 and 07 December 2020 - Modification State 0 2.4.3 Test Equipment Used The major items of test equipment used for the above tests are identified in Section 3.1. 2.4.4 Environmental Conditions Ambient Temperature 20.7-22.2C Relative Humidit y 35.6 - 36.0% 2.4.5 Test Method All measurements were made in accordance with FCC KDB 971168 D01, Clause 6. Each antenna port has been declared as being equivalent, therefore measurements were made on one antenna port only. To account for this, the limit was tightened by 10 * Log(N), where N is equal to the number of MIMO antenna ports. For single port, the limit was calculated as being -20 dBm - 10 * Log (2) = -23 dBm. 2.4.6 Test Results Configuration A1 Maximum Output Power 46 dBm Document 75950445 Report 02 Issue 2 Page 37 of 56 COMMERCIAL – IN – CONFIDENCE Antenna B - LTE + NB-IoT IB Modulation QPSK - LTE + NB-IoT IB Carrier Bandwidth 3.0 MHz + NB-IoT IB - Channel Position M - Band 1 - Range 0.009 to 1500 MHz Antenna B - LTE + NB-IoT IB Modulation QPSK - LTE + NB-IoT IB Carrier Bandwidth 3.0 MHz + NB-IoT IB - Channel Position M - Band 2 - Range 1500 to 10000 MHz Document 75950445 Report 02 Issue 2 Page 38 of 56 COMMERCIAL – IN – CONFIDENCE Configuration A2 Maximum Output Power 43 dBm Antenna B - LTE-Modulation 16QAM - LTE Carrier Bandwidth 1.4 MHz - Channel Position B - Band 1 - Range 0.009 to 1500 MHz Antenna B - LTE-Modulation 16QAM - LTE Carrier Bandwidth 1.4 MHz - Channel Position B - Band 2 - Range 1500 to 10000 MHz Document 75950445 Report 02 Issue 2 Page 39 of 56 COMMERCIAL – IN – CONFIDENCE Antenna B - LTE-Modulation 16QAM - LTE Carrier Bandwidth 1.4 MHz - Channel Position M - Band 1 - Range 0.009 to 1500 MHz Antenna B - LTE-Modulation 16QAM - LTE Carrier Bandwidth 1.4 MHz - Channel Position M - Band 2 - Range 1500 to 10000 MHz Document 75950445 Report 02 Issue 2 Page 40 of 56 COMMERCIAL – IN – CONFIDENCE Antenna B - LTE-Modulation 16QAM - LTE Carrier Bandwidth 1.4 MHz - Channel Position T - Band 1 - Range 0.009 to 1500 MHz Antenna B - LTE-Modulation 16QAM - LTE Carrier Bandwidth 1.4 MHz - Channel Position T - Band 2 - Range 1500 to 10000 MHz Document 75950445 Report 02 Issue 2 Page 41 of 56 COMMERCIAL – IN – CONFIDENCE Configuration A3 Maximum Output Power 46 dBm Antenna B - LTE-Modulation 16QAM - LTE Carrier Bandwidth 1.4 MHz +1.4 MHz - Channel Position M - Band 1 - Range 0.009 to 1500 MHz Antenna B - LTE-Modulation 16QAM - LTE Carrier Bandwidth 1.4 MHz +1.4 MHz - Channel Position M - Band 2 - Range 1500 to 10000 MHz Document 75950445 Report 02 Issue 2 Page 42 of 56 COMMERCIAL – IN – CONFIDENCE Configuration A4 Maximum Output Power 43 dBm Antenna B - NB-IoT SA Modulation QPSK - NB-IoT SA Carrier Bandwidth 400 kHz - Channel Position B - Band 1 - Range 0.009 to 1500 MHz Antenna B - NB-IoT SA Modulation QPSK - NB-IoT SA Carrier Bandwidth 400 kHz - Channel Position B - Band 2 - Range 1500 to 10000 MHz Document 75950445 Report 02 Issue 2 Page 43 of 56 COMMERCIAL – IN – CONFIDENCE Antenna B - NB-IoT SA Modulation QPSK - NB-IoT SA Carrier Bandwidth 400 kHz - Channel Position M - Band 1 - Range 0.009 to 1500 MHz Antenna B - NB-IoT SA Modulation QPSK - NB-IoT SA Carrier Bandwidth 400 …

Text truncated - open the document above for the full version.

FCC : TA8AKRC161650 Ericsson Radio 2212 B8 2021 Not to be reproduced, except in its entirety, Page 1 of 4 without the Permission of TÜV SÜD Reference: 75950445 Report 01 & 02 PHOTOGRAPHS OF TEST SET UP FCC Part 27 - Conducted Lab Testing FCC : TA8AKRC161650 Ericsson Radio 2212 B8 2021 Not to be reproduced, except in its entirety, Page 2 of 4 without the Permission of TÜV SÜD Reference: 75950445 Report 01 & 02 FCC Part 27 - Conducted Lab Testing - Temperature FCC : TA8AKRC161650 Ericsson Radio 2212 B8 2021 Not to be reproduced, except in its entirety, Page 3 of 4 without the Permission of TÜV SÜD Reference: 75950445 Report 01 & 02 FCC Part 27 - Radiated Testing – 30MHz – 1GHz FCC : TA8AKRC161650 Ericsson Radio 2212 B8 2021 Not to be reproduced, except in its entirety, Page 4 of 4 without the Permission of TÜV SÜD Reference: 75950445 Report 01 & 02 FCC Part 27 - Radiated Testing – 1GHz – 10GHz
