Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Certification for FCC ID: TA8AKRC161789-5 Confidentiality Class External Confidentiality Label Document Type Page Ericsson Confidential Exhibit 1 (1) Prepared By (Subject Responsible) Approved By (Document Responsible) Checked EHUAYAN Hua Yang Hua Yang Document Number Revision Date Reference TA8AKRC161789-5 A 2020-10-30 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. The radio operates in the broadband radio service band as per 47 CFR Part 27. This radio (Radio 4418 B41) is designed for use in SR & MR LTE and NR cellular telephone system. This TDD radio operates in Band 41, the transmitter and receiver from 2496 MHz to 2690 MHz. It supports channel bandwidths of 10, 15 and 20 MHz for LTE, 20, 30, 40, 50, 60, 80 and 100MHz for NR. The radio supports modulation types of QPSK, 16QAM, 64QAM and 256 QAM. The radio has the ability to be used in a RBS system configured for 3GPP MIMO/Spatial multiplexing and carrier aggregation technologies. This radio will in normal mode operates at a maximum power of 20W per port at the output connector. This radio has 4 TX ports. The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. If additional information is needed, please contact me on the below listed number. Hua Yang Staff Engineer, Regulatory Programs Ericsson AB Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 8476 7133 e-mail: [email protected]

Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Request for Confidentiality Confidentiality Class External Confidentiality Label Document Type Page Ericsson Confidential Exhibit 1 (1) Prepared By (Subject Responsible) Approved By (Document Responsible) Checked EHUAYAN Hua Yang Hua Yang Document Number Revision Date Reference TA8AKRC161789-5 A 2020-10-30 To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance to CFR 47 Sections 0.457 and 0.459 for FCC. This due to the following reasons: This Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU) / Remote Radio Unit (RRU) / Radio DoT (RD) compared to the previous BS/RU/RRU/RD, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the BS, RU, RRU and RD, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase our BS/RU/RRU/RD and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 4 Block Diagrams EXHIBIT 5 Schematics EXHIBIT 8 Manuals EXHIBIT 9 Internal Photos EXHIBIT 10 Parts List EXHIBIT 12 Technical Circuit Description Hua Yang Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 Kista, SE-164 80 Stockholm, Sweden Telephone No.: +86 10 8476 7133 e-mail: [email protected]

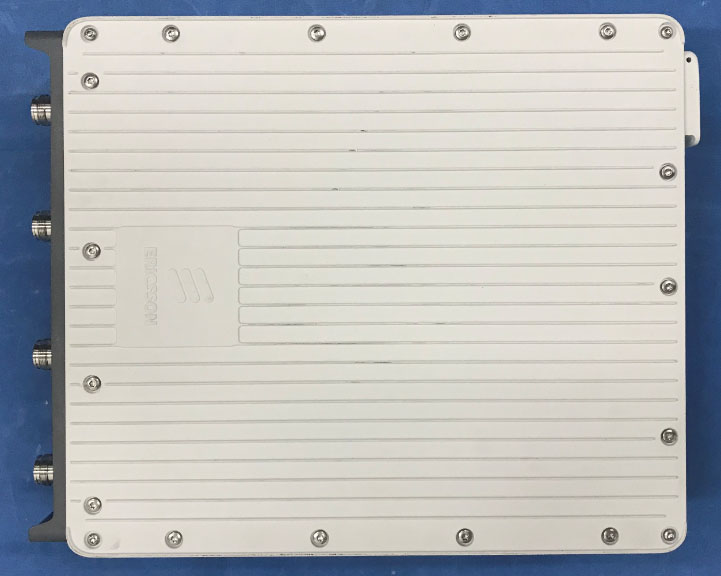

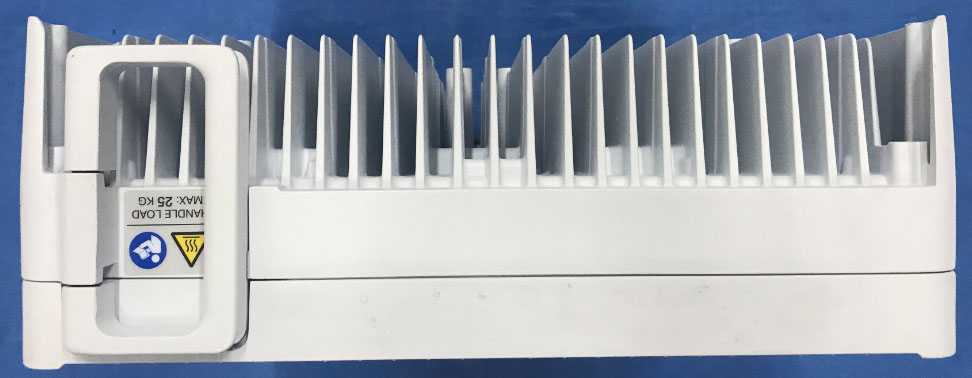

Date Page Exhibit 3 External photos 10/30/2020 1(3) FCC: TA8AKRC161789-5 Front side Rear side Date Page Exhibit 3 External photos 10/30/2020 2(3) FCC: TA8AKRC161789-5 Left side Right side Date Page Exhibit 3 External photos 10/30/2020 3(3) FCC: TA8AKRC161789-5 Top side Bottom side

Date Page Exhibit 1 ID label and placement 10/30/2020 1(1) FCC ID: TA8AKRC161789-5 FCC ID: TA8AKRC161789-5

Ericsson AB RF TEST REPORT Report Type: FCC Part 27 RF report PRODUCT NAME: Radio 4418 B41 REPORT NUMBER: 201101130SHA-001 ISSUE DATE: November 11, 2020 DOCUMENT CONTROL NUMBER: TTRFFCC Part 27_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCC Part 27_V1 © 2018 Intertek Page 2 of 200 Report no.: 201101130SHA-001 Applicant: Ericsson AB Isafjordsgatan 10 SE-164 80 Stockholm 16480 Sweden Manufacturer: Ericsson AB Isafjordsgatan 10 SE-164 80 Stockholm 16480 Sweden FCC ID: TA8AKRC161789-5 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: FCC CFR 47 Part 27: MISCELLANEOUS WIRELESS COMMUNICATIONS SERVICES PREPARED BY: REVIEWED BY: Project Engineer Nemo Li Reviewer Daniel Zhao Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 3 of 200 Content REVISION HISTORY................................................................................................................................................ 4 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 6 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 7 1.3 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 8 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 RELATED DOCUMENTS .......................................................................................................................................... 9 2.2 PRODUCT INFORMATION ....................................................................................................................................... 9 2.3 CONFIGURATION DESCRIPTION ............................................................................................................................. 10 2.4 TEST SETUP ...................................................................................................................................................... 13 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 15 2.6 INSTRUMENT LIST .............................................................................................................................................. 16 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 17 3 MAXIMUM OUTPUT POWER AND PEAK TO AVERAGE POWER RATIO AND EIRP ........................................ 18 3.1 LIMIT .............................................................................................................................................................. 18 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 18 3.3 MEASUREMENT RESULT ...................................................................................................................................... 19 4 OCCUPIED BANDWIDTH ............................................................................................................................ 26 4.1 MEASUREMENT PROCEDURE ............................................................................................................................... 26 4.2 MEASUREMENT RESULT ...................................................................................................................................... 27 5 UNWANTED EMISSIONS AT BAND EDGE .................................................................................................... 44 5.1 LIMIT .............................................................................................................................................................. 44 5.2 MEASUREMENT PROCEDURE ............................................................................................................................... 44 5.3 MEASUREMENT RESULT ...................................................................................................................................... 45 6 CONDUCTED UNWANTED EMISSION ........................................................................................................118 6.1 LIMIT ............................…

Text truncated - open the document above for the full version.

Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 62 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 63 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 256QAM 100 1000 -19.02 1000 -19.02 B T 256QAM 100 1000 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 64 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 65 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 66 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 67 of 200 Configuration NR-MIMO-2C-BE Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 256QAM 20 200 -19.02 1000 -19.02 B T 256QAM 20 200 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 68 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 69 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 70 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 256QAM 50 500 -19.02 1000 -19.02 B T 256QAM 50 500 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 71 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 72 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 73 of 200 Configuration NR-MIMO-3C-BE Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 256QAM 20 200 -19.02 1000 -19.02 B T 256QAM 20 200 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 74 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 75 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 76 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 256QAM 30 300 -19.02 1000 -19.02 B T 256QAM 30 300 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 77 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 78 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 79 of 200 Configuration LTE-MIMO-1C-BE Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 64QAM 10 100 -19.02 1000 -19.02 B T 64QAM 10 100 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 80 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 81 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 82 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 83 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 64QAM 15 150 -19.02 1000 -19.02 B T 64QAM 15 150 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 84 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 85 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 86 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 64QAM 20 200 -19.02 1000 -19.02 B T 64QAM 20 200 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 87 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 88 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 89 of 200 Configuration LTE-MIMO-2C-BE Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 64QAM 10 100 -19.02 1000 -19.02 B T 64QAM 10 100 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 90 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 91 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 92 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 93 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 64QAM 20 200 -19.02 1000 -19.02 B T 64QAM 20 200 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 94 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 95 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 96 of 200 Configuration LTE-MIMO-6C-BE Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 64QAM 10 100 -19.02 1000 -19.02 B T 64QAM 10 100 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 97 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 98 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 99 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 100 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 64QAM 15 150 -19.02 1000 -19.02 B T…

Text truncated - open the document above for the full version.

Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 113 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 114 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 115 of 200 Configuration NR+LTE-MIMO-MC-3-BE Antenna Port Channel Position NR Modulation LTE Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 256QAM 64QAM 20 10 200 -19.02 1000 -19.02 B T 256QAM 64QAM 20 10 200 -19.02 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 116 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 117 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 118 of 200 6 Conducted Unwanted Emission Test result: Pass 6.1 Limit The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. 6.2 Measurement Procedure In accordance with FCC rules, the power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB. The spurious emissions from the antenna terminal were measured. The transmitter output power was attenuated using an attenuator and the frequency spectrum investigated from 9kHz to 27GHz. The resolution bandwidth of 1MHz was employed for frequency band 9kHz to 27GHz. The spectrum analyzer detector was set to RMS. For MIMO mode configurations, the limit was adjusted with a correction of -6.02dB [10Log(1/4)] by using the Measure and Add 10Log(N) dB technique according to KDB 662911 D01 Multiple Transmitter Output accounting for simultaneous transmission from antenna ports. Then the limit was adjusted to - 19.02dBm. Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 119 of 200 6.3 Measurement result Configuration NR-MIMO-1C Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 256QAM 20 1000 -19.02 B M 256QAM 20 1000 -19.02 B T 256QAM 20 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 120 of 200 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 121 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 122 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 123 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 124 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 256QAM 40 1000 -19.02 B M 256QAM 40 1000 -19.02 B T 256QAM 40 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 125 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 126 of 200 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 127 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 128 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 129 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 256QAM 100 1000 -19.02 B M 256QAM 100 1000 -19.02 B T 256QAM 100 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 130 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 131 of 200 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 132 of 200 Channel Position T Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 133 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 134 of 200 Configuration NR-MIMO-2C Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B M 256QAM 20 1000 -19.02 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 135 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 136 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B M 256QAM 50 1000 -19.02 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 137 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 138 of 200 Configuration NR-MIMO-3C Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B M 256QAM 20 1000 -19.02 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 139 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 140 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B M 256QAM 30 1000 -19.02 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 141 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 142 of 200 Configuration LTE-MIMO-1C Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B B 64QAM 10 1000 -19.02 B M 64QAM 10 1000 -19.02 B T 64QAM 10 1000 -19.02 Channel Position B Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 143 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 144 of 200 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 145 of 200 Channel Position T Report No.: 201101130SH…

Text truncated - open the document above for the full version.

Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 156 of 200 Configuration LTE-MIMO-3C Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B M 64QAM 10 1000 -19.02 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 157 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 158 of 200 Antenna Port Channel Position Modulation Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B M 64QAM 15 1000 -19.02 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 159 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 160 of 200 Configuration NR+LTE-MIMO-MC-1 Antenna Port Channel Position NR Modulation LTE Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B M 256QAM 64QAM 30 10 1000 -19.02 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 161 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 162 of 200 Antenna Port Channel Position NR Modulation LTE Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B M 256QAM 64QAM 80 20 1000 -19.02 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 163 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 164 of 200 Configuration NR+LTE-MIMO-MC2 Antenna Port Channel Position NR Modulation LTE Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B M 256QAM 64QAM 20 10 1000 -19.02 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 165 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 166 of 200 Antenna Port Channel Position NR Modulation LTE Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B M 256QAM 64QAM 80 10 1000 -19.02 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 167 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 168 of 200 Configuration NR+LTE-MIMO-MC-3 Antenna Port Channel Position NR Modulation LTE Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) B M 256QAM 64QAM 20 10 1000 -19.02 Channel Position M Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 169 of 200 Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 170 of 200 7 Radiated Unwanted Emission Test result: Pass 7.1 Limit The field strength of the carrier has been calculated assuming that the power is to be fed to a half-wave tuned dipoles as per 2.1053 (a). E(V/m) = (30 x Gi x Po ) 0.5 / d Where Gi is the antenna gain of ideal half-wave dipoles, Po is the power out of the transceiver in W, d is the measurement distance in meter. As per FCC Part 27, the power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. Therefore, the limit at 3m measurement distance is: E(V/m) = 84.4 dBμV/m These limits have been used to determine Pass or Fail for the harmonics measured and detailed in the following results. 7.2 Measurement Procedure This measurement is carried out in semi-anechoic chamber. A preliminary profile of the Spurious Radiated Emissions was obtained by operating the EUT on a remotely controlled turntable within the chamber. Measurements of emissions from the EUT were obtained with the measurement antenna in both horizontal and vertical polarizations. Emissions identified within the range 30MHz to 27GHz were then formally measured using a peak detector as the worst case. The limits for outside a licensee’s frequency band(s) of operation the power of the spurious emissions have been calculated, as shown below using the following formula: Field Strength of Carrier - (43 + 10Log (P)) dB Where: Field Strength is measured in dBμV/m P is measured Transmitter Power in Watts The EUT was measured with the antenna height varied between 1 and 4 m with the turntable rotated between 0 and 360 degrees. The emission of any outside a licensee’s frequencies within 20dB of the limit were measured with the substitution method used according to the standard. The measurements were performed at a 3m distance unless otherwise stated. Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 171 of 200 7.3 Measurement result Configuration Channel Position Carrier Carrier Bandwidth Modulation NR-MIMO-1C B 1 Carrier 40MHz 256QAM No emissions were detected within 20dB of the limit. Configuration Channel Position Carrier Carrier Bandwidth Modulation NR-MIMO-1C T 1 Carrier 40MHz 256QAM No emissions were detected within 20dB of the limit. Configuration Channel Position Carrier Carrier Bandwidth Modulation NR-MIMO-1C M 1 Carrier 40MHz 256QAM No emissions were detected within 20dB of the limit. 30-1000MHz, Horizontal and Vertical Level in dBμV/ Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 172 of 200 1-3GHz, Horizontal and Vertical Level in dBμV/ 3-18GHz, Horizontal and Vertical Level in dBμV/ Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 173 of 200 18-27GHz, Horizontal and Vertical Level in dBμV/ Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 174 of 200 Configuration Channel Position Carrier Carrier Bandwidth Modulation NR-MIMO-2C M 2 Carriers 20MHz 256QAM No emissions were detected within 20dB of the limit. 30-1000MHz, Horizontal and Vertical Level in dBμV/ Report No.: 201101130SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 175 of 200 1-3GHz, Horizontal and Vertical Level in …

Text truncated - open the document above for the full version.

FCC ID: TA8AKRC161789-5 Page 1 of 3 Test Setup FCC ID: TA8AKRC161789-5 Page 2 of 3 1. Radiated Emission 30-1000MHz 1-18GHz FCC ID: TA8AKRC161789-5 Page 3 of 3 18-27GHz
