TA8AKRC161881-3Multi-standard remote radio supports LTE, NR and NB-IoT

Ericsson Internal 1 (1) Prepared (also subject responsible if other) No. EHUAYAN TA8AKRC161881-3 Approved Checked Date Rev Reference Hua Yang 2020-07-20 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Certification for FCC ID: TA8AKRC161881-3 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. The radio operates in the broadband radio service band as per 47 CFR Part 27. This radio (Radio 4478 B12A) is designed for use in LTE, NB-IoT and NR cellular telephone system. The FDD radio operates in Band 12A. The transmitter is from 729 MHz to 745 MHz and the receiver is from 699 MHz to 715 MHz. It supports radio access technology SR & MR LTE, NR, NB-IoT in-band, NB-IoT standalone, NB-IoT guard- band. The radio supports channel bandwidths of 5, 10 and 15 MHz and modulation types of QPSK, 16QAM, 64QAM and 256 QAM for LTE and NR. The radio has the ability to be used in a RBS system configured for 3GPP MIMO/Spatial multiplexing, carrier aggregation technologies. This radio will in normal mode operates at a maximum power of 40W per port, the radio has 4 TX/RX ports. The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. If additional information is needed, please contact me on the below listed number. Hua Yang Staff Engineer, Regulatory Programs Ericsson AB Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 8476 7133 e-mail: [email protected]

Ericsson Internal 1 (2) Prepared (also subject responsible if other) No. EHUAYAN TA8AKRC161881-3/ 287AB-AS1618813 Approved Checked Date Rev Reference Hua Yang 2020-07-20 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046, USA Attention: Equipment Authorization Branch Innovation, Science and Economic Development Canada Certification and Engineering Bureau 3701 Carling Avenue, Bldg.94 P.O. Box 11490, Station “H” Ottawa, Ontario K2H 8S2 Canada Subject: Request for Confidentiality FCC ID: TA8AKRC161881-3 IC: 287AB-AS1618813 To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules for FCC and in accordance to RSP- 100 Section 12.4 for ISED. This due to the following reasons: This Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU) / Remote Radio Unit (RRU) / Radio DoT (RD) compared to the previous BS/RU/RRU/RD, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC/ISED records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the BS, RU, RRU and RD, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase our BS/RU/RRU/RD and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 4 Block Diagrams EXHIBIT 9 Internal Photos EXHIBIT 5 Schematics EXHIBIT 10 Parts List EXHIBIT 8 Manuals EXHIBIT 12 Technical Circuit Description Ericsson Internal 2 (2) Prepared (also subject responsible if other) No. EHUAYAN TA8AKRC161881-3/ 287AB-AS1618813 Approved Checked Date Rev Reference Hua Yang 2020-07-20 A If additional information is needed, please contact me on the below listed number. Hua Yang Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 8476 7133 e-mail: [email protected]

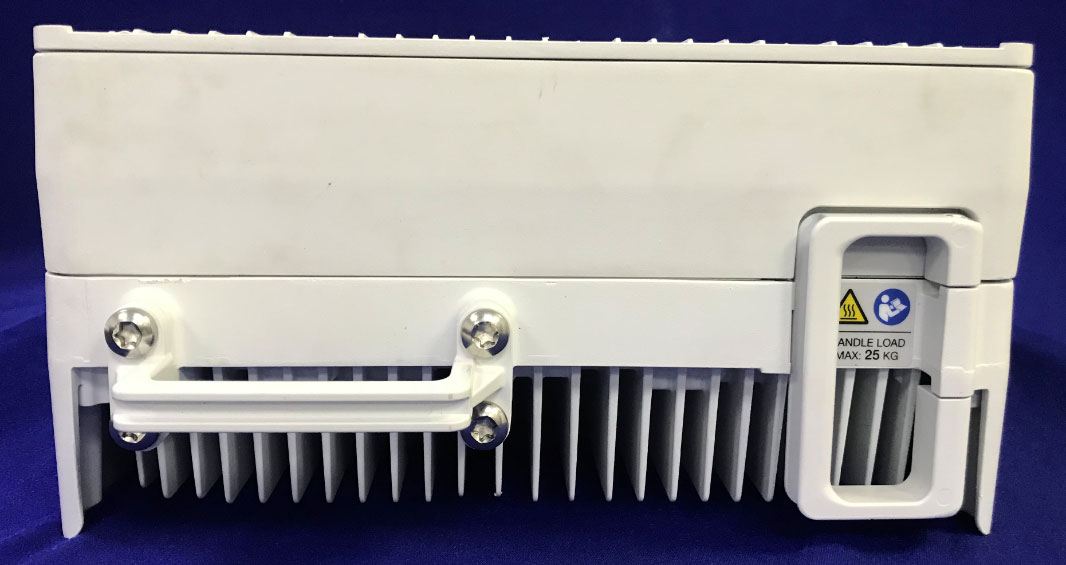

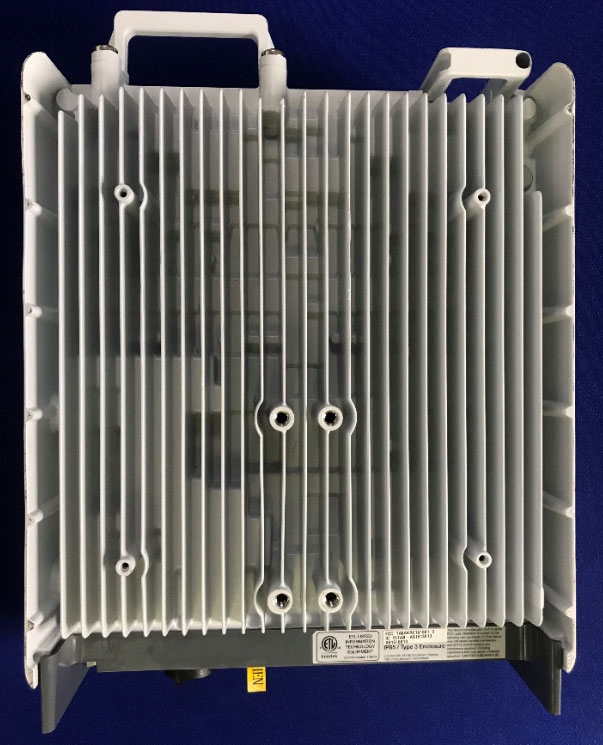

Date Page Exhibit 3 External photos 7/20/2020 1(3) FCC ID: TA8AKRC161881-3 IC: 287AB-AS1618813 Front side Rear side Date Page Exhibit 3 External photos 7/20/2020 2(3) FCC ID: TA8AKRC161881-3 IC: 287AB-AS1618813 Left side Right side Date Page Exhibit 3 External photos 7/20/2020 3(3) FCC ID: TA8AKRC161881-3 IC: 287AB-AS1618813 Top side Bottom side

Date Page Exhibit 1 ID label and placement 7/20/2020 1(1) FCC ID: TA8AKRC161881-3 IC: 287AB-AS1618813 FCC ID: TA8AKRC161881–3 IC: 287AB – AS1618813 AS1618813

Ericsson AB RF TEST REPORT Report Type: FCC Part 27 & RSS-130 RF report PRODUCT NAME: Radio 4478 B12A REPORT NUMBER: 200702203SHA-001 ISSUE DATE: July 15, 2020 DOCUMENT CONTROL NUMBER: TTRFFCC Part 27_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCC Part 27_V1 © 2018 Intertek Page 2 of 176 Report no.: 200702203SHA-001 Applicant: Ericsson AB Isafjordsgatan 10 SE-164 80 Stockholm 16480 Sweden Manufacturer: Ericsson AB Isafjordsgatan 10 SE-164 80 Stockholm 16480 Sweden FCC ID: TA8AKRC161881-3 IC: 287AB-AS1618813 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: FCC CFR 47 Part 27: MISCELLANEOUS WIRELESS COMMUNICATIONS SERVICES ISED RSS-130 Issue 2: Equipment Operating in the Frequency Bands 617-652 MHz, 663-698 MHz, 698- 756 MHz and 777-787 MHz PREPARED BY: REVIEWED BY: Project Engineer Nemo Li Reviewer Daniel Zhao Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 3 of 176 Content REVISION HISTORY................................................................................................................................................ 4 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 6 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 7 1.3 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 8 2 TEST SPECIFICATIONS ................................................................................................................................... 9 2.1 RELATED DOCUMENTS .......................................................................................................................................... 9 2.2 PRODUCT INFORMATION ....................................................................................................................................... 9 2.3 CONFIGURATION DESCRIPTION ............................................................................................................................. 10 2.4 TEST SETUP ...................................................................................................................................................... 14 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 16 2.6 INSTRUMENT LIST .............................................................................................................................................. 17 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 19 3 MAXIMUM OUTPUT POWER AND PEAK TO AVERAGE POWER RATIO AND EIRP ........................................ 20 3.1 LIMIT .............................................................................................................................................................. 20 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 20 3.3 MEASUREMENT RESULT ...................................................................................................................................... 21 4 OCCUPIED BANDWIDTH ............................................................................................................................ 28 4.1 MEASUREMENT PROCEDURE ............................................................................................................................... 28 4.2 MEASUREMENT RESULT ...................................................................................................................................... 29 5 UNWANTED EMISSIONS AT BAND EDGE .................................................................................................... 50 5.1 LIMIT .............................................................................................................................................................. 50 5.2 MEASUREMENT PROCEDURE ............................................................................................................................... 50 5.3 MEASUREMENT RESULT ...................................................................................................................................... 51 6 CONDUCTED UNWANTED EMISSION…

Text truncated - open the document above for the full version.

Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 77 of 176 Antenna Port Channel Position Modulation LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 10 30 -19 100 -19 D T QPSK 10 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 78 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 79 of 176 Antenna Port Channel Position Modulation LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 15 30 -19 100 -19 D T QPSK 15 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 80 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 81 of 176 Configuration NB-IoT-GuardBand-1C-BE Antenna Port Channel Position Modulation LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 10 30 -19 100 -19 D T QPSK 10 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 82 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 83 of 176 Antenna Port Channel Position Modulation LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 15 30 -19 100 -19 D T QPSK 15 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 84 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 85 of 176 Configuration NR+LTE-MC-1-BE Antenna Port Channel Position NR Modulation LTE Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK QPSK 5 5 30 -19 100 -19 D T QPSK QPSK 5 5 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 86 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 87 of 176 Antenna Port Channel Position NR Modulation LTE Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK QPSK 5 10 30 -19 100 -19 D T QPSK QPSK 5 10 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 88 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 89 of 176 Antenna Port Channel Position NR Modulation LTE Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK QPSK 10 5 30 -19 100 -19 D T QPSK QPSK 10 5 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 90 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 91 of 176 Configuration NR+LTE-MC-2-BE Antenna Port Channel Position NR Modulation LTE Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK QPSK 5 5 30 -19 100 -19 D T QPSK QPSK 5 5 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 92 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 93 of 176 Configuration NR+NB-IoT-MC-1-BE Antenna Port Channel Position Modulation NR Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 30 -19 100 -19 D T QPSK 5 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 94 of 176 Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 95 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 96 of 176 Configuration NR+NB-IoT-MC-2-BE Antenna Port Channel Position Modulation NR Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 30 -19 100 -19 D T QPSK 5 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 97 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 98 of 176 Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 99 of 176 Configuration LTE+NB-IoT-MC-1-BE Antenna Port Channel Position Modulation LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 30 -19 100 -19 D T QPSK 5 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 100 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 101 of 176 Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 102 of 176 Configuration LTE+NB-IoT-MC-2-BE Antenna Port Channel Position Modulation LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 30 -19 100 -19 D T QPSK 5 30 -19 100 -19 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 103 of 176 Channel Position T

Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 130 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 131 of 176 Configuration LTE-MIMO-3C Antenna Port Channel Position LTE Modulation LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 1000 -19 D M QPSK 5 1000 -19 D T QPSK 5 1000 -19 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 132 of 176 Configuration NB-IoT-Standalone-1C Antenna Port Channel Position Modulation NB Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 0.2 1000 -16 D M QPSK 0.2 1000 -16 D T QPSK 0.2 1000 -16 Channel Position B Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 133 of 176 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 134 of 176 Channel Position T Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 135 of 176 Configuration NB-IoT-Standalone-2C Antenna Port Channel Position Modulation NB Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 0.2 1000 -16 D M QPSK 0.2 1000 -16 D T QPSK 0.2 1000 -16 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 136 of 176 Configuration NB-IoT-InBand-1C Antenna Port Channel Position Modulation LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 1000 -19 D M QPSK 5 1000 -19 D T QPSK 5 1000 -19 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 137 of 176 Configuration NB-IoT-GuardBand-1C Antenna Port Channel Position Modulation LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 10 1000 -19 D M QPSK 10 1000 -19 D T QPSK 10 1000 -19 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 138 of 176 Configuration NR+LTE-MC-1 Antenna Port Channel Position Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 5 1000 -19 D M QPSK 5 5 1000 -19 D T QPSK 5 5 1000 -19 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 139 of 176 Configuration NR+LTE-MC-2 Antenna Port Channel Position Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 5 1000 -19 D M QPSK 5 5 1000 -19 D T QPSK 5 5 1000 -19 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 140 of 176 Configuration NR+NB-IoT-MC-1 Antenna Port Channel Position Modulation NR Channel Bandwidth (MHz) NB Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 0.2 1000 -19 D M QPSK 5 0.2 1000 -19 D T QPSK 5 0.2 1000 -19 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 141 of 176 Configuration NR+NB-IoT-MC-2 Antenna Port Channel Position Modulation NR Channel Bandwidth (MHz) NB Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 0.2 1000 -19 D M QPSK 5 0.2 1000 -19 D T QPSK 5 0.2 1000 -19 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 142 of 176 Configuration LTE+NB-IoT-MC-1 Antenna Port Channel Position Modulation LTE Channel Bandwidth (MHz) NB Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 0.2 1000 -19 D M QPSK 5 0.2 1000 -19 D T QPSK 5 0.2 1000 -19 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 143 of 176 Configuration LTE+NB-IoT-MC-2 Antenna Port Channel Position Modulation LTE Channel Bandwidth (MHz) NB Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 0.2 1000 -19 D M QPSK 5 0.2 1000 -19 D T QPSK 5 0.2 1000 -19 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 144 of 176 Configuration NR+LTE+NB-IoT-MC-1 Antenna Port Channel Position Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 5 1000 -19 D M QPSK 5 5 1000 -19 D T QPSK 5 5 1000 -19 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 145 of 176 Configuration NR+LTE+NB-IoT-MC-2 Antenna Port Channel Position Modulation NR Channel Bandwidth (MHz) LTE Channel Bandwidth (MHz) RBW (kHz) Limit (dBm) D B QPSK 5 5 1000 -19 D M QPSK 5 5 1000 -19 D T QPSK 5 5 1000 -19 Channel Position M Report No.: 200702203SHA-001 TEST REPORT TTRFFCC Part 27_V1 © 2018 Intertek Page 146 of 176 7 Radiated Unwanted Emission Test result: Pass 7.1 Limit The field strength of the carrier has been calculated assuming that the power is to be fed to a half-wave tuned dipoles as per 2.1053 (a). E(V/m) = (30 x Gi x Po ) 0.5 / d Where Gi is the antenna gain of ideal half-wave dipoles, Po is the power out of the transceiver in W, d is the measurement distance in meter. As per FCC Part 27, the power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. Therefore, the limit at 3m measurement distance is: E(V/m) = 84.4 dBμV/m These limits have been used to determine Pass or Fail for the harmonics measured and detailed in the following results. 7.2 Measurement Procedure This measurement is carried out in semi-anechoic chamber. A preliminary profile of the Spurious Radiated Emissions was obtained by operating the EUT on a remotely controlled turntable within the chamber. Measurements of emissions from the EUT were obtained with the measurement antenna in both horizontal and vertical polarizations. Emissions identified within the range 30MHz to 8GHz were then formally measured using a peak detector as the worst case. The limits for outside a licensee’s frequency band(s) of operation the power of the spurious emissions have been calculated, as shown below using the following formula: Field Strength of Carrier - (43 + 10Log (P)) dB Where: Field St…

Text truncated - open the document above for the full version.

FCC ID: TA8AKRC161881-3 IC: 287AB-AS1618813 Page 1 of 2 Test Setup FCC ID: TA8AKRC161881-3 IC: 287AB-AS1618813 Page 2 of 2 1. Radiated Emission 30-1000MHz 1-8GHz
