TA8AKRC161884-1Multi-standard Remote Radio

Ericsson Internal EXHIBIT 13 1 (2) Prepared (also subject responsible if other) No. EWAGTIG TA8AKRC161884-1/287AB-AS1618841 Approved Checked Date Rev Reference Tingting Wang 2020-05-20 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046, USA Attention: Equipment Authorization Branch Innovation, Science and Economic Development Canada Certification and Engineering Bureau 3701 Carling Avenue, Bldg.94 P.O. Box 11490, Station “H” Ottawa, Ontario K2H 8S2 Canada Subject: Request for Confidentiality FCC ID: TA8AKRC161884-1 IC: 287AB-AS1618841 To Whom It May Concern: We, Ericsson AB, hereby request that the Exhibits/Items listed below be withheld from public inspection in accordance with Sections 0.457 and 0.459 of the Commission’s Rules for FCC and in accordance to RSP- 100 Section 9.4 for ISED. This due to the following reasons: This Base Stations (BS) are designed strictly based on the technical specifications of the international project 3GPP (the 3rd Generation Partnership Project). The competition in this field is very intense and a less advanced solution/design could get an unfair advantage by accessing the information as listed below from common domain. As we believe that we have implemented groundbreaking solutions and designs into our recent BS/Radio Unit (RU) / Remote Radio Unit (RRU) / Radio DoT (RD) compared to the previous BS/RU/RRU/RD, the listed Exhibits/Items need to be protected from disclosure to our competitors in the industry. As the FCC/ISED records have in-depth information and a very wide distribution, we believe that you can understand our concerns. We are strong in our belief that all vendors in the industry need to compete by their own merits. We regard these Exhibits/Items to be our intellectual property and therefore as confidential information. There are advanced technical and design solutions/information in the Exhibits/Items, as mentioned above, that we regard as Ericsson proprietary, with actual and potential patents pending. The information can be advantageous to our competitors as well as sources seeking ways to hack past the built in security functionality. These solutions or information thereof are not accessible even for our customers or partners unless non-disclosure agreements for particular item(s) have been signed. Confidential product information can be found in, but not necessarily limited to, internal photos of the BS, RU, RRU and RD, block diagrams, schematics diagrams, and parts lists as well as certain documents, such as the user’s manuals. Those documents can only be accessible by the customers who purchase our BS/RU/RRU/RD and accept the conditions and therefore are provided with unique information access tools. EXHIBIT 4 Block Diagrams EXHIBIT 9 Internal Photos EXHIBIT 5 Schematics EXHIBIT 10 Parts List EXHIBIT 8 Manuals EXHIBIT 12 Technical Circuit Description Ericsson Internal EXHIBIT 13 2 (2) Prepared (also subject responsible if other) No. EWAGTIG TA8AKRC161884-1/287AB-AS1618841 Approved Checked Date Rev Reference Tingting Wang 2020-05-20 A We, Ericsson AB hereby authorize BABT and ISED Canada to publish all or part of the following information on the IC website: Certification number; Company number; previous certification number (if applicable); Company name; Company contact information (name, address, email, fax, phone); Manufacturer (name, contact person address, email, fax phone): Representative in Canada; Model name and/or number as it appears on the product; Specification or standard code and issue number; Type of equipment (equipment category); Test Lab name, address, ID#, OATS filing reference number; Test Lab report number and date; List of accessories with which the equipment was tested; List of operational features; Frequency Range; Emission Designator(s); Nature of signal(s); Type of information being transmitted; Details about the signal(s); Nature of multiplexing; Bandwidth(s); Type of modulation(s); Field strength measured in microvolt per meter @ 3 meters if the antenna is integral to the device or conducted RF Power if the antenna is detachable; and Gain of antenna(s) the device was certified with. Hua Yang Staff Engineer, Regulatory Programs Ericsson AB FCC Registration Number (FRN): 0013476155 Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 8476 7133 e-mail: [email protected]

Ericsson Internal EXHIBIT 13 1 (1) Prepared (also subject responsible if other) No. EWAGTIG TA8AKRC161884-1 Approved Checked Date Rev Reference Tingting Wang 2020-05-21 A Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject: Certification for FCC ID: TA8AKRC161884-1 To Whom It May Concern: Ericsson AB requests a Grant of Certification (Type Acceptance) for the above mentioned FCC Identifier. The radio operates in the Cellular band as per 47 CFR Part 22 and Part 90. This radio (Radio 4478 B26) is designed for use WCDMA and LTE cellular telephone system. This FDD radio operates in Band 26, for LTE, the transmitter is from 859 MHz to 894 MHz and the receiver from 814 MHz to 849 MHz; for WCDMA, the transmitter is from 869 MHz to 894 MHz and the receiver from 824 MHz to 849 MHz. It supports radio access technology SR WCDMA, SR LTE, MR LTE + WCDMA. It can support in-band, guard-band and standalone NB-IoT. It supports channel bandwidths of 3.8-5 MHz for WCDMA, 1.4, 3, 5, 10, 15 and 20 MHz for LTE. The radio supports modulation types of QPSK, 16 QAM and 64 QAM for WCDMA, QPSK, 16QAM, 64QAM and 256 QAM for LTE. The radio supports spectrum consisting of two or more sub-blocks separated by sub-block gap(s), NCS (None- Contiguous Spectrum). The radio unit supports carrier aggregation. The radio has the ability to be used in a RBS system configured for 3GPP MIMO/Spatial multiplexing and beam- forming technologies for LTE. This radio will in normal mode operates at a maximum power of 40W per port at the output connector. The radio has 4 TX/RX ports. The Exhibit 8 user manuals submitted with this application is generic and may cover multiple products. This application is only valid for the model specified in the Exhibit 12 circuit description. Ericsson AB requests confidentiality under CFR 0.459 according to attached letter. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. Section 862. If additional information is needed, please contact me on the below listed number. Tingting Wang Staff Engineer, Regulatory Programs Ericsson AB Isafjordsgatan 10 Kista, SE-164 80 Stockholm Sweden Telephone No.: +86 10 8476 7133 e-mail: [email protected]

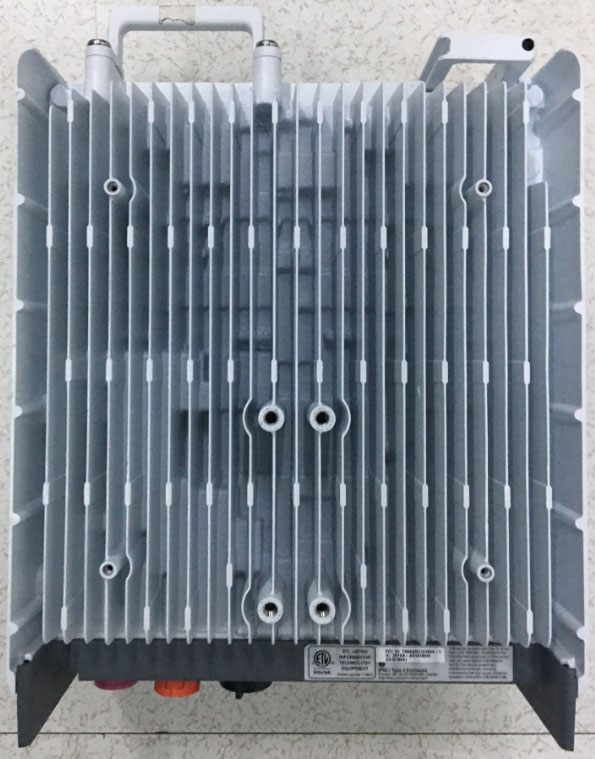

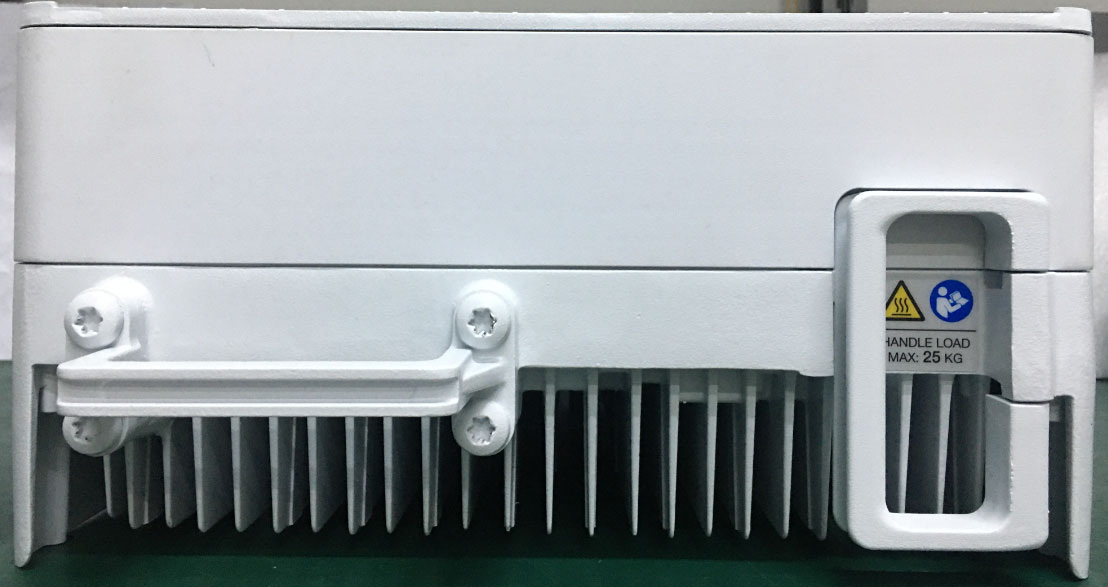

Date Page Exhibit 3 External photos 6/8/2020 1(3) FCC ID: TA8AKRC161884-1 IC: 287AB-AS1618841 Front side Rear side Date Page Exhibit 3 External photos 6/8/2020 2(3) FCC ID: TA8AKRC161884-1 IC: 287AB-AS1618841 Left side Right side Date Page Exhibit 3 External photos 6/8/2020 3(3) FCC ID: TA8AKRC161884-1 IC: 287AB-AS1618841 Top side Bottom side

Date Page Exhibit 1 ID label and placement 6/8/2020 1( 1) FCC ID: TA8AKRC161884-1 IC: 287AB-AS1618841 FCC ID: TA8AKRC161884-1 IC: 287AB-AS1618841 AS1618841

No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. TEST REPORT No.I20Z60238-WMD01 for Ericsson AB Radio 4478 B26 KRC 161 884/1 Remote Radio Unit FCC ID: TA8AKRC161884-1 In accordance with FCC CFR 47 Part 90 Issued Date: 2020-06-09 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel: +86(0)10-62304633-2512, Fax: +86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 2 of 102 REPORT HISTORY Report Number Revision Description Issue Date I20Z60238-WMD01 Rev.0 1 st edition 2020-06-09 Note: the latest revision of the test report supersedes all previous version. No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 3 of 102 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 4 1.1. INTRODUCTION & ACCREDITATION ...................................................................................... 4 1.2. TESTING LOCATION .................................................................................................................... 4 1.3. PROJECT DATE .............................................................................................................................. 5 1.4. SIGNATURE ..................................................................................................................................... 5 2. CLIENT INFORMATION ................................................................................................................... 6 2.1. APPLICANT INFORMATION ....................................................................................................... 6 2.2. MANUFACTURER INFORMATION ............................................................................................ 6 3. EQUIPMENT UNDER TEST (EUT) .................................................................................................. 7 3.1. ABOUT EUT ..................................................................................................................................... 7 3.2. GENERAL DESCRIPTION ............................................................................................................ 8 3.3. CONFIGURATION DESCRIPTION ............................................................................................. 9 4. REFERENCE DOCUMENTS ........................................................................................................... 12 4.1. REFERENCE DOCUMENTS FOR TESTING ........................................................................... 12 5. TEST SETUP ...................................................................................................................................... 13 6. LABORATORY ENVIRONMENT ................................................................................................... 14 7. SUMMARY OF TEST RESULTS ..................................................................................................... 15 8. TEST EQUIPMENT UTILIZED ...................................................................................................... 16 9. MEASUREMENT UNCERTAINTY ................................................................................................ 16 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 17 A.1 MAXIMUM OUTPUT POWER AND PEAK TO AVERAGE POWER RATIO - EIRP CALCULATION ............... 17 A.2 OCCUPIED BANDWIDTH ...................................................................................................................... 30 A.3 SPURIOUS EMISSIONS AT BAND EDGE ................................................................................................. 43 A.4 CONDUCTED SPURIOUS EMISSION ...................................................................................................... 71 A.5 RADIATED SPURIOUS EMISSION .......................................................................................................... 94 A.6 FREQUENCY STABILITY .................................................................................................................... 100 ANNEX B: ACCREDITATION CERTIFICATE ................................................................................... 102 No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 4 of 102 1. Test Laboratory 1.1. Introduction & Accreditation Telecommunication Technology Labs, CAICT is an ISO/IEC 17025:2005 accredited test laboratory under NATIONAL VOLUNTARY LABORATORY ACCREDITATION PROGRAM (NVLAP) with lab code 600118-0, and is also an FCC accredited test laboratory (CN5017), and ISED accredited test laboratory (ISED#: 24849). The detail accreditation scope can be found on NVLAP website. 1.2. Testing Location Location 1: CTTL(huayuan North Road) Address: No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191 Location 4: CTTL(BDA) Address: No.18A, Kangding Street, Beijing Economic-Technology Development Area, Beijing, P. R. China 100176 No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 5 of 102 1.3. Project date Testing Start Date: 2020-04-28 Testing End Date: 2020-05-26 1.4. Signature Dong Yuan (Prepared this test report) Zhou Yu (Reviewed this test report) Liu Baodian (Approved this test report) No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 6 of 102 2. Client Information 2.1. Applicant Information Company Name: Ericsson (China) Communications…

Text truncated - open the document above for the full version.

No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 46 of 102 Port A , Channel Position B, 3.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 47 of 102 Port A , Channel Position T, 3.0MHz Port A , Channel Position B, 5.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 48 of 102 Port A , Channel Position T, 5.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 49 of 102 Port A , Channel Position B, 10.0MHz Port A , Channel Position T, 10.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 50 of 102 Configuration LTE-MIMO-2C-BE, QPSK Band Edge Frequency Channel Bandwidth RBW(KHz) Limit(dBm) Channel Position B 1.4 MHz 15 -19.02 3.0 MHz 30 -19.02 5.0 MHz 51 -19.02 Channel Position T 1.4 MHz 15 -19.02 3.0 MHz 30 -19.02 5.0 MHz 51 -19.02 Port A , Channel Position B, 1.4MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 51 of 102 Port A , Channel Position T, 1.4MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 52 of 102 Port A , Channel Position B, 3.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 53 of 102 Port A , Channel Position T, 3.0MHz Port A , Channel Position B, 5.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 54 of 102 Port A , Channel Position T, 5.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 55 of 102 Configuration NB-IoT-InBand-1C-BE, QPSK Band Edge Frequency Channel Bandwidth RBW(KHz) Limit(dBm) Channel Position B 5.0 MHz 51 -19.02 Channel Position T 5.0 MHz 51 -19.02 Port A , Channel Position B, 5.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 56 of 102 Port A , Channel Position T, 5.0MHz Configuration NB-IoT-GuardBand-1C-BE, QPSK Band Edge Frequency Channel Bandwidth RBW (KHz) Limit (dBm) Channel Position B 10.0 MHz 100 -19.02 Channel Position T 10.0 MHz 100 -19.02 No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 57 of 102 Port A , Channel Position B, 10.0MHz Port A , Channel Position T, 10.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 58 of 102 Configuration NB-IoT-Standalone-1C-BE, QPSK Band Edge Frequency Channel Bandwidth RBW (KHz) Limit (dBm) Channel Position B 250KHz 3 -16.01 Channel Position T 250KHz 3 -16.01 Port A , Channel Position B No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 59 of 102 Port A , Channel Position T No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 60 of 102 Configuration NB-IoT-Standalone-2C-BE, QPSK Band Edge Frequency Channel Bandwidth RBW (KHz) Limit (dBm) Channel Position B 250KHz 3 -16.01 Channel Position T 250KHz 3 -16.01 Port A , Channel Position B No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 61 of 102 Port A , Channel Position T Configuration LTE+NB-IoT-MC-3-BE, (1LTE, QPSK+1SA, QPSK) Band Edge Frequency Channel Bandwidth RBW (KHz) Limit (dBm) Channel Position B (NB) 250KHz, (L) 1.4 MHz 3 -19.02 (NB) 250KHz, (L) 3.0 MHz 3 -19.02 (NB) 250KHz, (L) 5.0MHz 3 -19.02 Channel Position T (NB) 250KHz, (L) 1.4 MHz 3 -19.02 (NB) 250KHz, (L) 3.0 MHz 3 -19.02 (NB) 250KHz, (L) 5.0MHz 3 -19.02

No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 62 of 102 Port A , Channel Position B, LTE 1.4MHz Port A , Channel Position T, LTE 1.4MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 63 of 102 Port A , Channel Position B, LTE 3.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 64 of 102 Port A , Channel Position T, LTE 3.0MHz Port A , Channel Position B, LTE 5.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 65 of 102 Port A , Channel Position T, LTE 5.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 66 of 102 Configuration LTE+NB-IoT-MC-4-BE, (1LTE, QPSK+2SA, QPSK) Band Edge Frequency Channel Bandwidth RBW (KHz) Limit (dBm) Channel Position B (NB) 250KHz, (L) 1.4 MHz 3 -19.02 (NB) 250KHz, (L) 3.0MHz 3 -19.02 (NB) 250KHz, (L) 5.0MHz 3 -19.02 Channel Position T (NB) 250KHz, (L) 1.4 MHz 3 -19.02 (NB) 250KHz, (L) 3.0MHz 3 -19.02 (NB) 250KHz, (L) 5.0MHz 3 -19.02 Port A , Channel Position B, LTE 1.4MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 67 of 102 Port A , Channel Position T, LTE 1.4MHz Port A , Channel Position B, LTE 3.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 68 of 102 Port A , Channel Position T, LTE 3.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 69 of 102 Port A , Channel Position B, LTE 5.0MHz Port A , Channel Position T, LTE 5.0MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 70 of 102 No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 71 of 102 A.4 Conducted Spurious Emission A.4.1 Reference FCC CFR 47 Part 2, Clause 2.1051 FCC CFR 47 Part 90, Clause 90.210 A.4.2 Method of measurement In accordance with FCC rules, the power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB. The spurious emissions from the antenna terminal were measured. The transmitter output power was attenuated using an attenuator and the frequency spectrum investigated from 3KHz to 9GHz. The resolution bandwidth of 1MHz was employed for frequency band 3KHz to 9GHz. The spectrum analyzer detector was set to RMS. For MIMO mode configurations, the limit was adjusted with a correction of -6.02dB [10Log(1/4)] by using the Measure and Add 10Log(N) dB technique according to KDB 662911 D01 Multiple Transmitter Output accounting for simultaneous transmission from antenna ports. Then the limit was adjust to -19.02dBm. A.4.3 Measurement limit The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 72 of 102 A.4.4 Measurement results Configuration LTE-MIMO-1C QPSK Channel Bandwidth RBW (MHz) Limit (dBm) 1.4 MHz 1.0 -19.02 3.0 MHz 1.0 -19.02 5.0 MHz 1.0 -19.02 10.0 MHz 1.0 -19.02 Port A, Channel Position B 1.4 MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 73 of 102 Port A, Channel Position M 1.4 MHz Port A, Channel Position T 1.4 MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 74 of 102 Port A, Channel Position B 3.0 MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 75 of 102 Port A, Channel Position M 3.0 MHz Port A, Channel Position T 3.0 MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 76 of 102 Port A, Channel Position B 5.0 MHz No.I20Z60238-WMD01 ©Copyright. All rights reserved by CTTL. Page 77 of 102 Port A, Channel Position M 5.0 MHz Port A, Channel Position T 5.0 MHz

No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. TEST REPORT No.I20Z60238-WMD02 for Ericsson AB Radio 4478 B26 KRC 161 884/1 Remote Radio Unit FCC ID: TA8AKRC161884-1 ISED: 287AB-AS1618841 In accordance with FCC CFR 47 Part 22 and ISED RSS-132: Issue 3 Issued Date: 2020-06-09 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 2 of 197 REPORT HISTORY Report Number Revision Description Issue Date I20Z60238-WMD02 Rev.0 1 st edition 2020-06-09 Note: the latest revision of the test report supersedes all previous version. No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 3 of 197 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 4 1.1. INTRODUCTION & ACCREDITATION ...................................................................................... 4 1.2. TESTING LOCATION .................................................................................................................... 4 1.3. PROJECT DATE .............................................................................................................................. 5 1.4. SIGNATURE ..................................................................................................................................... 5 2. CLIENT INFORMATION ................................................................................................................... 6 2.1. APPLICANT INFORMATION ....................................................................................................... 6 2.2. MANUFACTURER INFORMATION ............................................................................................ 6 3. EQUIPMENT UNDER TEST (EUT) .................................................................................................. 7 3.1. ABOUT EUT ..................................................................................................................................... 7 3.2. GENERAL DESCRIPTION ............................................................................................................ 8 3.3. CONFIGURATION DESCRIPTION ............................................................................................. 9 4. REFERENCE DOCUMENTS ........................................................................................................... 17 4.1. REFERENCE DOCUMENTS FOR TESTING ........................................................................... 17 5. TEST SETUP ...................................................................................................................................... 18 6. LABORATORY ENVIRONMENT ................................................................................................... 19 7. SUMMARY OF TEST RESULTS ..................................................................................................... 20 8. TEST EQUIPMENT UTILIZED ...................................................................................................... 21 9. MEASUREMENT UNCERTAINTY ................................................................................................ 21 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 22 A.1 MAXIMUM OUTPUT POWER AND PEAK TO AVERAGE POWER RATIO - EIRP CALCULATION................ 22 A.2 OCCUPIED BANDWIDTH ...................................................................................................................... 60 A.3 SPURIOUS EMISSIONS AT BAND EDGE ................................................................................................. 82 A.4 CONDUCTED SPURIOUS EMISSION .................................................................................................... 133 A.5 RADIATED SPURIOUS EMISSION ........................................................................................................ 185 A.6 FREQUENCY STABILITY .................................................................................................................... 194 ANNEX B: ACCREDITATION CERTIFICATE ................................................................................... 197 No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 4 of 197 1. Test Laboratory 1.1. Introduction & Accreditation Telecommunication Technology Labs, CAICT is an ISO/IEC 17025:2005 accredited test laboratory under NATIONAL VOLUNTARY LABORATORY ACCREDITATION PROGRAM (NVLAP) with lab code 600118-0, and is also an FCC accredited test laboratory (CN5017), and ISED accredited test laboratory (ISED#: 24849). The detail accreditation scope can be found on NVLAP website. 1.2. Testing Location Location 1: CTTL(huayuan North Road) Address: No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191 Location 4: CTTL(BDA) Address: No.18A, Kangding Street, Beijing Economic-Technology Development Area, Beijing, P. R. China 100176 No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 5 of 197 1.3. Project date Testing Start Date: 2020-04-28 Testing End Date: 2020-05-26 1.4. Signature Dong Yuan (Prepared this test report) Zhou Yu (Reviewed this test report) Liu Baodian (Approved this test report) No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 6 of 197 2. Client Information 2.1. Applicant Information C…

Text truncated - open the document above for the full version.

No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 74 of 197 Port A, 64QAM/3.0MHz Channel Position M Port A, 64QAM/5.0MHz Channel Position M Port A, 64QAM/10.0MHz Channel Position M No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 75 of 197 Port A, 64QAM/15.0MHz Channel Position M Port A, 64QAM/20.0MHz Channel Position M Port A, 256QAM/1.4MHz Channel Position M No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 76 of 197 Port A, 256QAM/3.0MHz Channel Position M Port A, 256QAM/5.0MHz Channel Position M Port A, 256QAM/10.0MHz Channel Position M No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 77 of 197 Port A, 256QAM/15.0MHz Channel Position M Port A, 256QAM/20.0MHz Channel Position M Configuration NB-IoT-Standalone-1C -26dBc Occupied Bandwidth Modulation Occupied Bandwidth (KHz) Channel position B Channel position M Channel position T QPSK 268.0 267.8 269.1 99% Occupied Bandwidth Modulation Occupied Bandwidth (KHz) Channel position B Channel position M Channel position B QPSK 193.15 193.38 193.49 No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 78 of 197 Port A, QPSK Channel Position B Port A, QPSK Channel Position M Port A, QPSK Channel Position T No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 79 of 197 Configuration NB-IoT-InBand-1C -26dBc Occupied Bandwidth Modulation Occupied Bandwidth (MHz) Channel position B Channel position M Channel position T QPSK 4.643 4.641 4.635 99% Occupied Bandwidth Modulation Occupied Bandwidth (MHz) Channel position B Channel position M Channel position T QPSK 4.4688 4.4669 4.4668 Port A, QPSK/5.0MHz Channel Position B Port A, QPSK/5.0MHz Channel Position M No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 80 of 197 Port A, QPSK/5.0MHz Channel Position T Configuration NB-IoT-GuardBand-1C -26dBc Occupied Bandwidth Modulation Occupied Bandwidth (MHz) Channel position B Channel position M Channel position T QPSK 9.652 9.652 9.648 99% Occupied Bandwidth Modulation Occupied Bandwidth (MHz) Channel position B Channel position M Channel position T QPSK 9.4059 9.3978 9.3994 Port A, QPSK/10.0MHz Channel Position B No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 81 of 197 Port A, QPSK/10.0MHz Channel Position M Port A, QPSK/10.0MHz Channel Position T No.I20Z60238-WMD02 ©Copyright. All rights reserved by CTTL. Page 82 of 197 A.3 Spurious Emissions at Band Edge A.3.1 Reference FCC CFR 47 Part 2, Clause 2.1051 FCC CFR 47 Part 22, Clause 22.917 RSS-132, Clause 5.5 A.3.2 Method of measurement The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. For MIMO mode configurations, the limit was adjusted with a correction of -6.02dB [10Log(1/4)] by using the Measure and Add 10Log(N) dB technique according to KDB 662911 D01 Multiple Transmitter Output accounting for simultaneous transmission from antenna ports . Then the limit was adjusted to -19.02dBm. In the 1 MHz bands immediately outside and adjacent to the frequency block, a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed and a RBW of 1MHz for measurements of emissions > 1MHz away from the band edges. The limit was adjusted with -13.01dB [10Log(50/1000)] to compensate for the reduced measurement bandwidth 50KHz for emission more than 1MHz away from the band edges. For MIMO mode, the limit of -32.03dBm was used. Spectrum analyzer detector was set as RMS. A.3.3 Measurement limit The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) …

Text truncated - open the document above for the full version.
